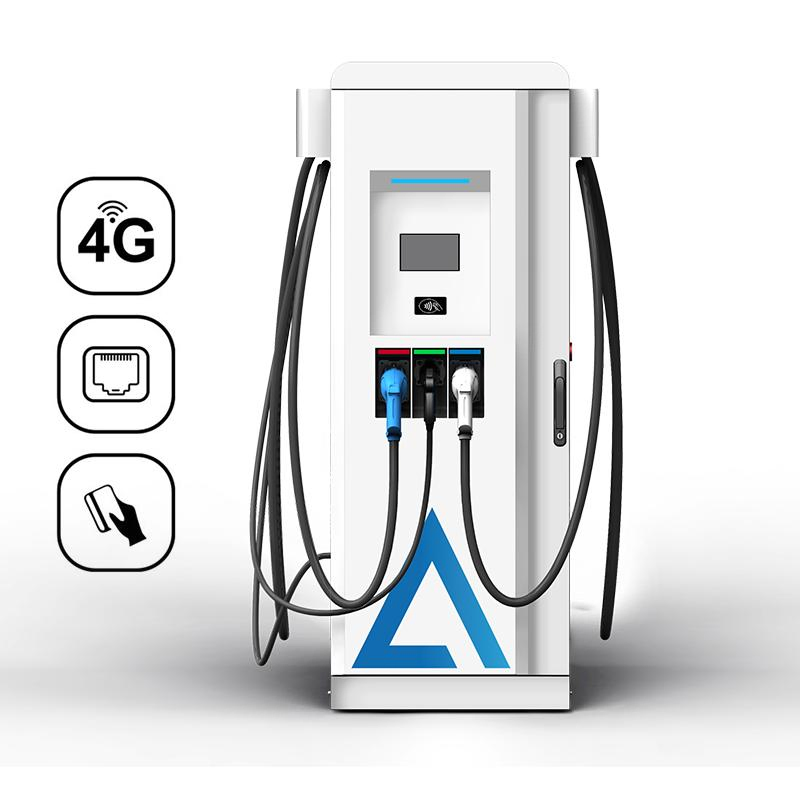

OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station
OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station
OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station
OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station
OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station
1 / 5
OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station
OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station
OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station
OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station
OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station

OEM Level3 Ocpp1.6 DC Fast Charger EV Charging Station

Customization: Available
Installation: Floor Type
Location: Public Use
Send Inquiry

Product Description

Overview & Basic Information
Model NO.
EF160
Charging Interfaces
Multiple Charges
Function
RFID Supported
OCPP
Ocpp1.6j Supported
Screen
7 Inch Touch Screen
Protection Grade
IP54, IK10
Charging Type
Mode 4
Standard
IEC 61851-1, IEC 61851-23, CHAdeMO
Type
Fast EV Charging Station
Certification
CE, TUV
Warranty
12 Months
Origin
China
Product Display

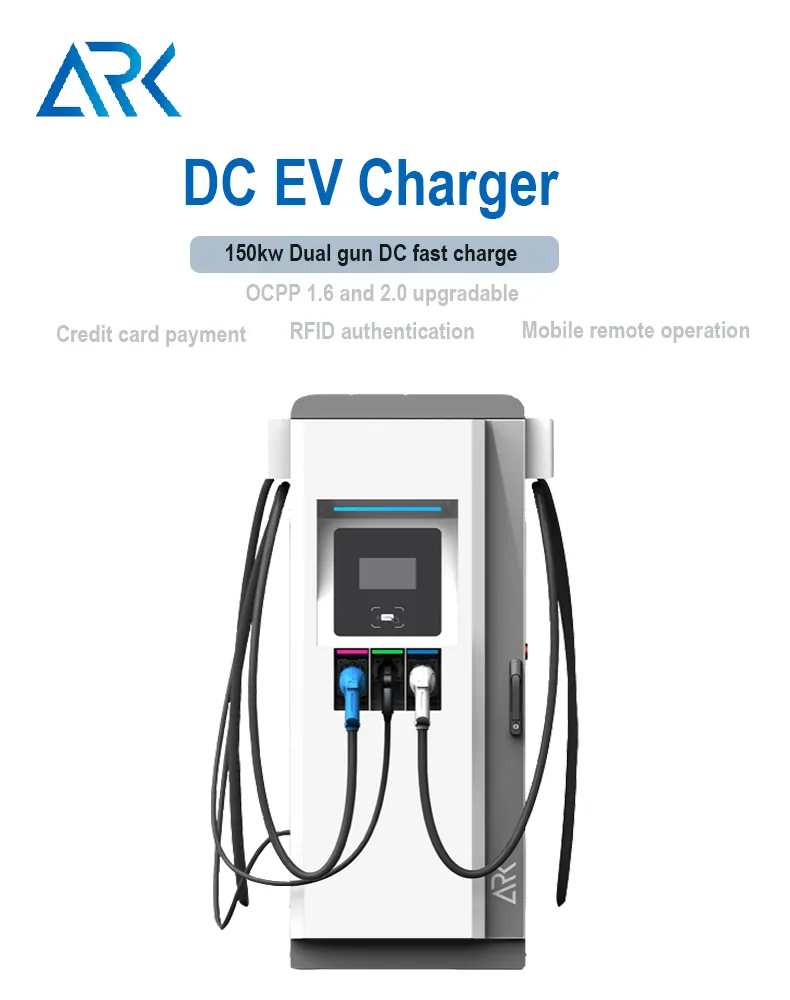

DC Fast Charger EV Charging Station
EV Charging Station Structure

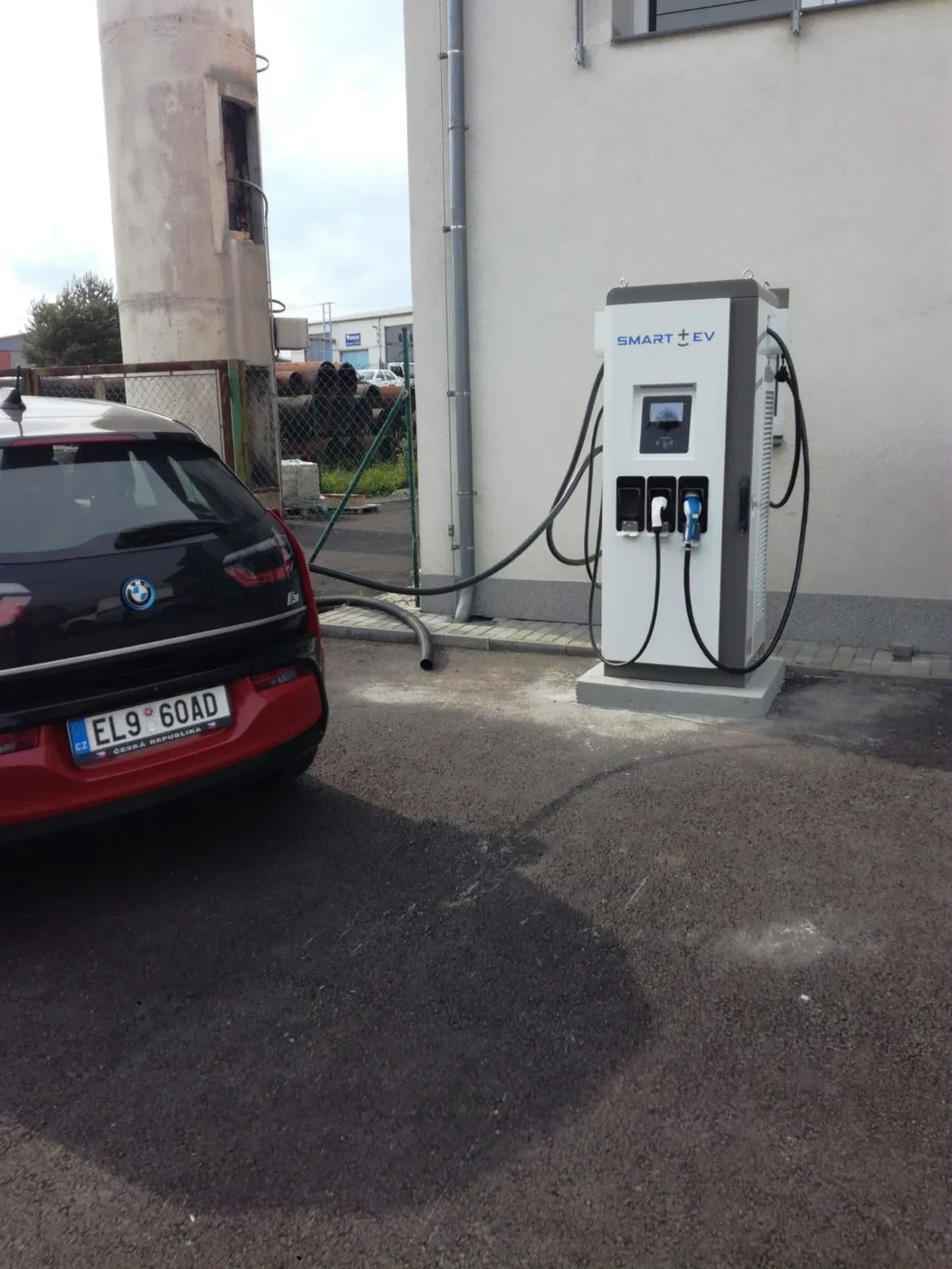

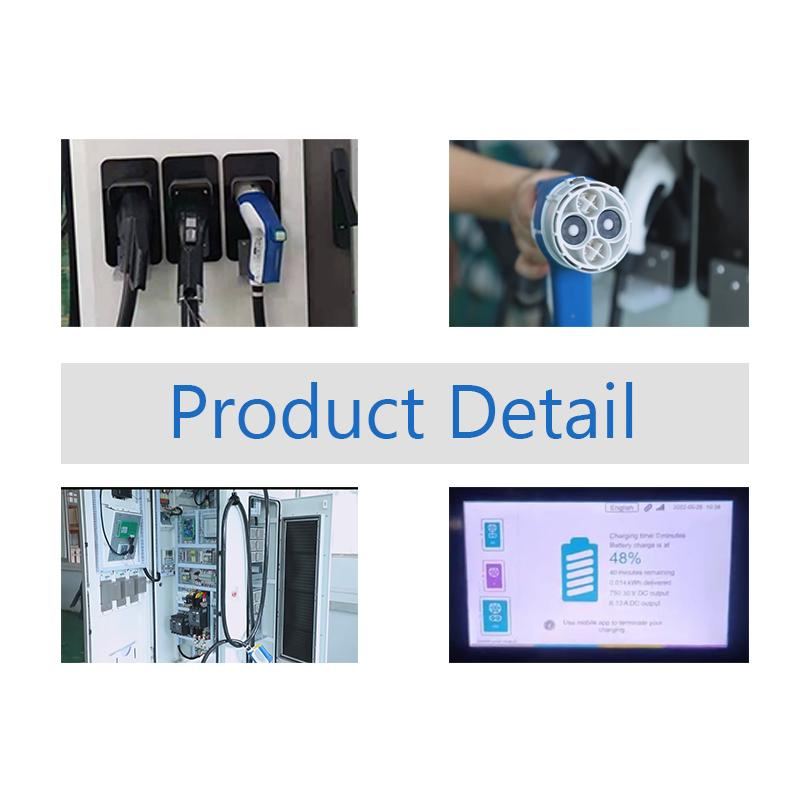

EV Charger Detail

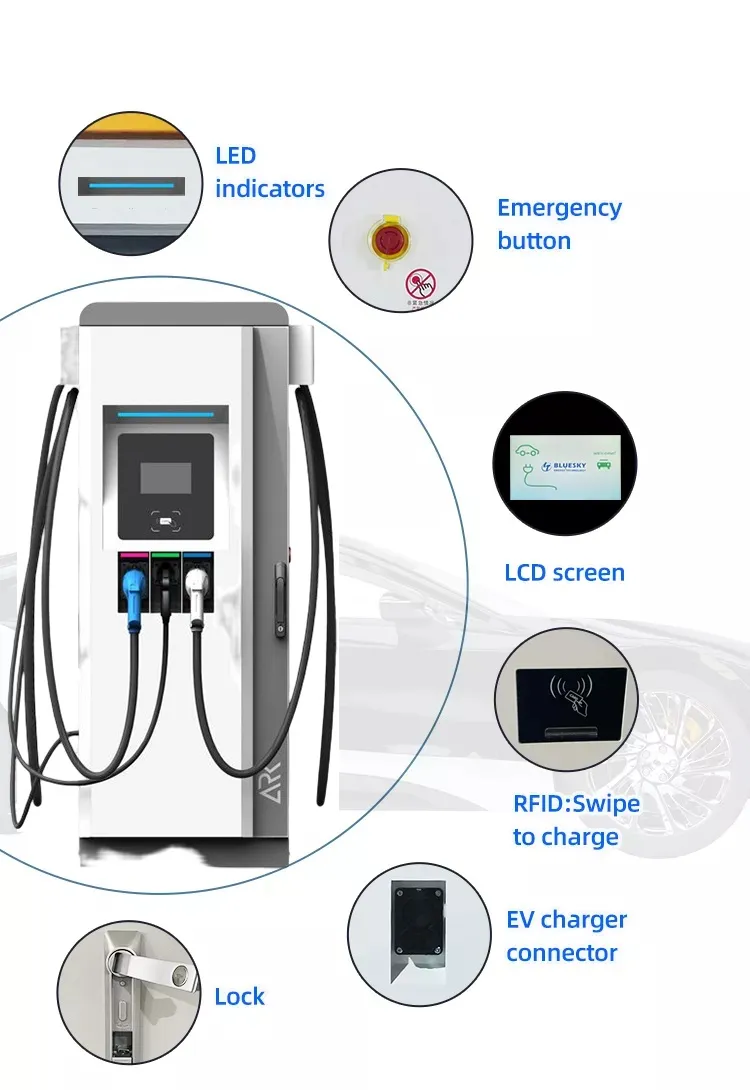

Fast Charger Components

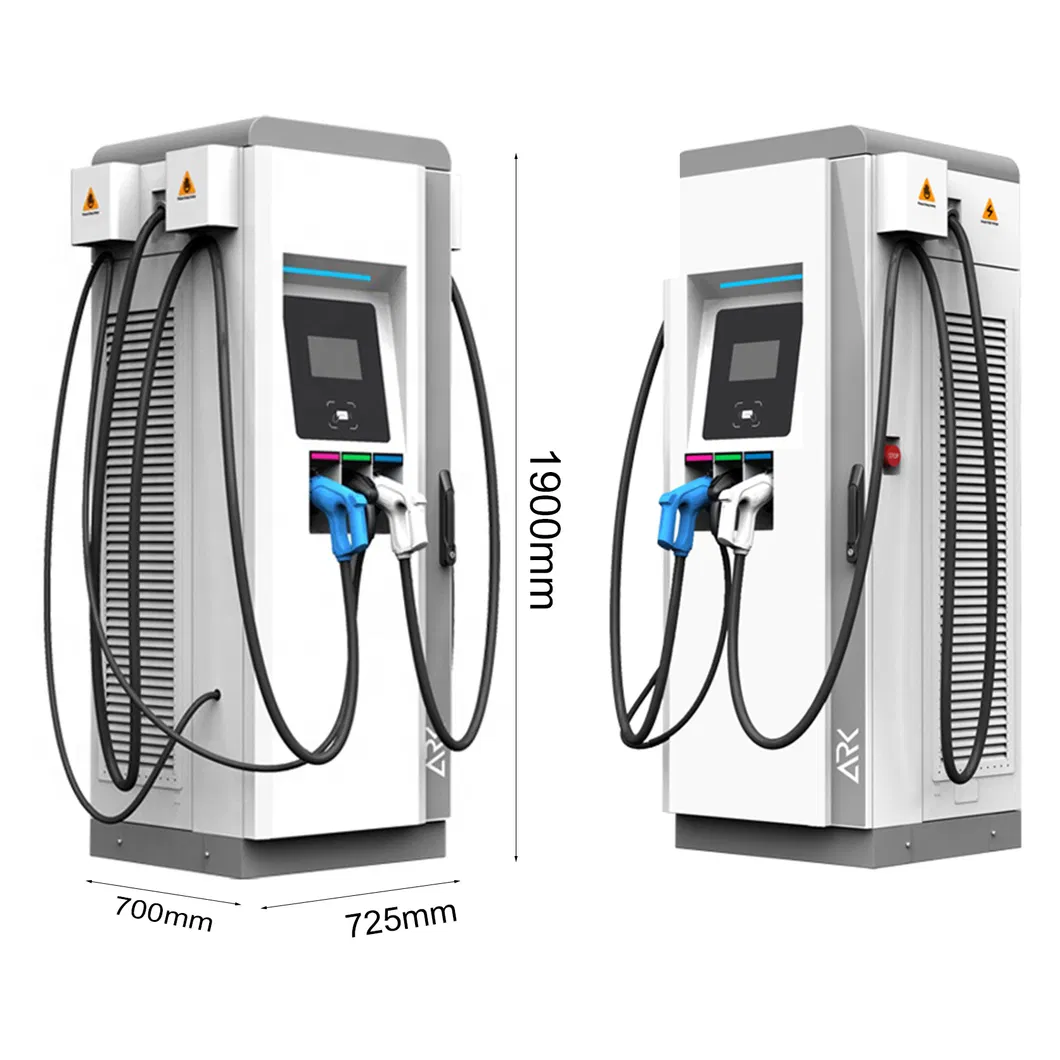

Charging Interface

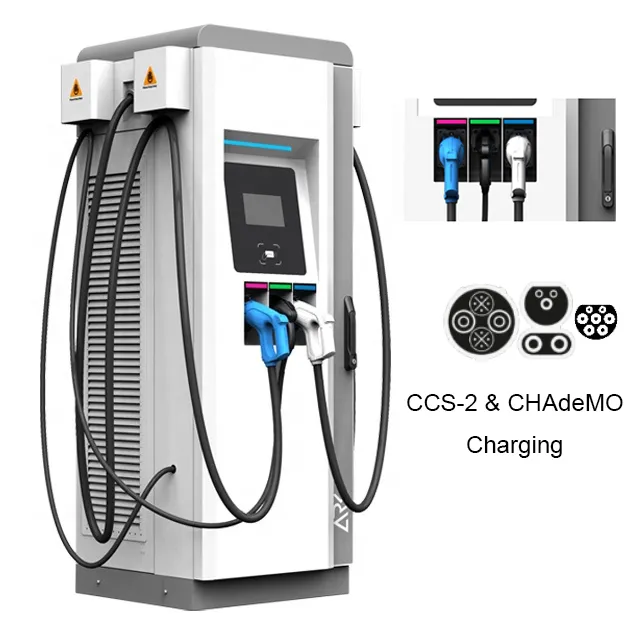

Smart EV Charger
Technical Specifications
Electrical Specifications
Input Voltage400Vac 3-phase
Input Frequency50Hz/60Hz
Rated Power60kW or 120KW DC
Output VoltageCCS: 200 - 1000VDC, CHAdeMO: 200 - 500VDC
Output CurrentCCS: 0 - 200A, CHAdeMO: 0 - 125A
Efficiency≥ 94%
Structure & Design
Housing MaterialMetal Case
Dimension1900 x 725 x 700mm
InstallationFloor-stand Type
Weight380kgs
Cable Outlets3
Function & Environment
User InterfaceRFID, 7" Touch Screen, Emergency Button
CommunicationOCPP 1.6, WiFi, 4G, CAN, PLC
Protection GradeIP54
Working Temp-30°C to +55°C
Safety DesignOver/Under Voltage, Overload, Leakage, Lightning Surge Protection
Manufacturing & Quality Control
Production Line

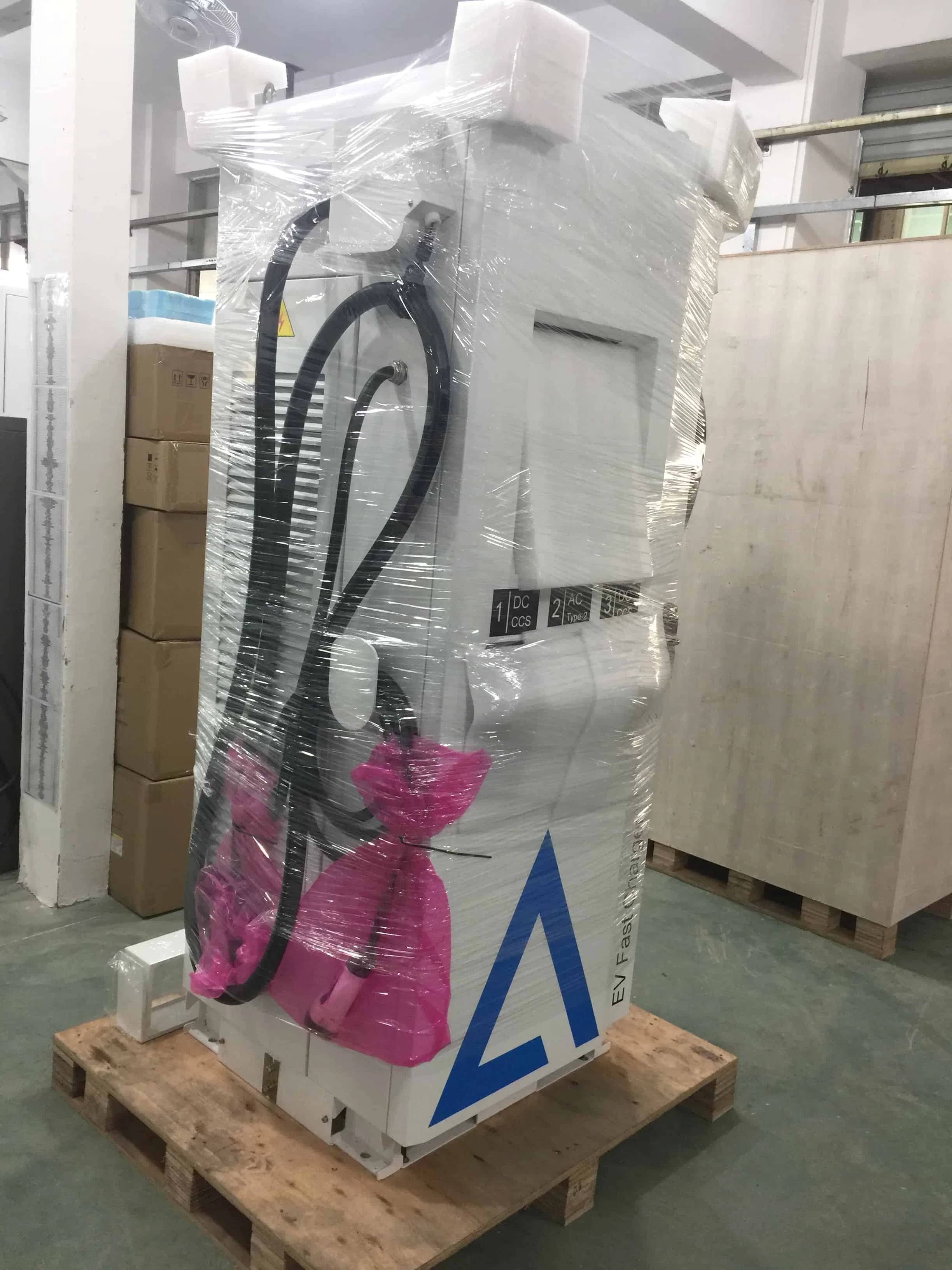

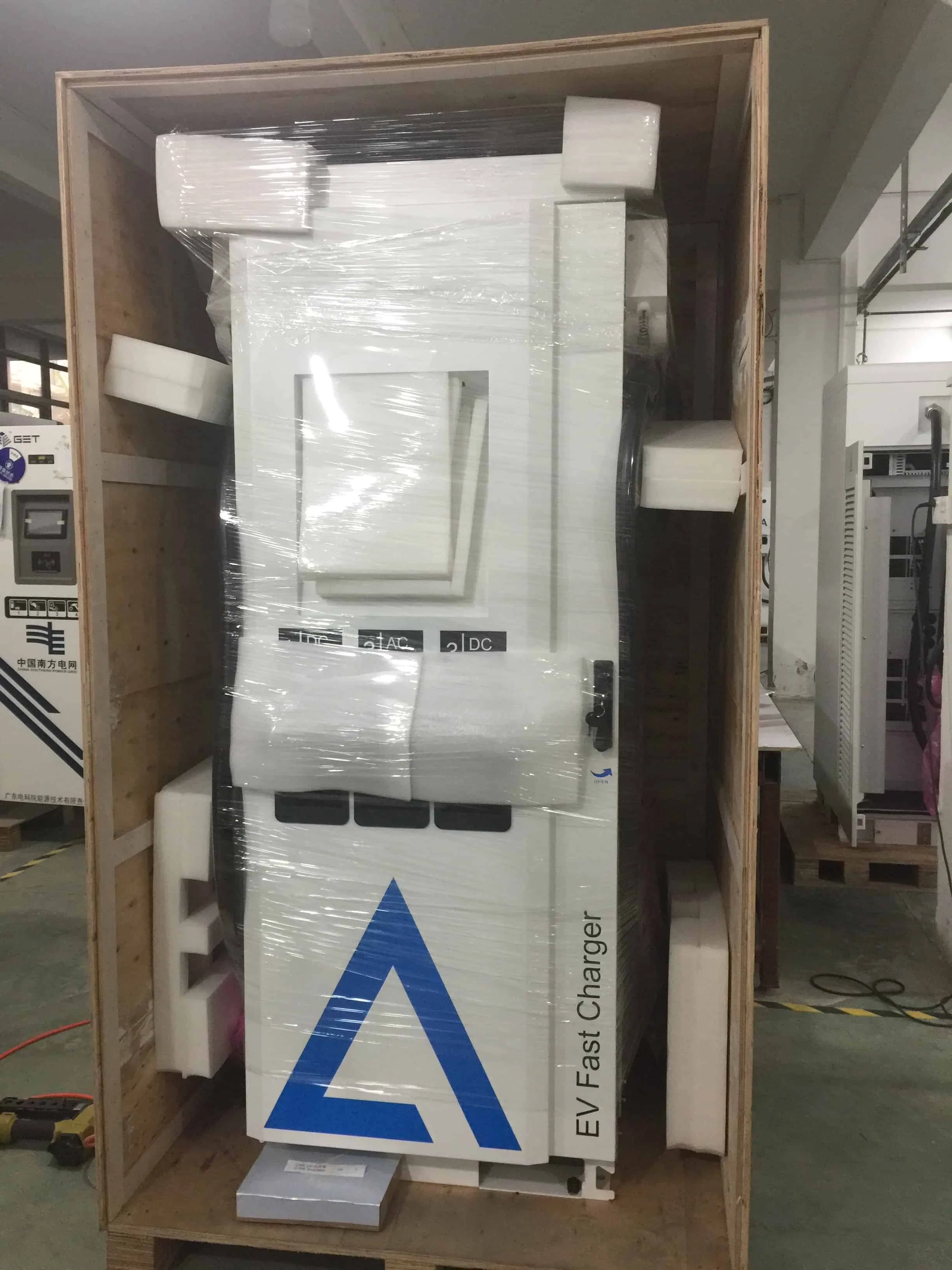

Packaging & Delivery
Packaging Process 1
Packaging Process 2

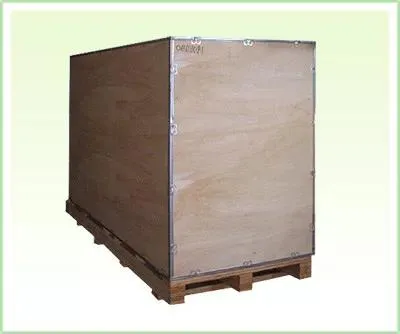

Packaging Process 3
Frequently Asked Questions
Why choose us as your preferred EV Charger supplier?
We offer a professional technical team and a wide range of charging stations compliant with international standards. Our products have passed rigorous laboratory tests and application scenarios. We are among the pioneers capable of achieving both CE and UL certifications.
Do you have experience in overseas charging station projects?
Yes. We have implemented several global projects, including integrating EV chargers with PV systems in the UK, highway installations in the US (LA to San Francisco), and providing fast charging solutions for major automaker fleets.
What are the advantages of your DC fast chargers?
Our chargers feature telecom-level product design, support for multiple standards (CCS-1/2, CHAdeMO, GB/T), wider input/output voltage ranges, superior temperature adaptation, and a highly advanced modular design for easy maintenance and upgrades.
What are the main global DC fast charging standards?
There are 5 main standards: CCS-1 (North America), CCS-2 (Europe), CHAdeMO (Japan), GB/T (China), and Tesla. Our equipment is designed to be compatible with these major international protocols to ensure global usability.
Does higher output power always mean faster charging?
Not necessarily, as it depends on the vehicle's battery capacity and limits. However, high-power chargers are significant because they can support dual connectors to charge two vehicles simultaneously and provide future-proofing as battery technology improves.
How do you provide after-sales support?
We provide comprehensive technical training through written materials, videos, and face-to-face sessions. Our support helps clients master maintenance and parts replacement. For urgent situations, professional technicians are available for on-site support.
