📋 Basic Information
Charging Interfaces
Multiple Charges per Pile
Start Mode
RFID, Credit Card, Mobile App
Dimensions
900mm X 700mm X 1900mm
Connectors
GBT, CCS2, CCS1, CHAdeMO, NACS
Input Voltage
400VAC / 480VAC (3P+N+PE)
Ingress Protection
IP54 / IK10
🚀 Product Description

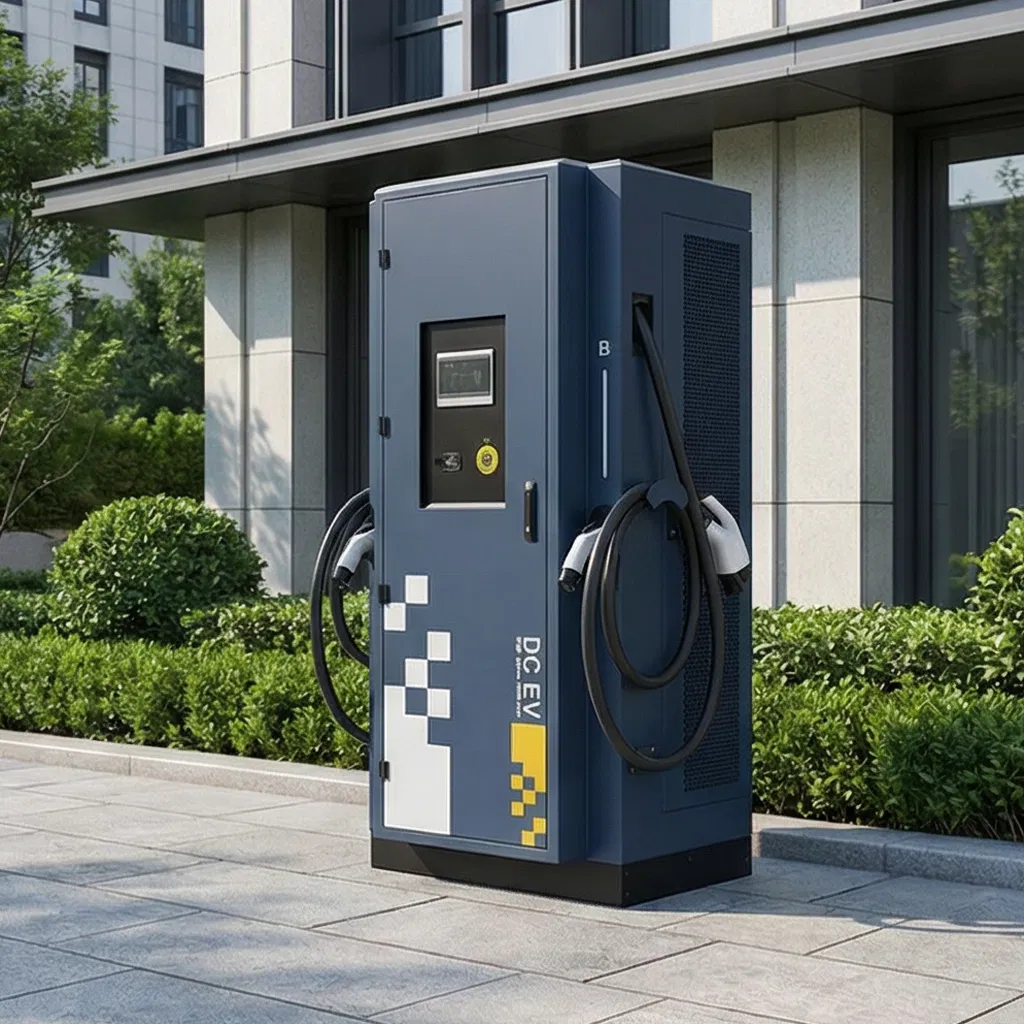

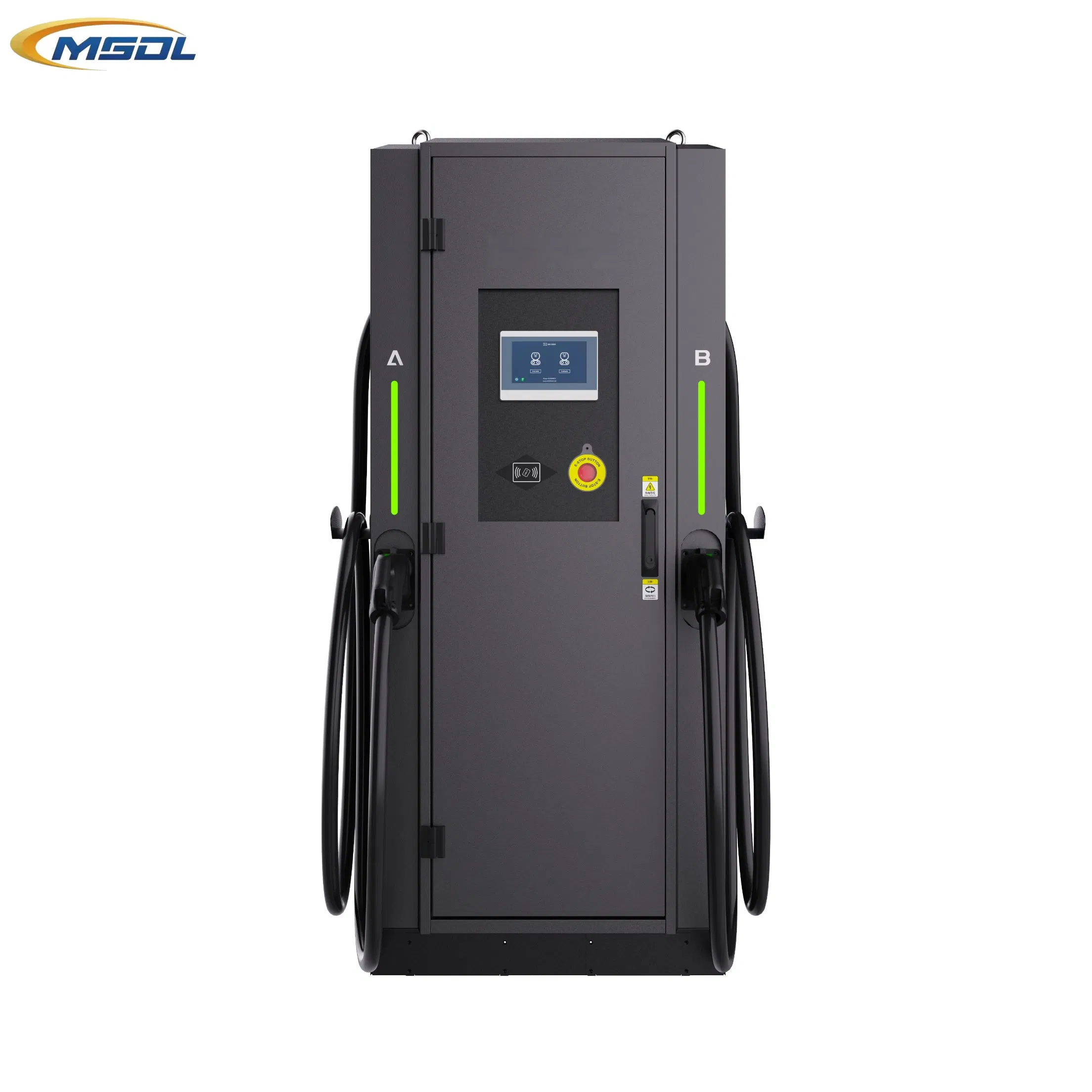

240kW-480kW High-Power Commercial Charging Station
Next-Generation Ultra-High-Performance DC Charging Station: Empowering the Future of Heavy-Duty Electrification.
As the electric vehicle industry, particularly in the commercial vehicle sector, accelerates toward electrification, the demand for efficient, reliable, and high-power charging infrastructure grows increasingly urgent. Our newly launched next-generation ultra-high-performance DC charging station is a milestone product born to meet this era's demands.

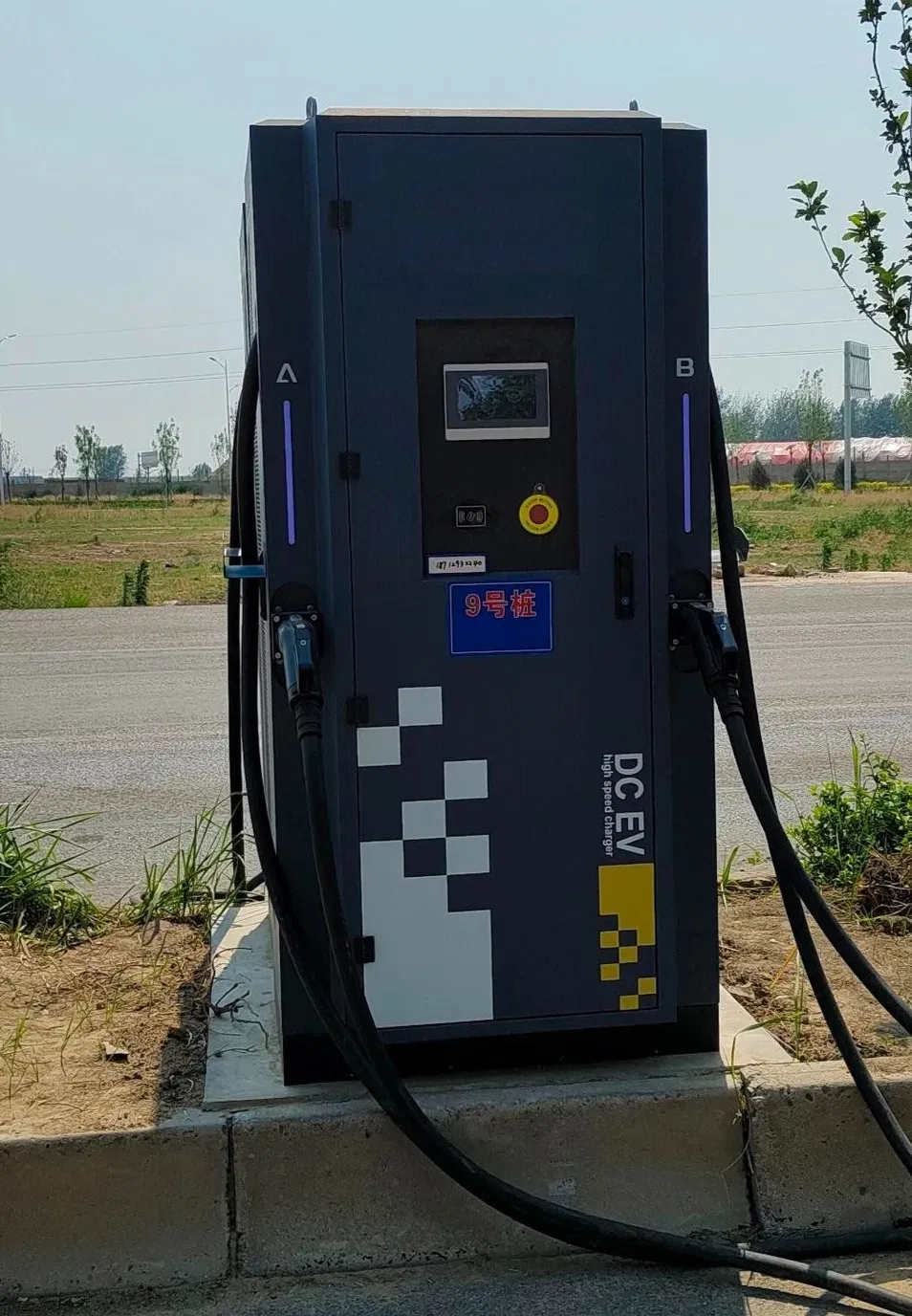

Functional Aesthetics: Its overall form is bold and steady, with a rugged and resolute style. Clean, sharp lines and distinct angular contours exude industrial strength. Whether installed at busy highway supply stations or deployed in complex environments like mines and ports, it provides outstanding physical protection and professional reliability.
Modular Scalability: This product adopts a forward-thinking modular design. It comes standard with 12 high-efficiency power module slots, allowing power capacity to smoothly expand up to an impressive 480kW. This "configure-as-needed" model protects investments and ensures long-term utility.
📊 Technical Specifications
| Appearance |
Dimensions (L x D x H) |
900mm x 700mm x 1900mm |
| Weight |
440kg |
| Cable Length |
5m - 7m |
| Connectors |
GBT, CCS2, CCS1, CHAdeMO, NACS |
| Electrical |
Input Voltage |
400VAC / 480VAC (3P+N+PE) |
| Output Voltage |
200 - 1000VDC |
| Output Current |
1 - 600A |
| Rated Power |
240kW - 480kW |
| Efficiency / Power Factor |
Peak ≥96% / >0.99 |
| Functions |
Display |
7’’ LCD with touch screen |
| Communication |
WIFI / Ethernet / 4G (Optional) |
| Protocol |
OCPP, State Grid, YKC, and more |
| Environment |
Operating Temp |
-30°C to 75°C |
| Protection |
IP54 / IK10 |

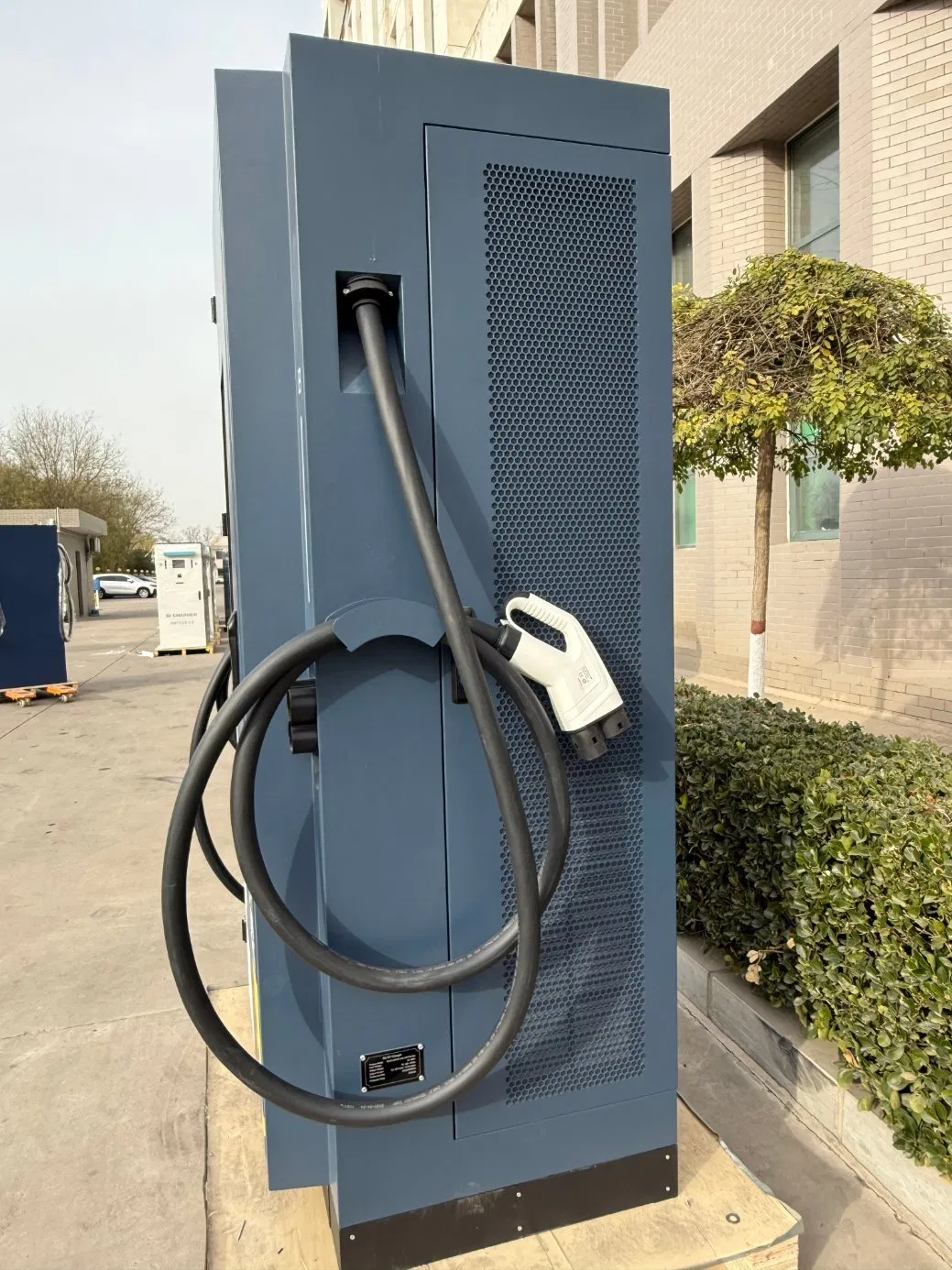

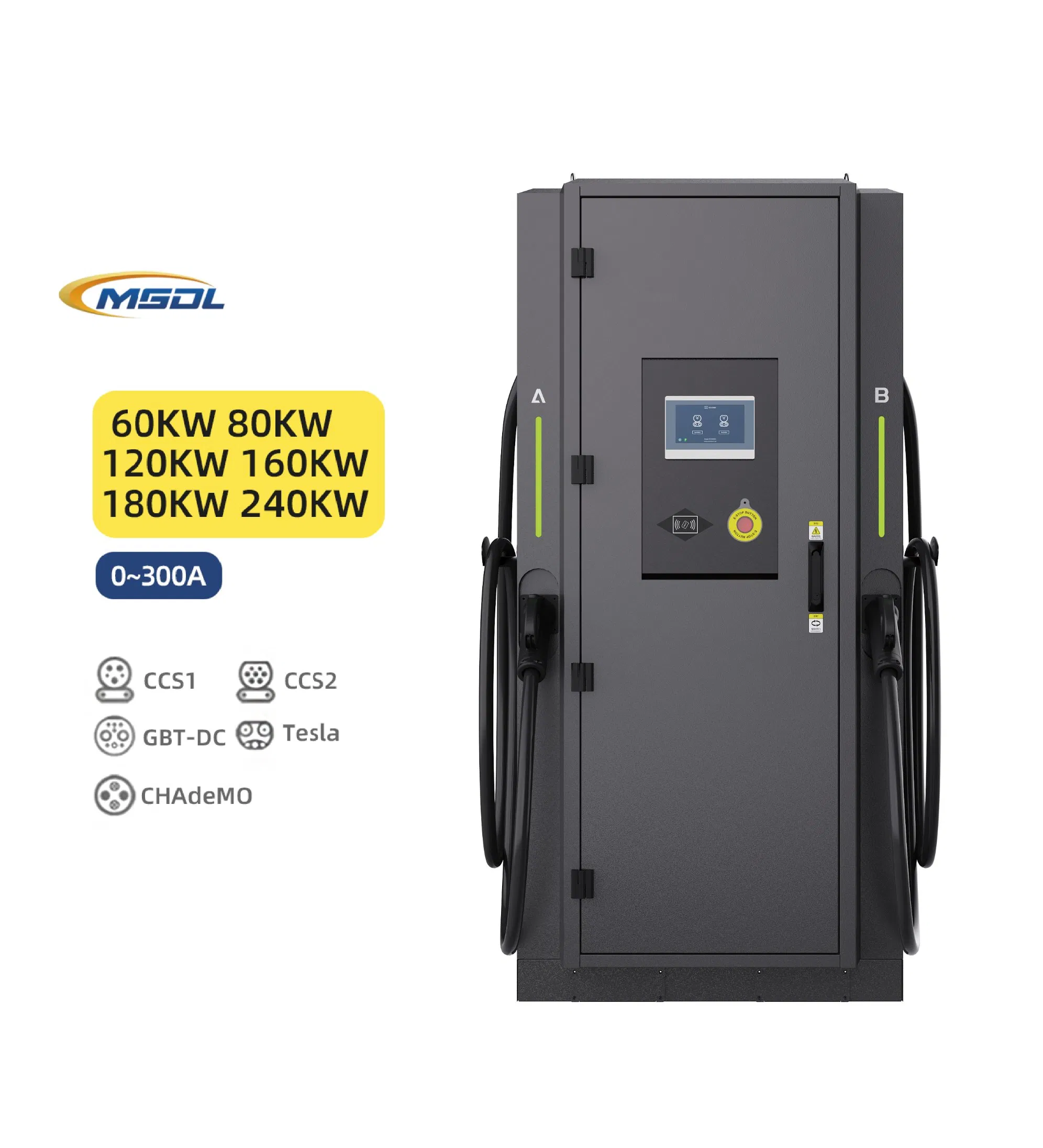

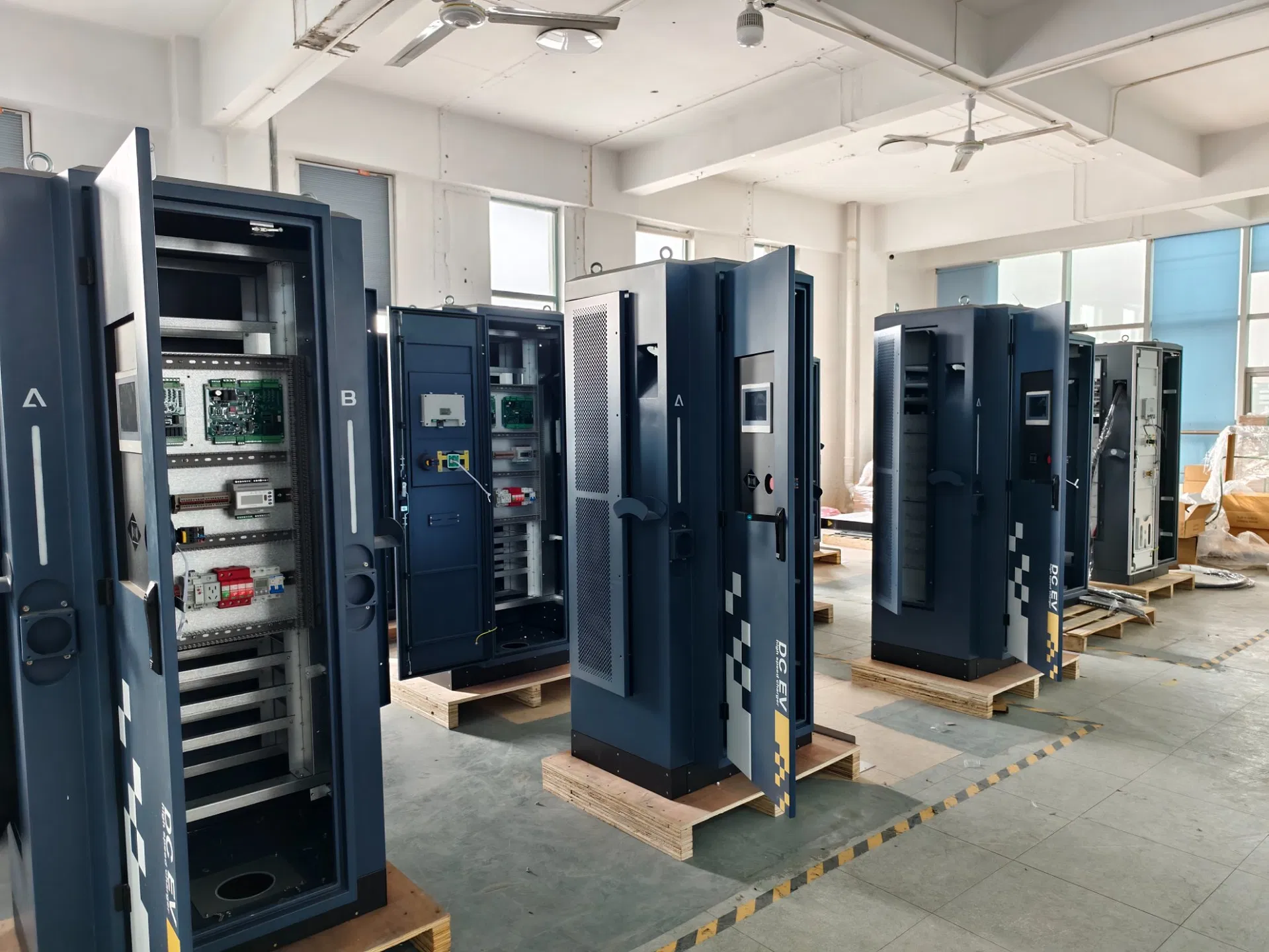

🖼️ Product Showcase
❓ Frequently Asked Questions
1. What is the maximum power output of this charging station?
The station features a modular design that is scalable from 240kW up to a maximum of 480kW, making it ideal for heavy-duty commercial vehicles and trucks.

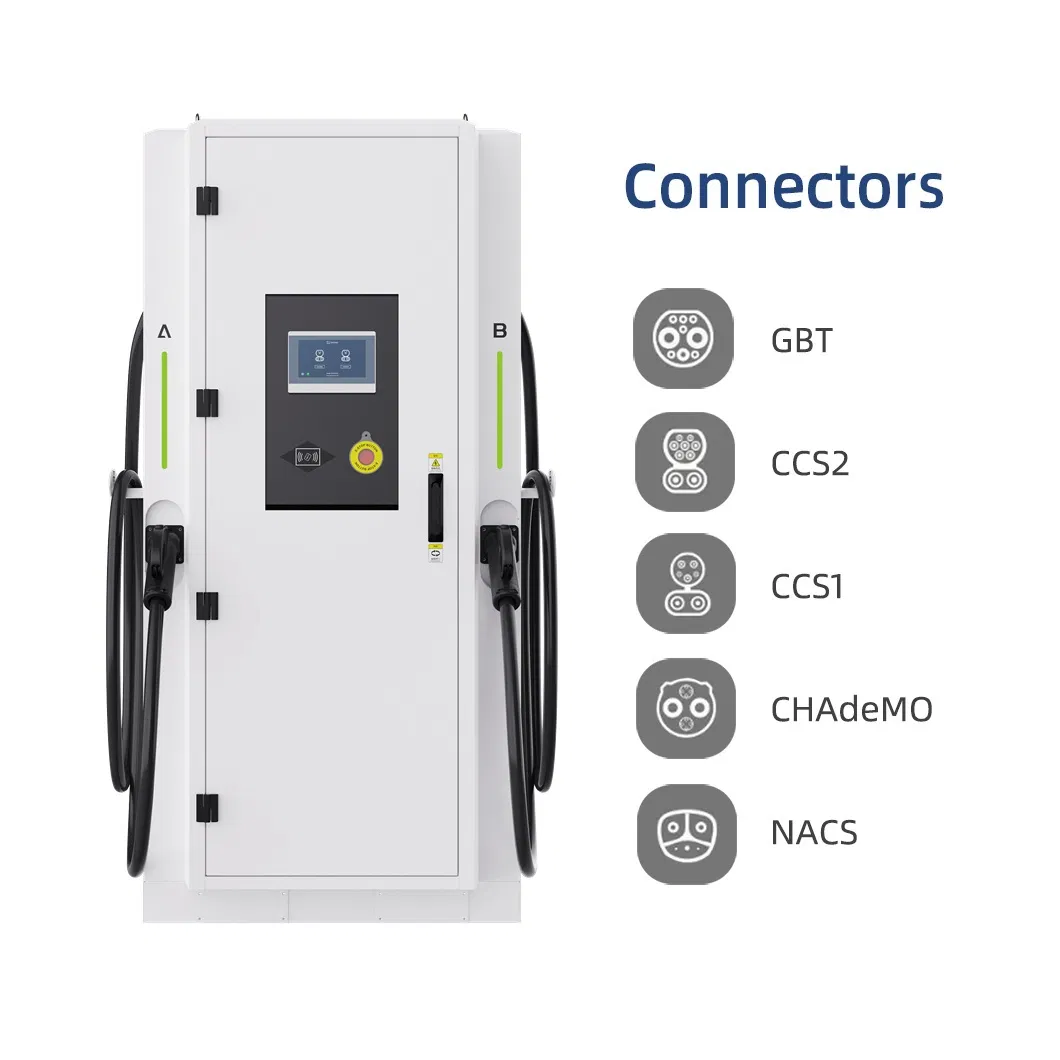

2. Which charging connector standards are supported?
This charging station is highly versatile and supports multiple global standards including GBT, CCS1, CCS2, CHAdeMO, and NACS.
3. Is the station suitable for extreme outdoor environments?
Yes, it is designed with an IP54 protection rating and IK10 impact resistance. It operates reliably in temperatures ranging from -30°C to 75°C.
4. How can users start a charging session?
The system supports multiple start modes for user convenience, including RFID card authentication, credit card payments (optional), and mobile remote operation via App.

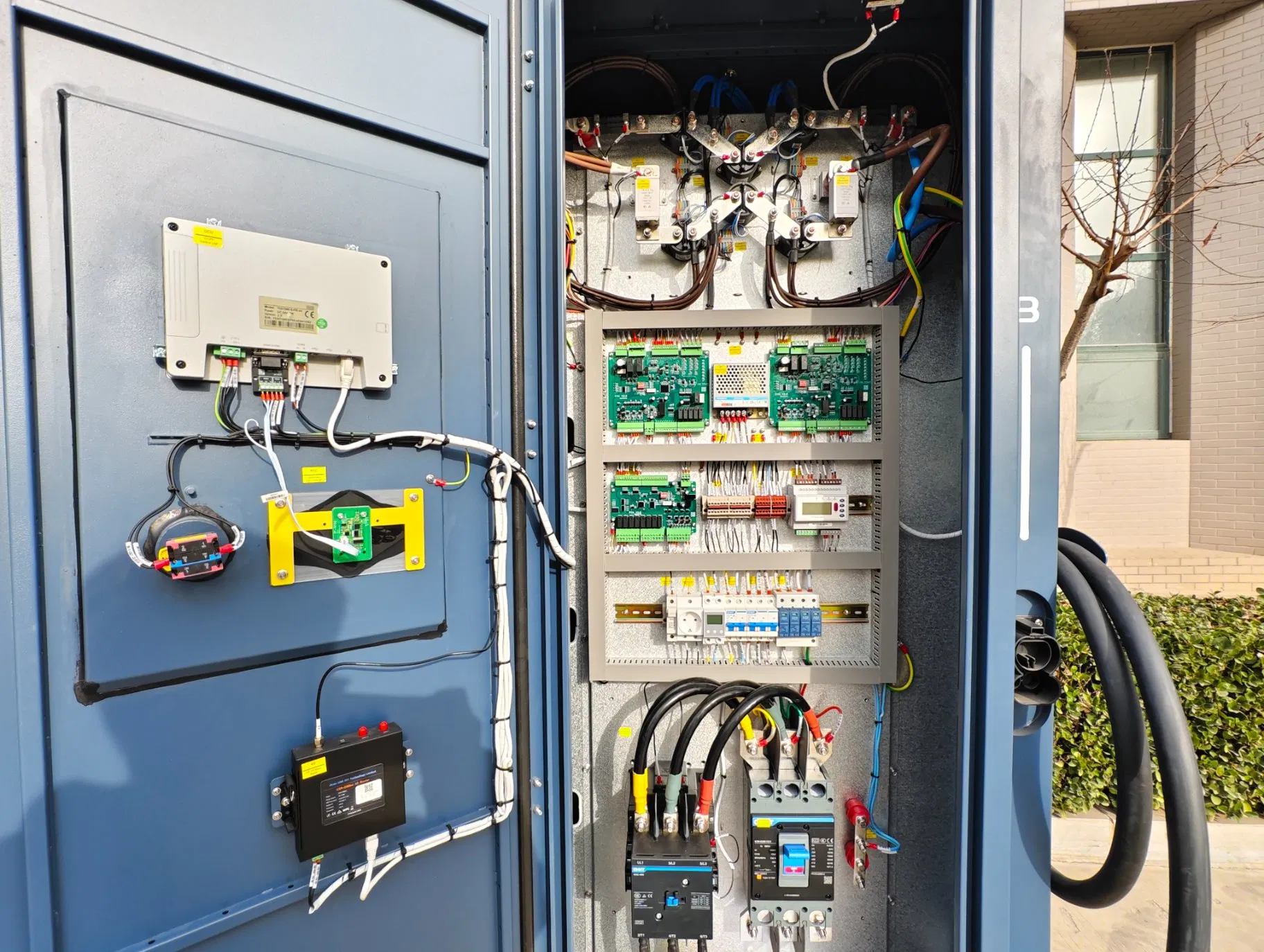

5. What safety protections are built into the system?
The station includes comprehensive safety features such as overvoltage, lightning, overcurrent, and leakage protection, along with an emergency stop button that immediately disables output power.
6. What type of cooling system does it use?
The station utilizes an efficient forced air-cooling system for its power electronics to ensure stable performance during high-power output.
