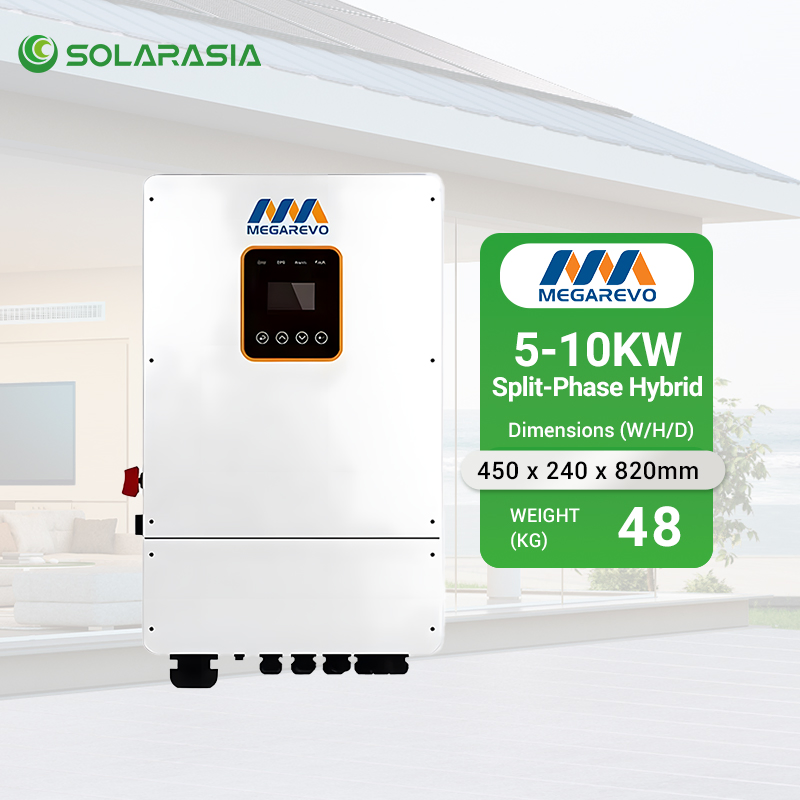

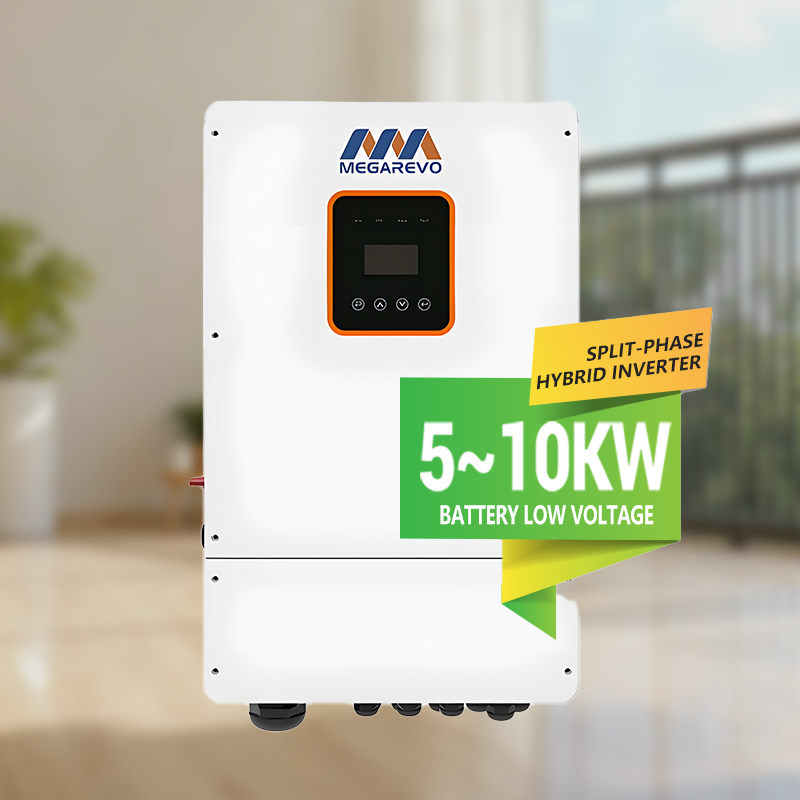

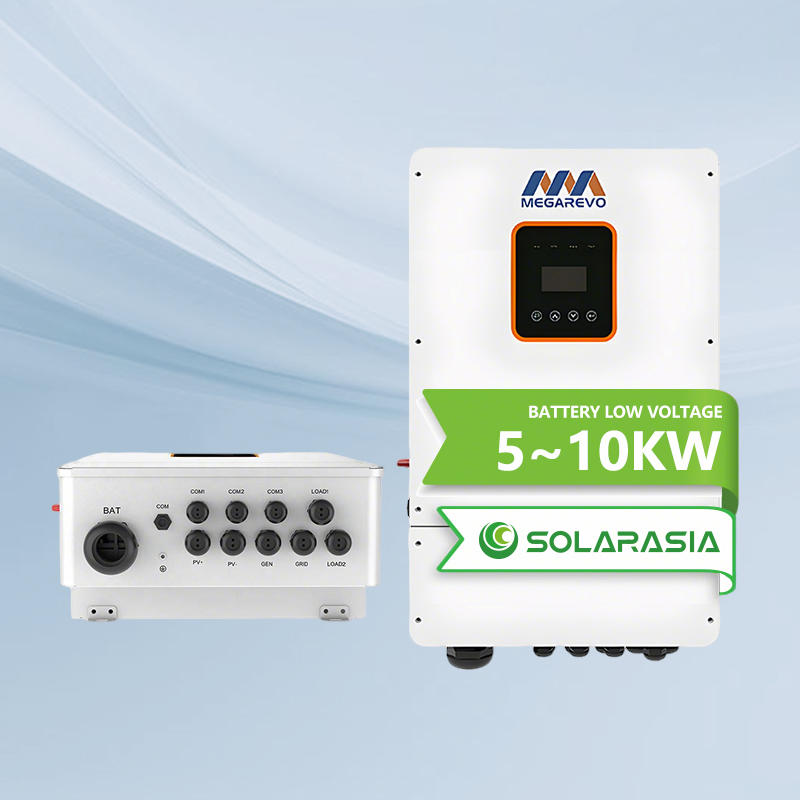

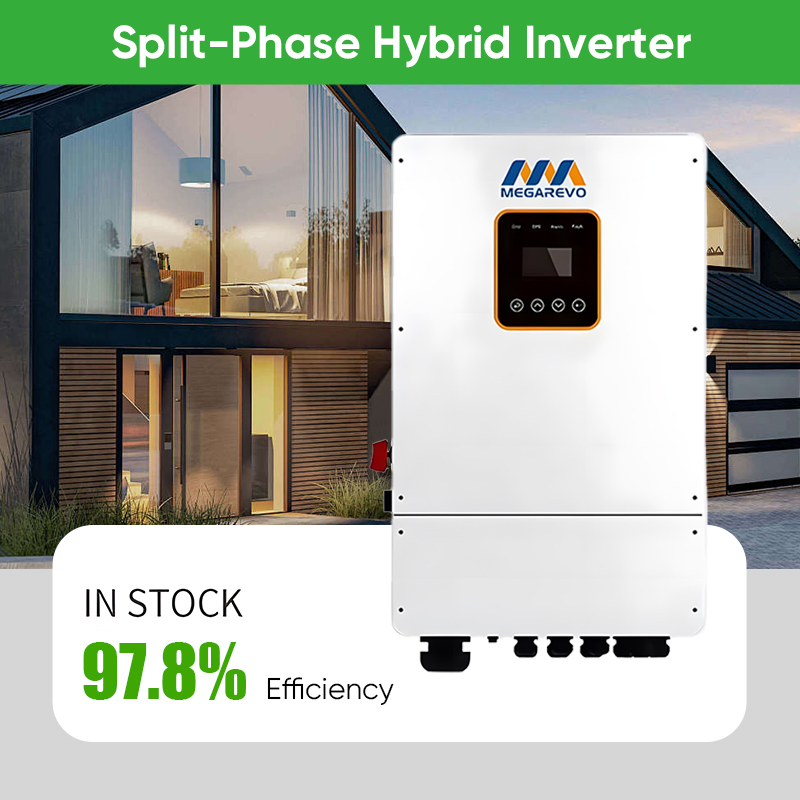

Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System
Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System
Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System
Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System
Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System
1 / 5
Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System
Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System
Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System
Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System
Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System

Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

Basic Info

Model NO.
R5KLNA-R10KLNA
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
>1000W
Certification
CE, ISO9001
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Battery Type
Lithium /Lead-Acid
Communication
RS485, Can
Weight
48kgs

Product Description

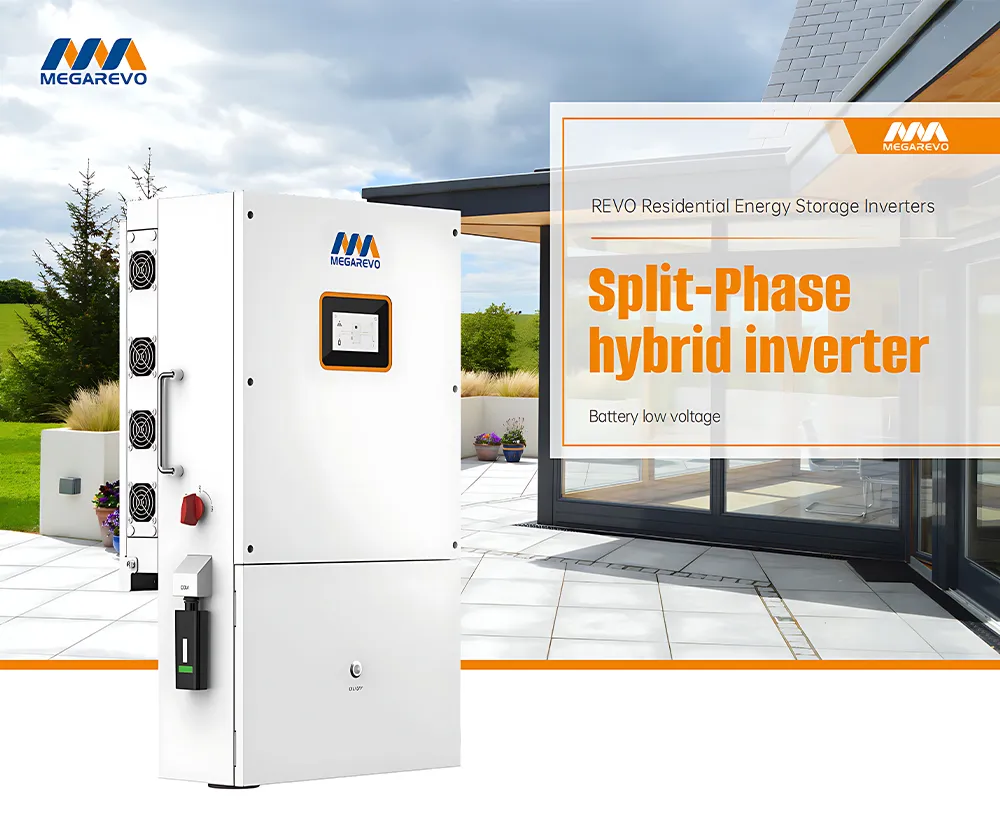

Solar Power Inverter

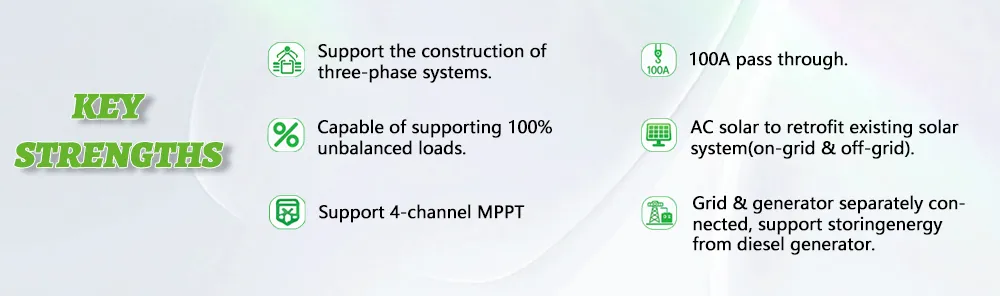

Inverter Features

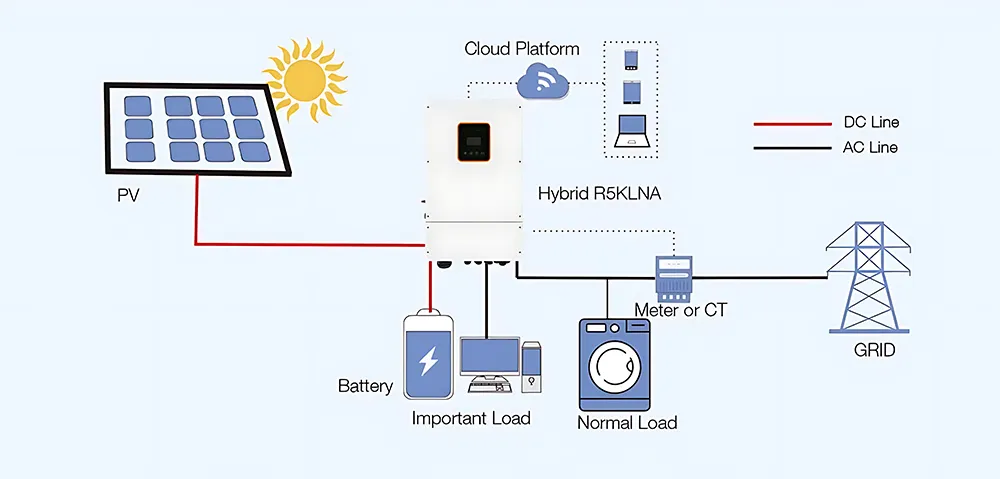

System Diagram
Inverter Specification

Product Parameters

Model R5KLNA R6KLNA R7K6LNA R8KLNA R10KLNA
Max.DC input power (kW) 7.5 9 12 12 15
No. of MPPT trackers 4
MPPT voltage range (V) 120~500
MAX.DC input voltage (V) 500
Battery Input
Max. charging/discharging (A) 120/120 135/135 190/190 190/190 190/210
Battery type Lithium / Lead-acid
AC Output (On-Grid)
Output voltage range (V) (110~120)/(220~240) Split Phase
Max. AC current output (A) 22.9 27.5 34.8 36.7 45.8
Ingress protection IP65 / NEMA 3R

Packing & Projects

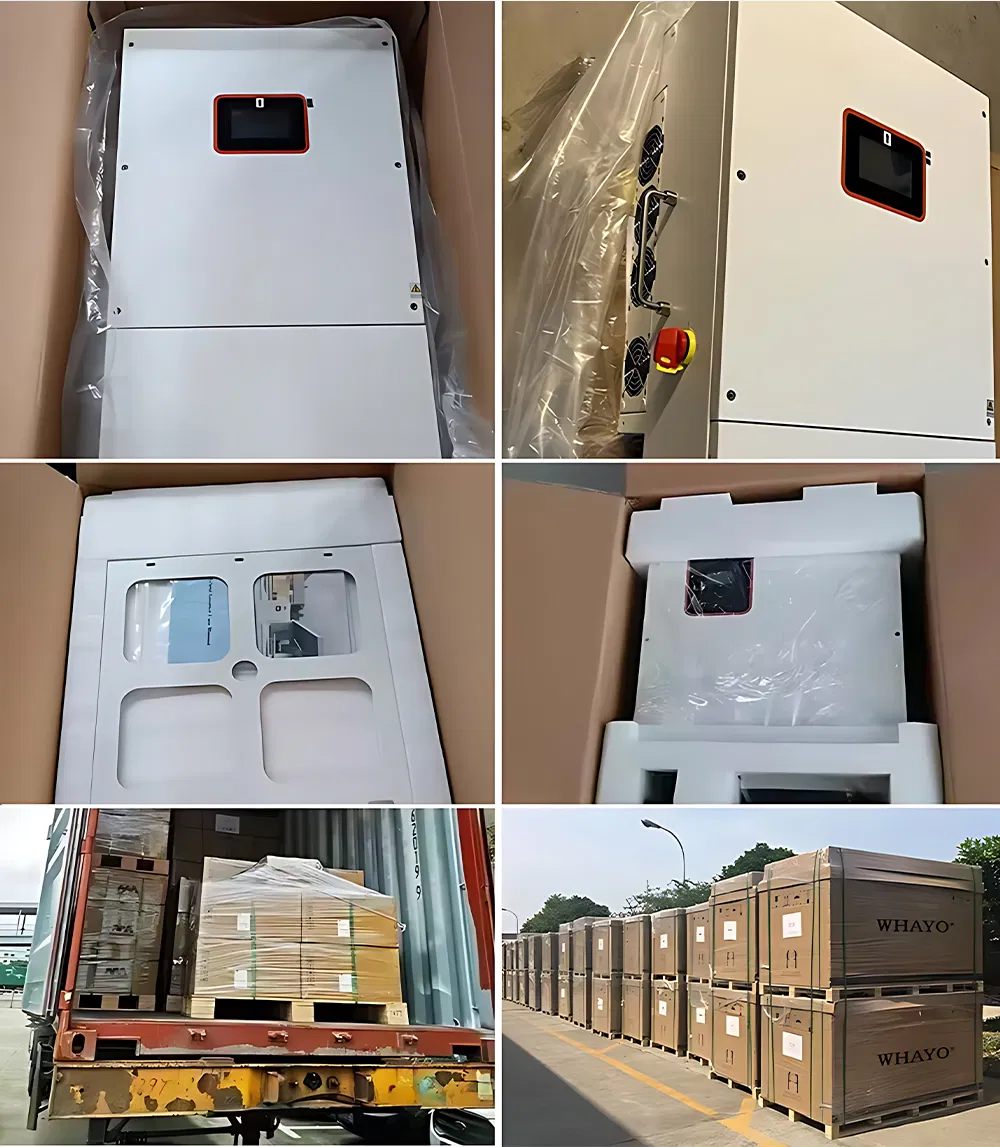

Packing details

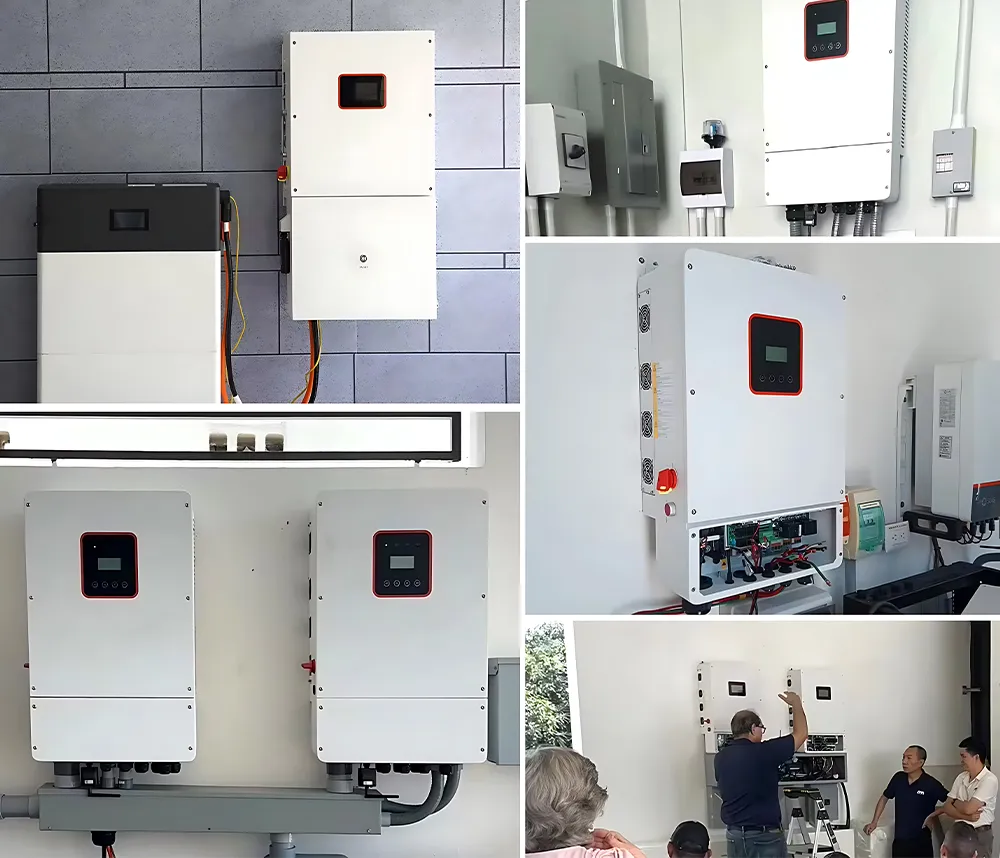

Project Case

Certifications & Profile

Certificates
Production Facility
Testing Lab

Frequently Asked Questions

What is the R5–10KLNA inverter used for?
The R5–10KLNA (5–10kW) is a hybrid inverter designed for residential and small commercial energy storage systems. It integrates PV input, battery storage, and grid interaction into one unit.
Which power ratings are available in this series?
The series covers 5kW to 10kW output power, allowing users to select the most suitable capacity based on household load, PV size, and battery configuration.
Is the inverter compatible with lithium batteries?
Yes. It supports mainstream lithium battery systems, including CAN and RS485 communication protocols, ensuring stable battery management and flexible integration.
Can this inverter work with both grid-tied and off-grid systems?
Yes. It supports grid-connected, off-grid, and hybrid operation modes. When the grid fails, it automatically switches to battery power for critical loads.
Does the R5–10KLNA support backup power?
Yes. The inverter provides backup power output with fast switching, suitable for applications requiring uninterrupted power such as homes and small offices.
What kind of monitoring is offered?
It supports intelligent monitoring via WiFi / Ethernet, allowing users to track PV generation, battery status, and load consumption in real time.
