Premium Lockable Rotary DC Isolator Switch for Electrical Safety

1 / 5

Premium Lockable Rotary DC Isolator Switch for Electrical Safety

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

EDS6

Installation

Indoor High-voltage

Operation

Manual

Number of Poles

Three Pole

Switching Mode

Double-Throw Type

Certification

ISO, RoHS, CE, ISO9001, CB, SAA, TUV, UL

Rated Insulation

1500V

Waterproof Rating

IP66

Mounting Type

Rail, Panel, Door Interlock

Capacity

1,000,000 PC/Year

Product Profile

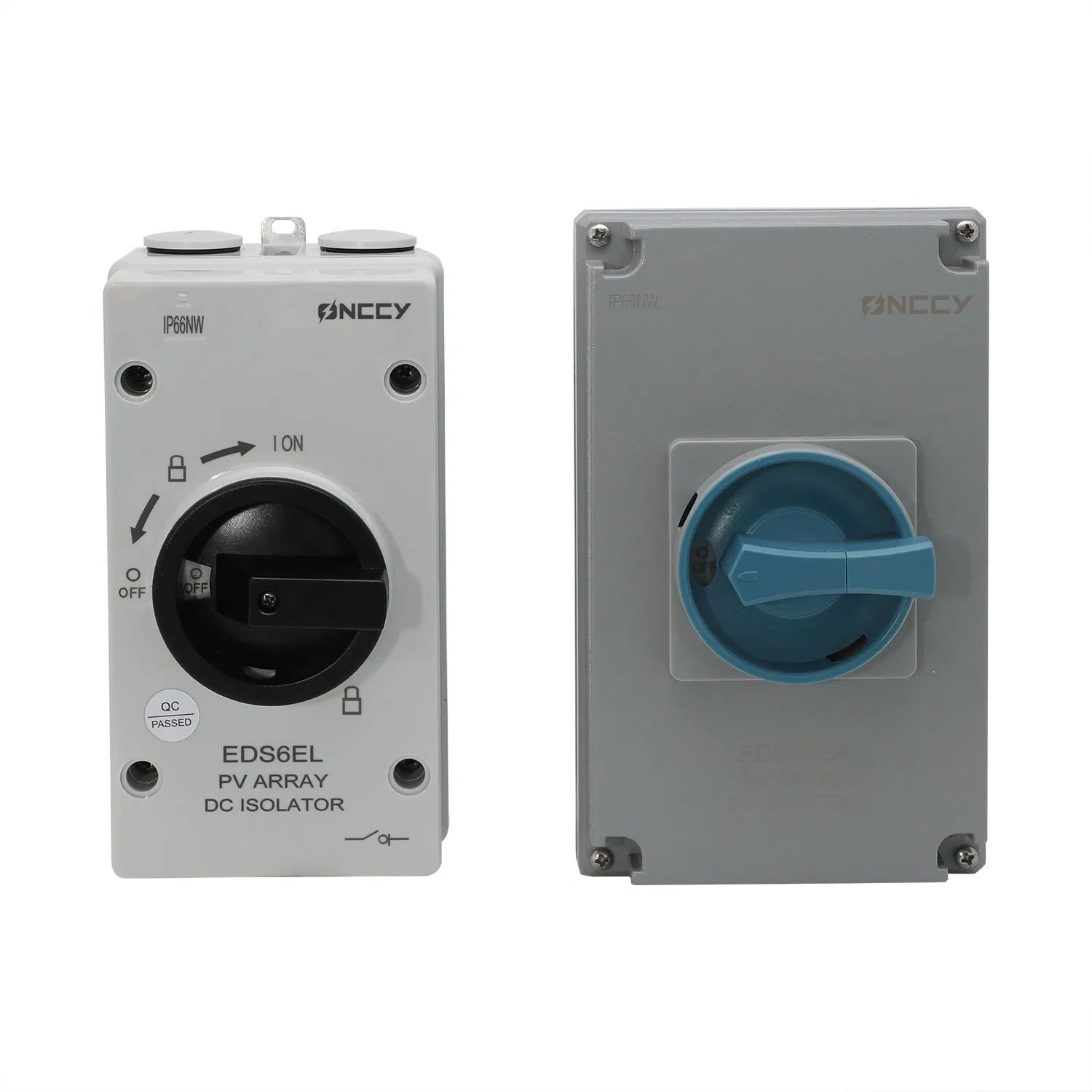

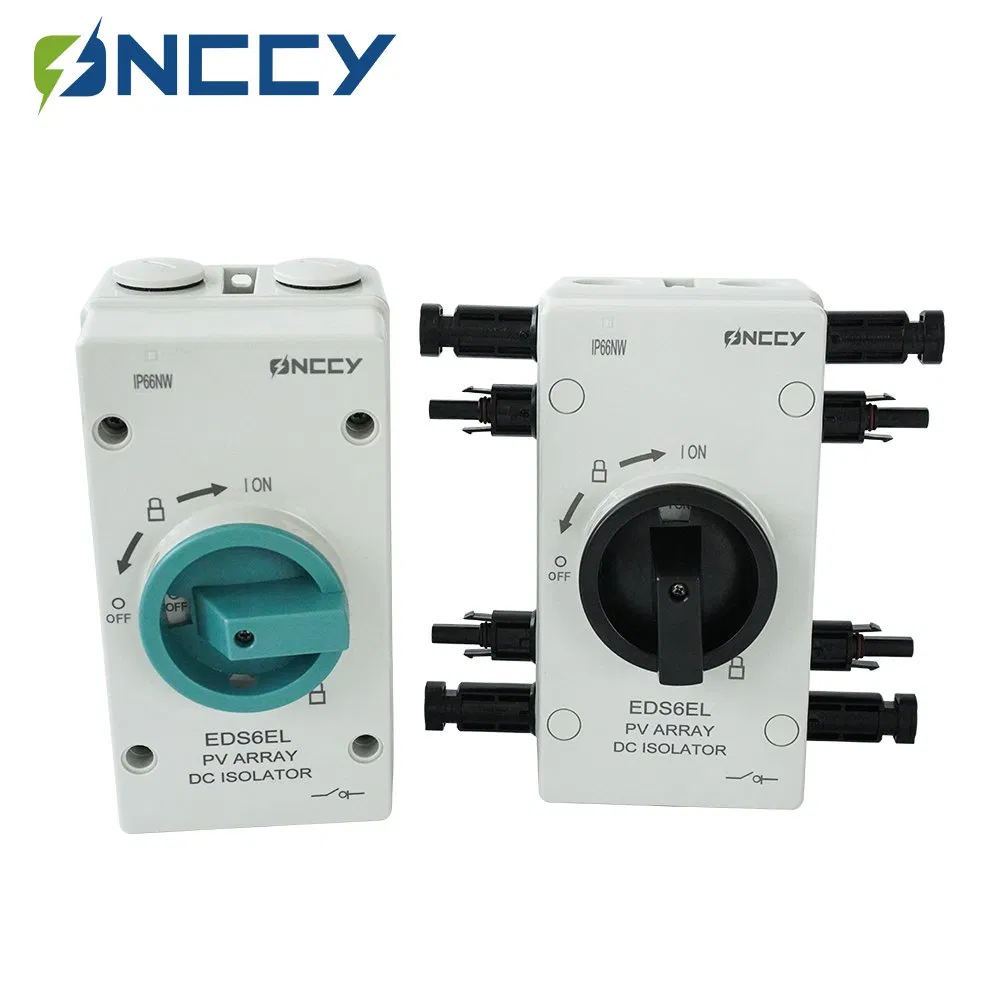

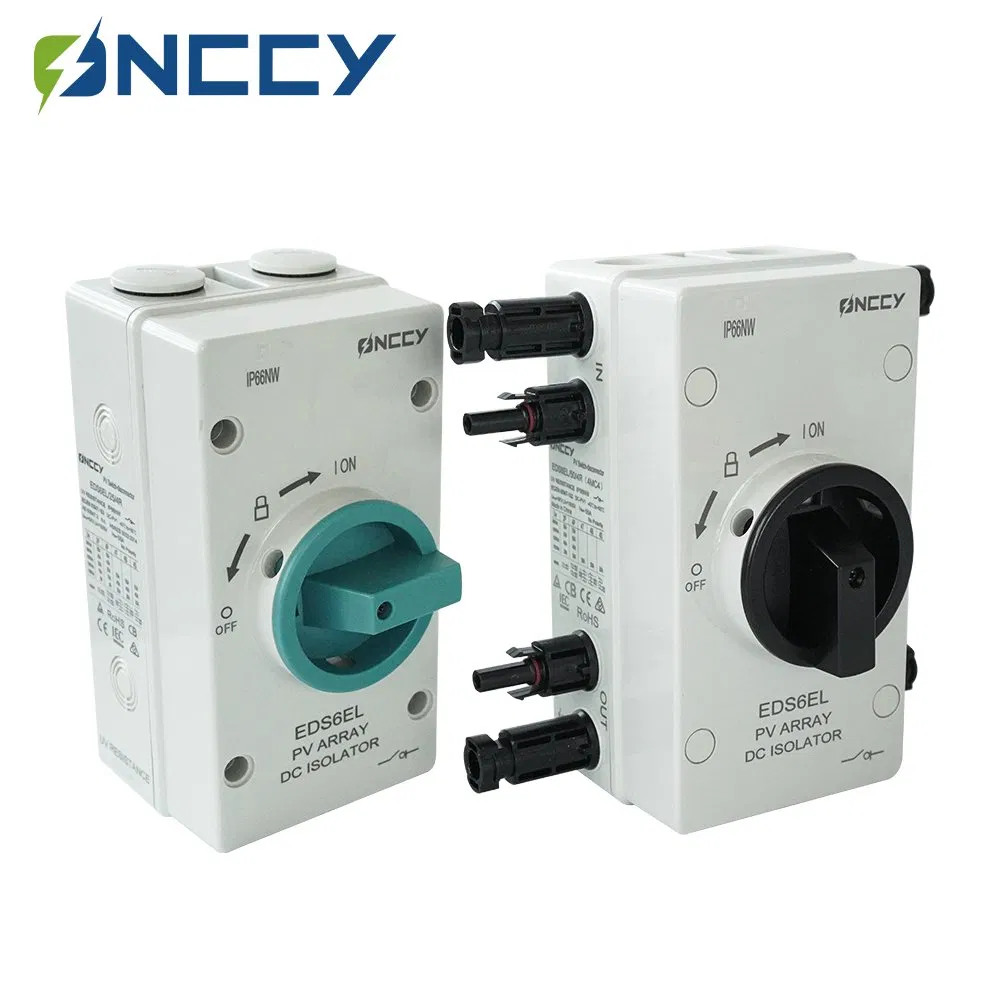

1500V 55A Door Interlock Lockable Rotary DC Isolator Switch. PV Isolator Switches are essential ON-OFF devices designed to disconnect power safely within specific operation zones. These versatile switches cater to a broad spectrum, ranging from a singular pole to an expansive 10 poles.

Main Applications: Control and instrumentation circuit switching, motor ON-OFF operations, and specialized safety circuit applications, ensuring versatile utility across electrical substations and solar power systems.

Product Benefits

Non-polarity DC Isolator Switch flexibility.
Modular design customizable from 2-10 levels.

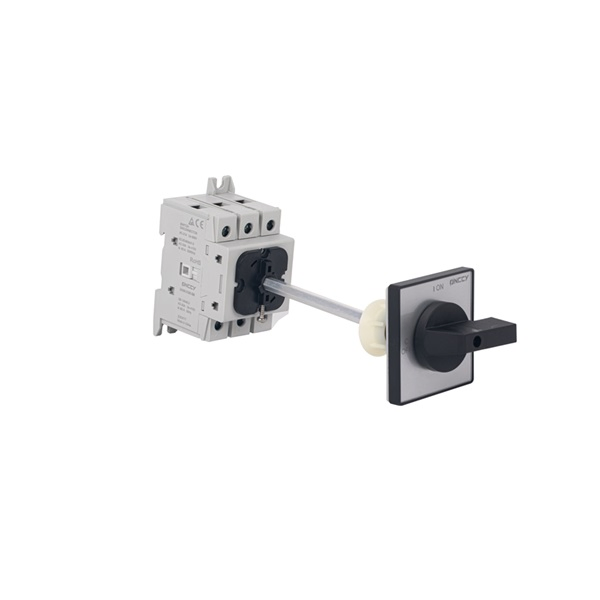

Convenient Door Clutch Mounting.
IP66 Protection & IK08 Impact resistance.
DC 160V insulation voltage design.
Rated currents: 13A, 20A, 25A, 40A, and 50A.

Technical Parameters

Parameters	Symbol	Unit	Values
Rated insulation voltage	Ui	V	1500
Rated thermal current	Ith	A	32 / 40 / 55
Rated impulse withstand voltage	Uimp	V	8000
Short-time withstand current (1s)	Icw	A	780 Related Products All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration HK3V 100 H20 DC 50a 100A Split Core Open-Loop Toroidal Hall Effect Current Sensor for Solar Telecom Base Station DC Charging Pile Best Selling 120kw 160kw EV Charger Station Battery Charger with PV & Ess Solar Integration Best Price DC/AC 1 Phase Three Phase 29.5kw 30kw 35kw 40kw 50kw 60kw 70kw 80kw Deye Hybrid Solar Inverter High Voltage Battery for Home Use Solar Energy System Best Price DC/AC 1 Phase Three Phase 29.5kw 30kw 35kw 40kw 50kw 60kw 70kw 80kw Deye Hybrid Solar Inverter High Voltage Battery for Home Use Solar Energy System 1.6kw High Efficiency Solar Power DC AC Pure Sine Wave Solar Inverter with Lithium Battery 1.6kw High Efficiency Solar Power DC AC Pure Sine Wave Solar Inverter with Lithium Battery Megarevo Solar Power Inverter Us Version Hybrid DC to AC Solar Inverter Pure Sine Wave 5kw 6kw 8kw 10kw Split Phase for Energy Storage System 12V12ah Lead-Acid Solar Home Lighting System for DC Equipments Power Supply 12V12ah Lead-Acid Solar Home Lighting System for DC Equipments Power Supply [email protected] Copyright © 2021 Shenzhen Vernon Charger Co., Ltd. Sitemap
