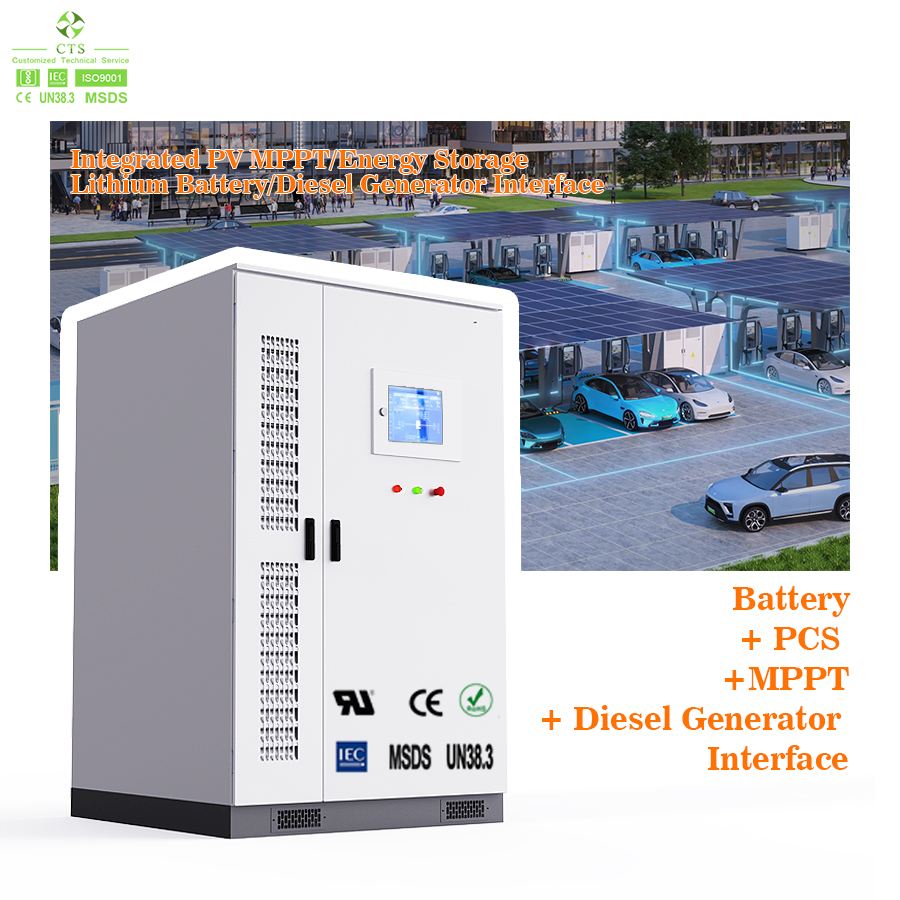

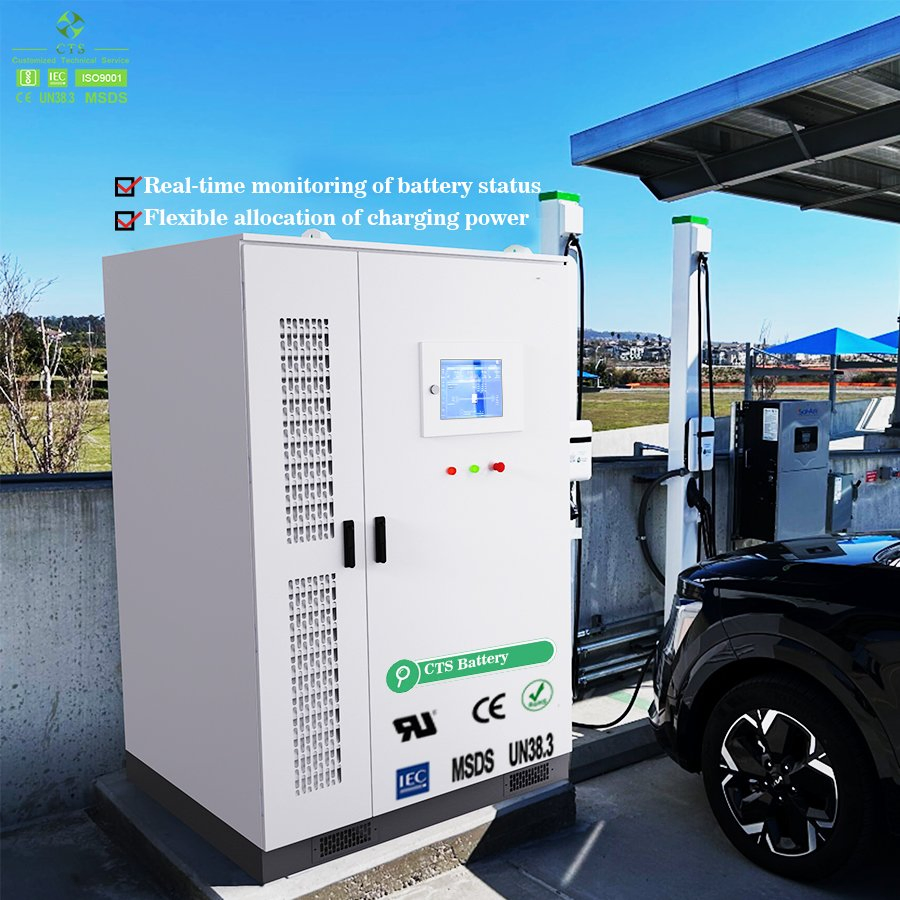

All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration
All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration
All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration
All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration
All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration
1 / 5
All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration
All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration
All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration
All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration
All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration

All - in - One Solar EV Charging Station with LiFePO4 Storage & PV Integration

Customization: Available
Type: Lithium-Ion Battery Pack
Connection Mode: Series and Parallel
Send Inquiry

Product Description

📊

Basic Specifications

Model NO.
CTS215
Rechargeable
Chargeable
Discharge Rate
Medium Discharge Rate
Rated Capacity
215kWh
Standard Voltage
250V-750V DC
Usage
Solar Energy Storage System
Electrolyte
Li-ion (LiFePO4)
Communication
CAN / RS-485 / RS-232
Warranty
24 Months
Battery Cell
Grade A+
🔋

Product Description

This integrated solar-storage-charging solution combines solar PV generation, battery storage, and EV chargers for maximum energy efficiency. Ideal for home EV charging, commercial parking lots, or industrial facilities, it delivers high reliability and cost-effectiveness.

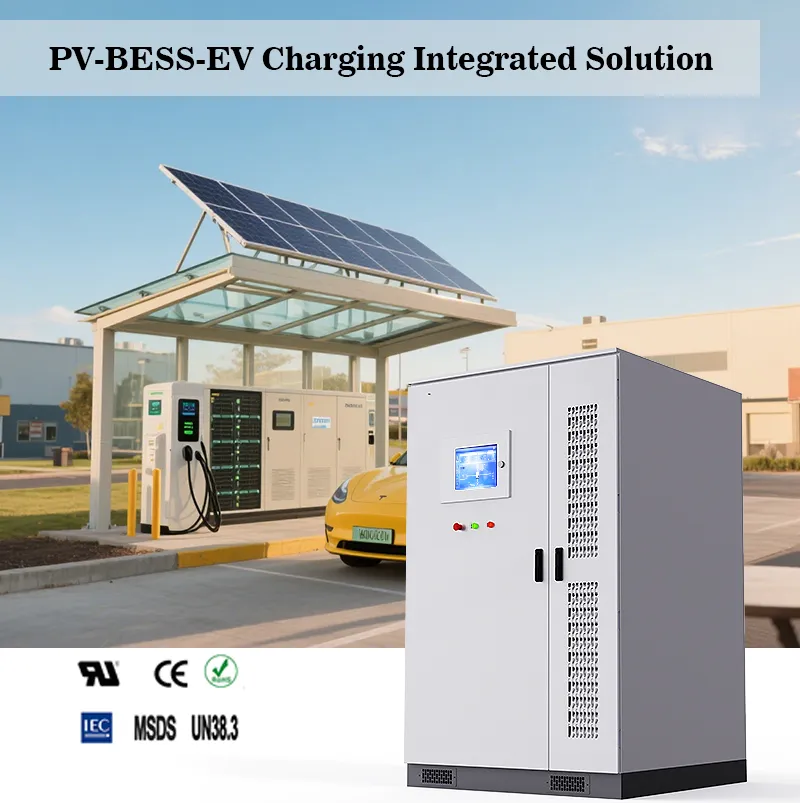

All-in-One Solar EV Charging Station
🌟 All-in-One Solution
Integrated PV panels, battery storage, and EV charger for commercial and industrial use.
🧠 Smart Management
Built-in EMS for self-consumption optimization and intelligent scheduling.
🛡️ High Safety
Premium PV modules and safe LiFePO4 batteries with advanced BMS.
📈 Peak Shaving
Charges during off-peak valleys and discharges during peaks to reduce electricity costs.

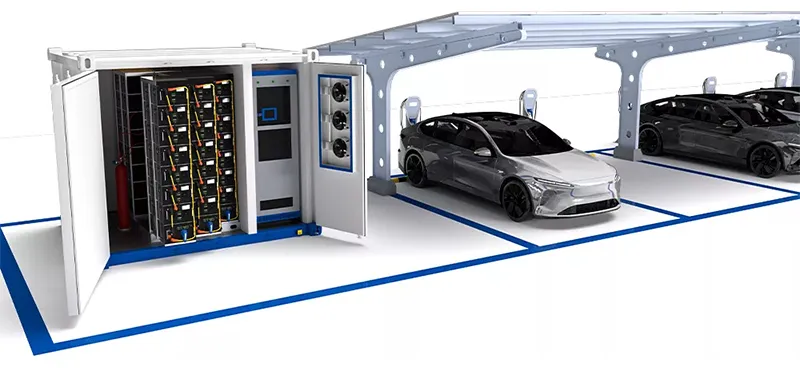

Product Layout
📋

Technical Parameters

Model Parameter 215kWh System 305kWh System 362kWh System
Battery Energy215kWh305kWh362kWh
PCS Power100KW100KW100KW
MPPT Power120KW120KW120KW
MPPT Range250-850Vdc250-850Vdc250-850Vdc
AC Voltage400V/230V400V/230V400V/230V
Protection LevelIP54IP54IP54
Size (mm)1580*1050*20901580*1190*23551580*1190*2355
Weight (kg)~2500kg~2930kg~3230kg
⚙️

System Solutions

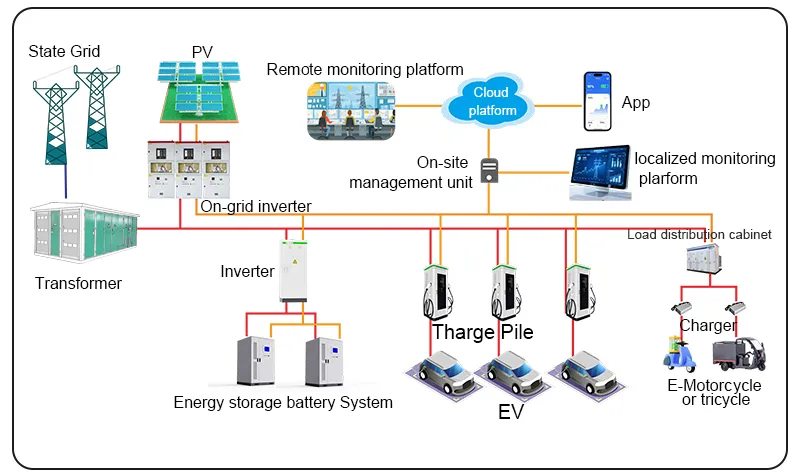

🔄 AC-Coupled Solution

Connects PV, storage, and charging facilities to a common AC bus, enabling flexible energy exchange among all devices.

AC-Coupled Solution

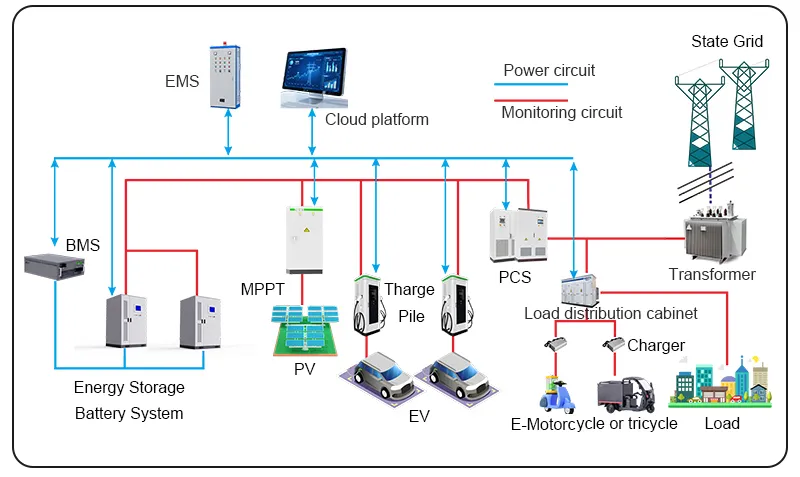

⚡ DC-Coupled Solution

Connects components directly to a high-voltage DC bus. Reduces DC/AC conversions and significantly improves system efficiency.

DC-Coupled Solution

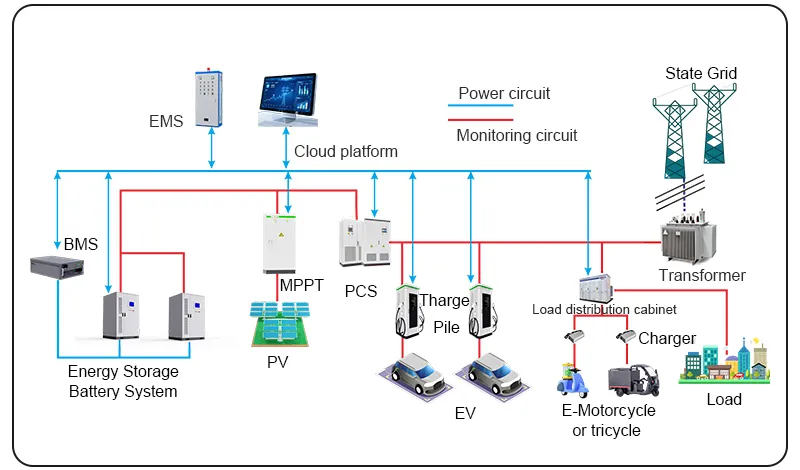

🌐 AC/DC Hybrid Solution

Allows components to be selectively connected to either bus, providing dynamic energy routing for complex scenarios.

Hybrid Solution
💎

Product Advantages

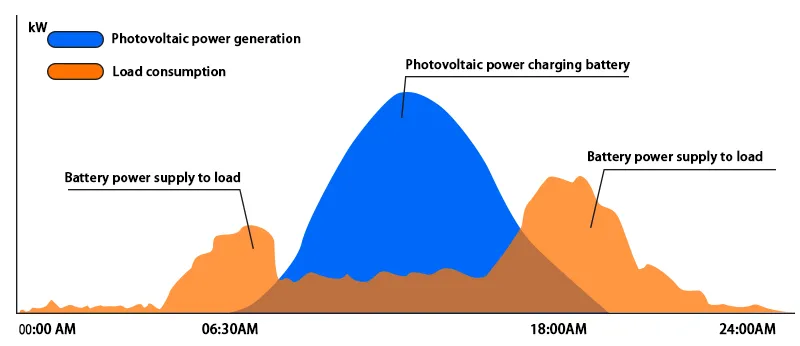

1. Cost Reduction
Store excess PV power for night use or peak hours to avoid high grid tariffs.
2. Easy Deployment
Modular prefabricated design reduces installation time and multi-system debugging risks.
3. Intelligent O&M
Real-time monitoring via EMS with remote fault diagnosis and early warning protection.
4. Grid Support
Reduces load risk on traditional grids caused by large-scale EV charging.
Advantage 1

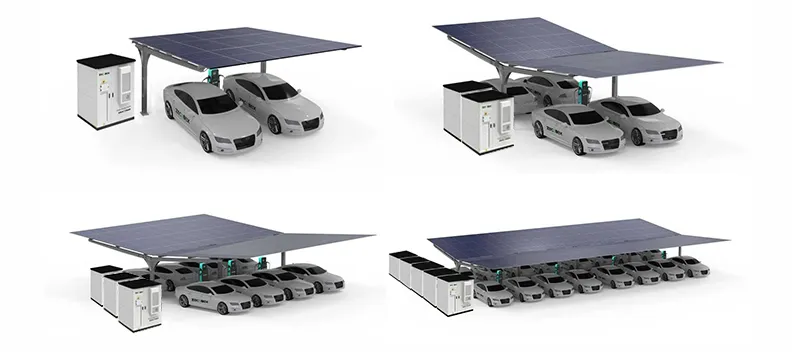

Advantage 2

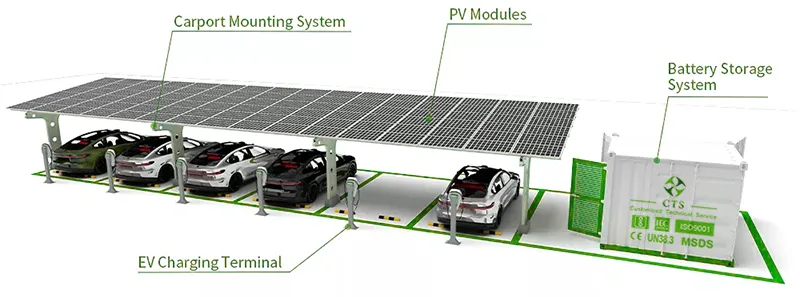

Advantage 3

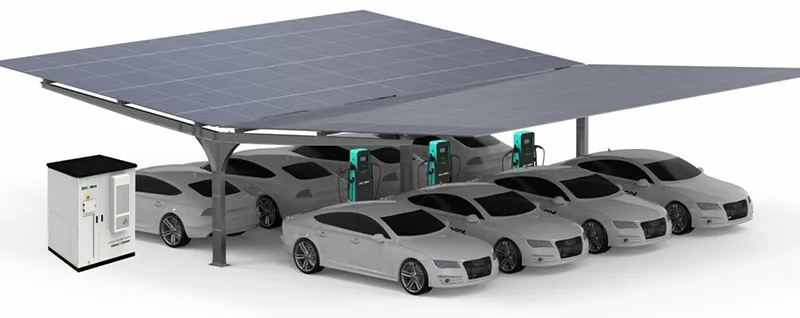

Advantage 4
🏢

Applications

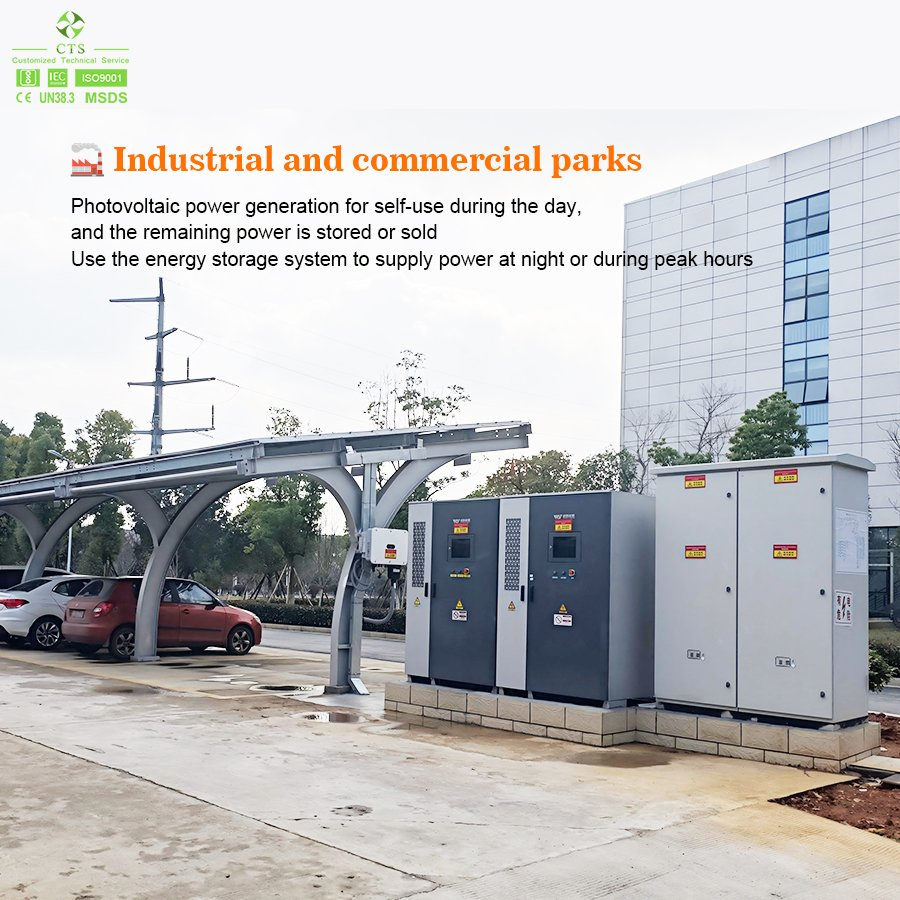

  • ✅ Industrial Parks: Self-use PV generation to lower operational costs.
  • ✅ Charging Stations: Public parking lots and highway service areas.
  • ✅ Off-grid Areas: Remote mountainous areas, islands, and camps.

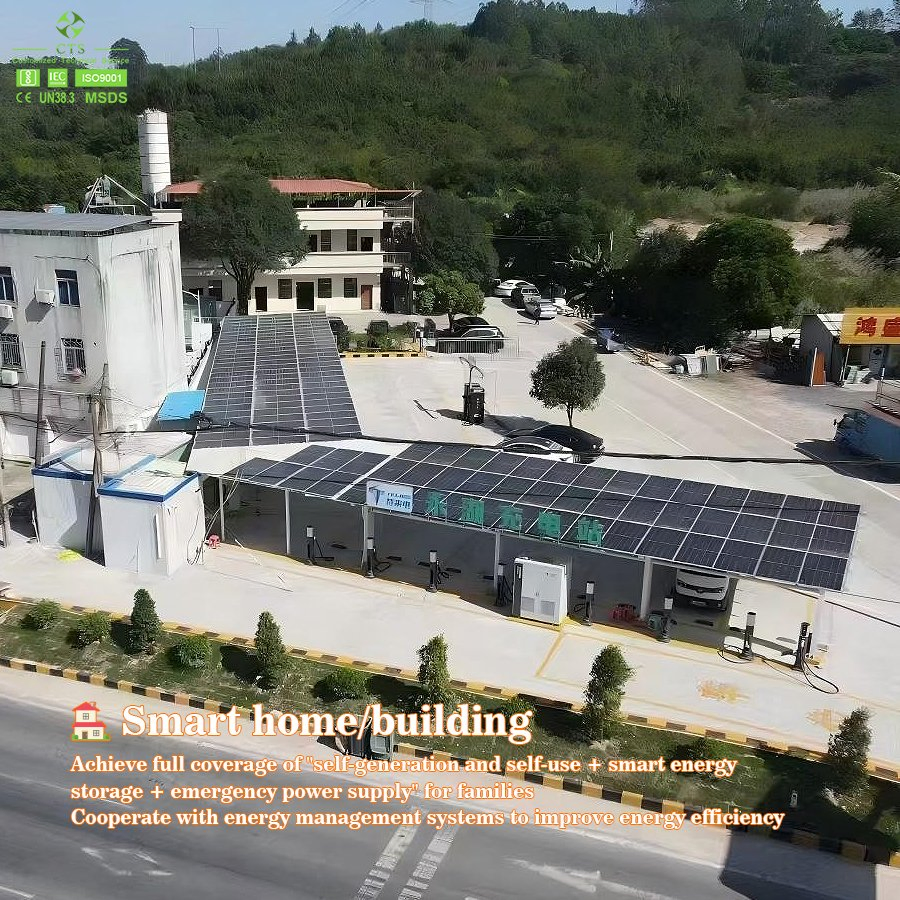

  • ✅ Smart Buildings: Full energy coverage for modern residential and office complexes.

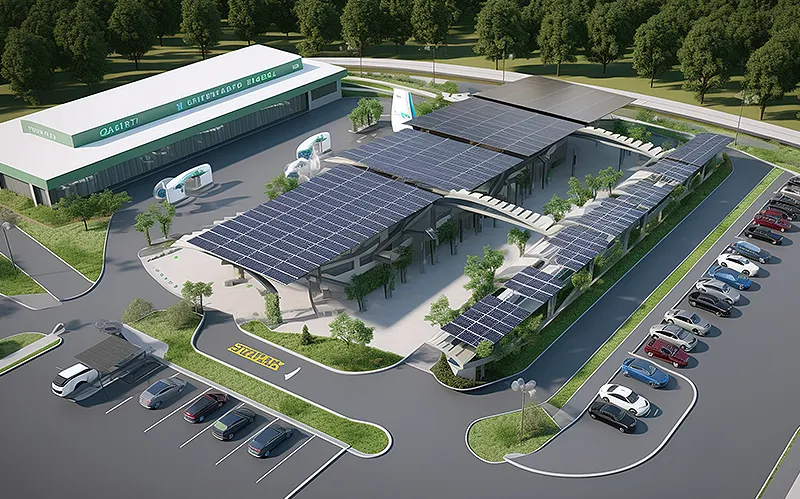

Application Scenario
🏭

Manufacturing Excellence

With 14 years of lithium battery design experience, our facility features 10,000m², 200 workers, and an annual production capacity of 1GWh. We hold ISO9001 and IATF16949 certifications, ensuring every battery undergoes strict OQC testing before delivery.

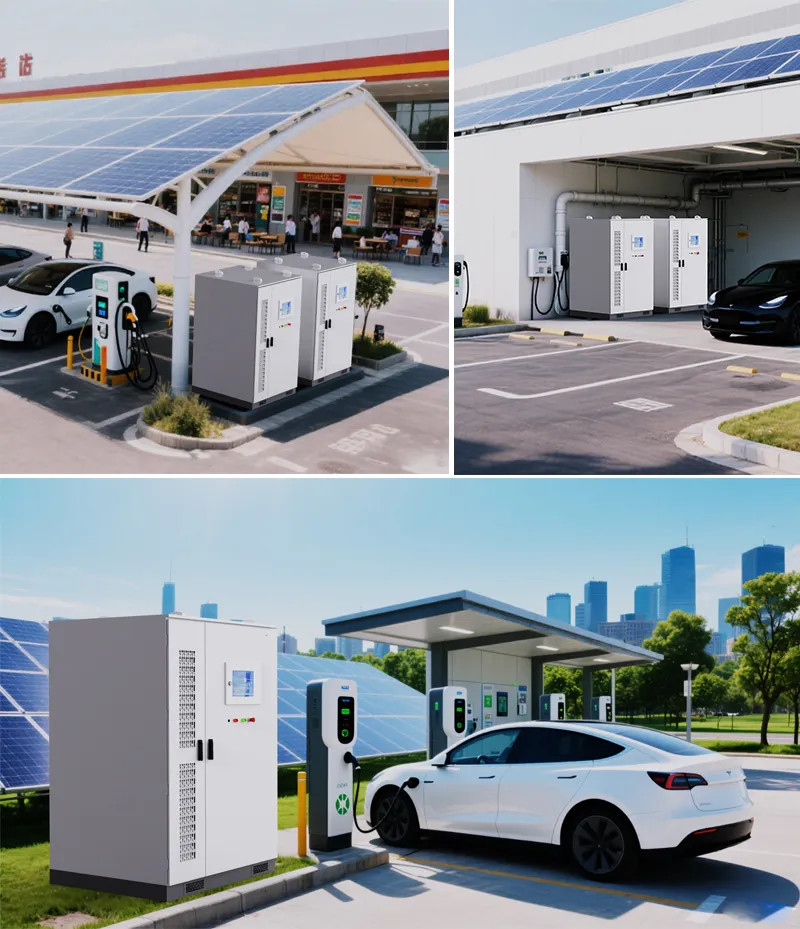

Factory Overview

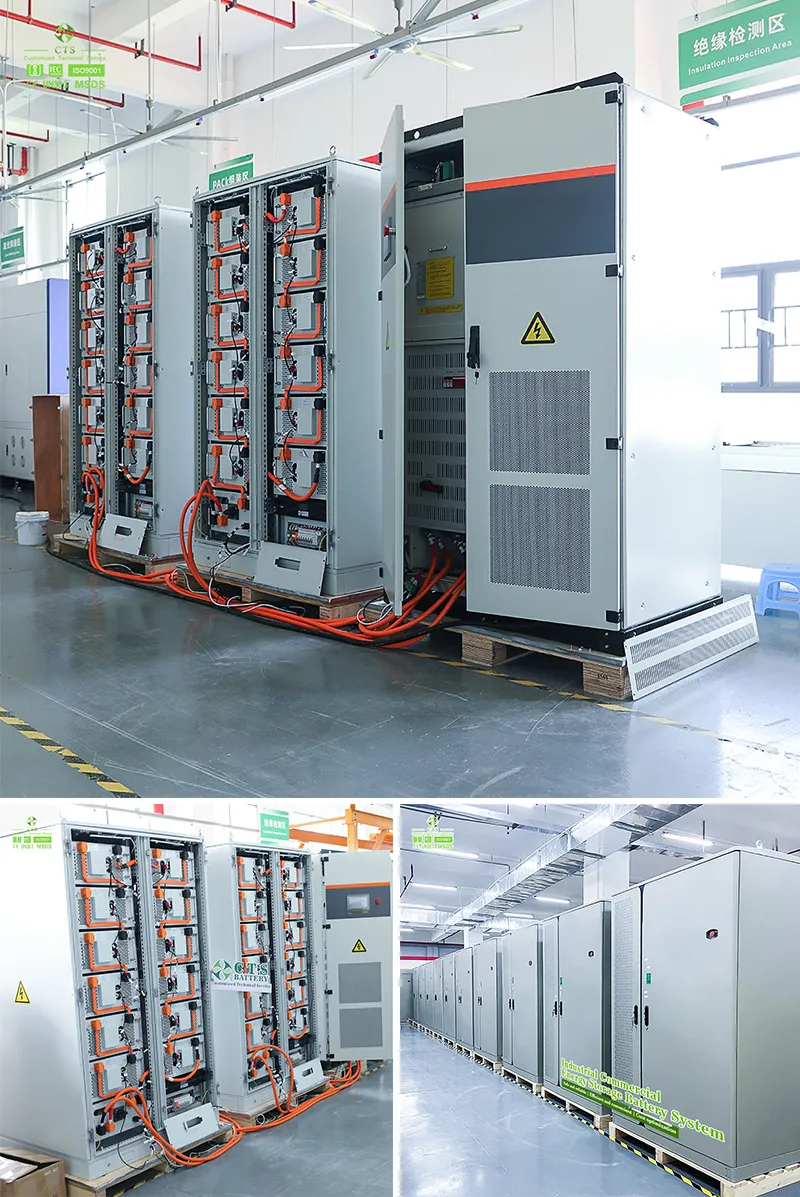

Production Line

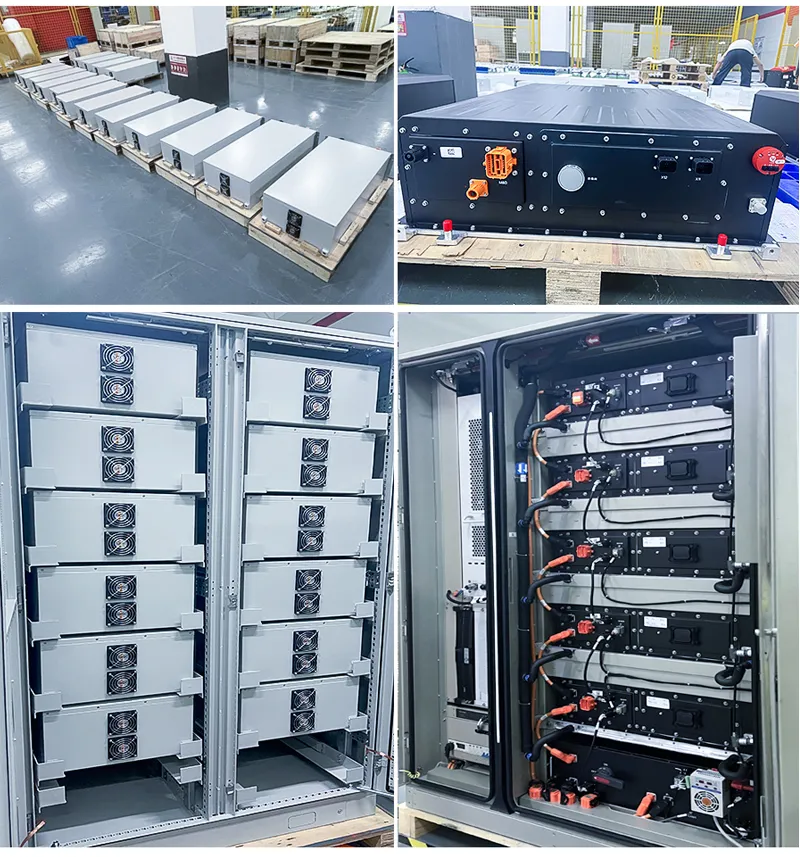

Battery Testing

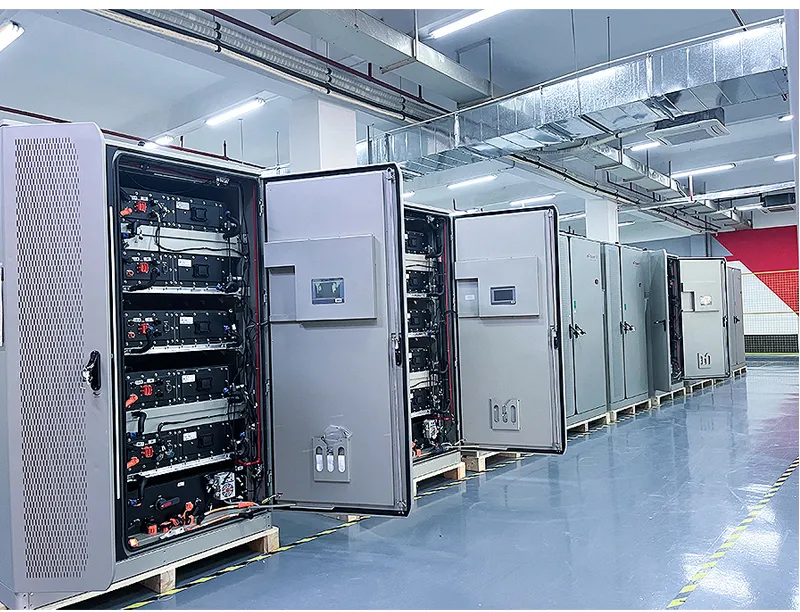

Storage System
❓

FAQ

What is the main capacity of the battery system?
We offer multiple configurations including 215kWh, 305kWh, and 362kWh energy storage systems.
What type of battery cells are used?
We use Grade A+ LiFePO4 (Lithium Iron Phosphate) cells, known for high safety and long cycle life.
Is the system suitable for outdoor use?
Yes, the system is designed with an IP54 protection level, making it suitable for various outdoor environments.
Can the system be expanded?
Yes, the system supports parallel connection of up to 10 units to meet larger energy demands.
What is the warranty period for the battery system?
We provide a standard 24-month warranty for our energy storage battery systems.
Does the system support remote monitoring?
Yes, it features an intelligent EMS that supports real-time monitoring and remote fault diagnosis.
