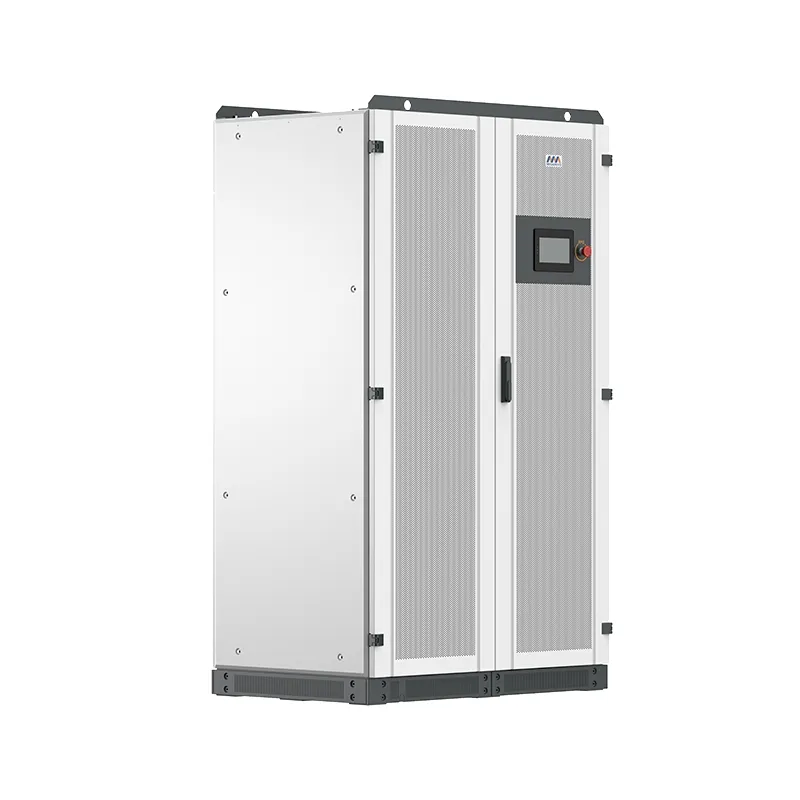

These series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units. This significantly improves deployment efficiency and reduces installation costs. The PV capacity can be flexibly configured, improving microgrid system availability, making it ideal for remote areas and islands where power infrastructure is weak.
Passed comprehensive international certifications including EN 62109, EN 61000, IEC61727, IEC62116, and VDE 4105. Designed for maximum operational security.
Supports simultaneous access for PV, diesel generators, batteries, and loads. Features strong adaptability with black start support and multiple settable working modes.
Supports unattended operation with an HMI digital display panel for quick status diagnostics. Cloud-based EMS integration allows for seamless remote monitoring.
Lower Installation & Commissioning Costs
Reduced Fossil Fuel Dependency
Increased Renewable Energy Penetration
| Model | EPS0030 | EPS0050 | EPS0100 | EPS0150 | EPS0250 | EPS0500 |
|---|---|---|---|---|---|---|
| AC (On-Grid) | ||||||
| Rated Output Power (kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated Voltage (V) | 400 | |||||
| Rated Current (A) | 43 | 72 | 144 | 216 | 361 | 722 |
| PV Input | ||||||
| Max. PV Input Voltage (V) | 1,000 | |||||
| MPPT Voltage Range (V) | 250 ~ 850 | |||||
| Battery | ||||||
| Battery Voltage Range (V) | 250~850 | 320~850 | 420~850 | 420~850 | 420~850 | 500~850 |
| General Data | ||||||
| Ingress Protection | IP20 | |||||
| Display | LCD Touch Screen | |||||
Feasible solutions and turnkey services tailored to different applications. Whether small-scale distributed or large-scale centralized, our systems help achieve energy independence globally.
