Vernon Charger
1 / 5
Passed EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683, NRS 097-2-1:2017, AS/NZS 4417.1, CEI 0-21, G99, VDE 4105 test certifications.

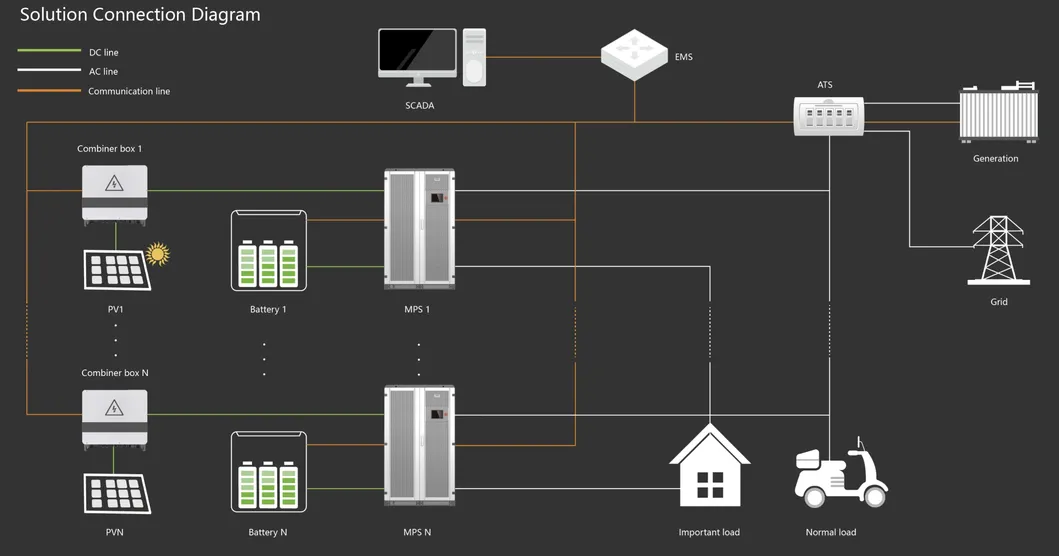

Supports PV, diesel generator, battery, and load access simultaneously. Features strong adaptability and supports black start; various working modes can be set flexibly.
Supports unattended operation with an HMI digital display panel for quick status monitoring. Combined with cloud-based EMS for remote monitoring.
Save Installation & Commissioning Costs
Reduce Fossil Fuel Usage
Increase Renewable Energy Penetration
Continuous & Stable Power Supply
Convenient Future PV Expansion
| Model | EPS0050 | EPS0100 | EPS0150 | EPS0250 | EPS0500 |
|---|---|---|---|---|---|
| Rated Output Power (kW) | 50 | 100 | 150 | 250 | 500 |
| Rated Voltage (V) | 400V | ||||
| Rated Current (A) | 72 | 144 | 216 | 361 | 722 |
| Max. PV Power (kW) | 60/120 | 120/180/240 | 120/180/240 | 300/360 | 600/660/720 |
| Battery Voltage Range (V) | 320~850 | 420~850 | 420~850 | 420~850 | 500~850 |
| BMS Communication | RS485, CAN | ||||
We provide feasible solutions and turnkey services for diverse applications, from small-scale distributed to large-scale centralized systems.
