Vernon Charger
1 / 5
| Model NO. | ZCF DC | Location | Public Use |
| Charging Interfaces | One Pile with Multiple Charges | Start Mode | Mobile Remote, RFID |
| Total Power | 60-400kw | Certification | CE, ISO9001, ISO14001 |
| IP Class | IP 54 | Output Voltage | 50-1000V DC |
| AC Input Voltage | 380V(-25%, +25%) AC | Warranty | 12 Months |

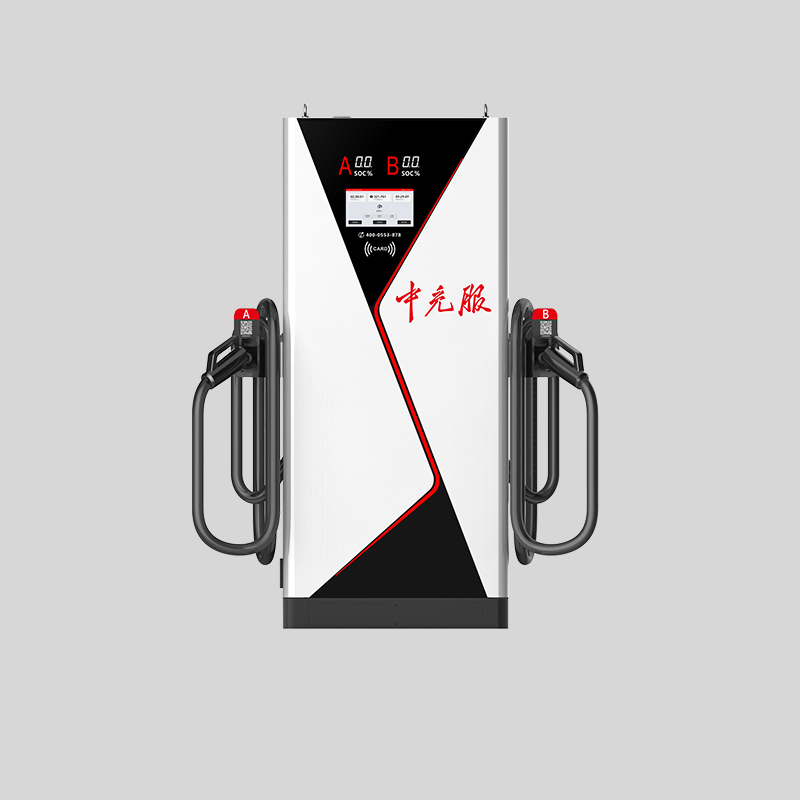

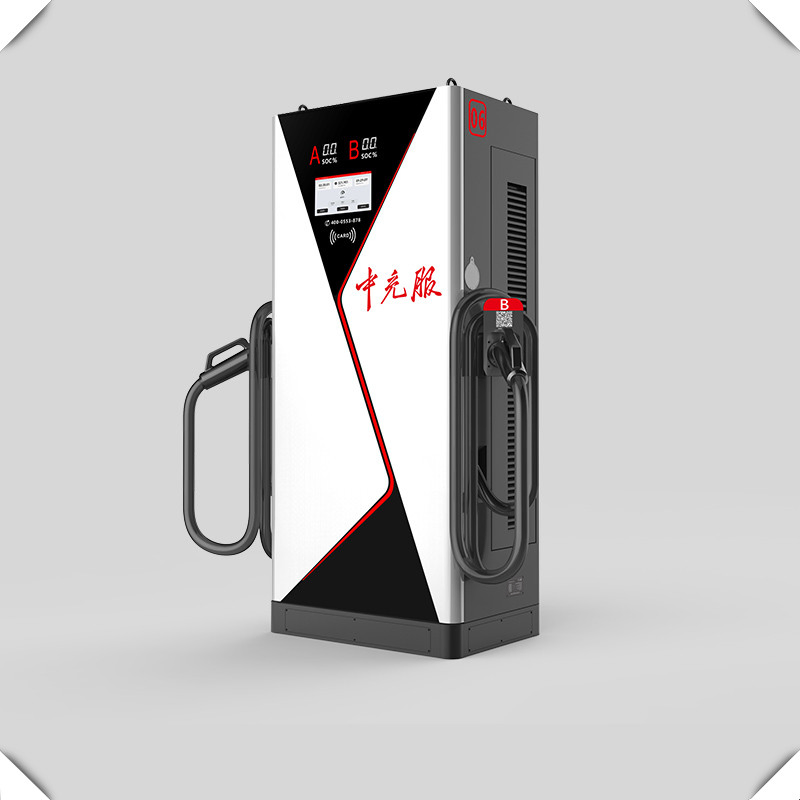

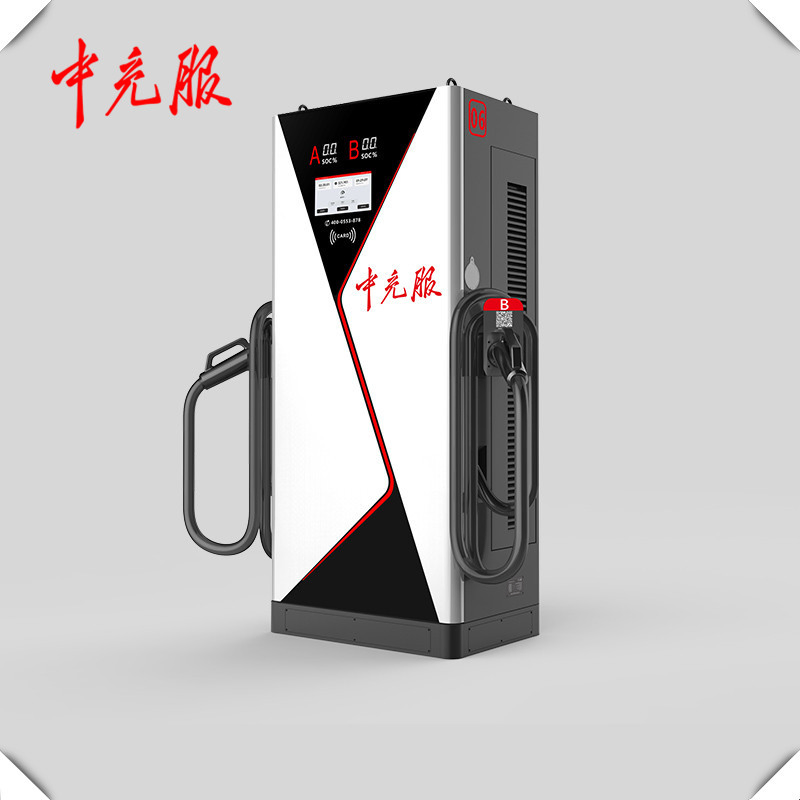

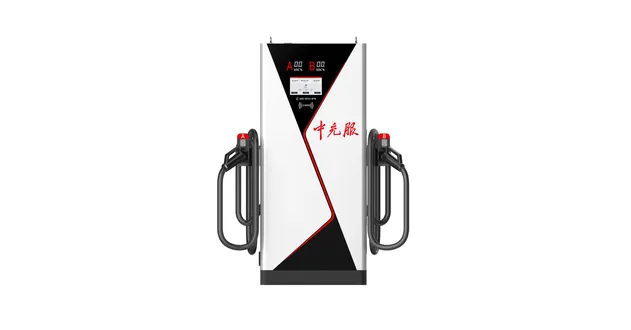

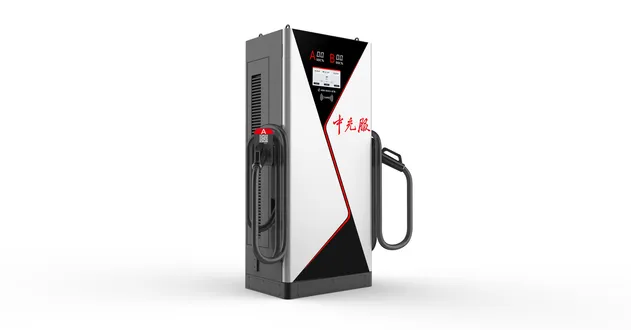

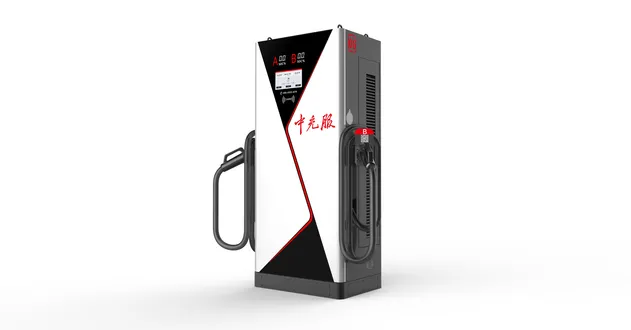

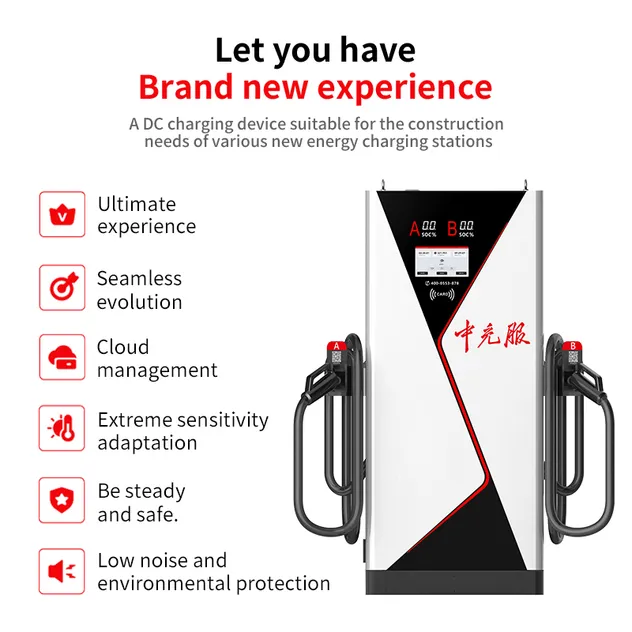

DC charging piles are high-power charging devices that convert alternating current (AC) from the grid into direct current (DC) to directly charge electric vehicle (EV) batteries, bypassing the vehicle's onboard charger. This enables ultra-fast charging, significantly reducing charging time (e.g., replenishing 80% battery in 20–30 minutes for compatible EVs).
Key features include wide voltage/current adjustability (200V–1000V), intelligent safety protections (real-time battery monitoring, overcharge prevention, and thermal safeguards), and high compatibility supporting 99.5% of EVs on the market. Modular design allows for scalable power and easy maintenance.
| Product Specifications | Parameter Value |
|---|---|
| Product Model | ZCF300K42401I |
| Implementation Standards | GBT/CCS2 |
| Total Power | 240-400kw |
| IP Protection Rating | IP54 |
| Power Factor | ≥0.99 |
| Voltage Regulation Accuracy | ≤0.5% |
| Output Voltage Range | 50V~1000VDC |
| Appearance Size | 750(W) x 650(D) x 1700(H) mm |
| Protect Function | Input overloading, short circuit, overvoltage, undervoltage, output current limiting, insulation detection, overtemperature, reverse polarity protection. |

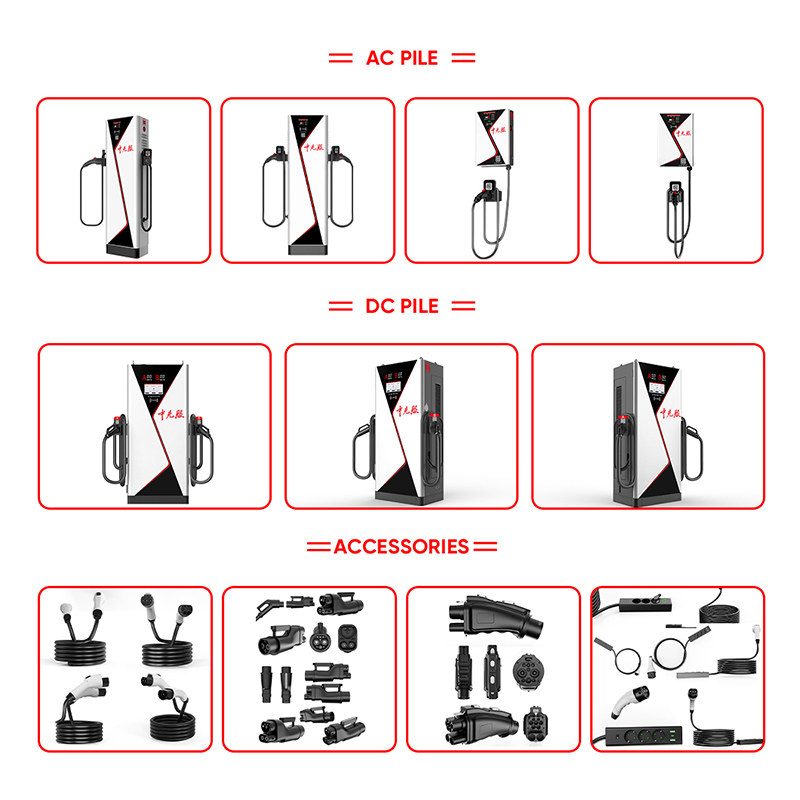

AC Charging Pile
DC Charging Pile

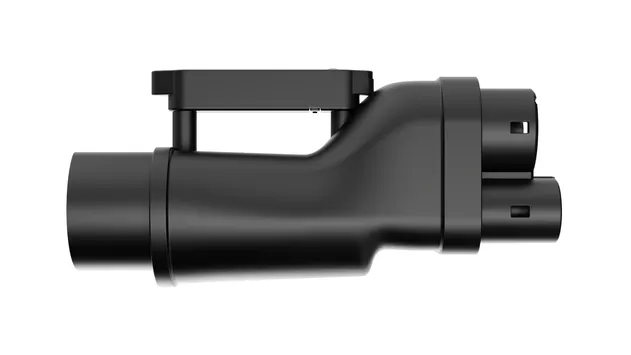

DC Charging Adapter

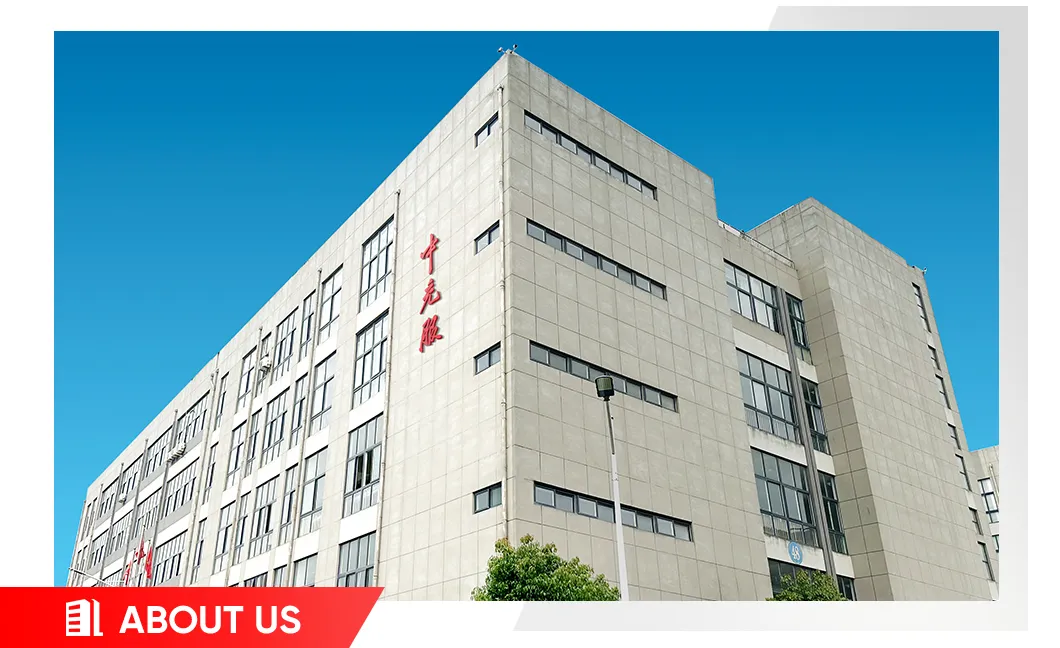

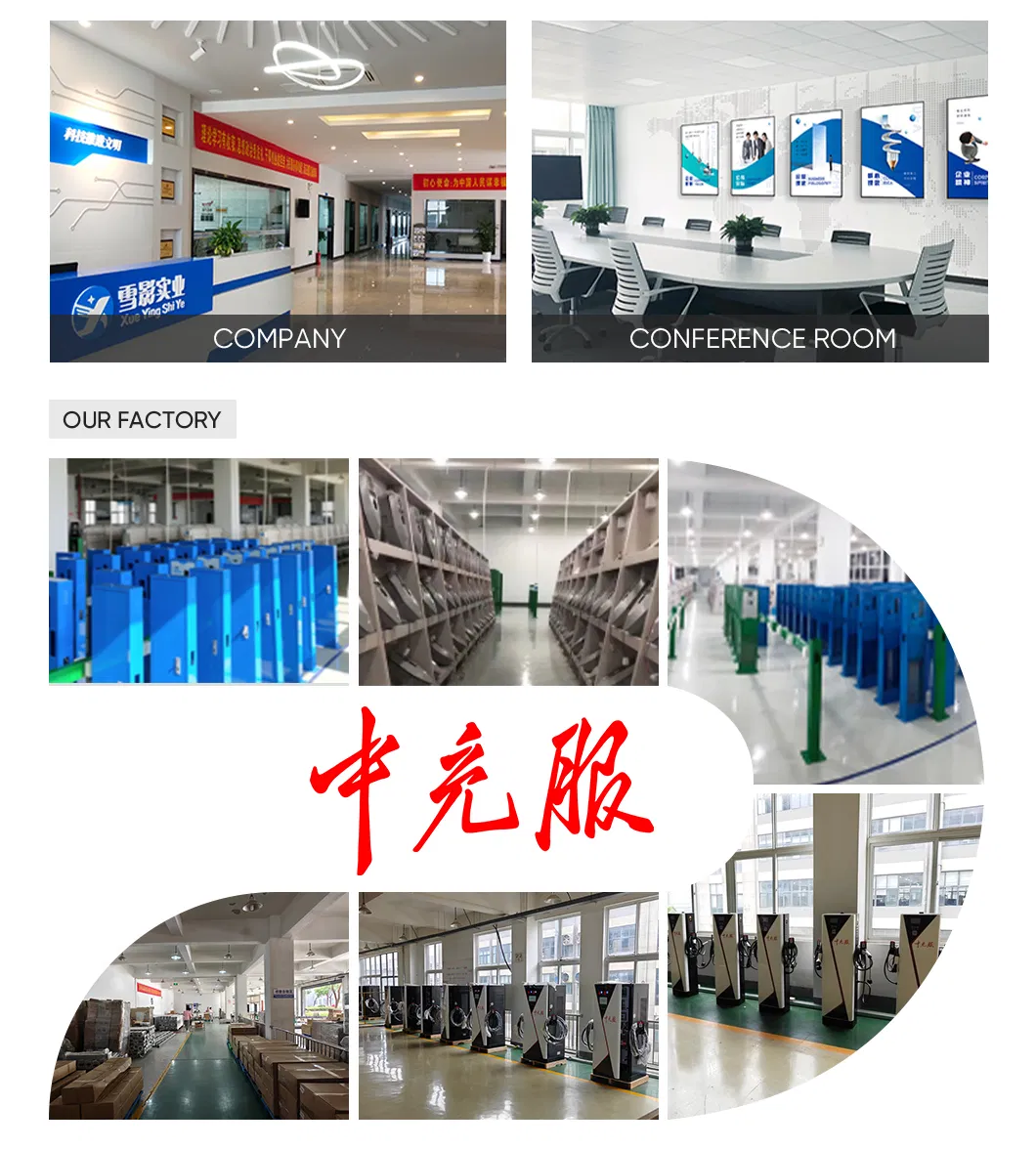

The company focuses on IoT application services and technology R&D, aiming to become a comprehensive charging service solution provider. It integrates R&D of IoT platforms, development of smart self-service equipment, production, sales, installation, and operation & maintenance.
With an R&D center for independent design, the company researches the smart equipment market to meet customized needs. Key clients include major infrastructure and telecommunication providers. Products are exported globally, including Southeast Asia and Belt and Road regions, providing over 200,000 daily secure charging services.
