Vernon Charger
1 / 5
| Model NO. | WY03 |
|---|---|
| Location | Public Use |
| Number of Charging Interfaces | One Pile with One Charge |
| Start Mode | Credit Card Payment, Mobile Remote Operation, RFID Authentic |
| Operating Temperature | -30 °C to 55°C |
| Working Storage Humidity | ≤ 95% Rh ≤ 99% Rh (Non-Condensing) |
| Altitude | < 2000m |
| Ingress Protection | IP54 Ik10 |
| Safety Standard | GB/T, CCS2, CCS1, Chademo, Nacs |
| Power Electronics Cooling | Air Cooled |
| Efficiency | ≥94% at Nominal Output Power |
| HS Code | 8504409999 |
| Production Capacity | 10000 pieces/Year |

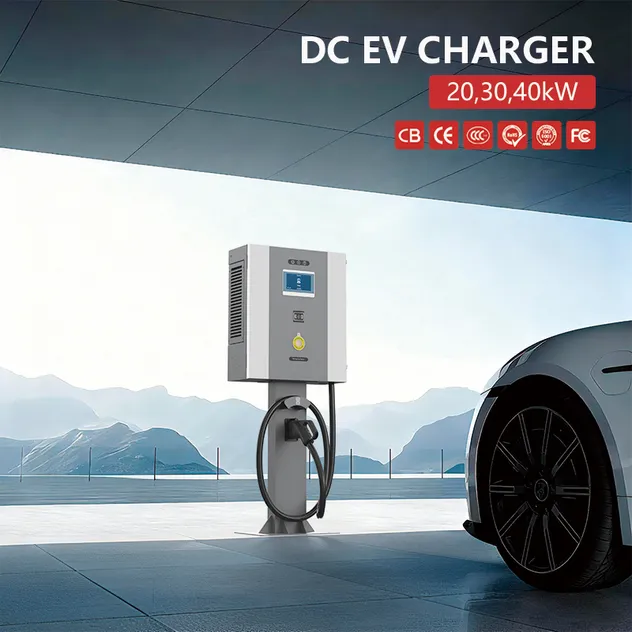

WY03 Series 20kW-40kW Wall-Mounted (Floor-Standing) DC Charging Station
The WY03 Series represents a highly adaptable charging solution designed for diverse charging scenarios, offering flexible installation and efficient space utilization.
✔ Flexible Installation: Both wall-mounted and pole-mounted options to accommodate varying site constraints. Ideal for underground garages or outdoor commercial districts.
✔ Convenient Maintenance: Features a quick-release front door mechanism, allowing technicians easy access to internal modules without specialized tools.
✔ High Cost-Effectiveness: Optimized technical solutions ensure competitive pricing, shorter investment payback periods, and high operational returns.
✔ Industrial-Grade Reliability: Rugged chassis built to withstand daily weather exposure and complex operating environments.
| Appearance & Structure | |
|---|---|
| Dimensions (L x D x H) | Wall: 650mm x 260mm x 750mm Pillar: 650mm x 260mm x 1600mm |
| Weight | 88kg (Wall) / 106kg (Column) |
| Cable Length | 5m |
| Electrical Performance | |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC |
| Rated Power | 20-40kW |
| Peak Efficiency | ≥96% |
| Protocol | OCPP, YKC, and other platforms |
| Design & Environment | |
| Display | 7’’ LCD Touch Screen |
| Communication | WIFI / Ethernet / 4G (Optional) |
| Ingress Protection | IP54 / IK10 |

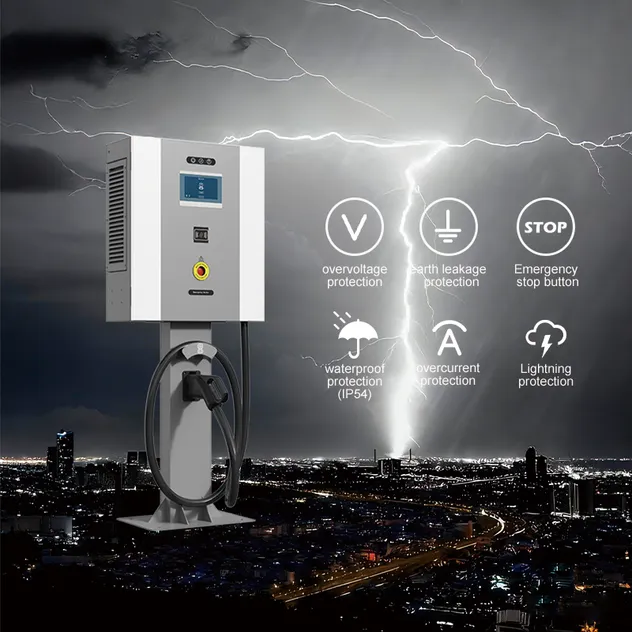

| Safety Protection | Overvoltage, Lightning, Overcurrent, Leakage, Emergency Stop |
Our foundation is built on technology, integrating R&D, design, manufacturing, and service. With over 50% of the workforce dedicated to R&D, we provide technical support globally through independently developed products like CCU, PCU, and SECC.
| Package Size | 81.00cm * 46.00cm * 170.00cm |
|---|---|
| Package Gross Weight | 113.000kg |
| Terms of Packing | Standard wooden box or carton packaging |
