Vernon Charger
1 / 5

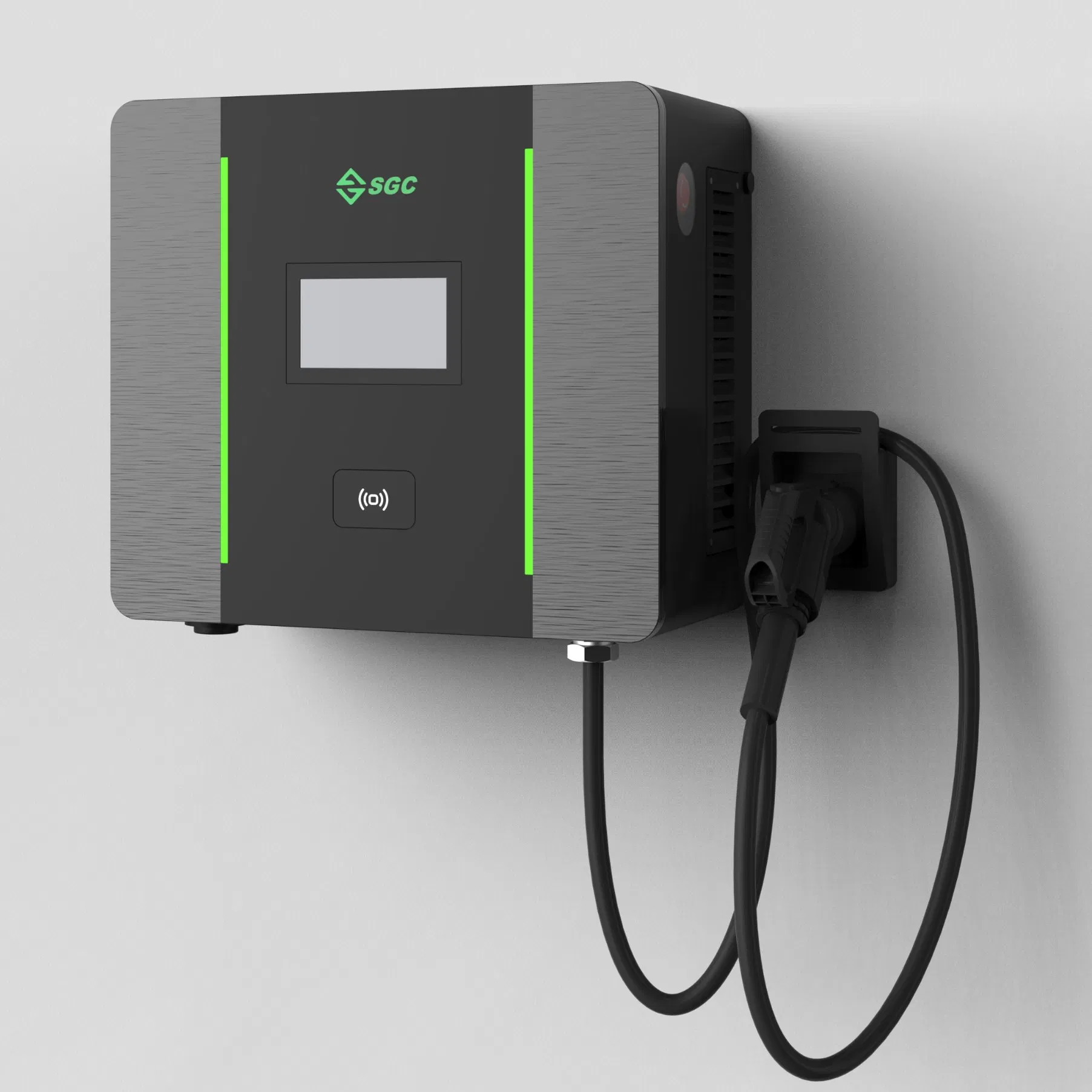

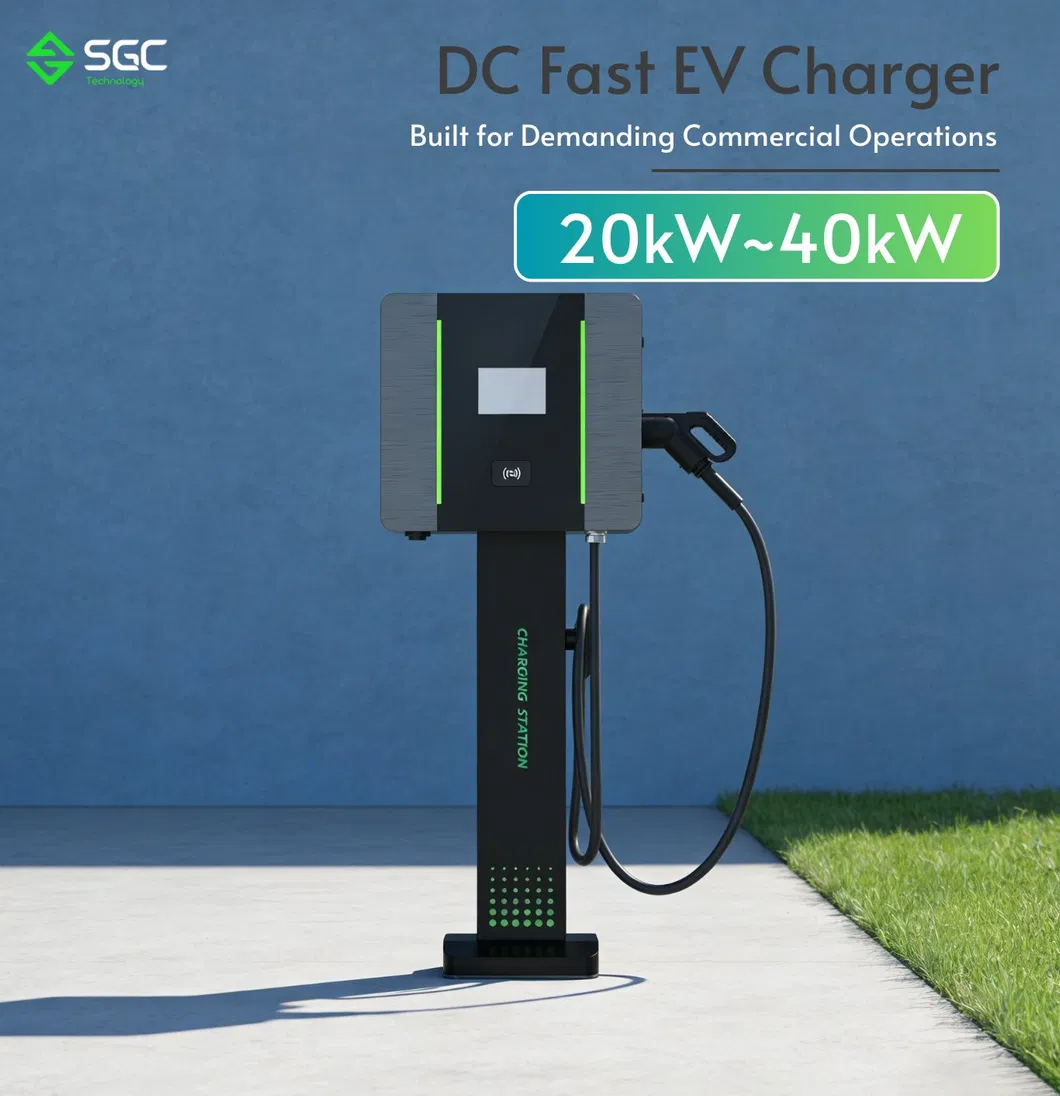

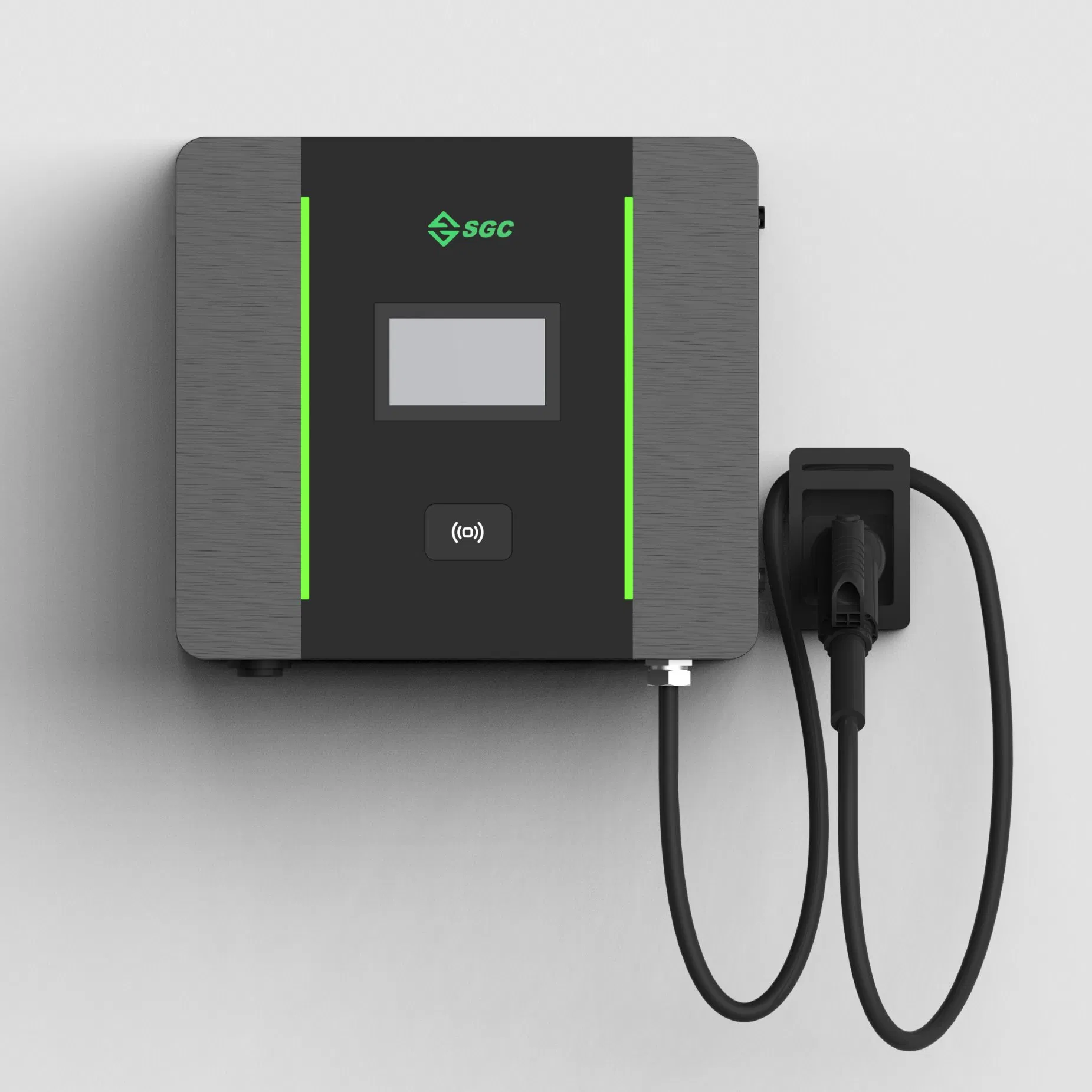

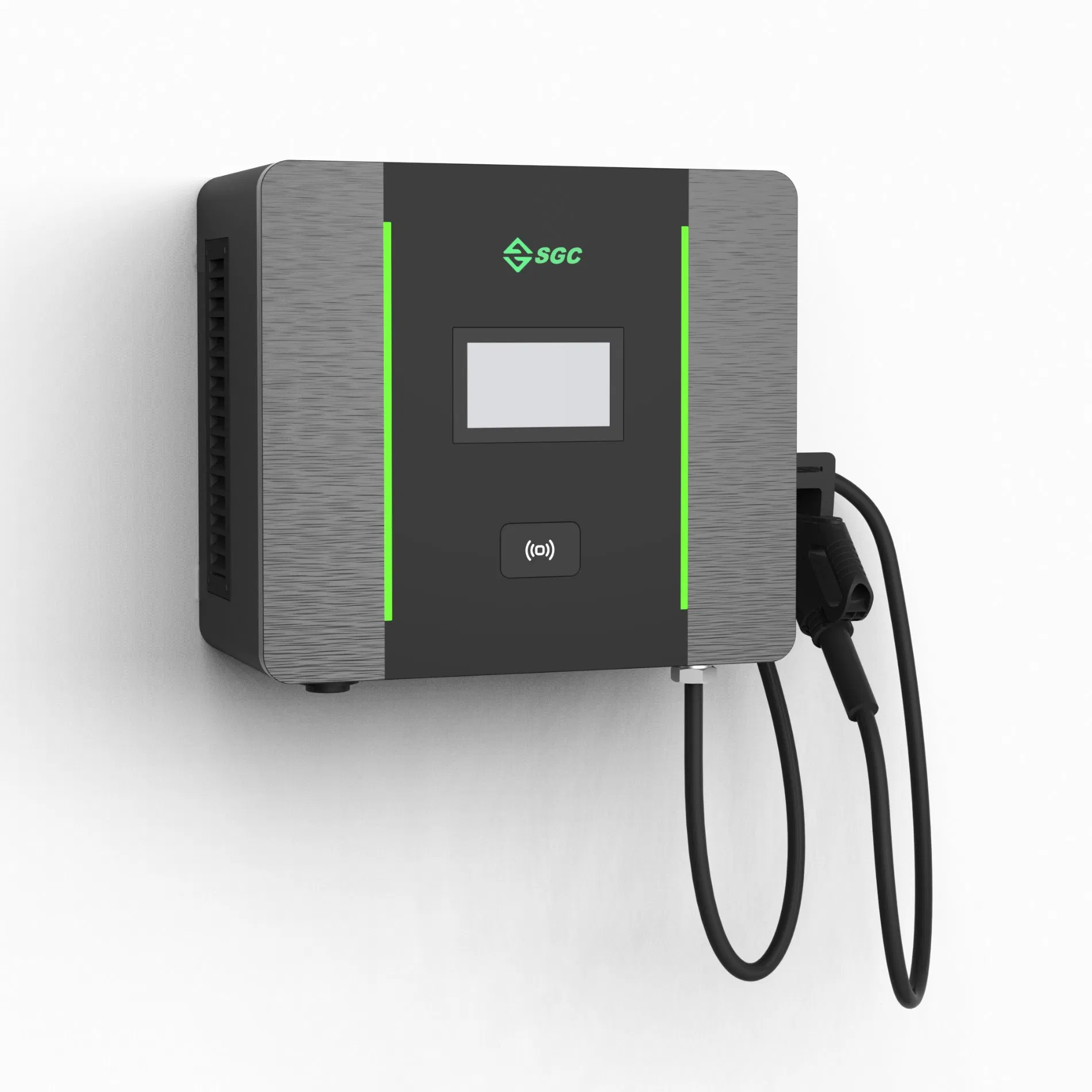

This 20-40kW compact DC EV charger is a versatile and space-efficient solution designed for diverse charging needs, including urban workplaces, retail destinations, fleet depots, and multi-unit residential buildings.

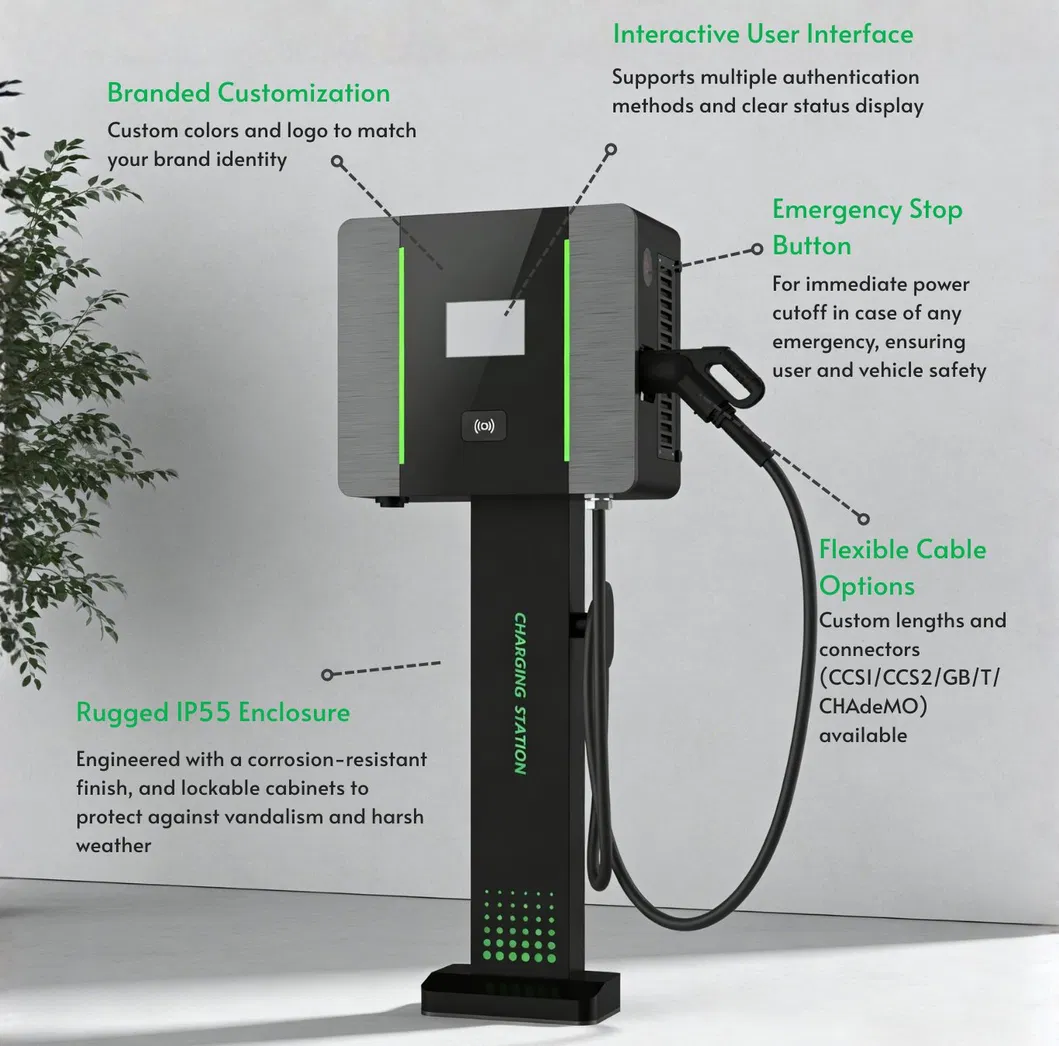

The charger supports single or double gun charging and is compatible with global standards (CCS1, CCS2, GB/T, or CHAdeMO). Its compact design ensures reliable operation within a temperature range of -20°C to 55°C and features IP55/IK10 protection, making it suitable for both indoor and sheltered outdoor installations.

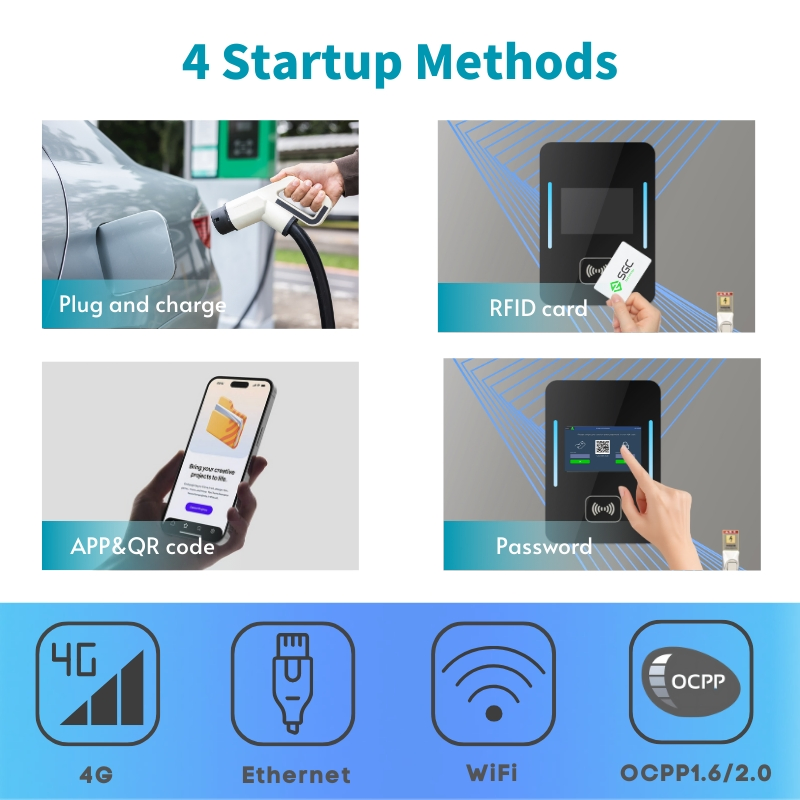

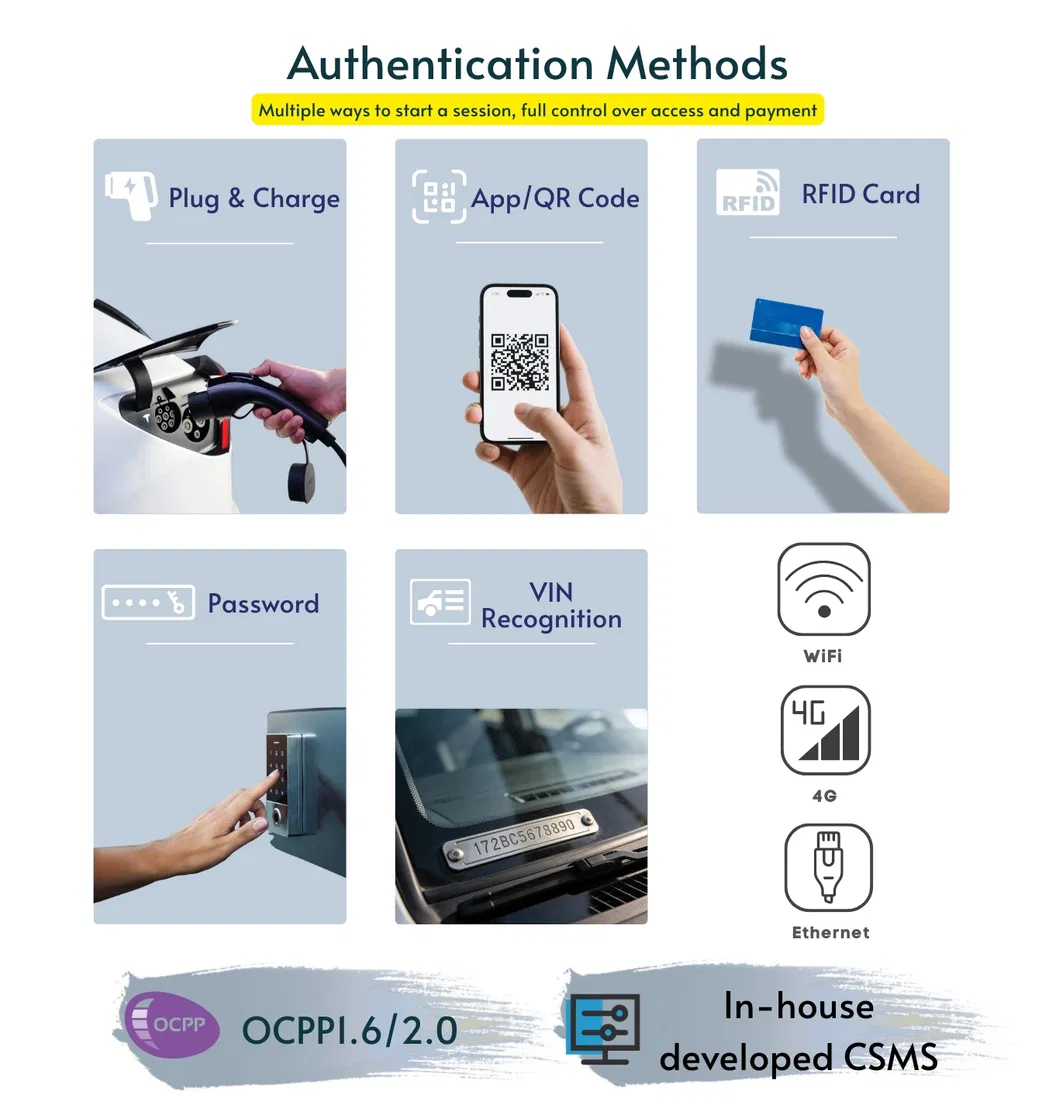

Key functionalities include OCPP 1.6J/2.0 compliance for seamless network integration, support for RFID and app-based user authentication, and compatibility with energy management systems. Built with quality components, the charger can be easily monitored via a cloud-based CSMS platform, enabling remote diagnostics and firmware updates.
| Product Information | |
|---|---|
| Product Name | Integrated DC Fast Charger |
| Output Power | 20KW / 30KW / 40KW |
| Interface | 7" LCD Touch Screen |

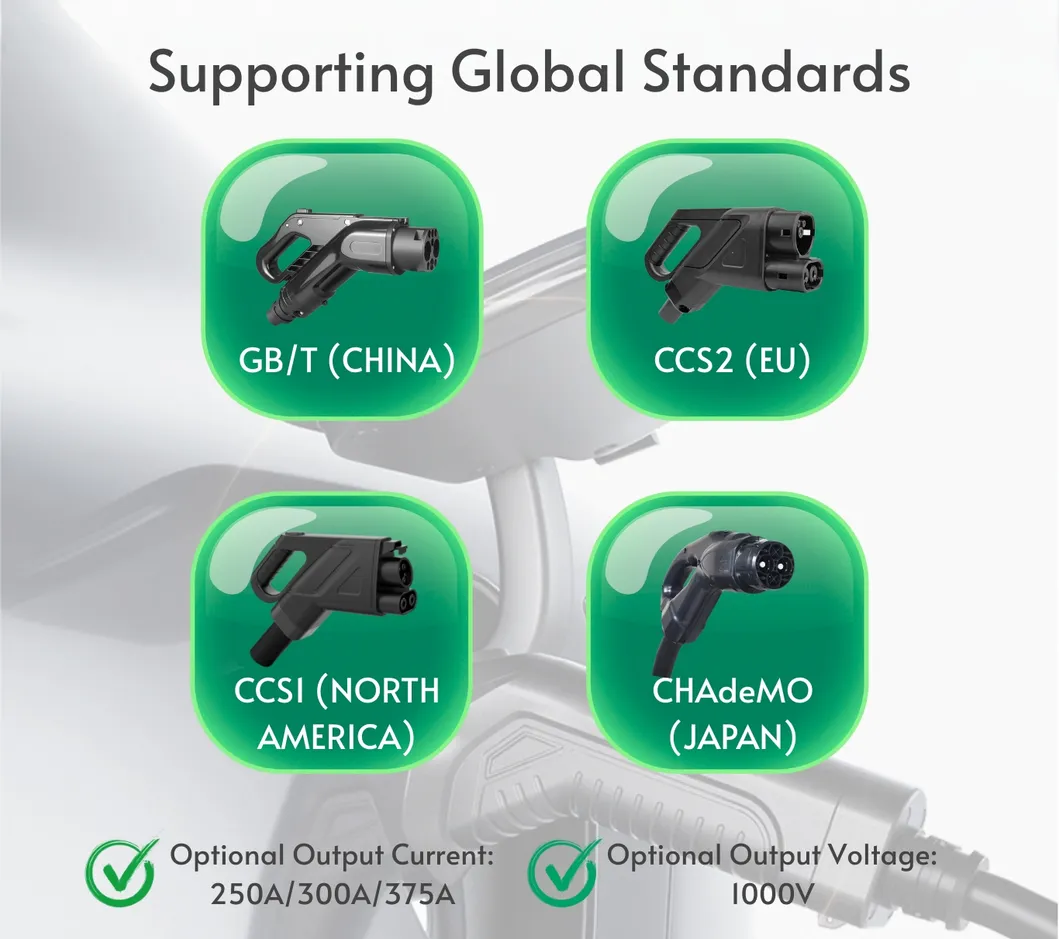

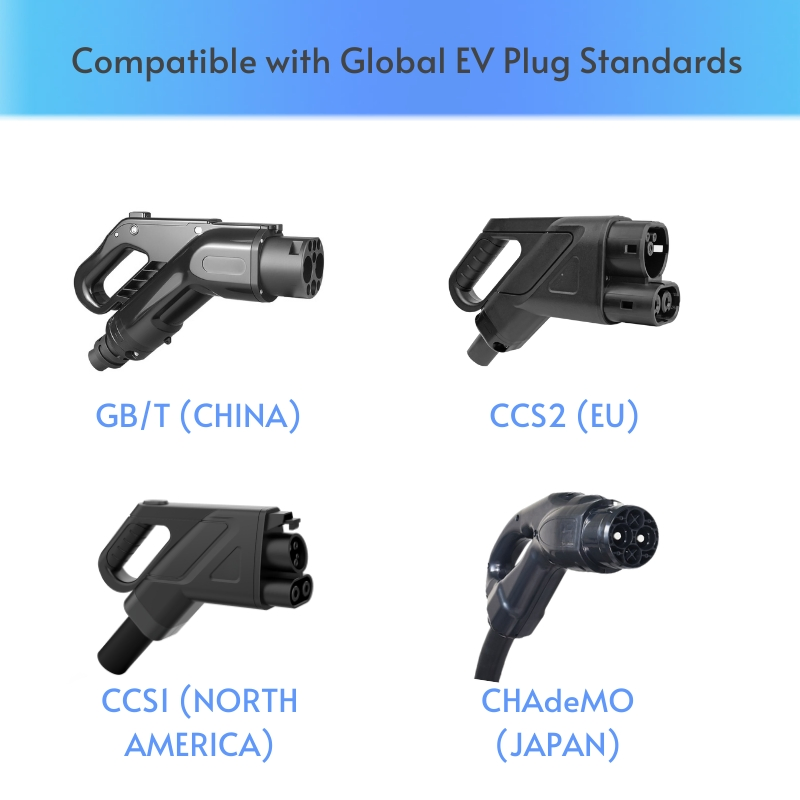

| Connector Type | CCS1 / CCS2 / GBT / CHAdeMO |
| Connectivity | 4G / Ethernet / WiFi |
| Protection Level | IP55 / IK10 |
| Electrical Parameters | |
| Input Voltage | AC380V±15% |
| Output Voltage | 50~1000VDC |
| Operating Efficiency | ≥94% |
| Power Factor | ≥0.99 |
| Environmental Parameters | |
| Operating Temp | -20°C to +55°C |
| Operating Humidity | 0% to 95% |
| Cooling Method | Forced Air Cooling |

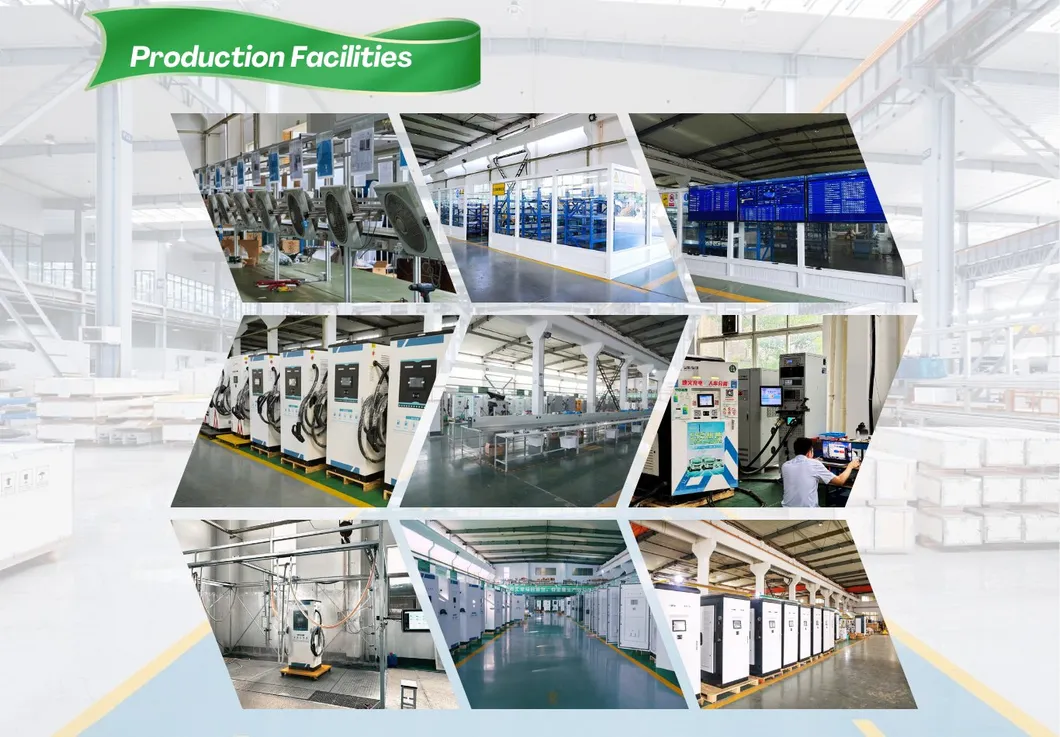

Founded in 2008, we are a leading manufacturer and comprehensive solution provider in the EV charging industry. We specialize in the R&D, production, and sales of high-power DC fast chargers, AC chargers, and mobile charging solutions.
With deep expertise dating back to early EV infrastructure development, we possess full in-house capabilities across hardware, software, and platform development. We provide high-quality charging stations and trusted solutions to clients worldwide in over 30 countries.
Guided by our mission to power a greener future, we are committed to advancing global sustainable transportation with innovative and reliable charging infrastructure.
