Vernon Charger
1 / 5
The station supports dual-gun charging with intelligent power allocation and is compatible with major global standards (CCS1, CCS2, GB/T and CHAdeMO). It operates reliably in a wide temperature range (-20°C to 65°C) and features robust IP55/IK10 protection.
Key functionalities include Plug & Charge (ISO 15118), OCPP 1.6J/2.0 compliance for network integration, and compatibility with energy management systems. The design utilizes components from established suppliers and can be managed via a cloud-based platform for remote monitoring and control.
| Electrical & General Parameters | |
|---|---|
| Product Name | Integrated DC Fast Charger |
| Output Power | 60KW to 480KW |
| Input Voltage | AC380V±15% |
| Output Voltage | 50~1000VDC |
| Connector Type | CCS1/CCS2/GBT/CHAdeMO |
| User Authentication | RFID card / Password / VIN code / QR code |
| Communication Protocol | OCPP1.6J |
| Protection Level | IP55 / IK10 |
| Efficiency | ≥94% |
| Operating Temperature | -20°C~+55°C (normal); up to 65°C (derated) |

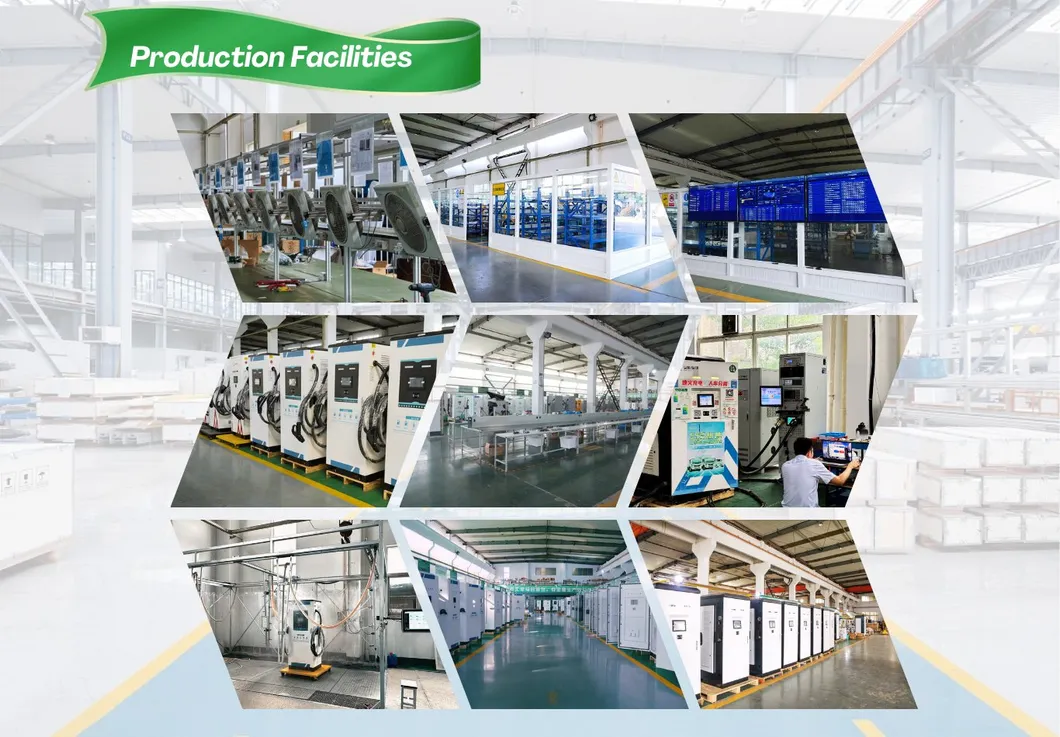

Founded in 2008, we are a leading manufacturer and comprehensive solution provider in the EV charging industry. We specialize in the R&D, production, and sales of high-power DC fast chargers, AC chargers, and mobile charging solutions.
With deep expertise dating back to early EV infrastructure development, we possess full in-house capabilities across hardware, software, and platform development. We provide high-quality charging stations and trusted solutions to clients worldwide in over 30 countries.
