Telecom Rectifier System 5g Communication Power Supply

NASN rectifiers bring advanced technology to the DC power industry. Innovative engineering combines the best in efficiency and reliability to meet the power requirements for a variety of system applications. This rectifier is specifically designed to recharge all types of stationary batteries for large utility, petrochemical and industrial uses.

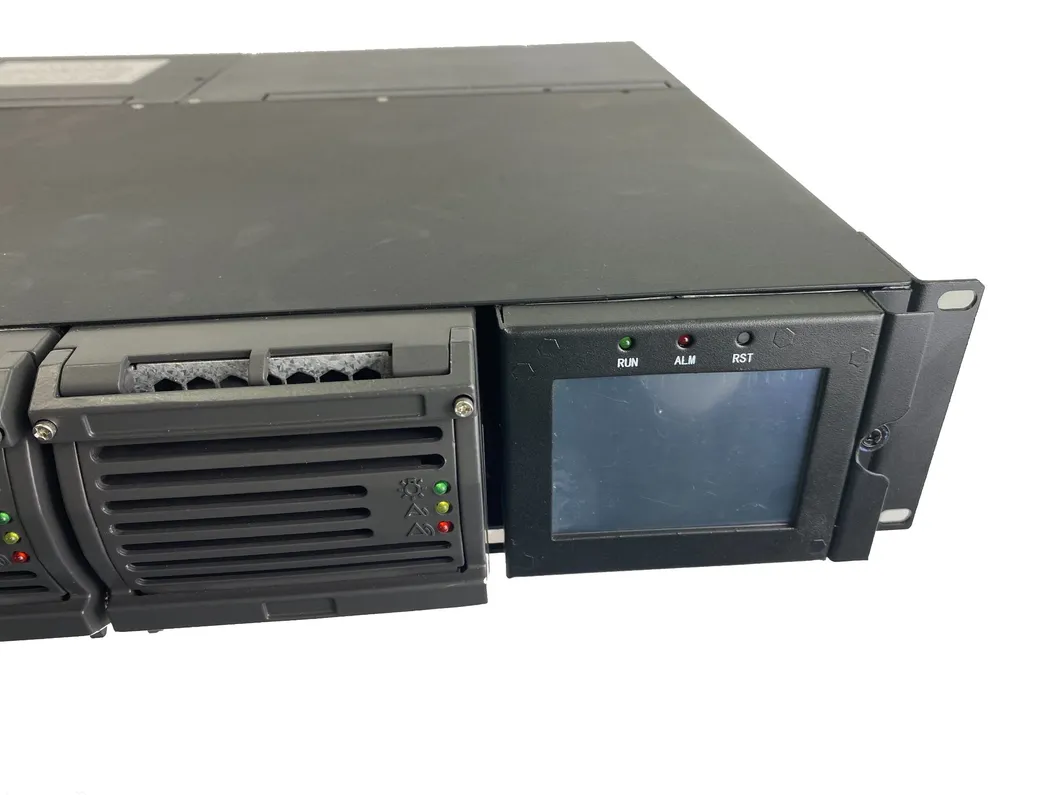

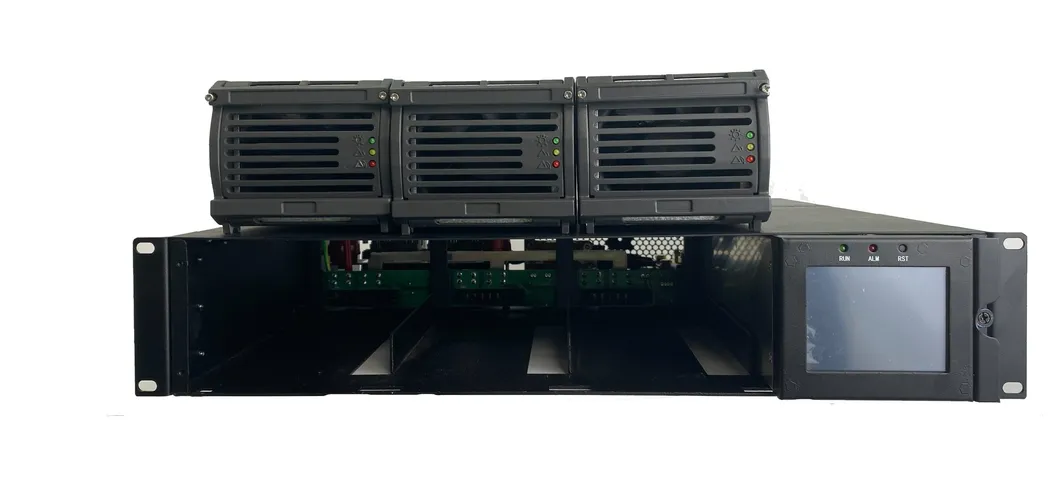

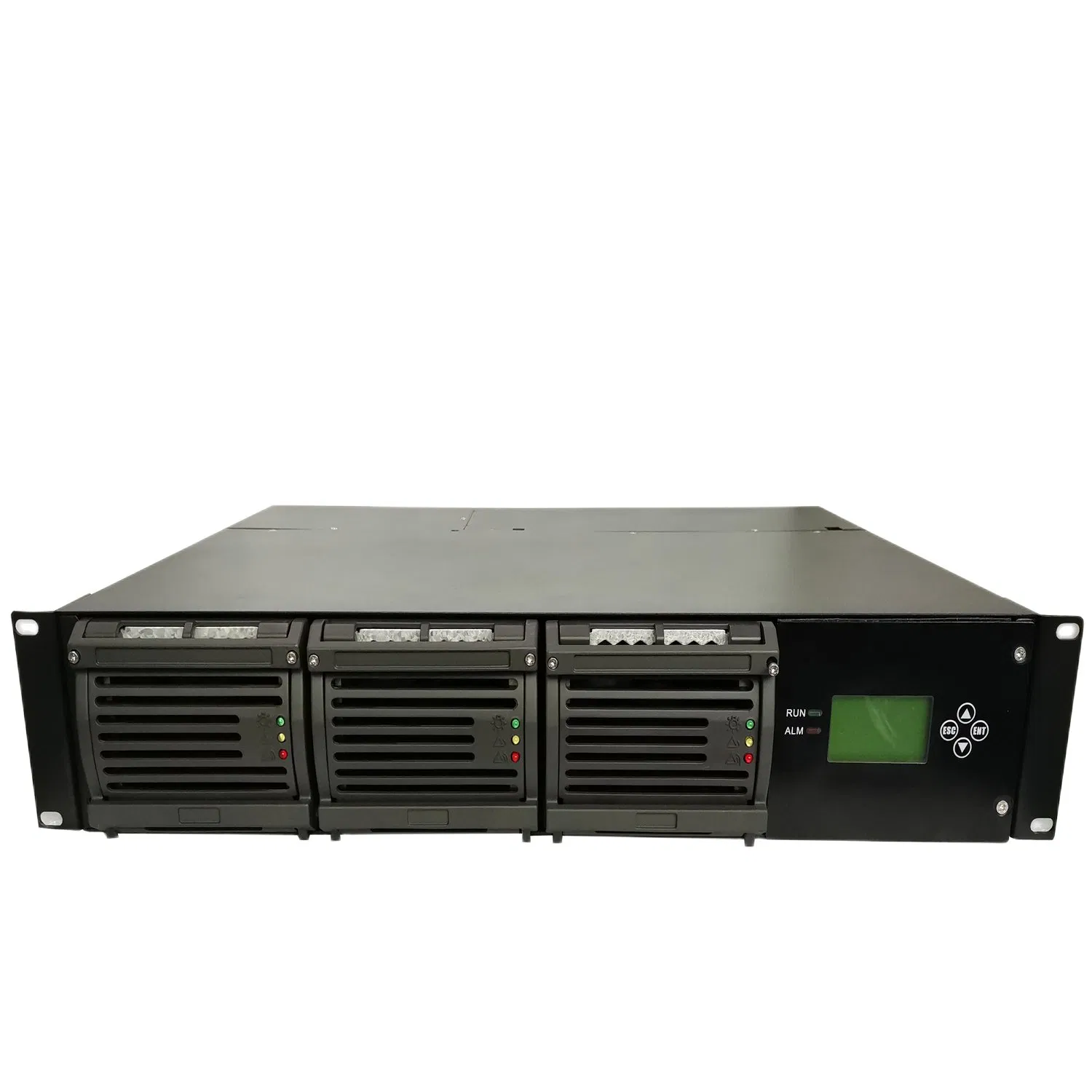

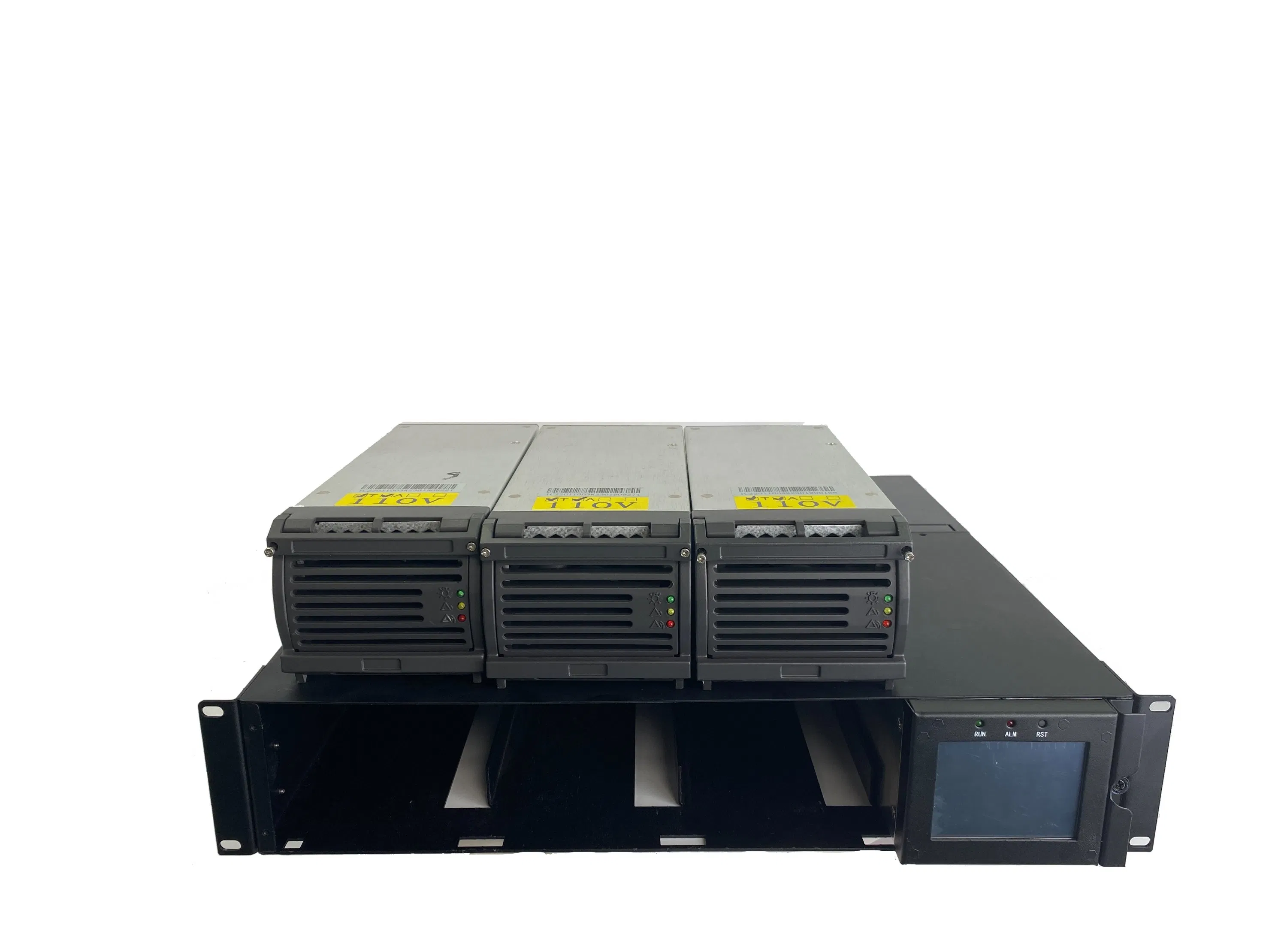

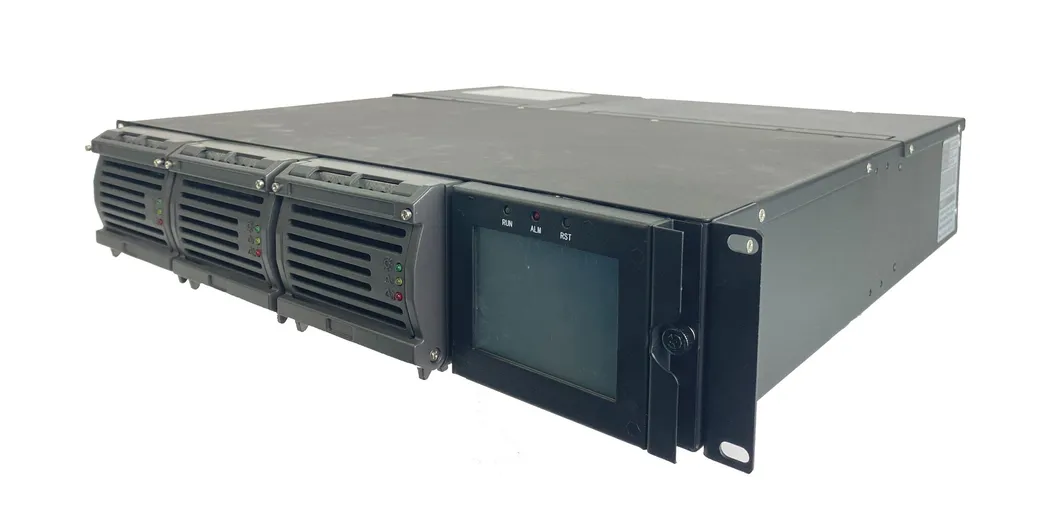

The fan cooled rectifier module has extremely high density providing the most power in the least amount of space. A compact shelf accommodates four rectifiers per 19in 2U shelf and can be paralleled up to 5*2U 19in shelf. Local and remote setup, adjustment and control is a simple, single-step process with the rectifier System Controller. By utilizing TCP/IP technology, complete configuration and monitoring of power equipment is possible through a Windows Internet Explorer browser.

High Frequency Switching: The SMPS based CONVERTER utilizes High Frequency (20 KHz and above) Switch Mode techniques for optimal power conversion.

Thermal Management: Temperature-controlled DC fans provide forced cooling. In case of fan failure, automatic protection switches off the module above 70°C, restoring automatically as temperatures drop.

Soft Start: Eliminates starting surges by reaching nominal value slowly within 10 to 20 seconds.

Parallel Operation: Modules support active load sharing when operating in parallel, with current sharing accuracy within ±10%.
