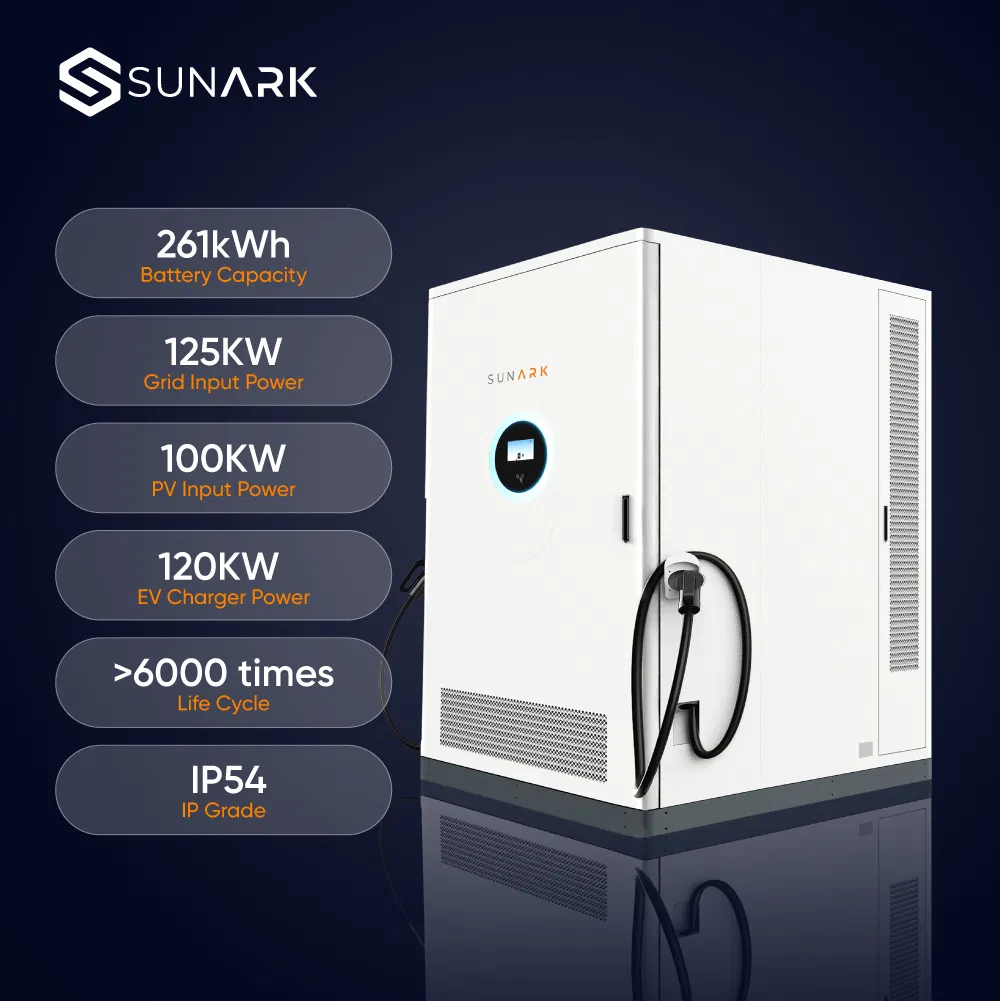

| Model | GCC261K-125 | Battery Capacity | 261kWh |
| Grid Input Power | 125kW | EV Charger Power | 120kW |
| Battery Voltage | 728~949VDC | PV Input Power | 100kW |
| IP Rating | IP54 | Output Power | 120kW |
| System Size | 1600*1400*2300 mm | Origin | China |

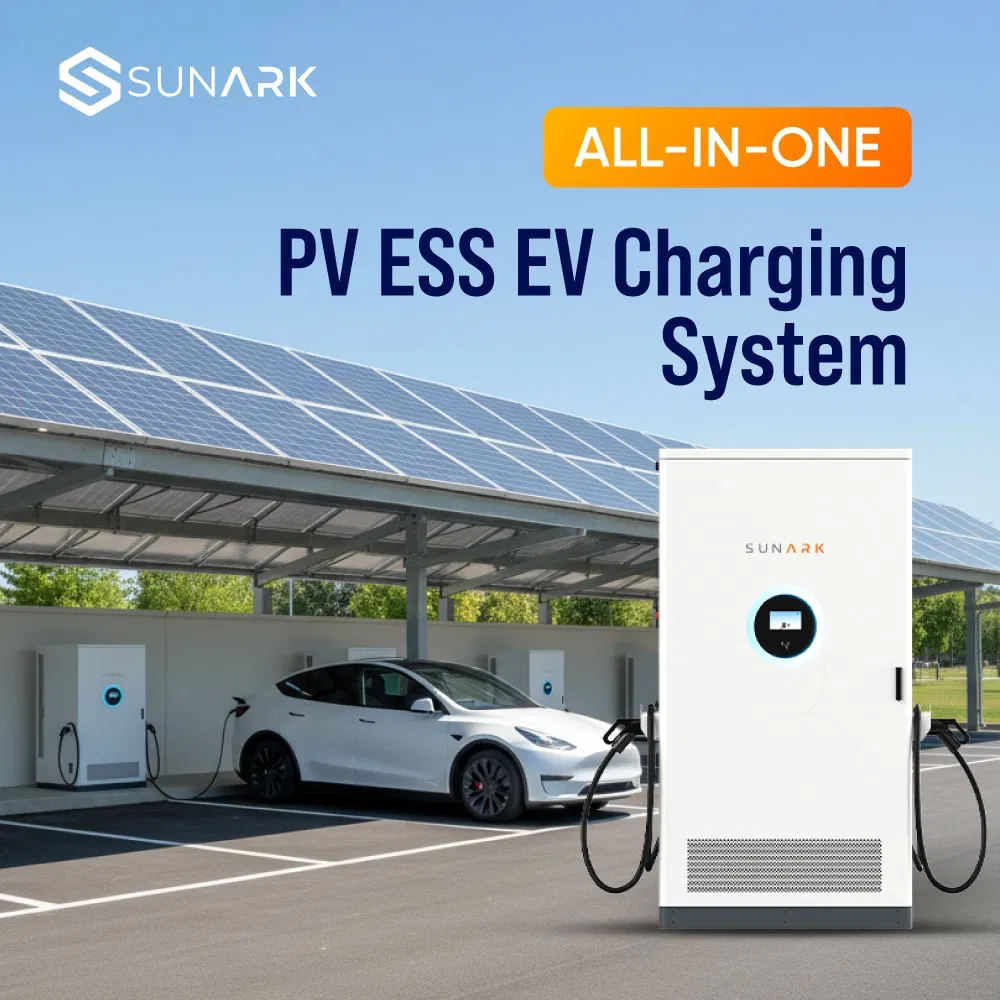

The PV-Storage-Charging Integrated Solution is built on the concept of clean energy self-sufficiency, intelligent scheduling, and zero-carbon mobility, seamlessly integrating solar generation, energy storage, and EV charging infrastructure to create truly zero-carbon smart charging stations.

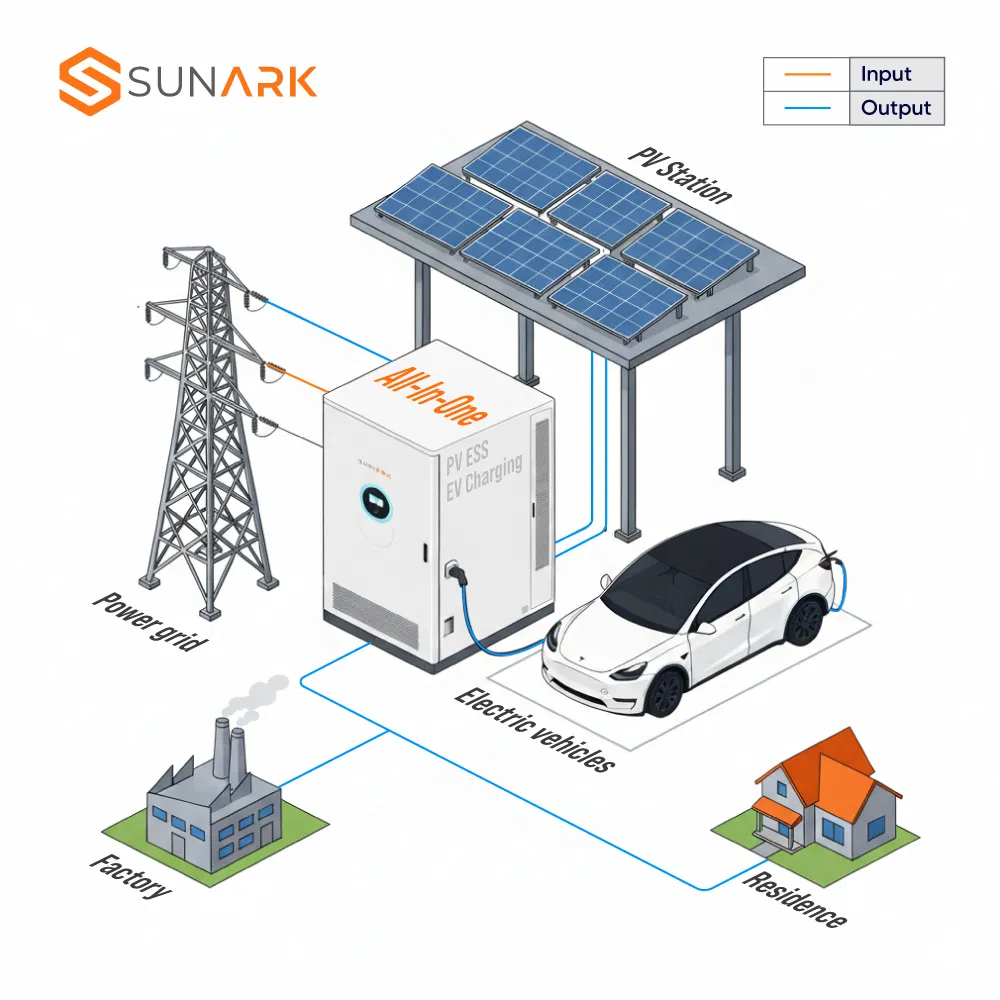

The system adopts a modular and highly integrated architecture, supporting both DC bus and AC coupling configurations. During the day, solar power directly supplies charging and loads, while surplus energy is stored in the battery; at night or during peak tariff periods, the energy storage system discharges or cooperates with the grid to achieve peak shaving and efficiency optimization.
| Battery Voltage | 728~949Vdc | Discharge Depth | ≤95% |
| Cell Type | 3.2V/314Ah | Cycle Life | >6000 Times |
| Grid Input | 400±15%VAC | Work Temp | -20~+50ºC |
| EV Output | 200~1000 Vdc | Charging Gun | 2 units |

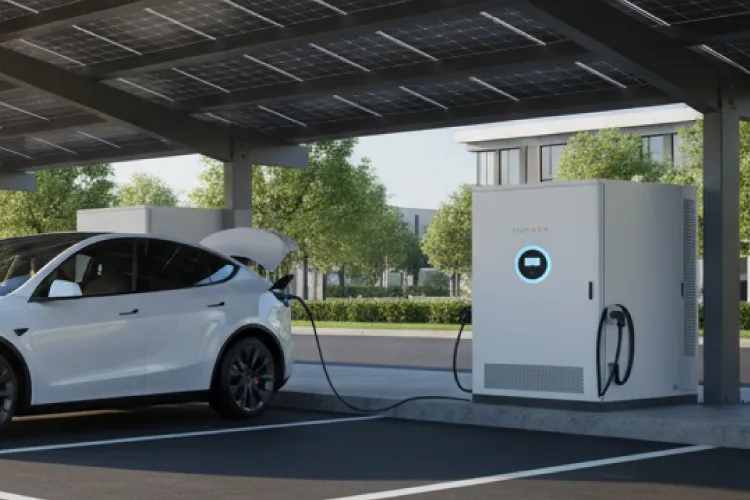

Reliable in Every Situation
• High quality components
• Remote firmware updates
• Long-term reliability and stability

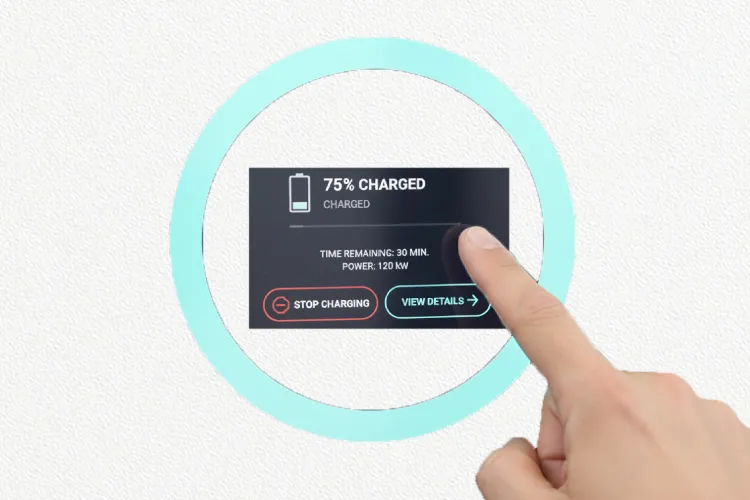

Optimized Operation
• Advertising screen integration
• Smart load balancing
• OCPP capable for management
Convenient Payment
• Mobile APP control
• RFID swiping support
• POS system compatibility

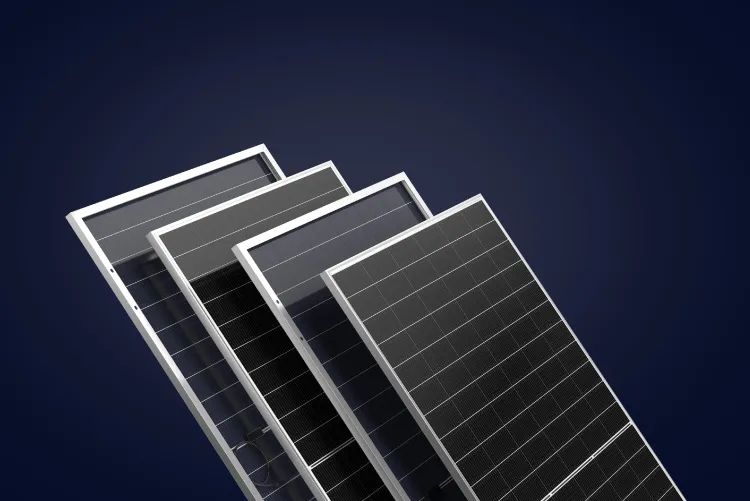

1. High Efficiency Solar Module: N Type HJT or TOPCon PV modules with high power and excellent low-light performance.

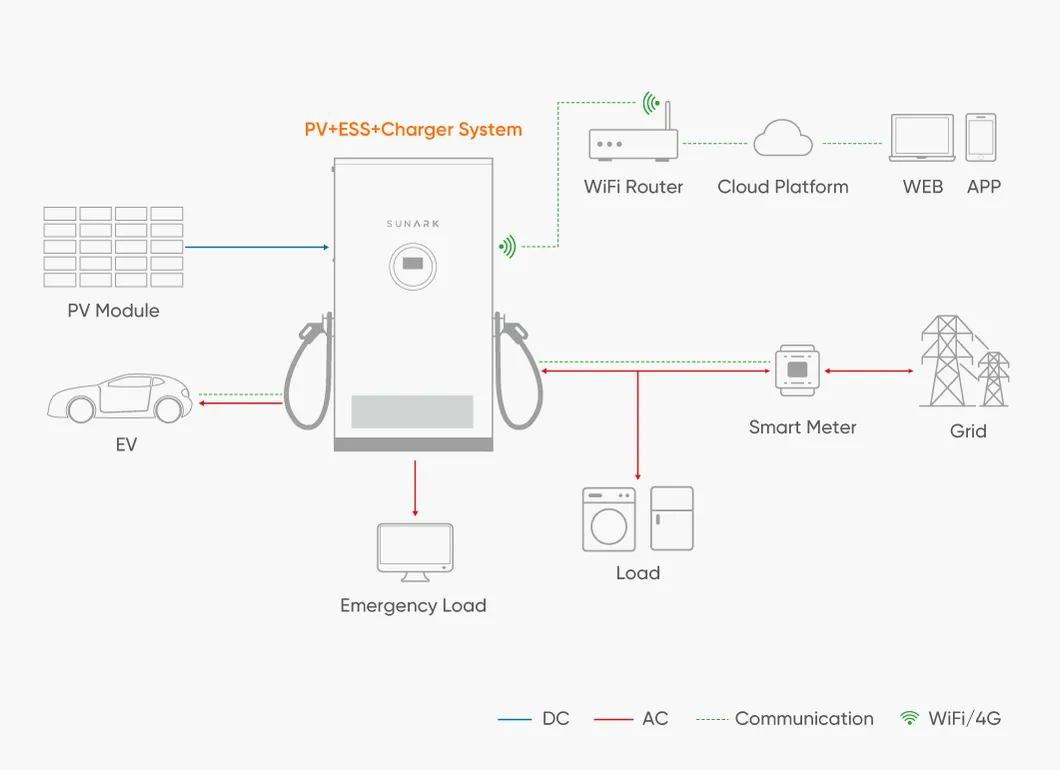

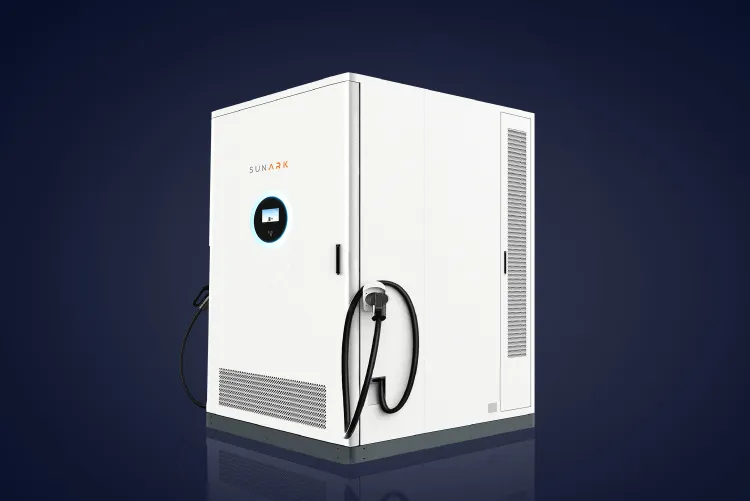

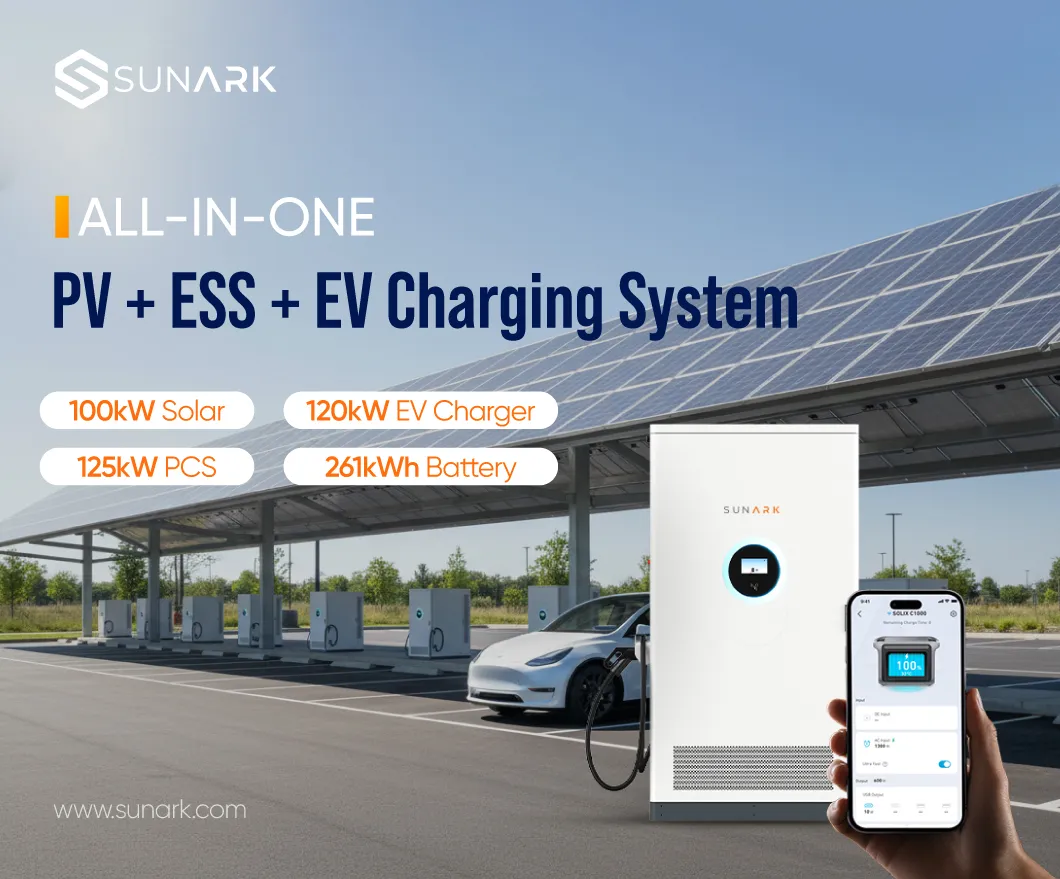

2. All-In-One PV + ESS + EV Charging System: Integrated energy solution to enhance utilization efficiency and reduce costs.

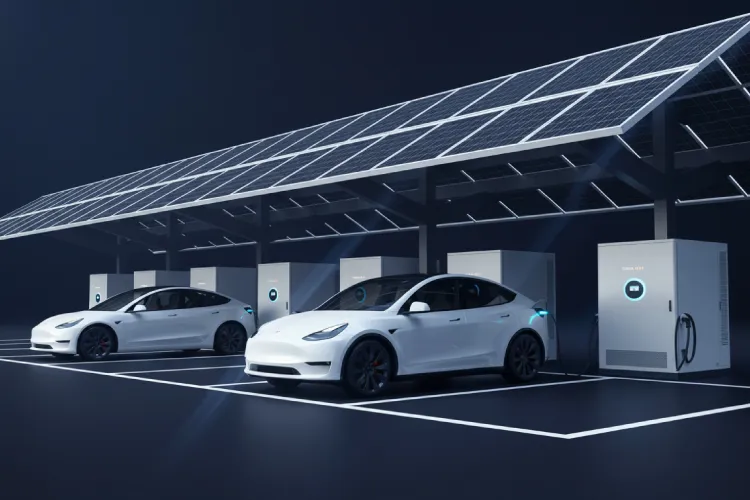

3. Solar Carport Mounting System: Seamlessly integrates parking shelter structures with PV generation.

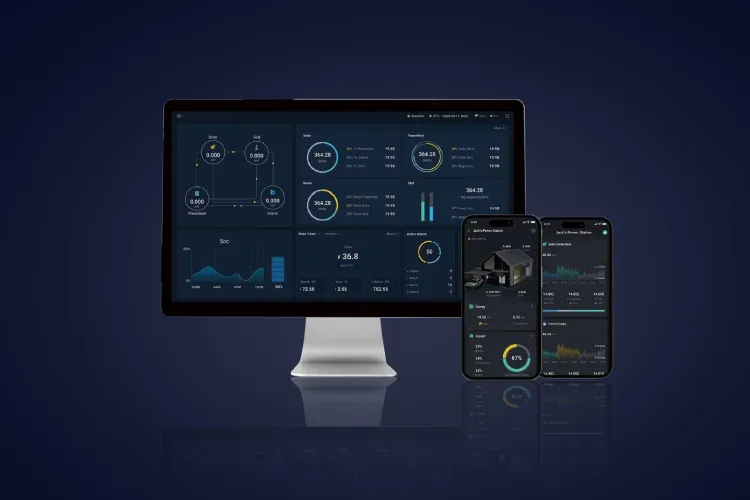

4. Energy Management System (EMS): Comprehensive data acquisition and operation maintenance.
