| Model NO. | GL-T8 |
| Measurement Range | -1999~9999 Words |
| Measurement Accuracy | 0.2%Fs ±1 Word or 0.5%Fs ±1 |
| Resolution | 1, 0.1, 0.01 or 0.001 Words |
| Temperature Compensation | 0~50℃ |
| Display Mode | -1999~9999 Measured Value Display |
| Light Column Accuracy | 1% |
| Control Mode | Bit Type on/off with Back Difference |
| Feeder Output | DC 24V, Load Capacity ≤ 30mA |

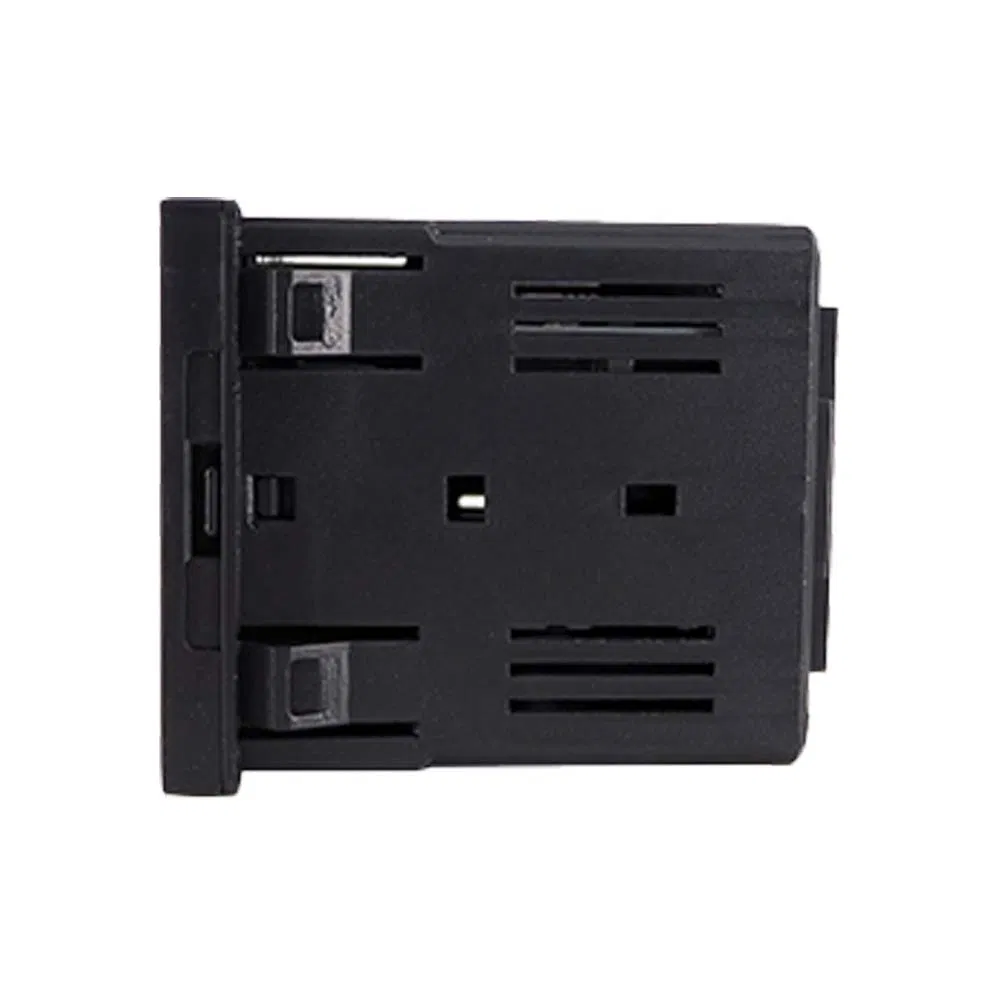

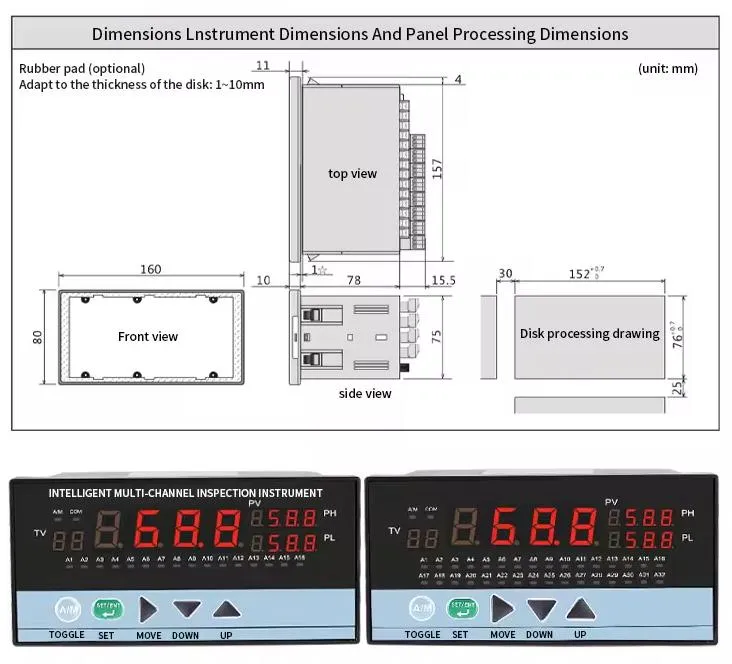

| Structure | Standard Snap-in Type |
| Origin | China |
| HS Code | 9026202000 |

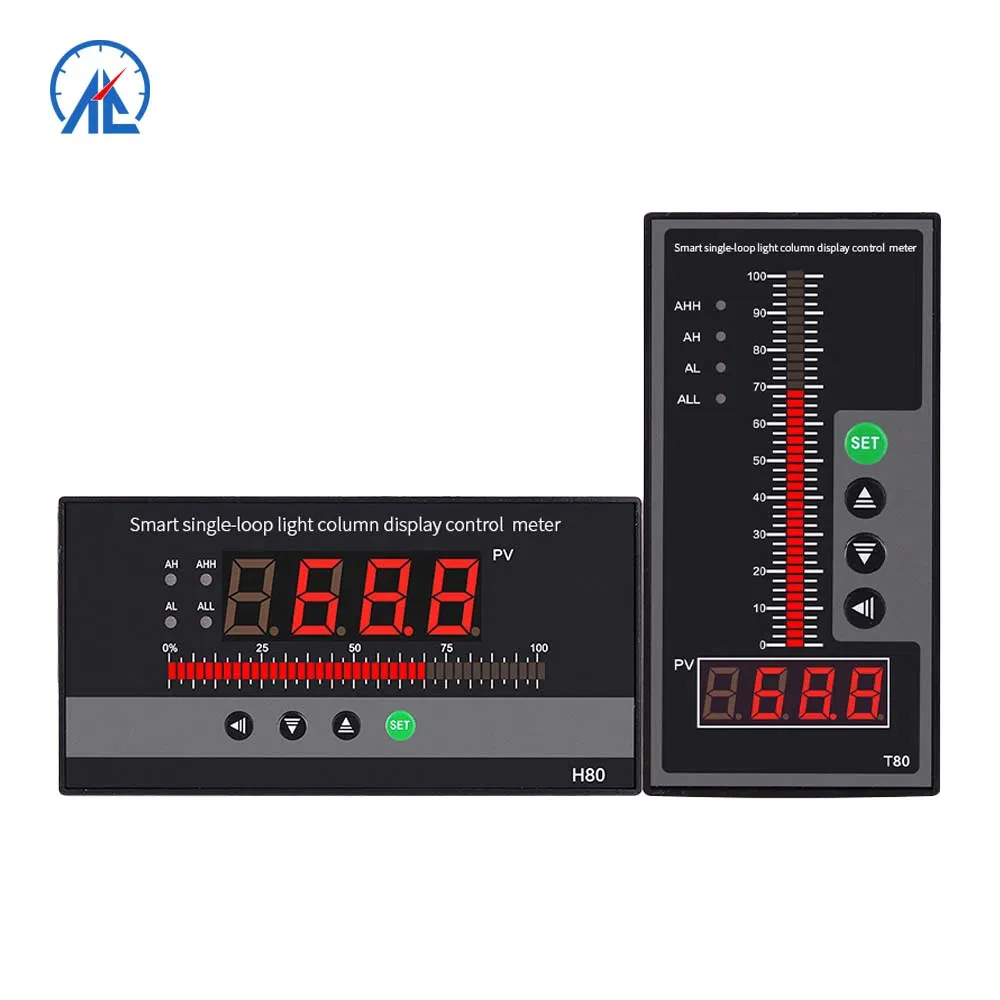

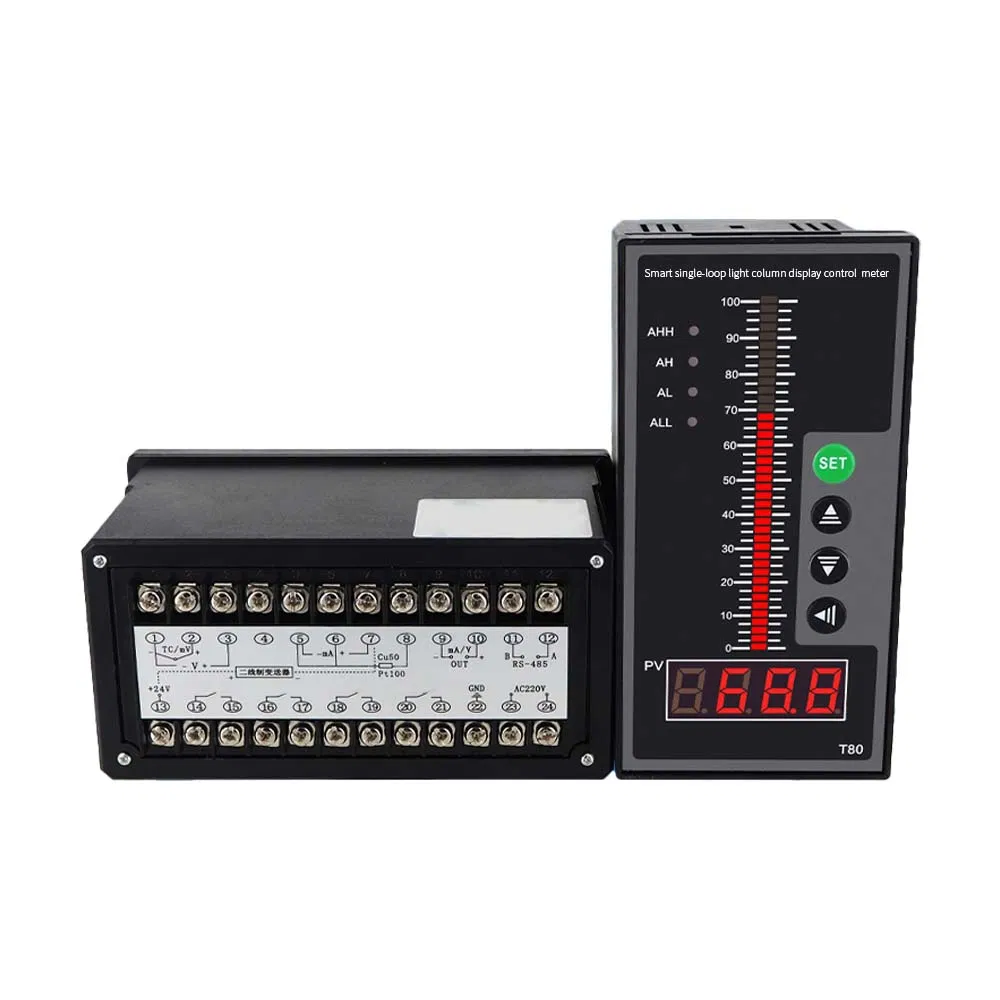

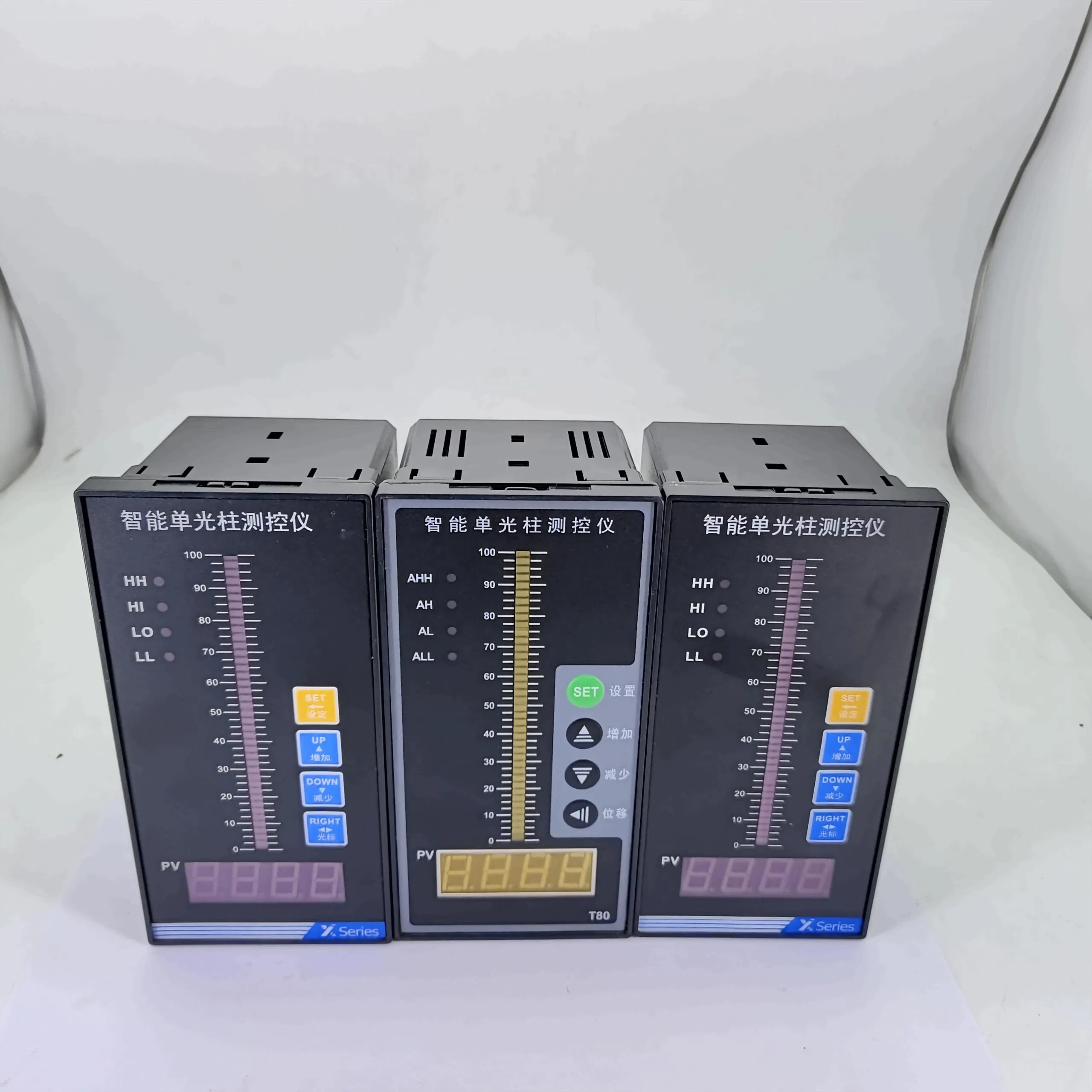

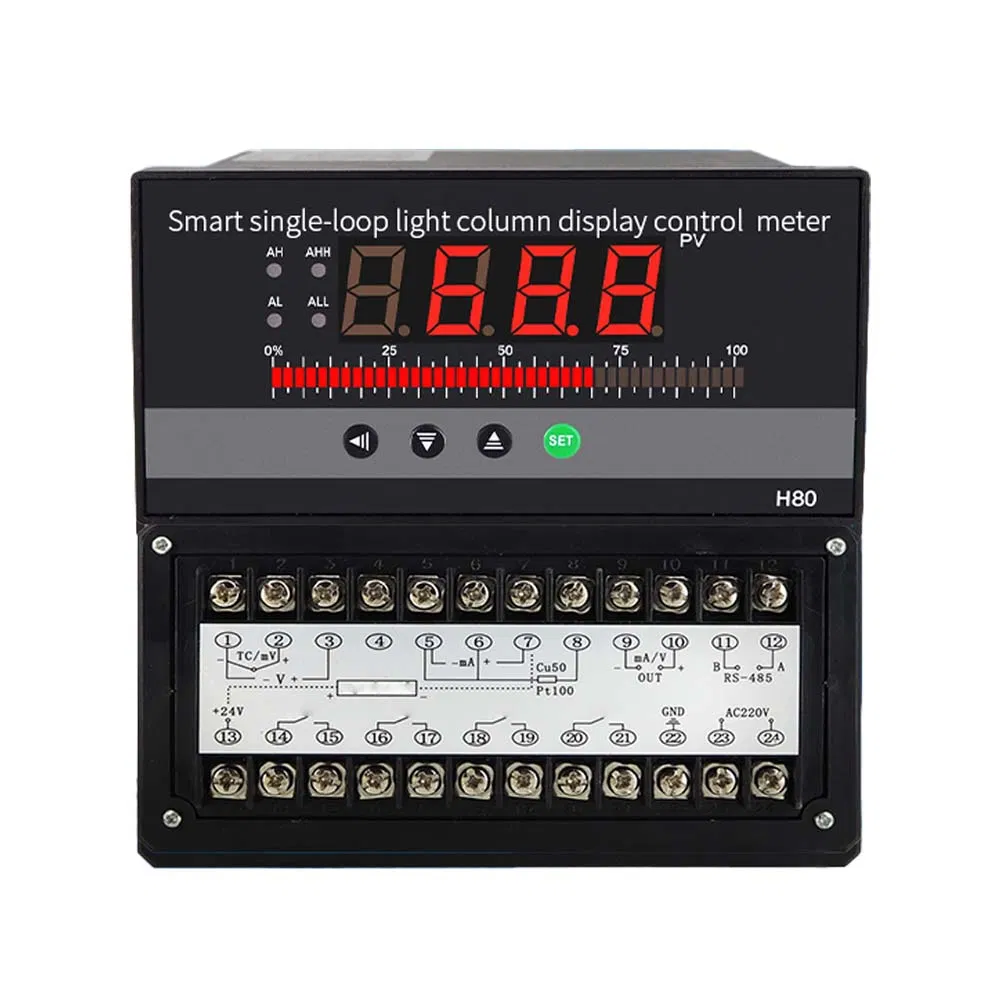

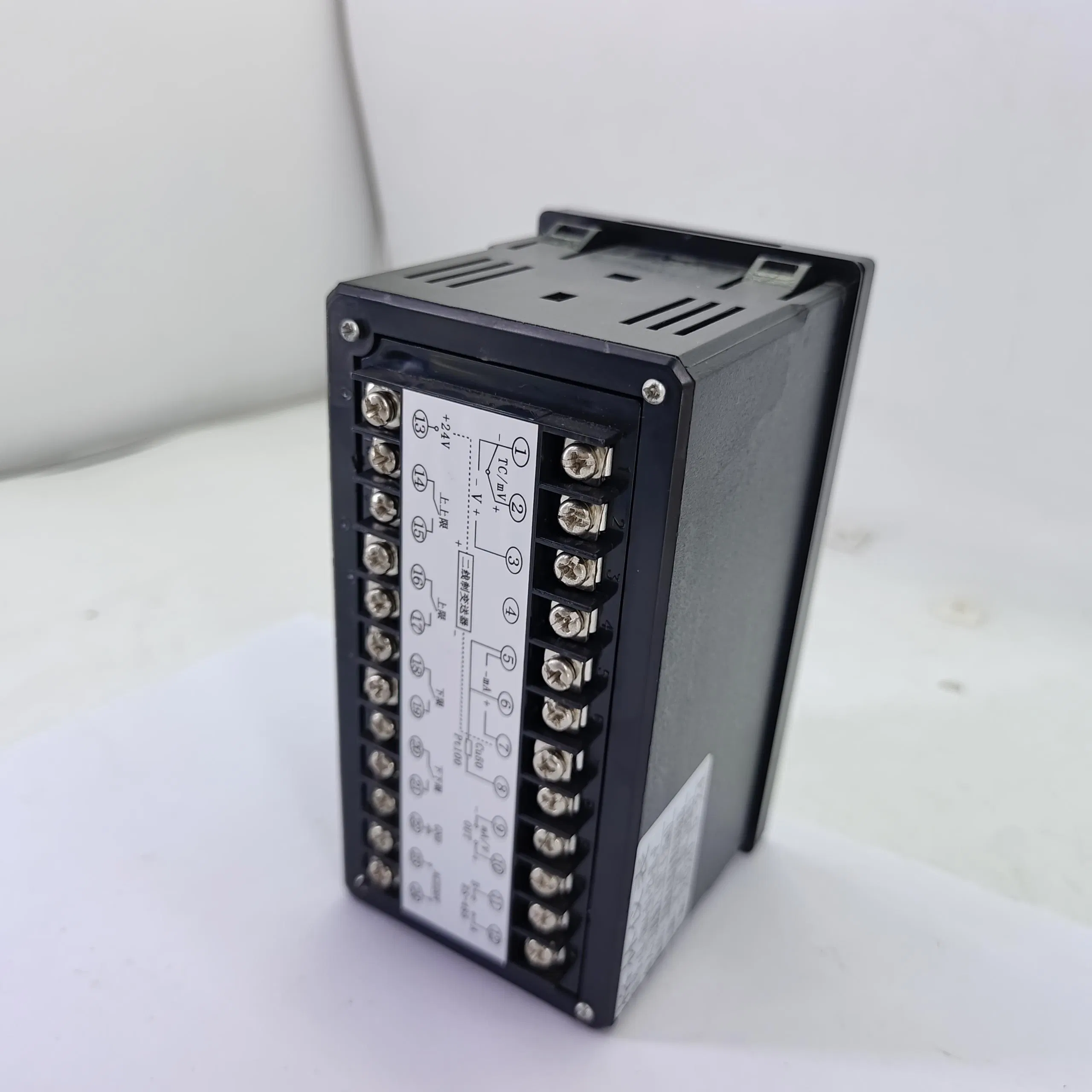

Step into the world of precision and innovation – your trusted partner in advanced instrumentation solutions. Our Intelligent Controller for Water Temperature Control stands at the forefront of technological excellence, engineered to measure and control a variety of parameters including temperatures, pressures, liquid levels, and lengths.

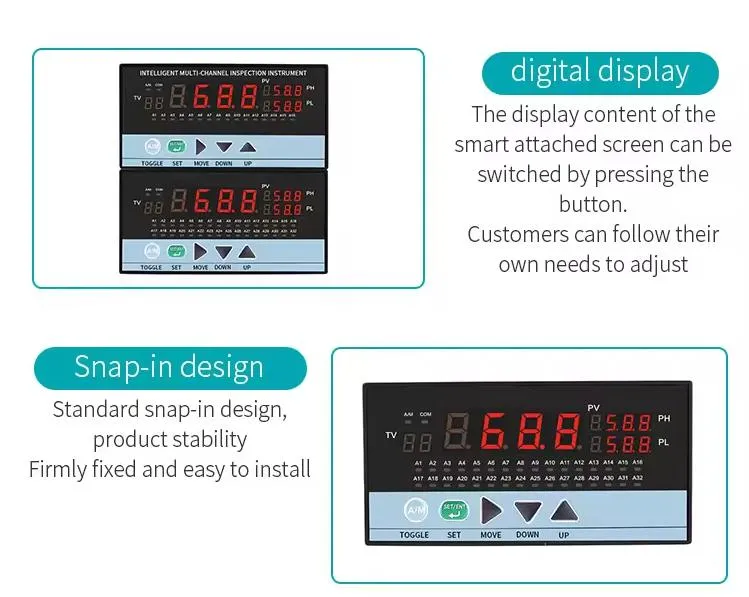

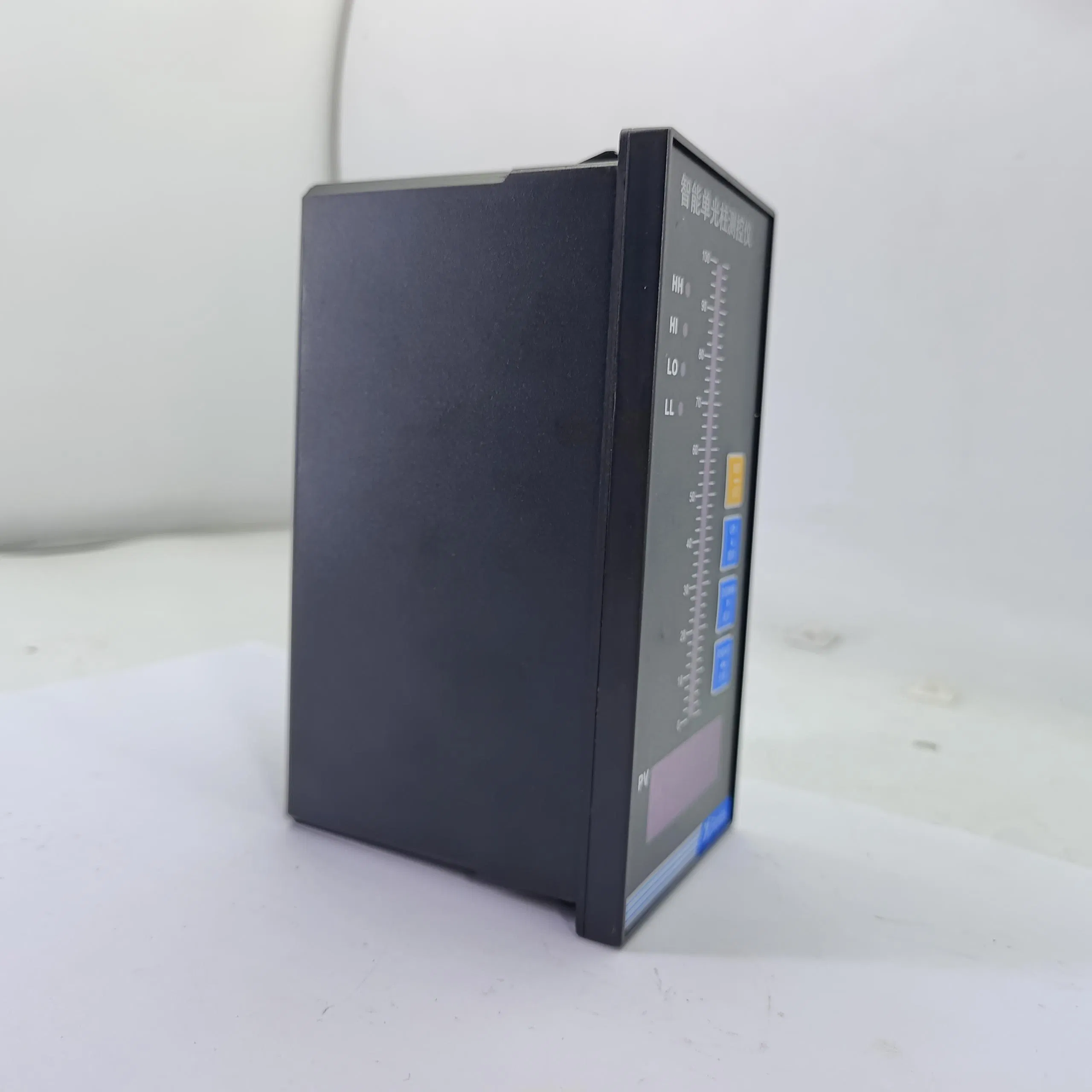

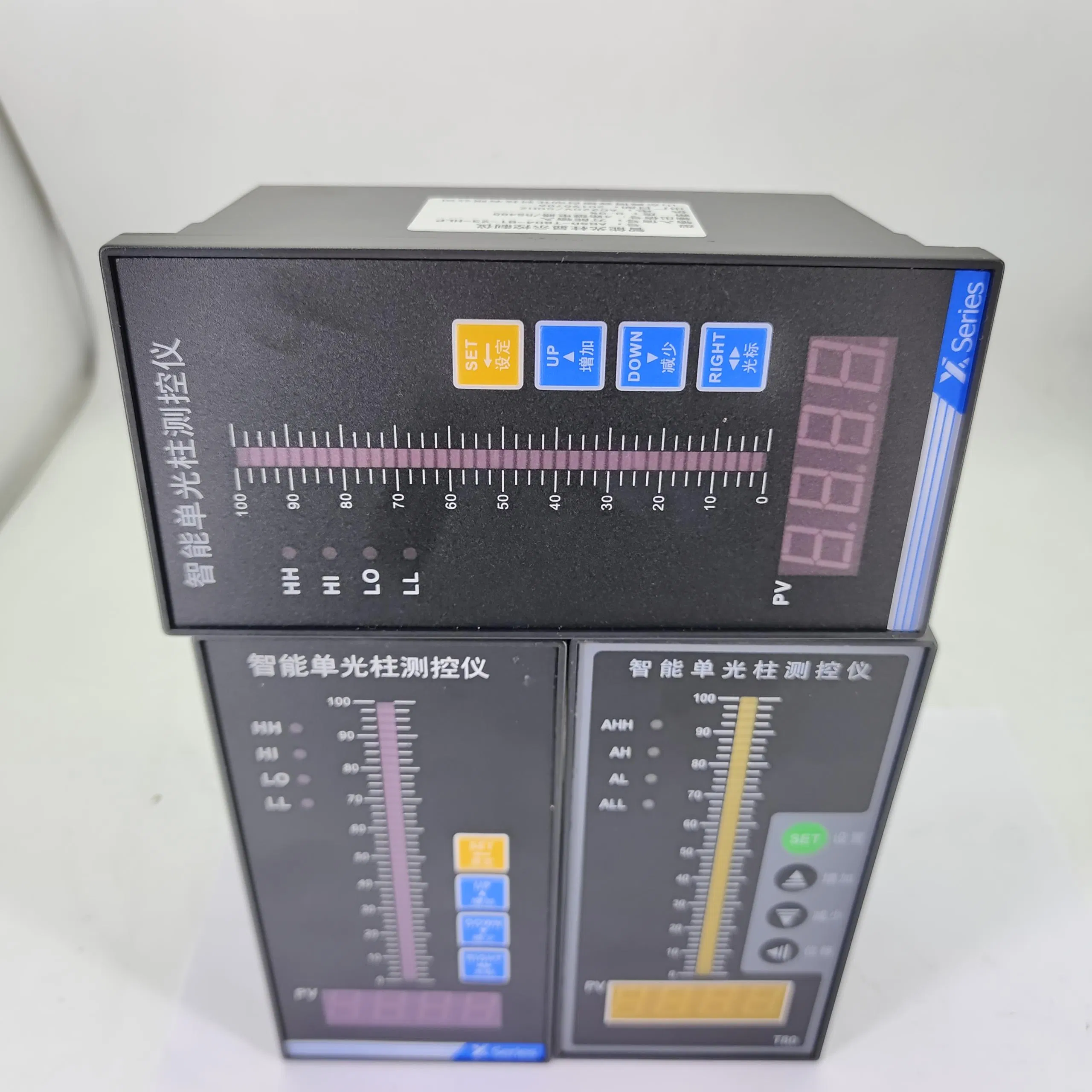

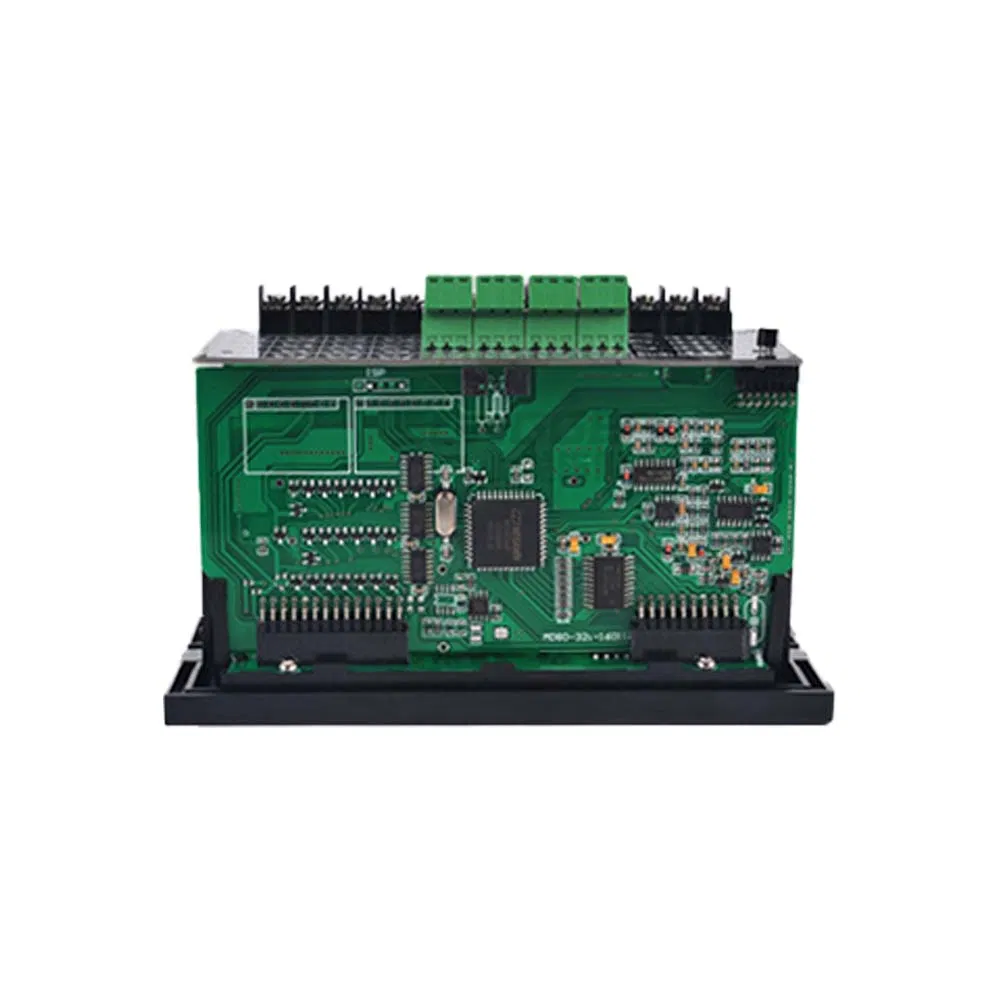

Utilizing a state-of-the-art microprocessor, this controller ensures high-precision linear correction for all non-linear signals. Merging digital and analog worlds, it features a digital LED display alongside a high-precision 40-line light column for intuitive real-time monitoring.
| Input Resistance | Current ≤ 150Ω, Voltage ≥ 1MΩ, Electric Couple ≥ 1MΩ |
| Max Current Limit | ≤50mA |
| Resistance Output | Open circuit voltage 2.5V, Excitation current 0.25mA |
| Output Load Capacity | Current ≤250Ω, Voltage ≥250KΩ |
| Output Signal | AC220V/3A, DC24V/3A |
| Setting Method | Panel touch key digital setting; password lock; permanent storage |
| Operating Power | Default AC220V (50-60HZ); Customizable AC/DC 100-250V or DC24V |
| Power Consumption | ≤5W |
| Communication Protocol | Standard MODBUS protocol; RS485 (up to 1km), RS232 (up to 15m) |
| Ambient Environment | 0~50ºC, Humidity ≤85%RH |
