| Model NO. | GL-T8 |
| Measurement Range | -1999~9999 Words |
| Accuracy | 0.2%Fs ±1 Word or 0.5%Fs ±1 |
| Resolution | 1, 0.1, 0.01 or 0.001 Words |
| Temp Compensation | 0~50℃ |
| Display Mode | -1999~9999 Measured Value Display |
| Control Mode | Bit Type on/off with Back Difference |
| Feeder Output | DC 24V, Load Capacity ≤ 30mA |

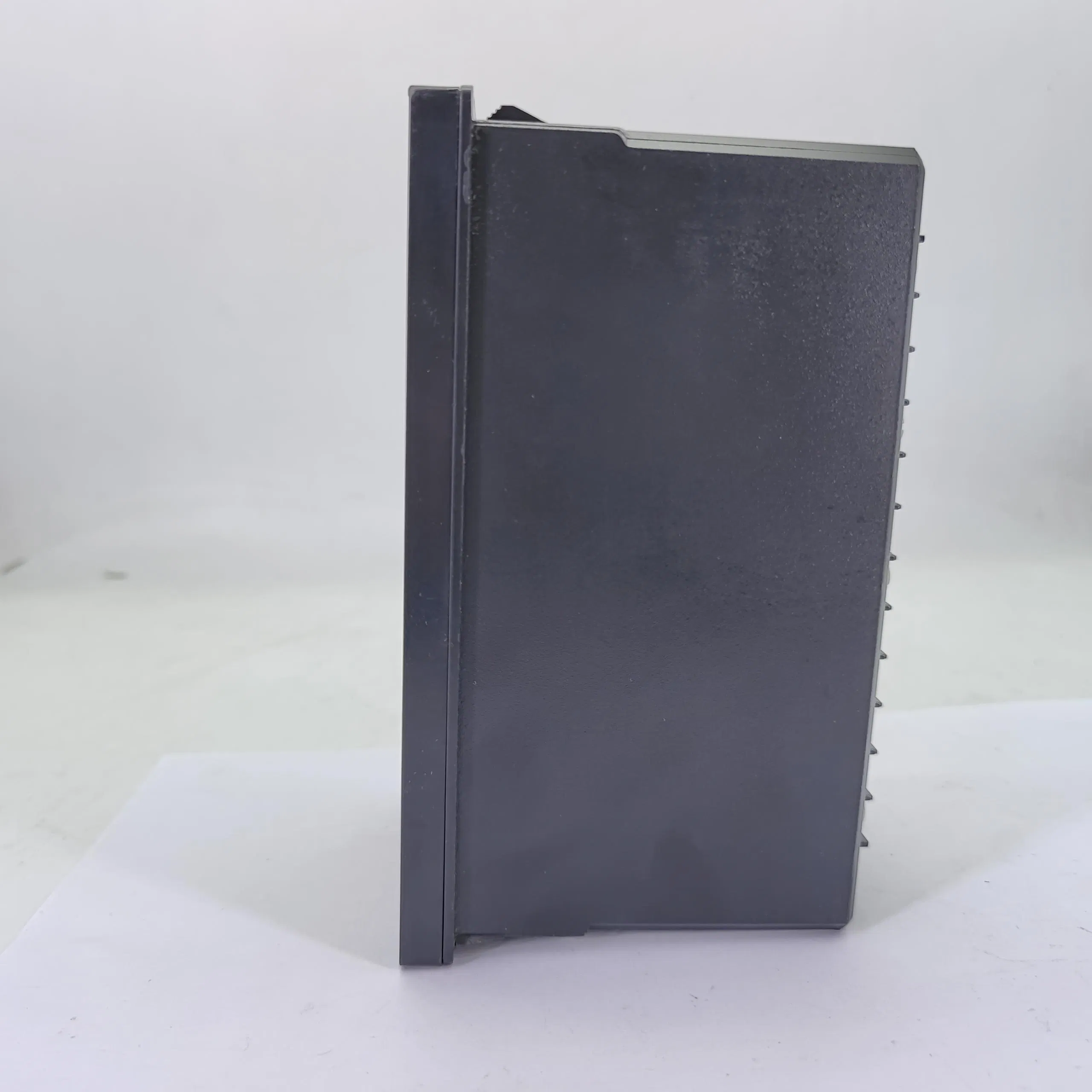

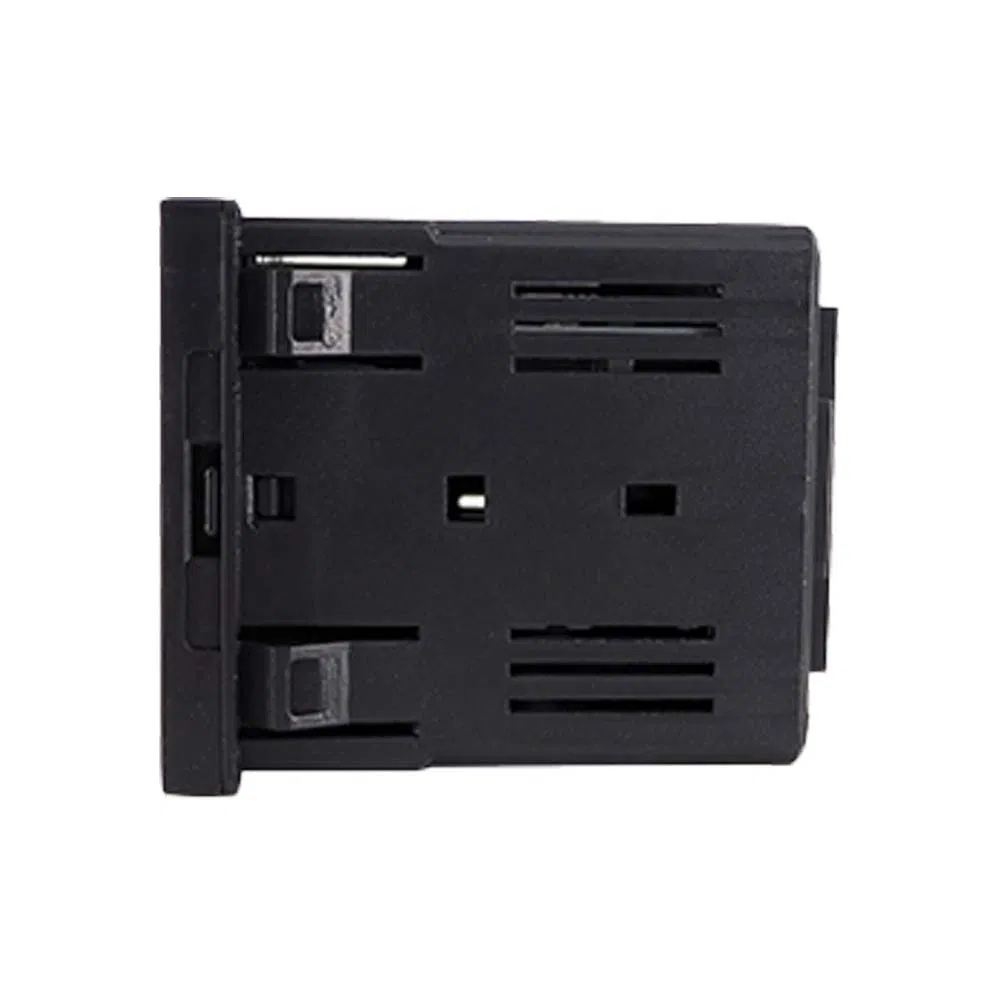

| Structure | Standard Snap-in Type |
| HS Code | 9026202000 |
Precision Measurement & Innovative Control

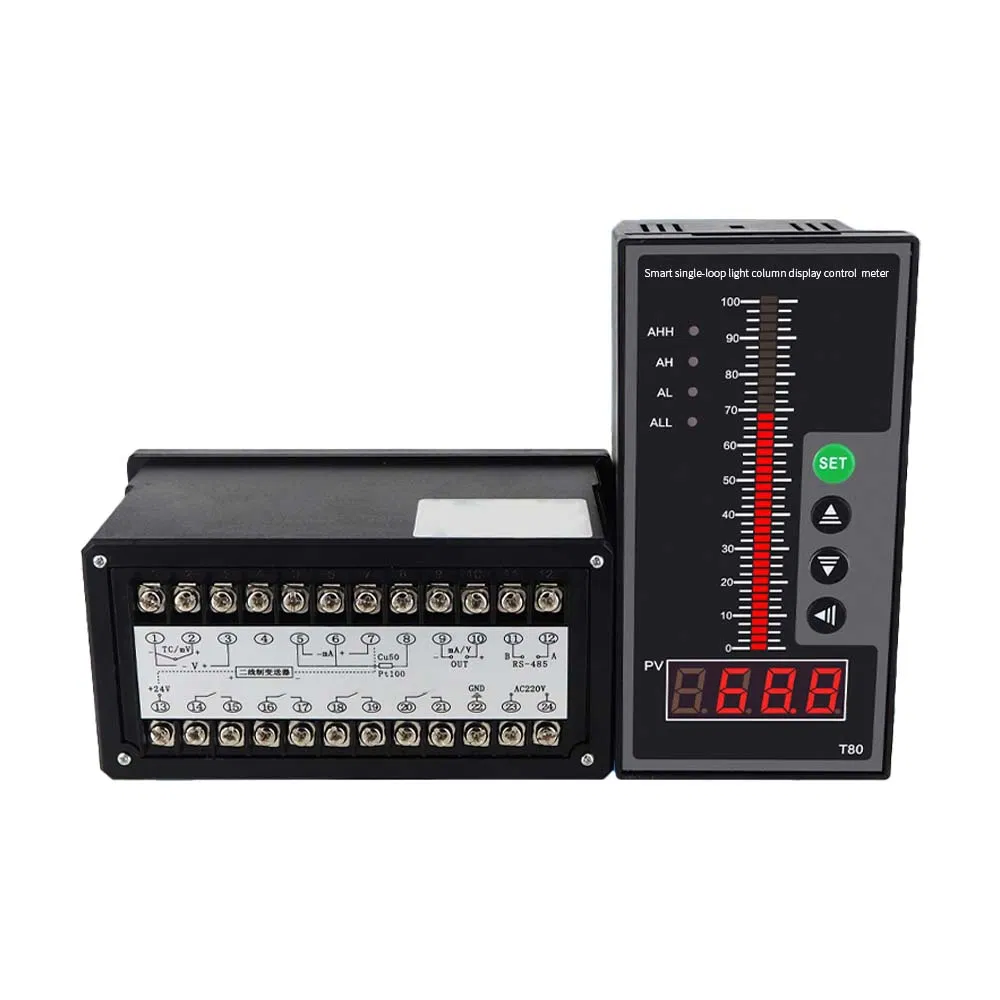

The Liquid Level Display Temperature Controller is engineered for the meticulous measurement and control of various temperatures, pressures, liquid levels, lengths, and more. Utilizing a sophisticated microprocessor for digital operations, it ensures exceptionally high precision linear corrections for diverse non-linear signals.

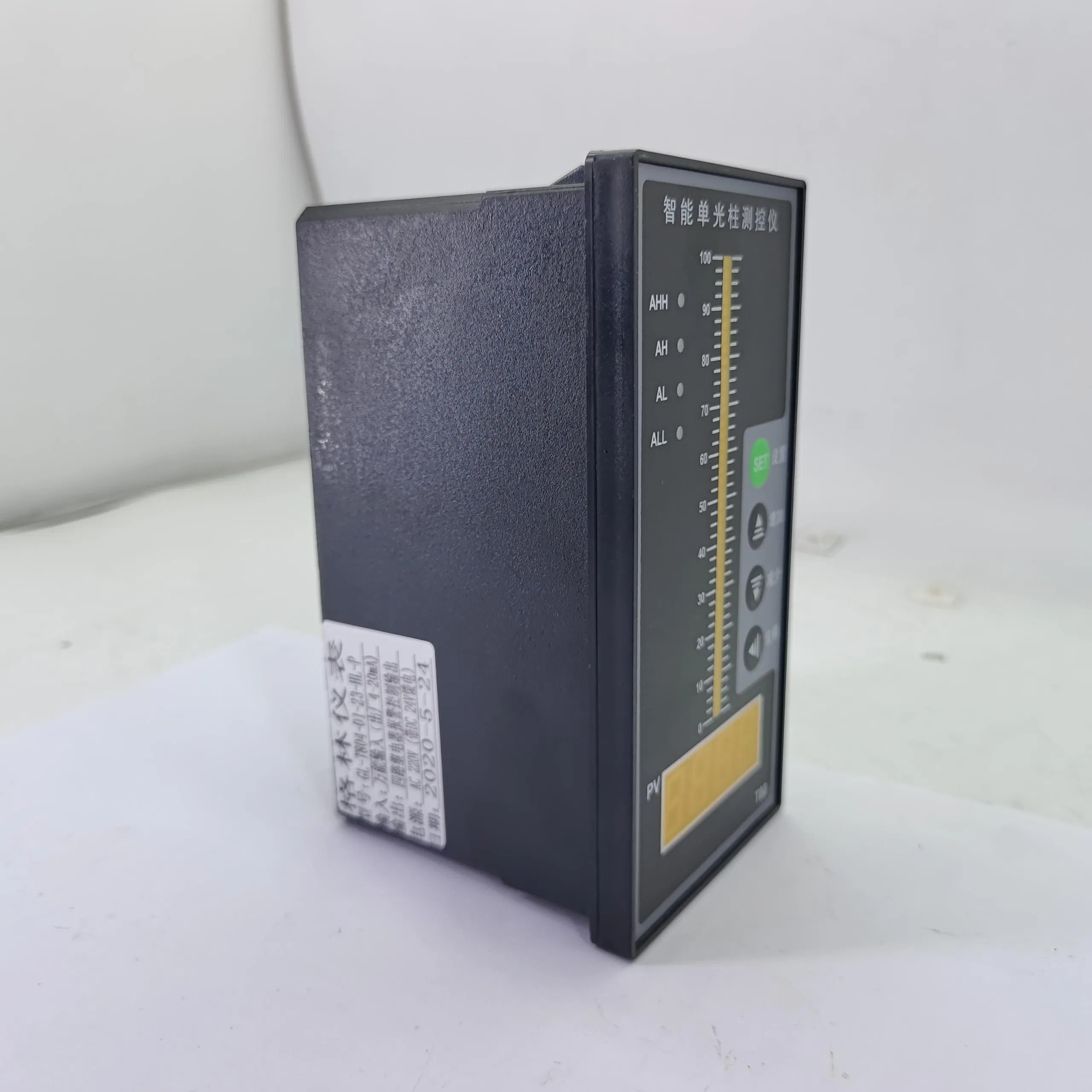

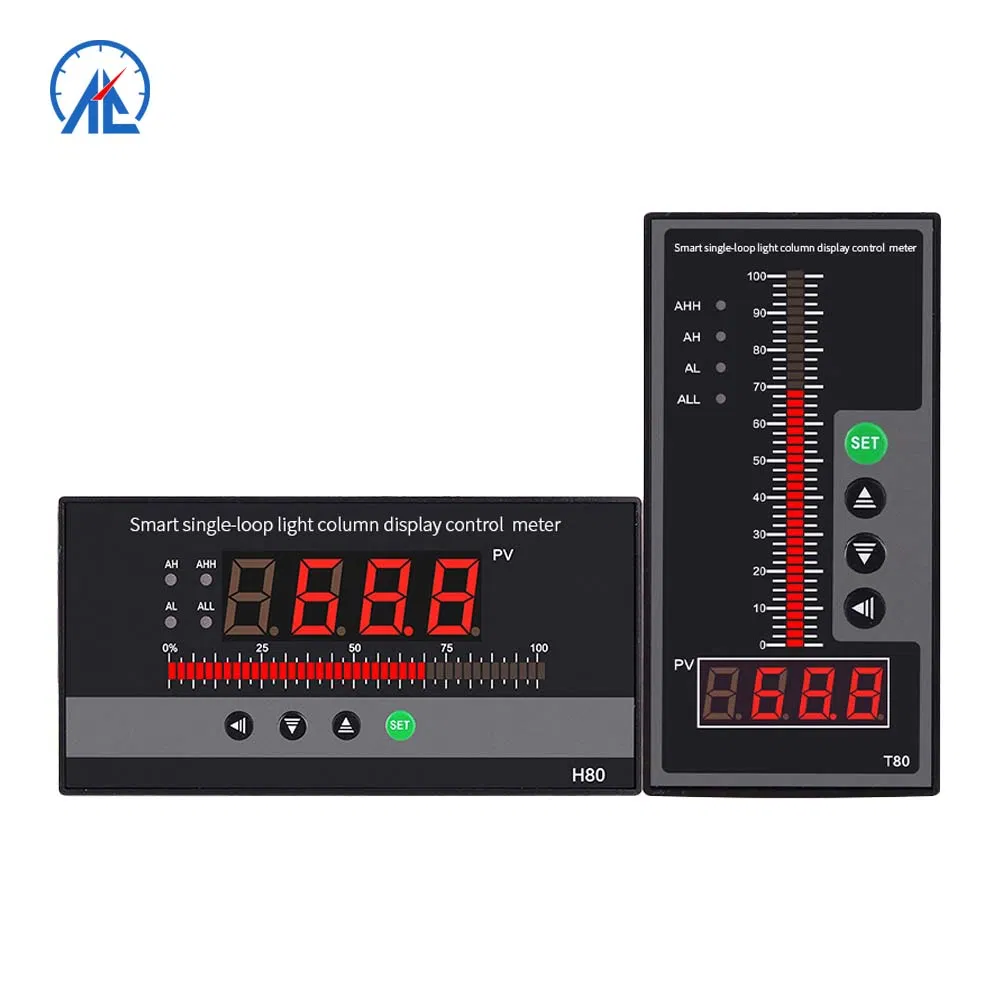

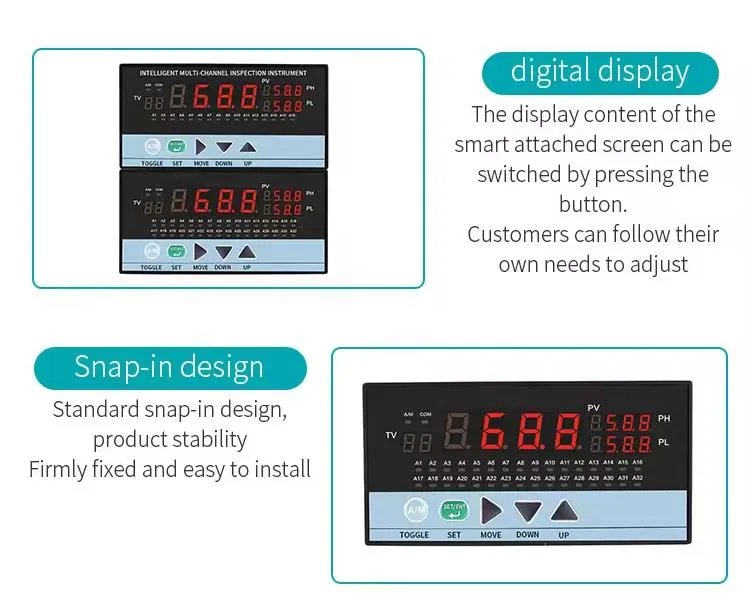

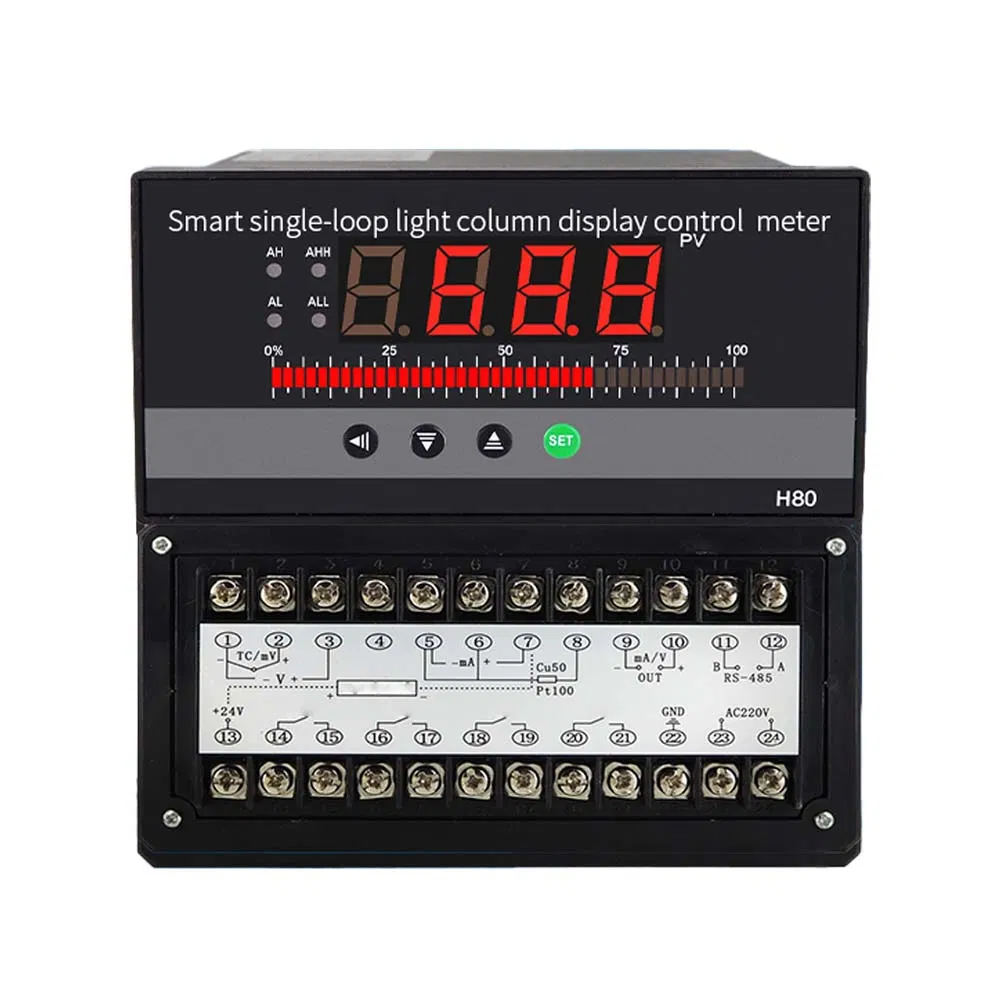

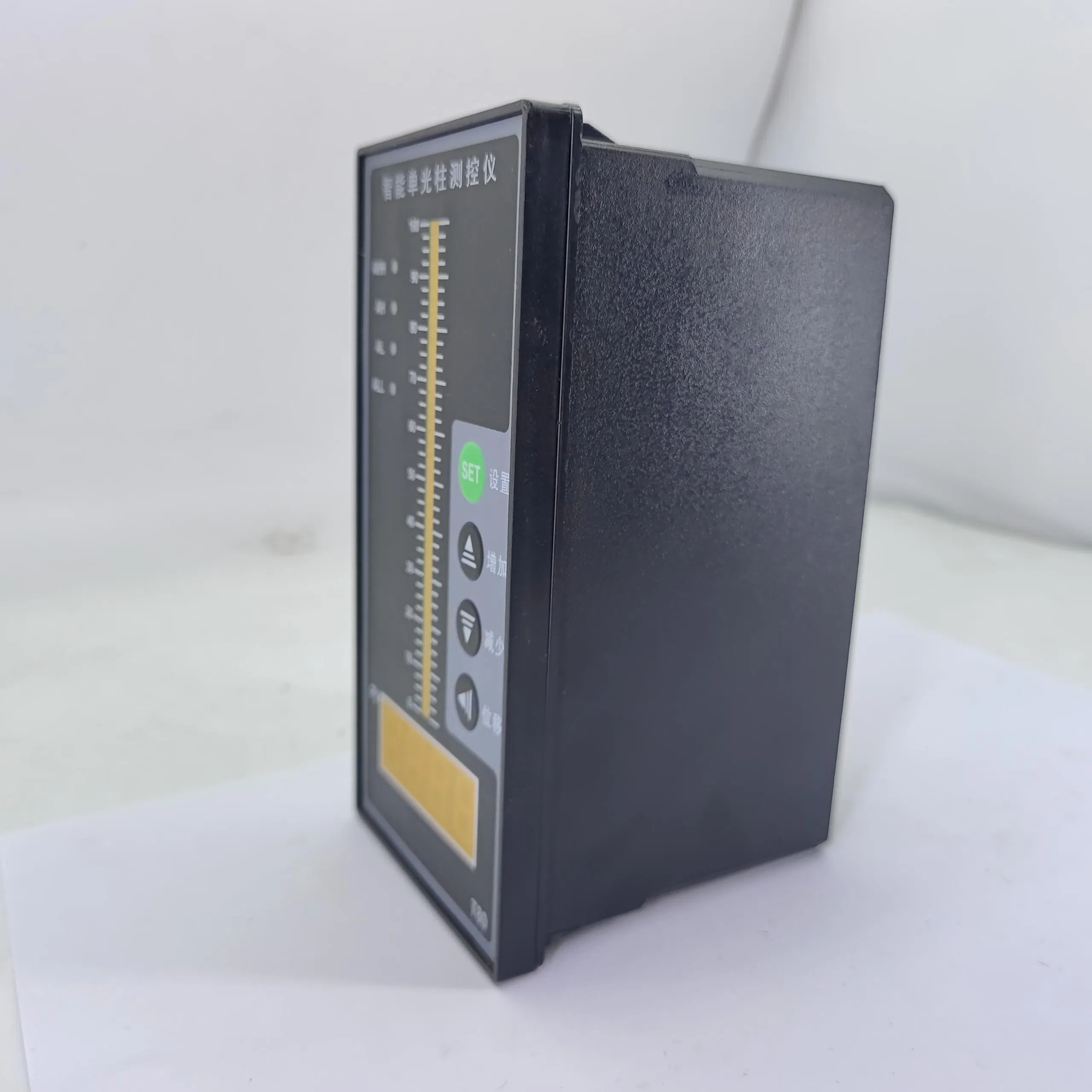

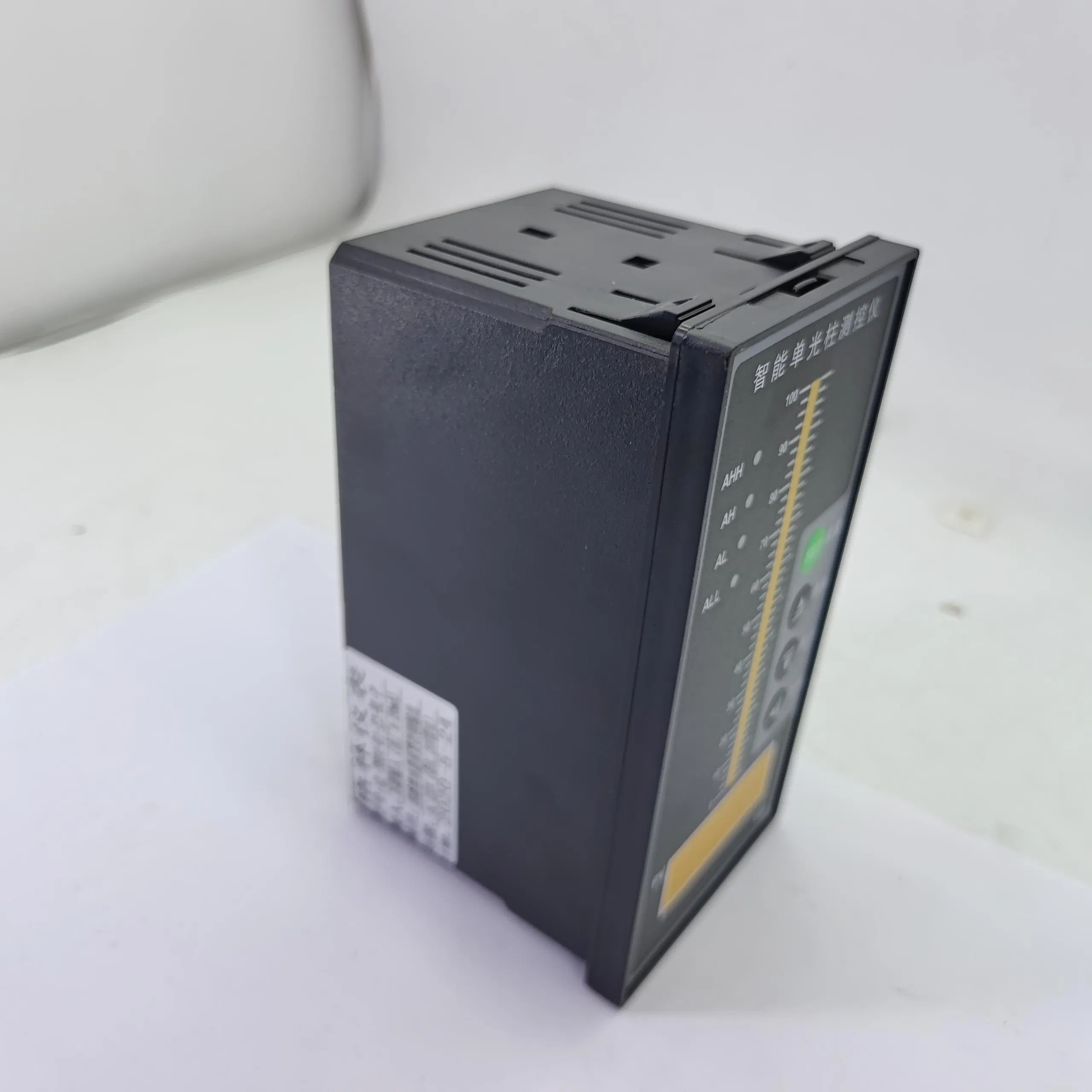

This light column display controller masterfully integrates digital and analog measurement displays into one cohesive unit. Featuring a digital LED display, it provides an accurate and real-time visualization of measurement values. Additionally, its high-precision 40-line light column display allows for clear and intuitive comparisons with other measured parameters.
Adaptable and efficient, the display controller can switch between multiple index numbers using advanced jumperless technology. This means the input index number can be changed without altering the jumper or switch, and the entire process does not require powering off the instrument.
| Input Resistance | Current ≤ 150Ω, Voltage ≥ 1MΩ, Electric Couple ≥ 1MΩ |
| Input Max Current | ≤50mA |
| Resistance | Open circuit voltage 2.5V, Excitation current 0.25mA |
| Output Load | Current ≤250Ω, Voltage ≥250KΩ |
| Output Signal | AC220V/3A, DC24V/3A |
| Setting Method | Panel touch key digital setting; Password lock protection |
| Ambient Temp | 0~50ºC |
| Operating Power | Default AC220V (50-60HZ); Optional DC24V |
| Communication | Standard MODBUS, RS485 (up to 1km) / RS232 (up to 15m) |
