How does it work?

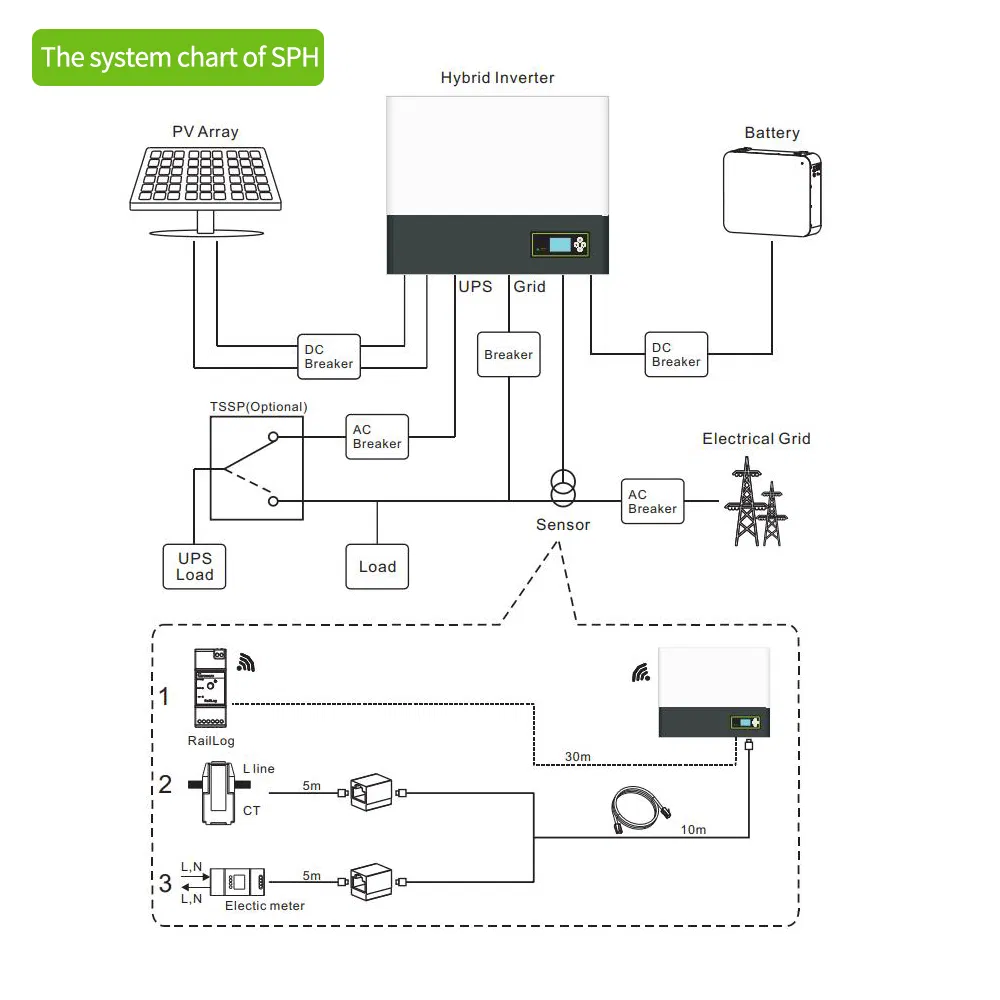

The above illustration shows the basic application of this hybrid inverter. It forms a complete running system when integrated with the following devices:
This inverter is designed to power various home and office appliances, including inductive loads like refrigerators and air conditioners.
| Datasheet | SPH 5000TL3-BH UP | SPH 6000TL3-BH UP | SPH 8000TL3-BH UP | SPH 10000TL3-BH UP |
|---|---|---|---|---|
| Max Input PV | 7500W | 9000W | 12000W | 15000W |
| Max DC Voltage | 1000V | |||
| Start Voltage | 120V | |||
| MPP Voltage Range | 120V-1000V/600V | |||
| Battery Voltage Range | 100-550V | |||
| Type of battery | Lithium/Lead Acid | |||
| Protection Degree | IP65 | |||
| Dimension | 505x453x198mm | |||
| Max efficiency | 97.8% | 98% | 98.2% | 98.2% |

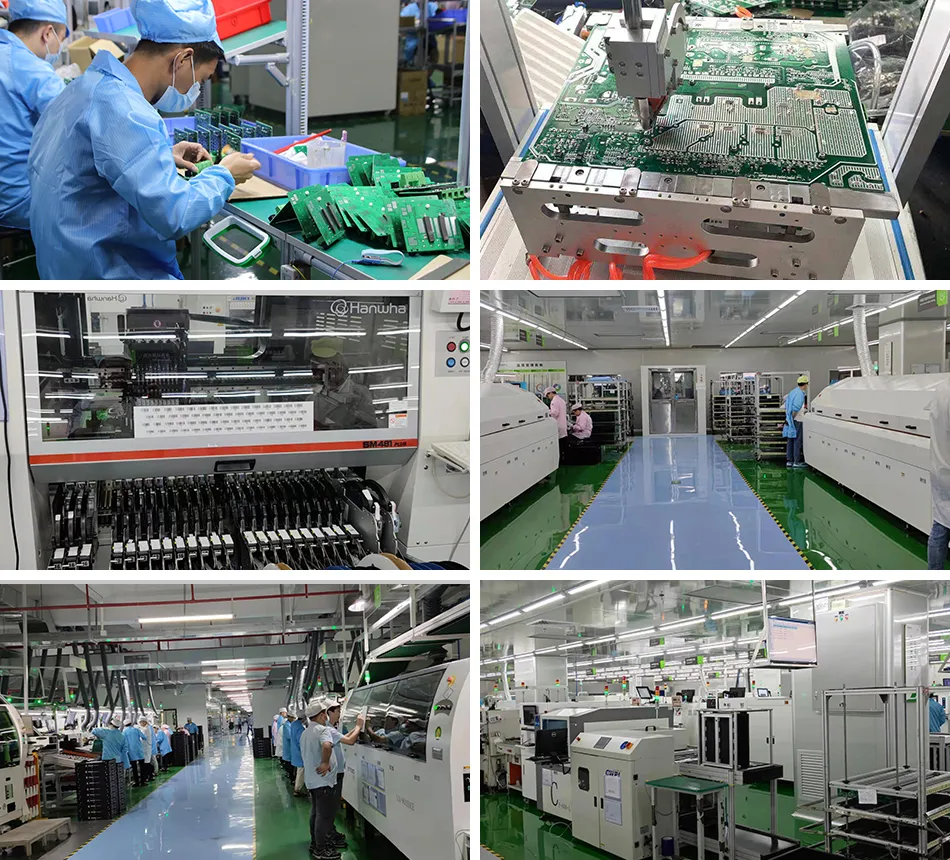

The manufacturing facility is a global leader in smart energy solutions, providing residential, commercial, and utility-scale PV inverters. The advanced plant covers 200,000 square meters with an annual output capacity of 20GW. Ranked among the world's top 10 inverter brands, it maintains a strong competitive advantage in distributed solar energy.
It manages energy from solar panels, batteries, and the utility grid simultaneously, allowing for efficient energy storage and backup power during grid outages.
The system is versatile and supports both Lithium-ion and Lead-acid batteries with a voltage range of 100V to 550V.
Yes, the inverter has an IP65 protection rating, making it dust-tight and protected against water jets, suitable for various environmental conditions.

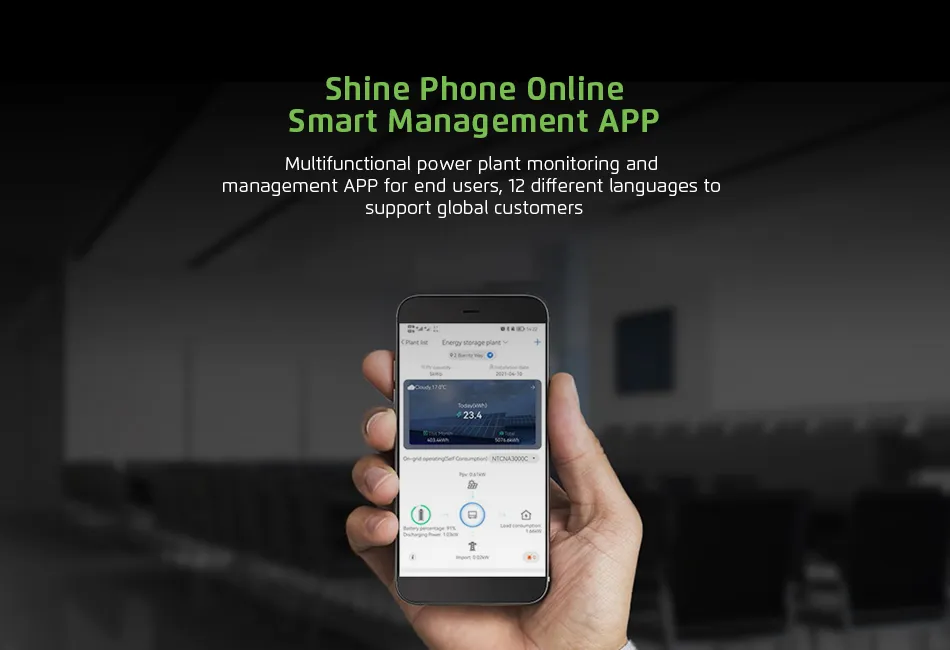

Yes, it features an intelligent monitoring platform that supports one-click registration and full lifecycle data storage for remote tracking and maintenance.
The series offers high efficiency, with maximum ratings reaching up to 98.2% depending on the specific model.
It can power standard household appliances, including high-startup current devices like air conditioners and refrigerators.
