Advanced Smart Liquid Level and Temperature Management System

i

Basic Information

Model NO.

GL-T8

Measurement Range

-1999~9999 Words

Measurement Accuracy

0.2%Fs ±1 Word or 0.5%Fs ±1

Resolution

1, 0.1, 0.01 or 0.001 Words

Temperature Compensation

0~50℃

Display Mode

-1999~9999 Measured Value Display

Light Column Accuracy

1%

Control Mode

Bit Type on/off with Back Difference

Feeder Output

DC 24V, Load Capacity ≤ 30mA

Structure

Standard Snap-in Type

Origin

China

HS Code

9026202000

!

Product Introduction

Where innovative precision meets exceptional reliability.

Our advanced display controller is designed to measure and control various parameters such as temperatures, pressures, liquid levels, lengths, and more. Utilizing a sophisticated microprocessor for digital operations, it ensures high-precision linear correction of numerous non-linear signals, delivering unparalleled accuracy.

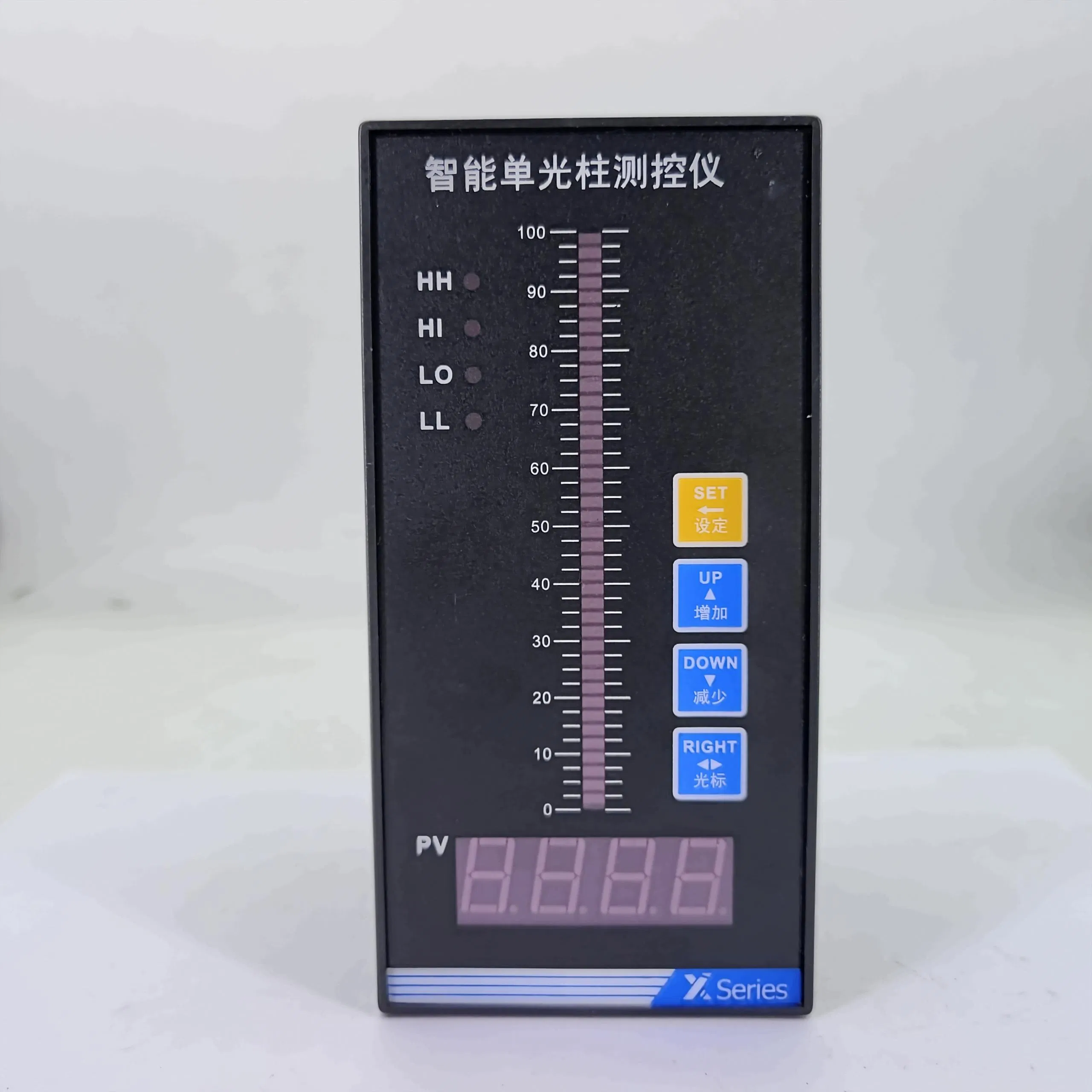

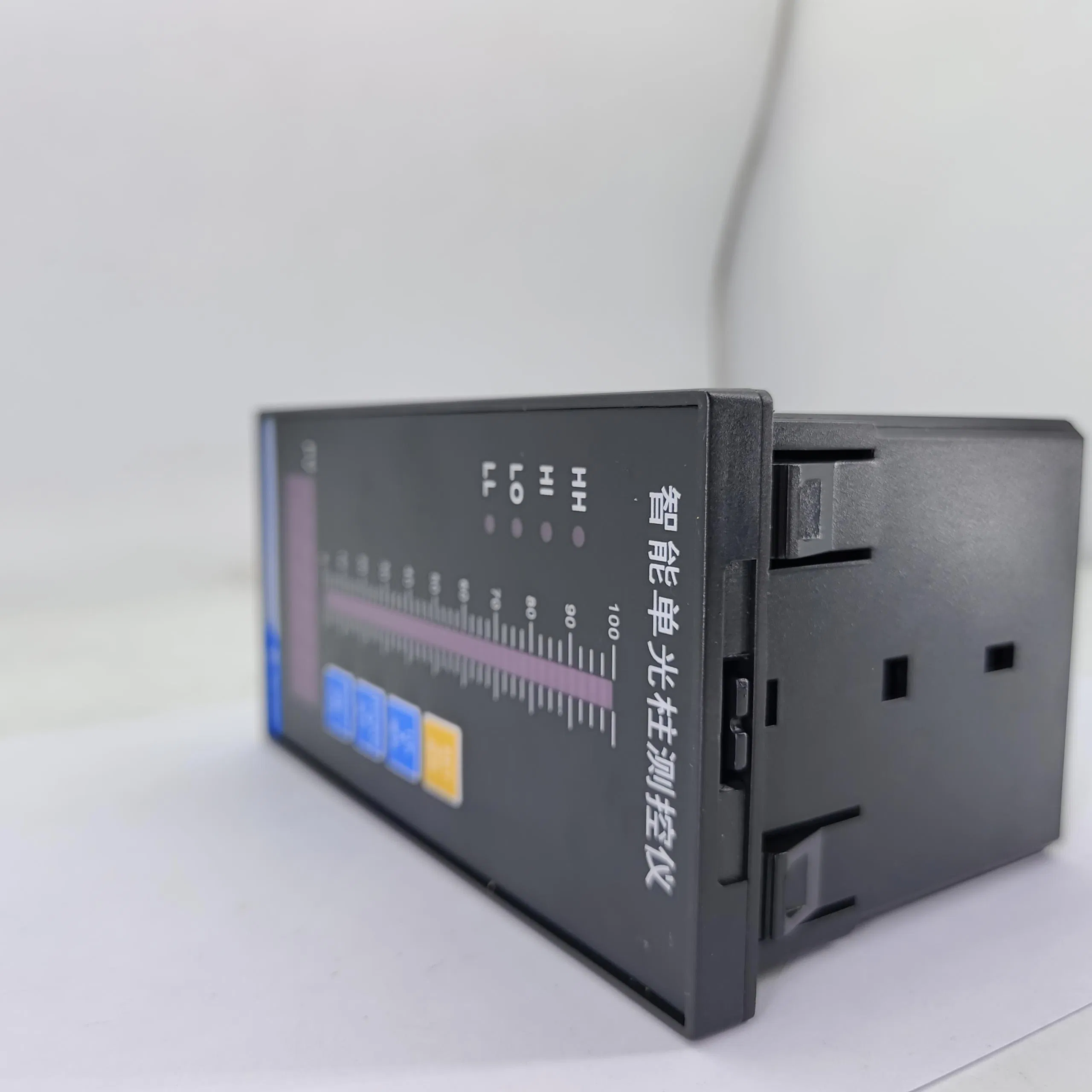

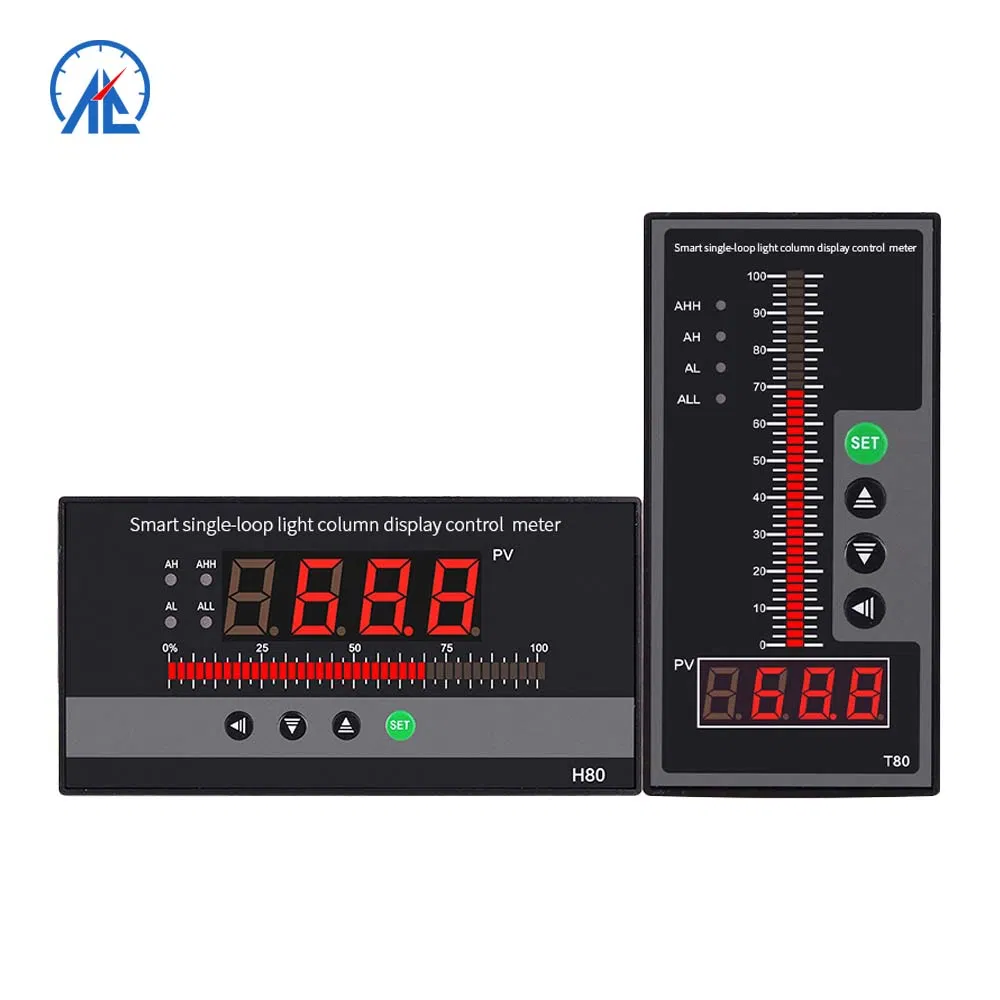

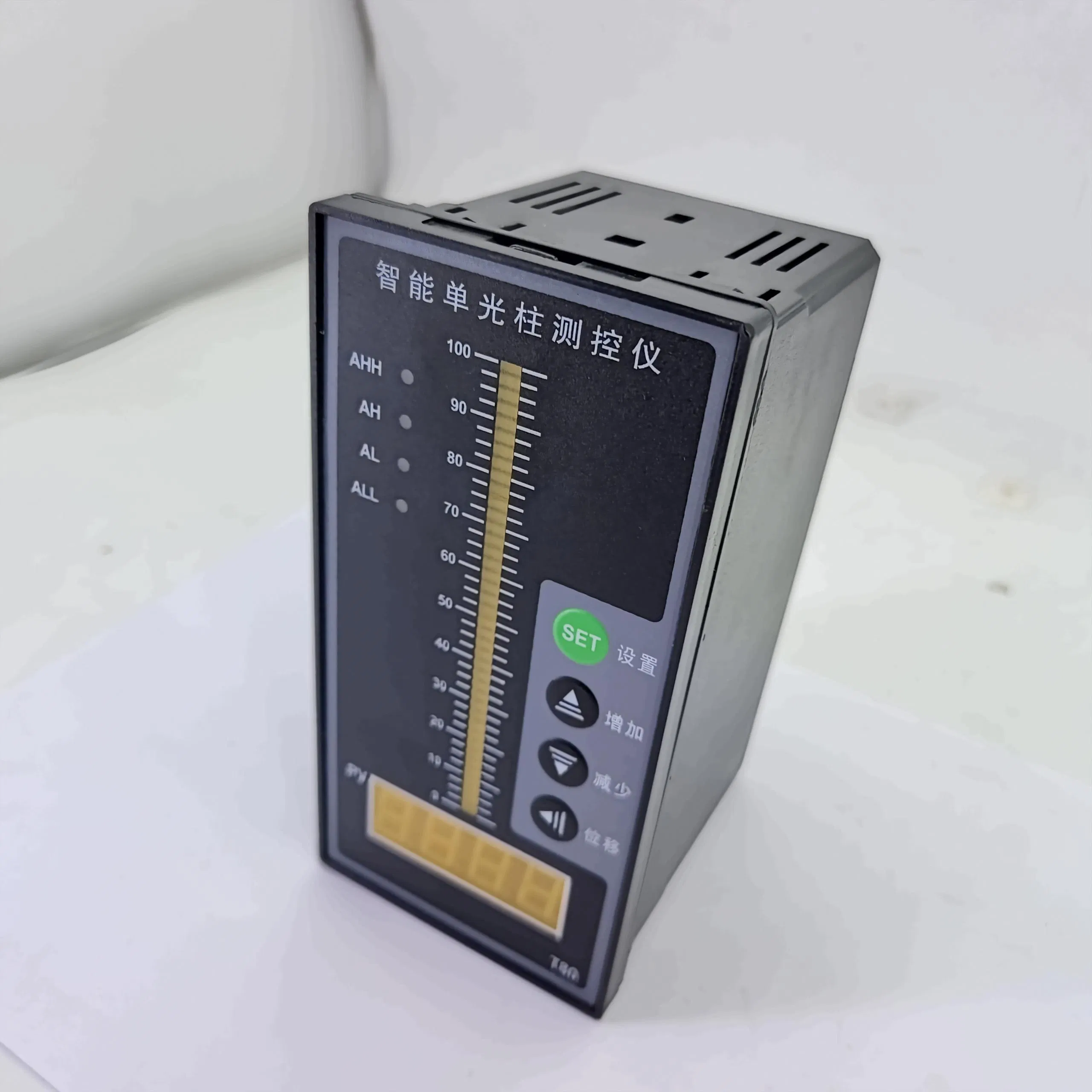

This cutting-edge light column display controller seamlessly integrates digital and analog measurement displays. Featuring a precise digital LED display, it delivers real-time measurement values with utmost accuracy. Simultaneously, the high-precision 40-line light column display showcases real-time measurement values clearly and intuitively, facilitating easy comparison with other parameters.

Experience unmatched versatility with our advanced jumperless technology. The display controller effortlessly switches between multiple index numbers without the need for jumper or switch adjustments. Seamlessly integrate with devices like computers, PLCs, and programmable controllers to create an intelligent management system.

Advanced Smart Liquid Level and Temperature Management System

⚙

Product Parameters

Input resistance	Current ≤ 150Ω Voltage ≥ 1MΩ Electric Couple ≥ 1MΩ
Input Maximum Current Limit	≤50mA
Resistance	Open circuit voltage is 2.5V Excitation current is 0.25mA
Output load capacity	Current ≤250Ω Voltage ≥250KΩ
Output Signal	AC220V/3A DC24V/3A
Measurement accuracy	0.5%FS ±1 byte
Setting method	Panel touch key digital setting; parameter setting value password lock; power off permanent storage
Display method	-1999~9999 measuring value display, LED working status display
Ambient temperature	0~50ºC
Relative humidity	≤85%RH
Operating power	Default AC220V(50-60HZ); Customizable AC/DC 100-250V or DC24V
Power consumption	≤5W
Structure	Standard snap-in type
Communication Protocol	Standard MODBUS; RS485 up to 1km; RS232 up to 15m

📷

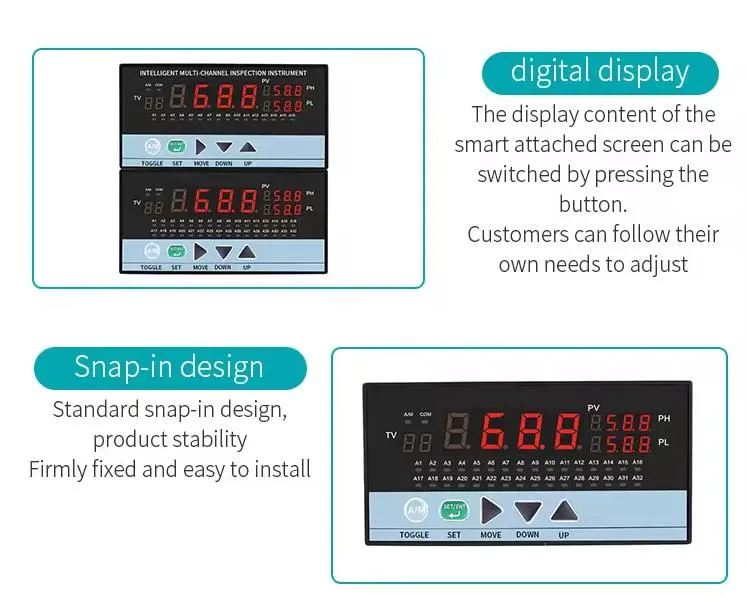

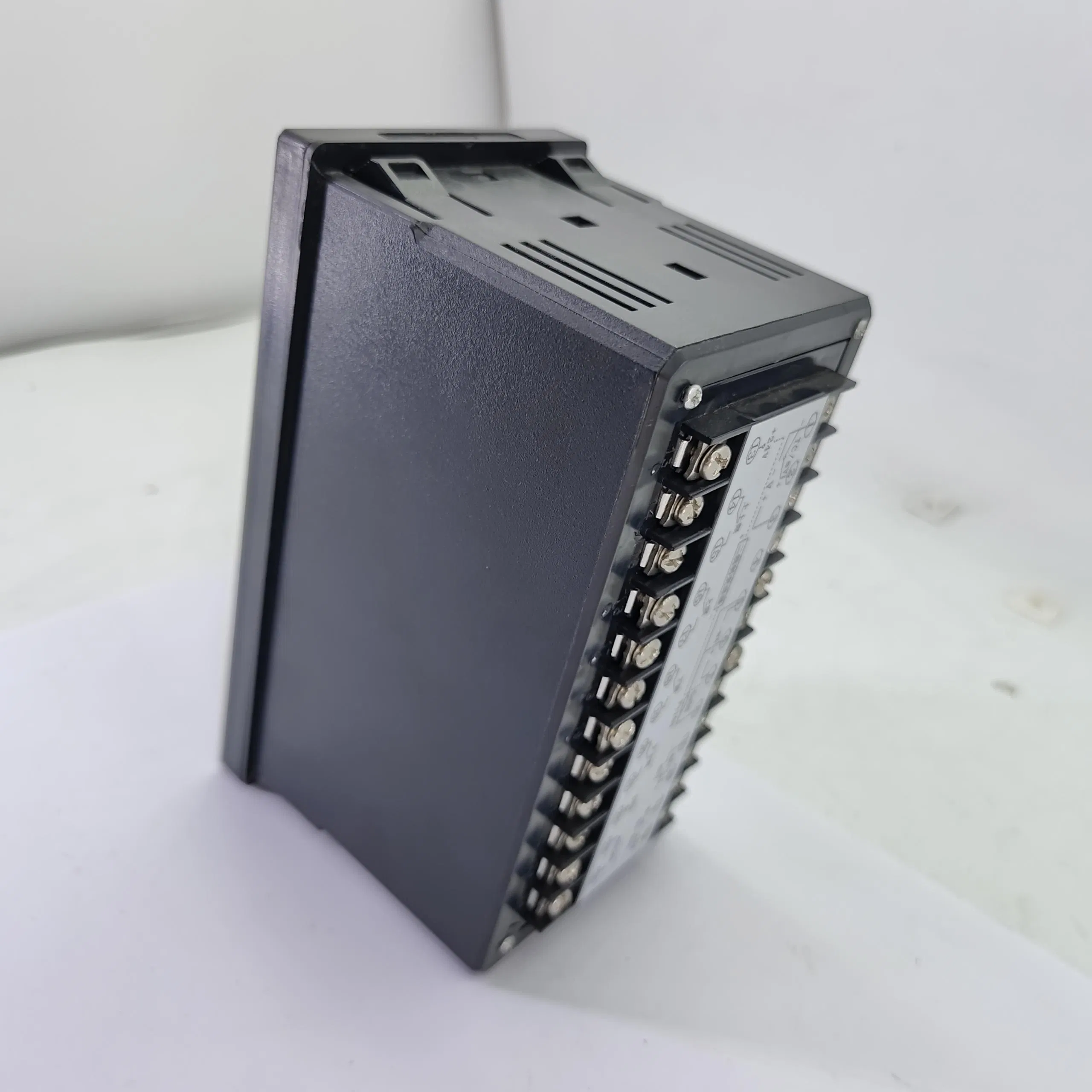

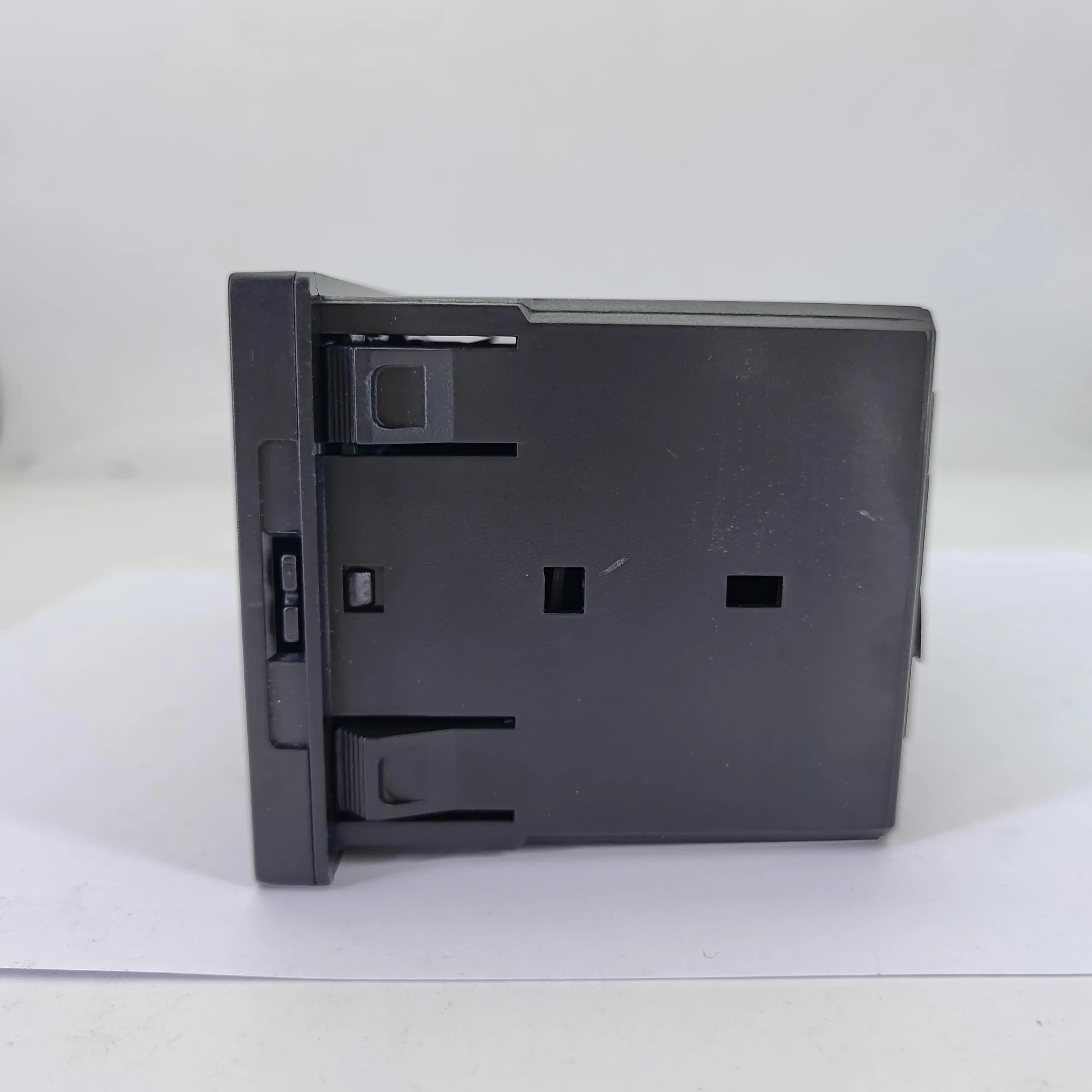

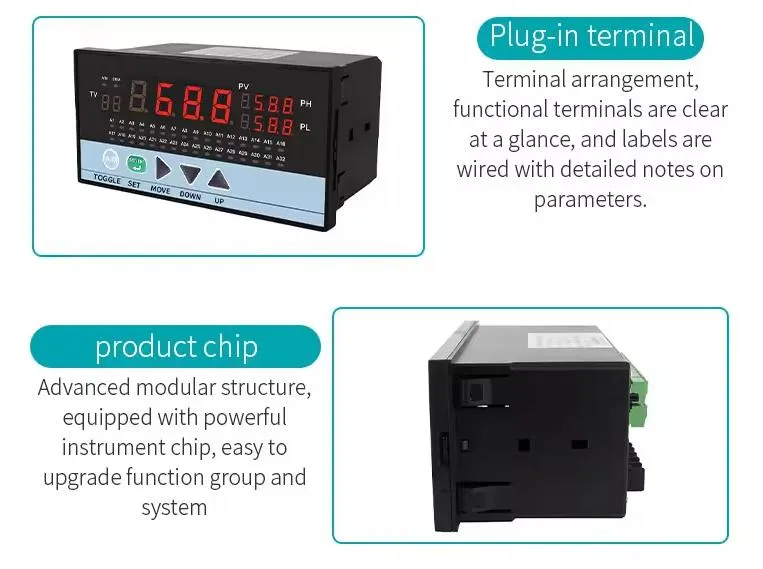

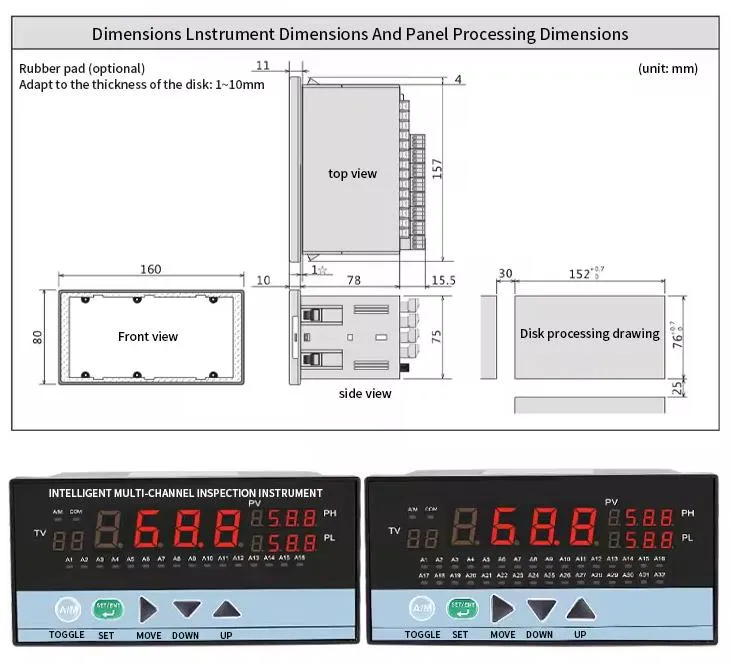

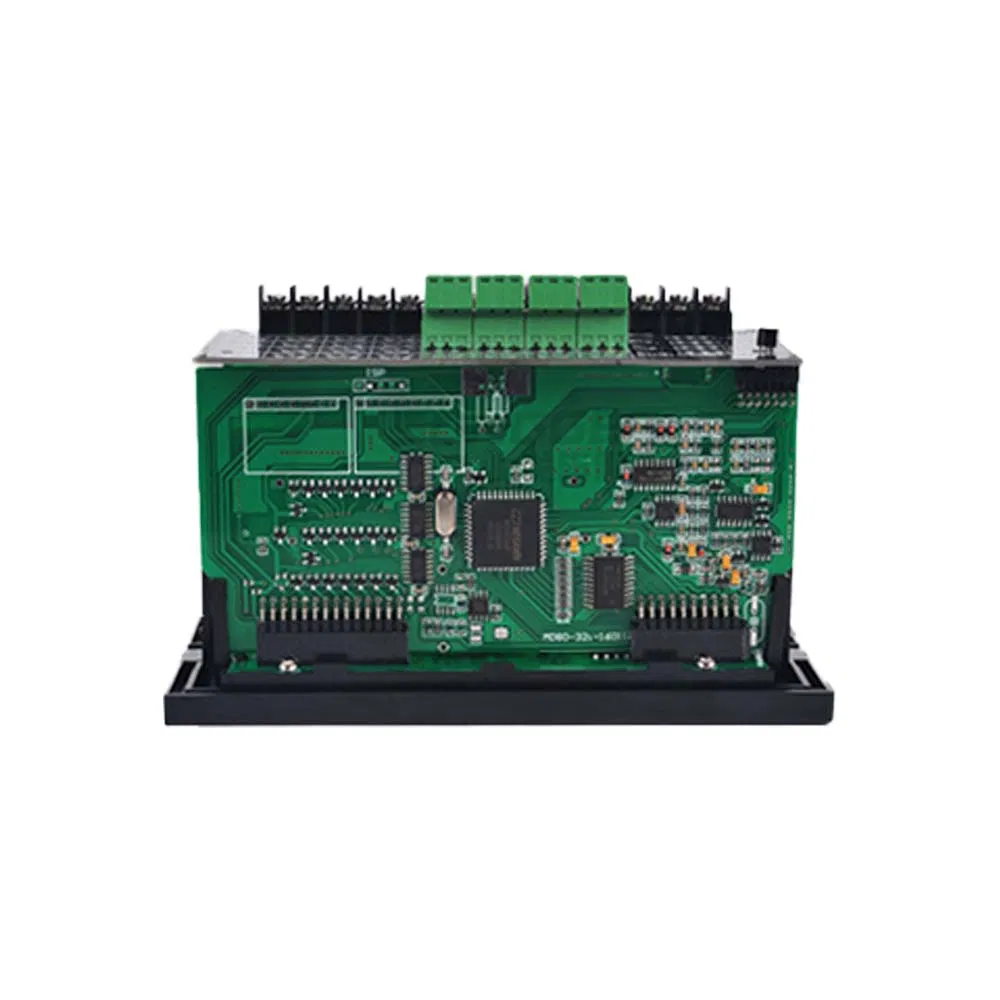

Detailed Photos

✔

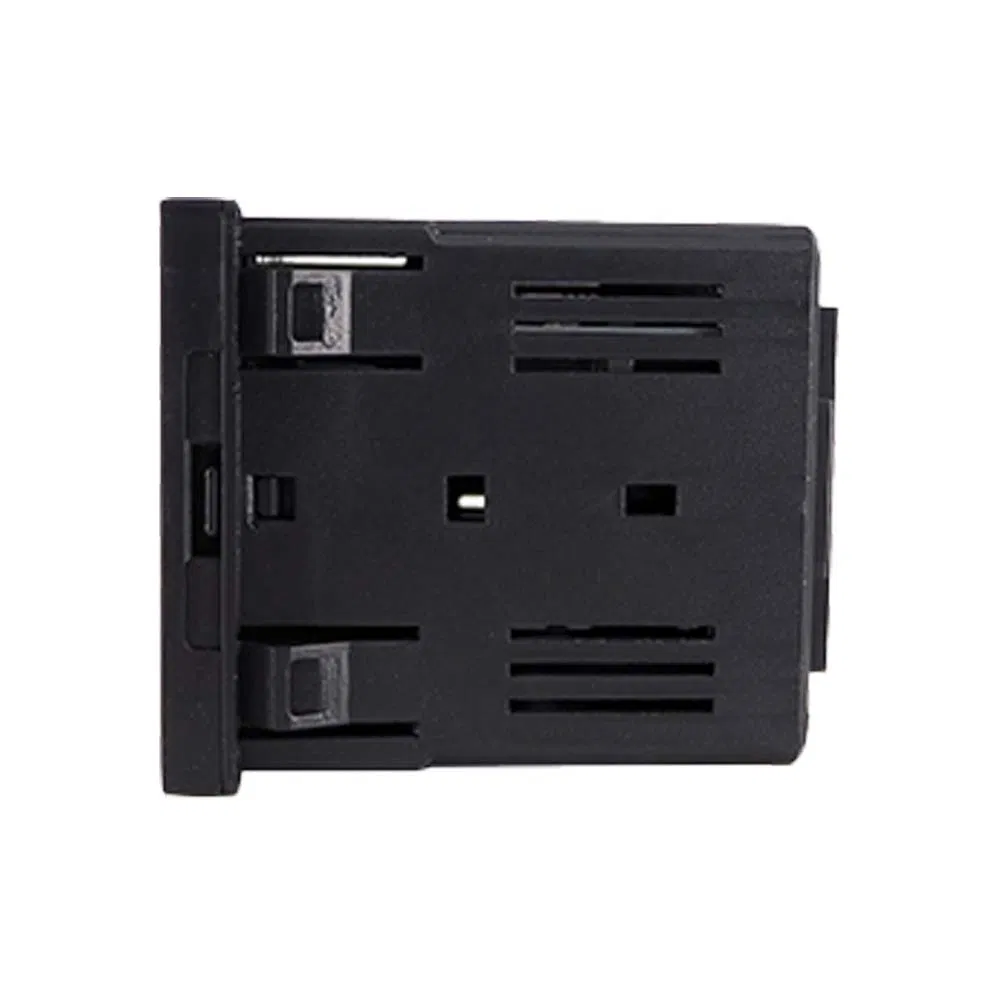

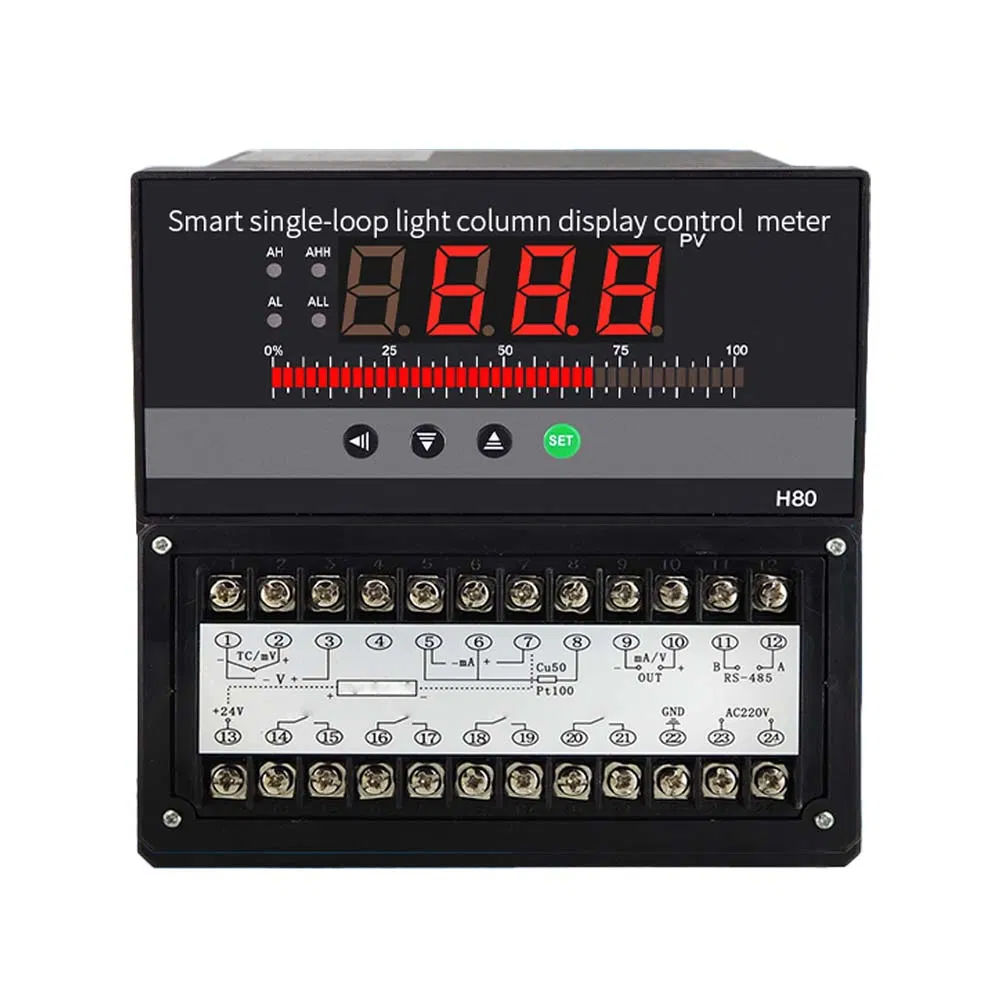

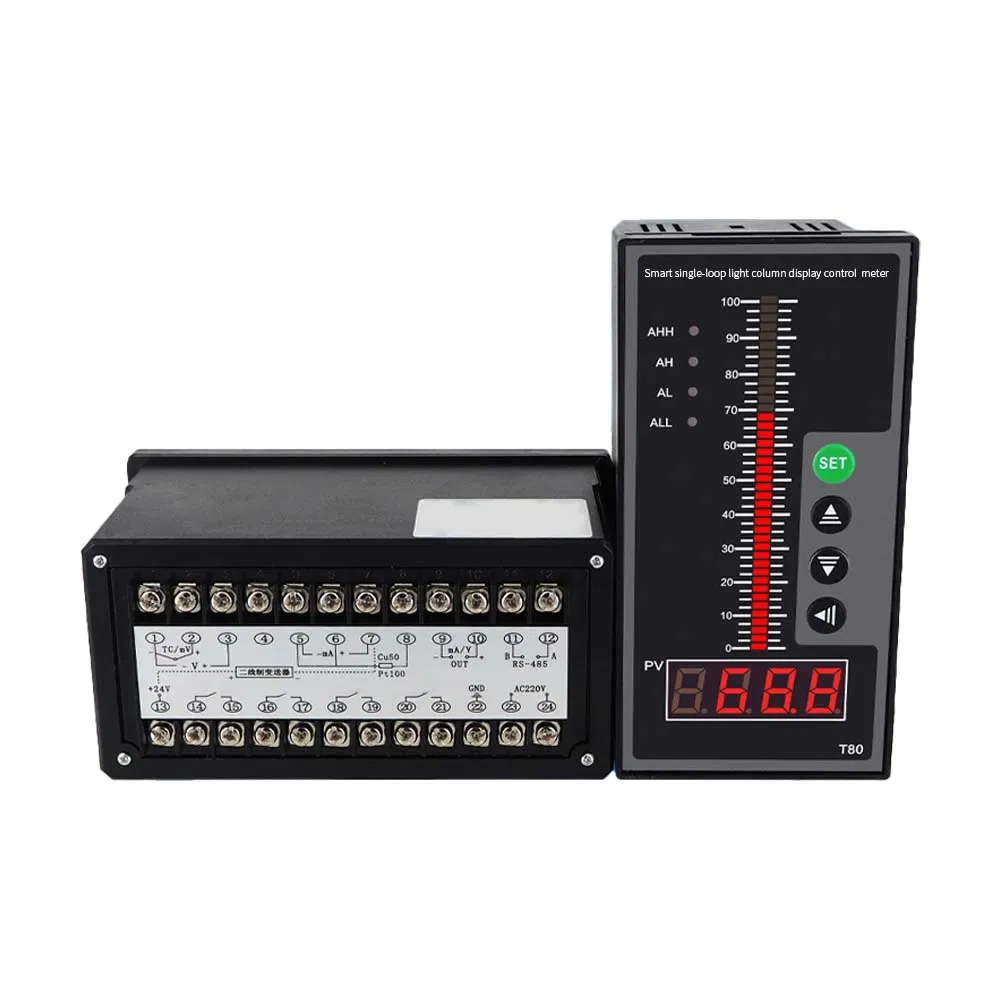

Product Showing

★

Certifications

?

Frequently Asked Questions

Can I buy any of your product accessories?

Absolutely. Most accessories are available for purchase. However, certain patented designs or intellectual property may be restricted. Please reach out to our sales team for availability.

Can I be your exclusive distributor?

Certainly. This depends on your annual purchase volume and the strength of our long-term relationship. We seek partners built on mutual trust and long-term collaboration.

What is the measurement accuracy of the GL-T8 controller?

The GL-T8 offers high precision with a measurement accuracy of 0.2%Fs ±1 Word or 0.5%Fs ±1, depending on the specific configuration.

Does this device support industrial communication?

Yes, it supports the standard MODBUS communication protocol via RS485 (up to 1km) or RS232 (up to 15 meters) for seamless integration with PLCs and computers.

What are the power supply options for this controller?

The default power supply is AC220V (50-60HZ). We also offer customizable options for AC/DC 100-250V or DC24V to suit different industrial environments.

Can the display parameters be customized?

Yes, the user can set internal instrument parameters including input type, operation mode, output parameters, and communication baud rates (300 ~ 9600bps) through the panel.
