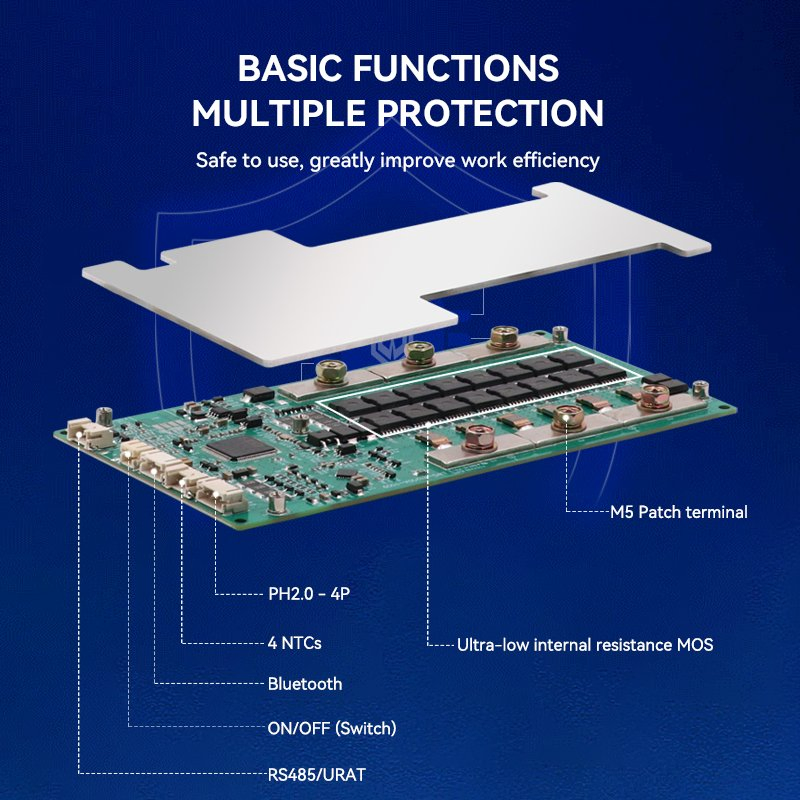

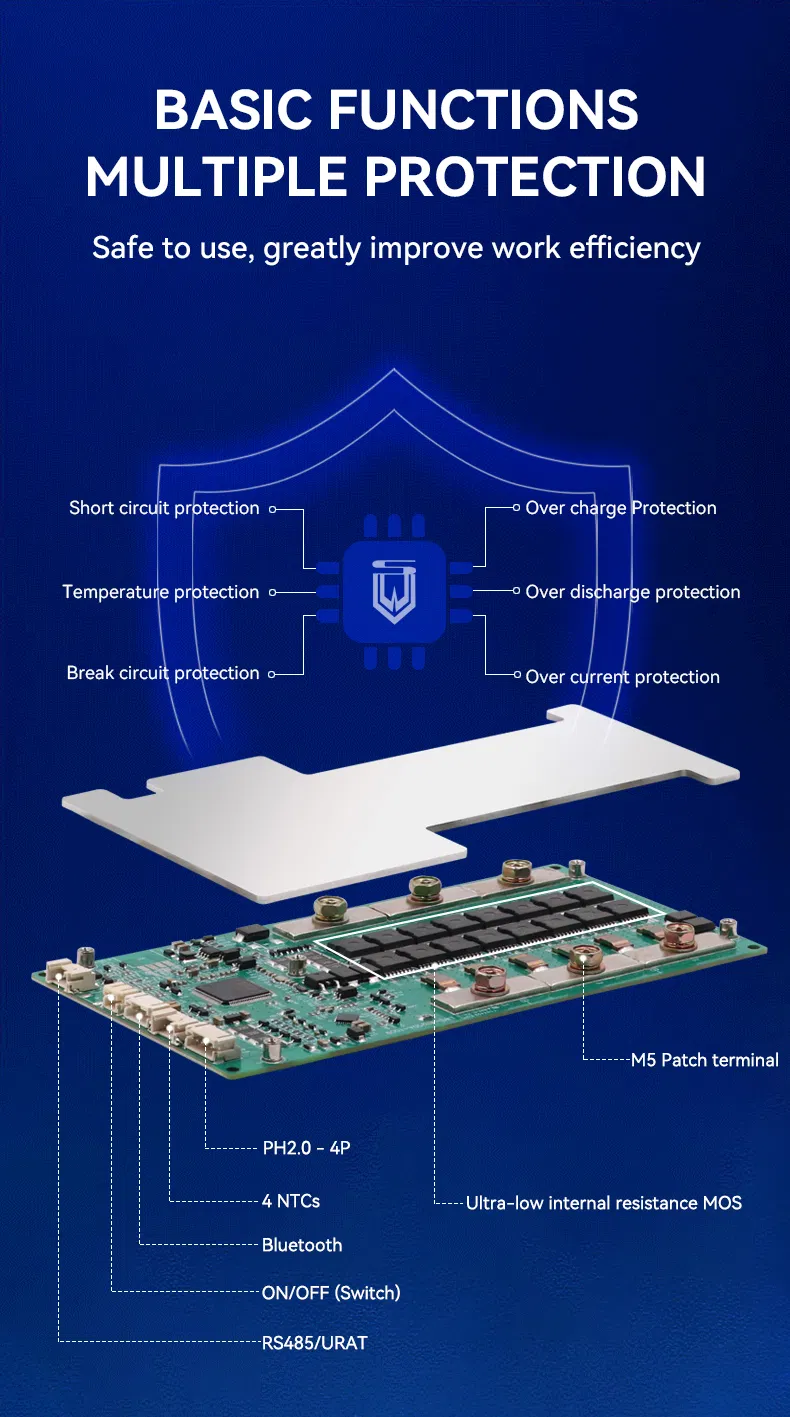

Function: Detect and protect the battery from over-charge, over-discharge, over-current, short-circuit, and temperature detecting protection. Features automatically voltage balance function with high-end electronic components (High End IC and MOSFET). Stable quality performance and flexible application for various battery series.
| PCM Specifications For 12.8V (4S) LiFePO4 Battery Packs | ||
|---|---|---|
| Voltage | Charging voltage | DC: 14.4V CC/CV |
| Balance voltage for single cell | 3.2±0.025V | |
| Current | Balance current for single cell | 50±10mA |
| Current consumption | ≤ 50μA | |
| Max continuous charging/discharge current | ≤ 150A | |

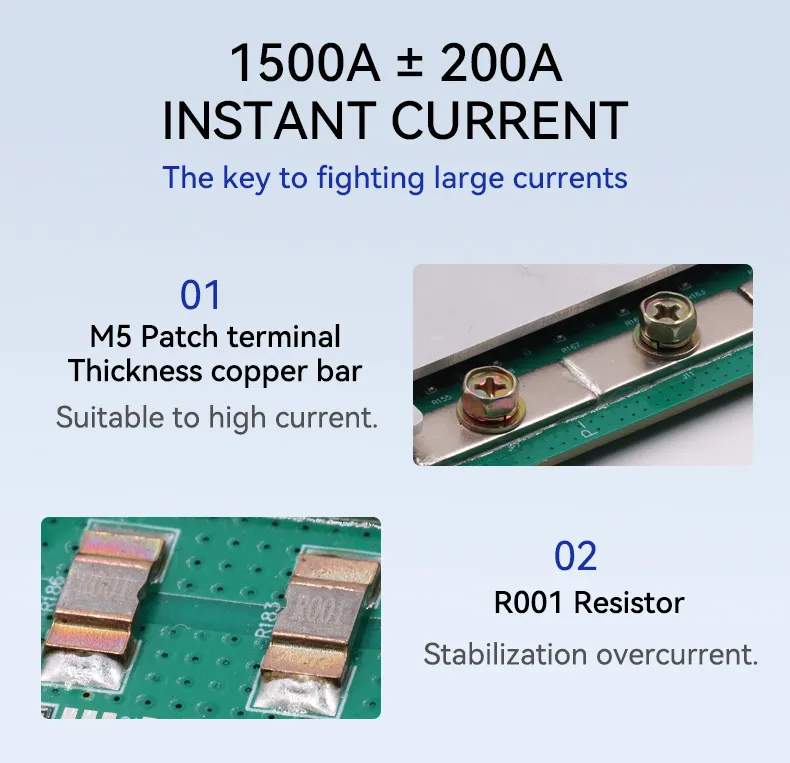

| Pulse current | 800A-1600A (5S) | |
| Over Charge | Detection voltage for single cell | 3.65±0.025V |
| Detection delay time | 0.5S-1.5S | |
| Release voltage for single cell | 3.55±0.05V | |
| Over Discharge | Detection voltage for single cell | 2.50±0.05V |
| Detection delay time | 500S-1500mS | |
| Release voltage for single cell | 2.9±0.1V | |
| Short Circuit | Release condition | Cut load, Auto recovery |
| Temperature | Operating Range | -20 ~ +60 ºC |
Professional designer and manufacturer providing Battery PCM & BMS for Lithium ion, LiFePo4, and LTO battery packs. Since established, more than 900 types of hardware and software BMS solutions have been designed, covering 1S-35S series with current up to 350A. Products are widely used in power tools, electric bicycles, medical equipment, and EV applications.
