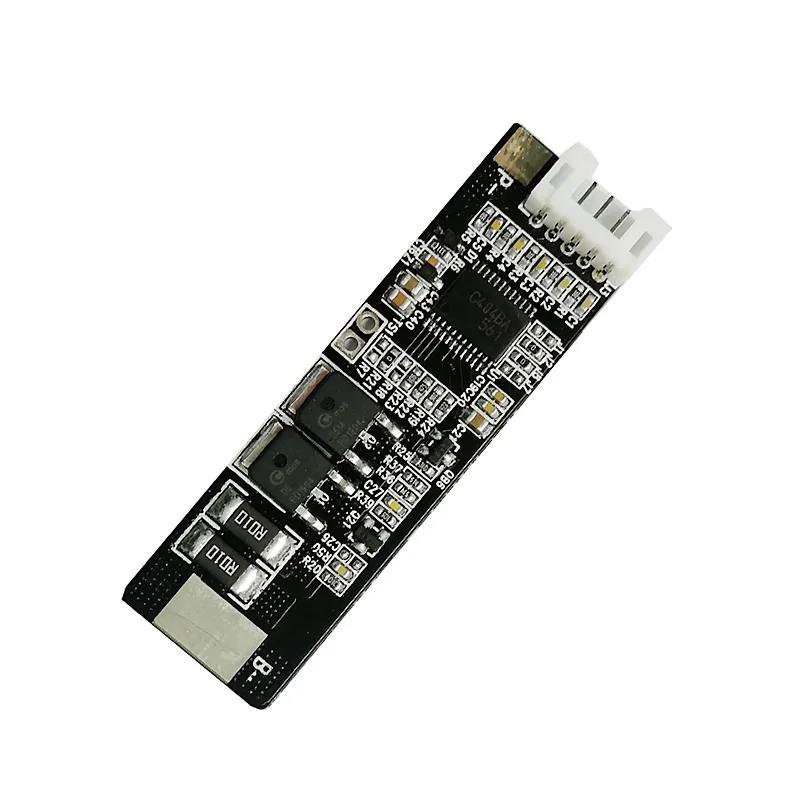

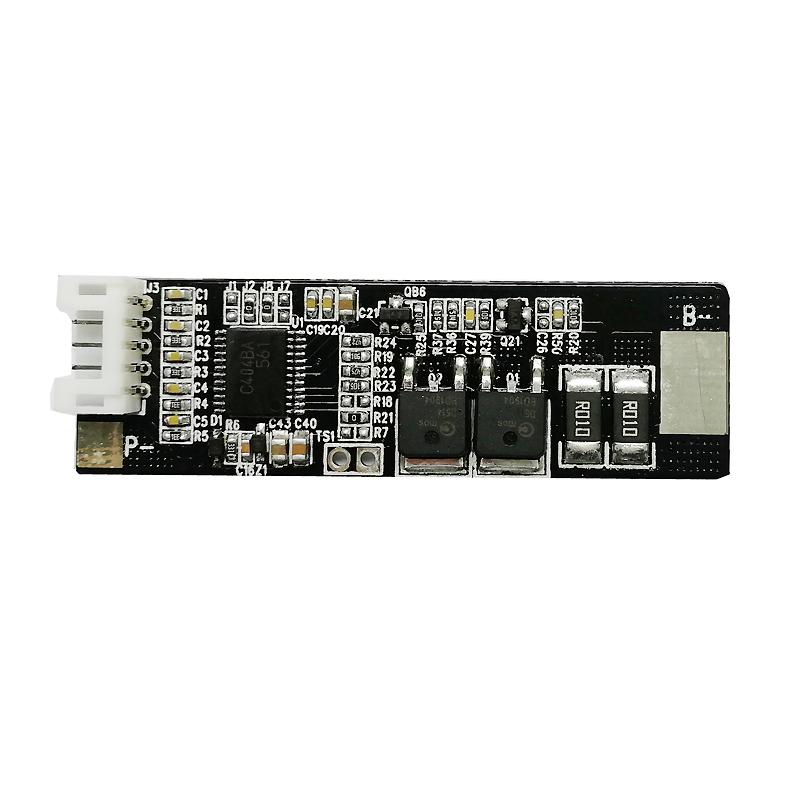

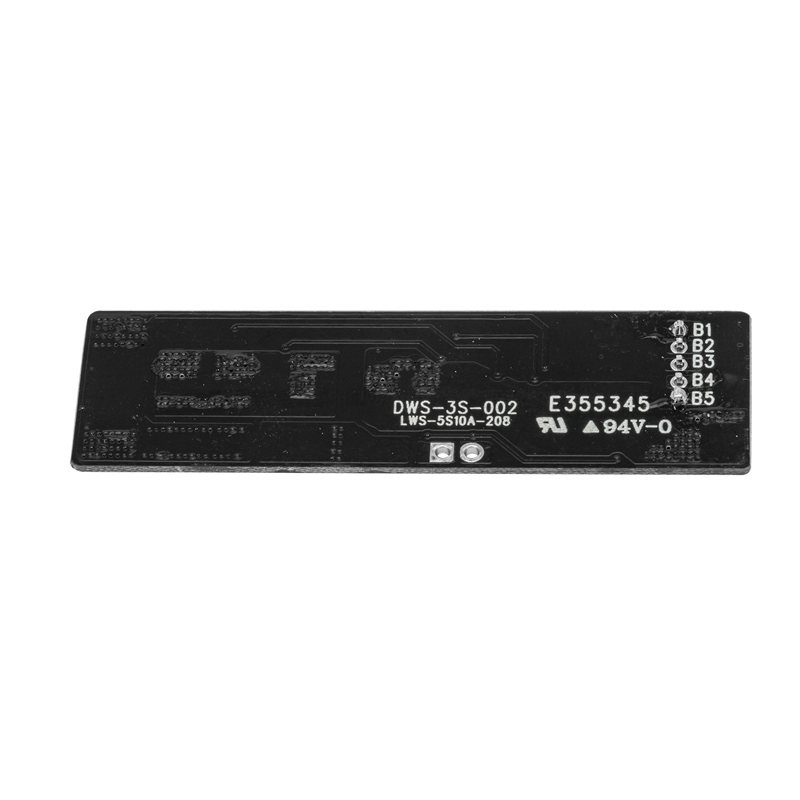

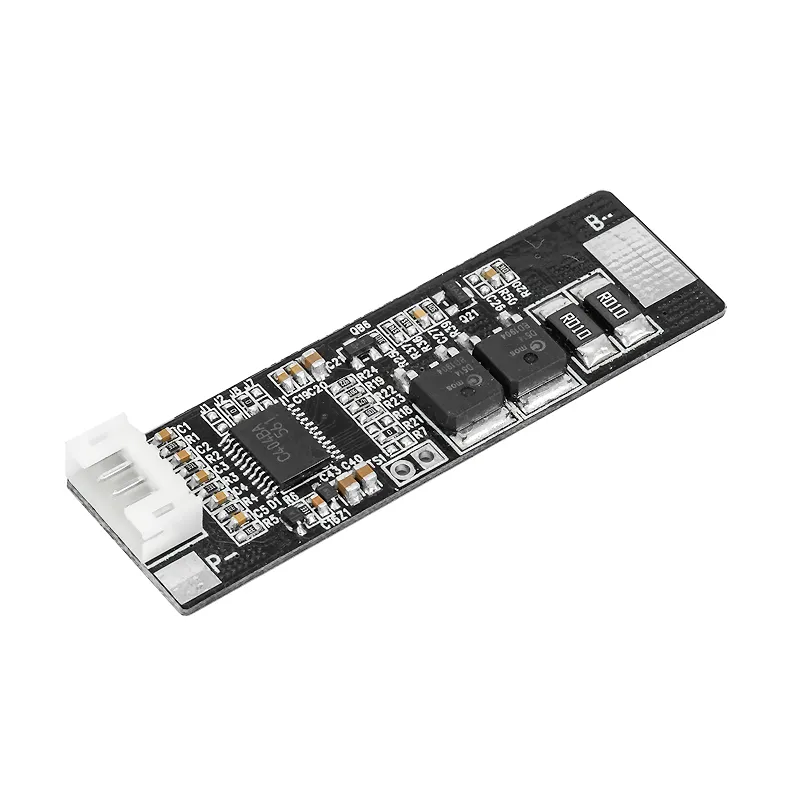

The Smart 5S 10A BMS is a management system designed for 18.5V lithium-ion battery packs with 5-series cells. It features 10A protection and is equipped with RS485, CAN, and Bluetooth communication interfaces for efficient monitoring and control.
Core Functions: Detects and protects against over-charge, over-discharge, over-current, and short-circuits. Includes temperature detection and automatic voltage balancing. Uses high-end IC and MOSFET components for stable performance.
| Test Item | Criterion |
|---|---|
| Charging Voltage | DC: 12.6V CC/CV |
| Current Consumption | ≤ 30μA |
| Max. Continuous Current | 10A |
| Pulse Current | 10A |
| Over Charge Delay | 0.6S - 2.4S |
| Over Discharge Release | 3.0±0.05V |
| Over Current Detection | 32±5A |
| Short Circuit Delay | 200-500us |
| Resistance (MOSFET) | ≤ 20mΩ |
| Operating Temperature | -40 ~ +65ºC |
