| Model NO. | LWS-1S5A-012 |
| Max Continuous Current | 5A |
| Over Charge Detection | 4.05 ± 0.05V |
| Over Discharge Detection | 2.50 ± 0.062V |
| Short Circuit Protection | Cut Load or Charging Activation |
| Application | Solar, Digital Equipment, Ebike, etc. |
| Base Material | FR-4 Multilayer |
| Operating Temp | -40°C to +85°C |
| Dimensions | 28 * 5 * 2.5mm |

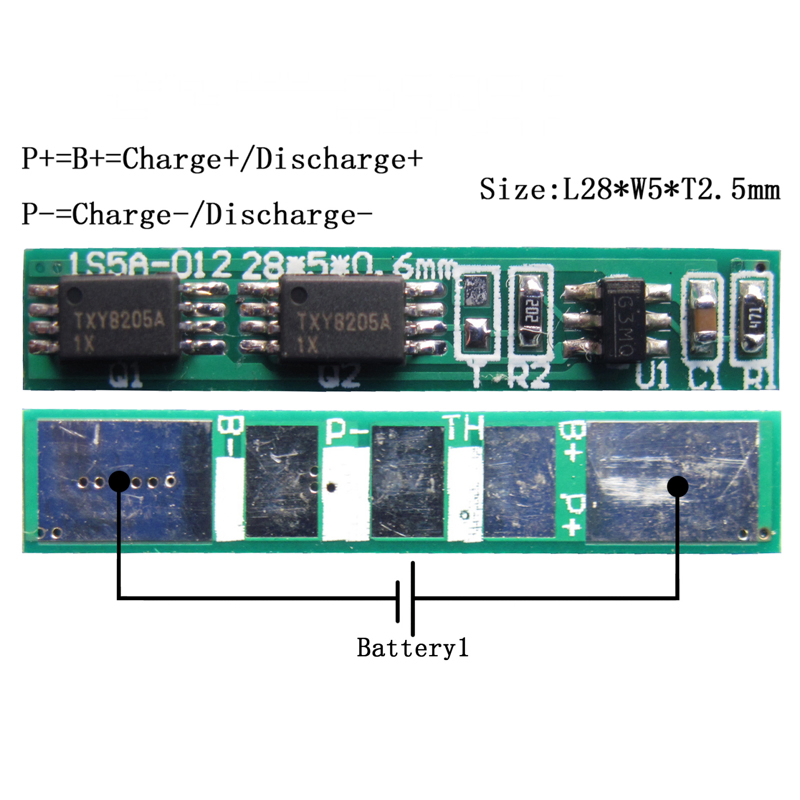

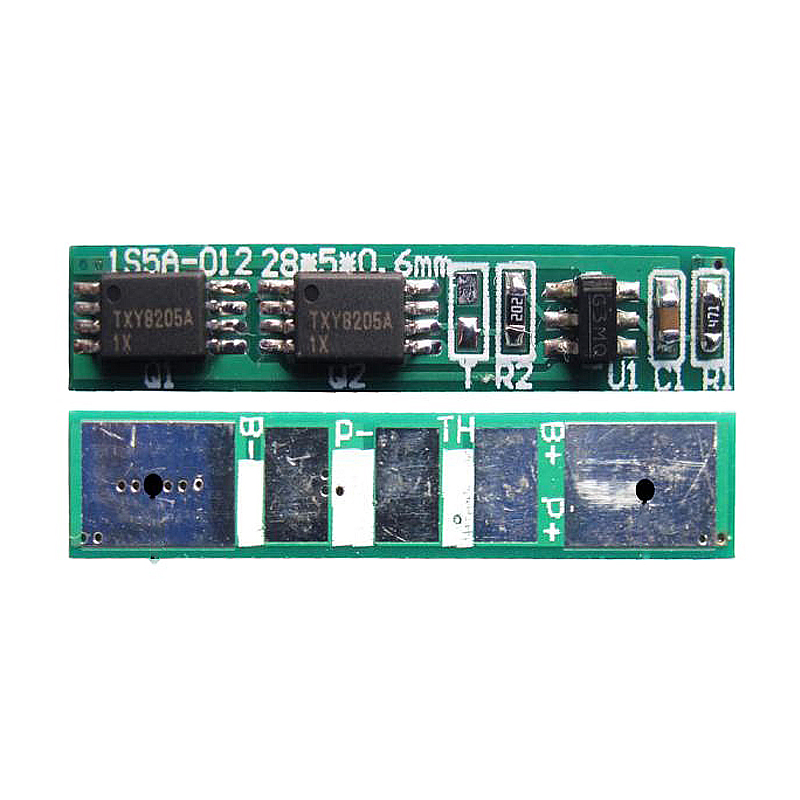

The Smart Battery Management System 1S 5A BMS is designed for 1S lithium-ion or lithium iron phosphate (LiFePO4) batteries. It features integrated CAN and RS485 communication interfaces for smart monitoring.
Core Functions: This BMS effectively detects and protects the battery pack from over-charge, over-discharge, and over-current short-circuits. It includes temperature detection protection and an automatic voltage balance function. Utilizing high-end electronic components (IC and MOSFET), its simple structure ensures stable performance and flexible application for various battery series configurations.
| Package Size | 3.00cm * 5.00cm * 5.00cm |
| Gross Weight | 2.000kg |
| Packaging Type | Anti-Static Bag / Carton Packaging |
