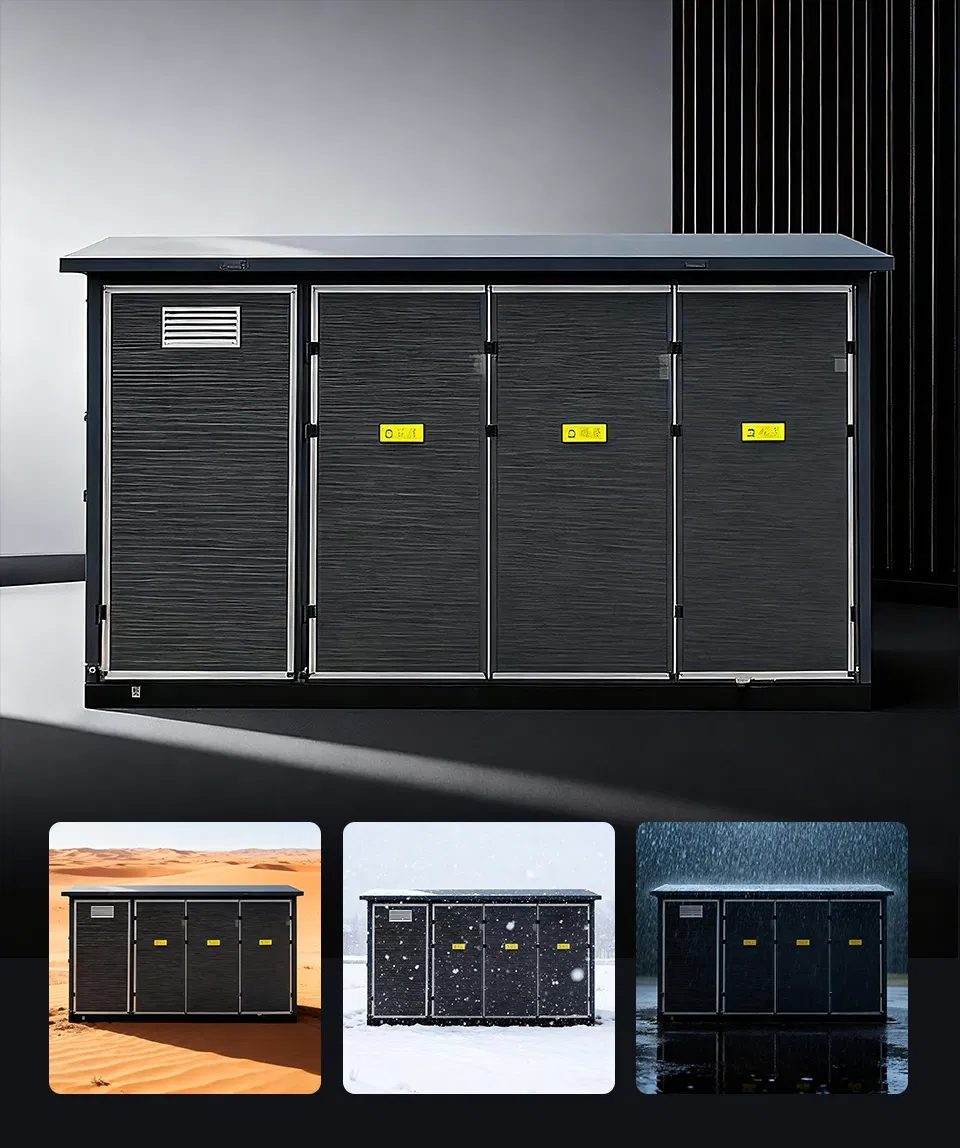

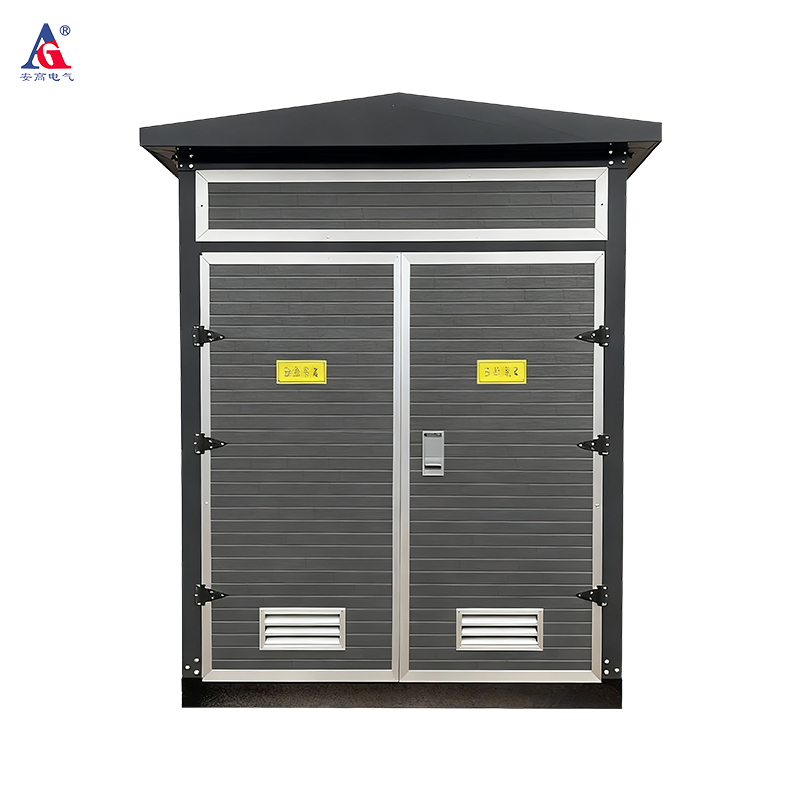

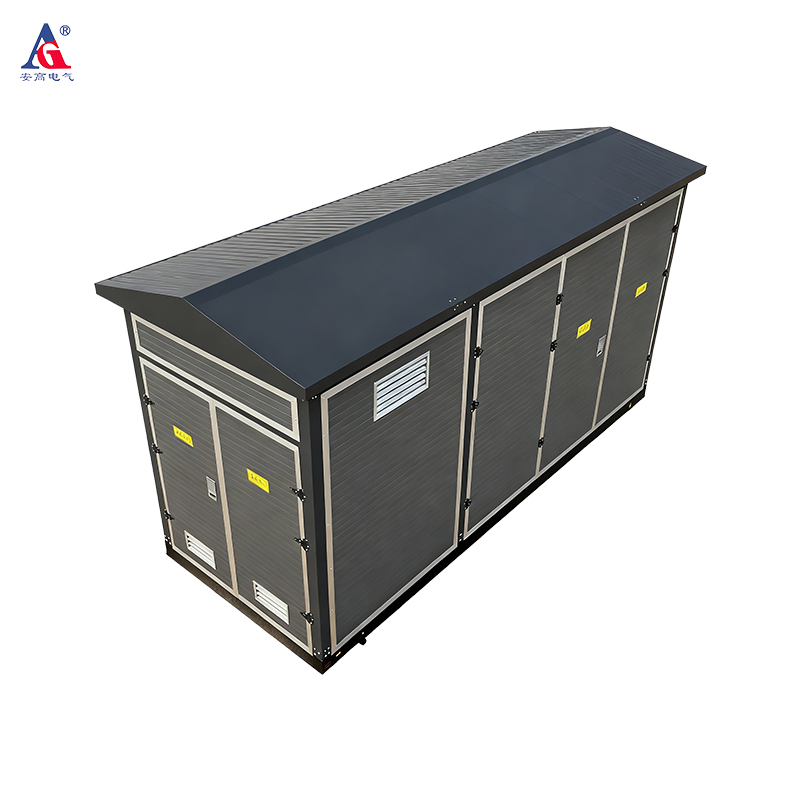

Reliable Prefabricated Power Distribution Unit for Outdoor Use

1 / 5

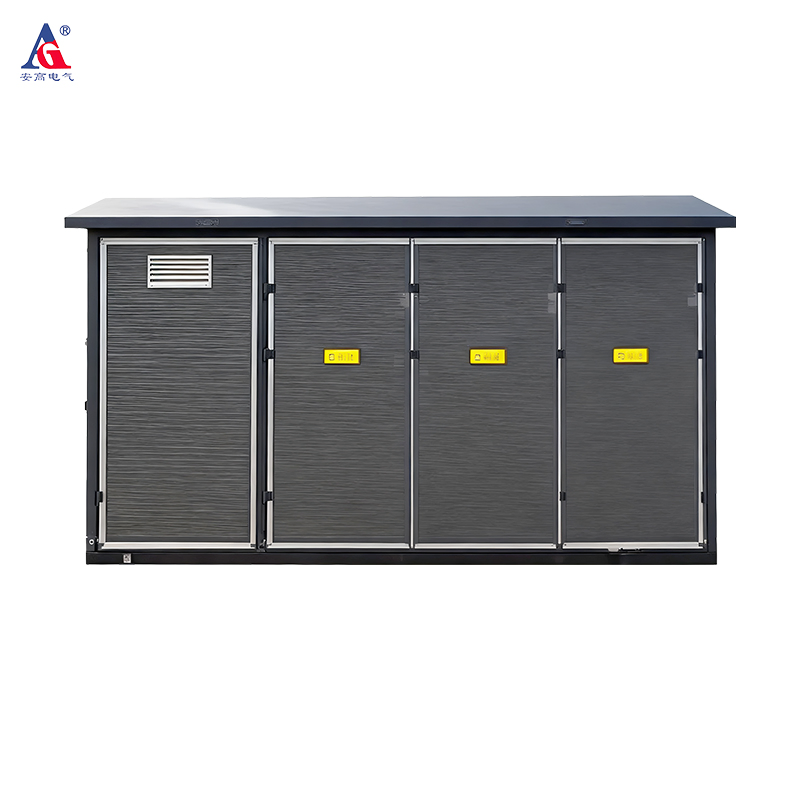

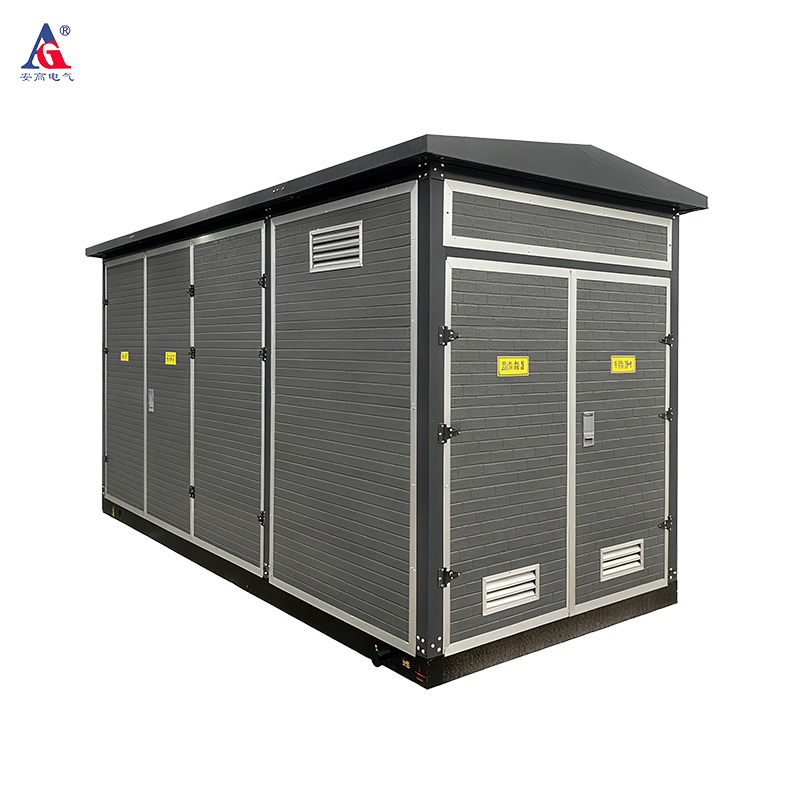

Reliable Prefabricated Power Distribution Unit for Outdoor Use

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

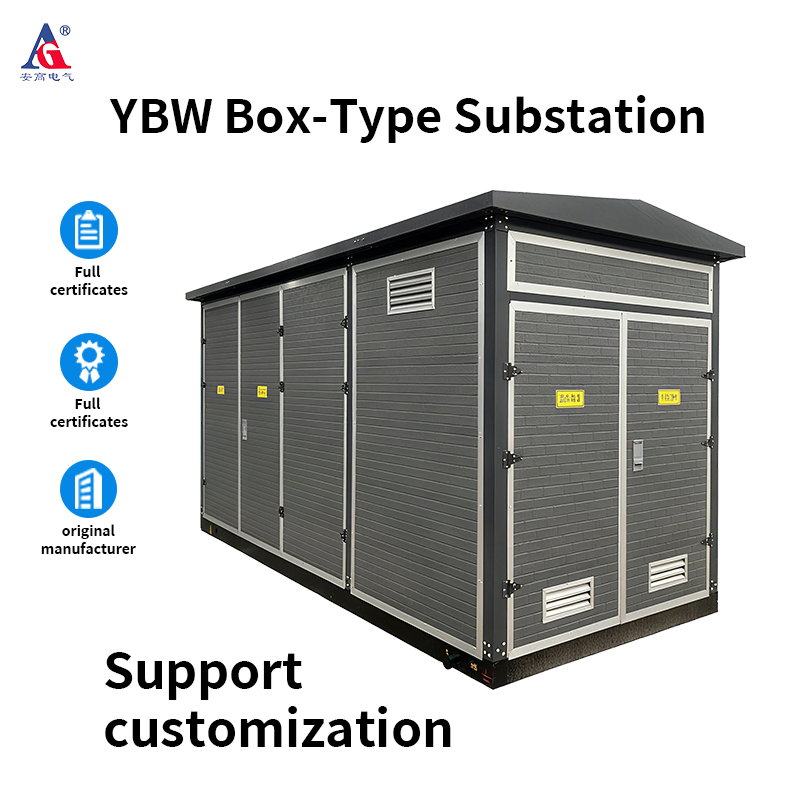

Model NO.	YBW Substation
Form	All-packaged Type
Operation Voltage	Low/High Voltage
Rated Voltage	10/0.4 (High Voltage / Low Pressure)
Maximum Operating Voltage	12 (High Pressure Side)
Rated Frequency	50Hz
Rated Capacity	50-1600kVA
Shell Material	Stainless Steel
Cooling Method	Oil Immersion Self-Cooling
Ambient Temperature	-35℃~+40℃
Ingress Protection	IP43

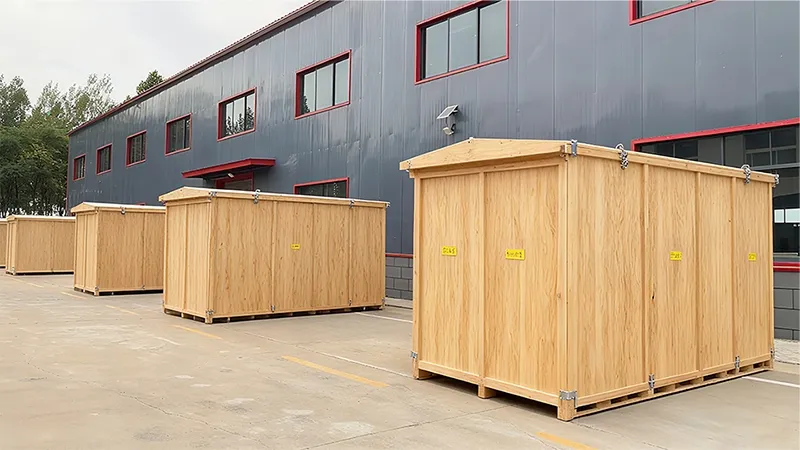

Transport Package	Wooden Case

★

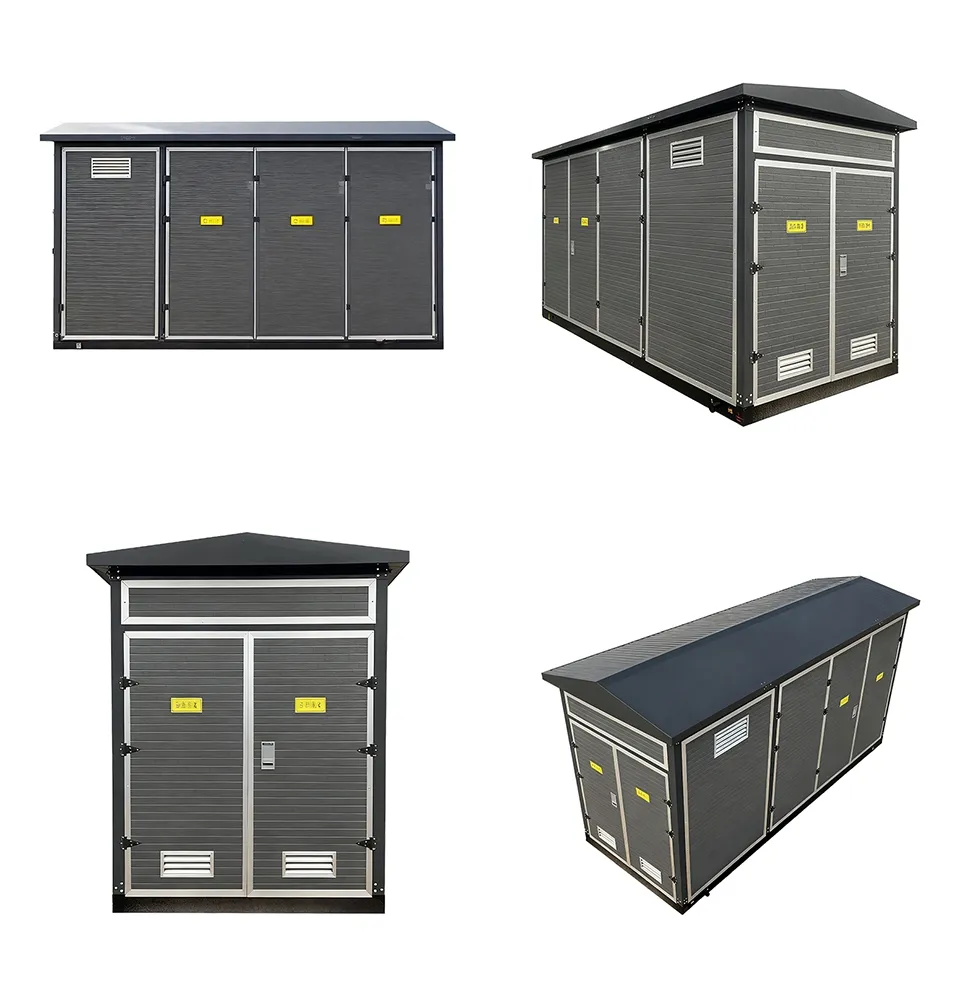

Product Description

Feature Introduction

The low-voltage test can be equipped with control appliances, distribution appliances, compensation devices and meters, and uses the transformer as the insulation and arc extinguishing medium. This product absorbs foreign advanced technology, offering a small size, easy installation, low noise, and low loss. It is ideal for parks, green belts, stations, docks, hotels, construction sites, and airports. The box-type substation is a complete set of indoor combined equipment for three-phase AC 50HZ 6-35kV.

Environment of Use

Altitude: Up to 1000m above sea level
Ambient Air Temperature: -25°C to 40°C
Indoor wind speed: Does not exceed 35m/s
Relative Humidity: Daily average ≤ 95% (25°C), Monthly average ≤ 90% (25°C)
No frequent violent vibration, flooding, or explosion hazards

📋

Ordering & Delivery

Ordering Notes

Specify model, specification, quantity, and delivery period.
Provide wiring schemes and component requirements.
State high voltage cable cross-sectional area and transformer capacity (KVA).
Specify metering requirements and capacitance compensation.

⚙

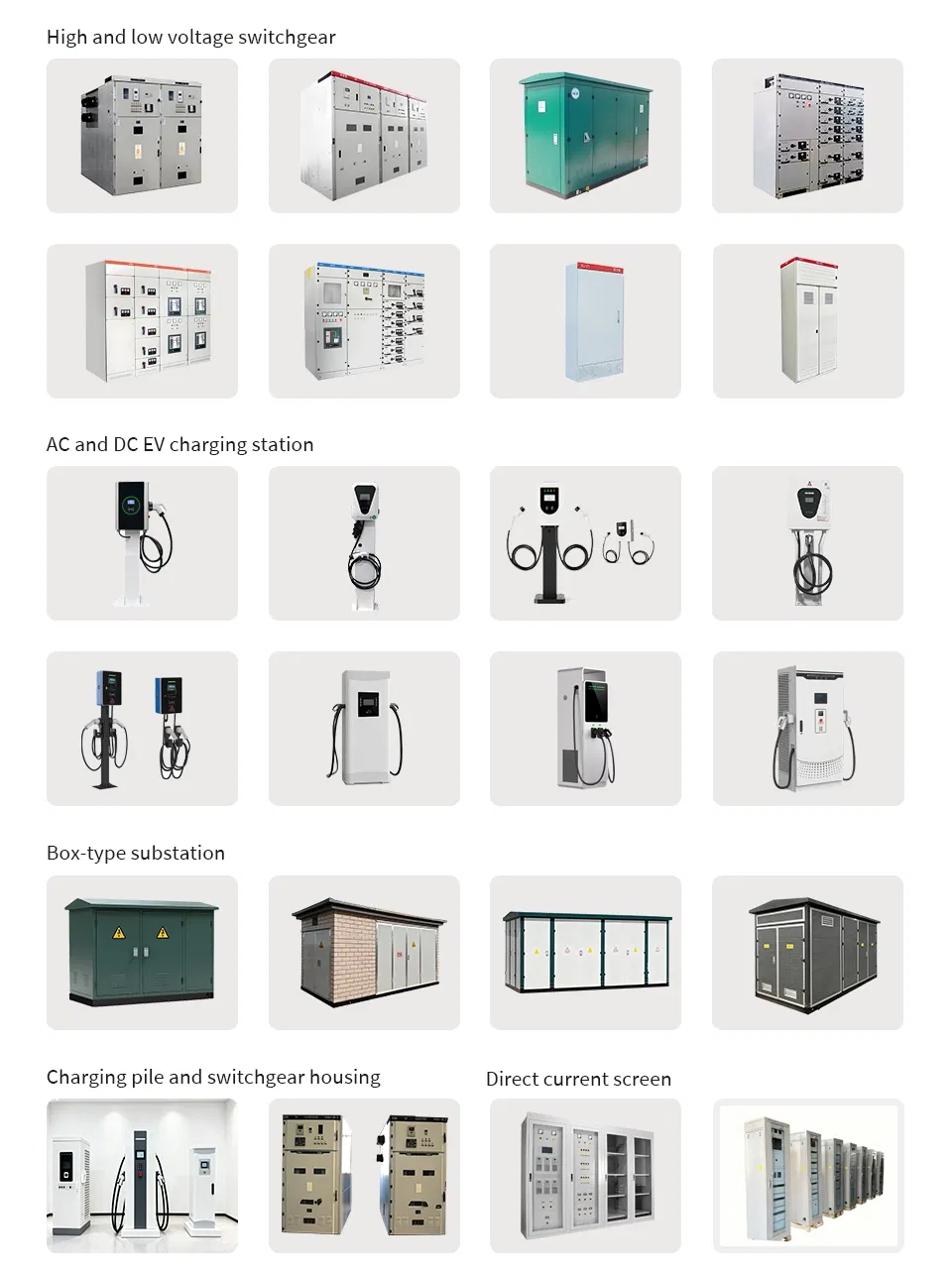

Main Products & Services

After Sales Service

36 months warranty and online support for installation training and maintenance.

🏢

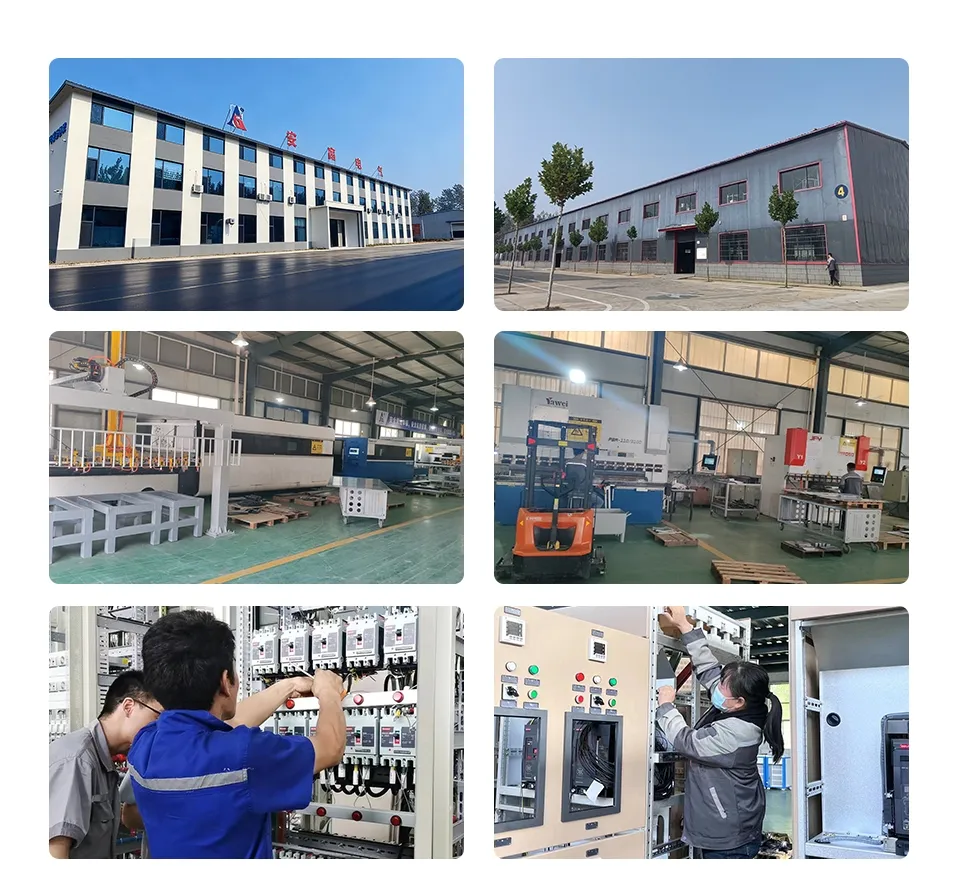

Production Capacity

A national high-tech enterprise dedicated to R&D and manufacturing of power transmission and distribution products. Capabilities include high and low voltage switchgear, AC/DC charging piles for new energy vehicles, and sheet metal housing processing.

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A1: We are a professional factory with 19 years of experience in high and low voltage switchgear, substations, transformers, and electric vehicle charging stations.

Q2: What is your payment term?

A2: 30% T/T in advance, 70% before shipment. West Union and L/C are also acceptable.

Q3: How about the delivery time?

A3: Usually it will take about 15-20 days depending on the order specifics.

Q4: How do you solve quality problems?

A4: Please provide detailed photos of quality issues. Our technical department will analyze and provide a satisfied solution within 2 days.

Q5: What is the warranty period?

A5: The warranty is within 12 months from the date of the bill of lading (standard) or 36 months for specific service plans.

Q6: Do you accept product customization?

A6: Yes. Please provide specific drawings or parameters, and we will quote you after technical evaluation.
