Professional EV Charging Deployment and Installation Solution Charger in Stock

1 / 5

Professional EV Charging Deployment and Installation Solution Charger in Stock

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info

Model NO.	QSCDZ	Rated Current	2A; 63A; 100A; 200A; 300A
Rated Power	7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw	Protection Grade	IP54 / IP65
Service Life	8 - 10 Years	Charging Type	AC / DC / Integrated
Efficiency	≥93% (AC); ≥95% (DC)	Power Factor	≥0.95
Harmonic Distortion	≤5% (THD)	HS Code	8504409999

Product Description

✔ Flexible Expansion & Wide Compatibility

✔ Certified Safety & Rock-Solid Reliability

✔ Effortless Operation & Low-Maintenance Design

✔ Consistently Stable Performance for Efficient Charging

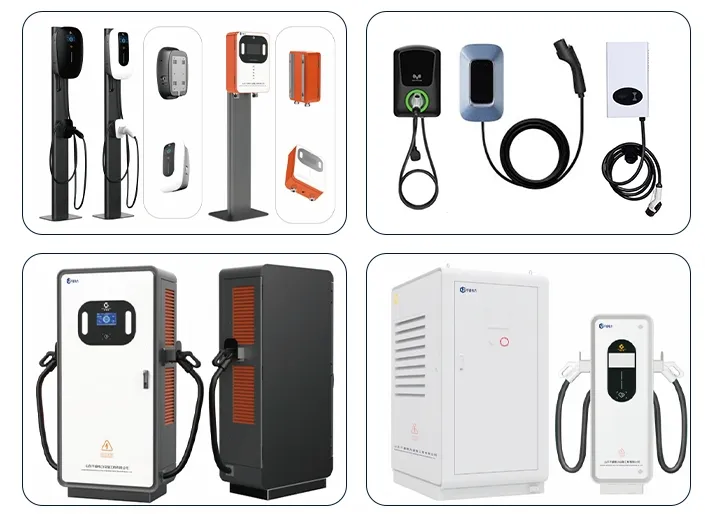

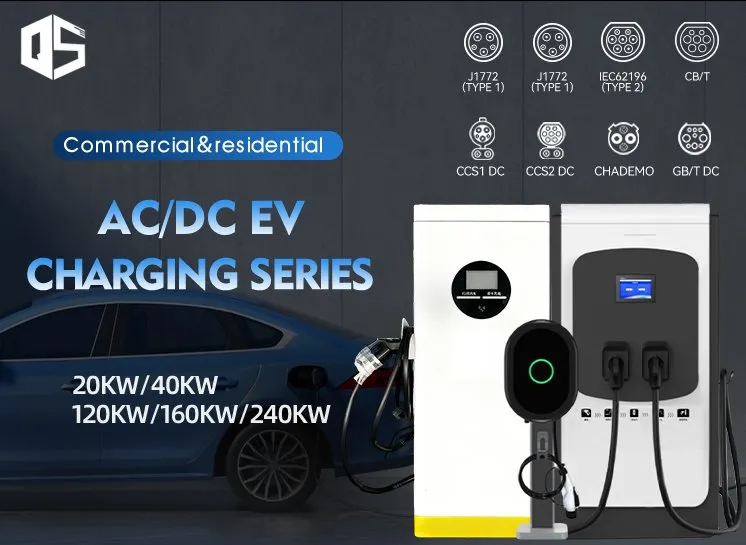

Our charging pile series includes multiple models, with two options: wall mounted and floor standing, to meet different installation needs. Modular power configuration makes them easy to maintain. Wall mounted models save space, while floor standing models offer faster charging speeds. Very suitable for residential and commercial use.

Specification

Parameter	Detail
Power Range	20KW / 40KW / 120KW / 160KW / 240Kw
Input Rating	110V/220V/380V±15%
Output Voltage	200~1000V
Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen
Protocols	OCPP1.6J (OCPP2.0 upgradable)
Working Temp	-20℃ to +50℃
Protection	IP55

Best Sellers

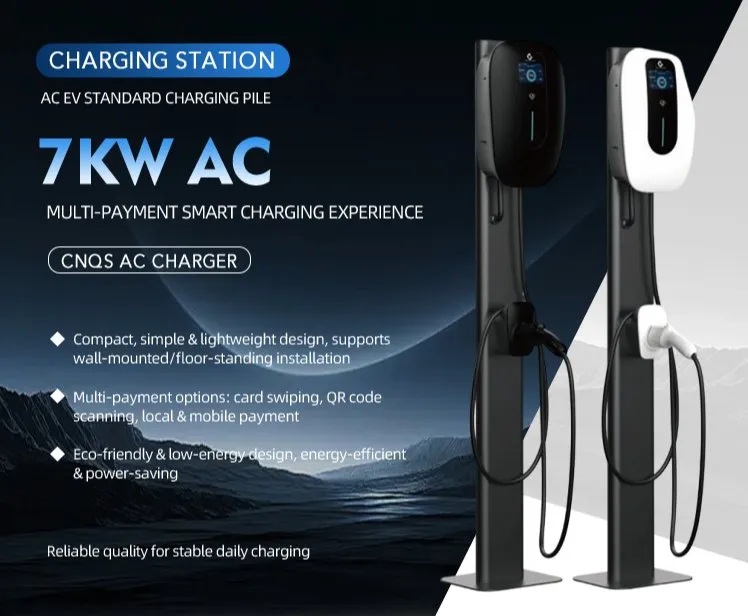

7KW AC

• Global certifications (CE/UL/PSE/KC), 100% compliance rate
• Supports ISO 15118-20 standard + PNC Plug & Charge
• V2G protocol supported, 35% increase in operational revenue
• Billing accuracy ±0.5%

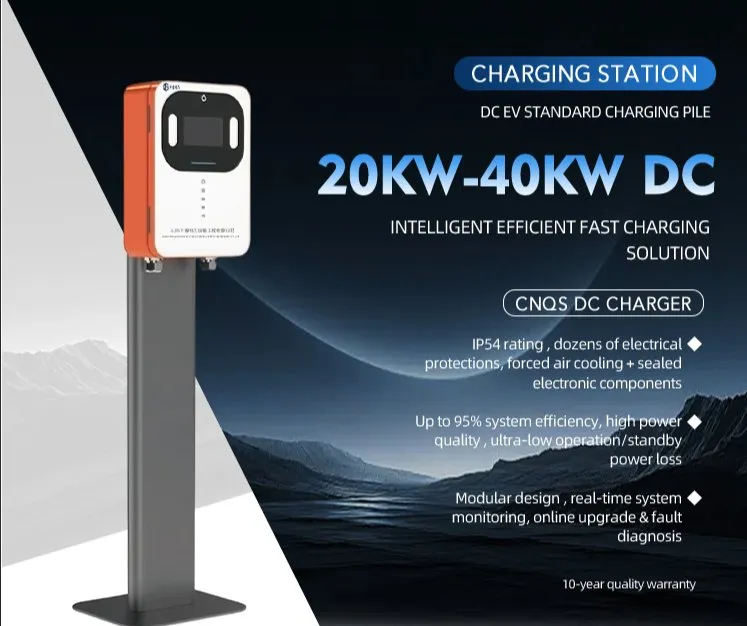

20KW-40KW DC

• 80% power replenished in 30 mins

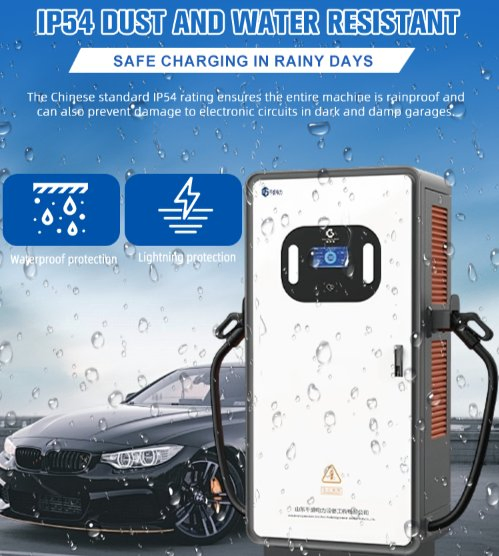

• IP65 waterproof & wide temp (-30℃ to 60℃)
• Supports Apple Pay/Google Pay/Credit Card
• 40% lower deployment cost

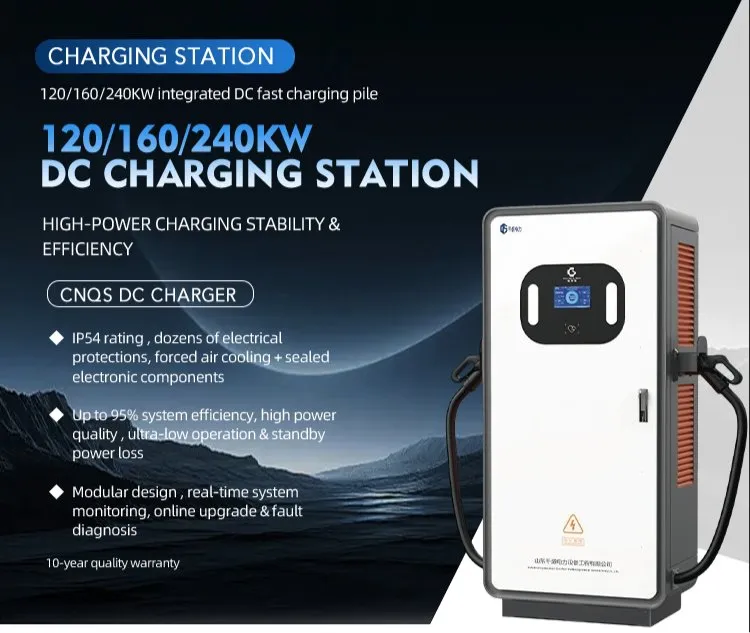

120/160/240KW DC STATION

• 120% increase in single-pile utilization
• 120kW: 300+km range in 30 mins
• 160kW: 80% battery in 25 mins
• 240kW: 80% battery in 15 mins

Product Details

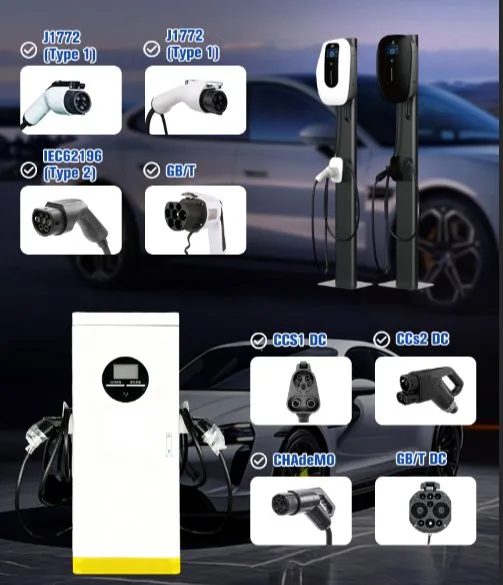

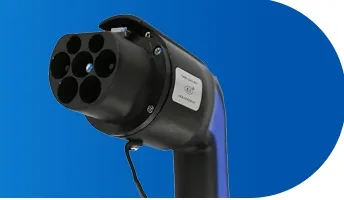

• Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

• Thickened high-temperature resistant special cables, anti-aging & anti-stretching.

• Customizable cable length with self-locking anti-drop connectors.

Product Features

Professional Expertise

• Over 20 years of industry expertise.

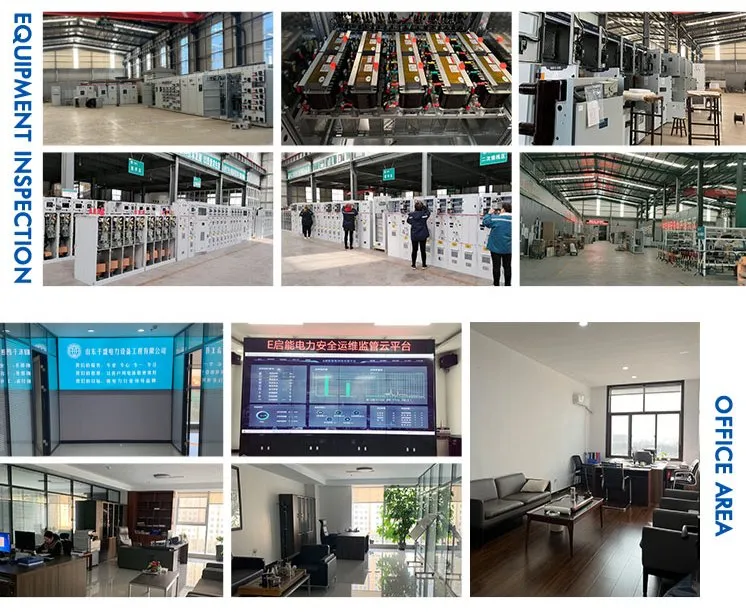

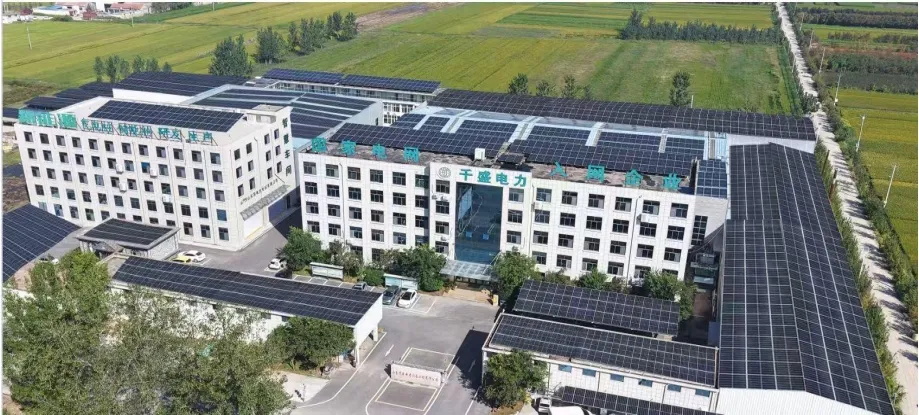

• Factory covers over 16,000 m² with specialized senior technicians.

• Certified with ISO9001:2000, CCC, and CQC product certifications.

• Focus on Safe Production and Quality First.

Frequently Asked Questions

1. What situations are not covered by the warranty?

Warranty excludes human damage, unauthorized disassembly/modification, use of non-genuine parts, improper installation, external voltage abnormalities, and force majeure events like fires or earthquakes.

2. Is regular maintenance service provided?

Yes, we provide free annual inspections including electrical safety testing, mechanical part tightening, and software updates. Quarterly maintenance packages are available for commercial chargers.

3. Does after-sales service comply with local regulations?

Fully compliant with EU GDPR, local safety certifications (CE/UL/PSE), and industry standards. Maintenance data is encrypted to protect user privacy.

4. Can the warranty period be extended?

Paid extensions are available: 2 years for residential chargers and 1-3 years for commercial models, covering the main unit and core components.

5. Is after-sales service universal across regions?

Our global warranty system covers Europe, America, Asia-Pacific, and the Middle East. Services are available locally with an equipment serial number and warranty certificate.

6. Are the chargers compatible with all electric vehicles?

Our chargers support multiple standards including CCS1, CCS2, GB/T, J1772, and CHADEMO, ensuring zero adaptation barriers for most passenger and commercial vehicles.
