| Model NO. | GL-D8 | Measurement Range | -1999~9999 Words |
| Accuracy | 0.2%Fs ±1 Word or 0.5%Fs ±1 | Resolution | 1, 0.1, 0.01 or 0.001 Words |
| Temp. Compensation | 0~50℃ | Display Mode | -1999~9999 Measured Value Display |
| Light Column Accuracy | 1% | Control Mode | Bit Type on/off with Back Difference |
| Feeder Output | DC 24V, Load Capacity ≤ 30mA | Structure | Standard Snap-in Type |
| Origin | China | HS Code | 9026202000 |

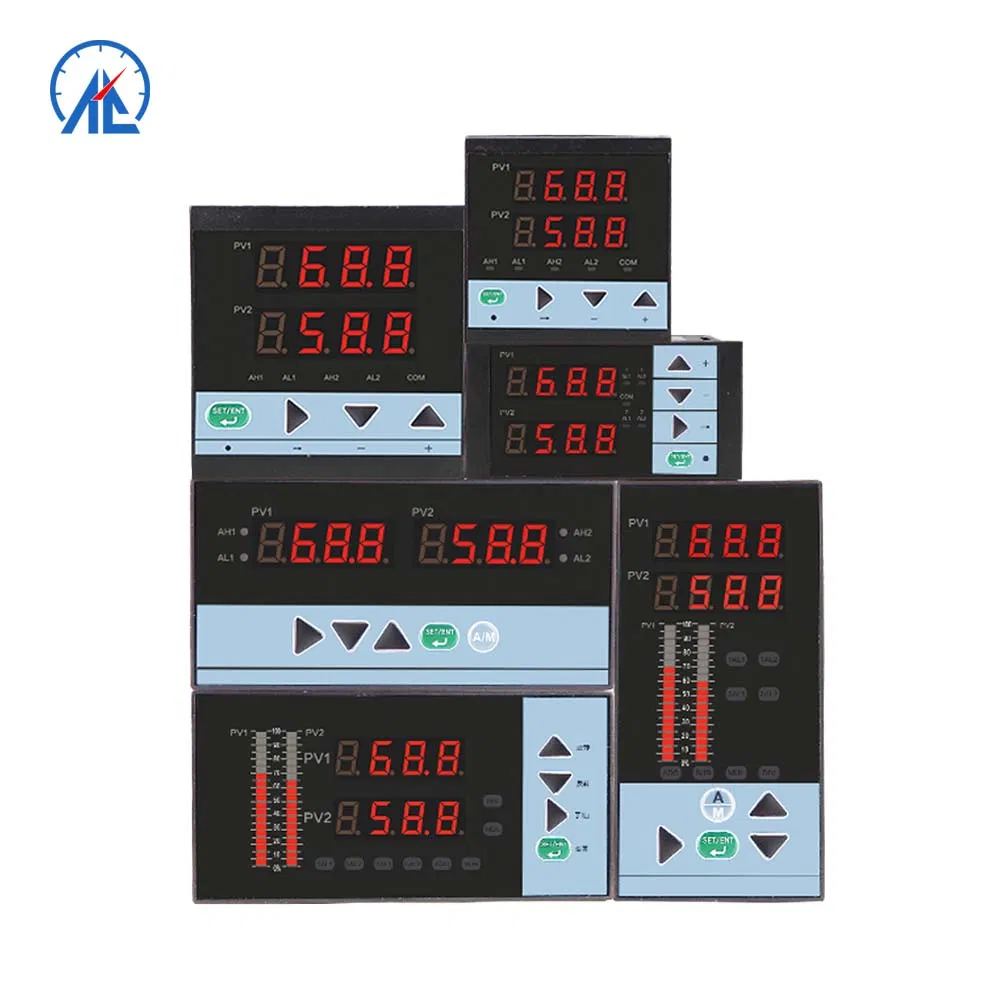

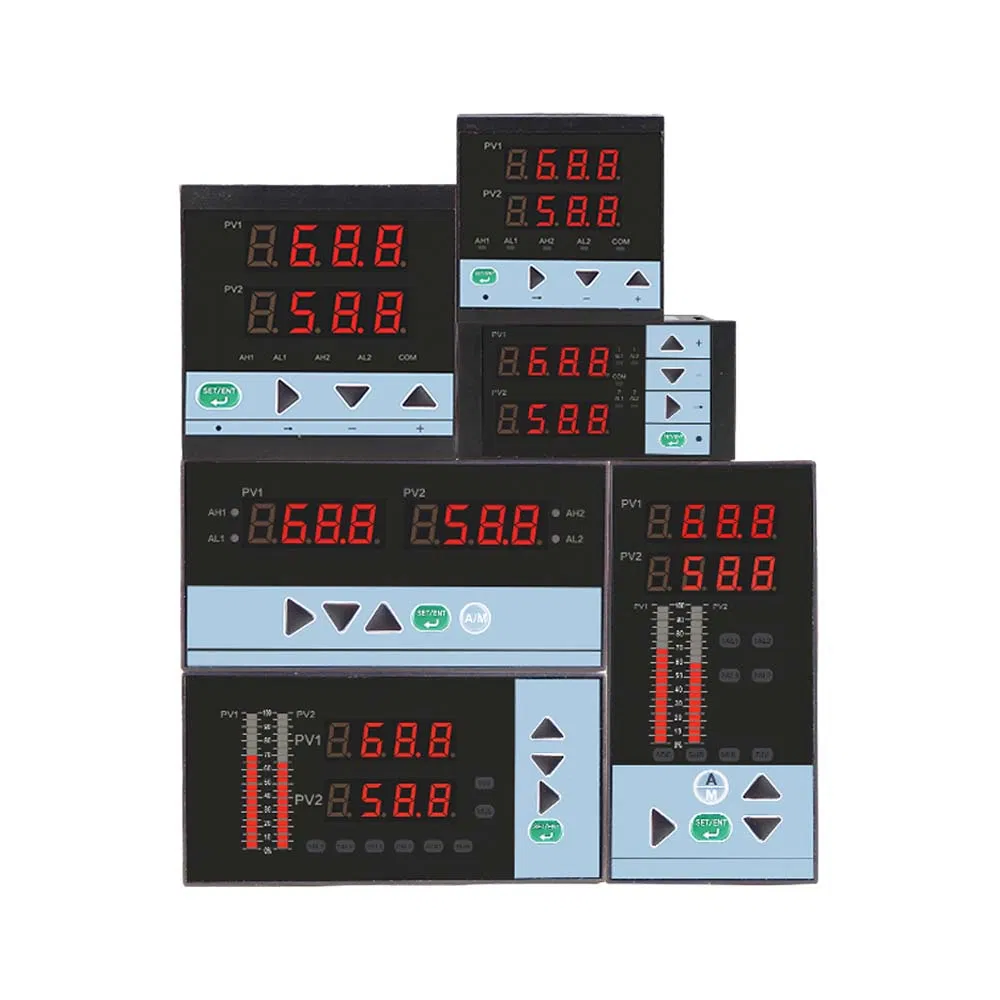

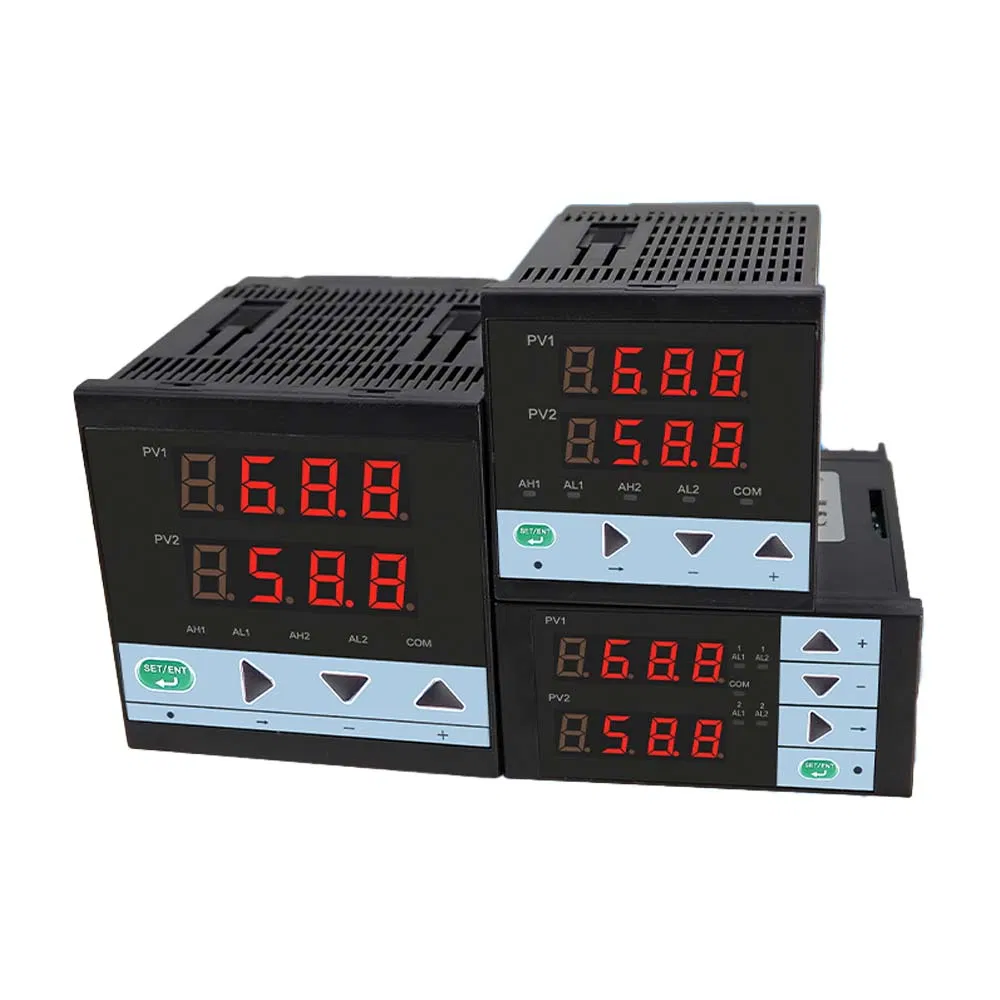

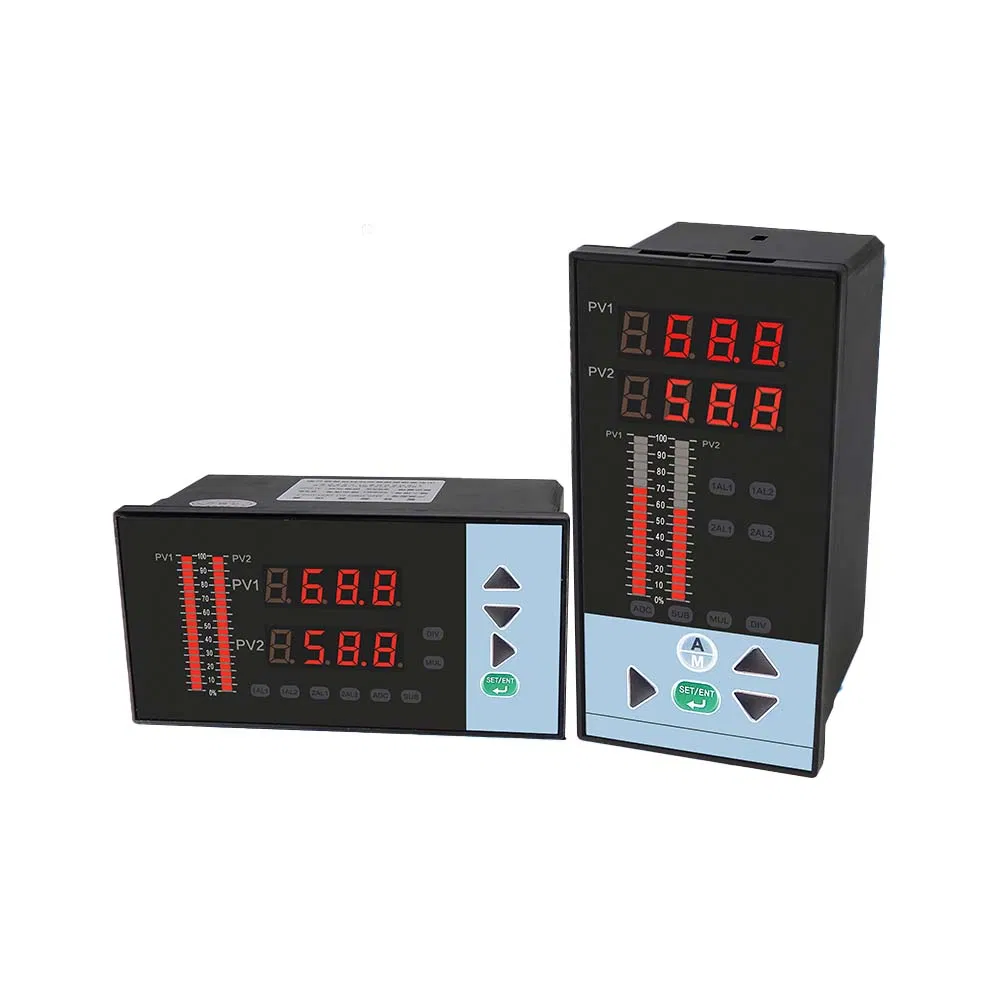

The light column display controller combines digital measurement display and analog measurement display in one. It utilizes a digital LED display for accurate real-time values, while the high-precision 40-line light column provides an intuitive visual comparison of parameters.
Features an open interface for internal parameter settings including input type, operation mode, output, and communication parameters. The advanced jumperless technology allows for online index number changes without powering off the device.
| Parameter | Specifications |
|---|---|
| Analog Output | DC 0-10mA (≤750Ω), 4-20mA (≤500Ω), 0-5V (≤250Ω), 1-5V (≤250Ω) |
| Switching Output | Relay control output ON/OFF with differential |
| Contact Capacity | AC220V/3A; DC24V/6A (Resistive load); Silicon controlled rectifier trigger pulse |
| Communication | Standard serial bi-directional interface (RS485, RS232C, RS232); Baud rate 300-9600bps |
| Power Consumption | ≤5W (AC 220V), ≤4W (AC 90~260V or DC 24V) |
| Alarm Accuracy | ±1 word; Supports 1~4 limit alarms with LED indication |
| Weight | 420g (Standard version) |
