Vernon Charger
1 / 5
The multi-standard charger is a fast charging equipment for pure EV vehicles designed to meet market demands. It combines multiple charging standards including CCS2, CHAdeMO, and Type 2 into one cabinet to provide various options for users. Designed for outdoor floor-mounted installation, it features waterproof, dustproof, and anti-corrosion functions with an IP55 protection rating.
Utilizing a modular design concept, the charger allows for convenient installation, commissioning, and simple maintenance. It is suitable for highway service stations, large parking lots, residential areas, shopping malls, hospitals, airports, and parks.
| Category | Specification | Details |
|---|---|---|
| AC Input | Input Rating | 400 Vac ± 15% (3P + N + PE) |
| DC Output | Voltage Range | 50~500Vdc (CHAdeMO) / 150~1000Vdc (CCS) |
| Power | Output Power | DC 120kW + AC 22kw |
| Interface | User Control | 7 inch touch screen, Emergency Stop, RFID |
| Communication | Connectivity | Ethernet/4G/3G, CANbus / RS485 |
| Environment | Operating Temp | -30°C to +50°C (IP55 rated) |
| Physical | Dimensions | 750*690*1800 mm |
Established as a high-tech enterprise, the provider focuses on overall "vehicle-charger-grid" solutions. With over 400 employees and significant R&D investment, the business covers inner power systems and outer charging systems for EVs. Products including AC/DC chargers and high-power charging systems are applied in over 200 cities and exported to 50+ countries.

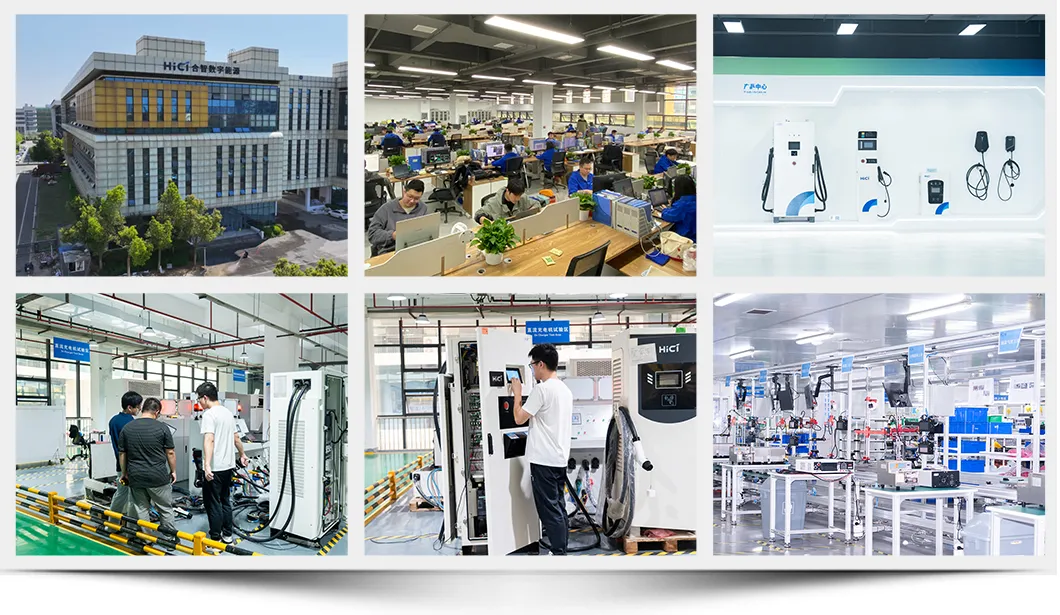

Equipped with a comprehensive testing center, the facility ensures electromagnetic compatibility, electrostatic discharge testing, and high/low temperature environmental experiments. Over 20 years of experience in electronic power control technology ensures robust hardware and software design.
