Basic Info & Overview
Model NO.:Mars
Output Frequency:50/60Hz
Output Current:145A
Output Voltage:580V
Input Voltage:400A
Output Power:100/110/125kw
Application:On/Off Grid System
DC Voltage Range:580-1000 V
Maximum DC Current:173-216A
Power Factor:> 0.99
Ambient Temp:-40℃~+60℃
Cooling Method:Intelligent Air Cooling
Topology:Without Transformer
Capacity:400 Sets Per Month
💡

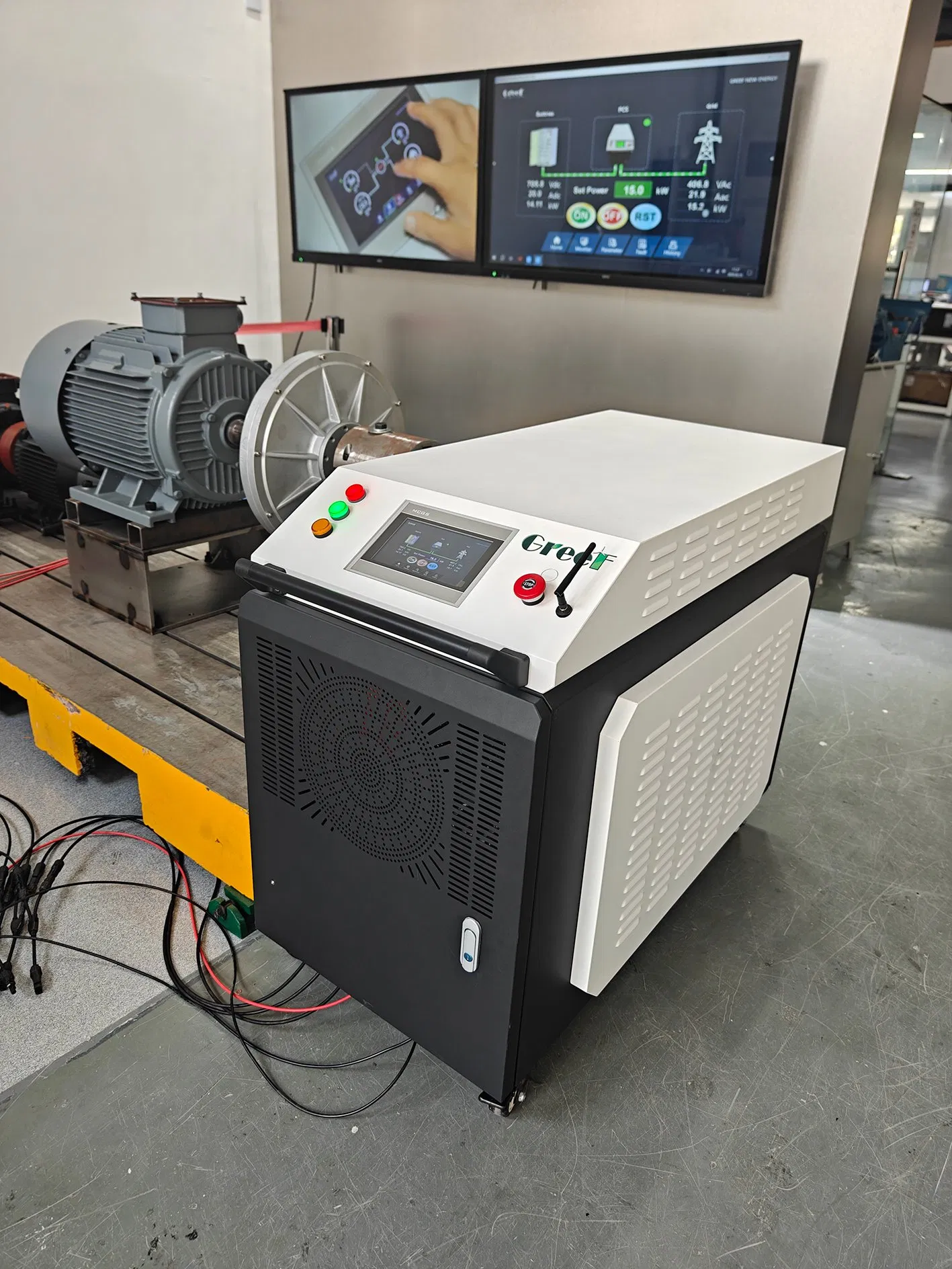

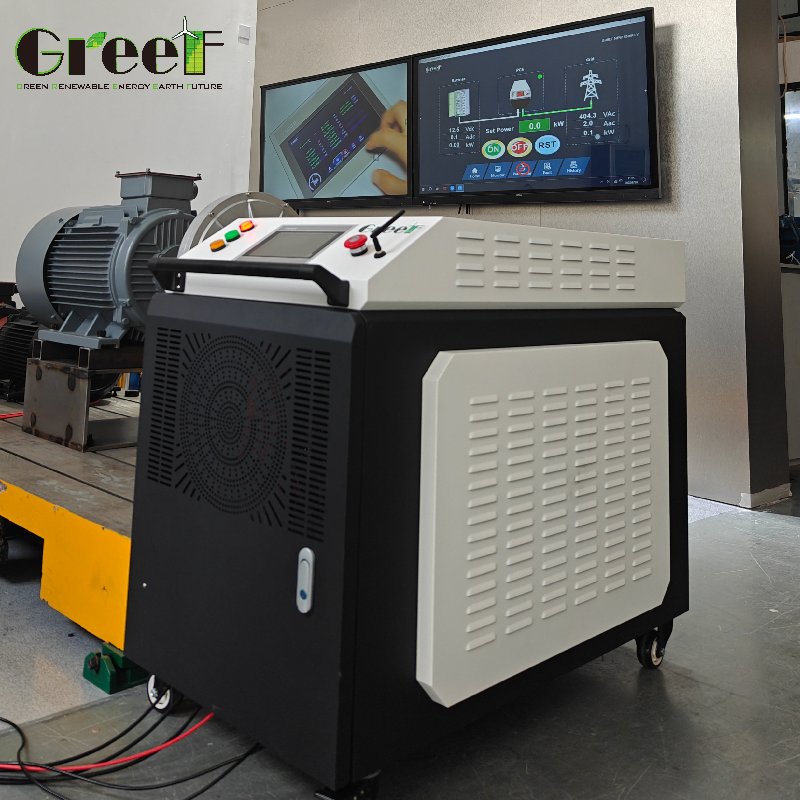

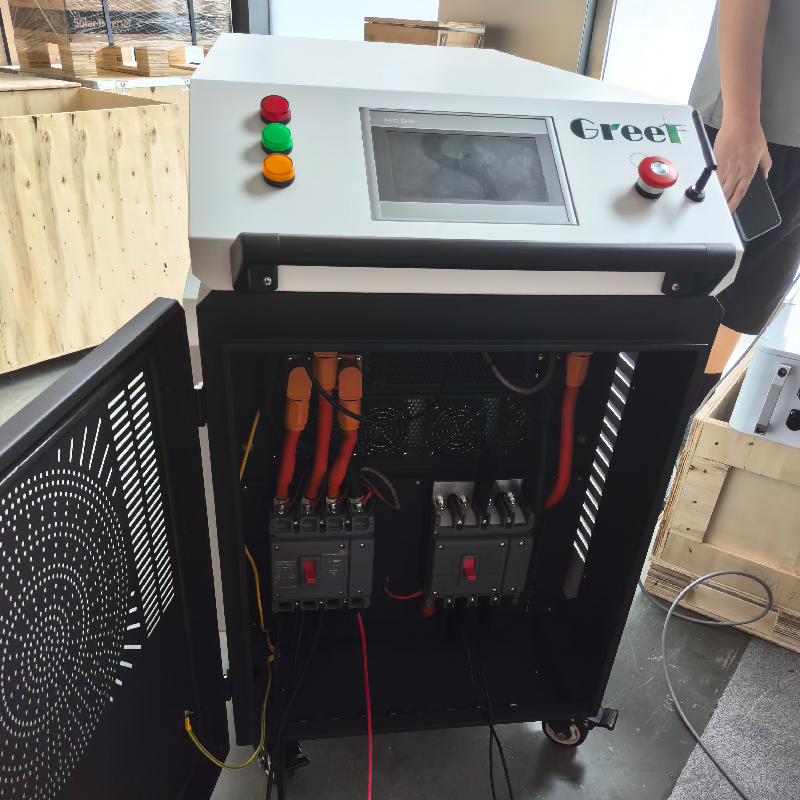

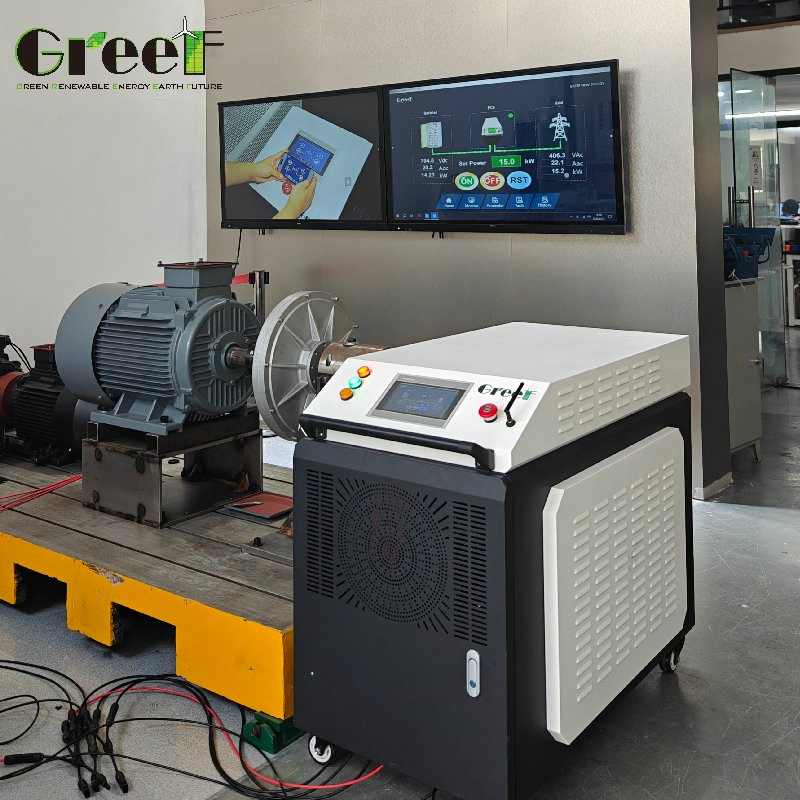

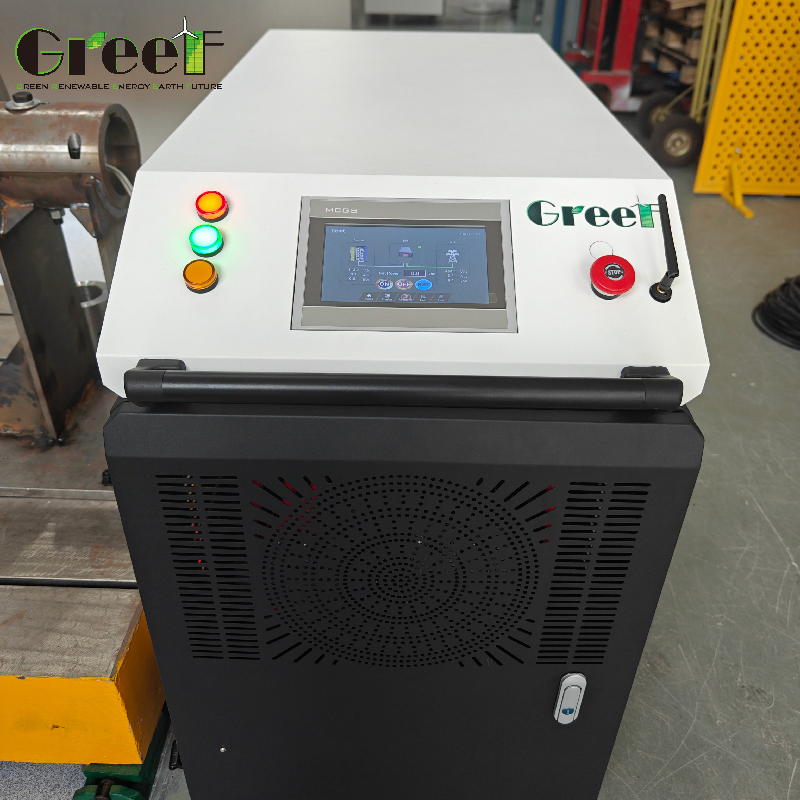

Product Description
Power Conversion Inverter is the core equipment in an energy storage system and is often referred to as the "brain" of the system. Its main function is to convert power between alternating current (AC) and direct current (DC), enabling the control and dispatch of electrical energy.
Main Functions:
- AC/DC Conversion: Rectification (AC to DC) for battery storage and Inversion (DC to AC) for grid or load supply.

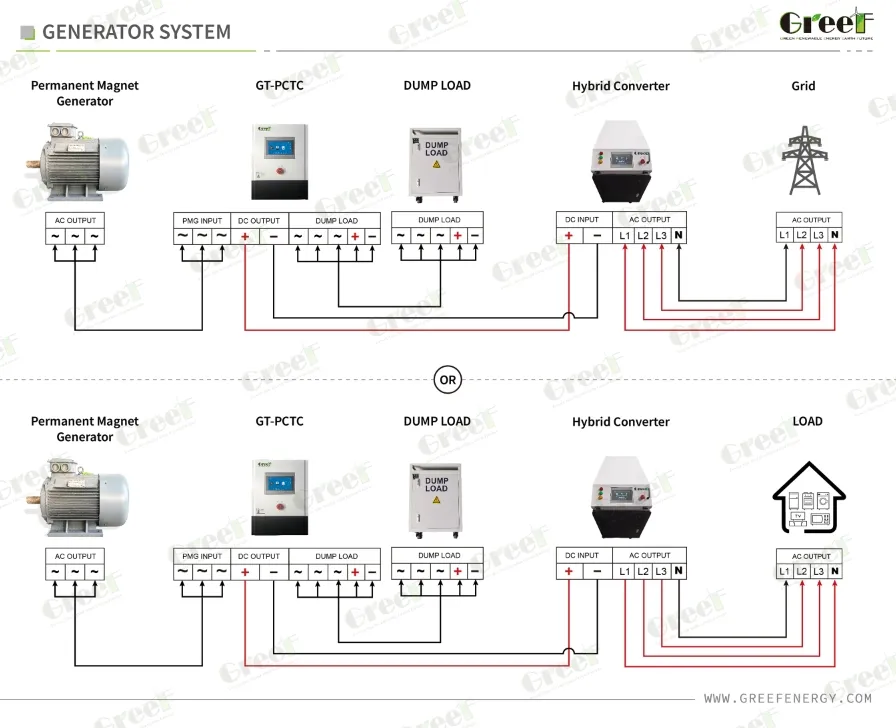

- Dual Operation Modes: Supports both Grid-Tied and Off-Grid operation, perfect for microgrid integration.
❓
Frequently Asked Questions
What is the primary role of the Mars series inverter?
The Mars series Power Conversion System (PCS) acts as the system's "brain," managing the conversion between AC and DC power to control energy storage and dispatch.
Does this system support off-grid operation?
Yes, the system is designed for both grid-tied and off-grid modes, allowing it to function independently in microgrid applications.
What cooling technology is utilized in these inverters?
It uses an Intelligent Air Cooling system to ensure optimal performance within an ambient temperature range of -40℃ to +60℃.
What is the maximum DC voltage for the Mars series?
The maximum DC voltage supported by the Mars-100kt, 110kt, and 125kt models is 1,000V.
How is the overload capacity handled?
The inverter features an overload capacity of 1.2 Pn, which can be maintained continuously for 1 minute.
Is this inverter transformerless?
Yes, the system uses a transformerless topology, which typically results in higher efficiency and a more compact design.
