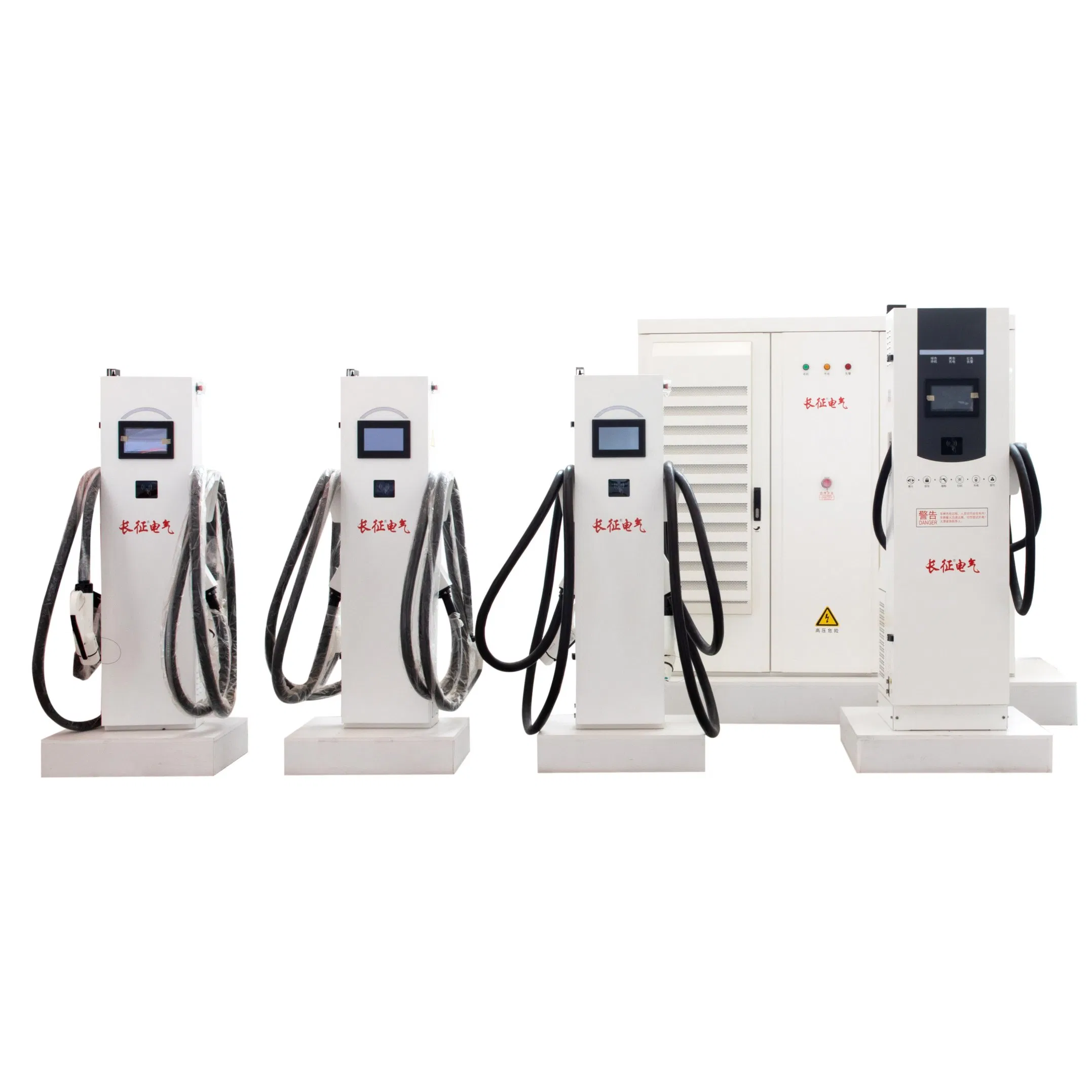

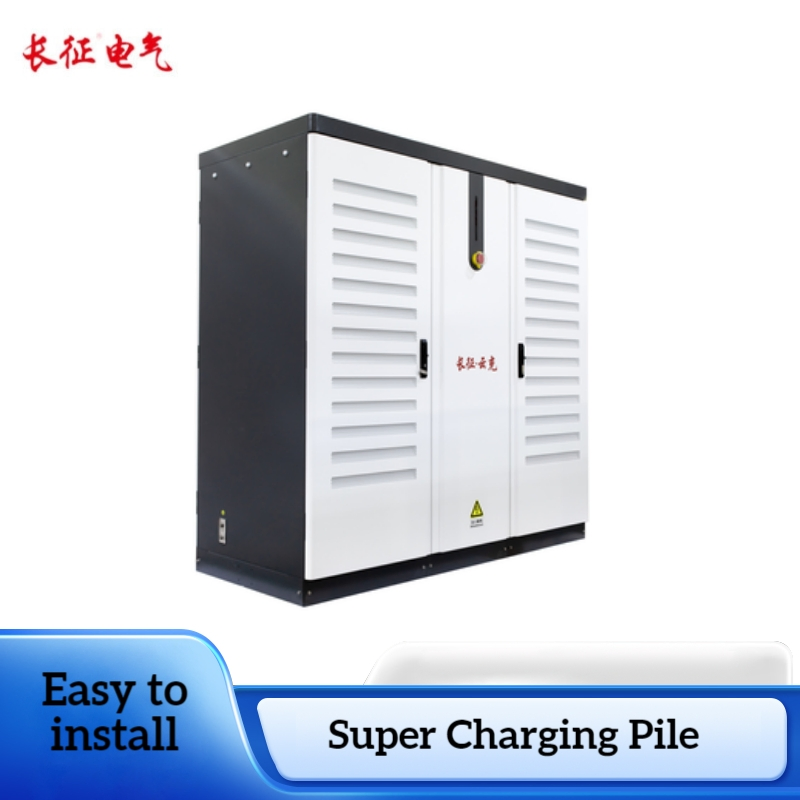

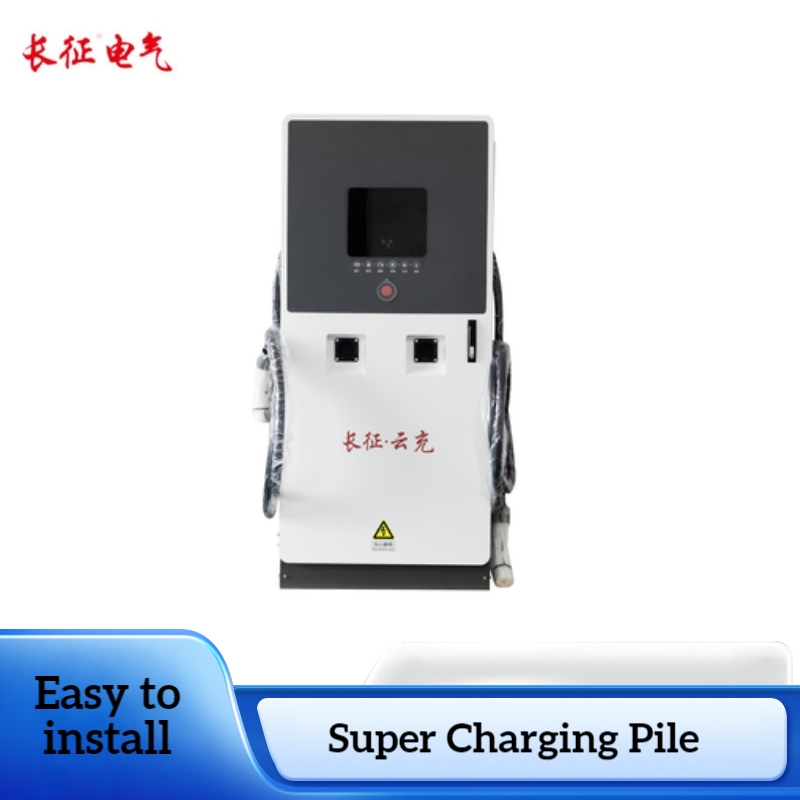

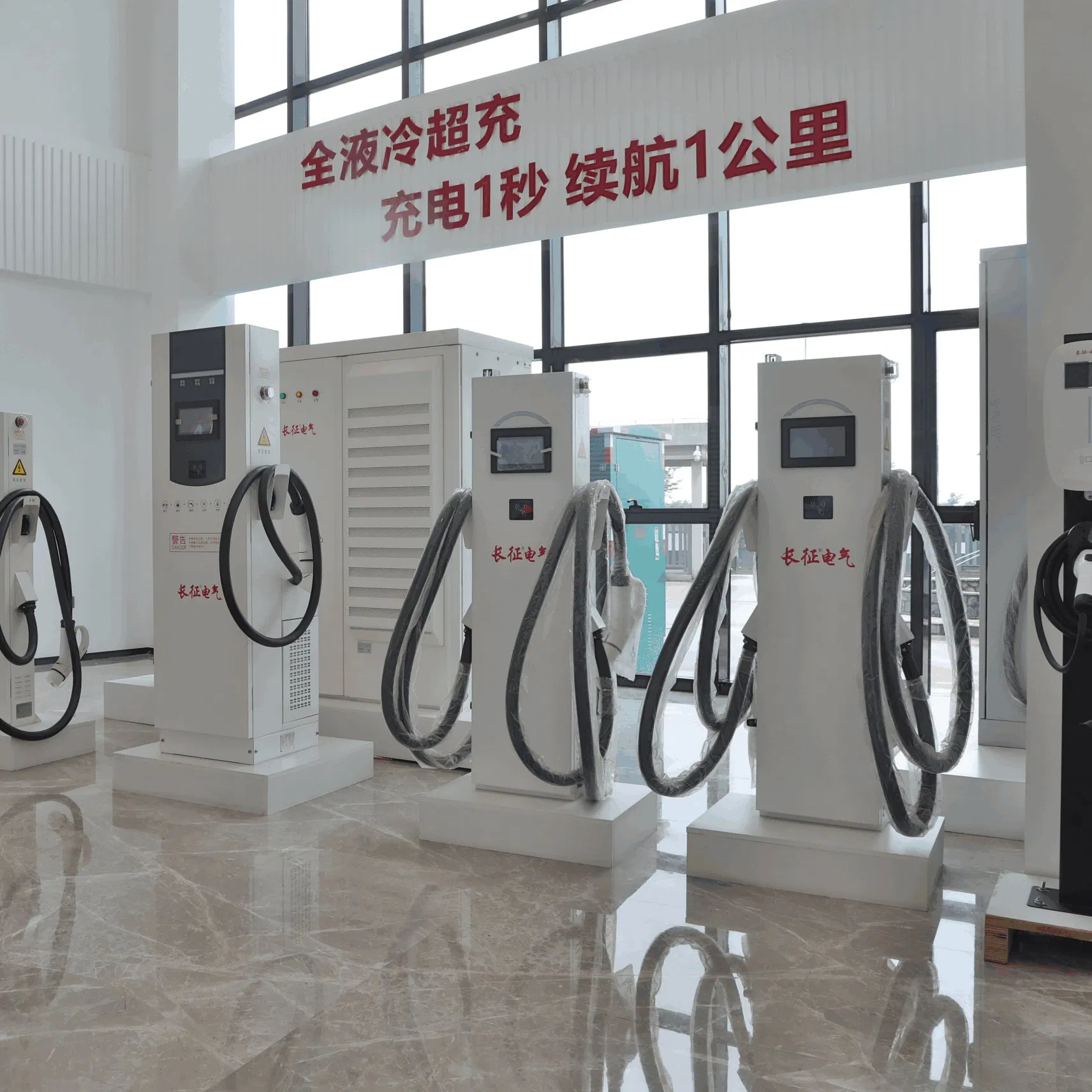

Vernon Charger
1 / 5
High voltage and high current output designed to match adaptive fast charging battery systems, significantly shortening charging time.
Direct DC output reduces power conversion losses, achieving charging efficiency levels of over 95%.
Advanced algorithms adjust parameters in real-time based on battery status (power, temperature, voltage) to ensure safety and extend battery life.

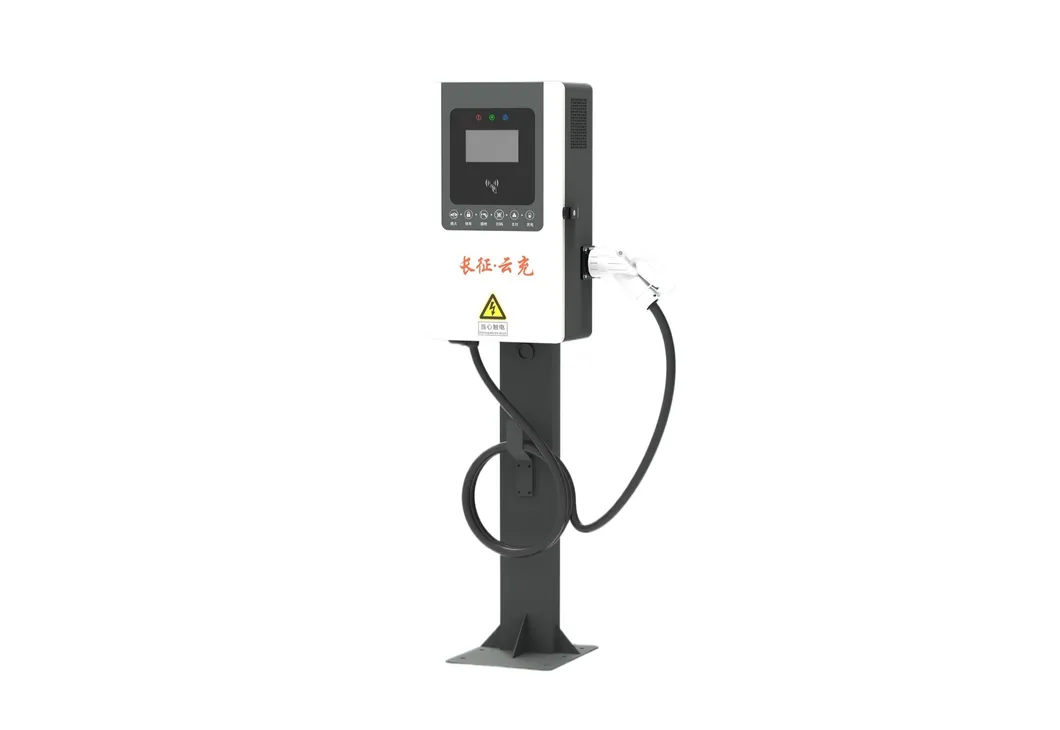

Harsh Environment Ready: Stable operation from -30ºC to 50ºC, suitable for highway service areas and urban fast charging stations.

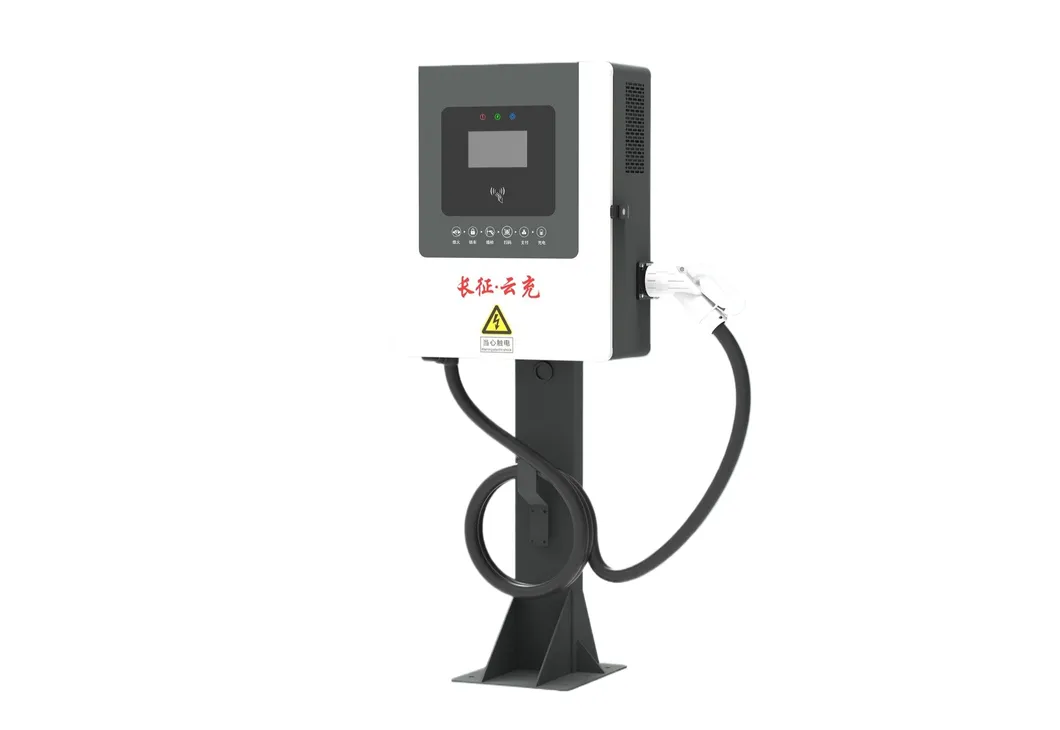

High Stability: Uses high-precision power modules to minimize voltage fluctuations and prevent battery damage.

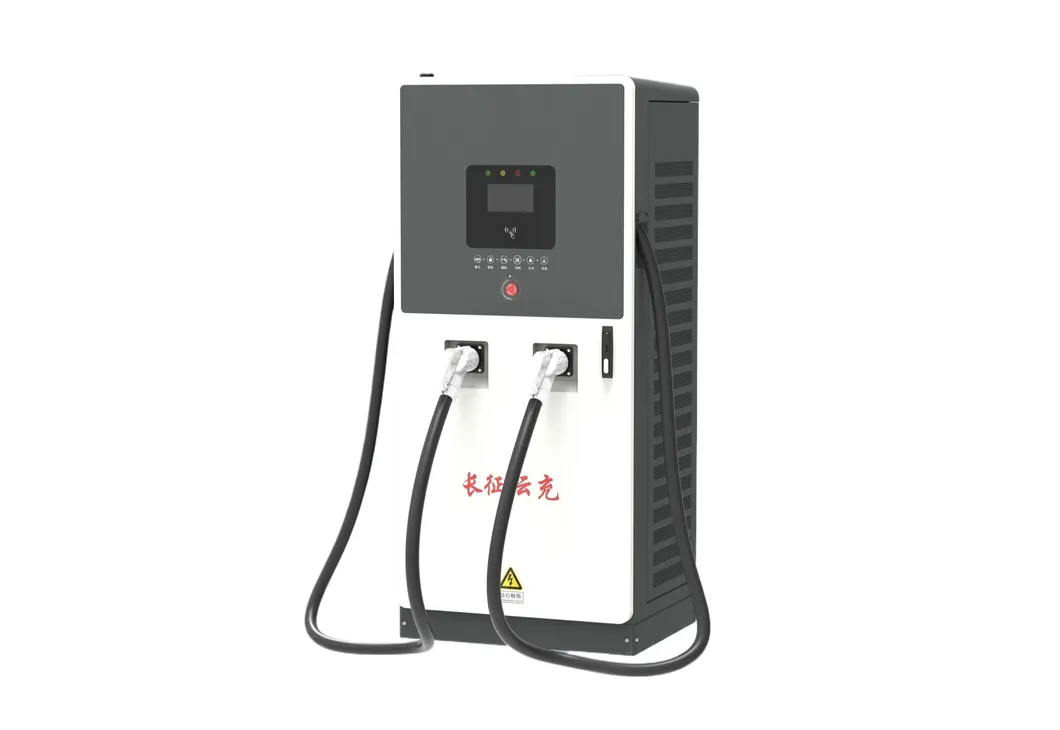

Flexible Multi-gun Configuration: Intelligent power allocation allows simultaneous charging of multiple vehicles without conflicts.
| Product Model | 20kW | 30kW | |
| Input | Standard | Three-phase five-wire (A+B+C+N+PE) | |
| Voltage/Freq | AC380V±15% / 45~65Hz | ||
| Output Characteristics | |||
| Voltage Range | DC200V - DC1000V | ||
| Max Efficiency | ≥95% (More than 50% load) | ||
| Safety Functions | Overtemperature, Overvoltage, Undervoltage, Short Circuit, Lightning Protection, Leakage Protection, Insulation Monitoring | ||
| High Power Models | 80kW / 120kW / 160kW | 200kW / 240kW / 360kW / 400kW | |
| Input Factor | ≥ 0.99 | ≥ 0.99 | |
| Charging Interface | 2 Guns | 2 Guns | |
| Network Mode | Ethernet / 4G / VIN Start / APP Support | ||

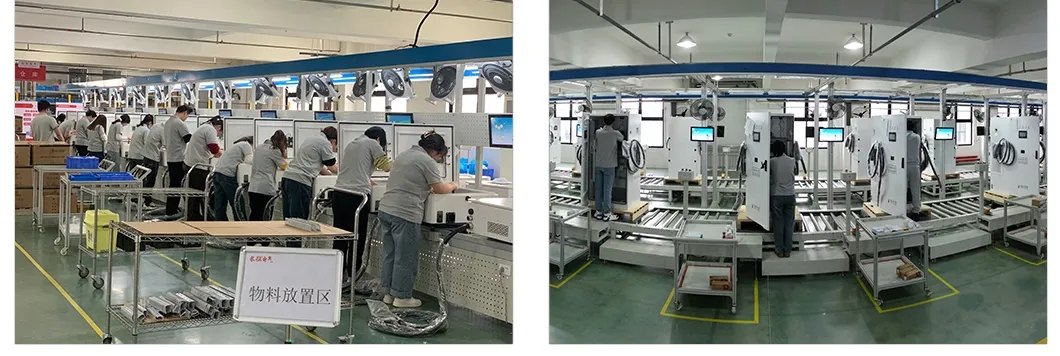

The enterprise is a comprehensive national high-tech entity dedicated to the research, development, manufacturing, and service of electric equipment and charging pile infrastructure. With an area of more than 15,000 square meters, the company holds over 200 patents and utilizes a proprietary cloud data system for information management.

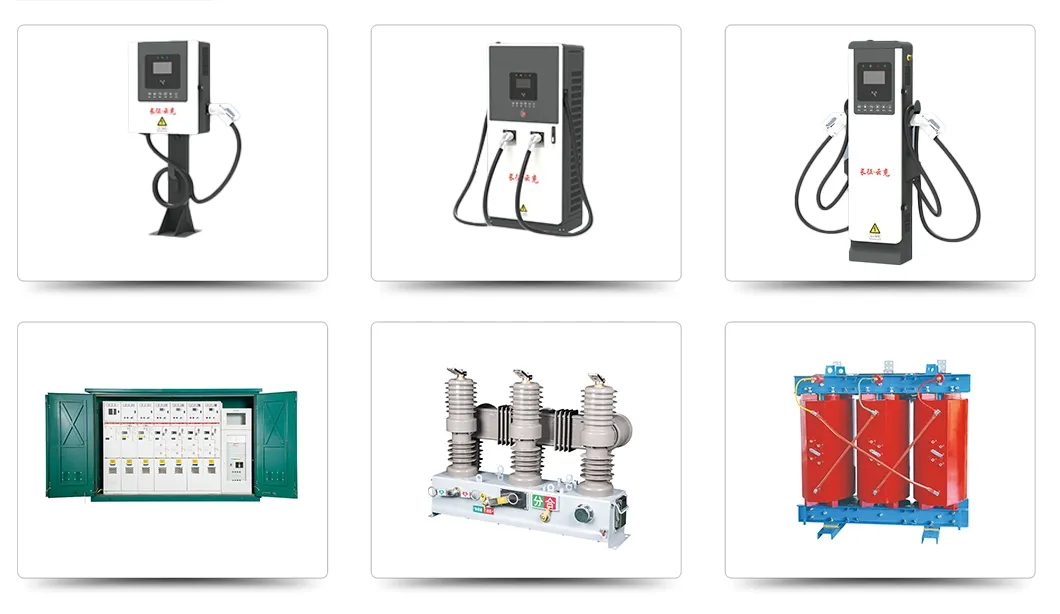

Our product range includes integrated ring main units, circuit breakers, intelligent distribution monitoring platforms, and a full series of DC/AC charging piles. All products meet National Grid standards and have passed ISO9001, ISO14001, and OHSAS18000 certifications.
