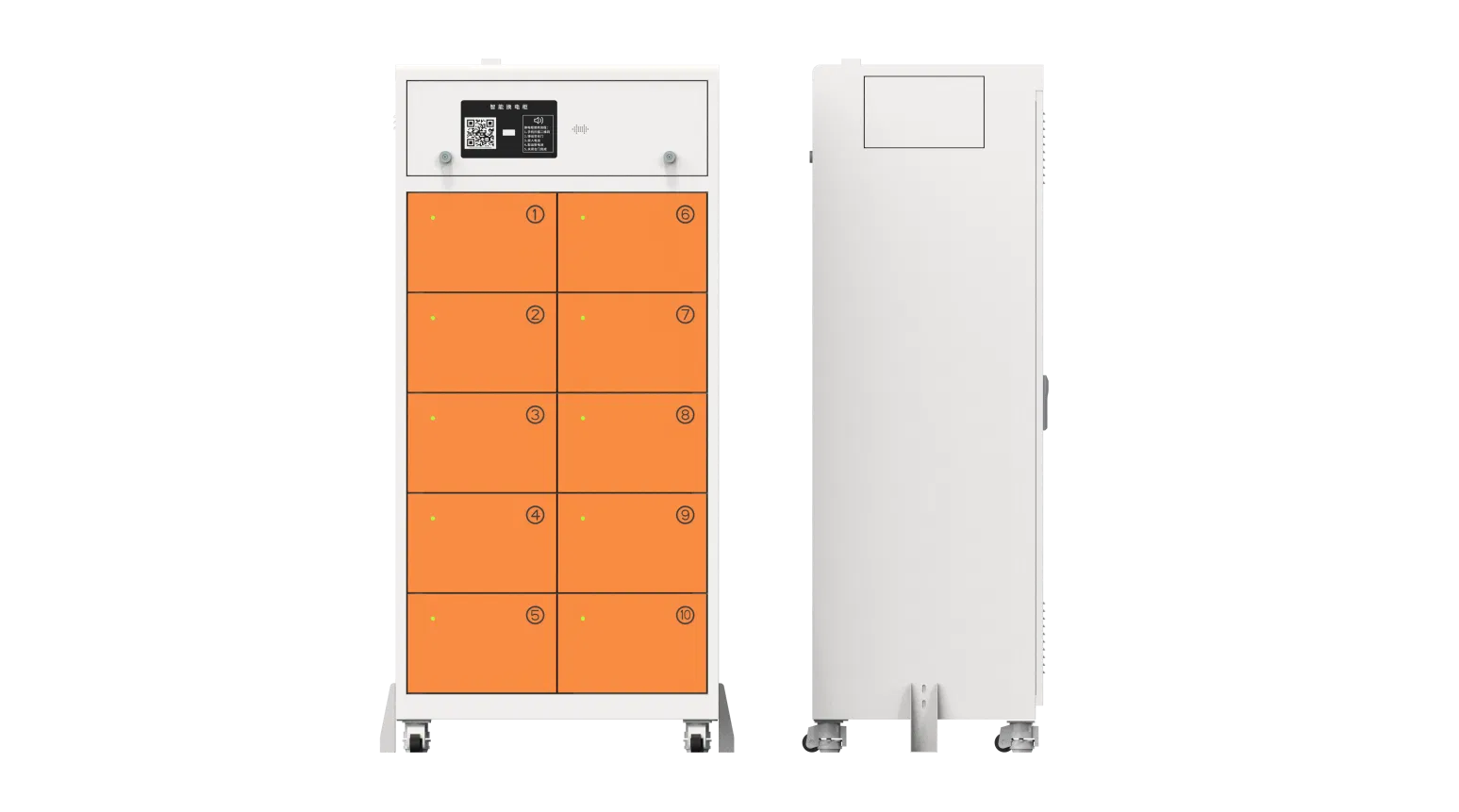

5 8 9 10 12 15 16 Unit Modular Expandable Lithium Battery Cabinet for Growing Electric Motorcycle Fleets

1 / 5

5 8 9 10 12 15 16 Unit Modular Expandable Lithium Battery Cabinet for Growing Electric Motorcycle Fleets

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

LBEC

Charging Interfaces

One Pile with Multiple Charges

Installation

Floor Type/Wall Mounted

Charge Method

Quick Charge

Input Voltage

215-250V/AC

Networking Method

4G/5G IoT Card

Output Voltage

45-88V/DC

Water Immersion Detection

Automatic Stop

Standard Battery Swap Cabinet Series

Our modular battery swap cabinets are designed for high-efficiency energy management, offering various compartment configurations to meet different fleet requirements.

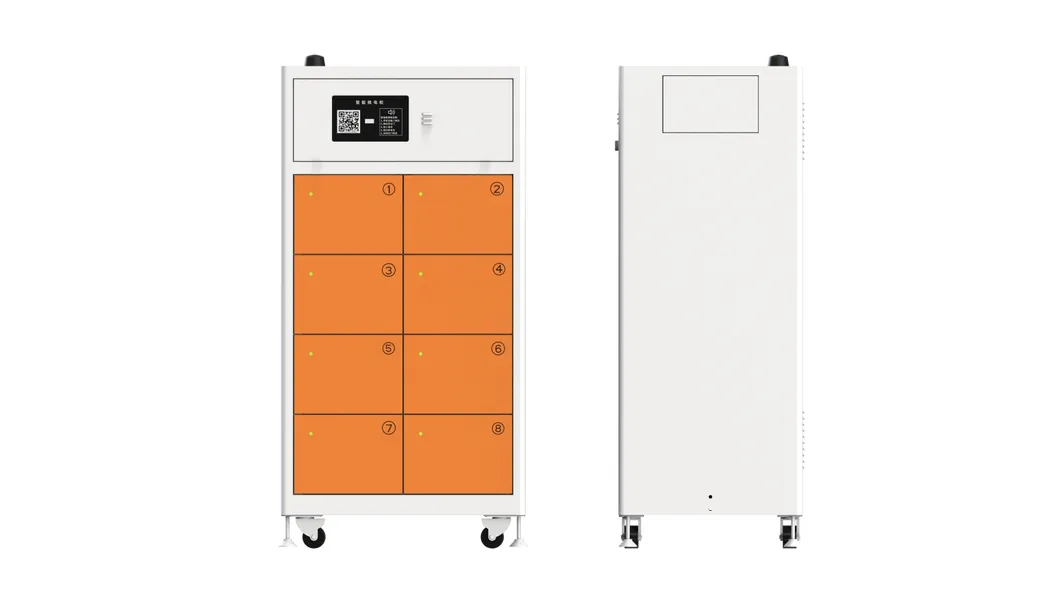

8-Compartment Unit

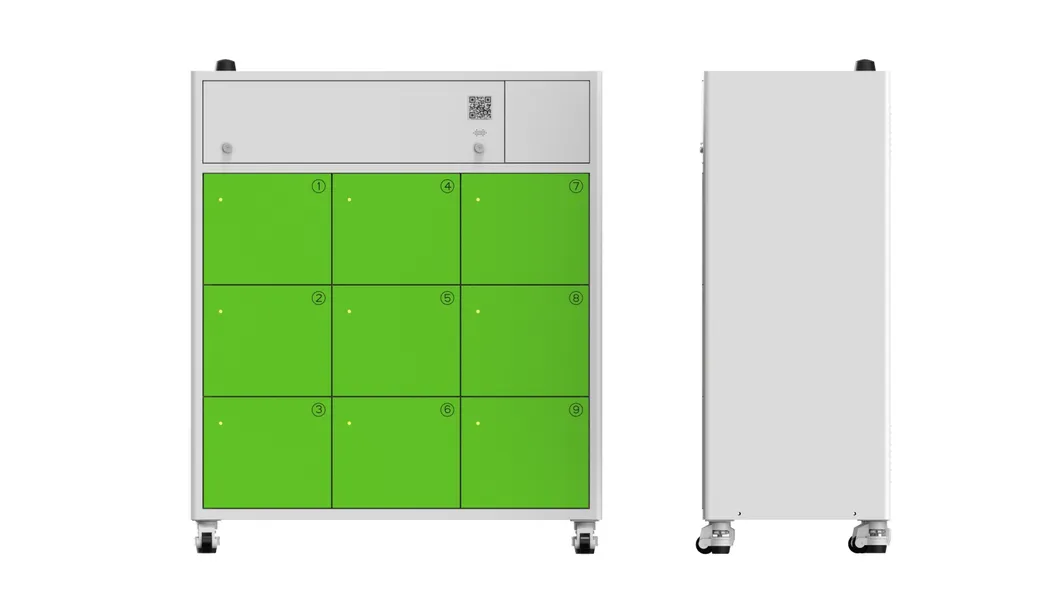

9-Compartment Unit

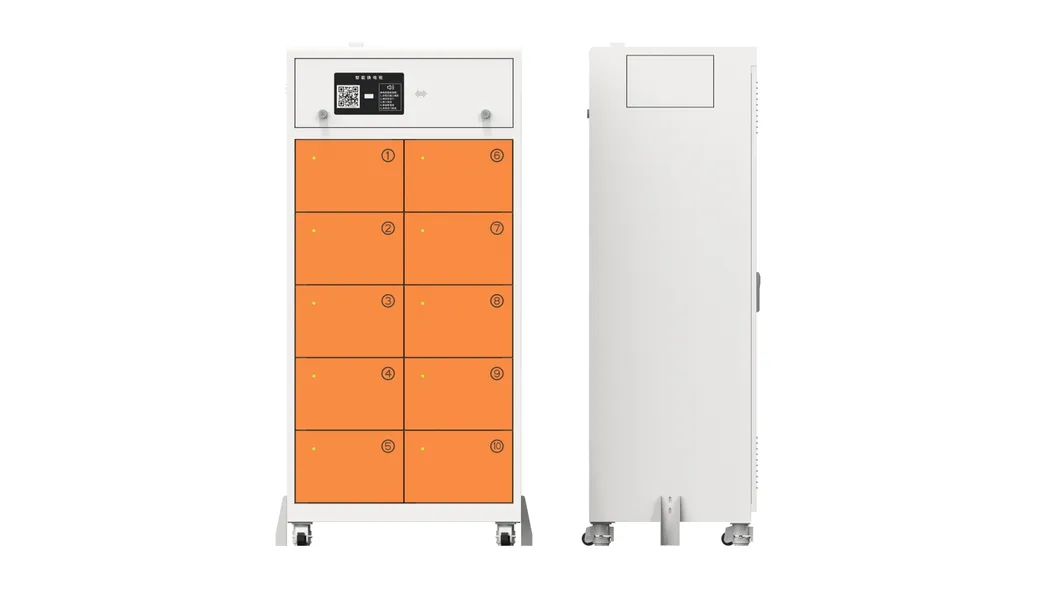

10-Compartment Unit

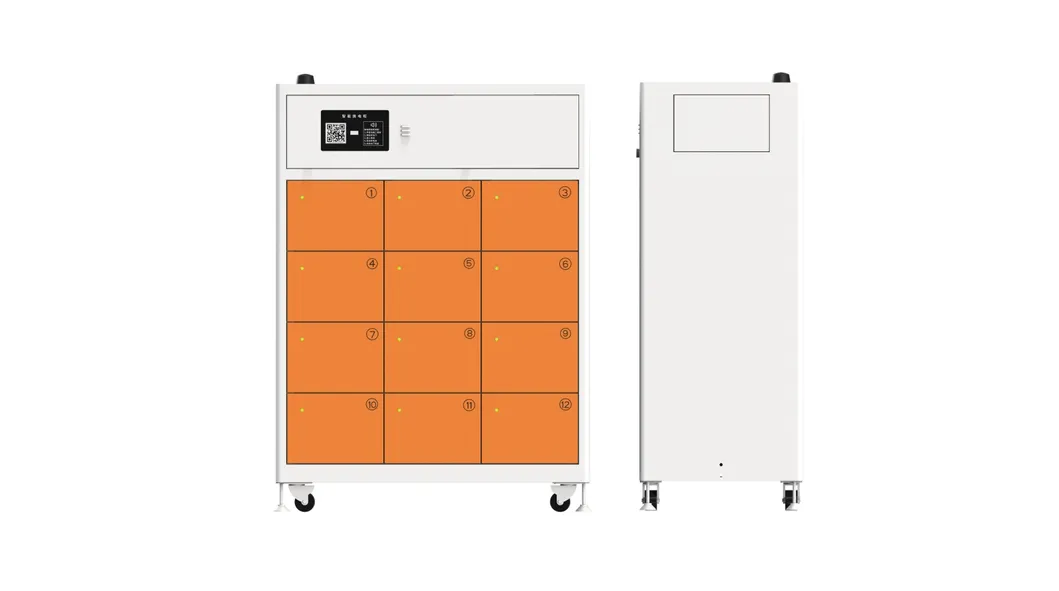

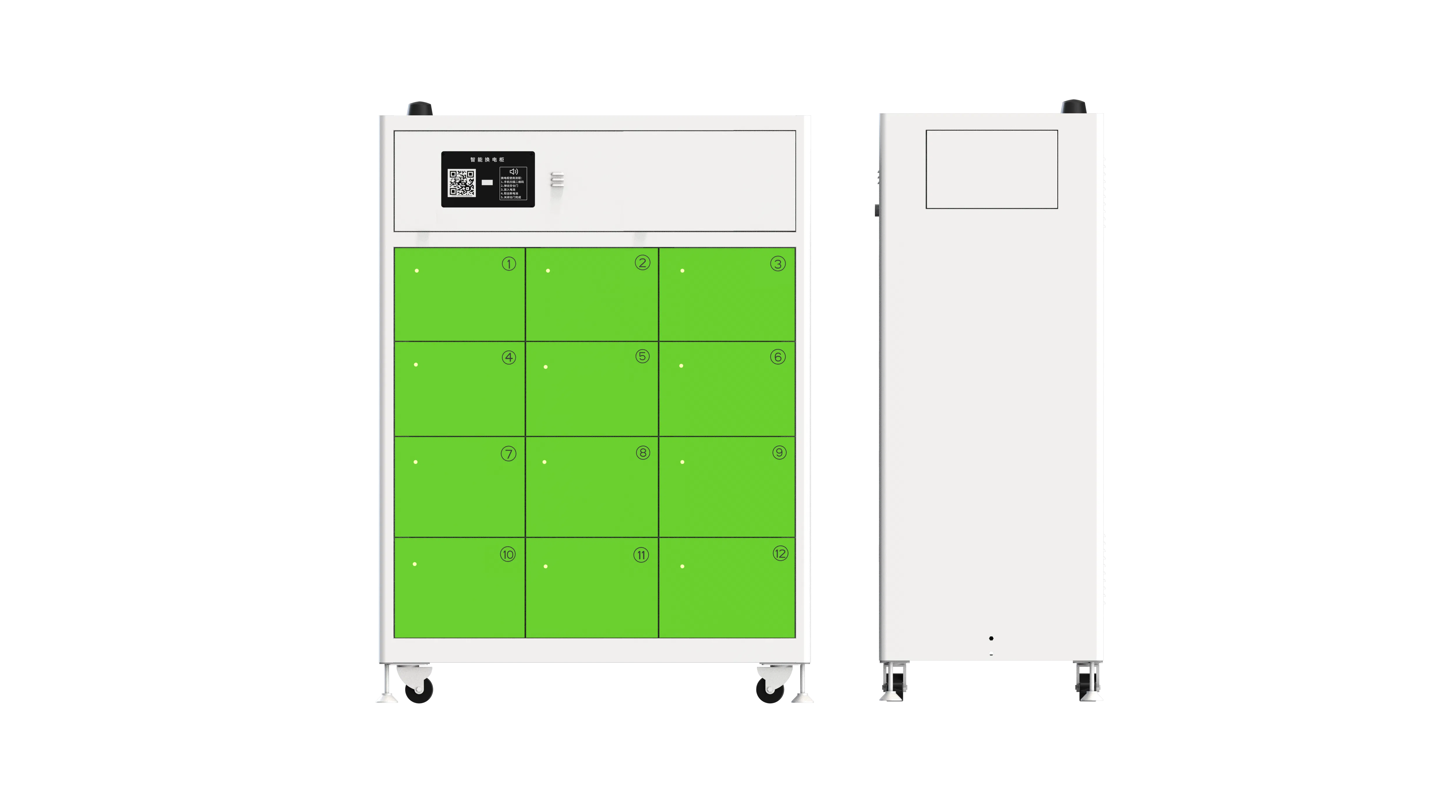

12-Compartment Unit

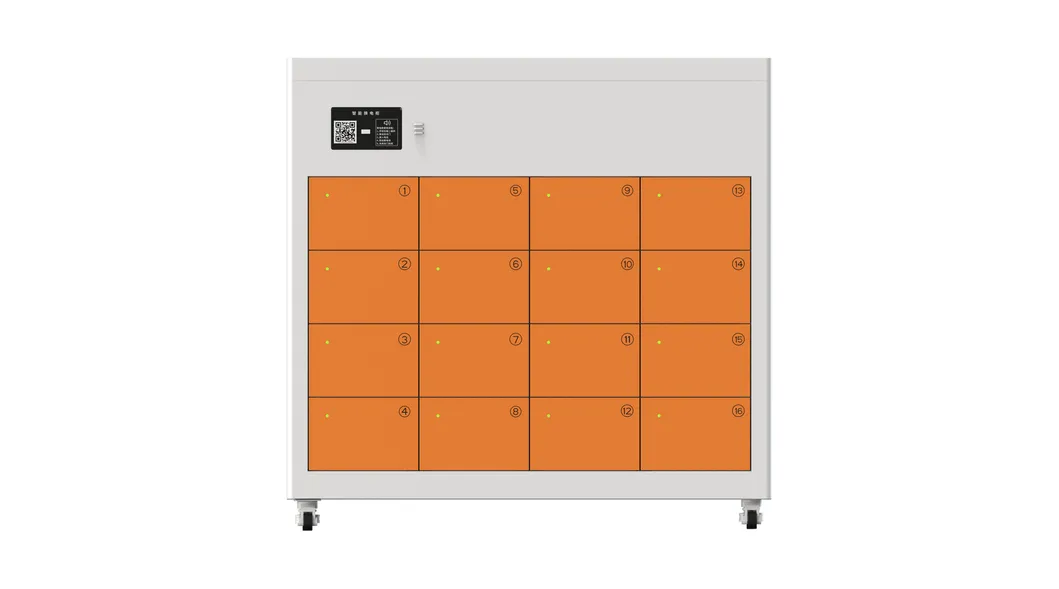

16-Compartment Unit

Product Summary

The lithium battery swapping cabinet is engineered specifically to revolutionize delivery efficiency. It eliminates wait times associated with traditional charging, allowing users to replace batteries in seconds. The cabinet features comprehensive safety mechanisms, including automated fire extinguishing and real-time data monitoring.

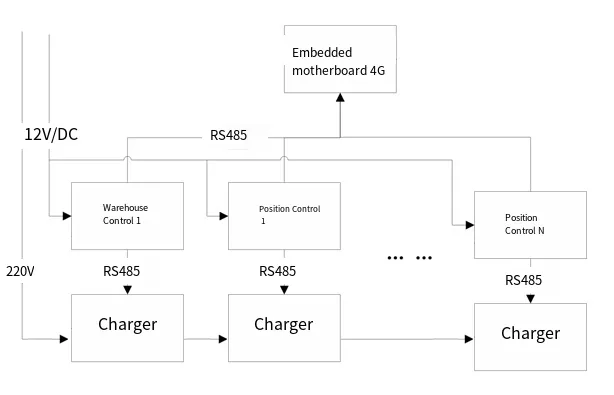

System Components

Warehouse Control: Monitors battery data, internal temperature, and lock status.
Cabinet Diagnostics: Tracks electricity usage, water immersion, and access control.
Charging System: Provides precise voltage and current management for each compartment.
Human-Computer Interaction: Android-powered display for intuitive user operations.
Safety System: Integrated fire extinguishing and emergency stop protocols.

Technical Parameters

Project Category	Projects	Parameters	Notes
Full Container	Input Voltage	215~250V/AC	-

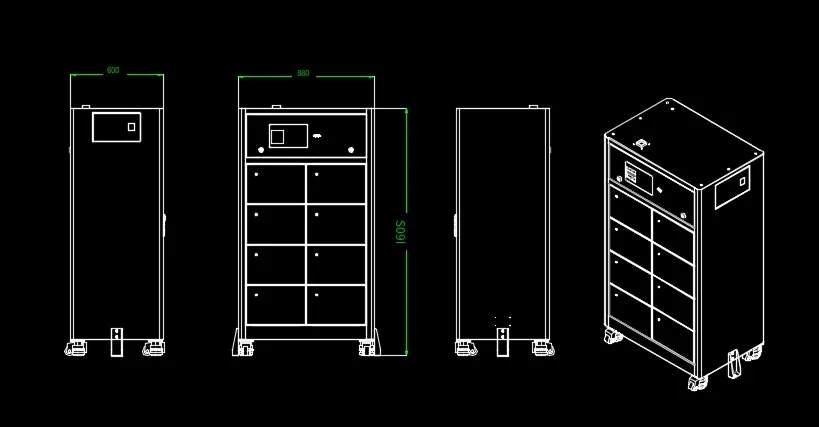

	Cabinet Size	W880 D600 H1605	Excl. Camera Post
	Whole Weight	153.5 Kg	-
	Swap Method	Scan to Swap	Mobile App/Code
Compartment	Output Voltage	40~88V/DC	Adjustable
	Compartment Size	W255 D420 H225	Standard Size
	Fire Protection	0.2 m3	Per Compartment

Indicator Light System

Light Status	Meaning
Green Light On	Battery Fully Charged
Red Light On	Battery Charging
Light Off	Empty Warehouse
Yellow Light Flashing	Ready to Insert Battery

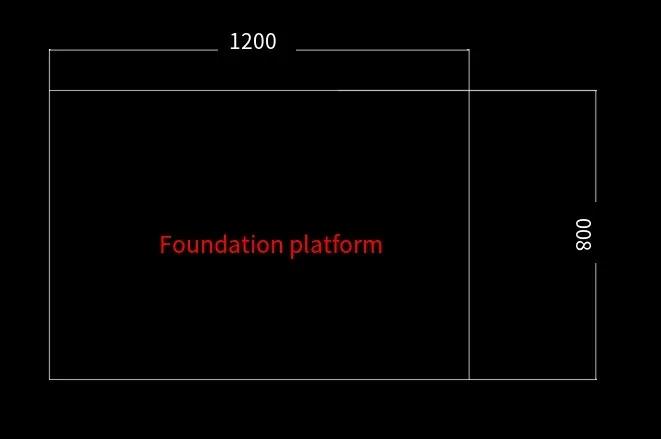

Installation & Environment

Expertly crafted for outdoor use with IP54 protection level for superior weather resistance.

Environmental Requirements

Operating Temperature: -20ºC to +50ºC
Storage Temperature: -40ºC to +70ºC
Relative Humidity: Up to 90% (at 40ºC)
Atmospheric Pressure: 76kPa to 101kPa

Operating Instructions

1. Retrieve Battery

Scan QR code → Select Package → Payment → Door Opens → Take Battery → Close Door.

2. Swap Battery

Scan QR code → Insert Depleted Battery → Close Door → New Compartment Opens → Take New Battery.

3. Return Battery

Scan QR code → Insert Battery → Secure Plug → Close Door → Return Confirmed.

Core Advantages

Automotive Grade Cells: 16-cell configuration for stable power delivery.
Advanced BMS: Integrated CAN bus RS485 for total control.
Global Compatibility: Works seamlessly with leading inverter brands.
Robust Construction: Durable metal enclosed distribution for safety.

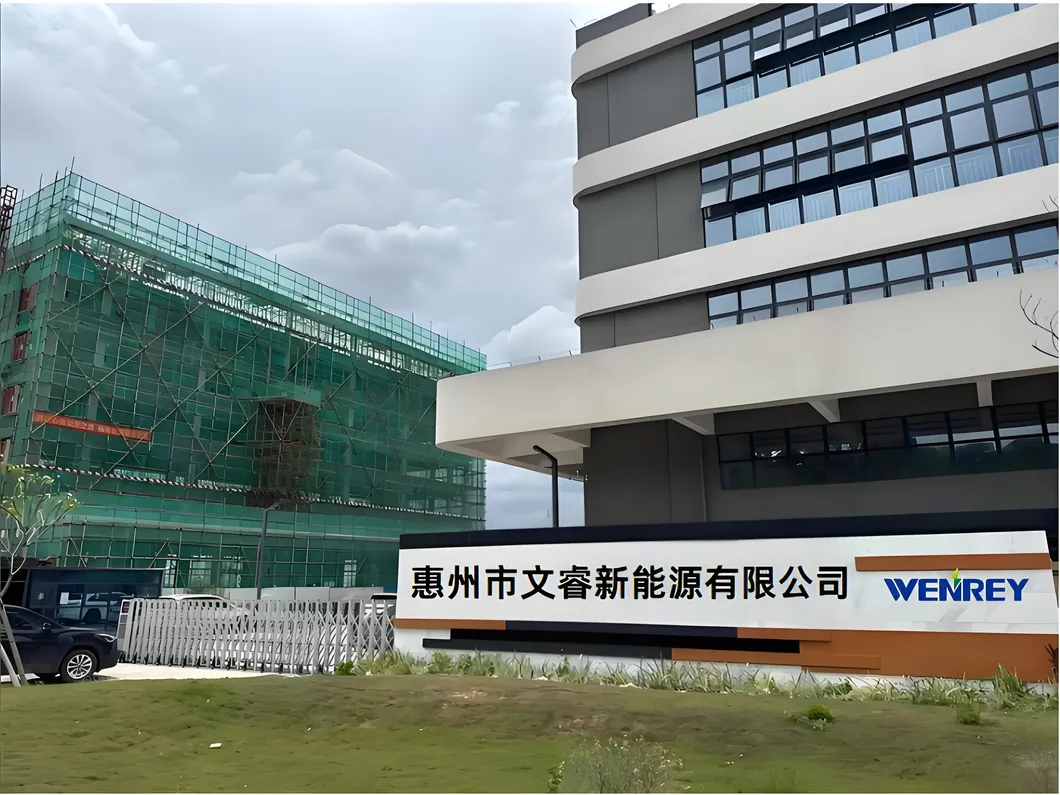

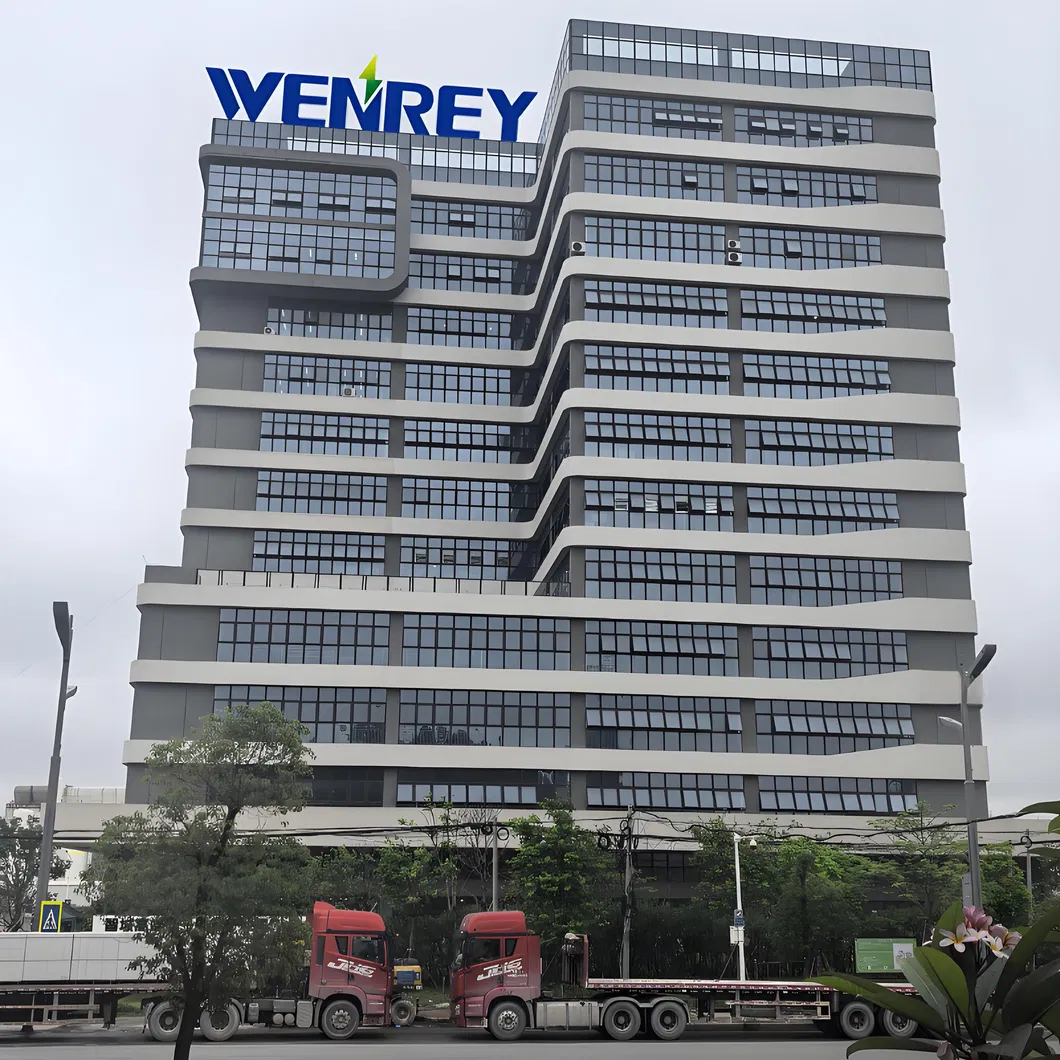

Manufacturing Excellence

Our vertically integrated facility spans over 10,000 square meters, featuring automated production lines and rigorous ISO 9001:2015 quality management.
