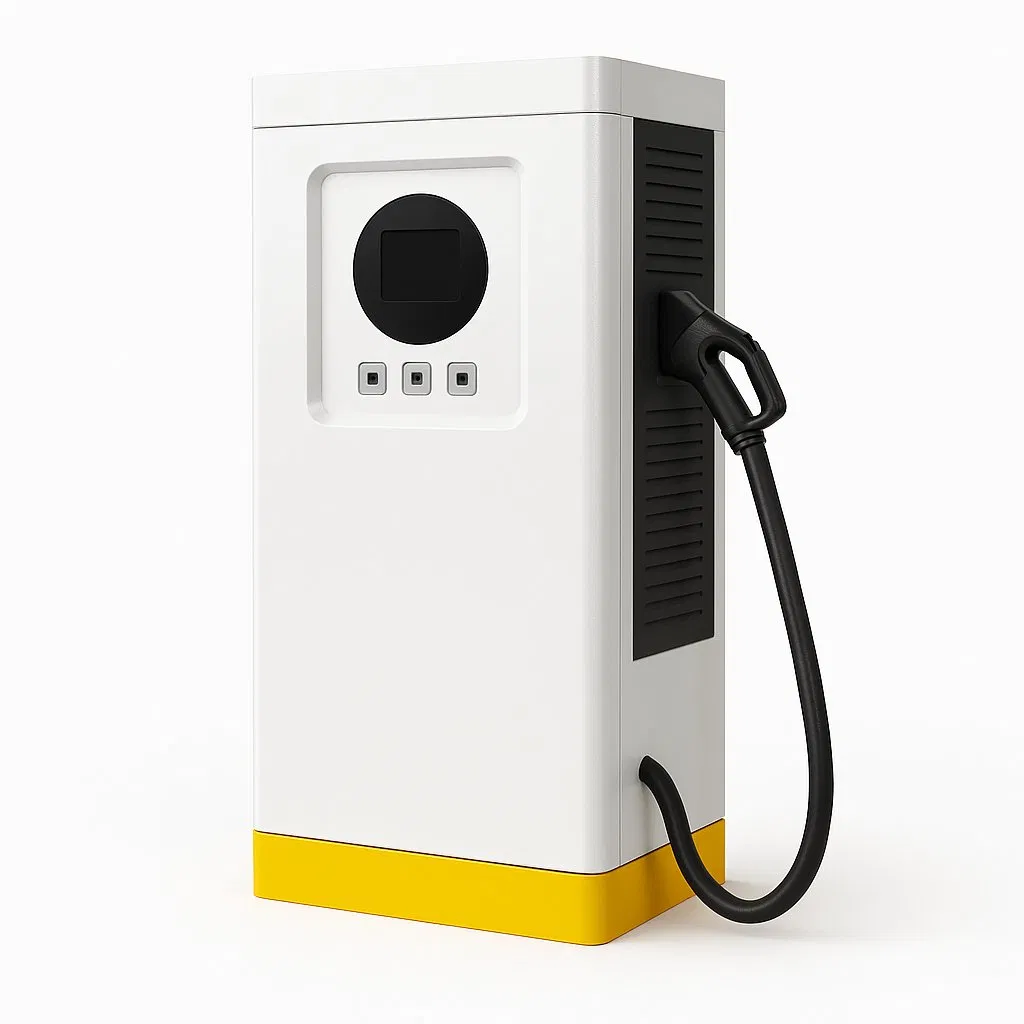

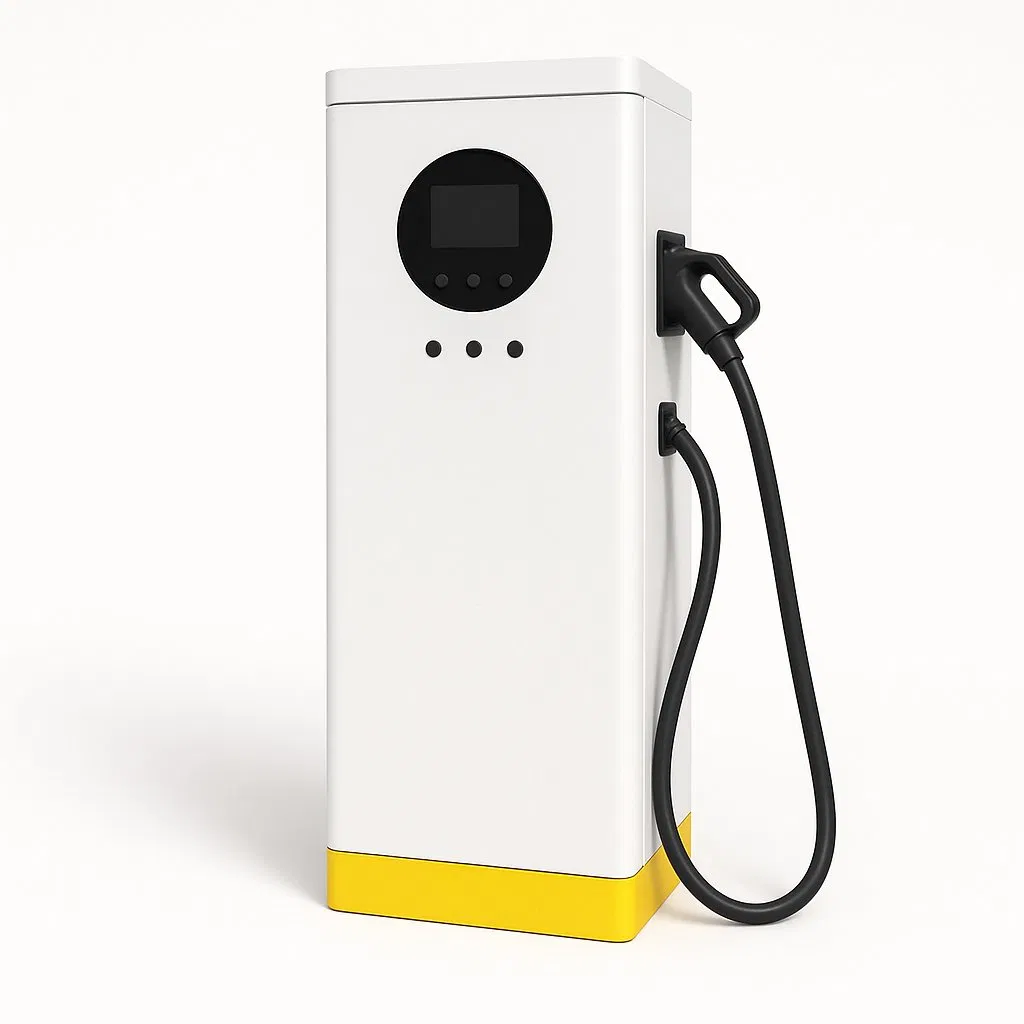

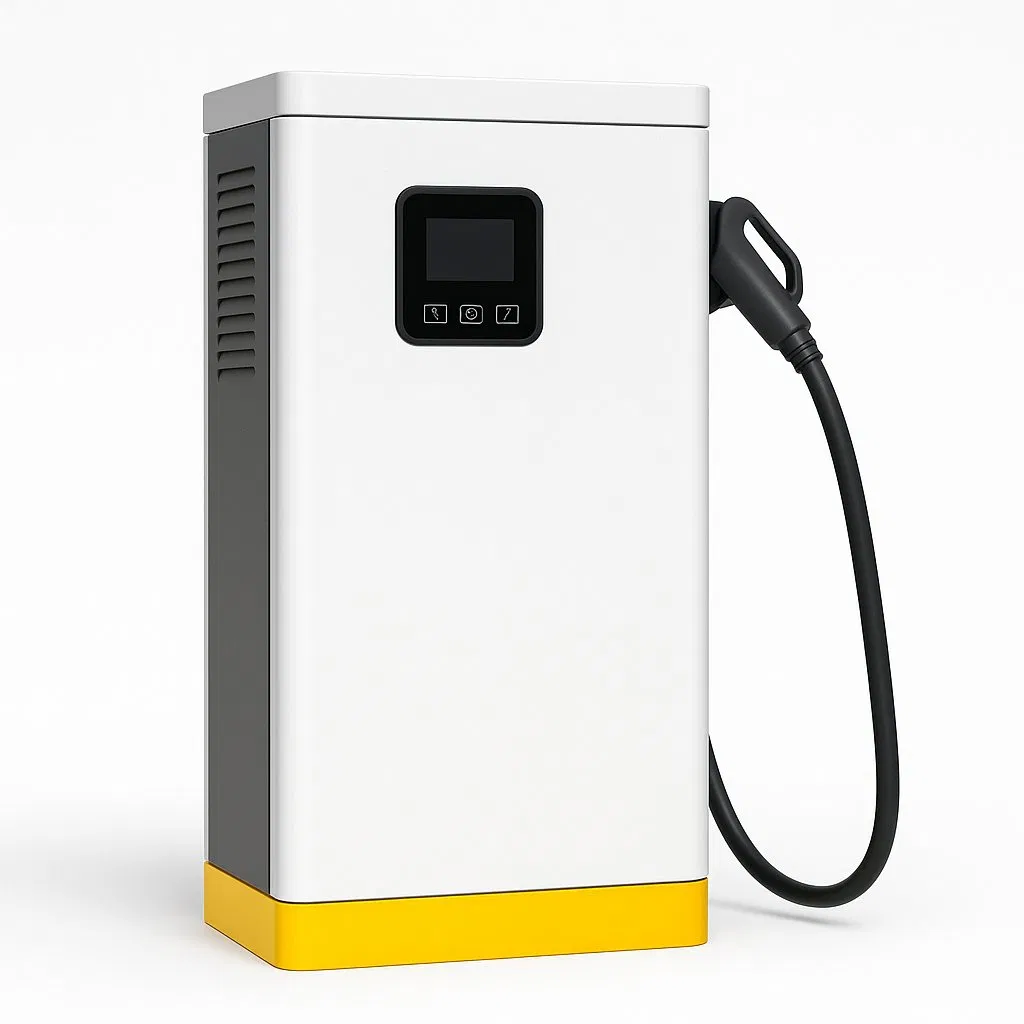

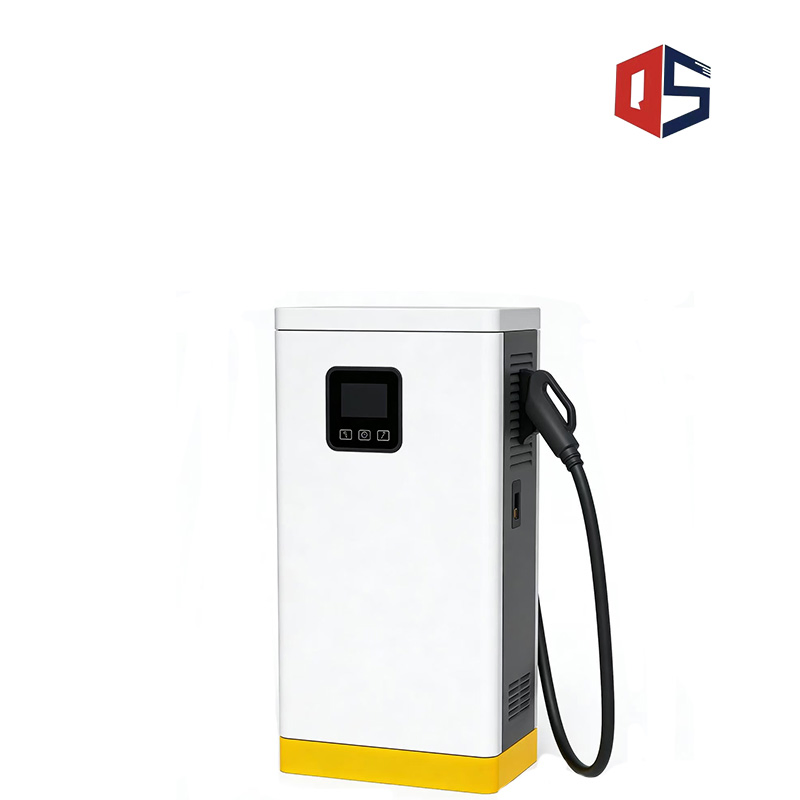

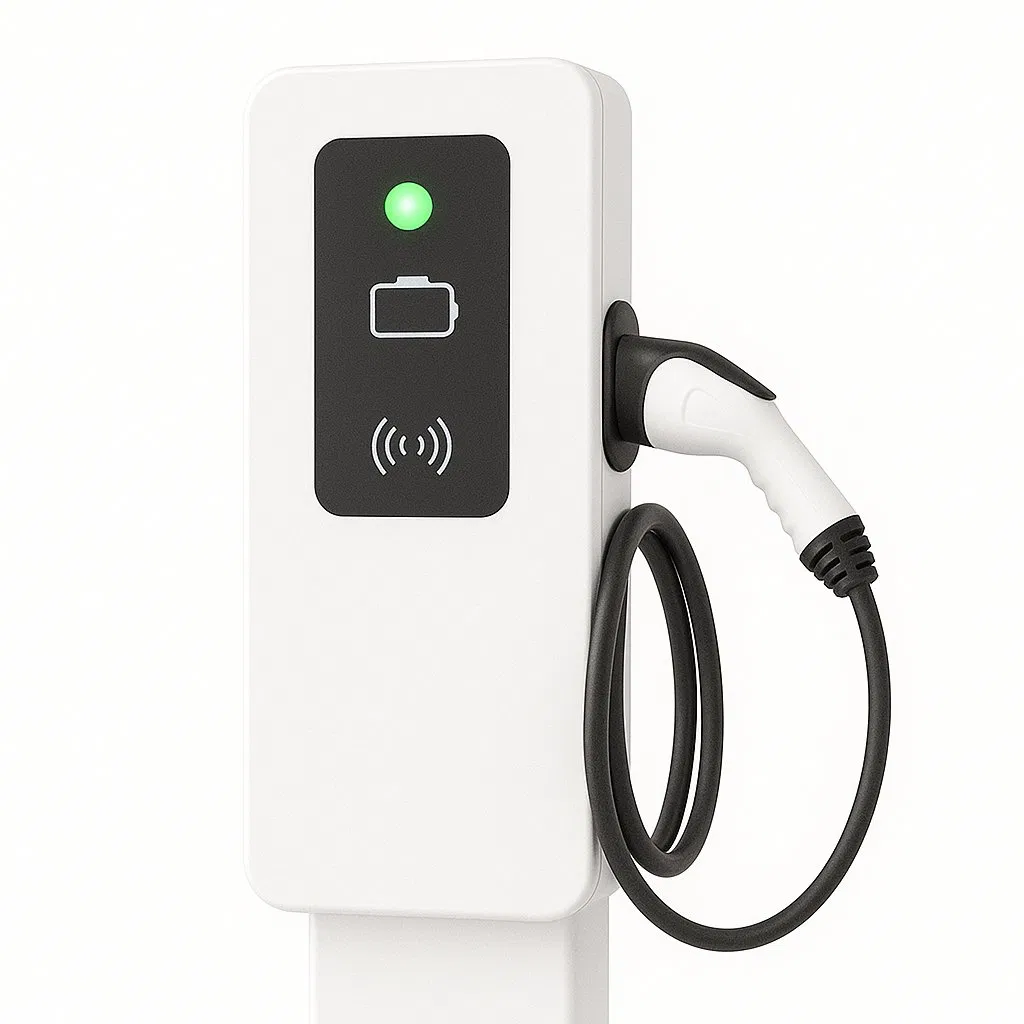

Integrated EV Charging Network Solution Charger for Urban Applications

ℹ️ Basic Product Information

Model NO.	QSCDZ
Rated Current	2A; 63A; 100A; 200A; 300A
Rated Power	7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw
Protection Grade	IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor)
Shell Material	Customized
Service Life	8 - 10 Years
Charging Type	AC Charging; DC Charging; AC&DC Integrated Charging
Charging Efficiency	≥93% (AC Charger); ≥95% (DC Charger)
Power Factor	≥0.95 (Rated Load); ≥0.92 (Light Load)
Harmonic Distortion	≤5% (Total Harmonic Distortion); ≤3%
Voice Broadcast	Supported
Remote Control	Supported
Transport Package	Wooden Box

📋 Product Description

Integrated EV Charging Network Solution

Flexible Expansion & Wide Compatibility | Certified Safety & Rock-Solid Reliability | Effortless Operation & Low-Maintenance Design | Consistently Stable Performance

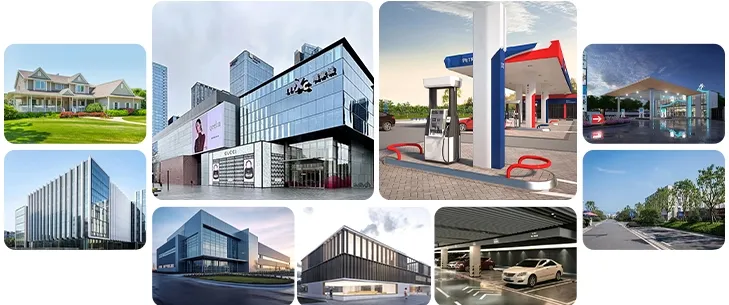

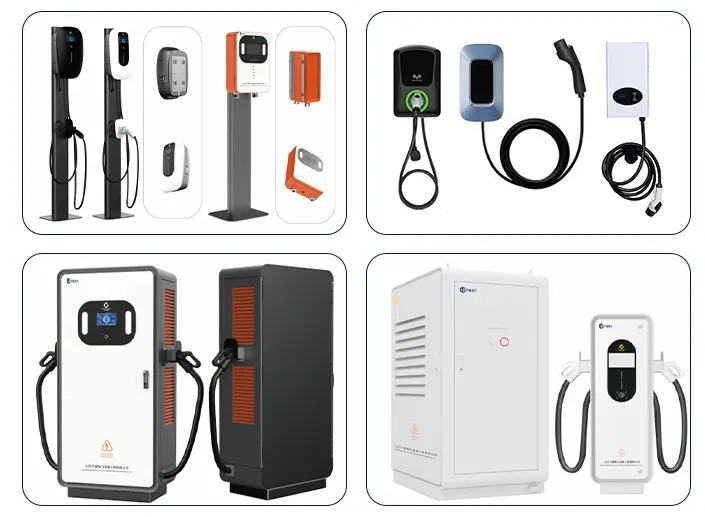

Our charging pile series includes multiple models, with wall-mounted and floor-standing options to meet different installation needs. Stylish designs, stable frameworks, and complete functionality. Modular power configuration makes maintenance easy. Ideal for residential and commercial use.

⚙️ Technical Specification

Power Range	20KW / 40KW / 120KW / 160KW / 240Kw
Input Rating	110V / 220V / 380V ±15%
Output Voltage	200 ~ 1000V
Connectors	CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO
Display	7" LCD Touch Screen
Network	4G / Ethernet / OCPP1.6J
Operating Temp	-20℃ to +50℃
Protection	IP55

🌟 Best Sellers

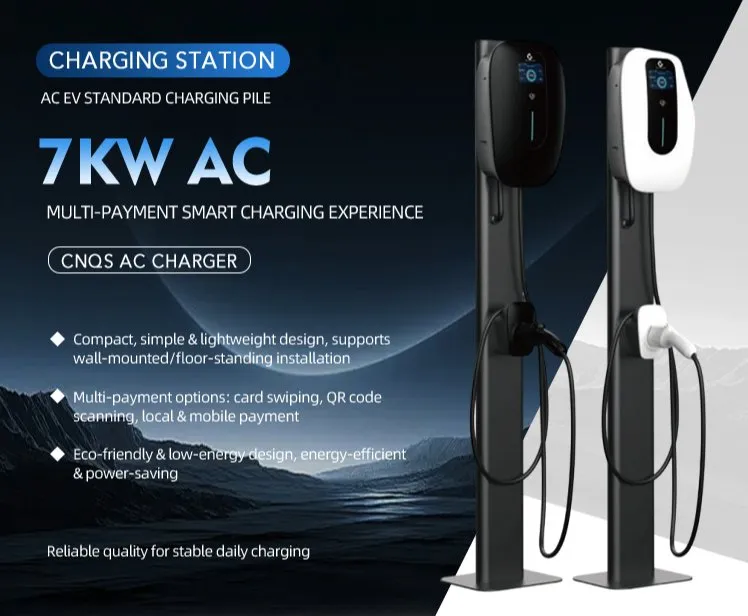

7KW AC Charger 7KW AC

• Global certifications (CE/UL/PSE/KC)
• Supports ISO 15118-20 PNC Plug & Charge
• V2G Vehicle-to-grid protocol compliant
• Billing accuracy ±0.5%

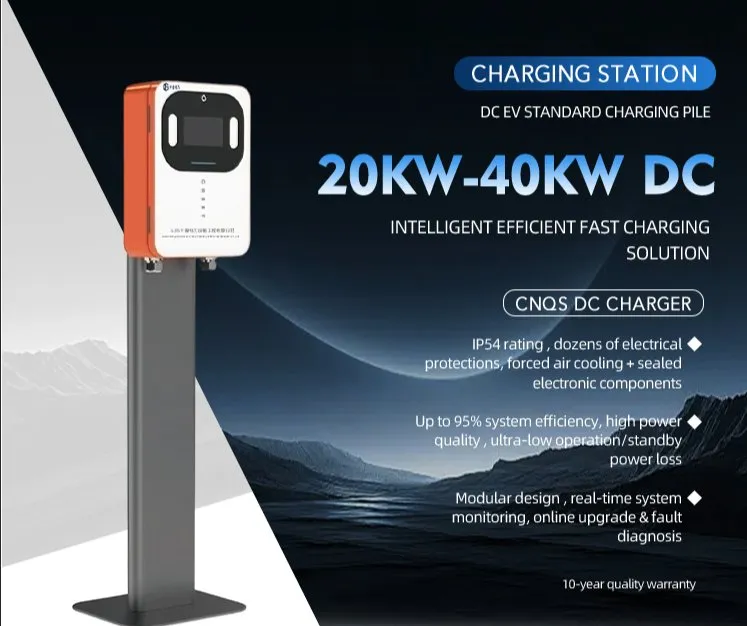

20KW-40KW DC 20-40KW DC

• 80% power replenished in 30 mins
• IP65 Waterproof (-30℃ to 60℃)
• Supports Apple/Google Pay & Credit Cards
• Remote diagnosis of 40 core parameters

120-240KW Station High Power DC

• Dual-gun simultaneous charging
• 300+km range replenished in 30 mins
• Dynamic power allocation
• Industrial-grade protection

🔍 Product Details & Features

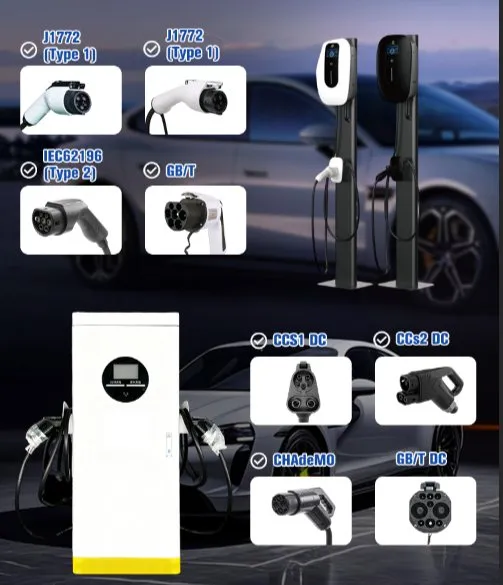

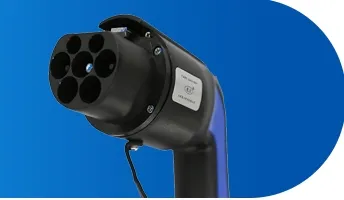

• Multi-standard connectors (CCS2/Type2/CHAdeMO)

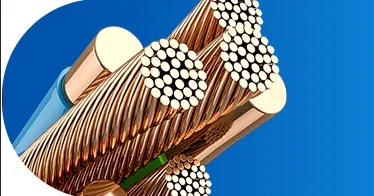

• Thickened high-temperature resistant special cables
• Customizable cable lengths and self-locking anti-drop connectors

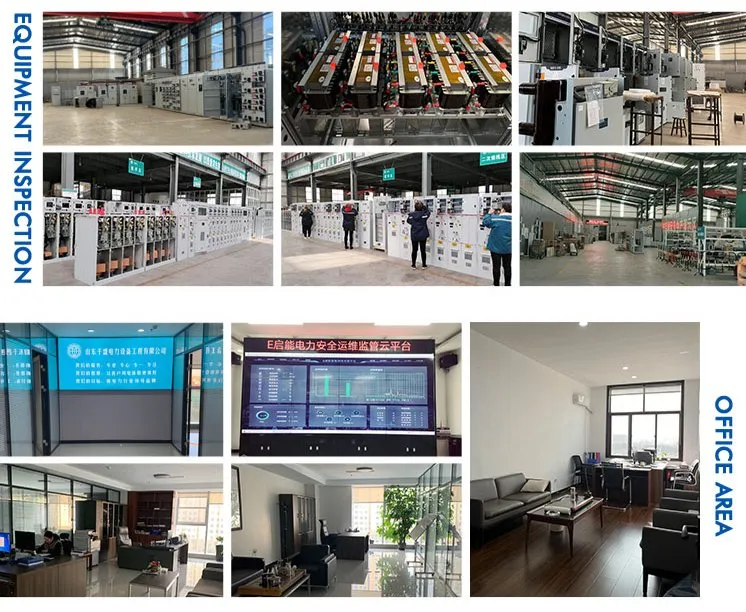

🏭 Manufacturing Excellence

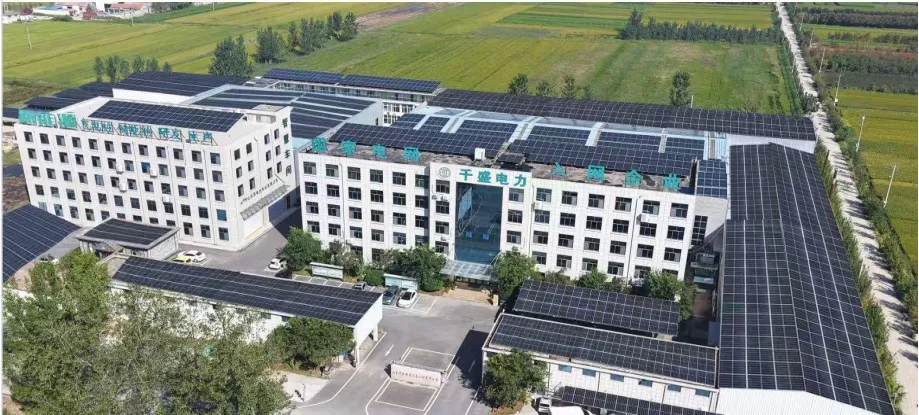

Experienced power equipment manufacturer with over 20 years of expertise. Facility covers over 16,000 stere with dedicated senior technicians.

Safe Production, Quality First.

❓ Frequently Asked Questions

What situations are not covered by the warranty?

Includes human damage, unauthorized disassembly/modification, use of non-genuine parts, improper installation, external voltage abnormalities, and force majeure events like fire or earthquakes.

Is regular maintenance service provided?

Yes, we provide free annual inspections including electrical safety testing, mechanical part tightening, and software updates. Quarterly packages are available for commercial users.

Does the service comply with local data security requirements?

Fully compliant with EU GDPR and local safety certifications (CE/UL/PSE). Maintenance data is encrypted and stored to protect user privacy.

Can the warranty period be extended?

Paid extensions are available: 2-year extensions for residential chargers and 1-3 year extensions for commercial chargers, covering the main unit and core parts.

Is after-sales service universal across regions?

Our global warranty system covers major markets in Europe, America, Asia-Pacific, and the Middle East with unified standards based on serial number.

What certifications do your chargers hold?

We hold ISO9001:2000, Environmental Management System, and CCC/CQC certifications, ensuring compliant and high-quality power distribution solutions.
