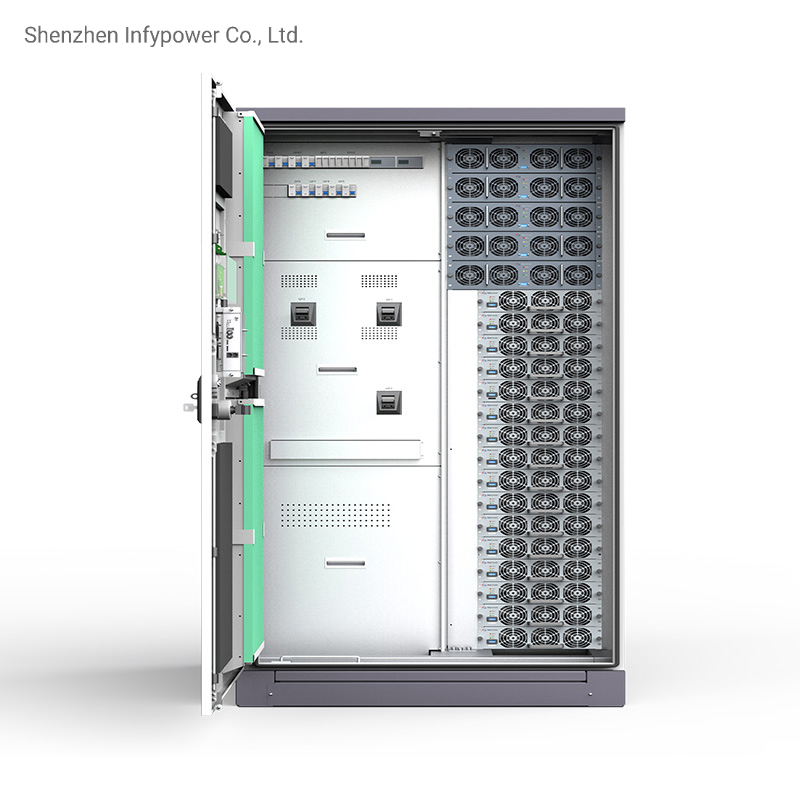

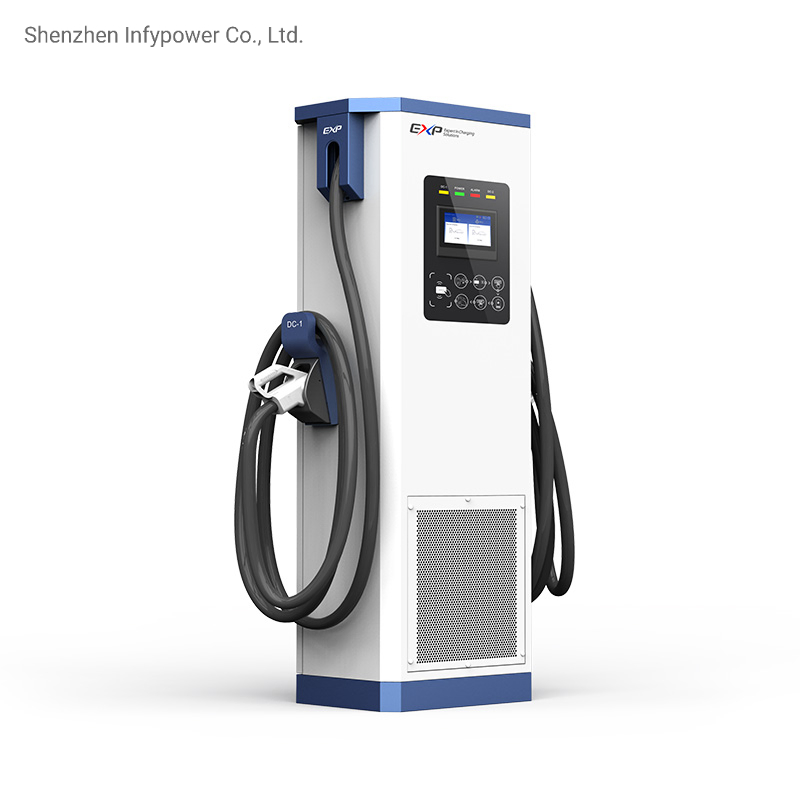

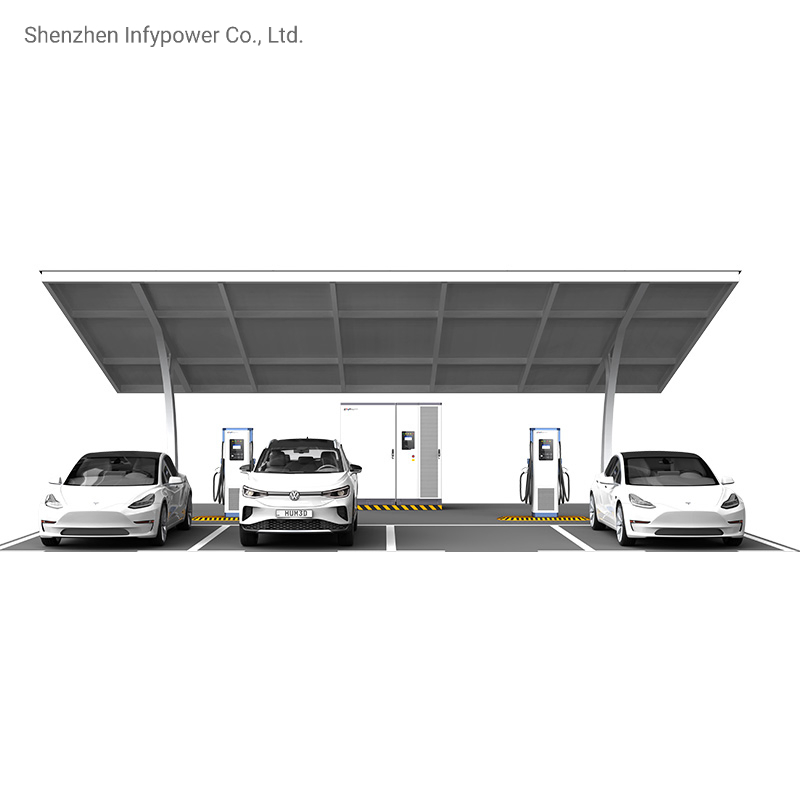

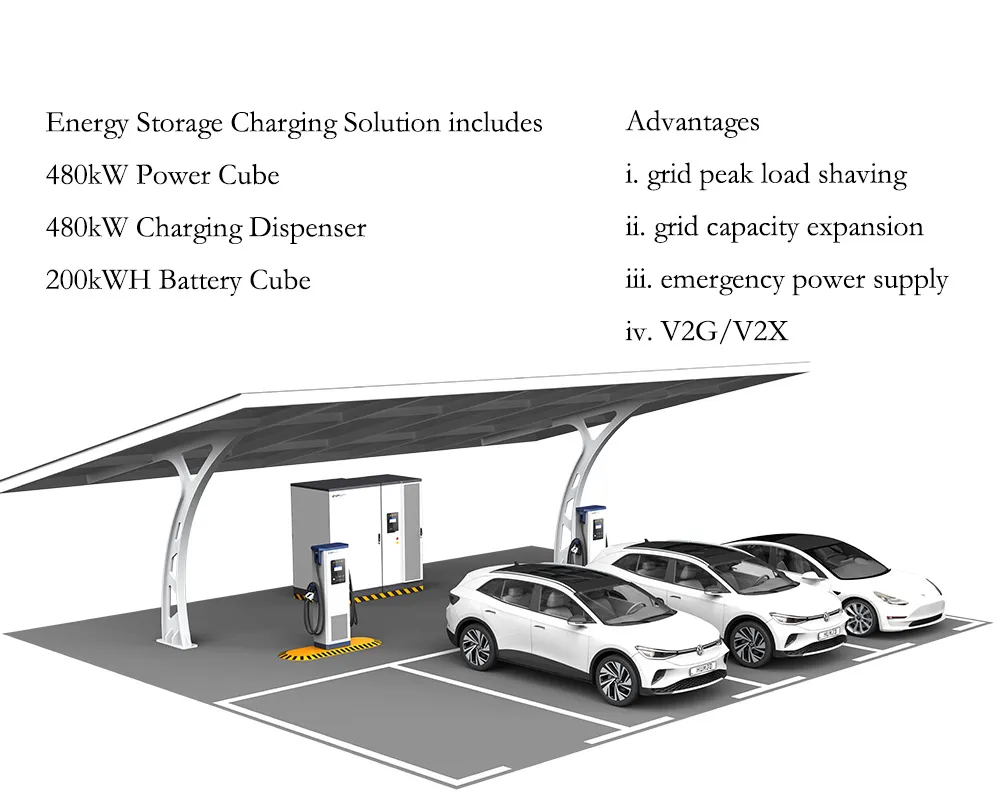

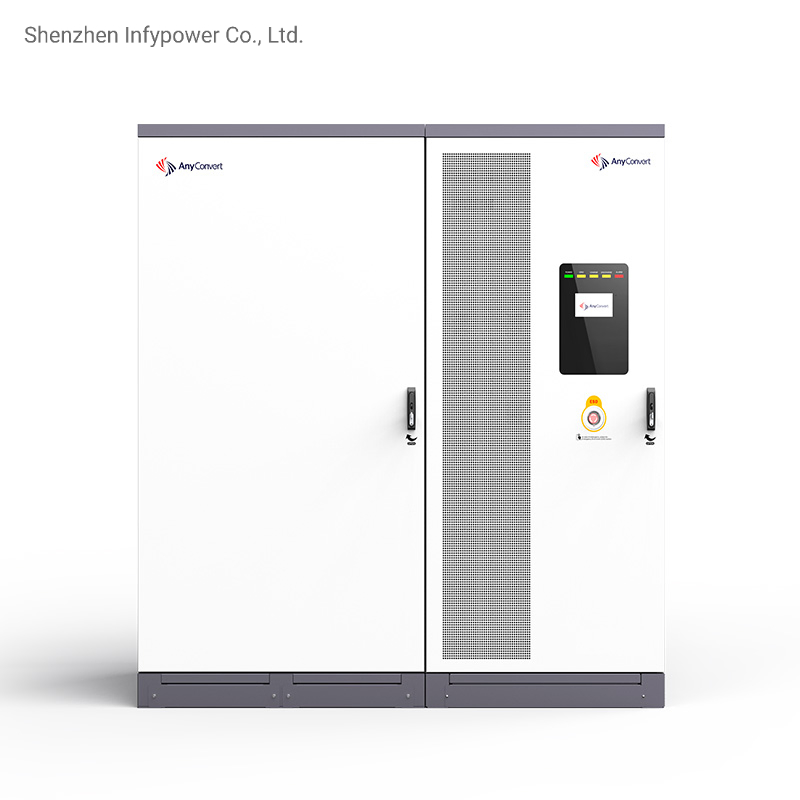

This is an ENERGY STORAGE CHARGING SOLUTION which includes a 480kW power cube, a 200kWH battery cube and two 480kW charging dispensers. The solution aims to achieve grid capacity expansion, grid peak load shaving, emergency power supply, V2X goals as well as renewable energy access (e.g., PV access).

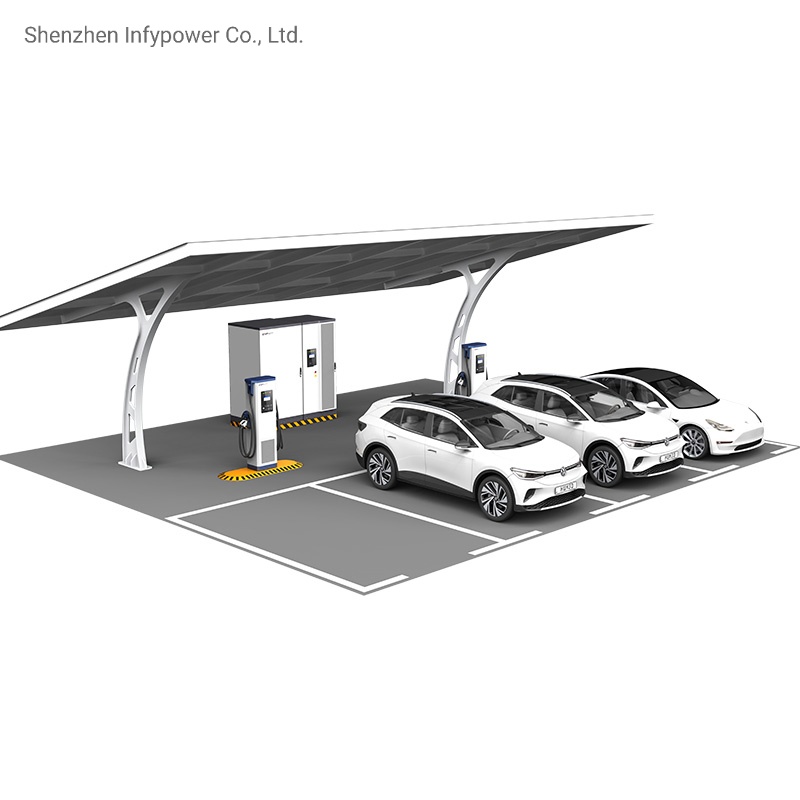

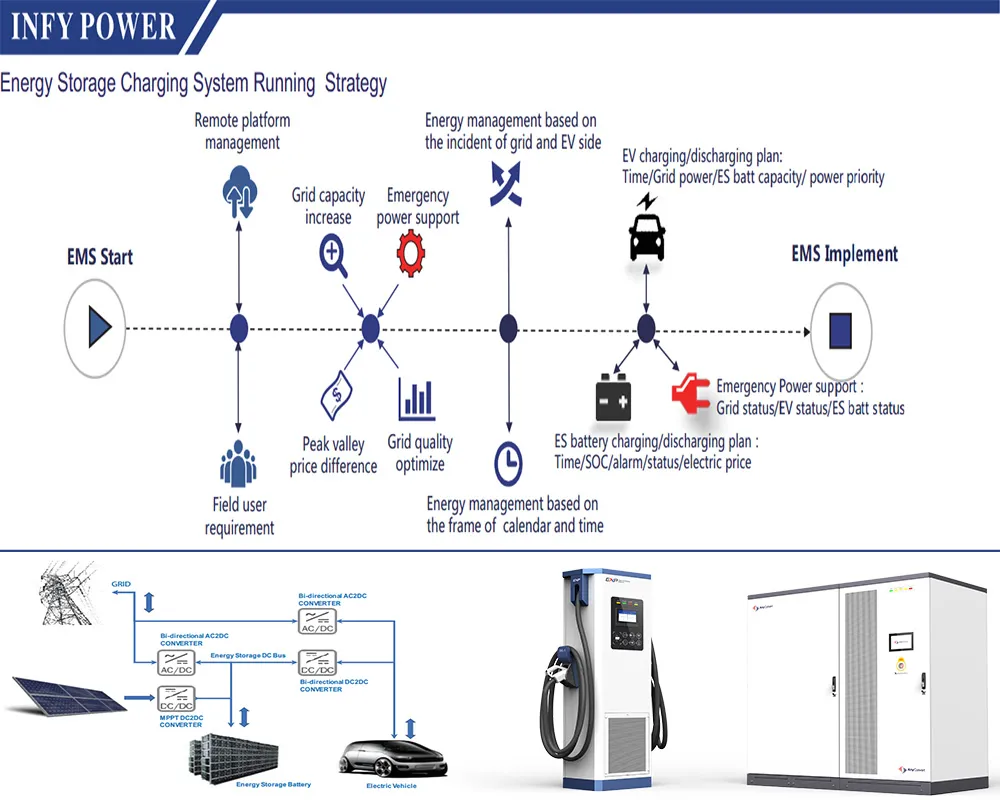

It is a comprehensive power station with a 200kWH battery cube containing powerful lithium battery groups. Simultaneously, it serves as a high-capacity EV charging station capable of supporting up to 6 electric vehicles being charged simultaneously. This integrated V2X grid network combines AC grid access, energy storage battery access, EV charging, EV discharging, and PV access.
| Feature | Specifications |
|---|---|
| AC Grid Access | 3-phases+N+PE, 260Vac~530Vac, 645A |
| Energy Storage Battery Access | Max 6 channels, 6*60kW=360kW to charge EV |
| Electric Vehicle Charging | Max 6 points, 3 dispensers, 480kW, 150V~1000V |
| PV Access | Max 2 access channels, 2*30kW MPPT |
| Off Grid/Backup | Optional emergency power supply for AC bus |
| Cable Type | Configuration |
|---|---|
| Normal Charging Cable | CCS1/CCS2 200A-300A, CHAdeMO 125A, GBT 250A |
| Liquid Cooling Cable | 500A/1000V CCS1 or CCS2 or GBT |
| Protection Class | IP55 |
| Parameter | Value |
|---|---|

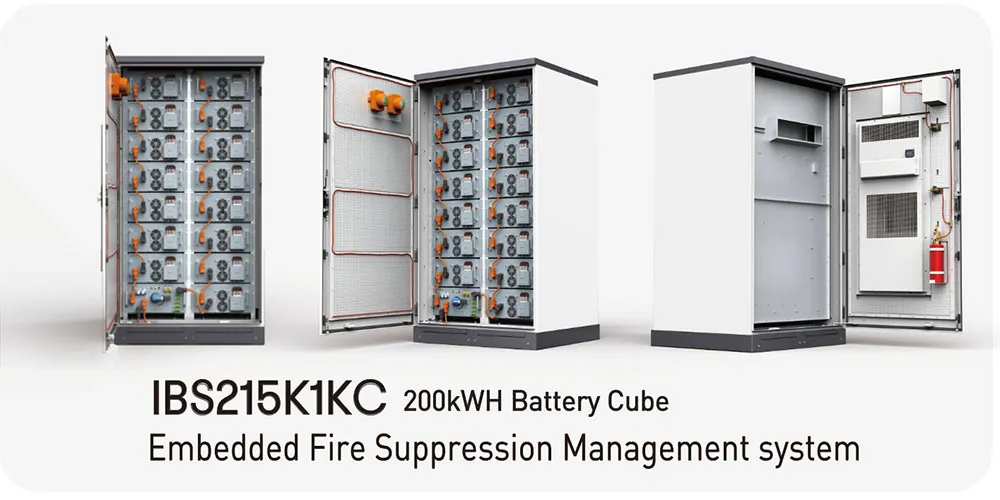

| Energy Storage | 200kWh/280Ah, 627V~806V |
| Fire Suppression | Temperature-activated system + Air pressure sensors |
| Safety Sensors | Smoke, Door access, Title alarm, Harmful gas |
| Environment Sensors | Water, Temperature, Humidity |
| Dimension/Weight | 1200mm*2200mm*1200mm / 1600kg |
We are a high-tech company professionally engaged in power modules and power system solutions. We have gained abundant experience in power electronics and intelligent control technology with specialty lying on electric vehicle charging solutions and energy storage solutions.
With over 70% R&D members, we attach great importance to the steady and rapid development of technology. We have published more than 150 authorized patents and maintain long-term strategic cooperation with major brand customers worldwide. Our goal is to build a greener planet for next generations.
