Vernon Charger
1 / 5
Industrial rectifiers bring advanced technology to the DC power industry. Innovative engineering combines the best in efficiency and reliability to meet the power requirements for a variety of system applications. This rectifier is specifically designed to recharge all types of stationary batteries for large utility, petrochemical and industrial uses.

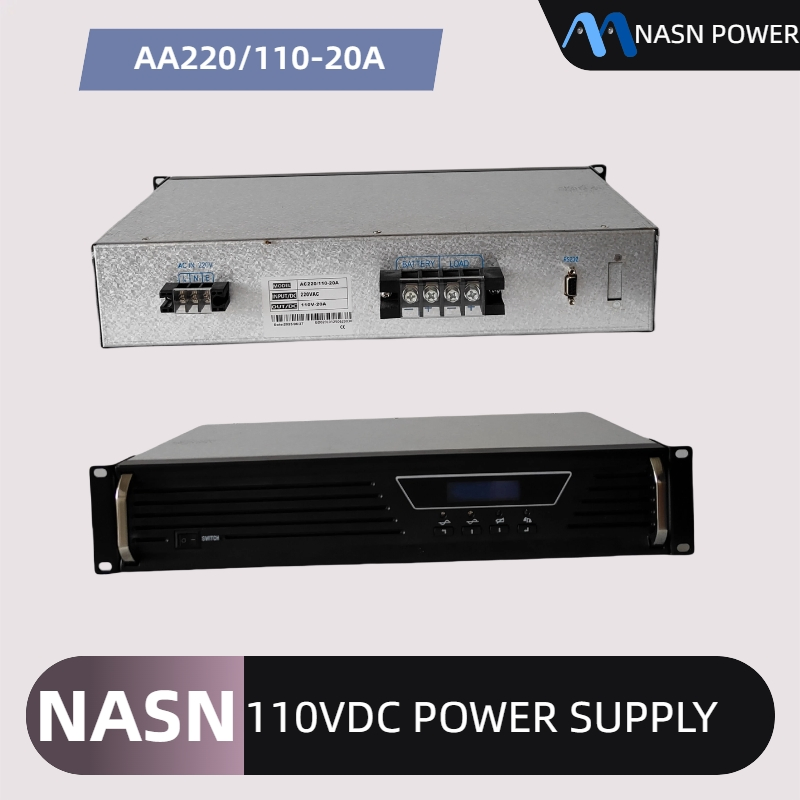

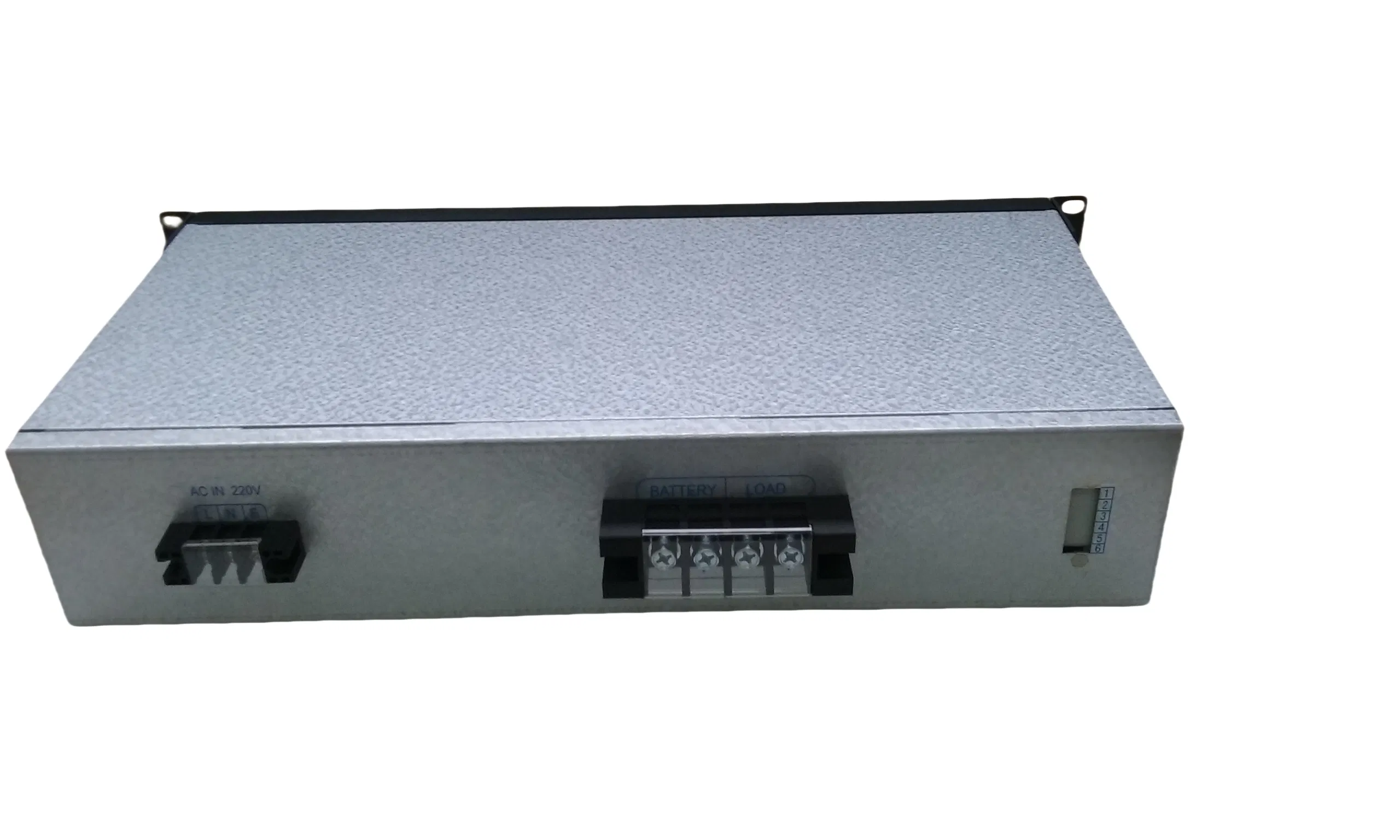

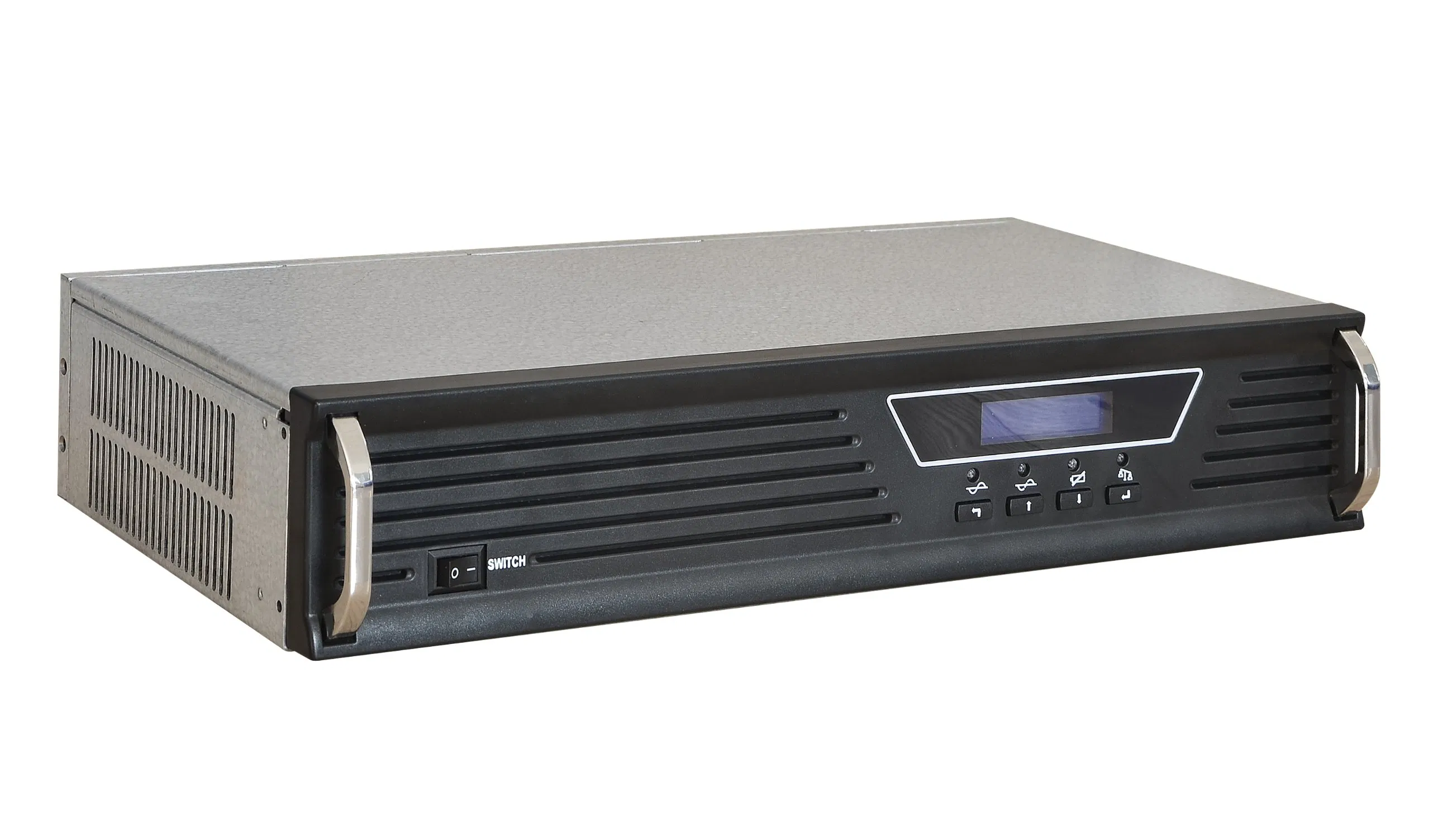

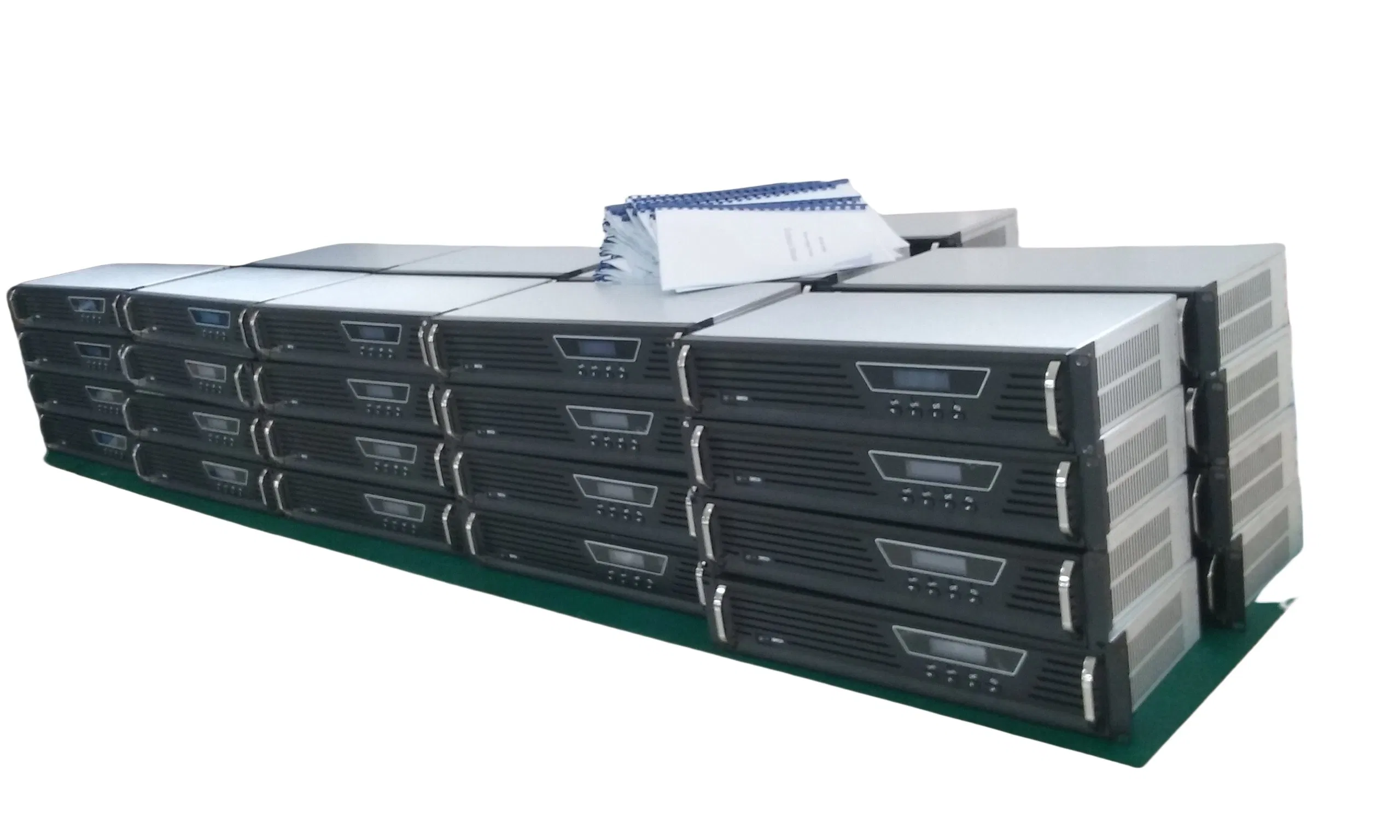

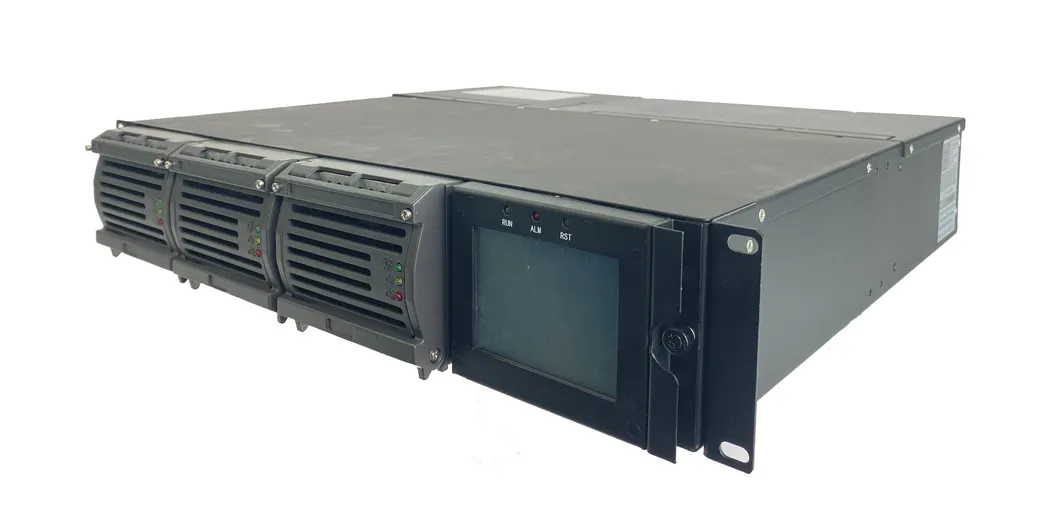

The fan cooled rectifier module has extremely high density providing the most power in the least amount of space. A compact shelf accommodates four rectifiers per 19in 2U shelf and can be paralleled up to 5*2U 19in shelf.
| Category | Parameter | Specifications |
|---|---|---|
| Environmental | Operating Temperature | -40°C ~ 55°C |
| Relative Humidity | ≤ 90%RH (30°C) | |
| Altitude | ≤ 2000m | |
| AC Input | Voltage Range | 90VAC ~ 280VAC / 323-437VAC |
| Frequency | 45Hz ~ 65Hz | |
| Power Factor | ≥ 0.99 | |
| DC Output | Nominal Voltage | 110VDC |
| Output Current | 60A / 140A / 220A | |
| Efficiency | ≥ 93.2% |

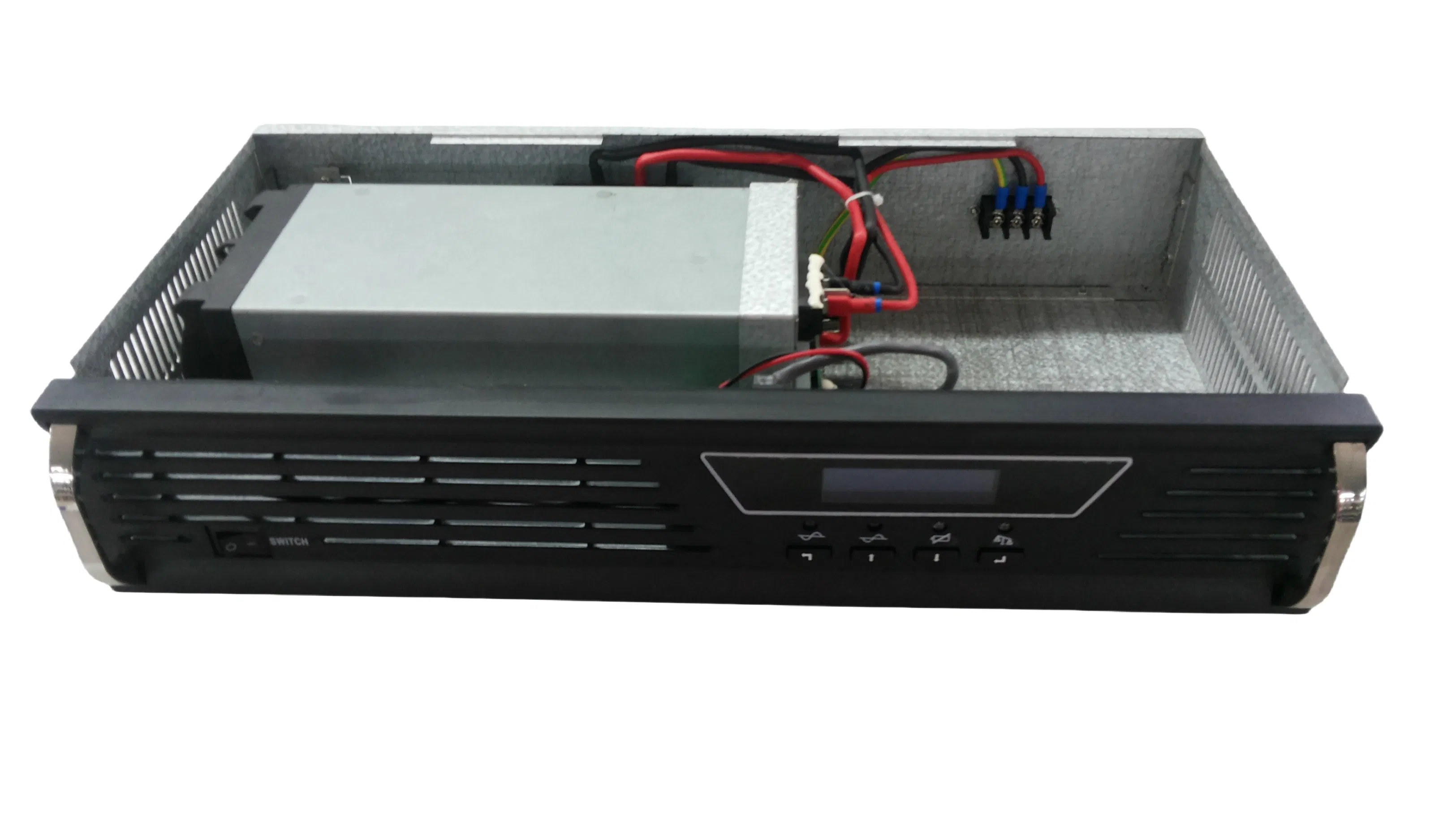

The system uses High Frequency (20 KHz and above) Switch Mode techniques. Resettable Fuses are provided to protect modules against failure of control or sensing circuits. The design includes suitable time delay and hysteresis to avoid hunting during switching operations.
DC Output Modes: The module operates in "Auto Float cum-Boost charger" mode. It is programmed to operate as a float rectifier or a boost charger depending on the battery condition. Normal float voltage for VRLA batteries is 2.25V/Cell.
