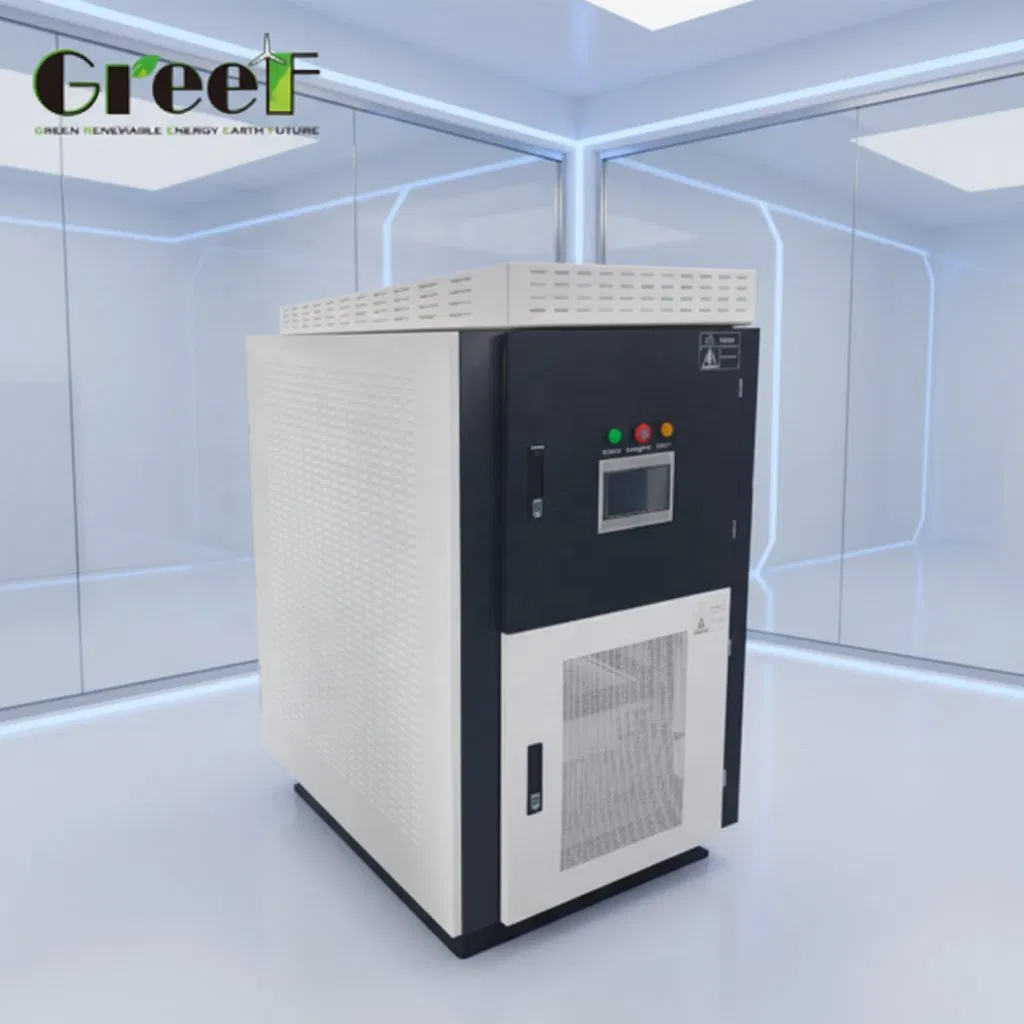

Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability
Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability
Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability
Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability
Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability
1 / 5
Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability
Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability
Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability
Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability
Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability

Hybrid Converter for Grid-Interactive Systems with Grid-Tied Mode and Grid Charging Capability

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

Hybrid Converter Overview
ℹ️ Basic Info.
Model NO.AC PCS
ConditionNew
CertificationCE
ApplicationWater Heater Controller, Solar System Controller, Charger Controller, Wind Controller, Voltage Controller
Rated Voltage450V
Rated Voltage(VAC)≥ 320
AC Voltage Range(VAC)240 ~ 550
Power Factor> 0.99
Cooling MethodIntelligent Air Cooling
TopologyWithout Transformer
Battery Voltage(VDC)350 - 450
OriginChina
📝 Product Description
Multi-functional converter integrates the capabilities of AC-to-DC rectification for PM generators, battery charging, DC-to-AC inversion, and an energy management system. Featuring a configurable dual LCD touchscreen, it utilizes advanced converter technology to achieve stable voltage/frequency control for PMSGs, ensuring seamless Load power supply. It can also be configured to switch to a grid-tied mode for operation and grid charging.
⚡ Product Features
Product Features
  • ✔ EMS smart energy management system
  • ✔ Off-grid, grid-tied, and grid charging modes
  • ✔ Double LCD smart touch Screen Display
  • ✔ Generator power curve tracking technology
  • ✔ Control Technology for Unbalanced Loads
  • ✔ Standard RS 485 modbus RTU protocol
  • ✔ PWM dump load over voltage/speed protection
📊 Product Parameter
Model ACPCS-100kt ACPCS-150kt ACPCS-200kt ACPCS-250kt ACPCS-300kt ACPCS-500kt
Generator AC Input Side
Rated power(kW)100150200250300500
Rated voltage(Vac)≥240
AC voltage range(Vac)150~550
Battery Input Data
Battery typeLithium-ion
Rated battery voltage(Vdc)400-900 (Customizable)
Output side parameters (grid-connected)
Rated power(kw)100150200240300500
Rated grid voltage(V)400
Power factor>0.99
Basic parameters
Maximum efficiency(%)95%
Ambient temperature(℃)-40~60
Protection levelIP20
🔍 Product Detail

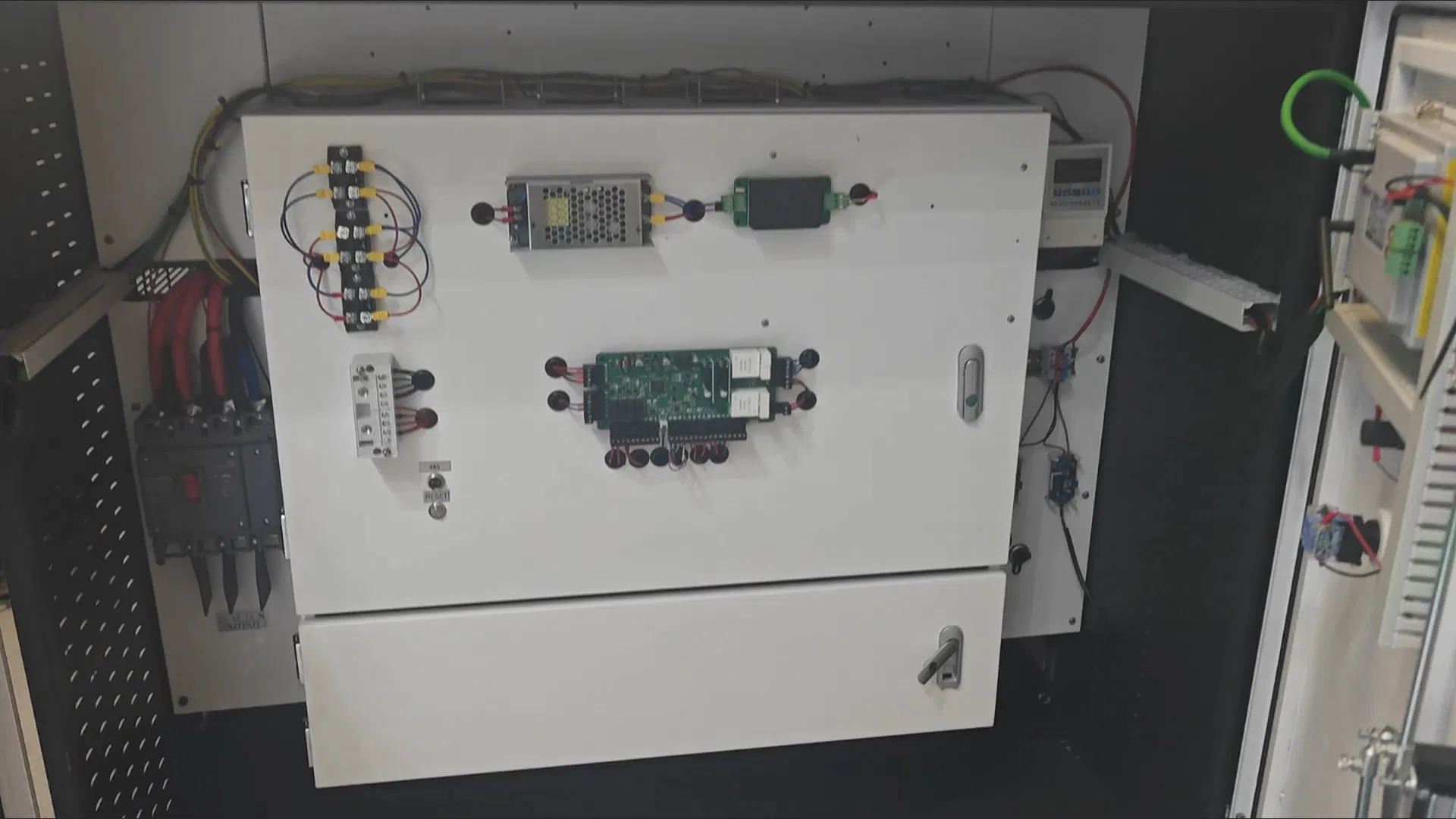

Internal Detail

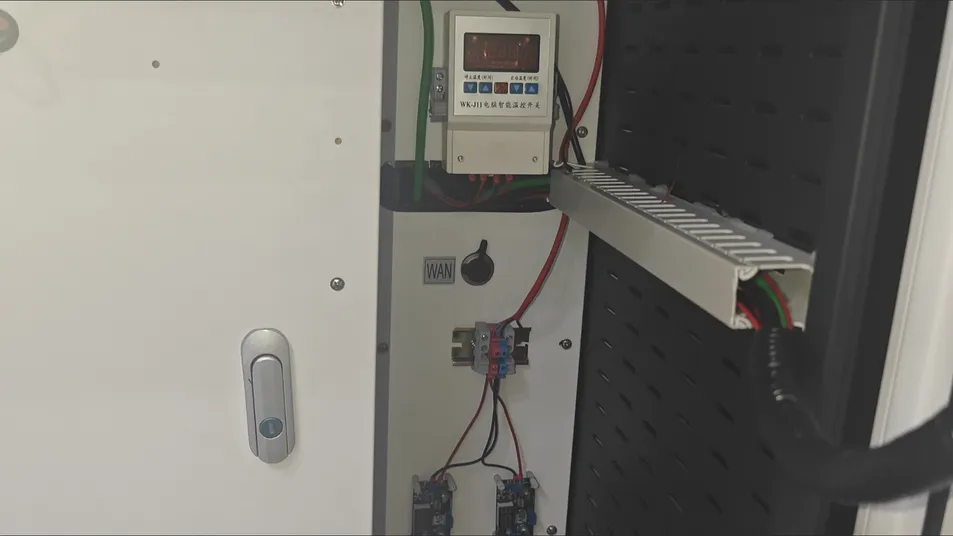

Detail 1

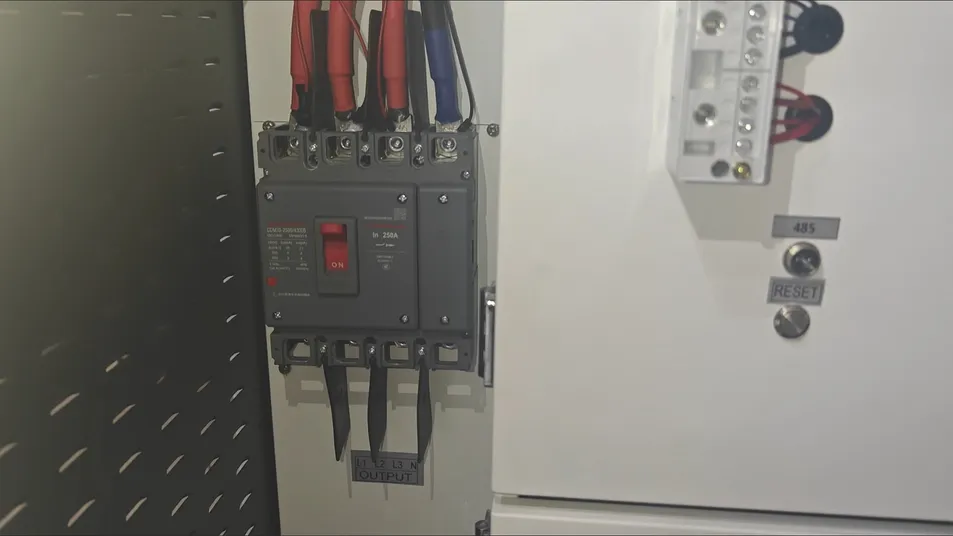

Detail 2

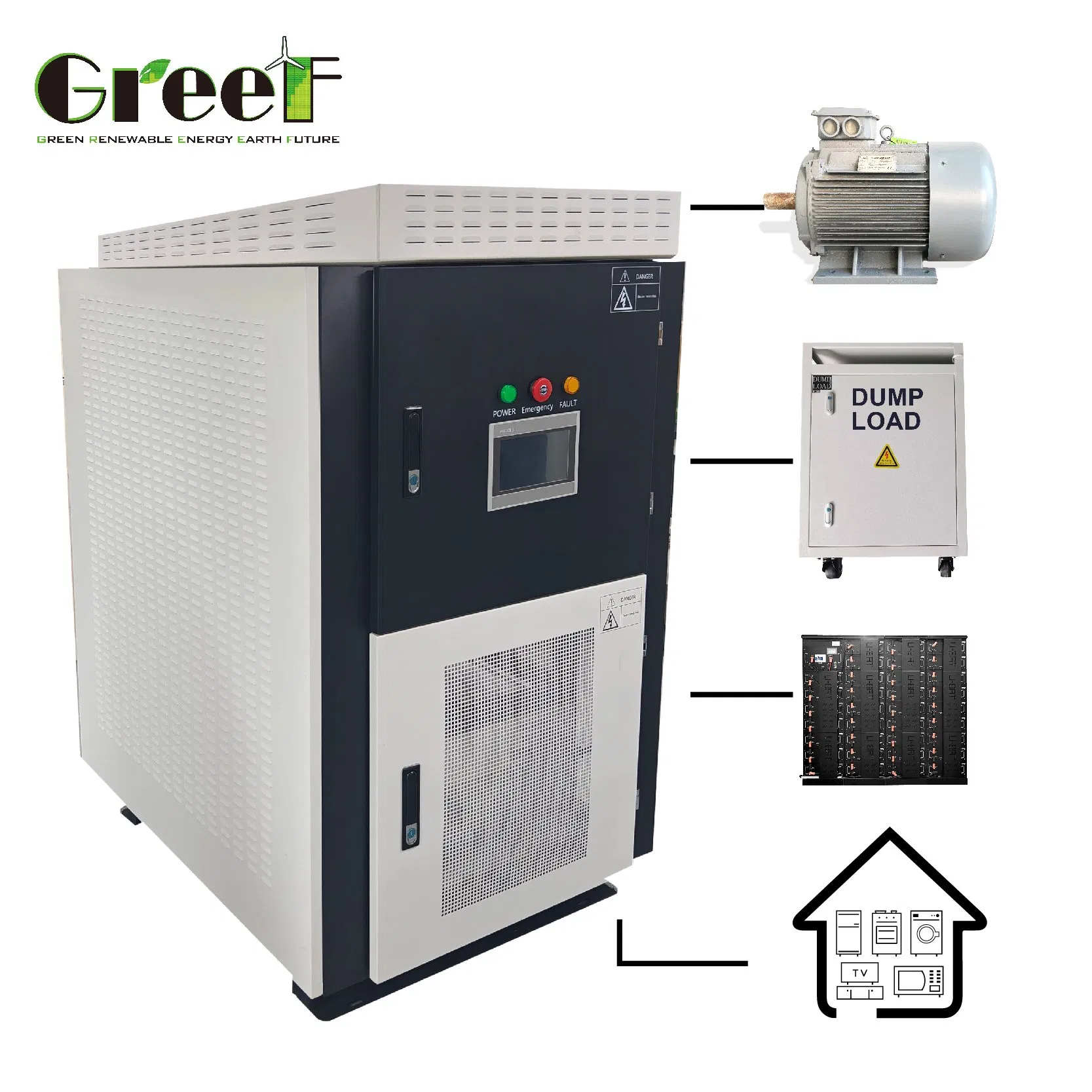

⚙️ System Solution
Diagram

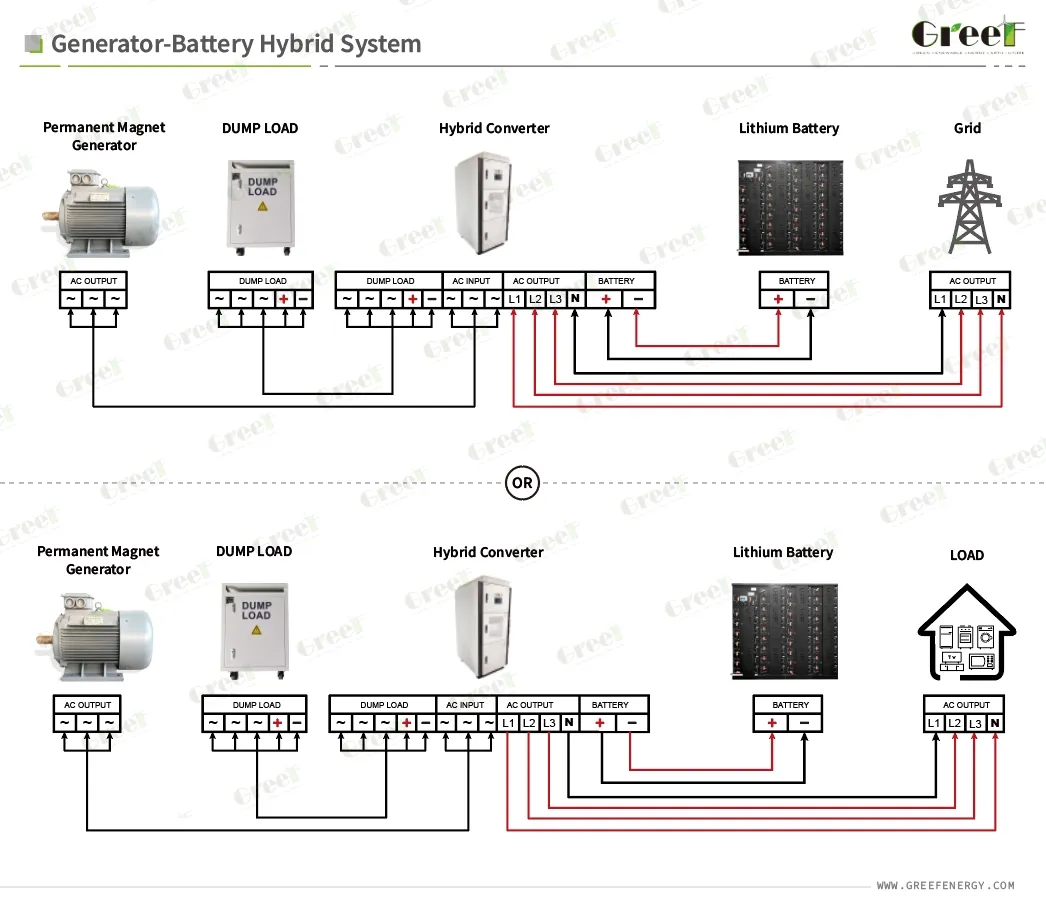

Full System
📦 Packaging & Shipping
Packaging Detail
⭐ Why Choose Us
Manufacturing
Testing
❓ FAQ
1. What are the primary operating modes of this converter?
The converter supports multiple configurable modes including off-grid, grid-tied, and grid charging to suit various energy management needs.
2. Does the system support remote monitoring?
Yes, it supports WIFI and LAN remote monitoring and control via a dedicated app (optional feature).
3. What types of batteries are compatible with the AC PCS?
It is primarily designed for Lithium-ion batteries, with a customizable voltage range typically between 400V and 900V DC.
4. What kind of protections are built into the converter?
It includes AC short-circuit protection, AC output overcurrent protection, Level 2 surge protection, and optional over-voltage/speed protection.
5. Can this converter handle unbalanced loads?
Yes, it features specialized control technology designed specifically to manage and stabilize unbalanced loads.
6. Is the display user-friendly?
The system features a double LCD smart touch screen that displays real-time data such as generator speed, input/output power, grid voltage, and cumulative power generation.
