Vernon Charger
1 / 5
| Model NO. | QSCDZ |
| Rated Current | 2A; 63A; 100A; 200A; 300A |
| Rated Power | 7kw; 11kw; 22kw; 60kw; 120kw; 180kw; 240kw |

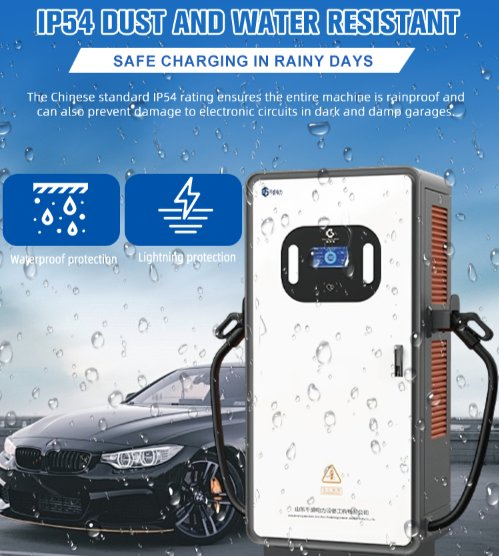

| Protection Grade | IP54 (Indoor/Semi-Outdoor); IP65 (Universal Outdoor) |
| Charging Type | AC Charging; DC Charging; AC&DC Integrated Charging |
| Charging Efficiency | ≥93% (AC Charger); ≥95% (DC Charger) |
| Power Factor | ≥0.95 (Rated Load); ≥0.92 (Light Load) |
| Service Life | 8 Years; 10 Years |

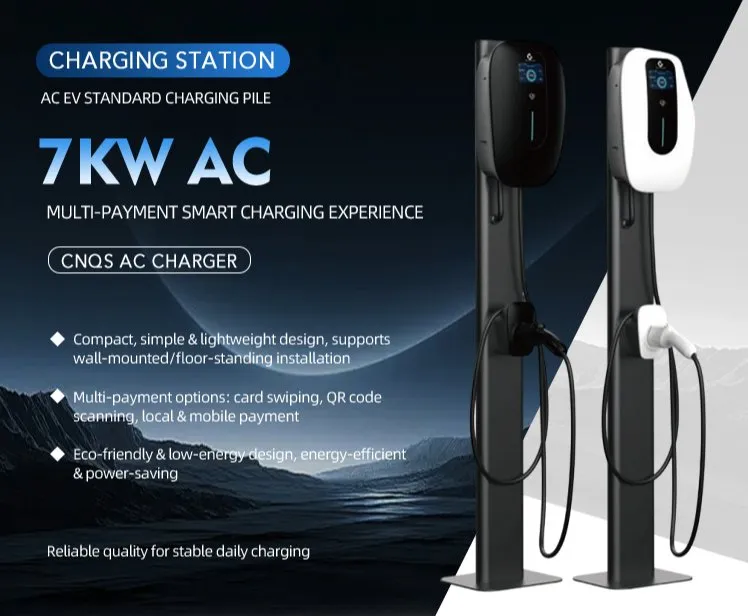

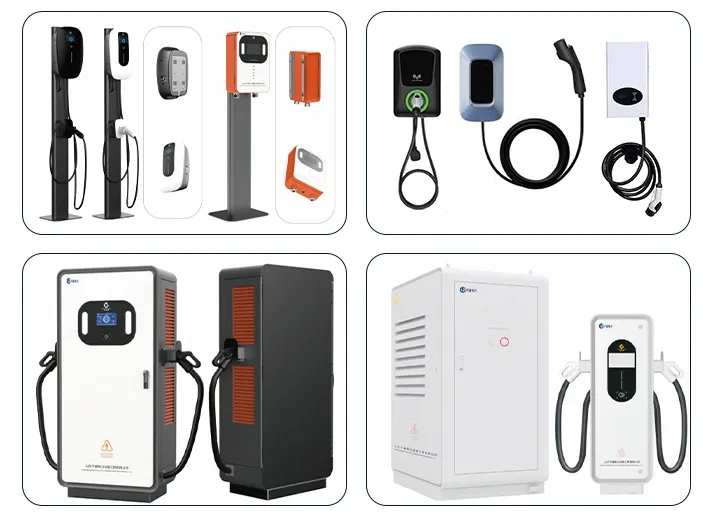

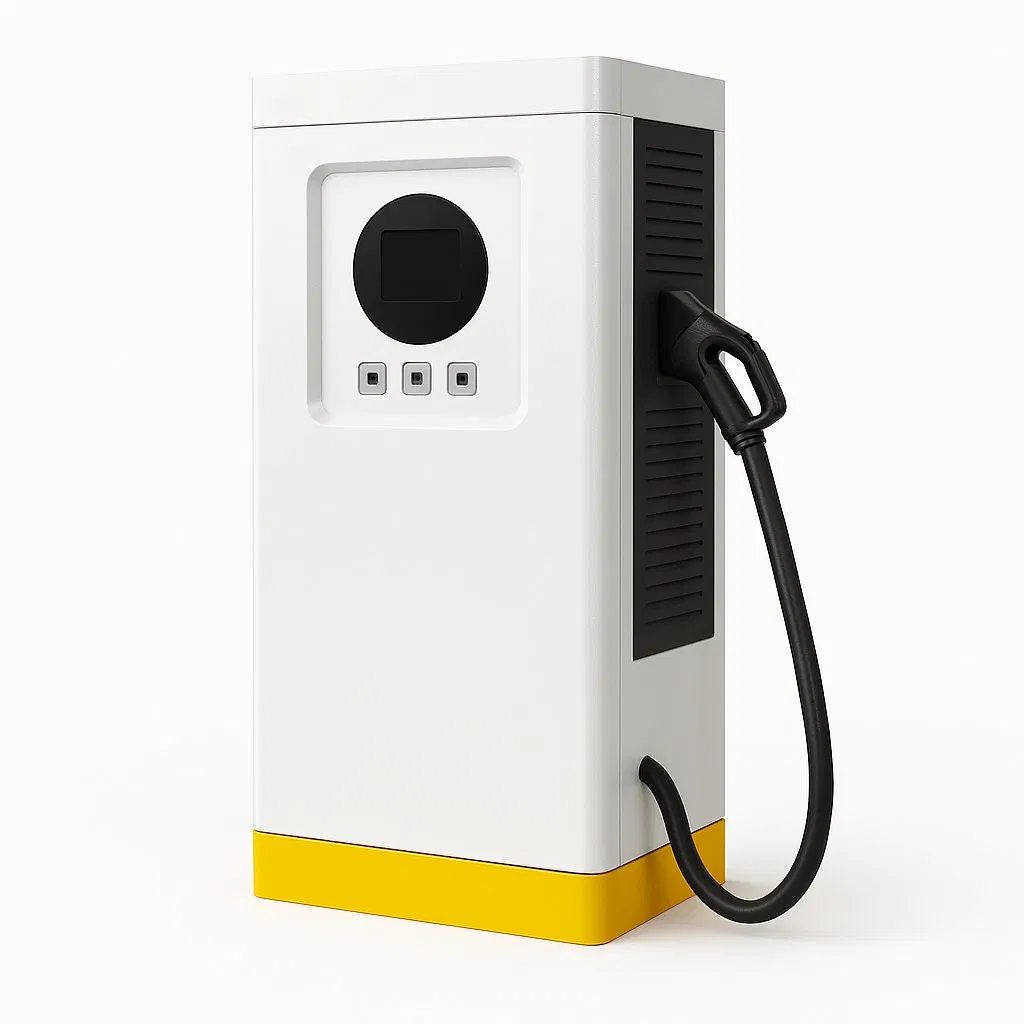

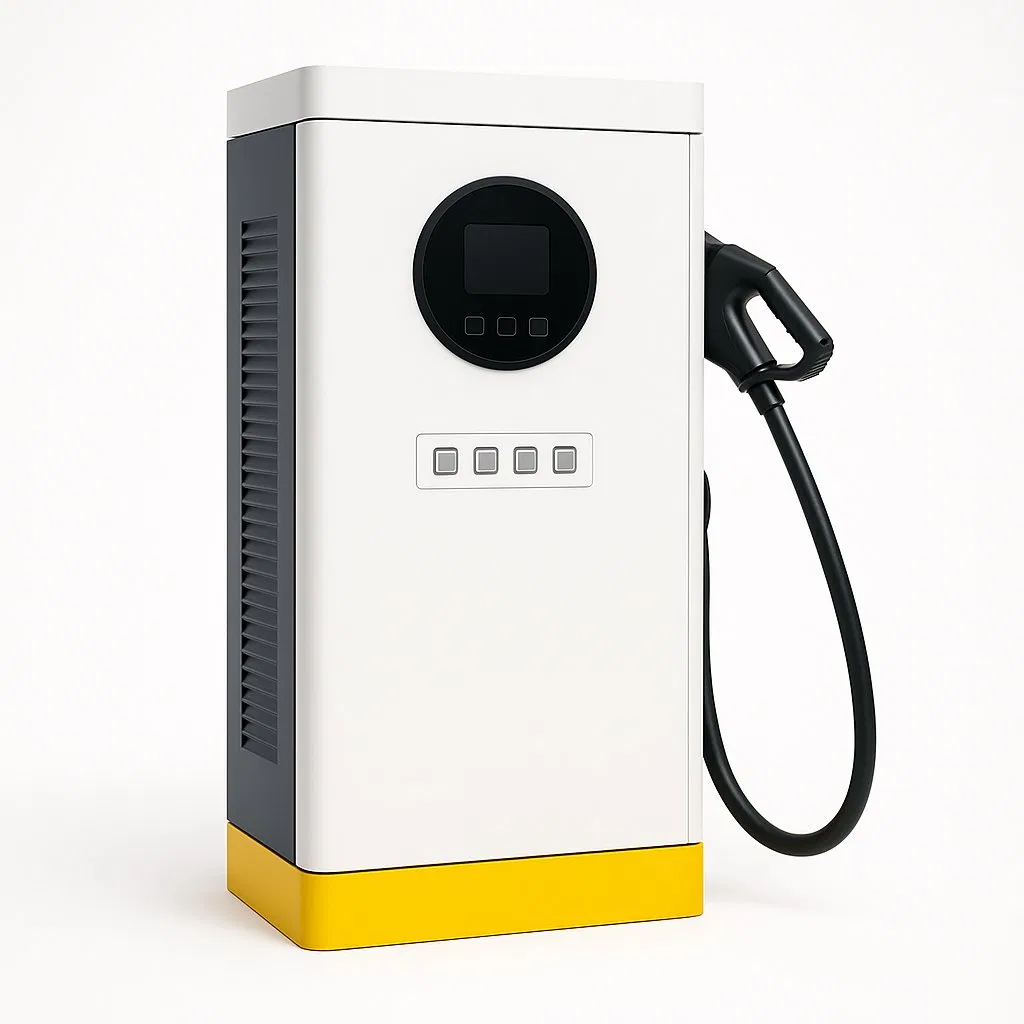

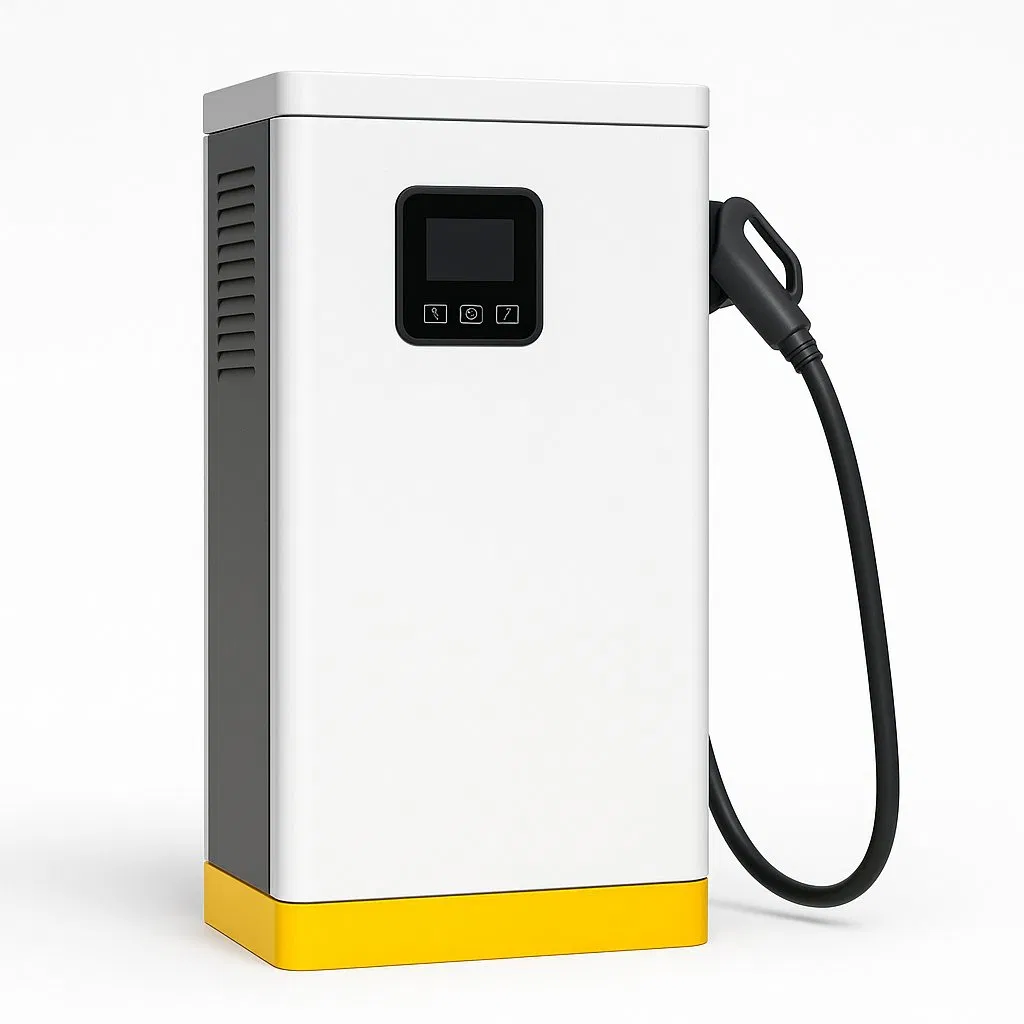

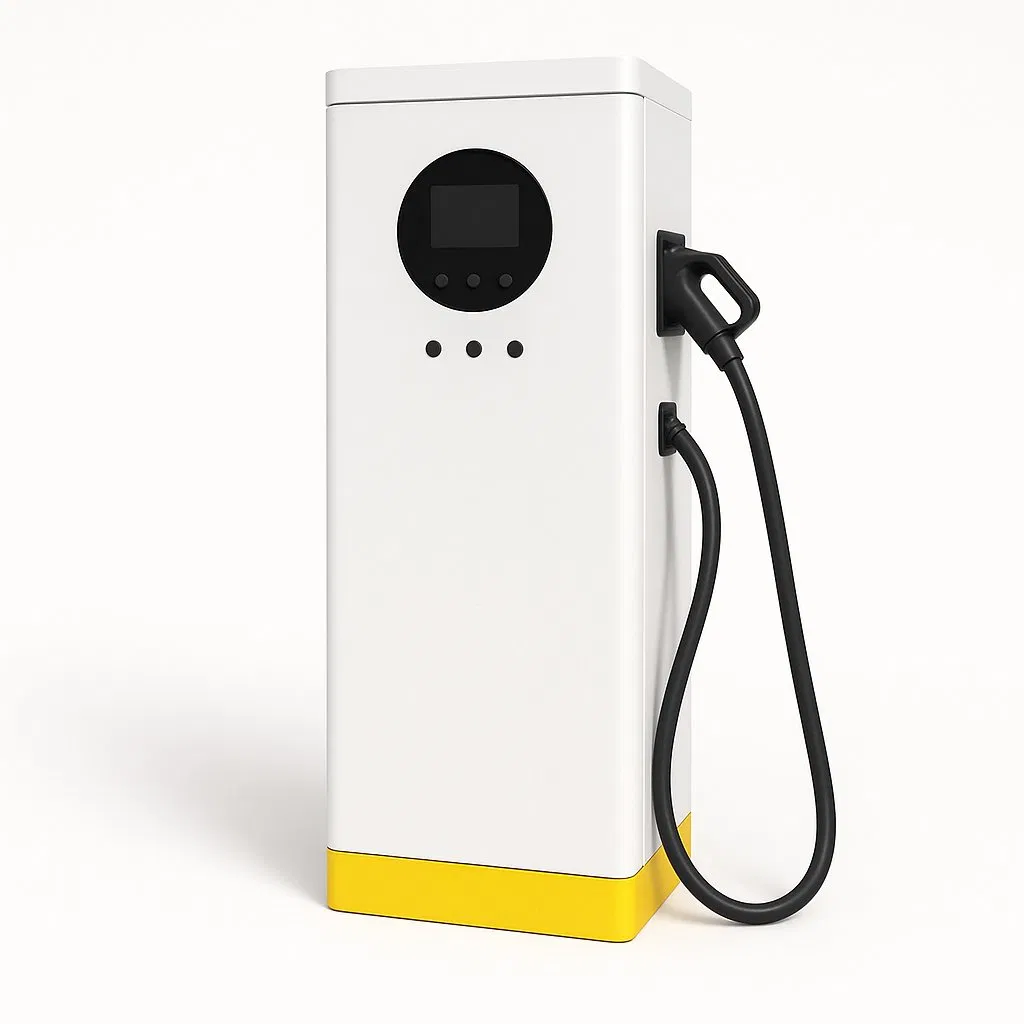

Our charging pile series includes multiple models, with two options: wall mounted and floor standing, to meet different installation needs. All models feature stylish designs, stable frameworks, and complete functionality. Flexible customization through modular power configuration makes them easy to maintain.

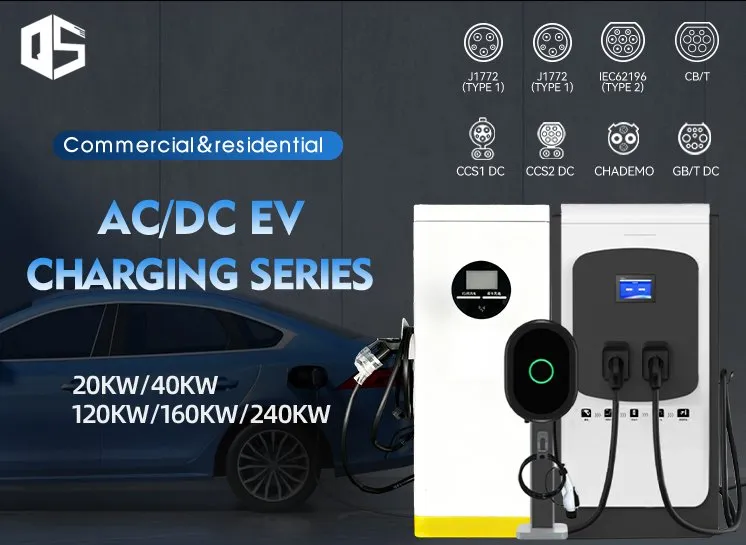

| Type | EV charging station |

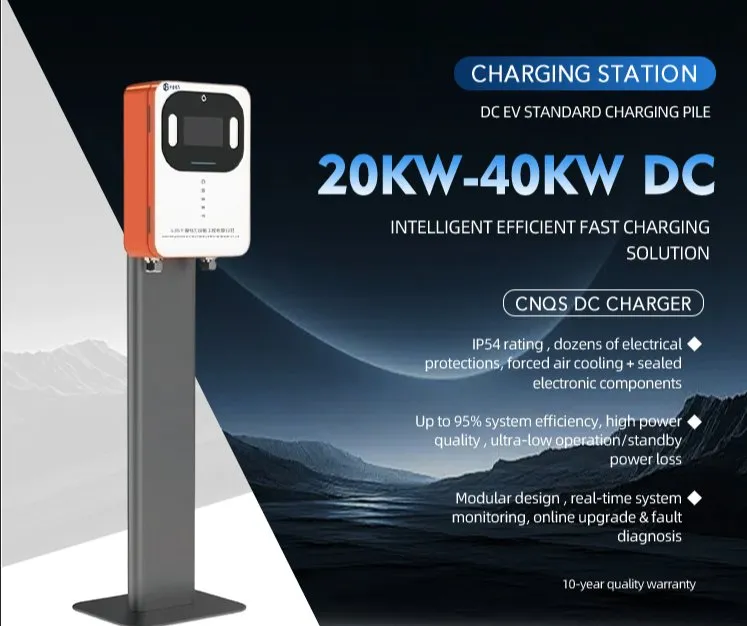

| Power Options | 20KW / 40KW / 120KW / 160KW / 240Kw |
| Input Rating | 110V/220V/380V±15% |
| Output Voltage | 200~1000V |

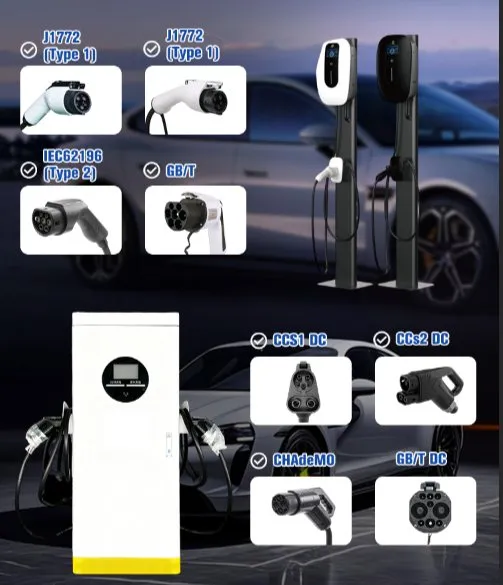

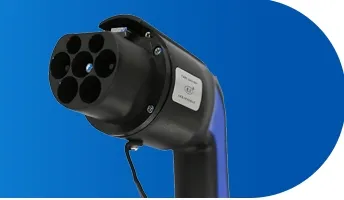

| Connectors | CCS1, CCS2, GB/T, J1772, IEC62196, CHADEMO |
| Display | 7" LCD Touch Screen |

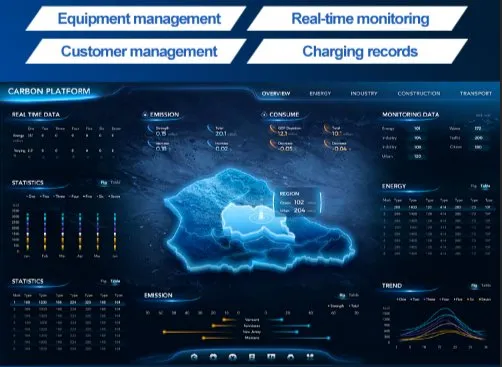

| Network | 4G / Ethernet / OCPP1.6J |
| Protection | IP55 |
• Compatible with global certifications (CE/UL/PSE/KC), 100% compliance rate.
• Supports ISO 15118-20 standard + PNC Plug & Charge.
• V2G vehicle-to-grid protocol supported.
• 80% power replenished in 30 mins.
• IP65 dustproof & waterproof; wide temperature (-30℃ to 60℃).

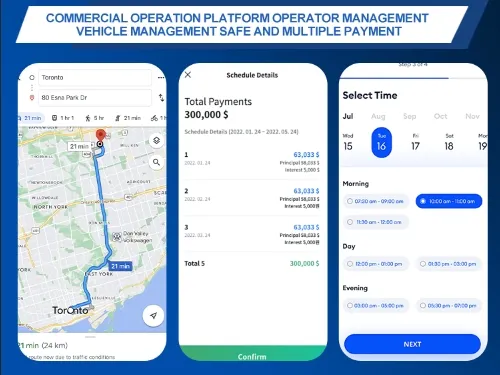

• Supports Apple Pay/Google Pay/Credit Card payment.
• Dual-gun simultaneous charging + modular design.
• 300+km range replenished in 30 mins (120kW).

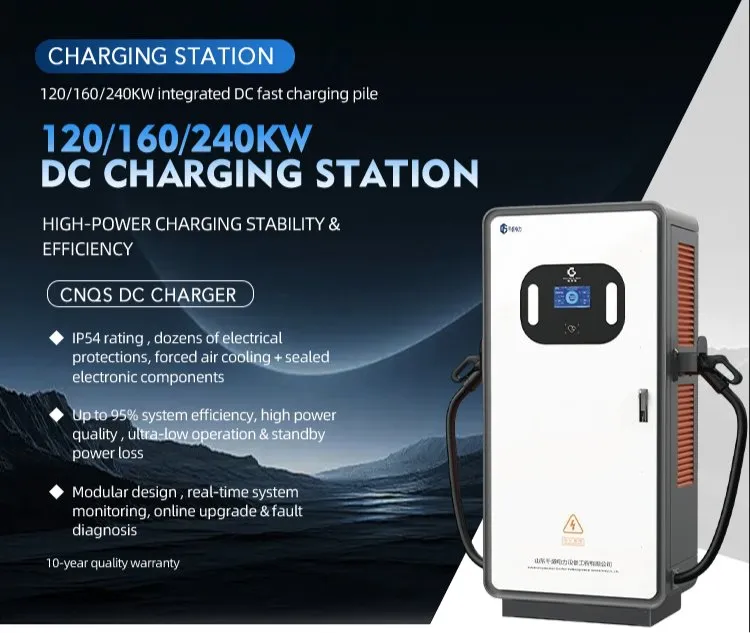

• 80% battery in 15-25mins (160kW/240kW).
• Multi-standard fast charging connectors (CCS2/Type2/CHAdeMO).

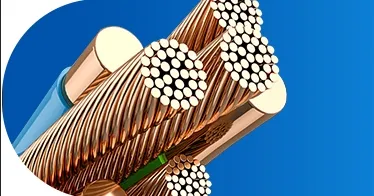

• Thickened high-temperature resistant special cables, anti-aging & anti-stretching.
• Customizable cable length with self-locking connector.
| Package Size | 120.00cm * 45.00cm * 155.00cm |
| Gross Weight | 60.000kg |
| Packing Material | Industrial Grade Wooden Box |

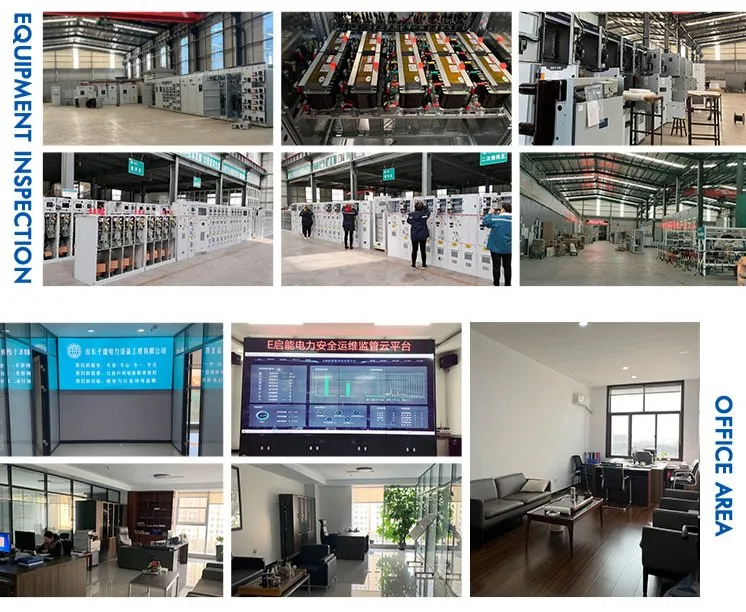

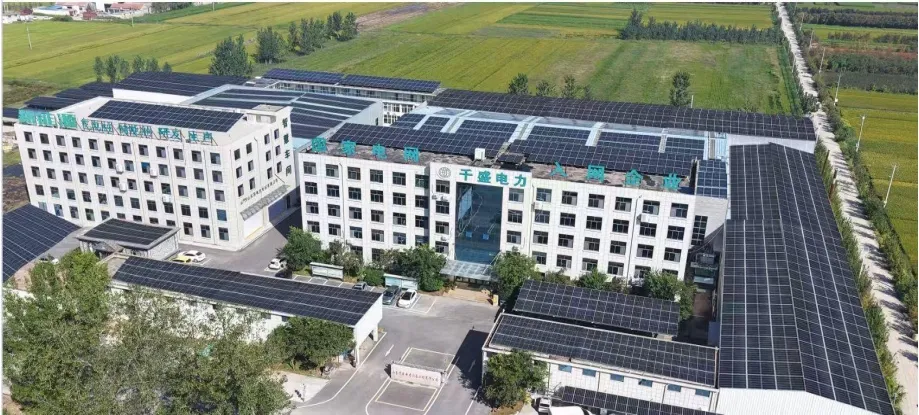

Experienced power equipment manufacturer with over 20 years of industry expertise, serving global markets with reliable power distribution and new energy solutions.
