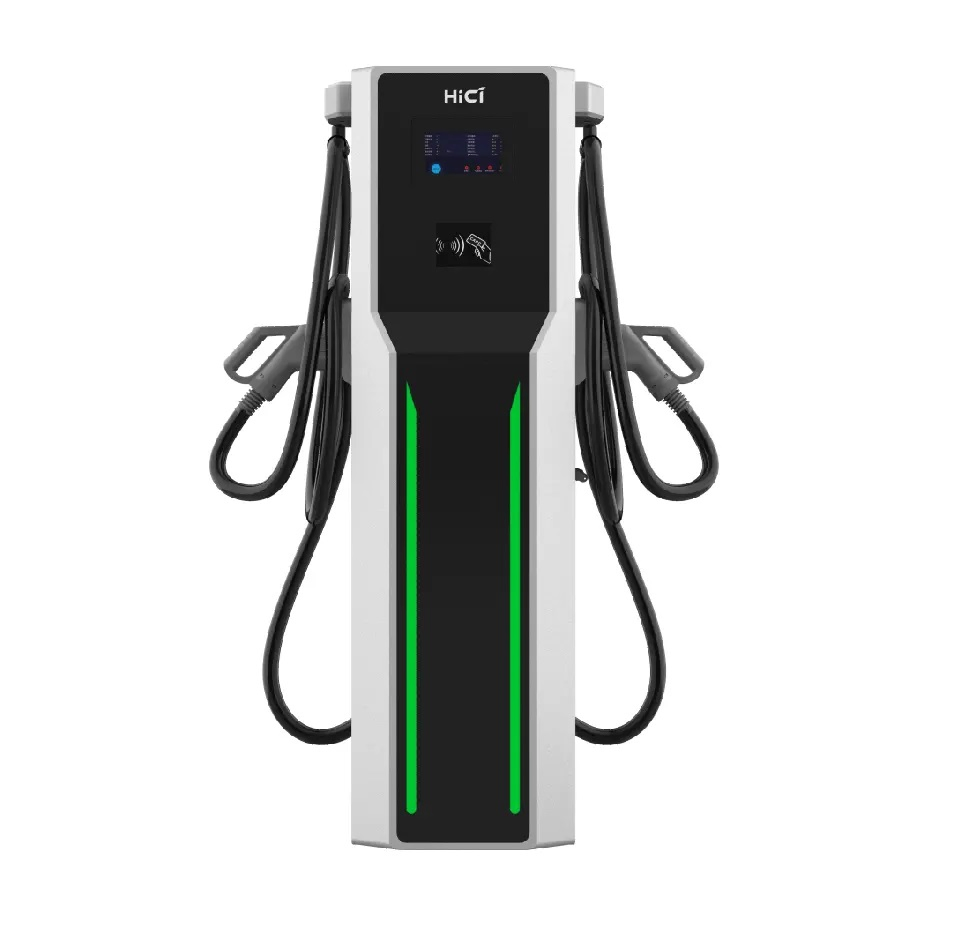

High-Speed Multi Terminal DC Fast Charging Station for Electric Vehicles

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Location

Public Use

Interfaces

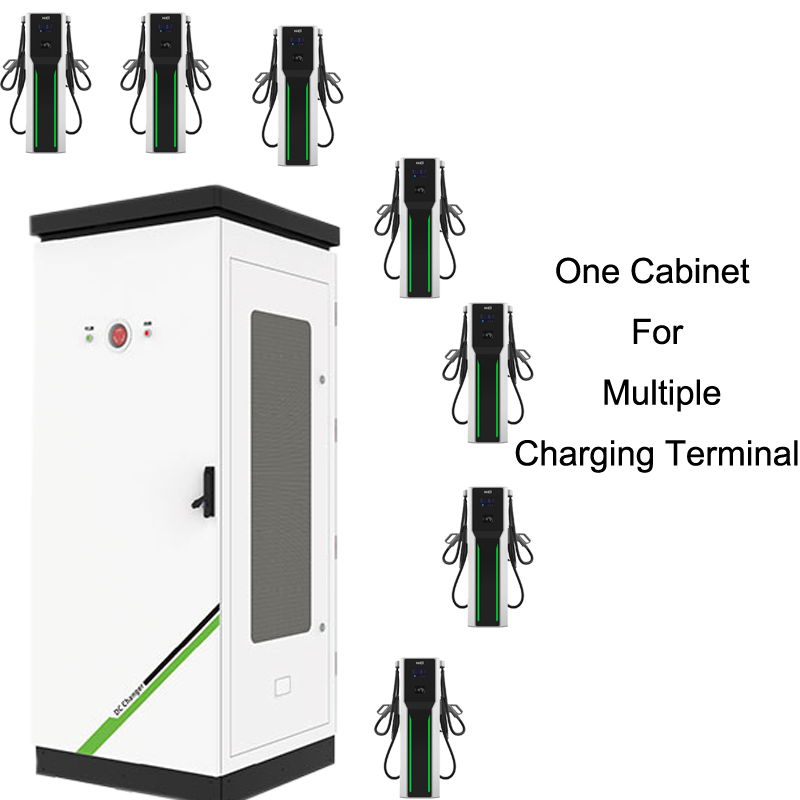

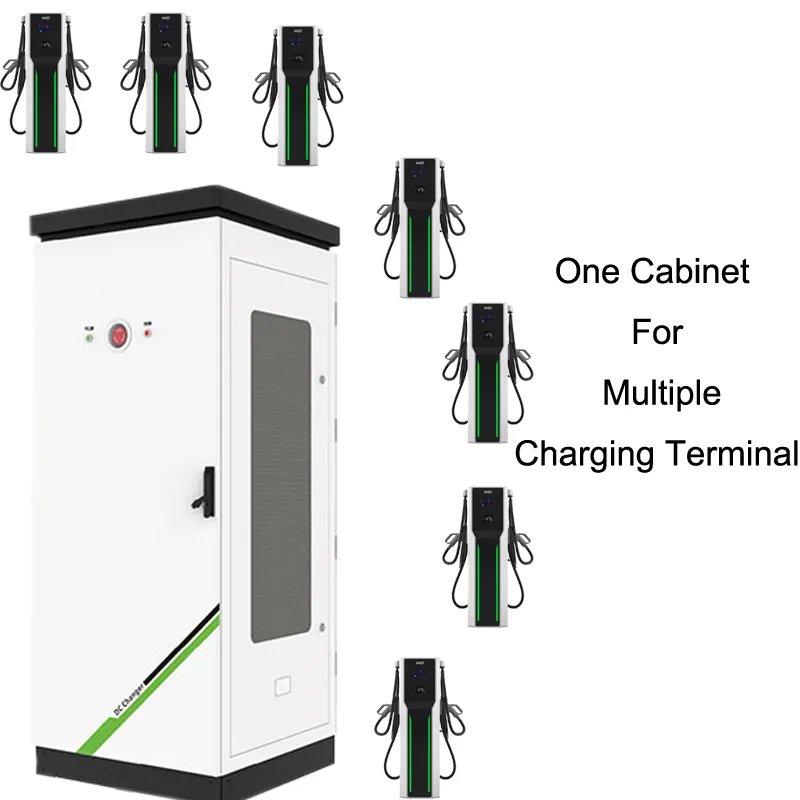

One Pile with Multiple Charges

Start Mode

Credit Card, Mobile Remote, RFID

Certification

ISO9001, CE, TR25

Protection

Shock Resistance, IP54, IK10

Input Voltage

400VAC (45-65Hz)

Efficiency

Min 95%

Dimensions

604*370*1603mm (Terminal)

Product Overview

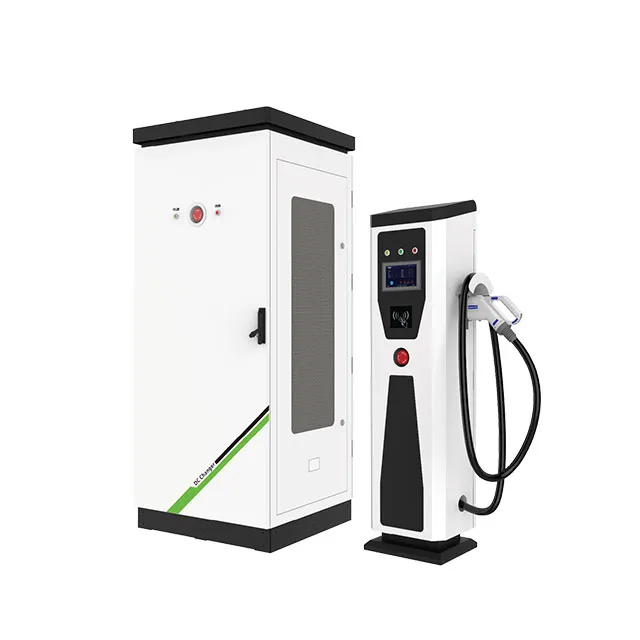

Discover the Multi Terminal DC Fast Charge Station. This split type CCS2 GBT CHAdeMO connector fast charging station is ideal for EV cars. Enhance your EV charging infrastructure with this efficient and intelligent solution.

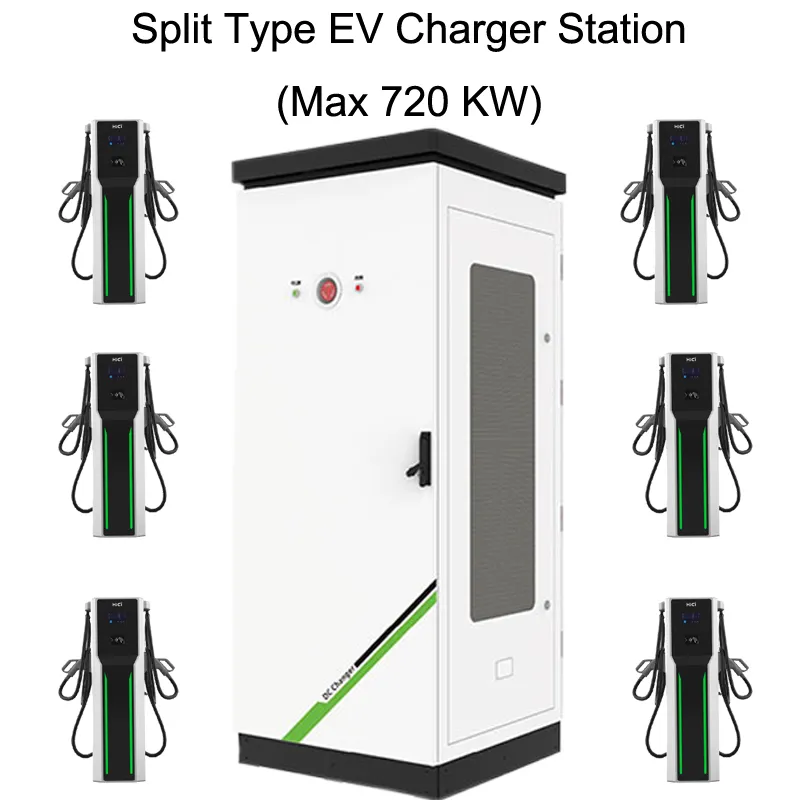

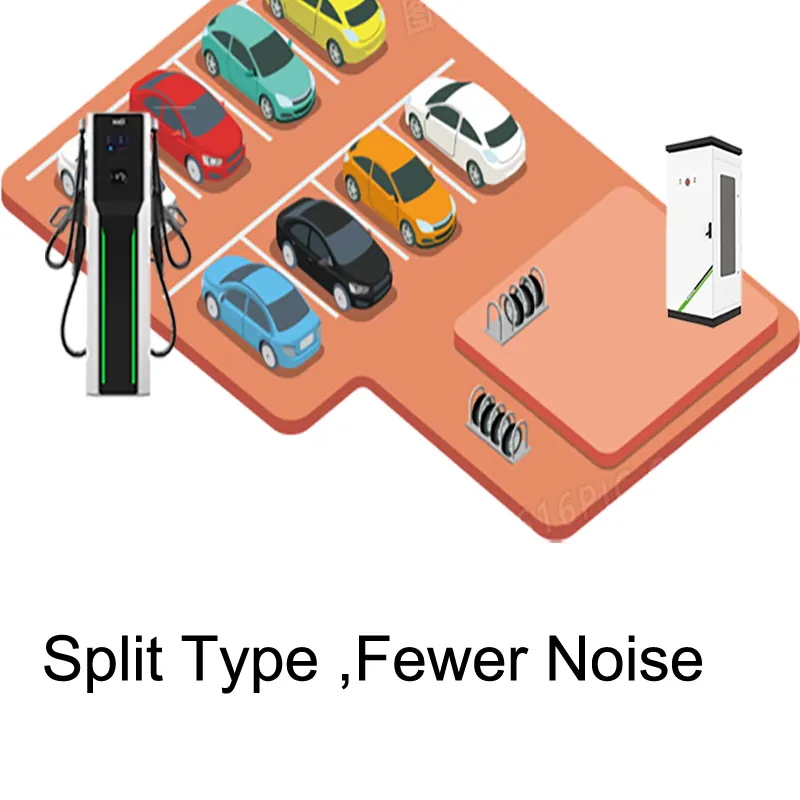

Split Type design for reduced noise

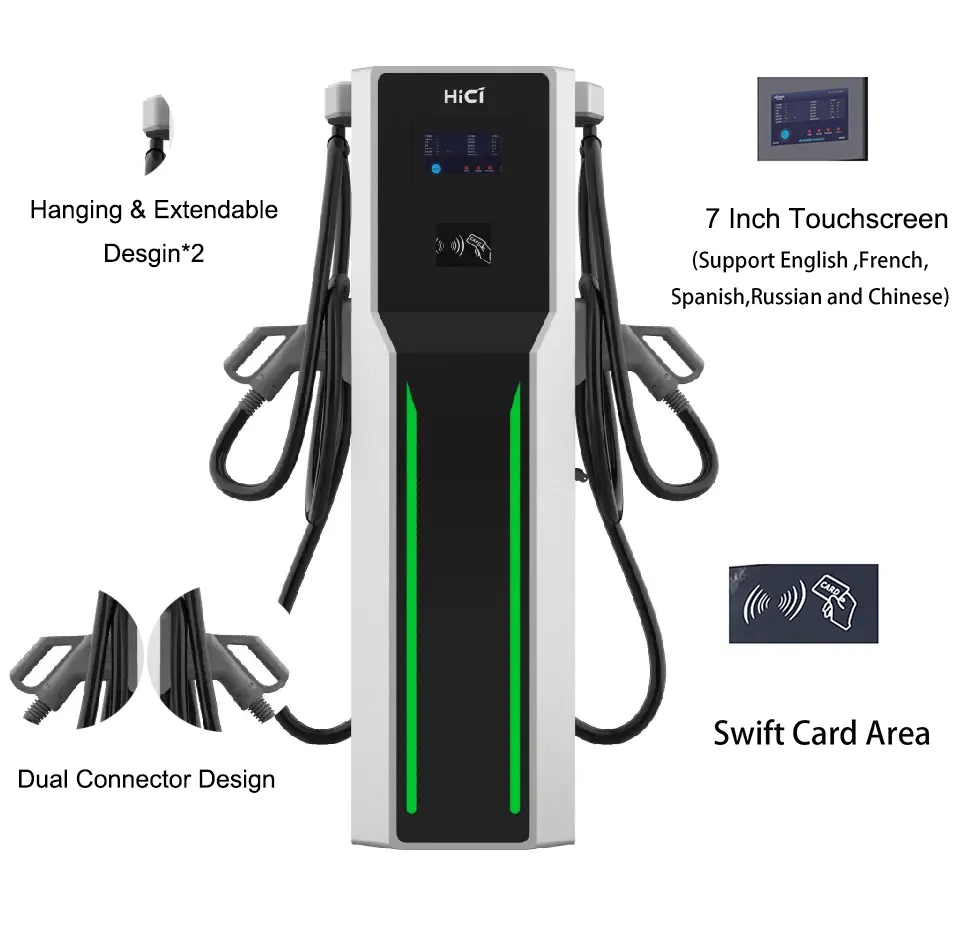

7-inch LCD TouchScreen operation

Supports Paypal, Google Pay, Credit Card

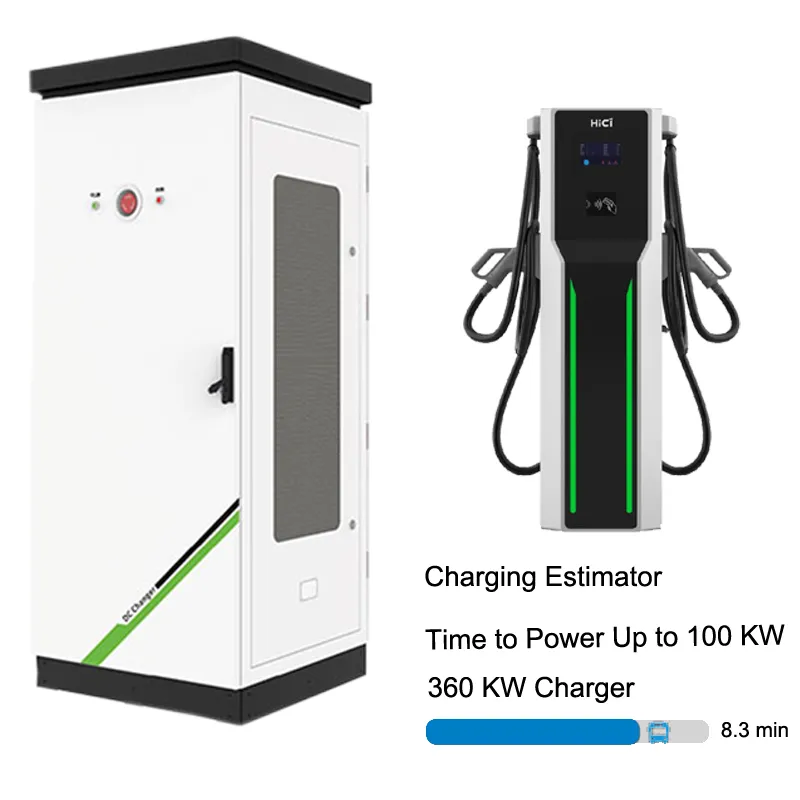

Maximum power output up to 360 kW

IP54 and IK10 ratings for durability

Compatible with EV cars and EV buses

Production Parameters

Power	200KW	300KW	360KW
Input Rating	400Vac±15%	4000Vac±15%	4000Vac±15%
Max. Input Current	440A	550Amp	660 Amp
Output Voltage	150-1000VDC
Max. Output Current	CCS 200A	CCS 250A	CCS 300A
Optional Connectors	CCS1 / CCS2 / GBT / CHAdeMO
Connectivity	Ethernet / 4G / OCPP 1.6 JSON
Operating Temp	-30~55ºC

Product Gallery

Packaging & Delivery

Goods are packed in neutral Standard Wooden Boxes. Payment terms include T/T 30% deposit and 70% before delivery. Standard delivery options are FOB, CFR, CIF, DDU with a lead time of 7 to 25 days. All products undergo 100% testing before delivery to ensure quality and reliability.

Frequently Asked Questions

Q1: What is the maximum power output of this charging station? A: This charging station supports a maximum power output of up to 360 kW, with options for 200KW and 300KW as well.

Q2: Which charging connectors are compatible? A: The station supports multiple standards including CCS1, CCS2, GBT, and CHAdeMO, making it suitable for a wide range of electric vehicles.

Q3: Is the charging station suitable for outdoor use? A: Yes, it features an IP54 rating for protection against dust and water, along with IK10 shock resistance for durability in public environments.

Q4: How can users pay for the charging service? A: It supports commercial payment methods including Credit Card, RFID cards, Mobile remote operation, and digital wallets like Apple Pay and Google Pay.

Q5: What is the standard lead time for delivery? A: The typical delivery time is between 7 to 25 days after the advance payment has been received, depending on customization requirements.

Q6: Does the station support remote software updates? A: Yes, the station supports remote upgrades via Ethernet or 4G connectivity using the OCPP 1.6 JSON protocol.
