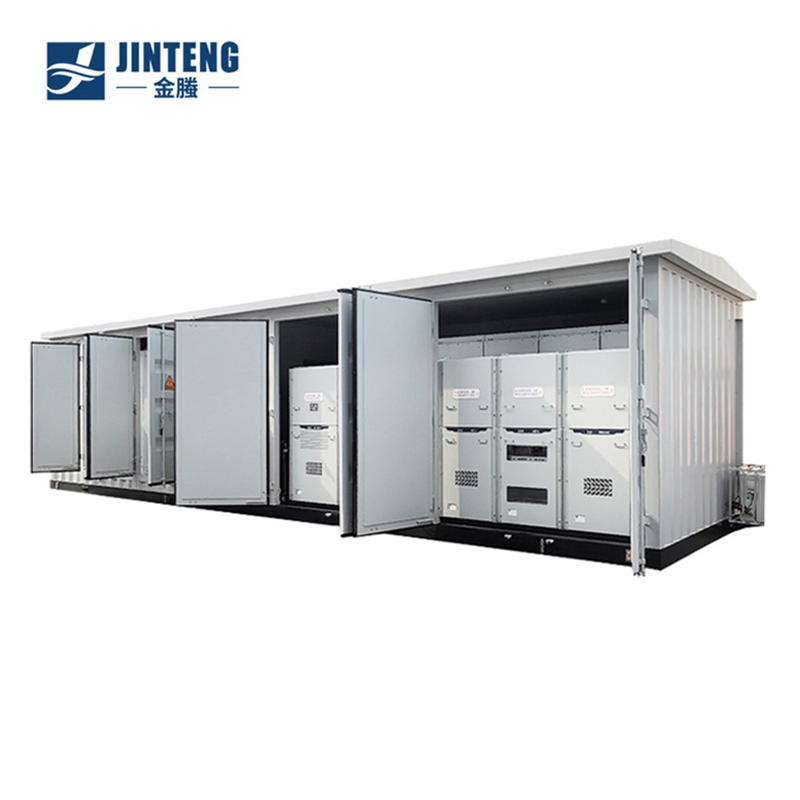

High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin
High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin
High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin
High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin
High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin
1 / 5
High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin
High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin
High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin
High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin
High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin

High and Low Voltage Transformer Unit Wind Power Distribution Energy Prefabricated Cabin

Customization: Available
Type: Energy Prefabricated Cabin
Operating Voltage: High Pressure
Send Inquiry

Product Description

Basic Info.
Model NO.H30
Enclosure ProtectionOutdoor (Battery: IP55)
StructureHV/Transformer/LV Unit
Ambient Temp.-20°C~+50°C
FormAll-Packaged Type
Housing MaterialAluminum Alloy
Warranty2 Years
Specification6058mm*2438mm*2896mm
Product Description
◈ The energy storage prefabricated cabin adopts a modular and integrated design, integrating power conversion systems (PCS), step-up transformers, and energy storage equipment.
◈ Includes lithium iron phosphate batteries, battery management system (BMS), energy management system (EMS), power distribution, and fire protection in a 20HQ standard container.
◈ Plug-and-play functionality reduces construction time and costs, compatible with PV arrays, wind power, and diesel generators.

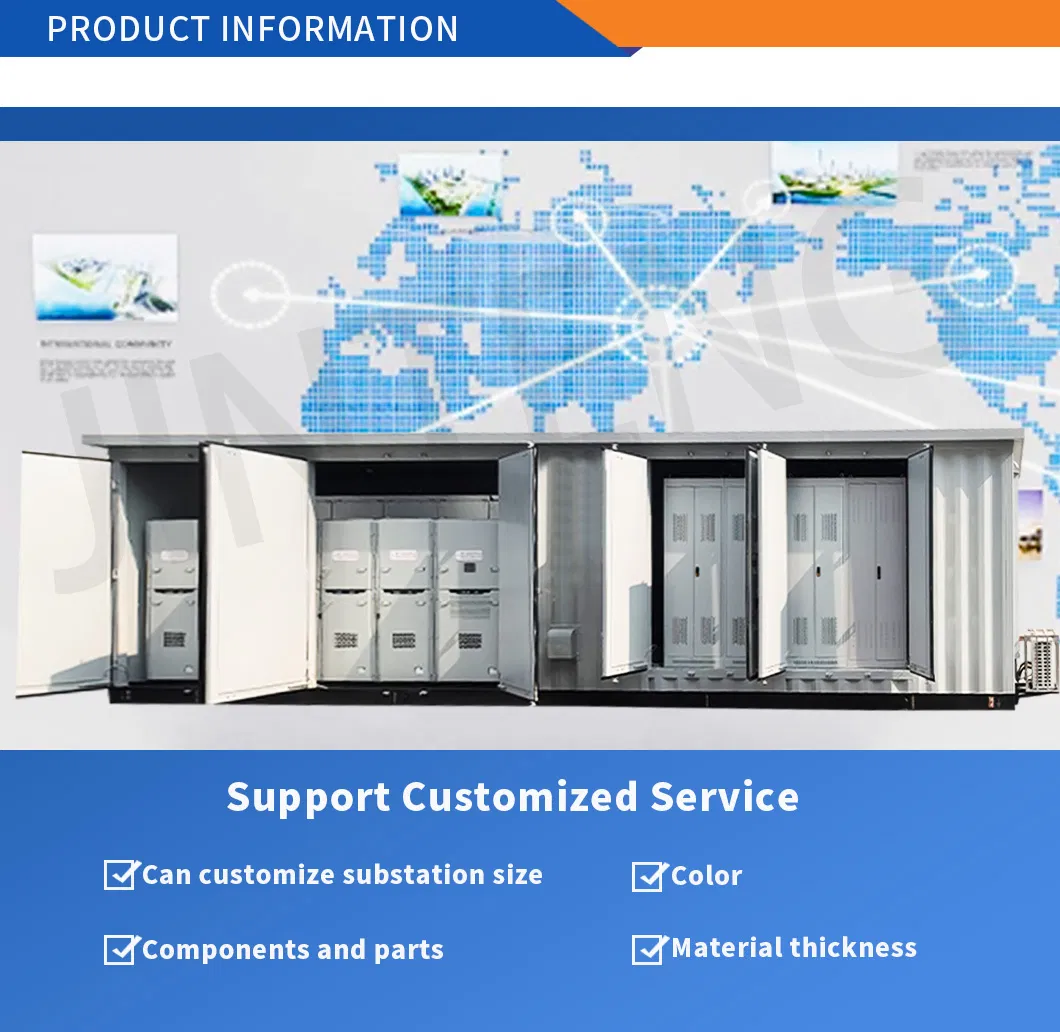

Energy Prefabricated Cabin
Product Parameters
Parameters Diagram
Lithium Battery Energy Storage System Container
Model 300KWH 500KWH 800KWH 1MW
Solar Panel 300KW 500KW 800KW 1MW
Hybrid Solar Inverter 300KW PCS 500KW PCS 800KW PCS 1MW PCS
Utility Voltage 380V/400V/480V Optional; 50/60Hz
Battery Packs Lithium Battery Packs with BMS/MBMS/EMS Protection
General Parameters
Protection Level Battery cabinet: IP55, Electrical room: IP34
Operation Temp. -20ºC to 50ºC
Cooling Method HVAC / Forced air cooling
Fire Fighting FAS & FM200/Novec1230
Dimensions 6058mm * 2438mm * 2896mm (20HQ)
Detailed Photos

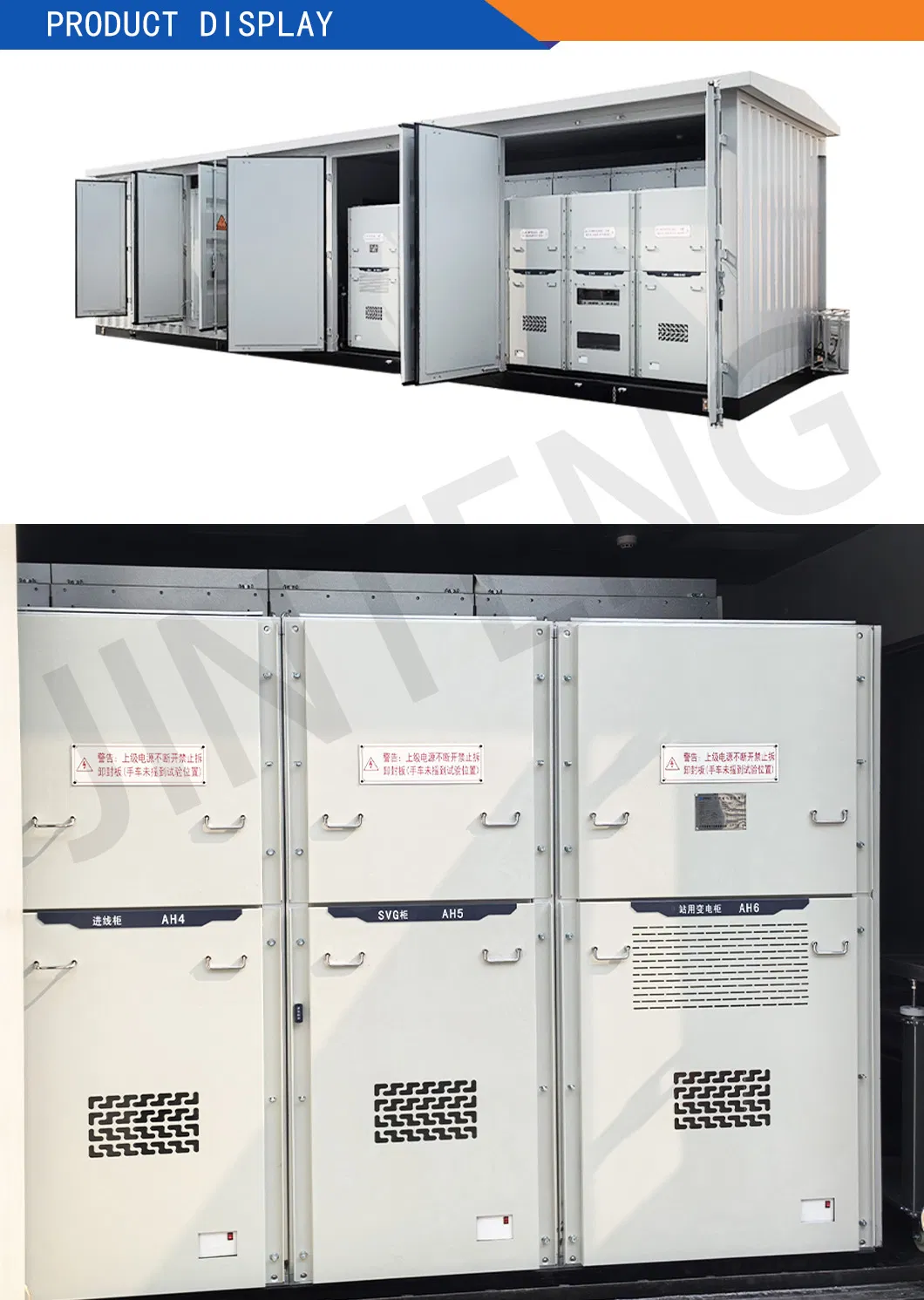

Detailed Product View
Our Advantages
✔Highly Integrated: Modular design for storage and inversion.
✔High Protection: Multi-layer strategy with IP55 explosion-proof structure.
✔Grid Support: Features LVRT, HVRT, ZVRT, and active/reactive power regulation.
✔Thermal Isolation: Exclusive patent to prevent flame leakage between battery clusters.

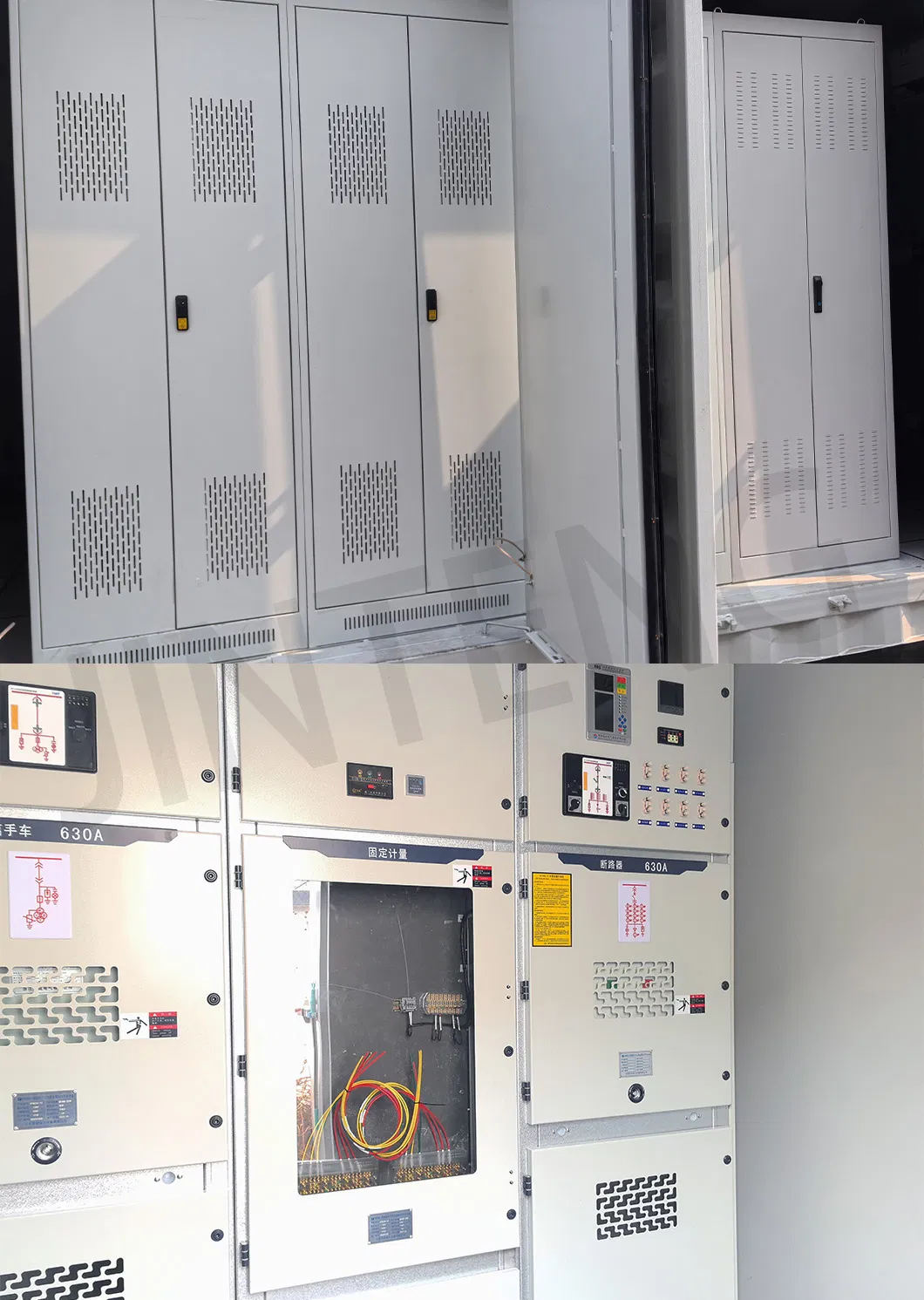

Advantage 1

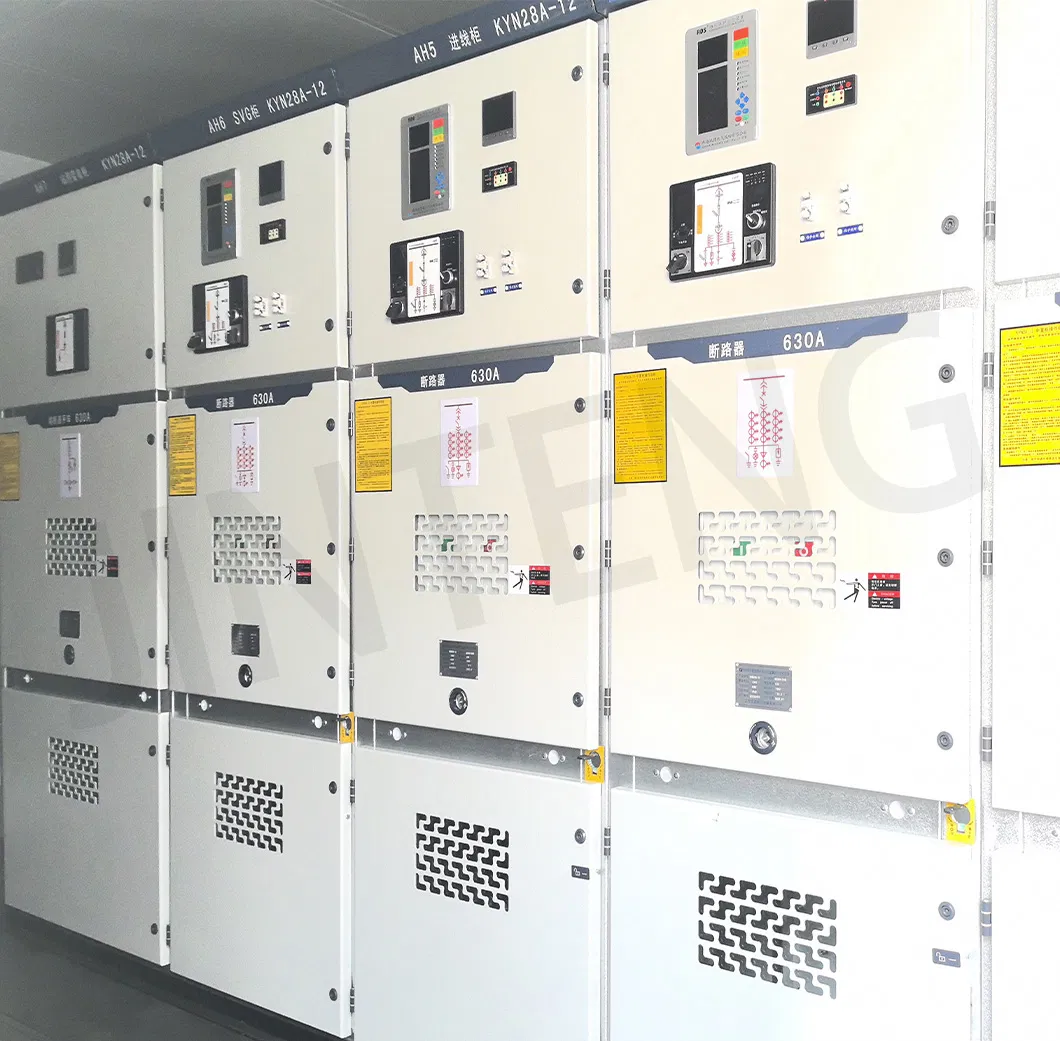

Advantage 2
Application Scenarios
Customer Visit
Visit 1
Visit 2
Certifications
Certification List

Patent Certificate: Products have passed ISO9001, 14001, and CE certifications, meeting international standards.

Packaging & Shipping

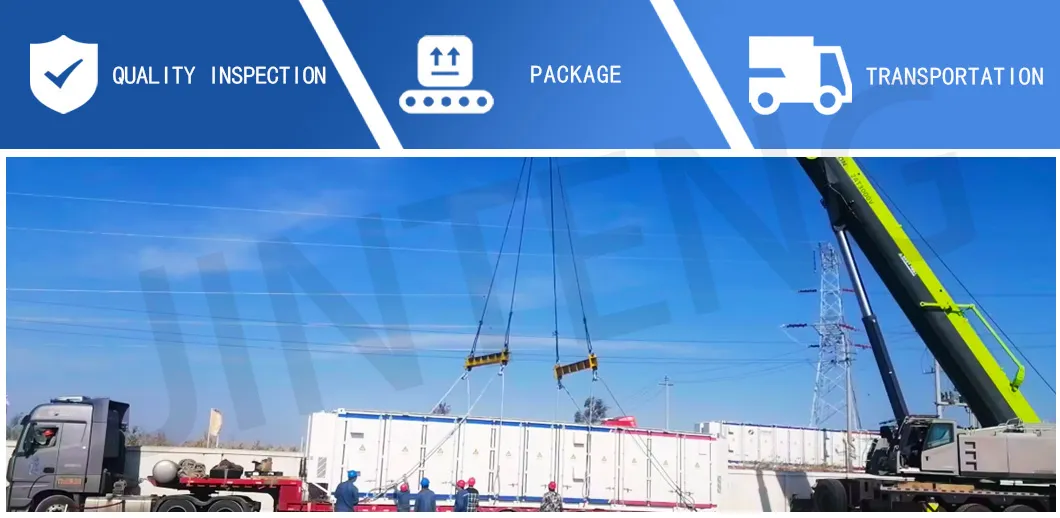

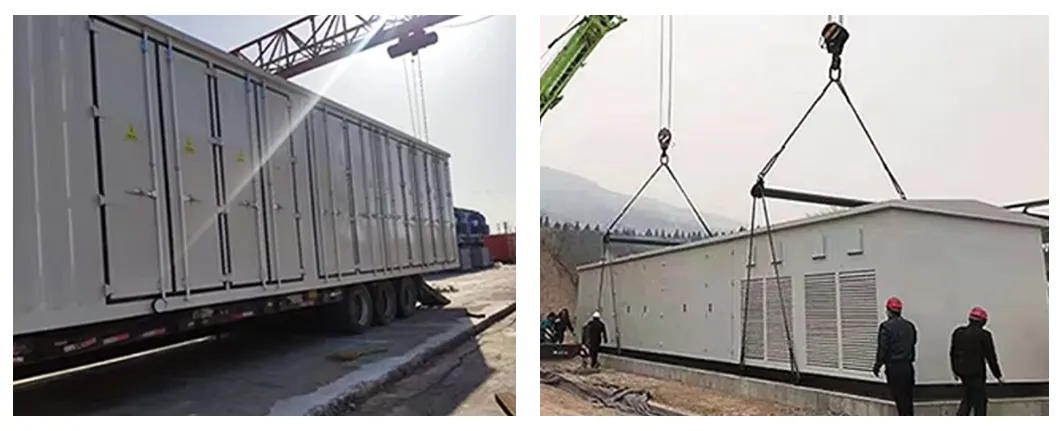

Packaging 1
Packaging 2
Logistics Schedule
Frequently Asked Questions
Q1: Do you accept customized services?
Yes, we offer ODM/OEM services. We can print your logo on products and provide customized projects based on your drawings and parameters.
Q2: What is the Minimum Order Quantity (MOQ)?
Our MOQ is 1 piece.
Q3: How long is the delivery lead time?
It depends on your specific requirements and quantity. Generally, delivery is available within 5-10 working days.
Q4: How do you solve quality problems?
Please provide detailed photos of the quality issue. Our technical and quality departments will analyze it and provide a solution within 2 days.
Q5: What are your payment terms?
30% deposit via wire transfer in advance, 70% before shipment, or via letter of credit.
Q6: What is the warranty period for your systems?
We provide a standard 24-month (2 years) warranty, which can be extended to 5 years upon request.
