Guhe 80kw CCS2 CCS1 DC Fast Fleet Car Charging Station Floor Mounted Mobile EV Charging Solutions Level 2 EV Charger Infrastructure

Product Overview

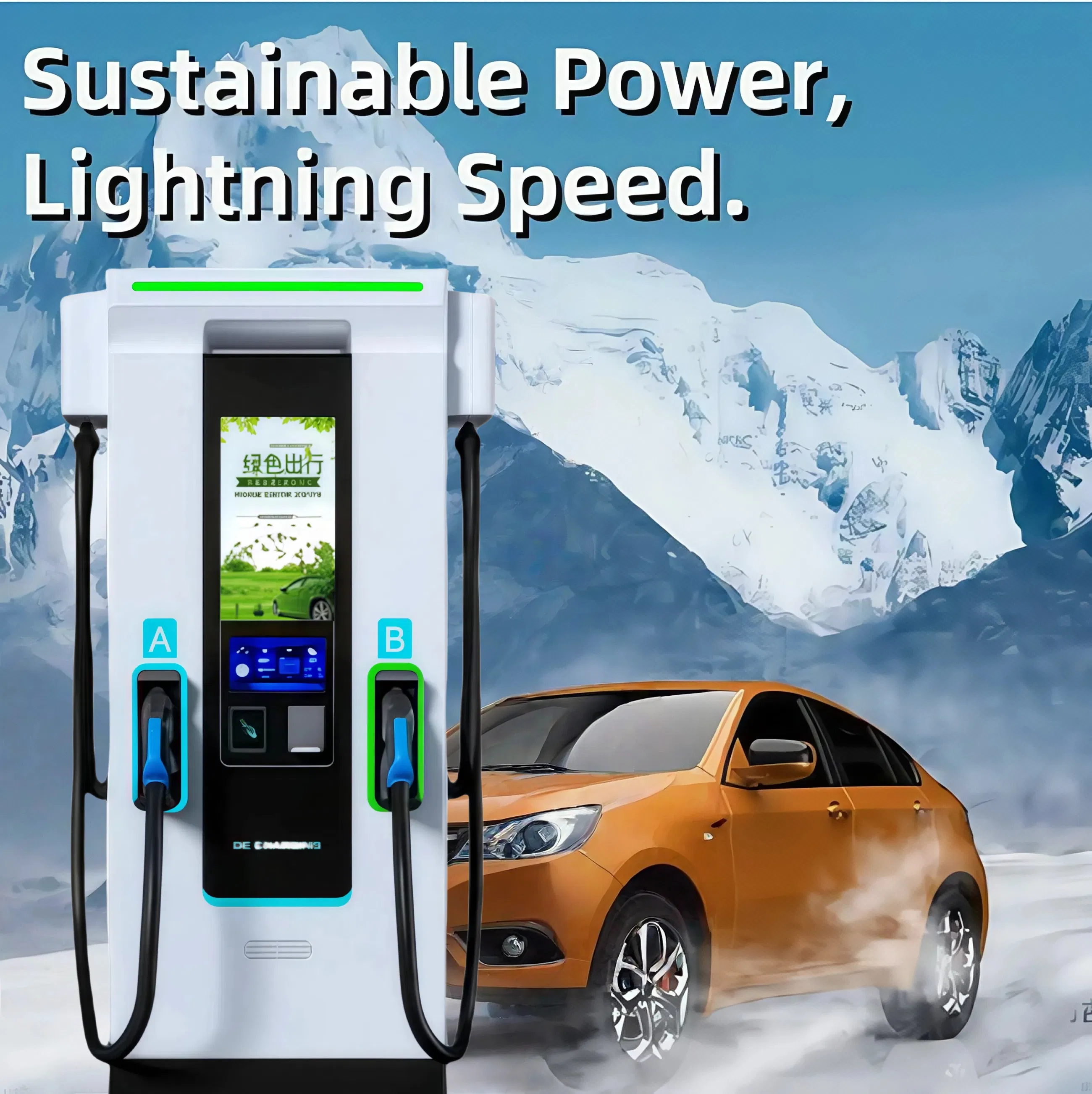

80kW 8 Inches LCD Screen DC CCS2 Smart Charger

High-performance 400A, 80kW Smart Charger designed for commercial use, fully compatible with OCPP 1.6J protocols for fleet and public infrastructure.

Technical Specification

Parameter	Details
Model NO.	GHDC80K-J-R
Power Range	40kW, 60kW, 80kW, 120kW, 160kW, 180kW, 240kW
Input Voltage	AC 400V±15%/440V±10%/480V±10%
Output Voltage Range	DC 150-1000V
Max Output Current	400A
Communication Protocol	OCPP 1.6 JSON
Display	8 inches Touch LCD Screen
IP Rating	IP54 for Outdoor Use
Operating Temperature	-30℃ to +50℃
Product Size	7004901696mm (40~160kW)

Protection & Control System

Multiple Protections

IP54 Waterproof for Outdoor Use
Emergency Stop Button
Leakage & Over Temperature Protection
Lightning & Surge Protection
Over Current & Over/Under Voltage
Short Circuit Protection

Smart Control Modes

App Remote Control (WiFi/Bluetooth)
RFID Card Authentication
POS Payment Integration
Plug & Charge Ready

After Sales Service

24-Month Warranty

Full coverage against manufacturing defects for peace of mind.

Components Replacement

Core components replacement for free including water damage coverage.

Free Technical Support

Lifetime professional technical guidance on working days.

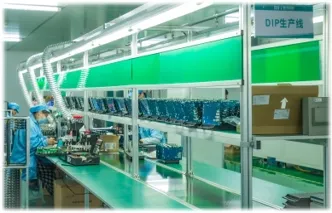

Manufacturing Excellence

Factory Advantages

ITAF 16949 Certified Facility
Professional Lab for Rigorous Testing
2-Hour Full Endurance Pre-shipment Test
Monthly Capacity: 5,000 units

Product Focus

High Power DC Charging Stations
Residential & Commercial AC Chargers
Integrated Solar & Storage Solutions
Customized EV Charging Infrastructure

Compliance & Certifications

ISO 9001

SGS Certified

TUV Certified

Frequently Asked Questions

Q: How long is the standard charging cable?

A: The standard charging cable is 5m. However, we offer customization options for 7m, 10m, or longer cables based on your project requirements.

Q: Can the charger be customized with our brand logo?

A: Yes, we provide full OEM/ODM services. You can customize the exterior color, logo, RFID cards, and even the App interface to align with your brand.

Q: What are the shipping methods for international orders?

A: Most heavy DC charging stations are shipped via sea freight to ensure cost-effectiveness. For urgent small components, air express can be arranged.

Q: Does the charger support OCPP for network management?

A: Absolutely. Our chargers support OCPP 1.6 JSON, allowing you to connect to any third-party management platform for billing and monitoring.

Q: What is the typical lead time for an order?

A: For standard models, the lead time is usually 15-25 days. Large scale or highly customized orders may require 30-45 days.

Q: Are the chargers suitable for extreme weather conditions?

A: Yes, with an IP54 rating and an operating temperature range of -30°C to +50°C, these chargers are built to withstand rain, snow, and high temperatures.
