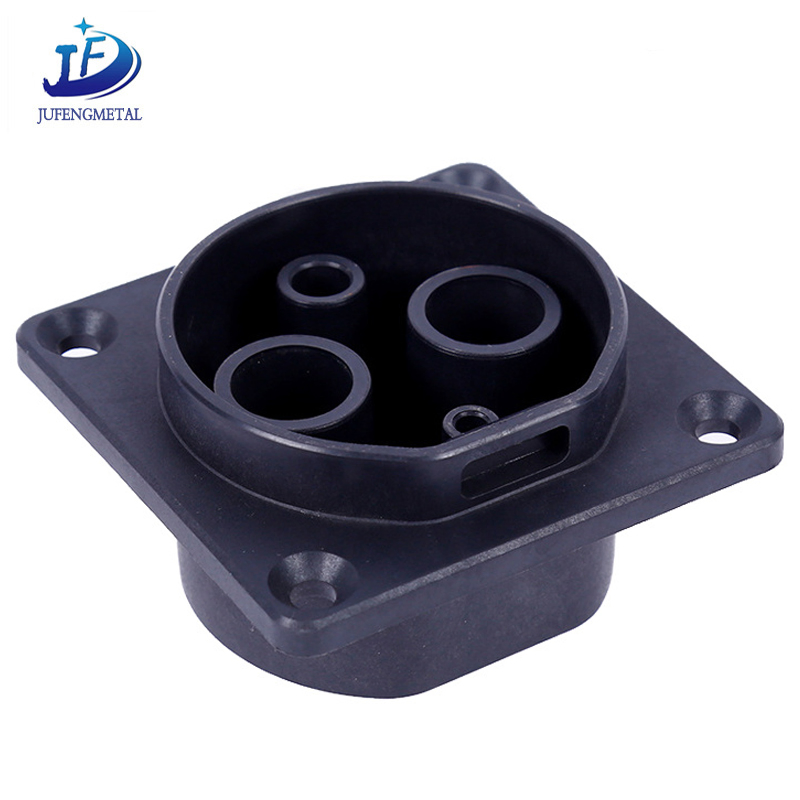

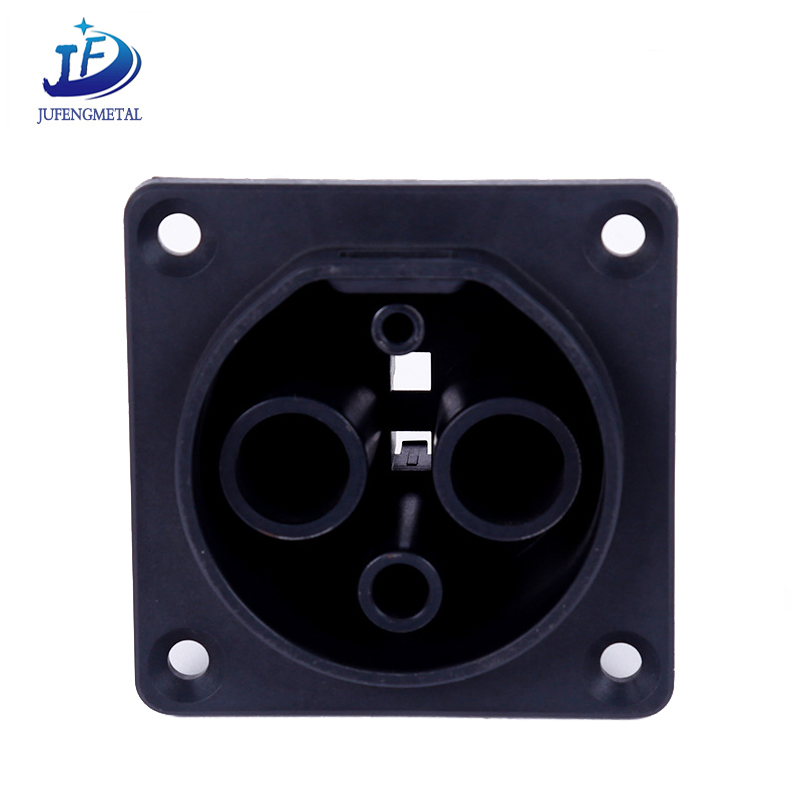

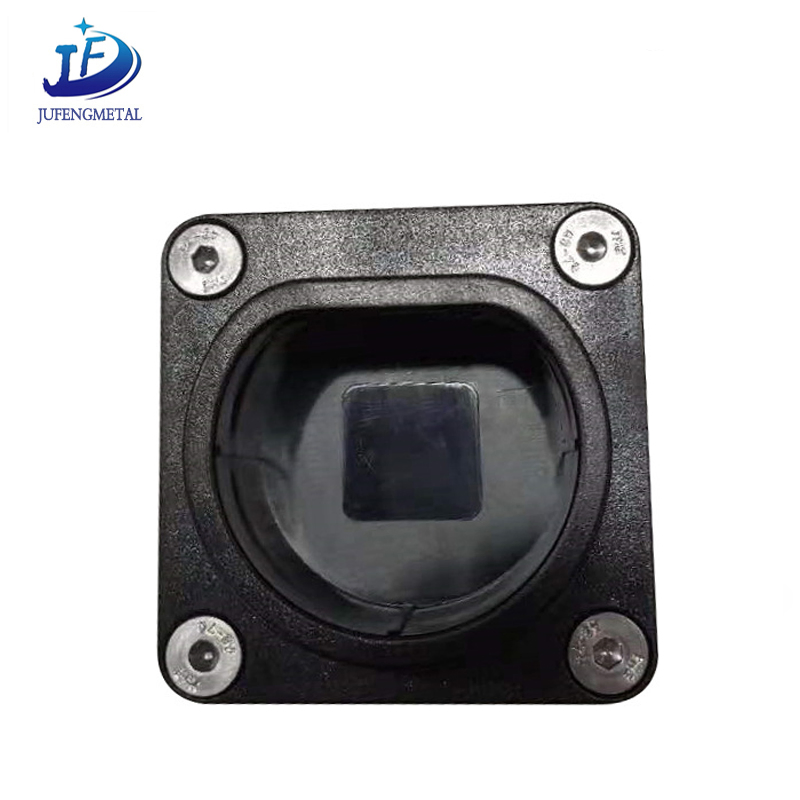

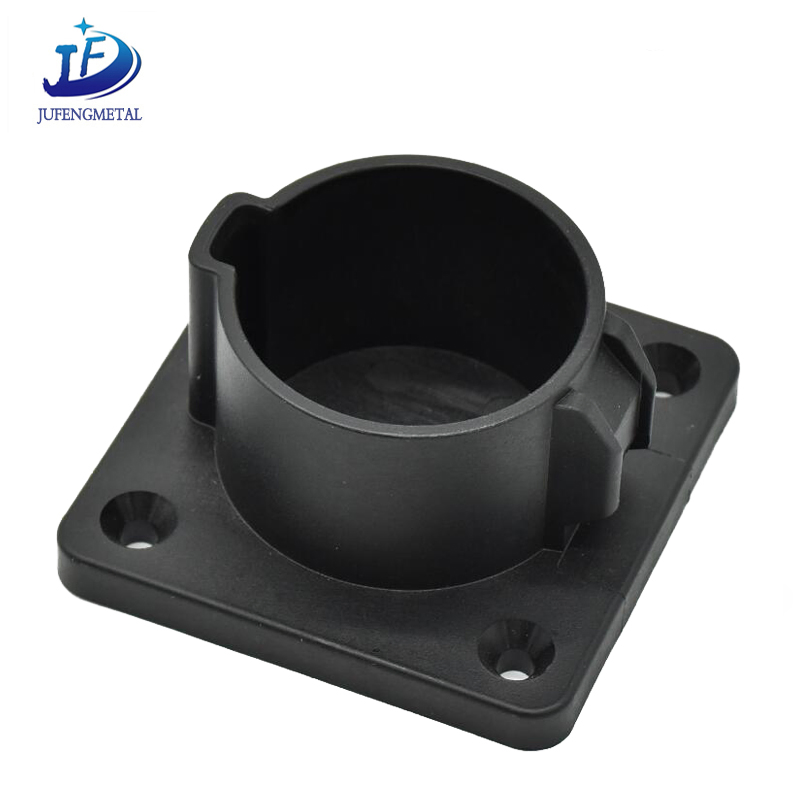

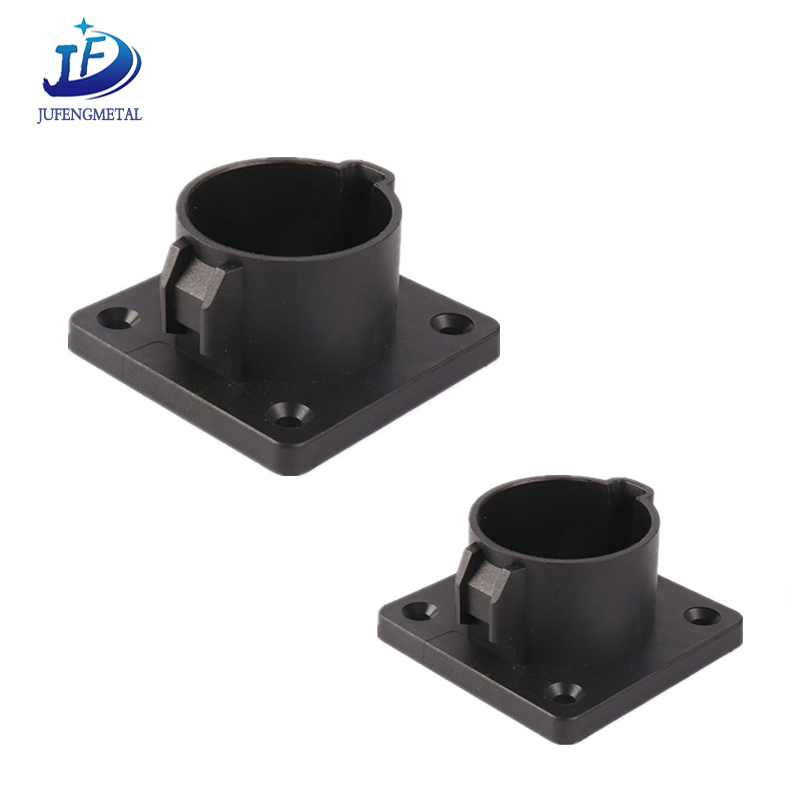

GB/T DC Charging Connector Interface 9-Hole New Energy Vehicle EV Charger

1 / 5

GB/T DC Charging Connector Interface 9-Hole New Energy Vehicle EV Charger

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.	JF-CDZT
Certification	TS16949, RoHS, ISO
Item	EV Charger
Technics	Injection Molding Parts
Part Type	Auto Parts
Surface Treatment	Spraying/Polishing/Galvanized/Electroplating
Processing	As Per Your Drawing
Production Capacity	50,000 PCS/Month
HS Code	39269090

Product Parameters

GB/T DC Charging Connector Interface 9-hole New Energy Vehicle EV Charger

Product Range	Product design, mold design, mold making and produce plastic parts
Processing Craft	Mold fabrication, Injection etc.
Material	ABS, BMC, SMC, AS, PVC, Nylon(PA), PP, PC, PE, POM, PS, HDPE, TPE, TPU etc.
Surface Finish	Polishing, Texture, Glossy, Electroplating, Painting, Silk print, Rubber Painting etc.
Color	RAL/PANTONE color
Tolerance	0.01~0.1mm
Inspection	IQC, IPQC, FQC, QA

Product Features

✓ IP66 protection, no need to add protective devices
✓ Modern industrial design, simple and refined
✓ Industrial-grade components, adapt to extreme environments
✓ Standby power consumption is 3W, reducing operating costs

Product Description

Mould Material	P20, 718H, 45#, STAVAX ESR S136, H13, 2316, 2083, 2344
Mould Cavity	Single / Multi
Runner System	Hot / Cold
Mould Life	80,000 to more than 1,000,000 shots
Delivery Time	4-8 weeks

Rapid Tooling: Fast and cost-effective process to create aluminum or steel injection molds for quick turn injection molding. Ideal for rapid prototyping needs or validating product concepts.

Overmolding: A unique injection molding process that combines two or more components. Best for multi-color and multi-layer products.

Insert Molding: Encapsulates components in a plastic part. Commonly used for designs with threads and holes.

Liquid Silicone Rubber (LSR): Produces elastic, durable parts with a flexible prototype process.

Our Advantages

1. Competitive pricing models.
2. Strict quality control system.
3. Quick mold making and efficient delivery.
4. Advanced equipment and excellent R&D teams.
5. Professional technicians and rich experienced workers.

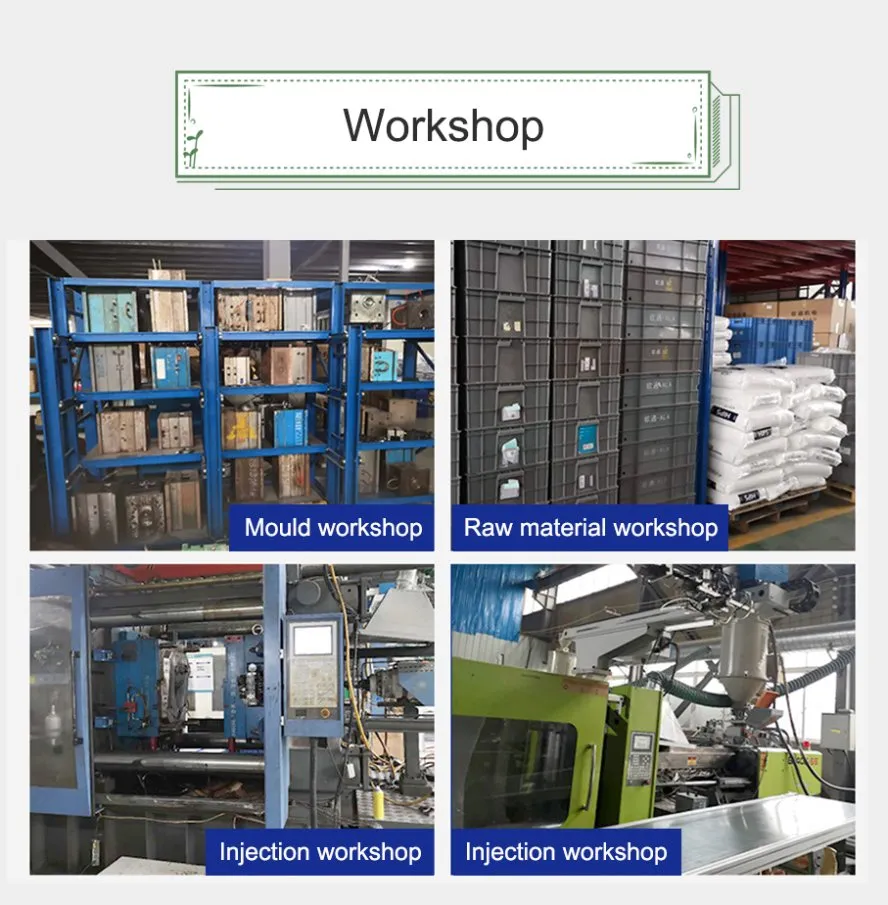

We source and mold any grade of material from typical commodity grade plastics to engineering, functional, and structural grade materials. Our manufacturing processes are highly automated, ensuring precision and quality with minimal overhead costs.

Quality First, Price Best, Service Foremost!

Frequently Asked Questions

Q1: What is the protection rating of this EV charger connector? A: The connector features an IP66 protection rating, ensuring it is highly resistant to dust and water without needing additional protective devices.

Q2: What certifications do your products carry? A: Our products and processes are certified under TS16949, RoHS, and ISO standards to ensure the highest automotive-grade quality.

Q3: Which materials can be used for the injection molding parts? A: We work with a wide range of materials including ABS, PC, PP, Nylon (PA), POM, TPE, TPU, and more, depending on your specific engineering requirements.

Q4: How long does the mold-making process usually take? A: Typical delivery time for mold fabrication and initial sampling ranges from 4 to 8 weeks, depending on the complexity of the design.

Q5: Can you handle custom surface treatments? A: Yes, we offer various secondary services including polishing, texture finishing, electroplating, painting, and silk-screen printing to meet your aesthetic needs.

Q6: Do you support rapid prototyping? A: Absolutely. We offer rapid tooling services for fast and cost-effective creation of aluminum or steel molds, perfect for product concept validation.
