Basic Specifications
Circuit
Intelligent Protected
Type
Fast EV Charging Station
Certification
CE, ISO, TUV, RoHS
Transport Package
Wooden Case
Specification
1063*932*1743

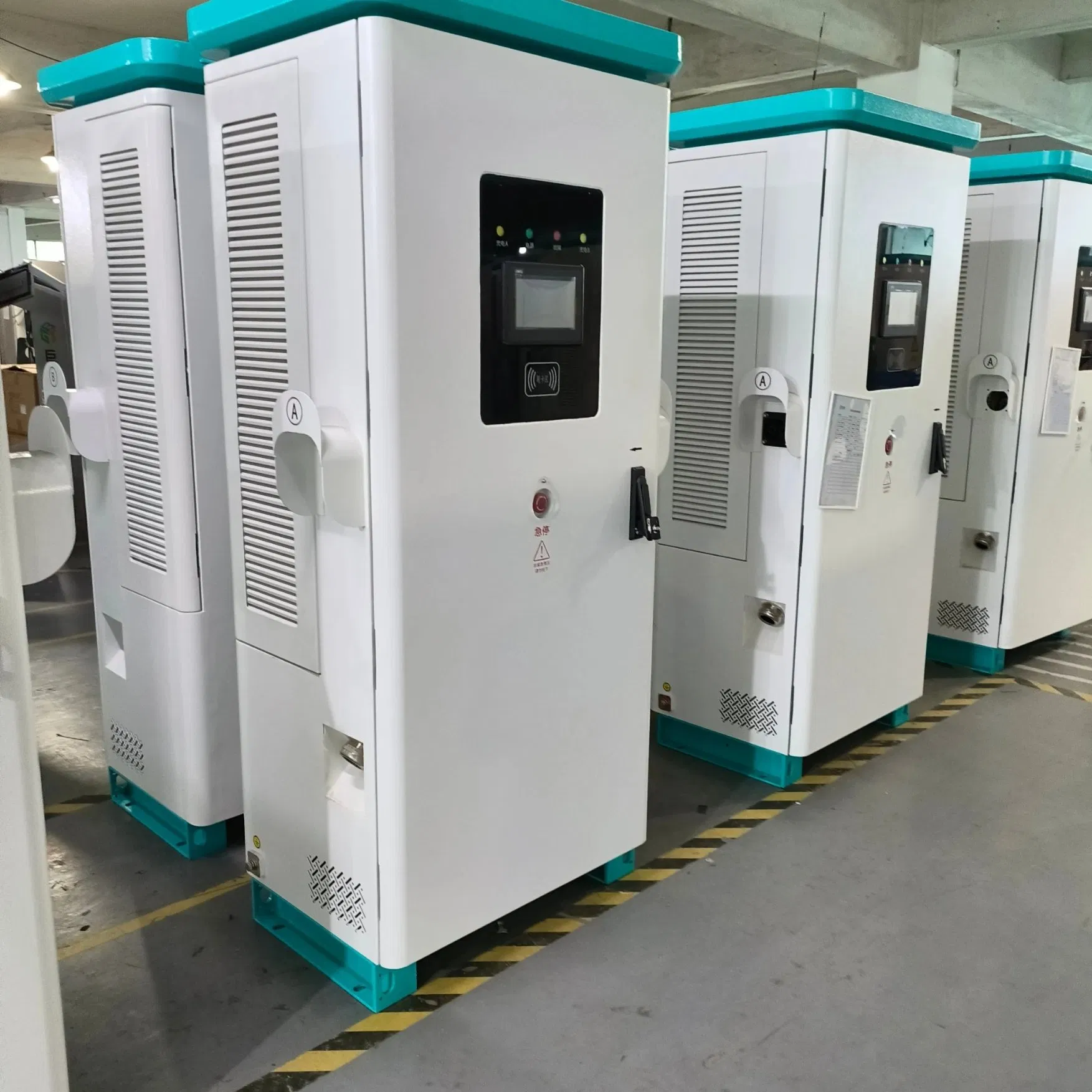

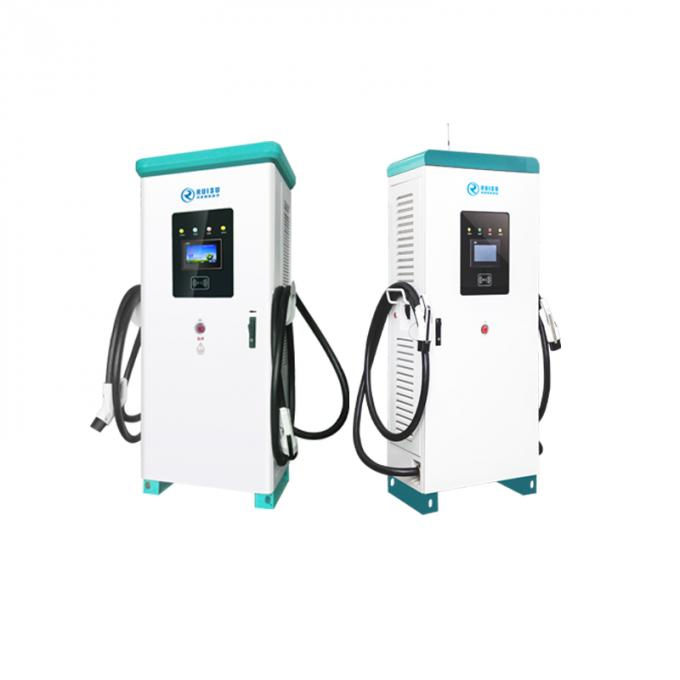

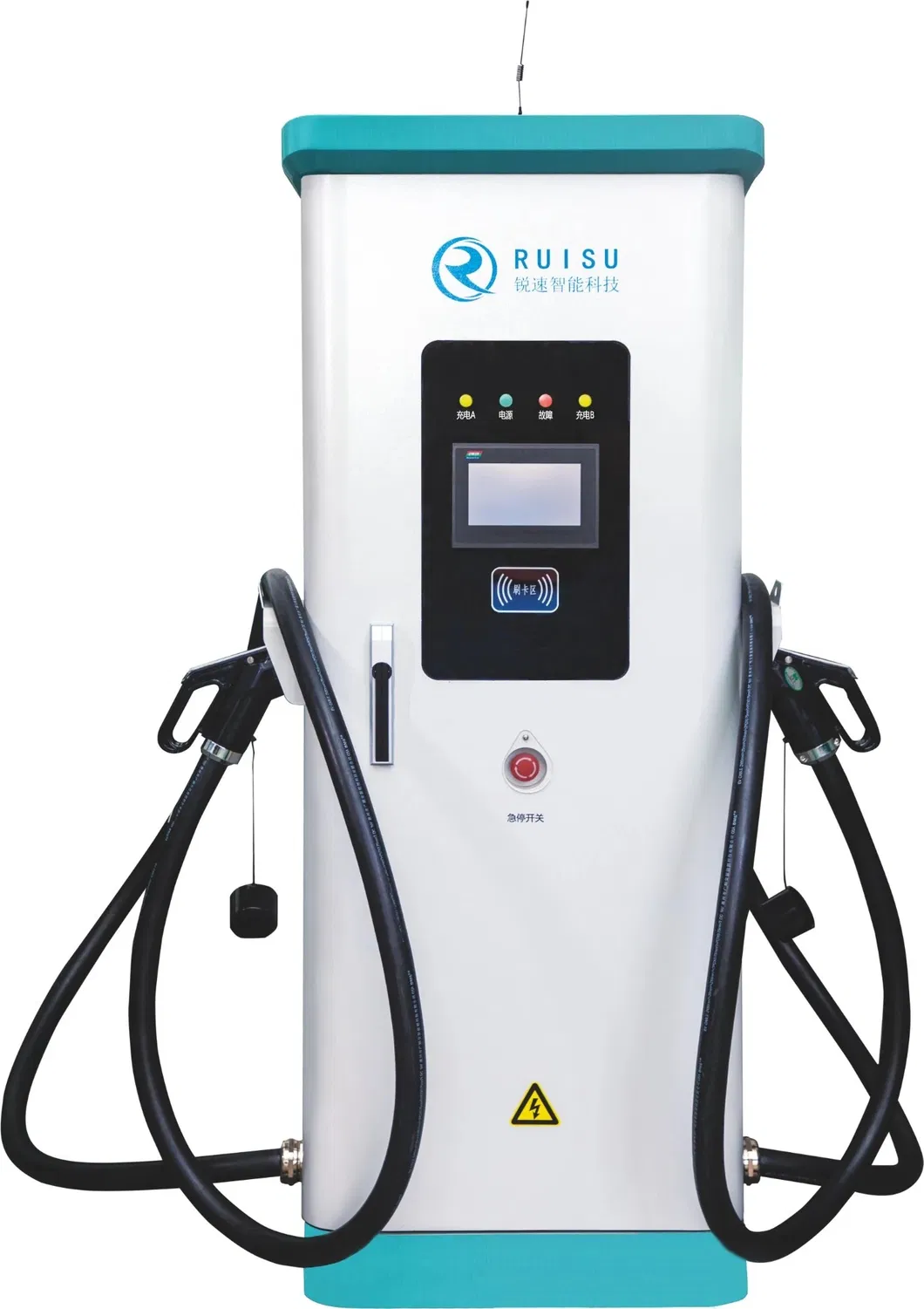

360KW Fast DC Charger EU/US Standard
High-performance CCS1/CCS2 charging solution designed for Electrical Light-Duty Trucks and Engineering Fleets.
| Product Model |
RSDC1000-240KW |
RSDC1000-300KW |
RSDC1000-360KW |
| Power | 240KW | 300KW | 360KW |
| Dimensions (WxTxH) | 830*920*1867mm | 830*824*1966mm | 830*824*1966mm |
| Display Screen | 7" color touch screen |
| AC Input Voltage | 380V±15%, 3-phase + N + PE |
| Efficiency | ≥96% (full load) |
| DC Output Voltage | 200-1000Vdc |
| DC Output Current | 0~250A (single gun) |
| Heat Dissipation | Air cooling |
| Power distribution | Equalization/intelligent distribution/cutting |
Core Advantages & Features
❄️
Adopt intelligent liquid cooling technology and dual-circulation cooling circuit, ensuring charging speed remains stable even when temperatures are below 55 °C.
🛡️
The coolant is an organically synthesized liquid that does not freeze at minus 45°C, featuring real-time monitoring of pressure, flow, and temperature.
⚡
High-power fast charging capability allows vehicles to reach 100% SOC within 10 minutes, significantly reducing downtime.
🔄
Universal compatibility with all electric vehicle models, dynamically matching the required power for any connected terminal.
🧠
Equipped with an intelligent charging module offering high efficiency, low harmonics, and advanced integrated management.
📊
Dynamic power allocation based on BMS demand, maximizing equipment utilization and operational efficiency.
🔌
Integrated system covering power conversion, station-level monitoring, energy storage access, and orderly charging control.
🏢
Flexible split structure: one main cabinet can connect to multiple sub-cabinets to meet diverse operational requirements.

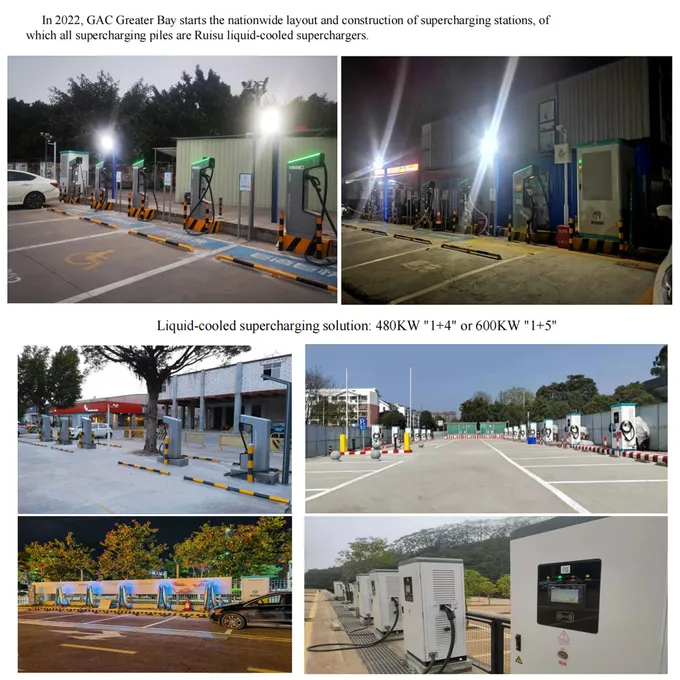

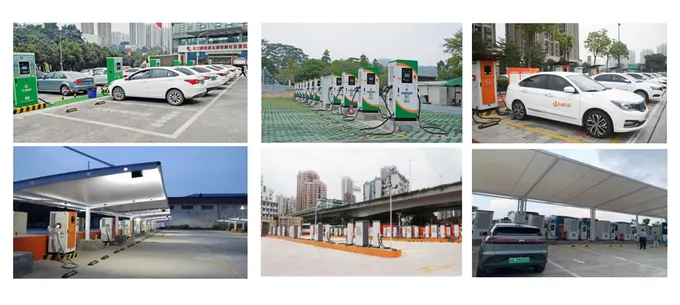

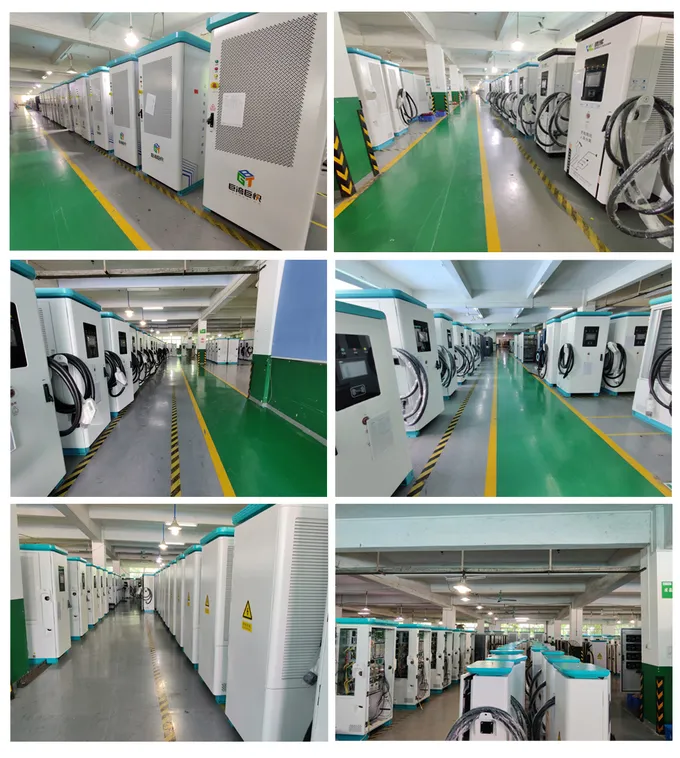

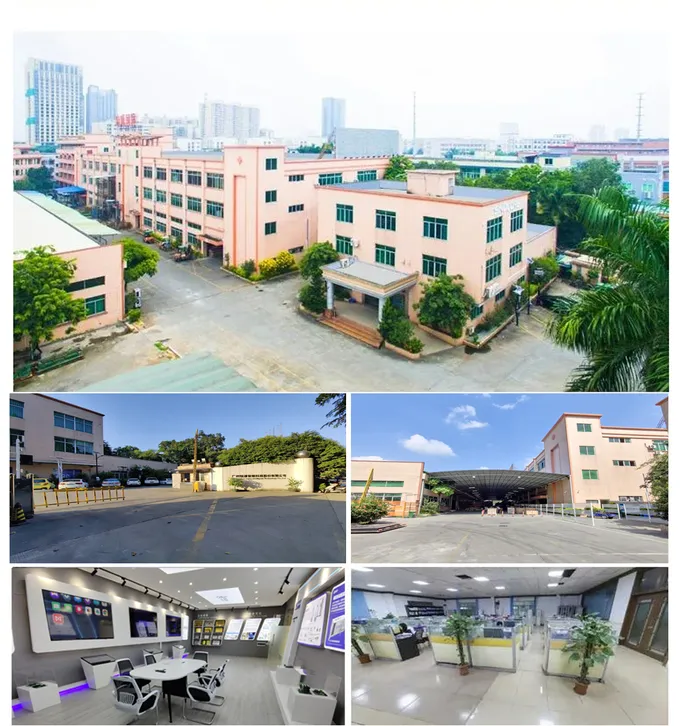

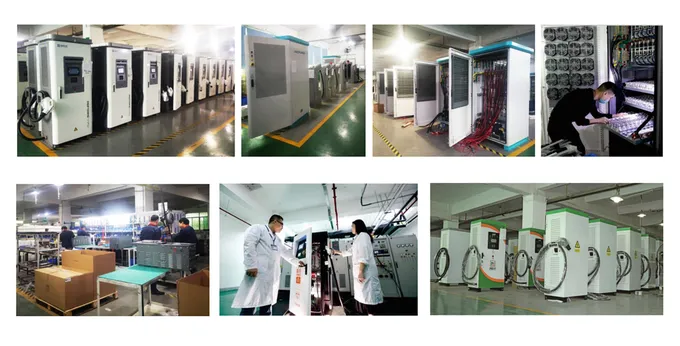

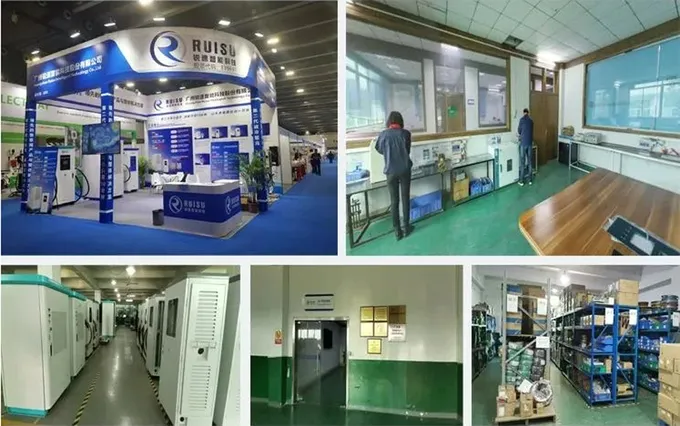

Facility & Production Overview
Frequently Asked Questions
What charging standards does this station support?
The station supports both EU and US standards, specifically CCS1 and CCS2 connectors, making it suitable for a wide range of light-duty trucks and engineering fleets.
How fast can it charge an electric vehicle?
With a maximum power output of 360KW, it can achieve 100% SOC (State of Charge) for compatible vehicles within approximately 10 minutes.
What is the efficiency of the power conversion?
The system is highly efficient, reaching ≥96% efficiency at full load, which helps reduce energy waste and operational costs.
How does the cooling system protect the charger?
It utilizes intelligent liquid cooling and air cooling modes with a dual-circulation circuit to maintain optimal temperatures, ensuring high-speed charging even in extreme conditions.
Can the power be distributed between multiple vehicles?
Yes, the station features dynamic power distribution and intelligent allocation based on the real-time demand from the vehicle's Battery Management System (BMS).
What is the output voltage range?
The DC output voltage range is 200Vdc to 1000Vdc, allowing it to serve both standard and high-voltage battery architectures.
