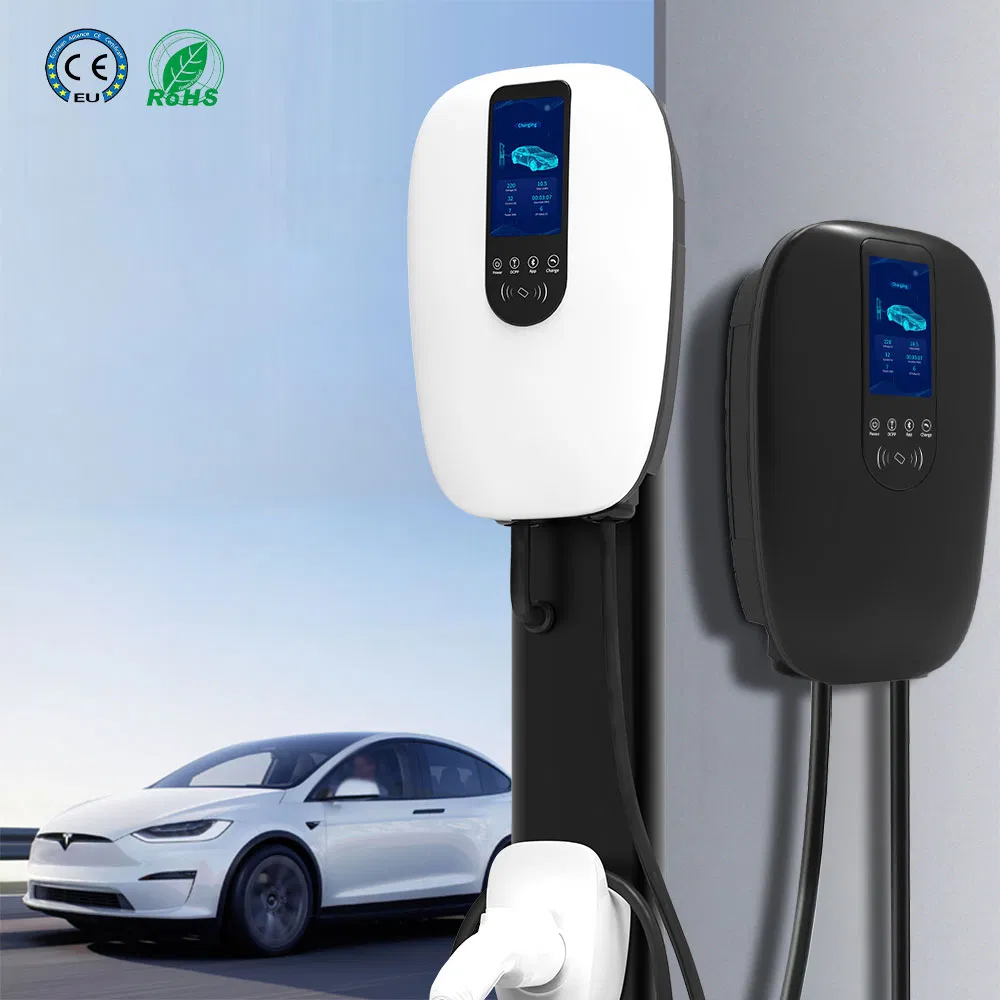

Electric Car Charger EV Charger 22kw Electrics Car

Basic Information

Model NO.

GS22-AC-B02

Installation

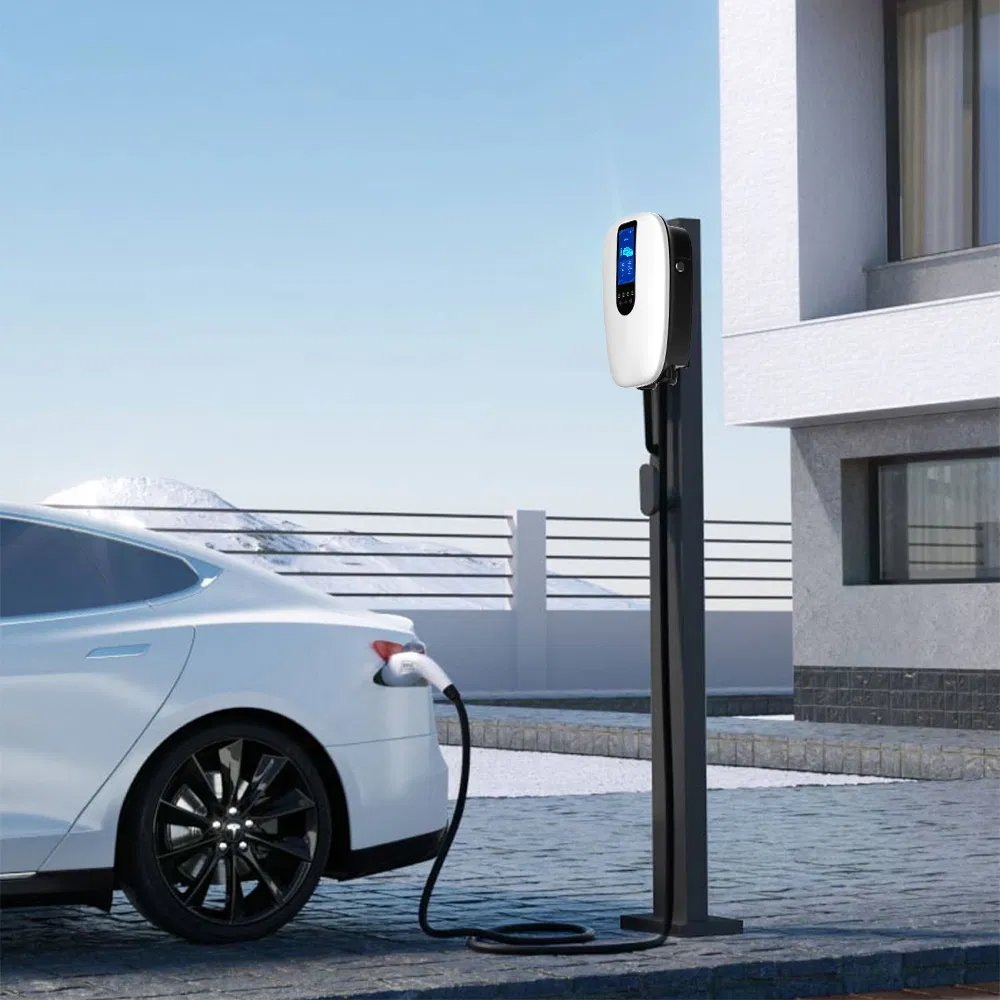

Wall-Mounted Floor-Standing

Charge Method

Quick Charge

Product Name

Car Charger Electr

Rated Power

22kw

Protection

IP65

Communication

WiFi/4G/Ethernet/Ocpp

Rated Current

32A

Connector

Type2 Plug

Start Method

NFC + RFID + Qr + APP

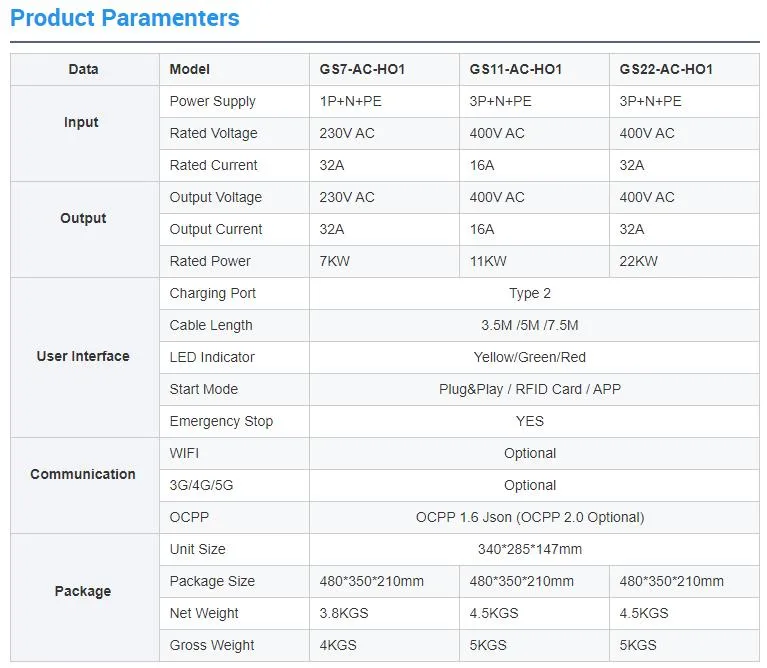

Product Technical Data

Specifications	GS7-AC-BO1	GS11-AC-BO1	GS22-AC-BO1
Power Supply	1P+N+PE	3P+N+PE	3P+N+PE
Rated Voltage	230VAC	400VAC	400VAC
Rated Current	32A	16A	32A
Rated Power	7kw	11kw	22kw
Charging Port	Type 2
Cable Length	3.5M / 5M / 7.5M
Start Mode	Plug&Play / RFID Card / APP
OCPP	OCPP 1.6 Json (OCPP 2.0 Optional)

⚖️

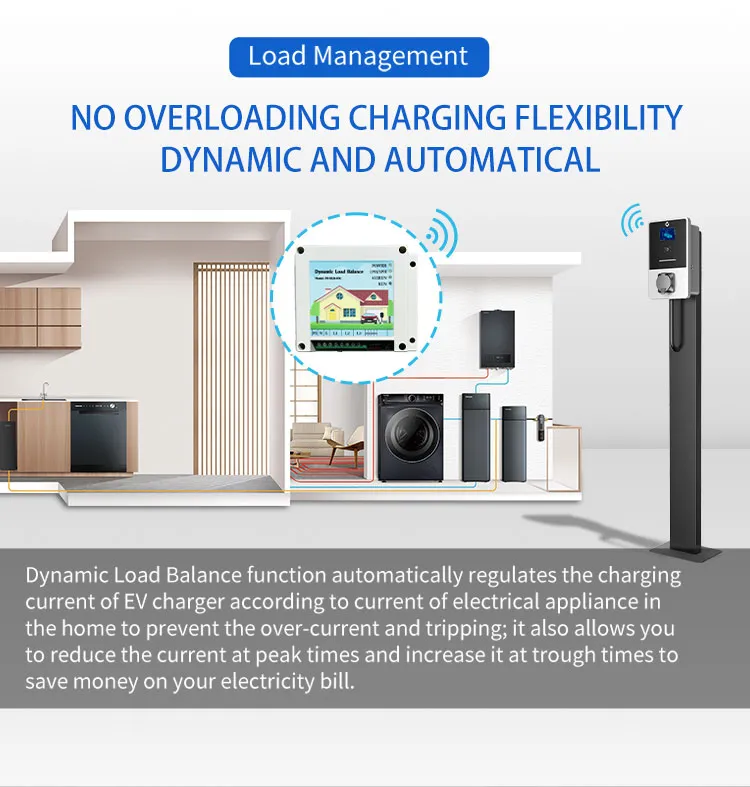

Dynamic Load Balancing

The dynamic load balancing EV charger ensures that the overall energy balance of the system is maintained. It adapts the charging capacity based on current demand, preventing power grid overload by dividing the burden evenly among multiple chargers. It also monitors charging voltage to optimize power consumption when the vehicle is fully charged.

🛡️

PEN Fault Detection

Designed for systems like the UK PME (Protective Multiple Earth), this technology protects against neutral failure. If the PEN line is cut due to a fault, our detection system prevents the EV shell from carrying dangerous voltage, eliminating the risk of fatal electric shocks when standard RCDs might fail.

Frequently Asked Questions

What is the advantage of a 22kW EV charger compared to 7kW?

A 22kW charger can provide up to three times faster charging than a standard 7kW unit, provided your vehicle supports 3-phase charging and your electrical supply can accommodate it.

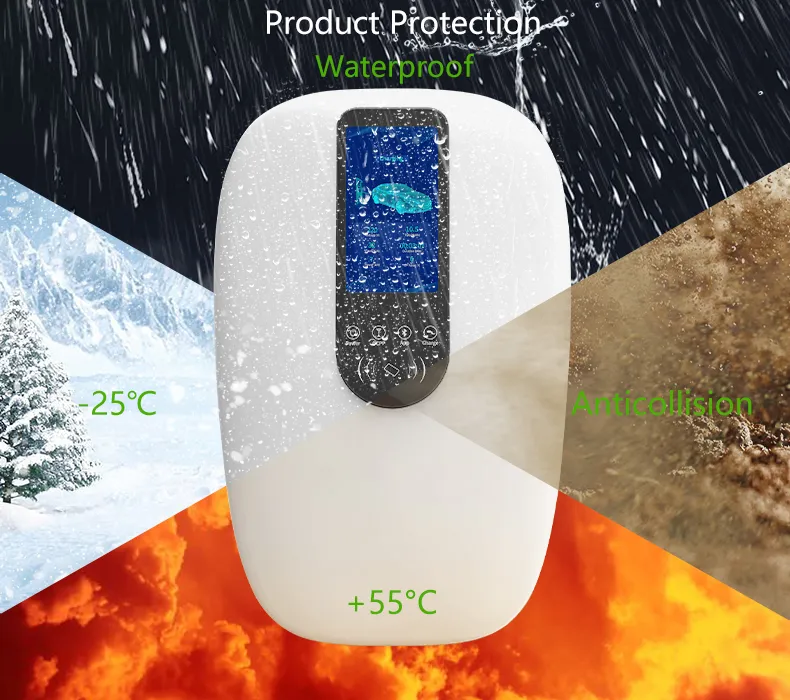

Is the IP65 rating suitable for outdoor installation?

Yes, the IP65 rating ensures the charger is completely protected against dust and can withstand low-pressure water jets from any direction, making it ideal for outdoor wall-mounted or floor-standing use.

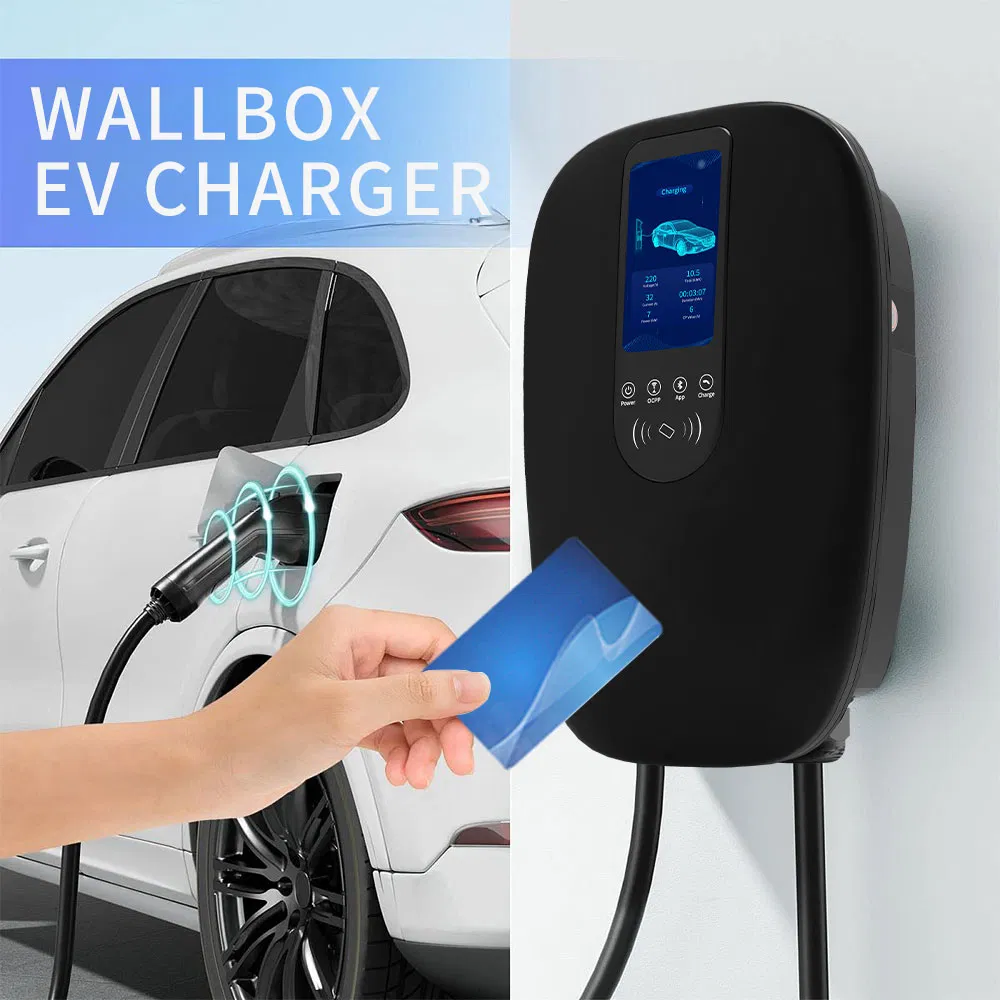

How does the RFID/APP start method work?

You can authorize charging sessions by tapping a registered RFID card on the unit or by using the dedicated mobile app, which also allows for remote monitoring and scheduling.

What is PEN Fault Detection?

It is a safety feature that monitors the electrical connection. If the earth and neutral connection fails, it automatically disconnects the power to prevent the vehicle's metal body from becoming live and dangerous.

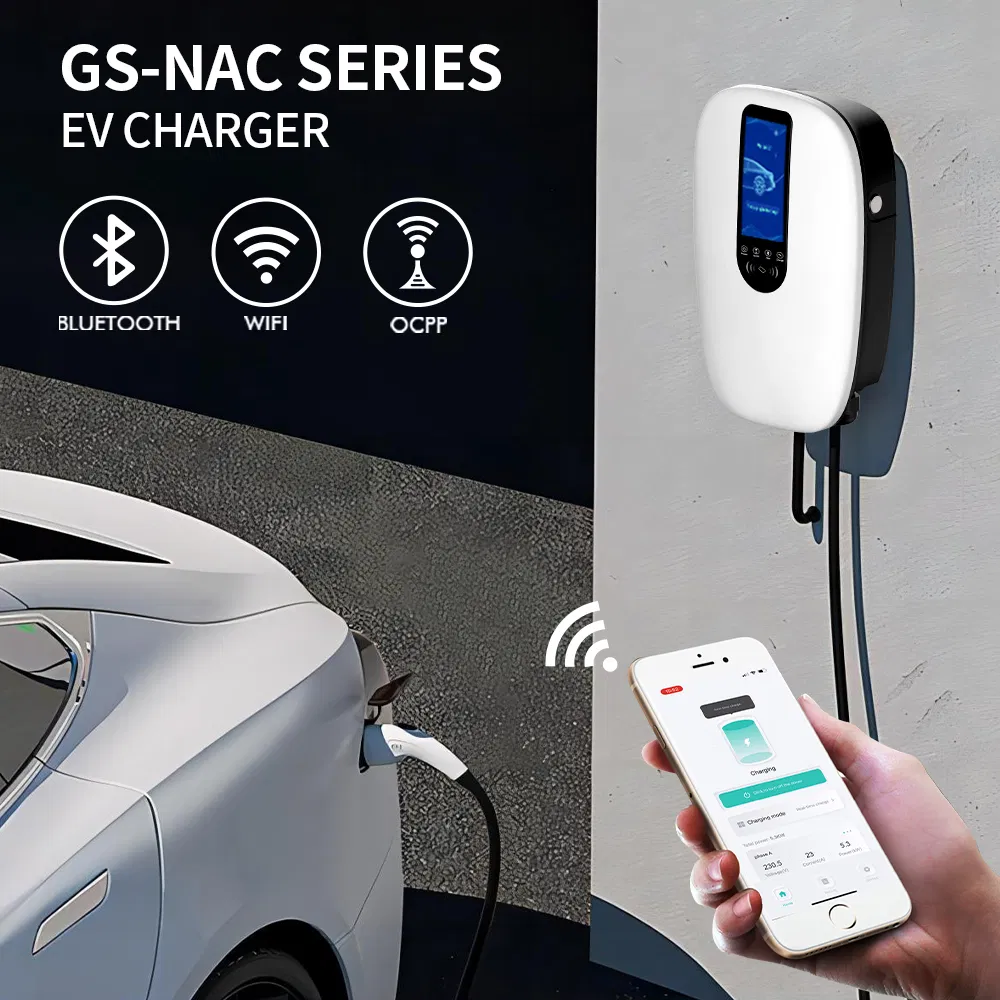

Does this charger support OCPP integration?

Yes, it supports OCPP 1.6 Json protocol, allowing you to connect the charger to various central management systems for commercial or private network management.

Can I adjust the charging current?

Yes, via the Dynamic Load Balancing feature and APP control, the charging power can be adapted to match your household's real-time electricity demand.
