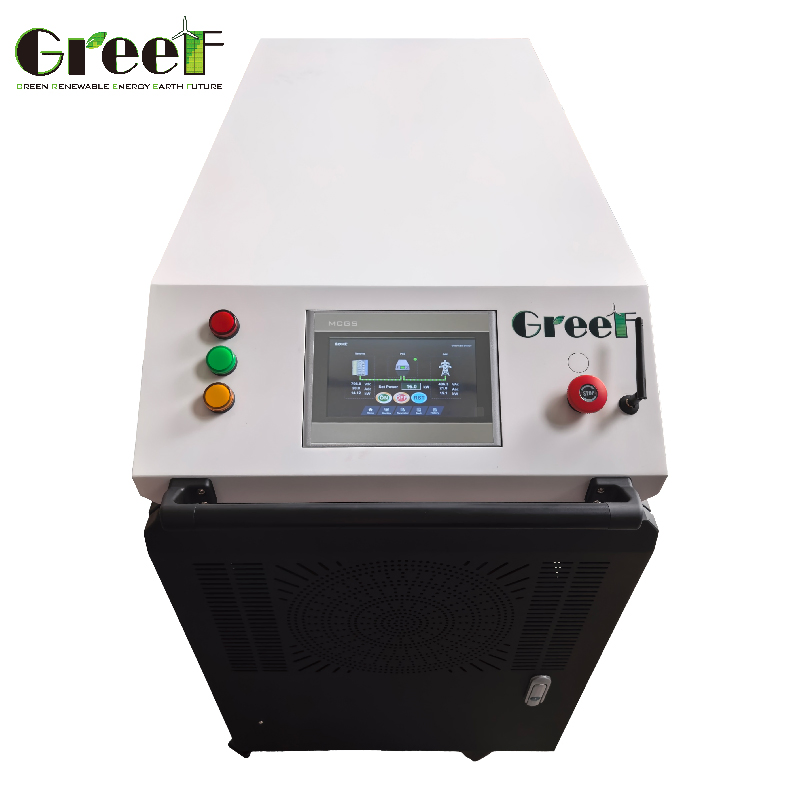

DC Power Conversion System Inverter with AC/DC Conversion EMS for Home

1 / 5

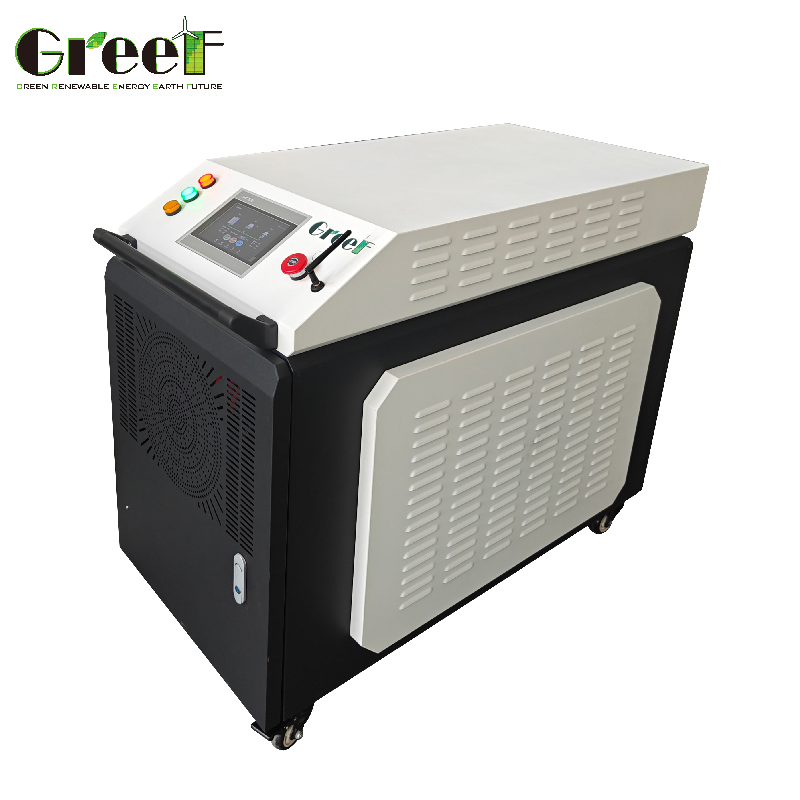

DC Power Conversion System Inverter with AC/DC Conversion EMS for Home

Customization:	Available
Inverter Efficiency:	98.9%
Output Type:	Yes

Send Inquiry

Product Description

📋 Basic Specifications

Model NO. Mars

Output Frequency 50/60Hz

Output Power 100/110/125kw

Output Current 145A

DC Voltage Range 580-1000 V

Application On/Off Grid System

Cooling Method Intelligent Air Cooling

Topology Transformerless

💡 Product Description

The Power Conversion Inverter is the core equipment in an energy storage system and is often referred to as the "brain" of the system. Its main function is to convert power between alternating current (AC) and direct current (DC), enabling the precise control and dispatch of electrical energy.

Core Functions:

➤

AC/DC Conversion: Handles both Rectification (AC to DC for storage) and Inversion (DC to AC for usage).

➤

Charging Management: Efficiently converts grid or PV excess power into DC electricity for battery storage.

➤

Flexible Operation: Seamlessly switches between grid-tied mode and independent off-grid mode (microgrid).

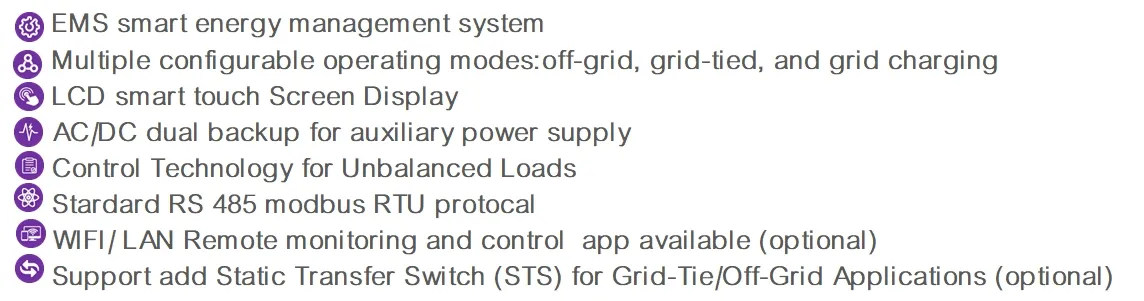

🎖 Product Features

📊 Technical Parameters

Model Parameter	Mars-100kt	Mars-110kt	Mars-125kt
Maximum DC Voltage	1,000V
DC Voltage Operating Range	350-1000V
Rated Charging/Discharging Power	100kW	110kW	125kW
Maximum DC Current	173A	190A	216A
Rated Grid Voltage	400V
Permissible Grid Voltage Range	300-460V
Power Factor	>0.99
Total Harmonic Distortion (THD)	<3%

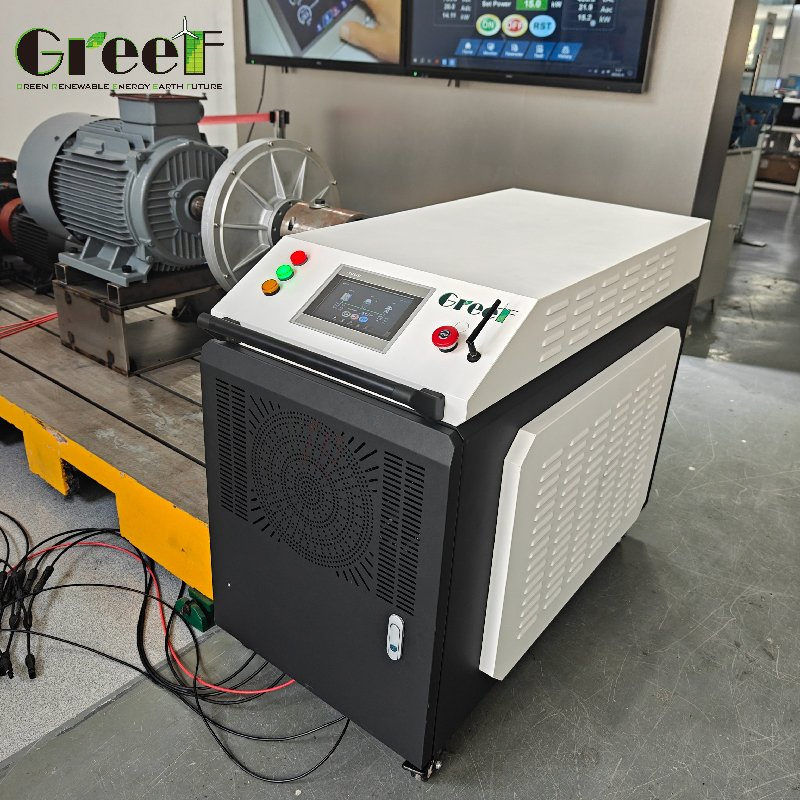

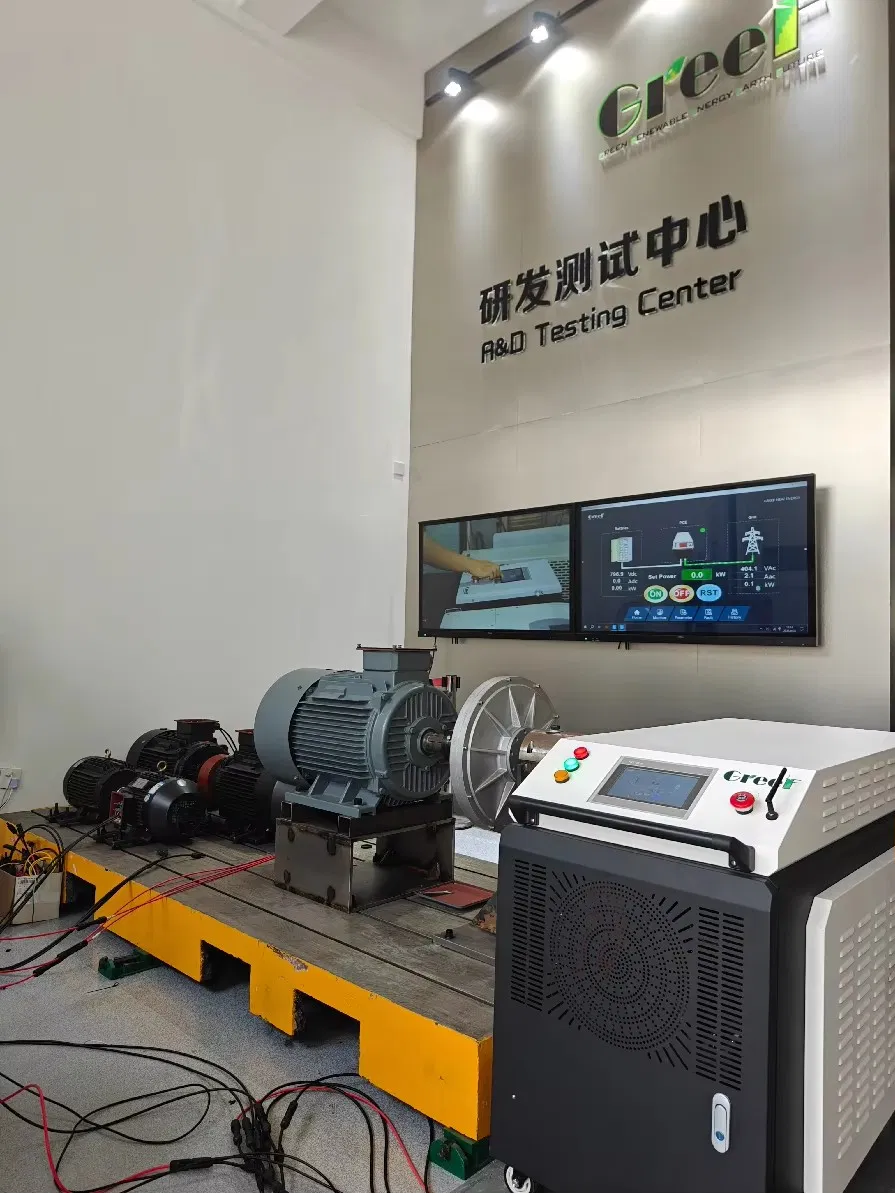

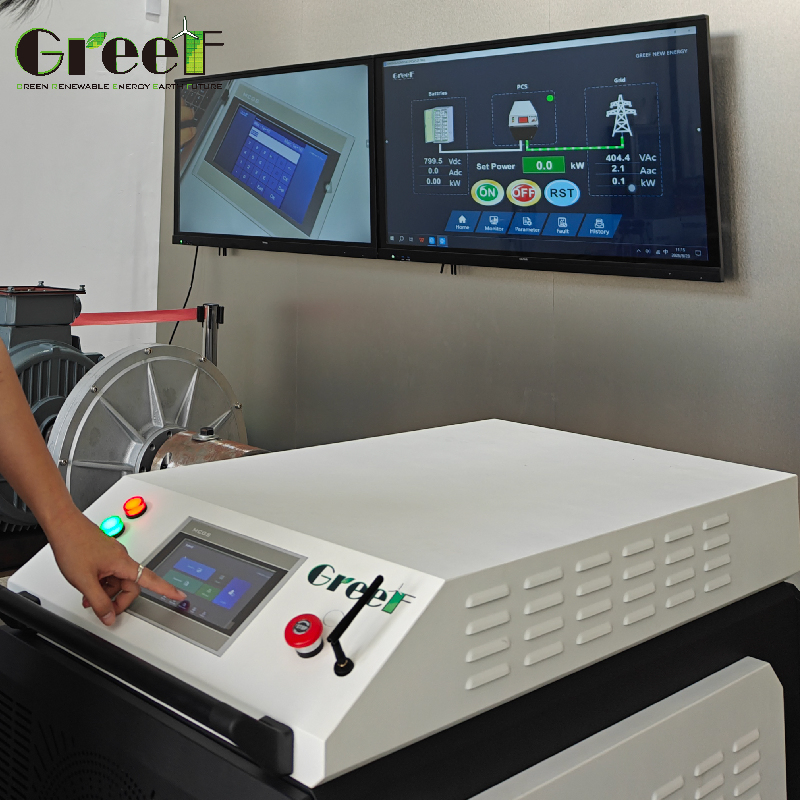

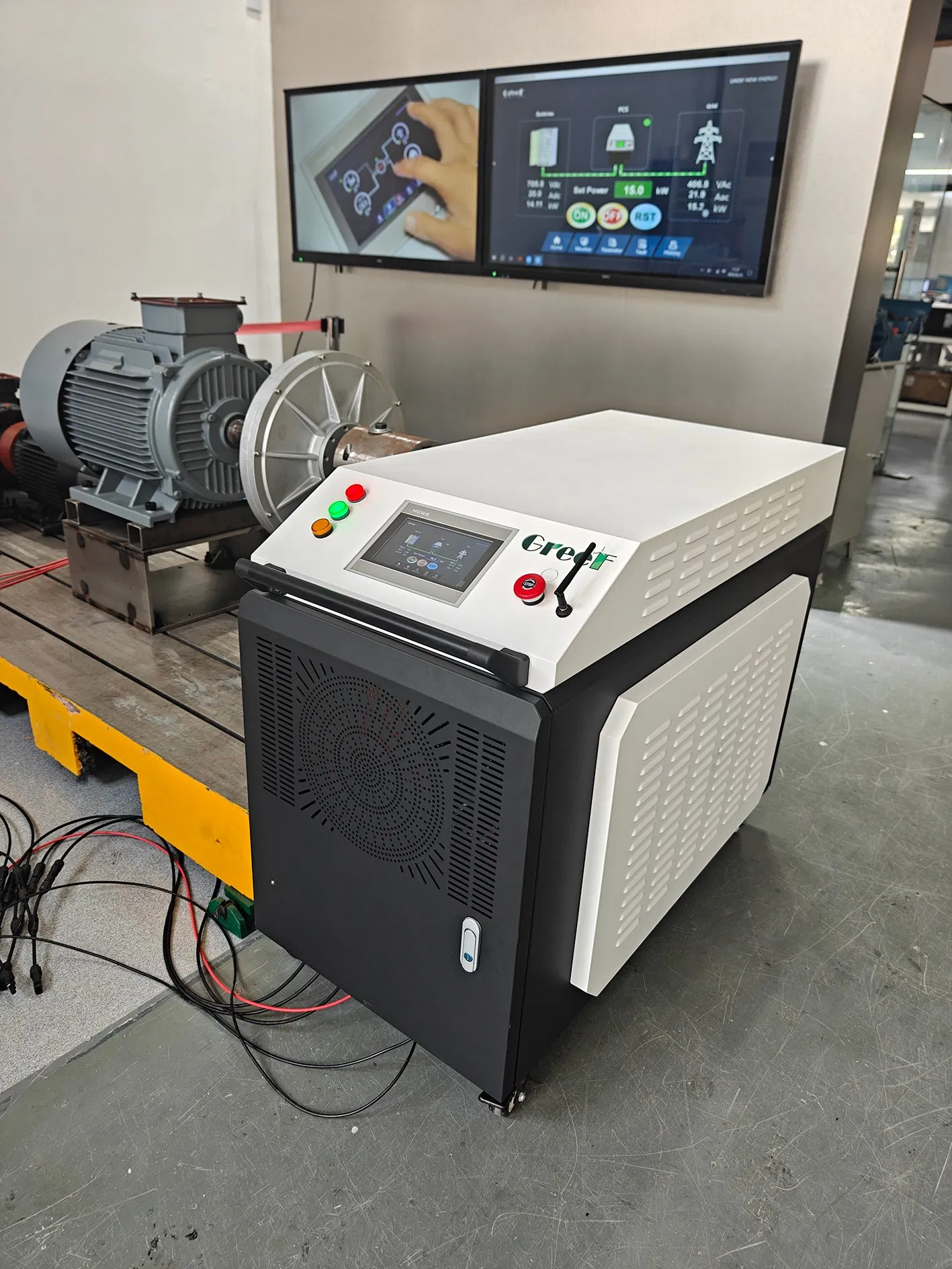

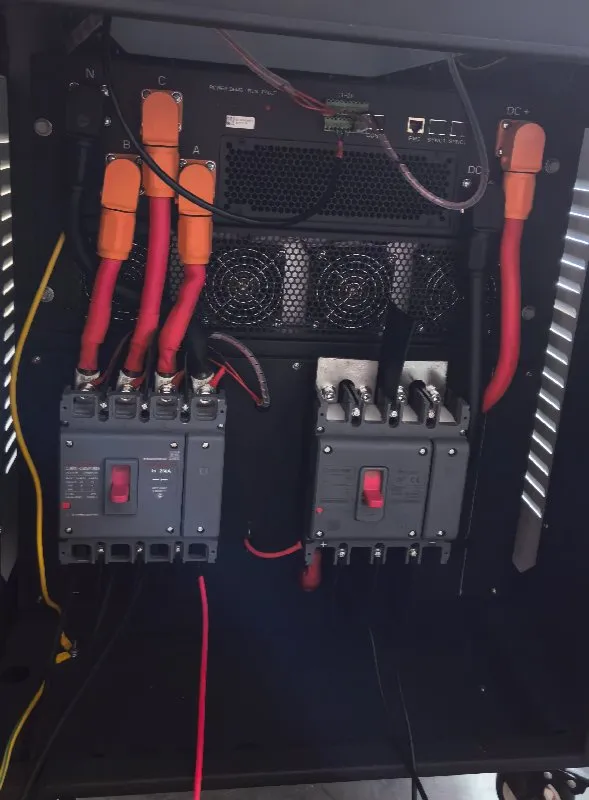

🔍 Product Details

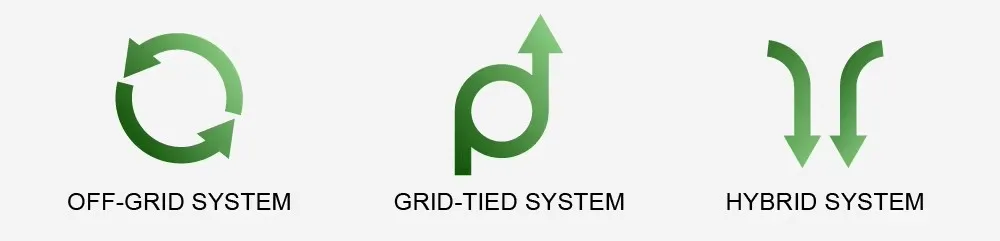

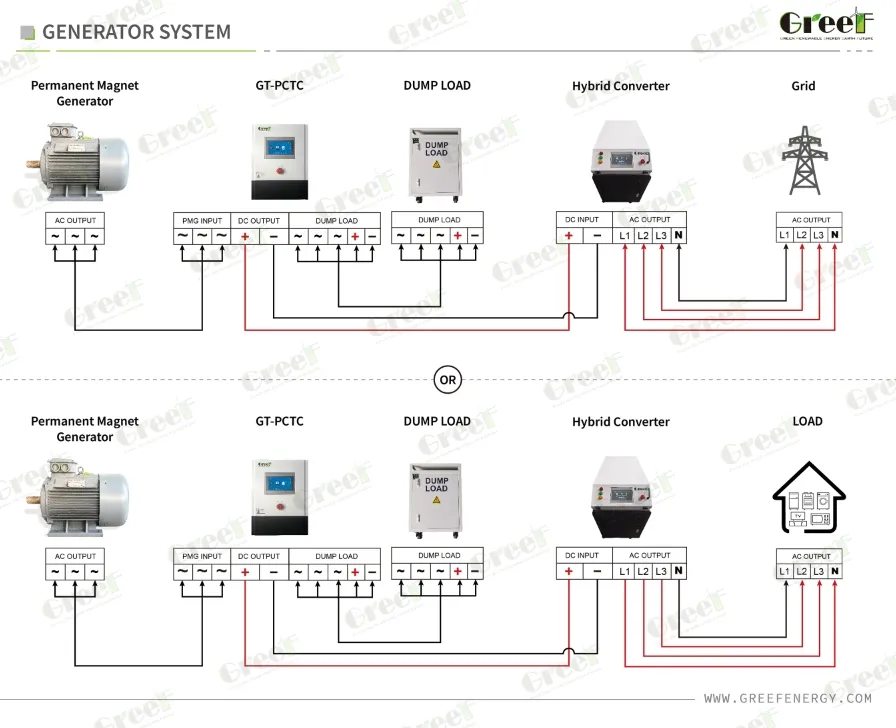

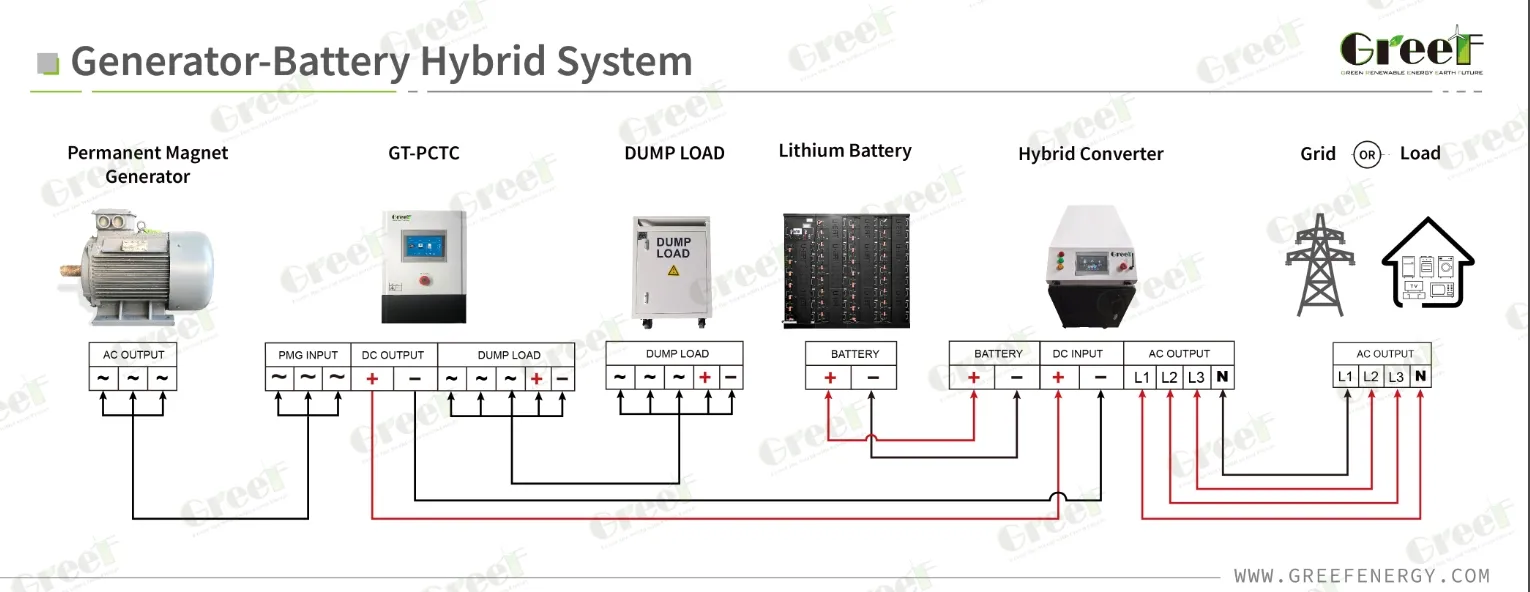

⚙ System Solutions

📦 Packaging & Shipping

Package Size 60.00cm * 70.00cm * 80.00cm

Gross Weight 67.000kg

✔ Why Choose Our Solutions

Frequently Asked Questions

Q1: What is the main function of the Mars series PCS inverter?

The Mars series Power Conversion System (PCS) acts as the brain of energy storage, managing AC/DC conversion. It enables charging batteries from the grid/PV and discharging stored energy back to the load or grid.

Q2: Can this system operate without a grid connection?

Yes, the system supports both grid-tied and off-grid operations. It can operate independently in microgrid setups to provide stable power during grid outages.

Q3: What are the power options available for this model?

The series offers three primary rated power options: 100kW (Mars-100kt), 110kW (Mars-110kt), and 125kW (Mars-125kt) to suit different energy storage requirements.

Q4: How does the system handle high-temperature environments?

The inverter features an intelligent air cooling method and is designed to operate in ambient temperatures ranging from -40℃ to +60℃, ensuring reliability in diverse climates.

Q5: Is the power factor adjustable for grid compliance?

Yes, the system maintains a high power factor of >0.99 and has an adjustable power factor range from -1 to 1 to meet various grid stability requirements.

Q6: What safety protections are included?

The system includes multiple safety features, including temperature protection, intelligent cooling, and a robust transformerless topology for high efficiency and safety.
