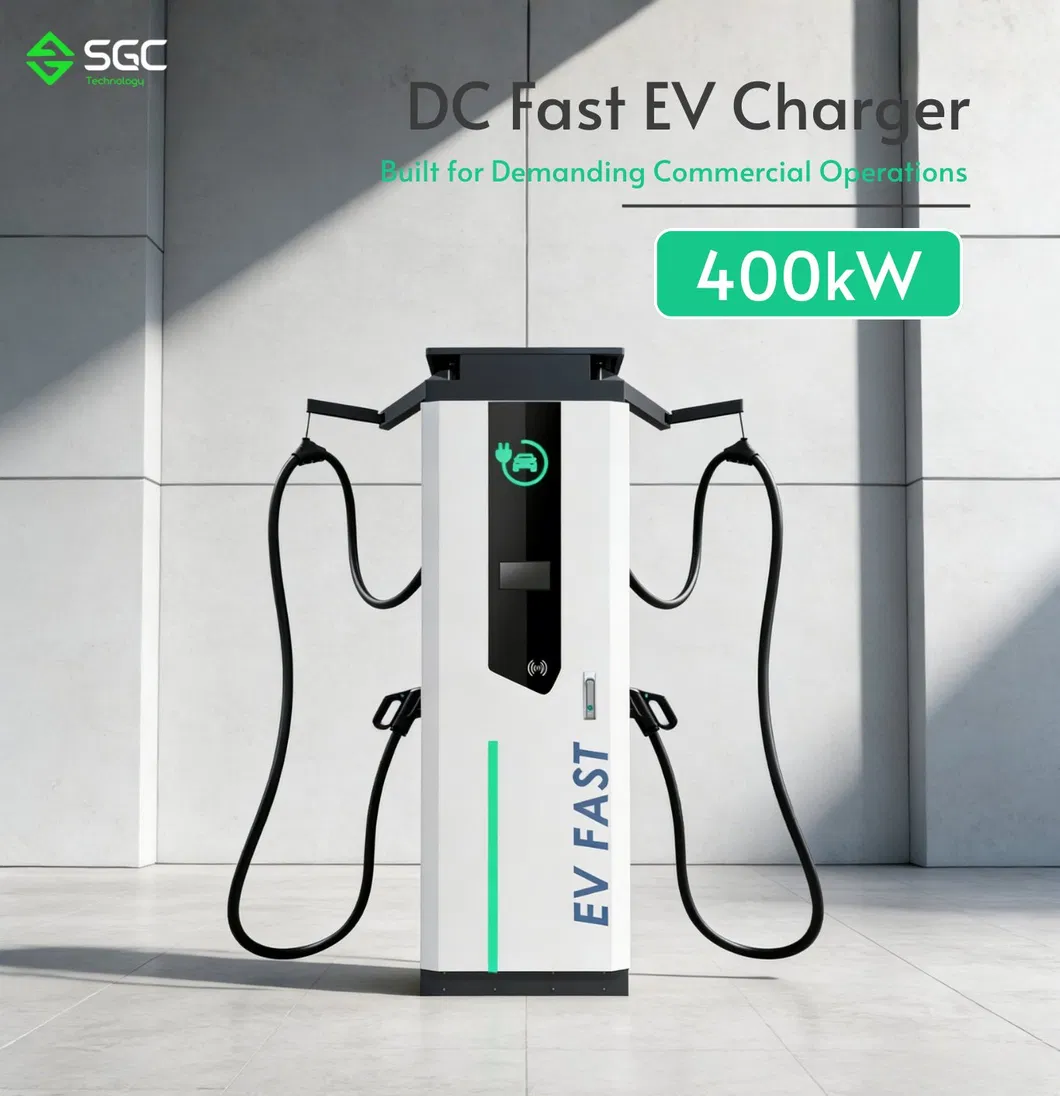

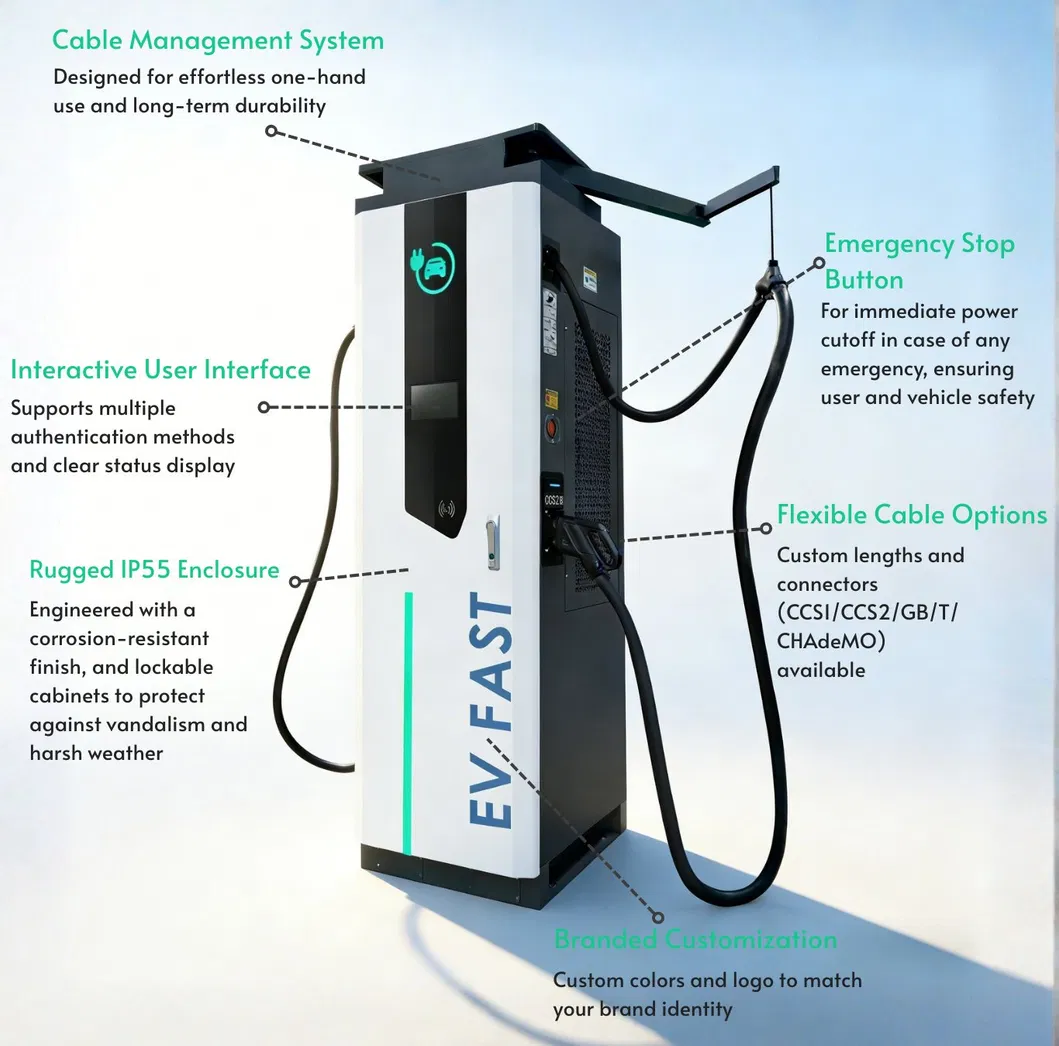

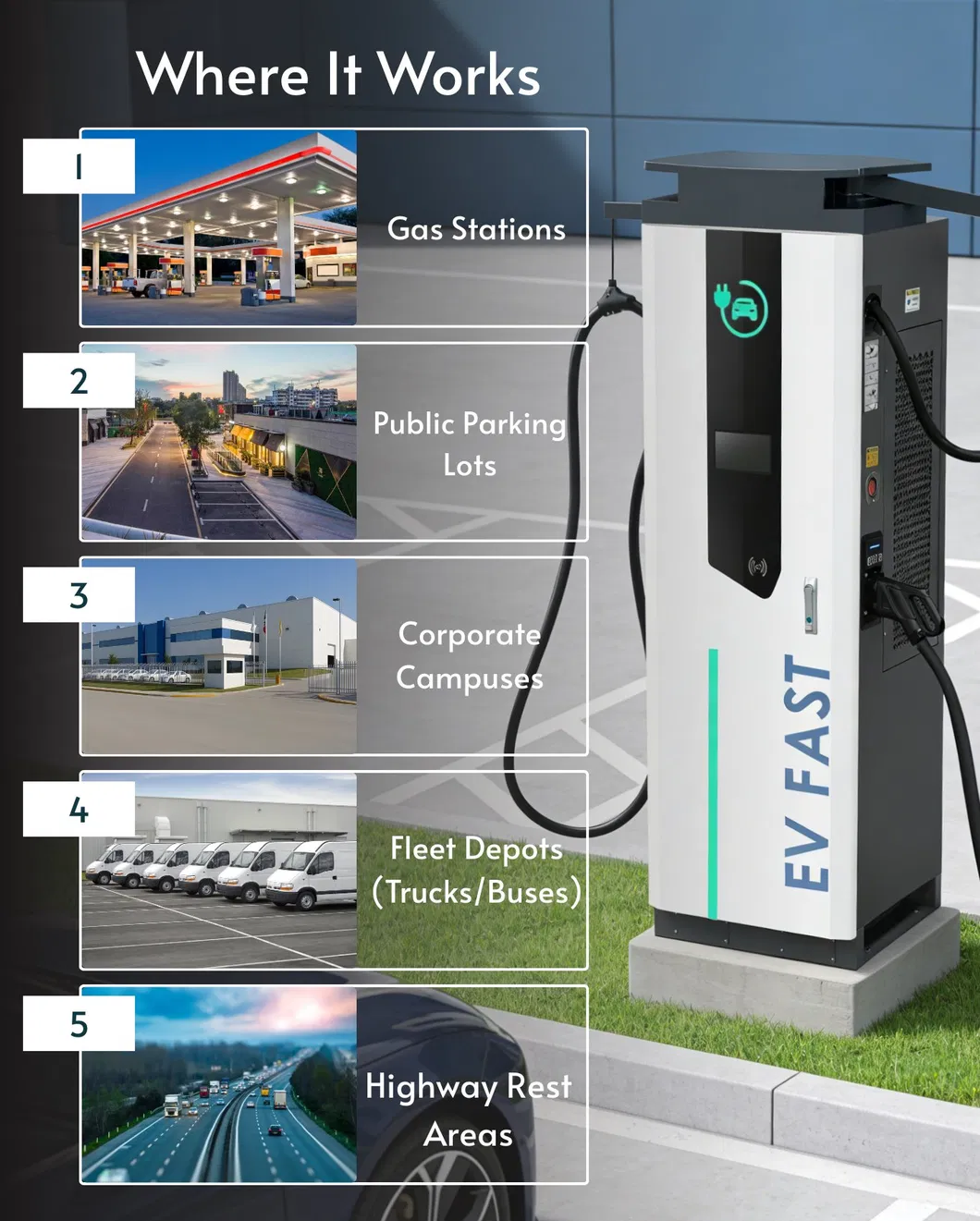

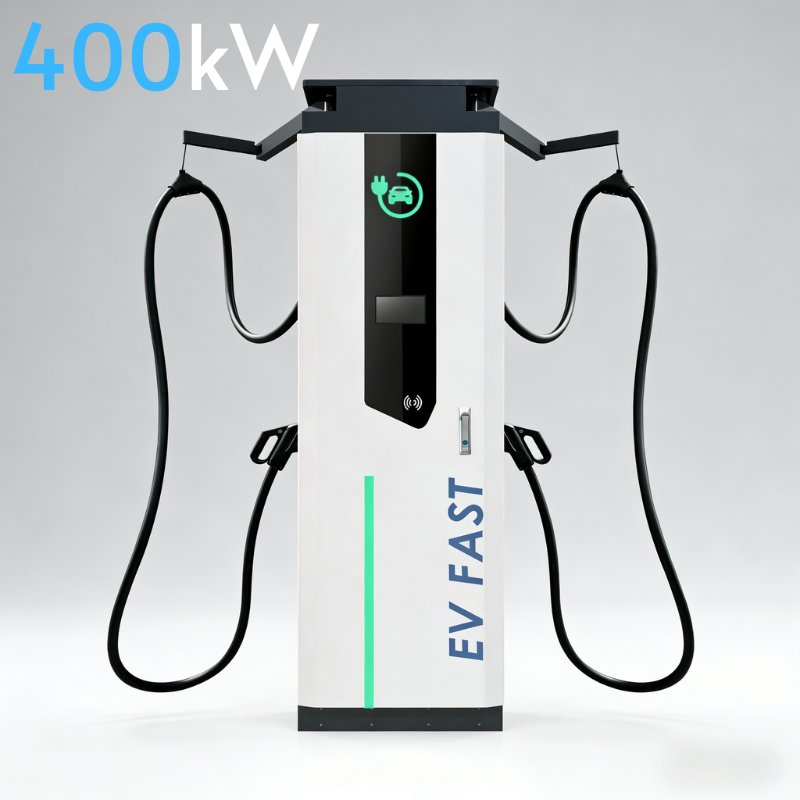

This 400kW all-in-one DC fast charging station is a scalable solution designed for commercial and public EV charging networks, including fleet operations and highway rest stops.

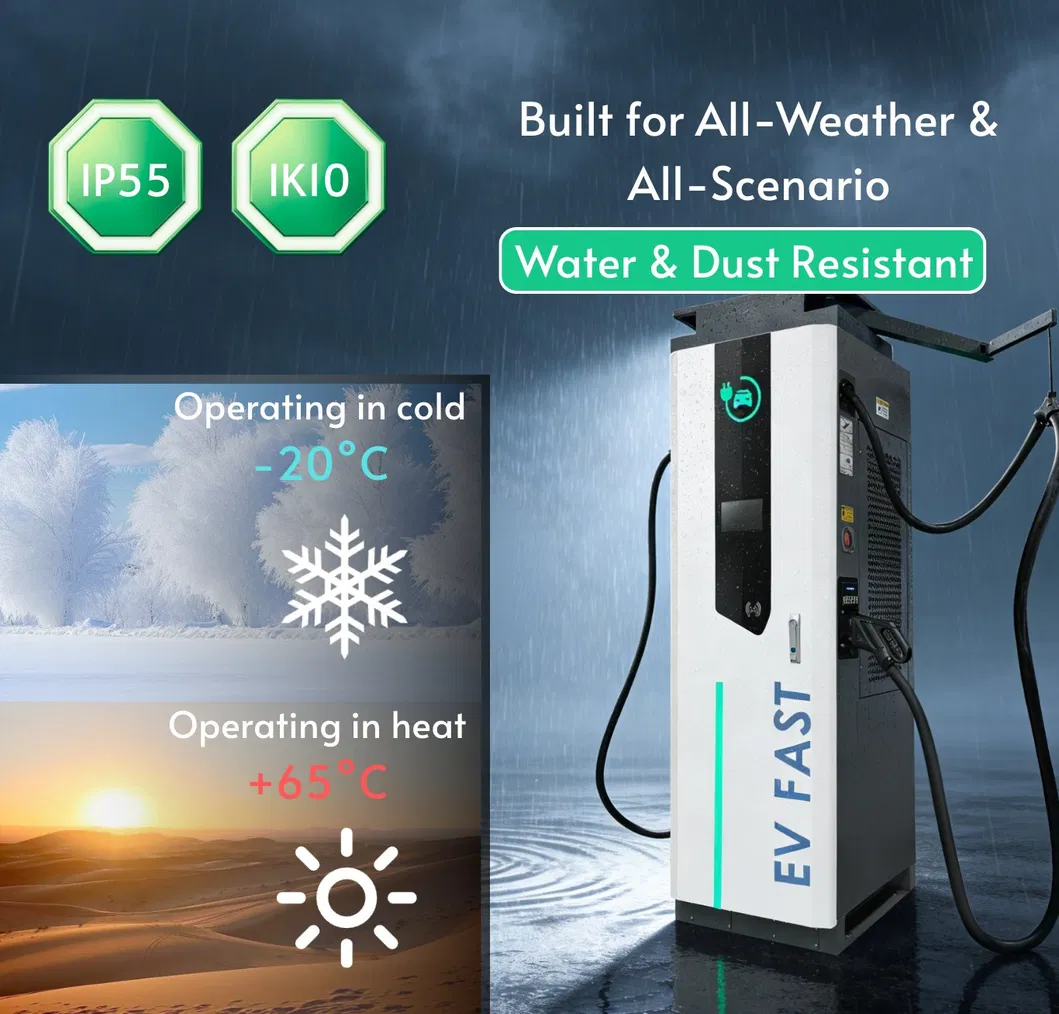

The station supports dual-gun charging with intelligent power allocation and is compatible with major global standards (CCS1, CCS2, GB/T and CHAdeMO). It operates reliably in a wide temperature range (-20°C to 65°C) and features robust IP55/IK10 protection.
Key functionalities include Plug & Charge (ISO 15118), OCPP 1.6J/2.0 compliance for network integration, and compatibility with energy management systems. The design utilizes components from established suppliers and can be managed via a cloud-based CSMS platform for remote monitoring and control.
| Product Information | |
|---|---|
| Product Name | Integrated DC Fast Charger |
| Output Power | 400KW |

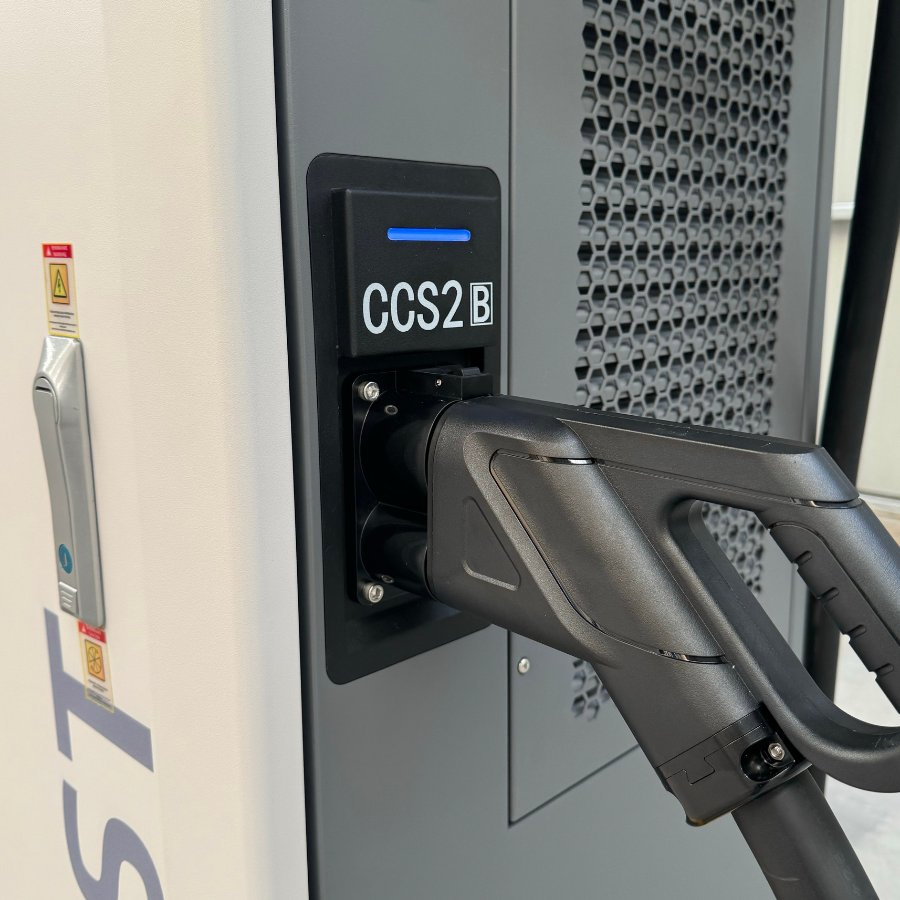

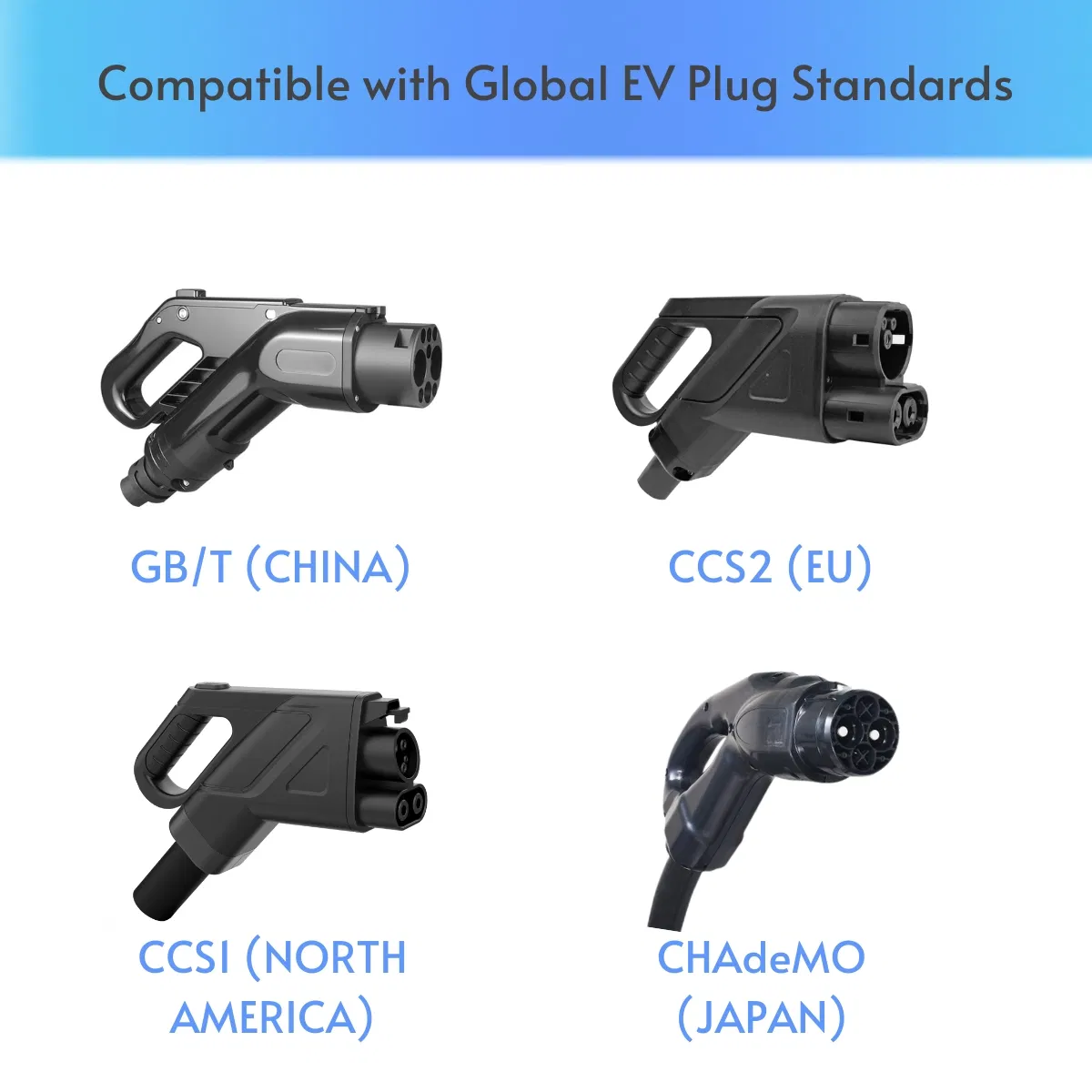

| Connector Type | CCS1/CCS2/GBT/CHAdeMO |

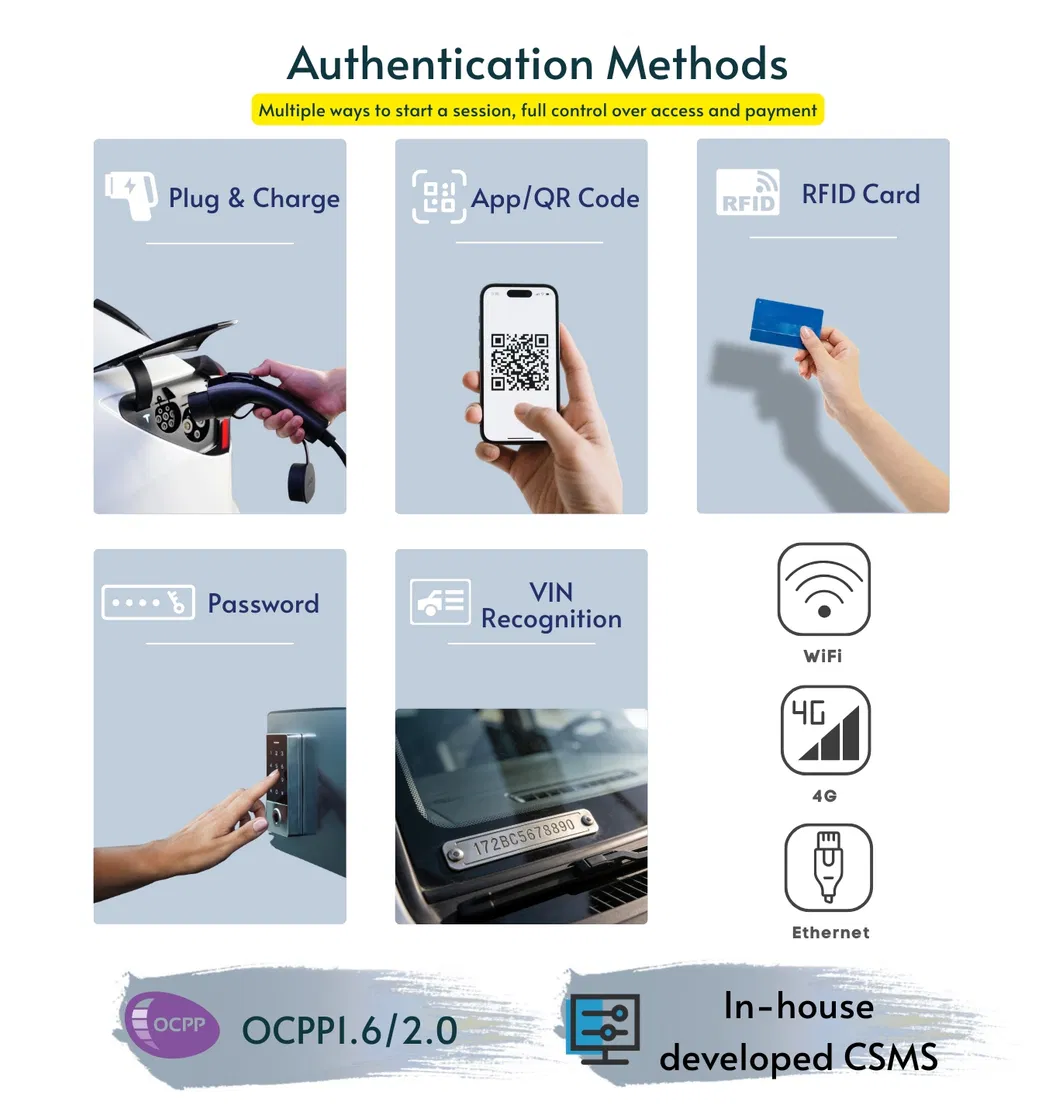

| User Authentication | RFID card/Password/VIN code/QR code |
| Connectivity | 4G/Ethernet/WiFi (OCPP1.6J) |
| Protection Level | IP55 / IK10 |
| Electrical Parameters | |
| Input Voltage | AC380V±15% (3P+N+PE) |
| Output Voltage | 50~1000VDC |
| Output Current | 250A/300A/375A (optional) |
| Operating Efficiency | ≥94% |
| Environmental Parameters | |
| Operating Temperature | -20°C~+55°C (Normal); up to 65°C (Derated) |
| Operating Altitude | <2000m |
| Cooling Method | Forced air cooling |

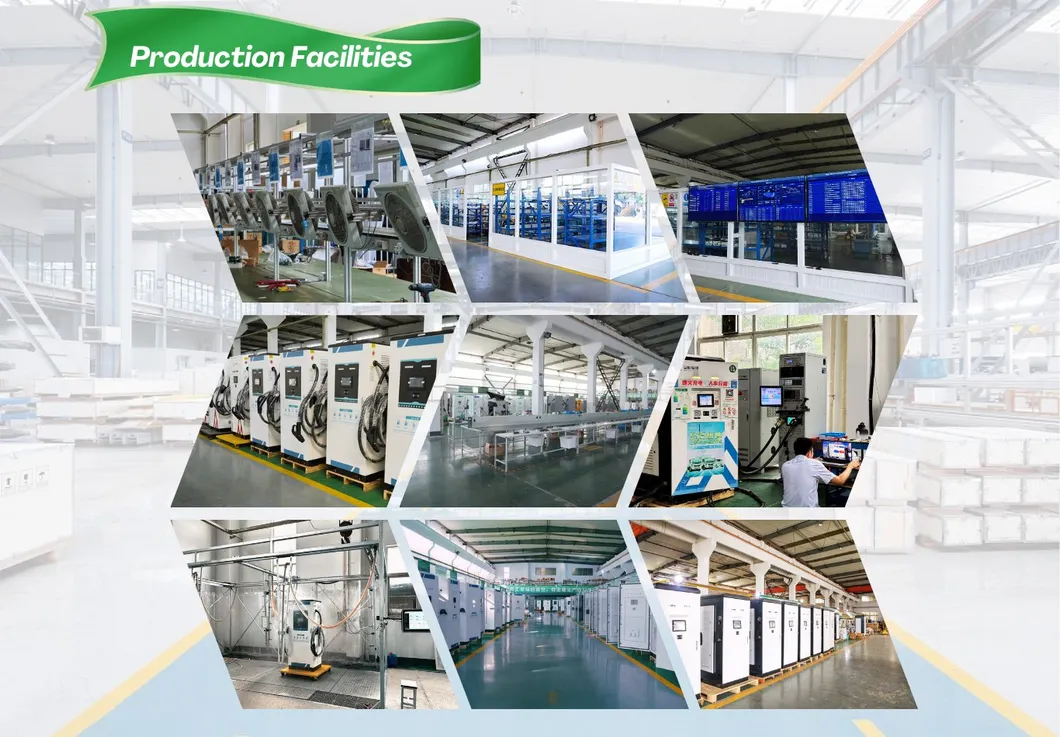

Founded in 2008, we are a leading manufacturer and comprehensive solution provider in the EV charging industry. We specialize in the R&D, production, and sales of high-power DC fast chargers, AC chargers, and mobile charging solutions.

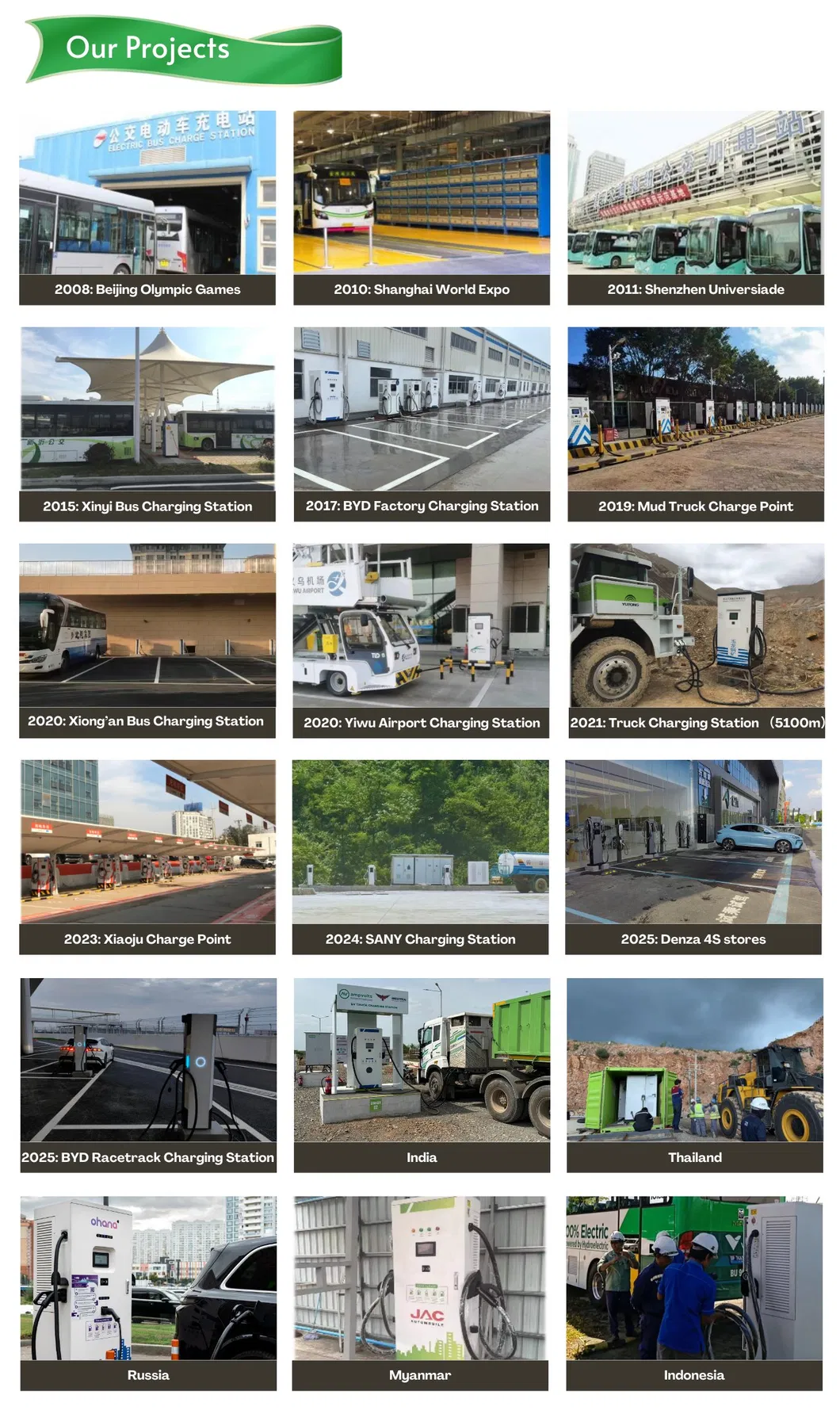

With deep expertise dating back to early EV infrastructure development, we possess full in-house capabilities across hardware, software, and platform development. Our proven track record includes supporting national key projects and major international events.
We provide high-quality charging stations and trusted solutions to clients globally in over 30 countries. Guided by our mission, "Making Quality Chargers, Powering a Greener Future," we are committed to advancing global sustainable transportation with innovative and reliable charging infrastructure.
