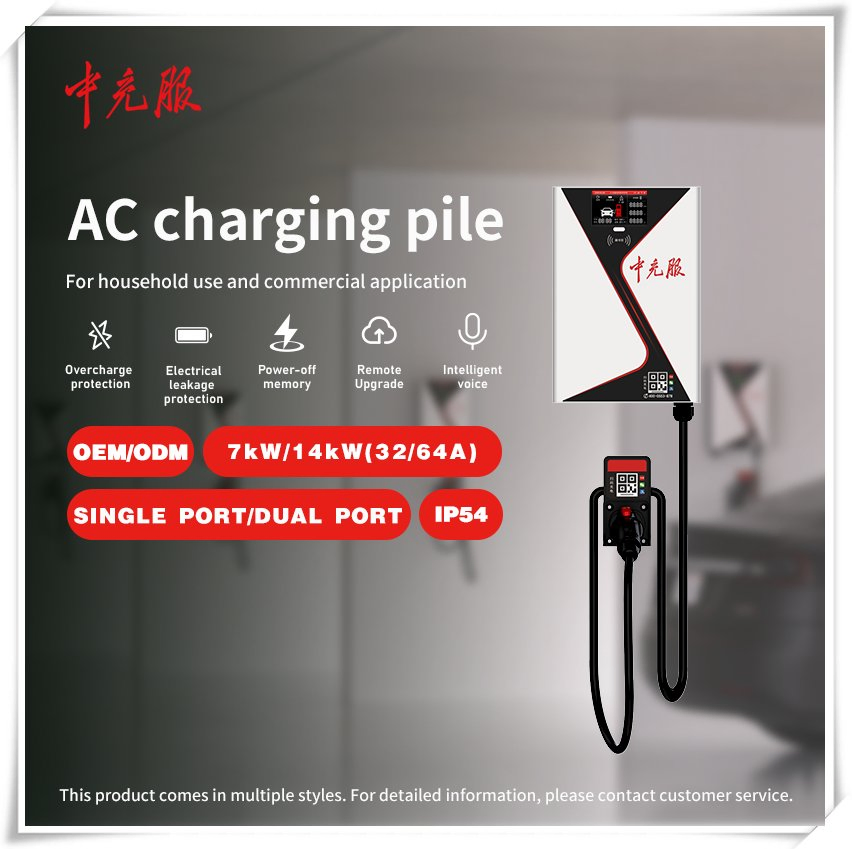

Tailored for residential and light-commercial use, our AC chargers provide cost-effective overnight charging with silent operation. The 7kW single-phase model suits home garages, while the 14kW version accelerates charging for workplaces or apartment complexes.

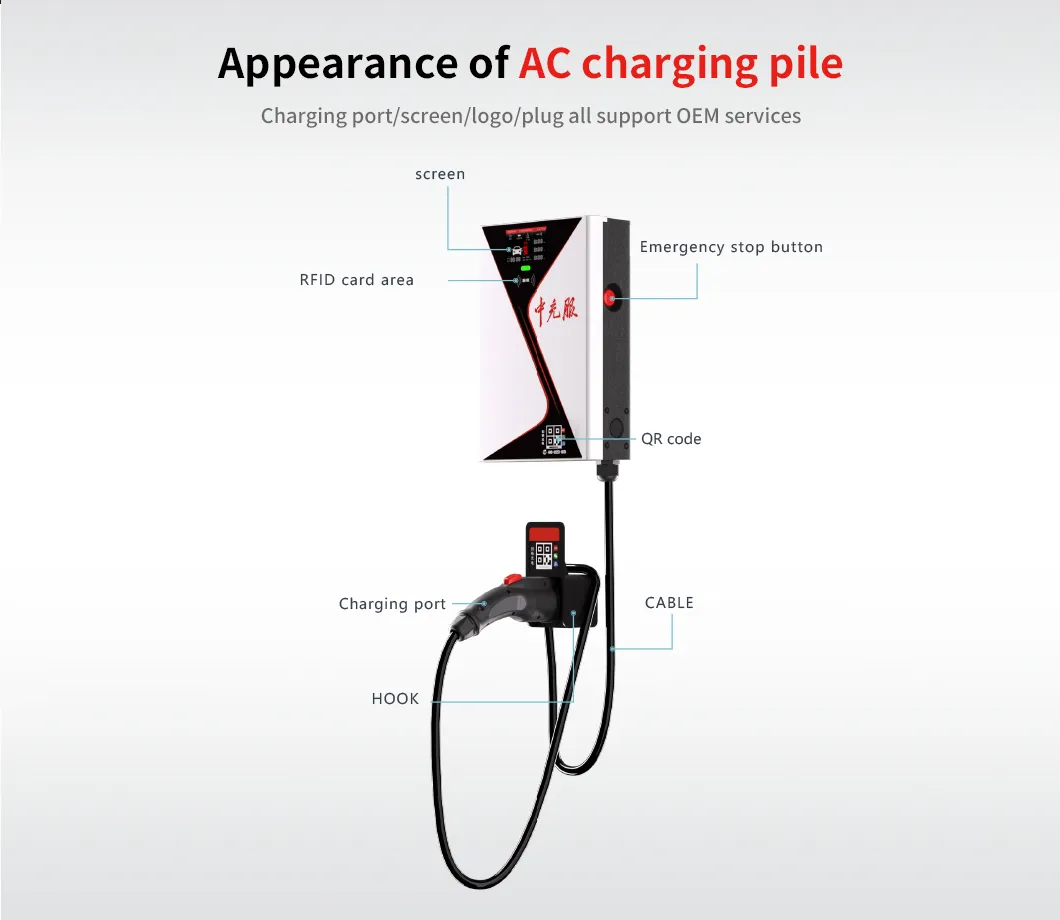

CCS2/GBT connectors compatible with European/Asian EVs, plus adjustable current limits via touchscreen or mobile app. Built-in RFID/4G/Bluetooth and WiFi authorization, IP54 rating and automatic leakage protection ensure secure access. Compact dimensions and wall/pole-mount options simplify installation in space-constrained environments.
| Product Specifications | Parameter Value |
|---|---|
| Product Model | ZCF200G2007 / ZCF200H3014 |
| Physical Dimensions | 300(W) * 130(D) * 410(H) mm |
| Product Material | ABS+PC/Metal |
| Equipment Weight | ≤3.6kg / ≤14kg |
| Cable Length | Default 5m |

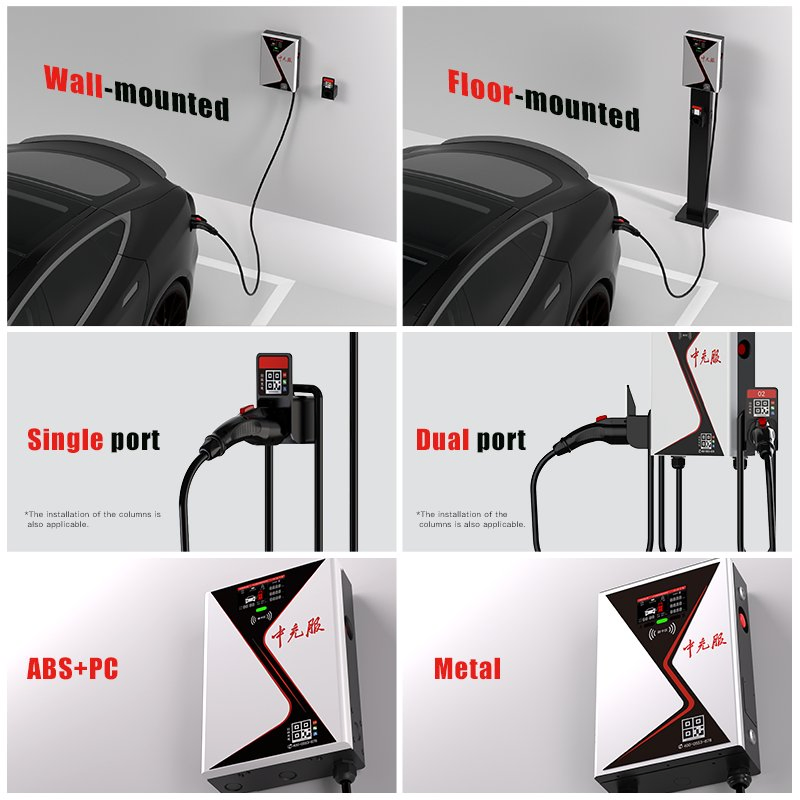

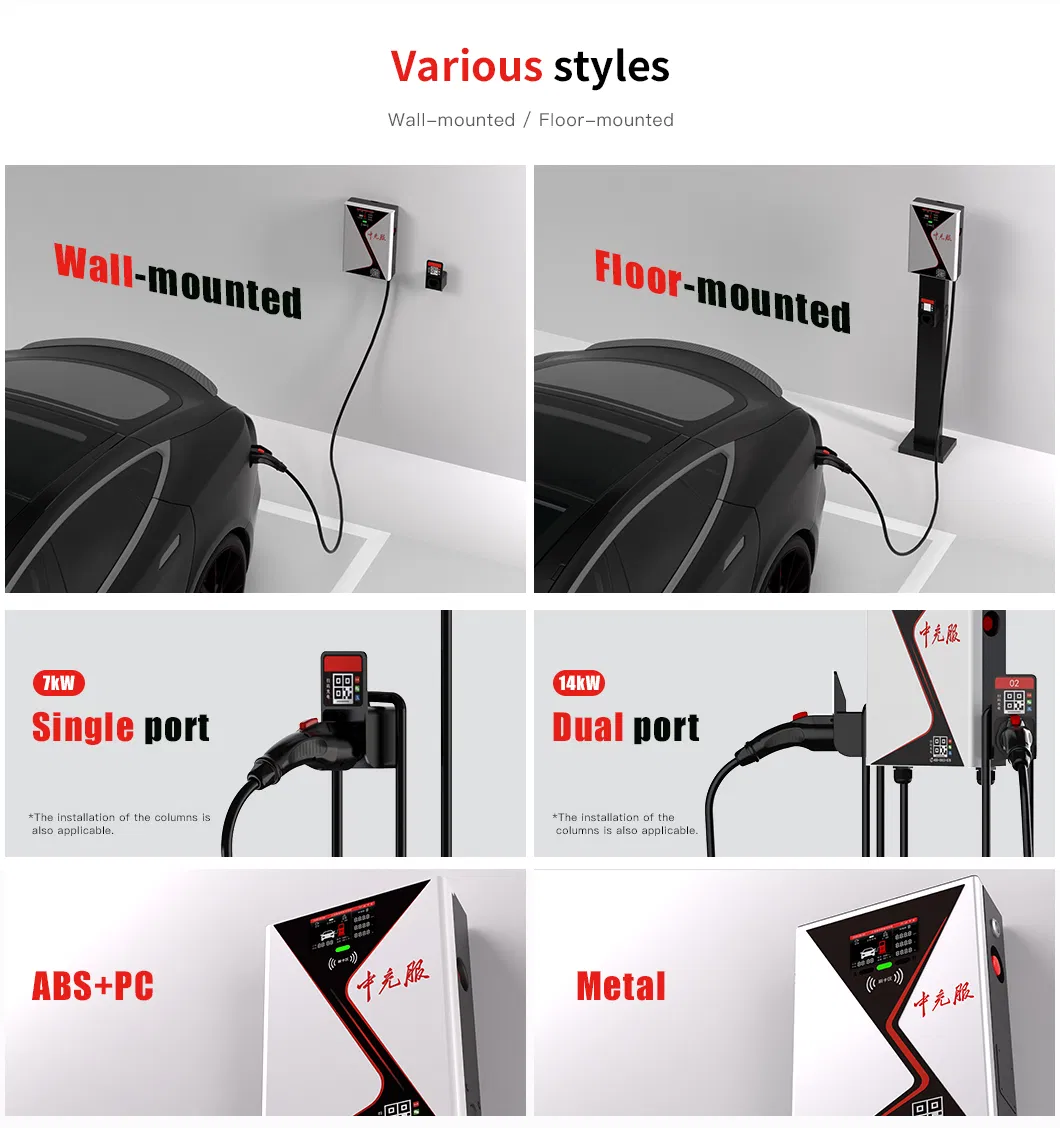

| Installation Method | Pillar Type / Wall-mounted |
| Protection Level | IP54 |
| Communication | 4G / WiFi / Bluetooth |
| Input Voltage | AC220V±15% / 50Hz±1 |
| Maximum Power | 7kW (Single Gun) / 14kW (Dual Guns) |

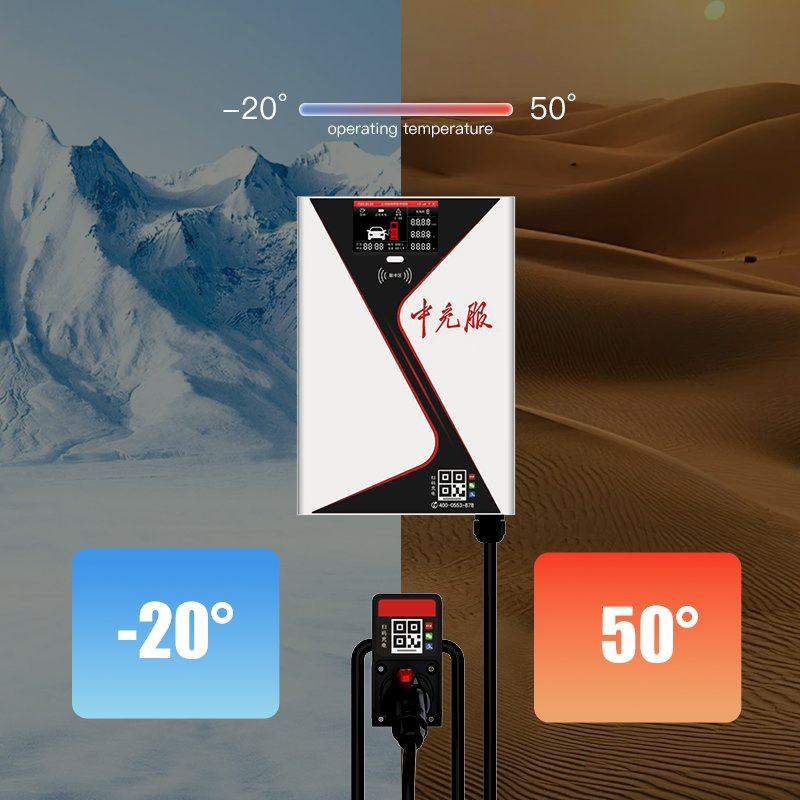

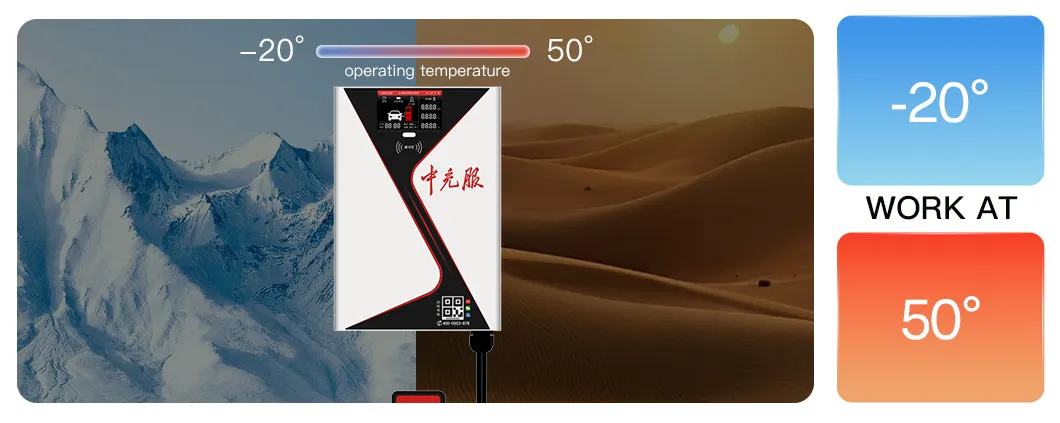

| Environmental Temp | -20℃ to 50℃ |
