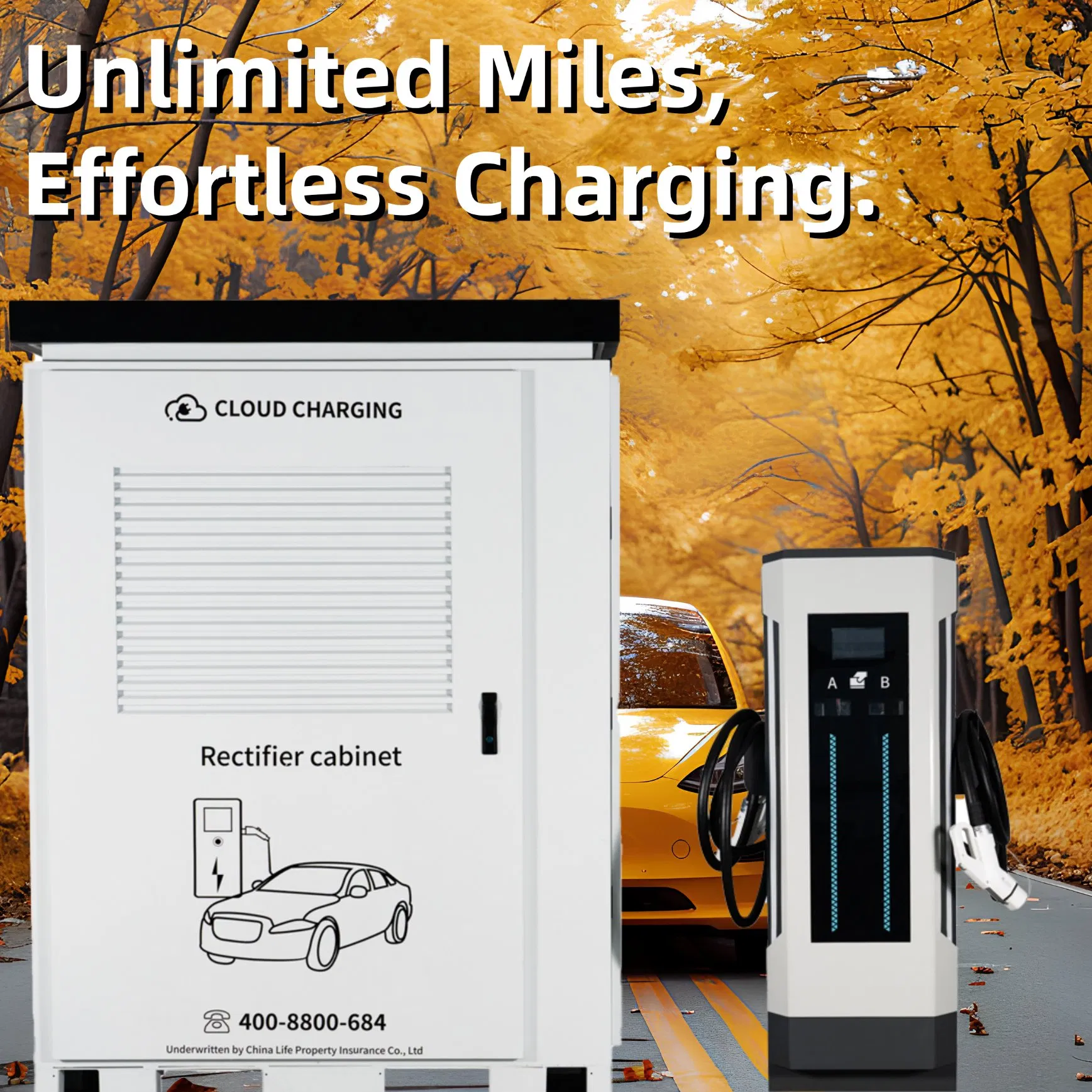

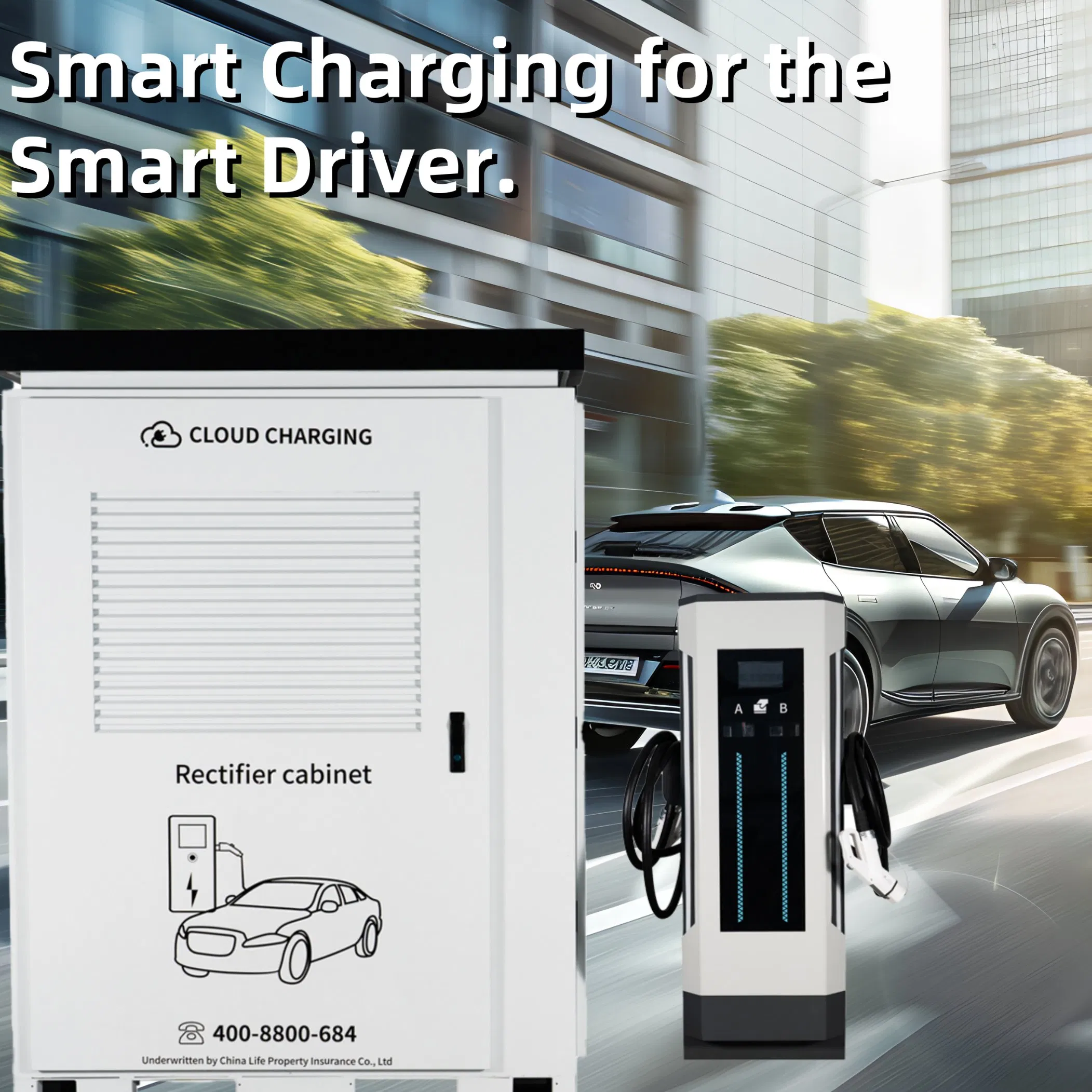

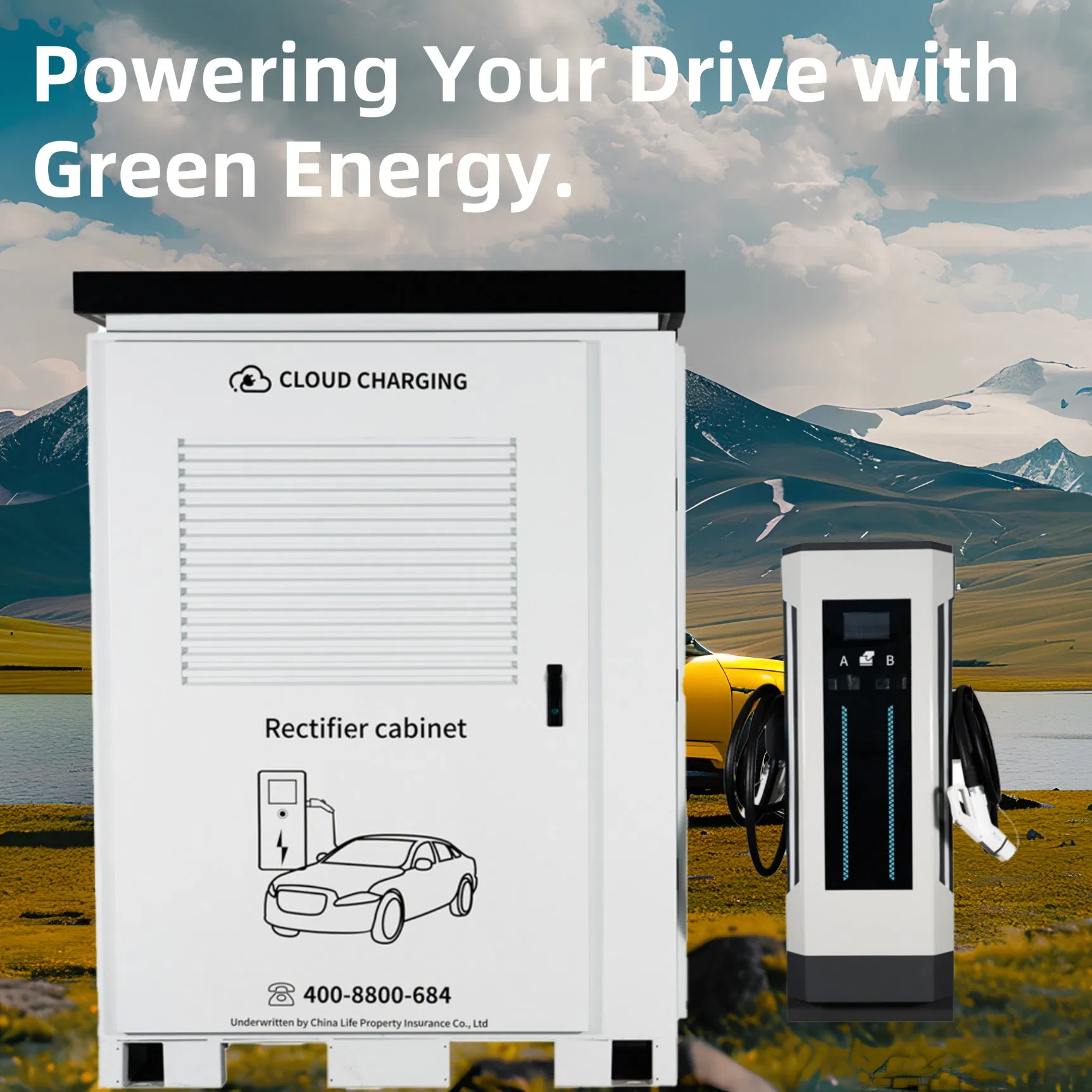

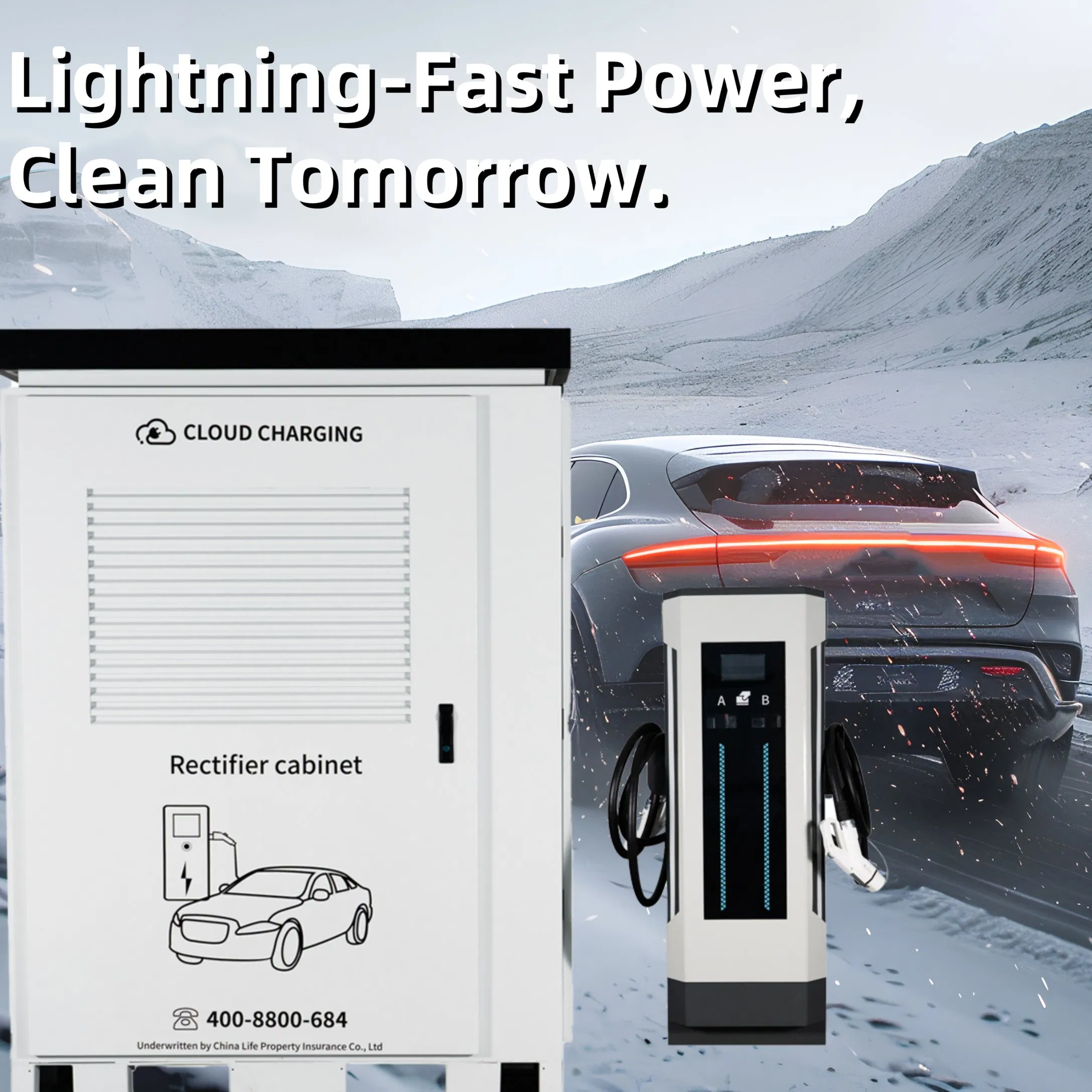

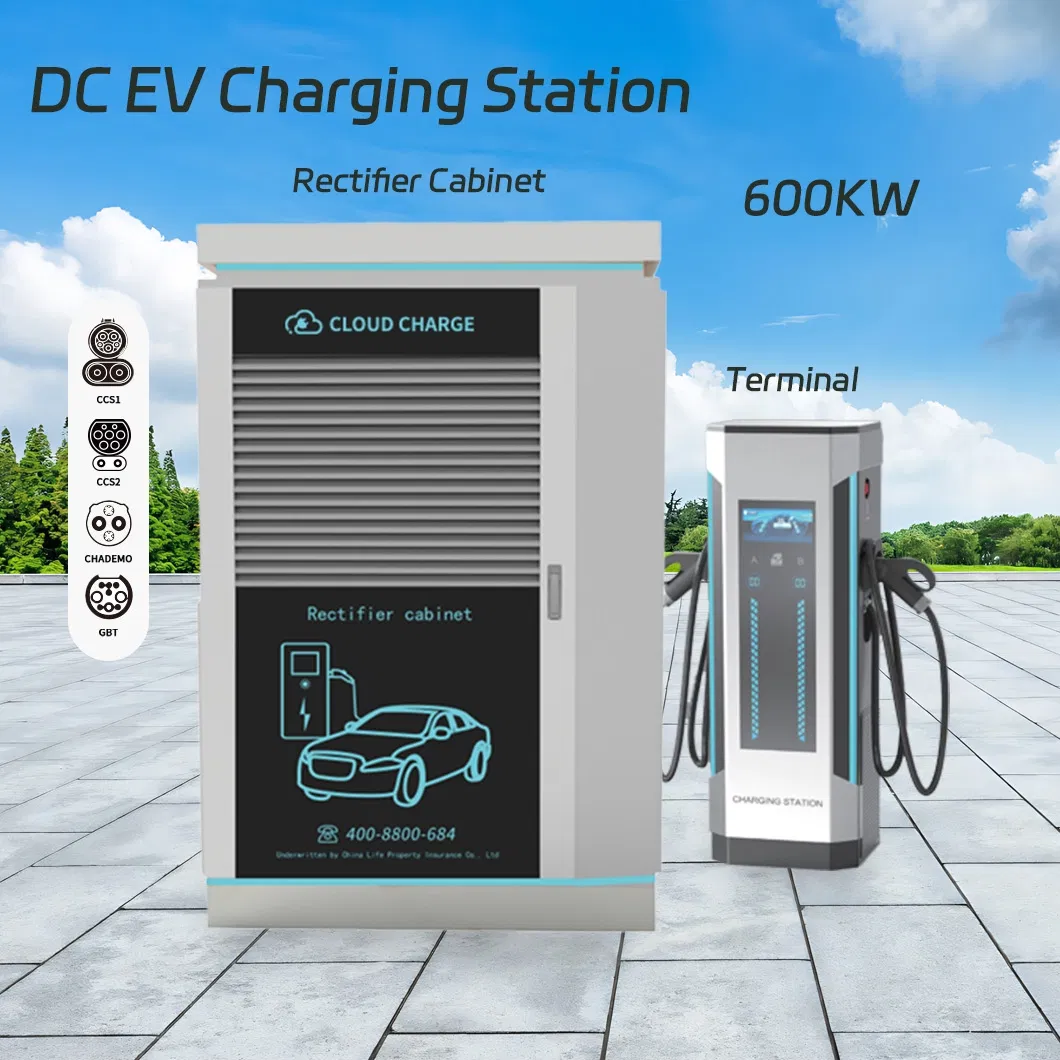

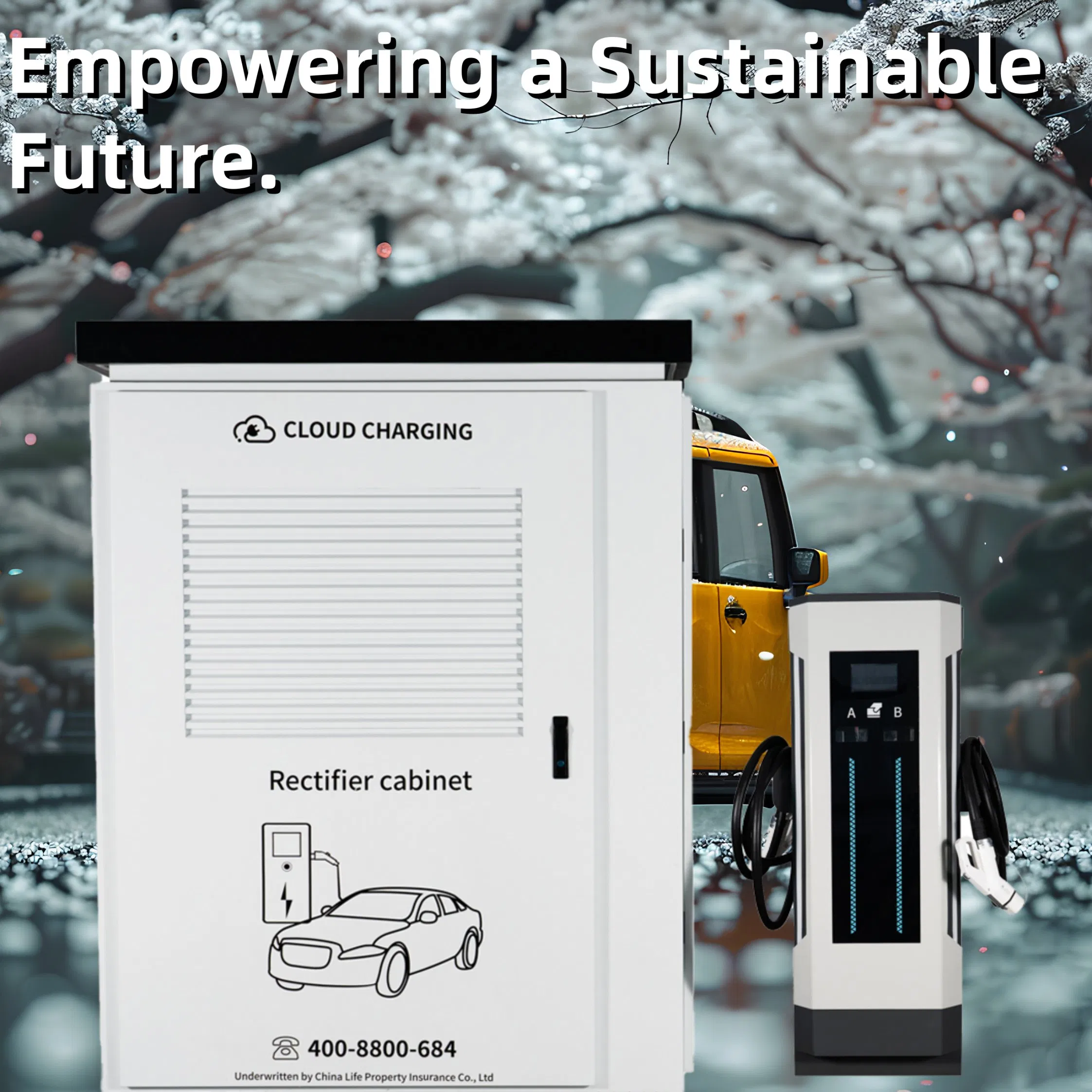

| Model | ZW-EV-CPDC Series |
| Rated Power | 240KW/360KW/480KW/600KW |
| Input Current | 365A/547A/729A/1000A |
| Output Circuits | 4/6/8/10 Circuits |
| Input Voltage | AC380V±20% |
| Output Voltage Range | DC200V-1000V (Optional) |
| Efficiency | ≥95% (50%-100% Full Load) |
| Protection Grade | IP54 |
| Noise | ≤60dB |
| Cooling Method | Forced Air Cooling |
| Dimensions | 1460mm * 960mm * 1960mm |
| Model | ZW-EV-CPDC-ZDD |
| Rated Output Power | 60KW |
| Maximum Output Power | 240KW |
| Charging Modes | Automatic Full Charge, By Time, By Energy, By Amount |
| Starting Methods | Card Swipe, Scan Code, Password, VIN |
| Networking Mode | 4G |
| Dimensions | 710mm W x 1656mm H x 495mm D |
| Model | ZW-EV-CPDC-ZDS |
| Display Mode | 10.1-inch Screen |
| Protection Functions | Short Circuit, Over-temperature, Leakage, Over/Under-voltage |
| Communication | CAN Communication |
| Installation | Floor-mounted |
| Operating Temp | -20°C to 50°C |
We are a leading high-tech enterprise with over a decade of expertise in the EV charging station industry. Specialized in innovative R&D and state-of-the-art manufacturing, we produce a wide range of cutting-edge electric vehicle charging stations and solutions for both cars and two-wheelers.

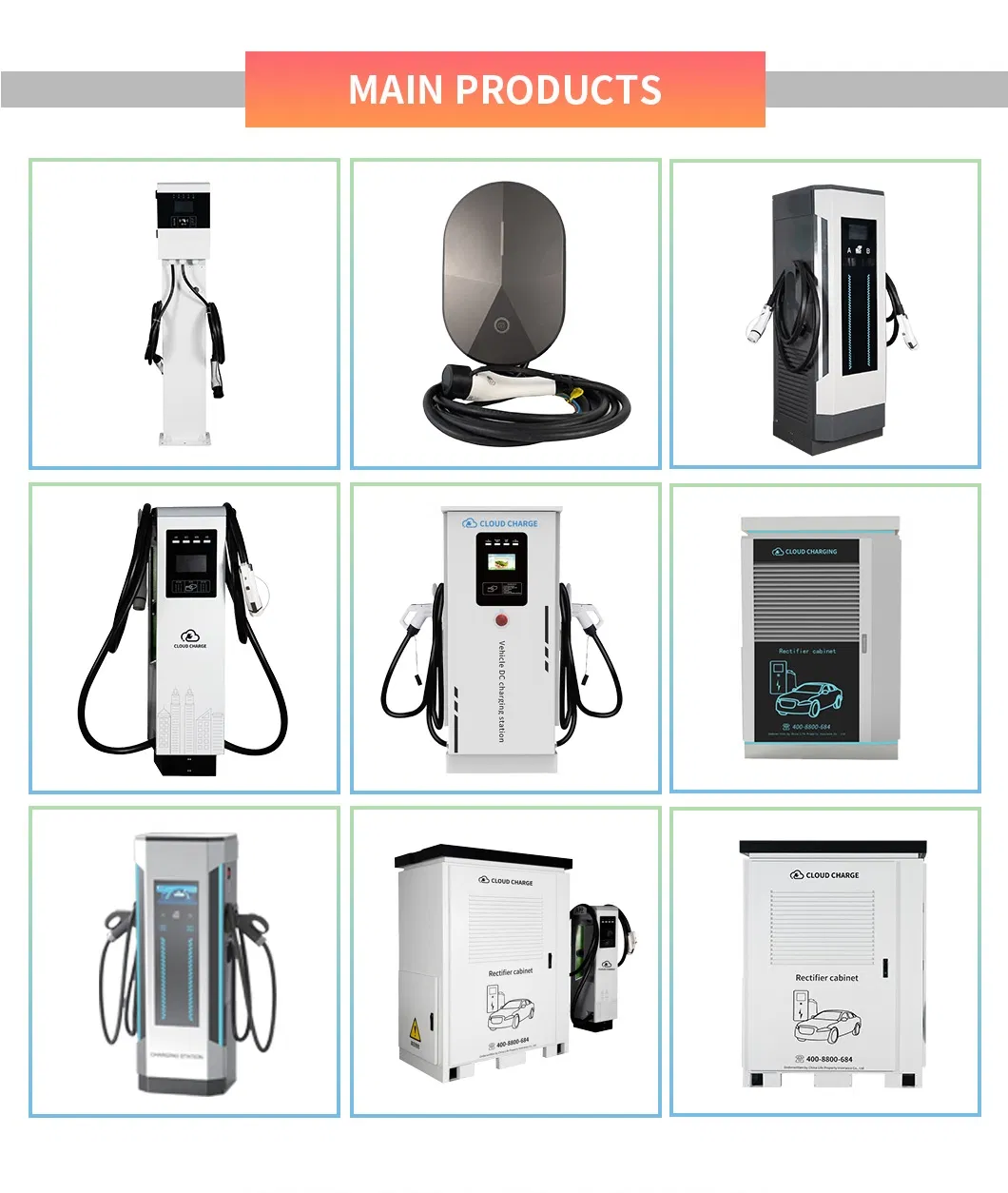

Our portfolio includes AC EV chargers, DC EV chargers, split EV chargers, and advanced liquid-cooled chargers. We also provide portable EV chargers for on-the-go needs. Each EV charger station is engineered for optimal performance, ensuring safe and efficient power delivery.
We also cater to the growing two-wheeler segment with specialized charging piles and charging cabinets. Our commitment to innovation, quality, and sustainability ensures our charging stations are built to the highest standards. We offer flexible OEM and ODM services, enabling product customization to fit unique requirements.
