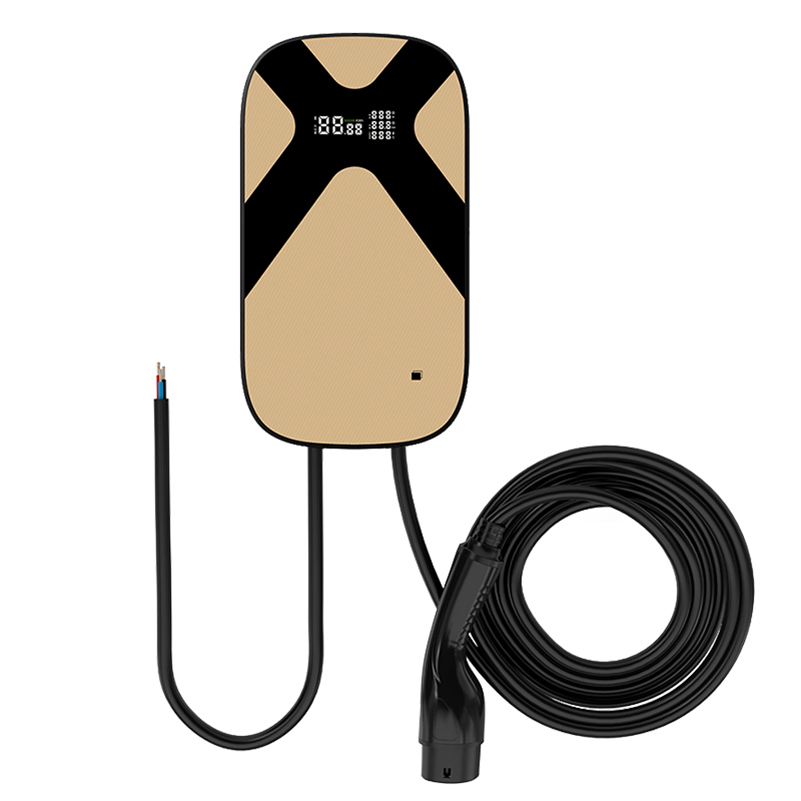

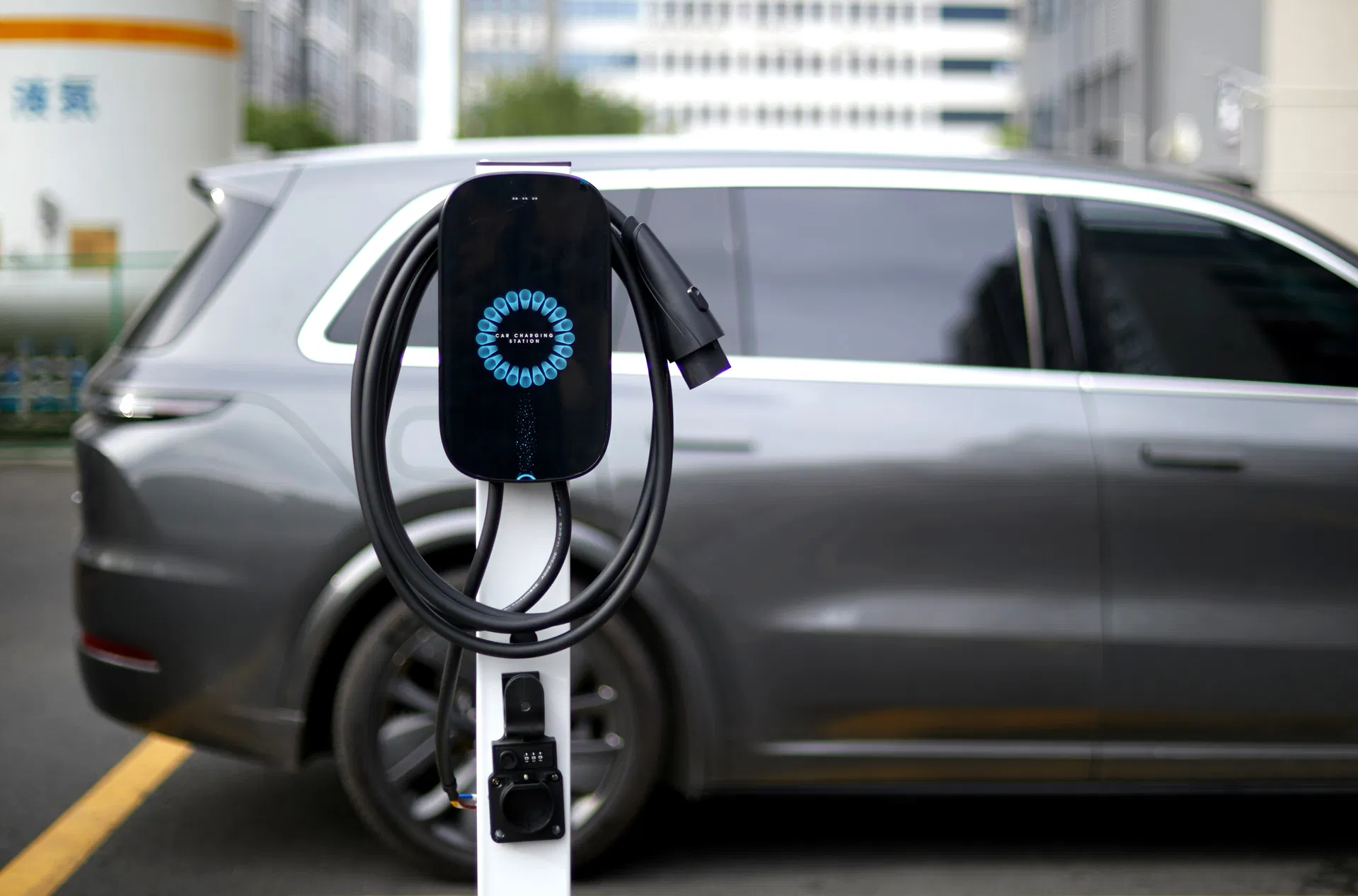

Vernon Charger
1 / 5
| Model NO. | ZD05 |
|---|---|
| Charging Interfaces | One Pile with One Charge |
| Installation | Wall Mounted |
| Charge Method | Quick Charge |
| Adjustable Current | 8-10-13-16-32A |
| Delay Charging | 0~12 Hour |
| Phase Electricity | Single-Phase/Three-Phase |
| IP Grade | IP65 |
| IK Level | IK10 |

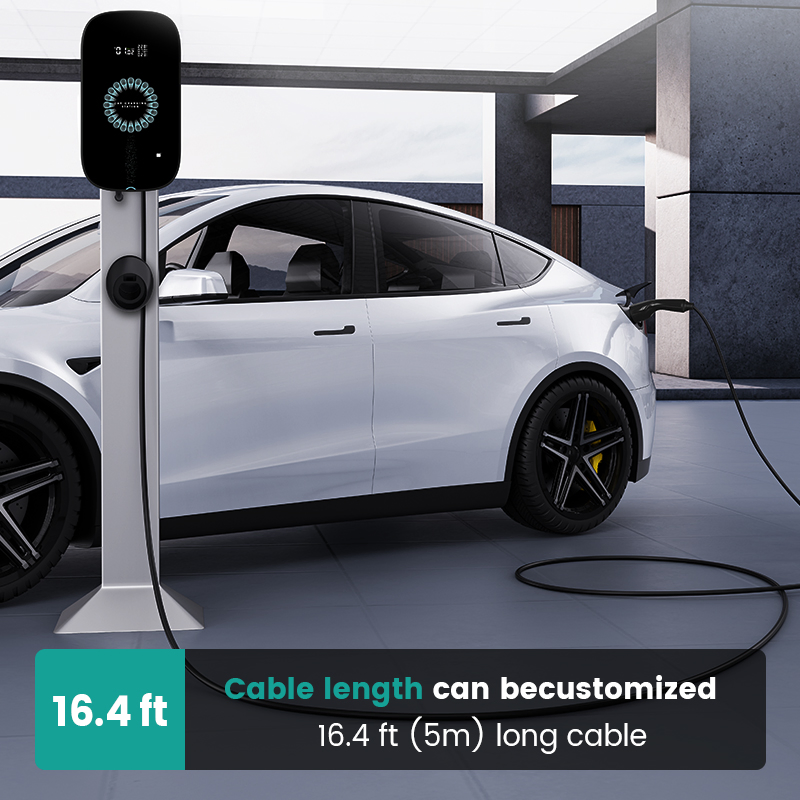

| Cable Length | 5 Meters / OEM |
| Plug Type | Type 2/Type 1/ Gbt / T-Esla |
| Standard | IEC 62196 / Gbt 18487 / SAE J1772 / Nacs |
We provide specialized electric vehicle charging solutions, capable of producing AC charging stations for TPYE 1, TYPE 2, GBT, and Tesla standards according to global requirements. Customizable options include logo, packaging, and patterns.

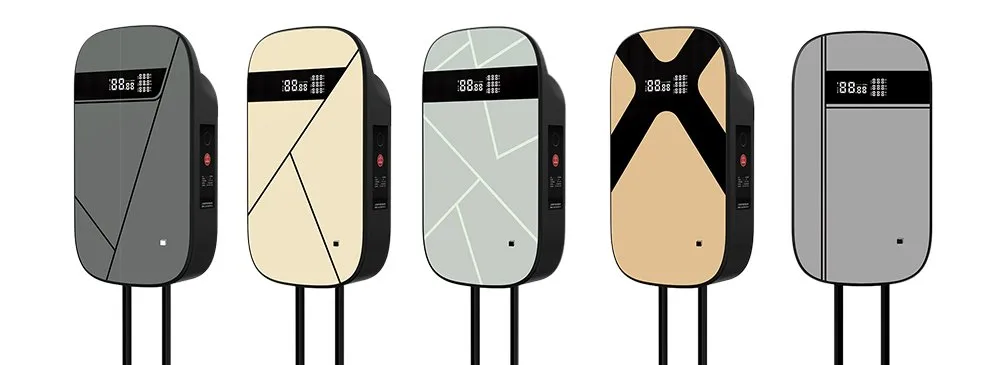

DIY Design: Customizable panel stickers for personalized or branded aesthetics.
Smart App: Remote control via WiFi/Bluetooth to schedule time and view status.

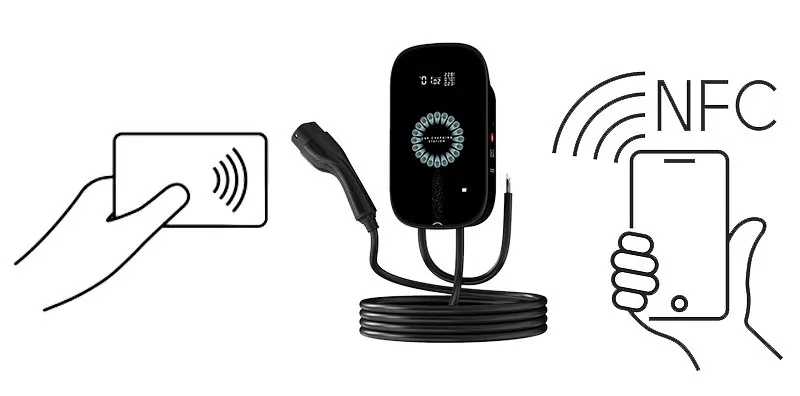

RFID + NFC: Secure activation even in basements with weak signal strength.

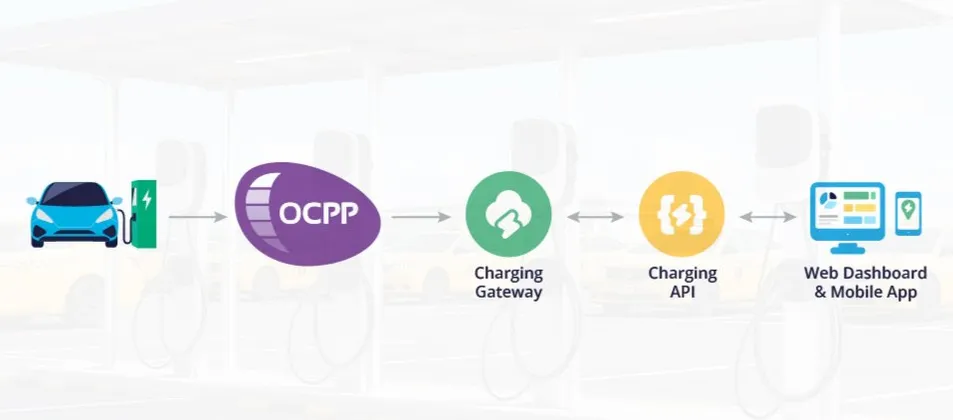

OCPP Support: Commercial version available for centralized management and charging fees.
| Electrical Data | |
|---|---|
| Rated Voltage | 100V/240V AC ± 10% |
| Rated Power (7kW/11kW/22kW) | 32A Single-phase / 16A-32A Three-phase |
| Frequency | 47~63Hz |

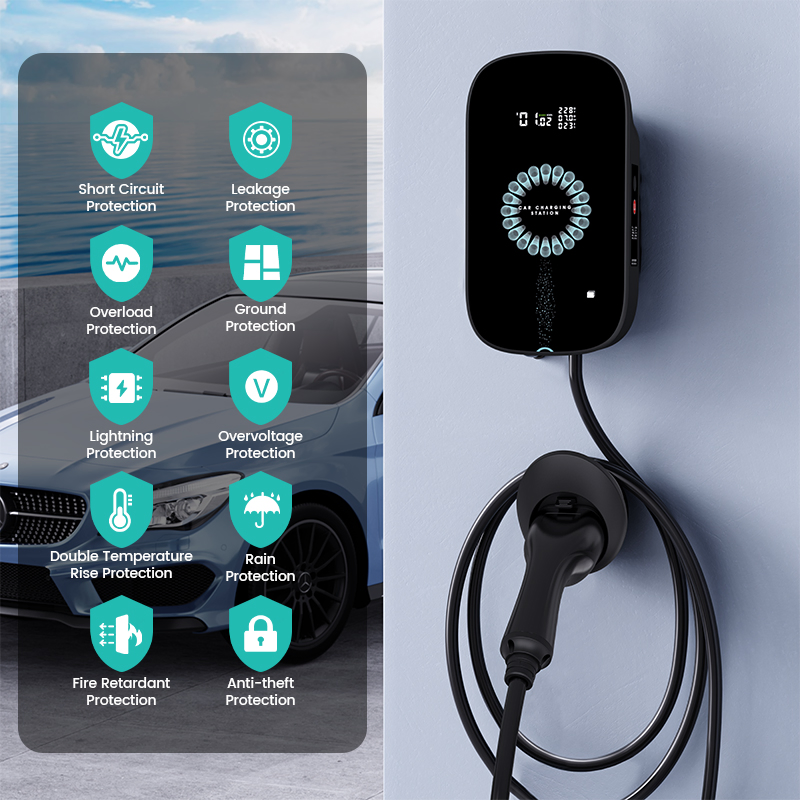

| RCD Protection | Type A 30mA AC + 6mA DC |
| Environment | |
| Protection Level | IP65 / IK10 |
| Operating Temp | -20ºC ~ +50ºC |
| Altitude | <2000m |
| Certificates | CE, FCC, ISO9001, CCC, ROHS |

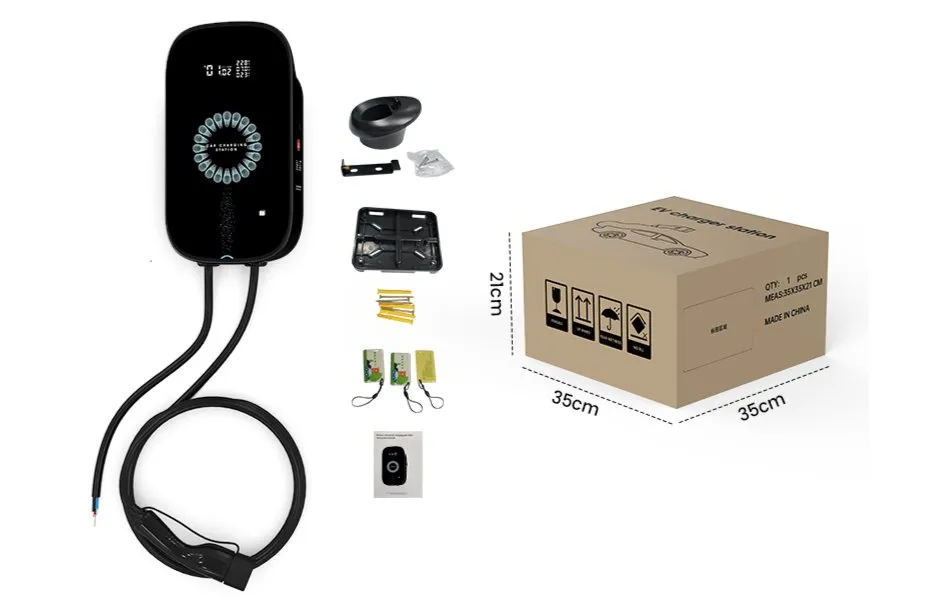

1x Charger, Wall mount bracket, Backboard, 3x RFID cards, Manual, Airplane Box.
Protection against manufacturing defects and dedicated technical team support.
Custom logos, private label packaging, and adjustable cable lengths.
