These rectifiers bring advanced technology to the DC power industry. Innovative engineering combines the best in efficiency and reliability to meet the power requirements for a variety of system applications. This rectifier is specifically designed to recharge all types of stationary batteries for large utility, petrochemical and industrial uses.

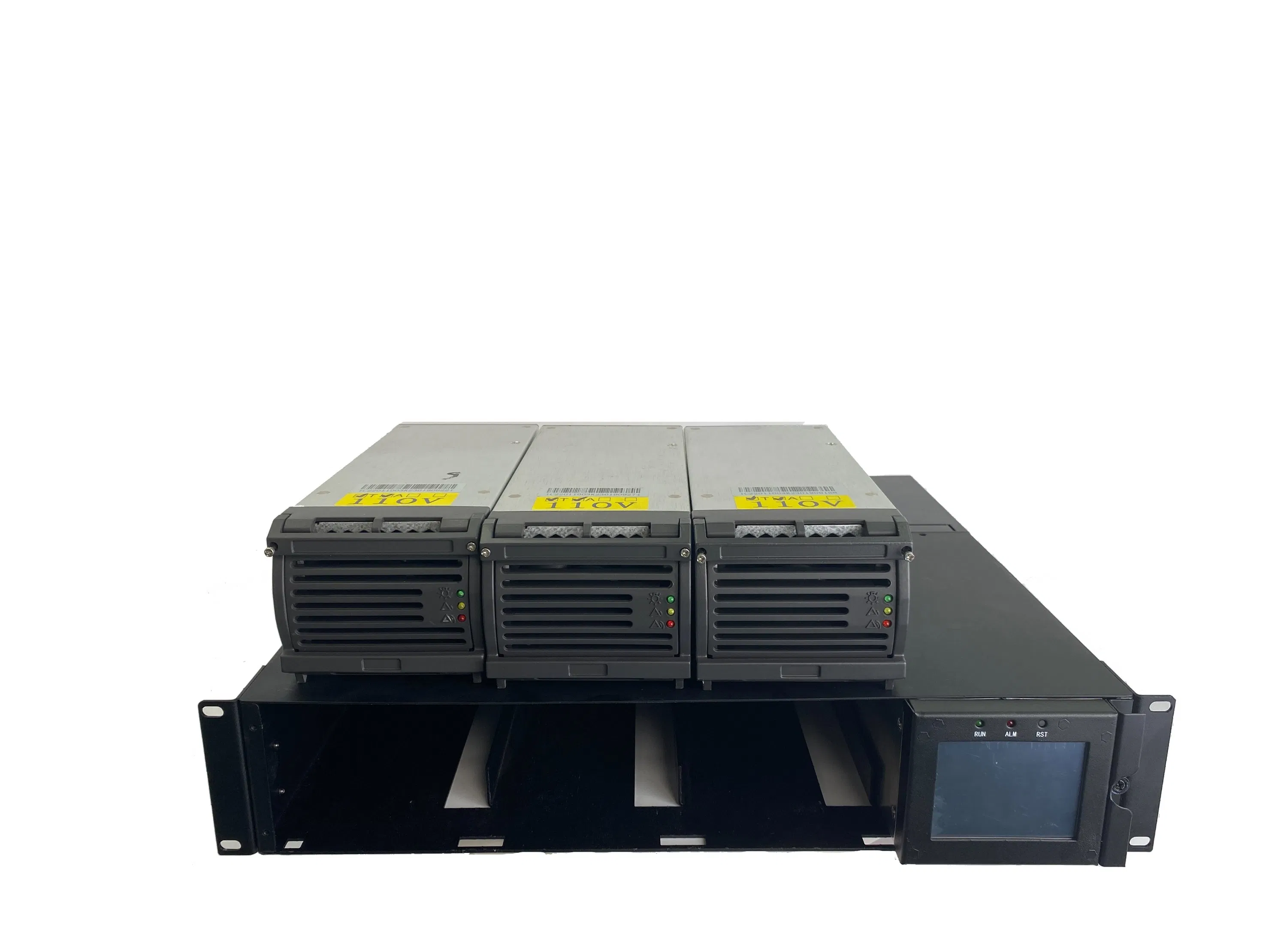

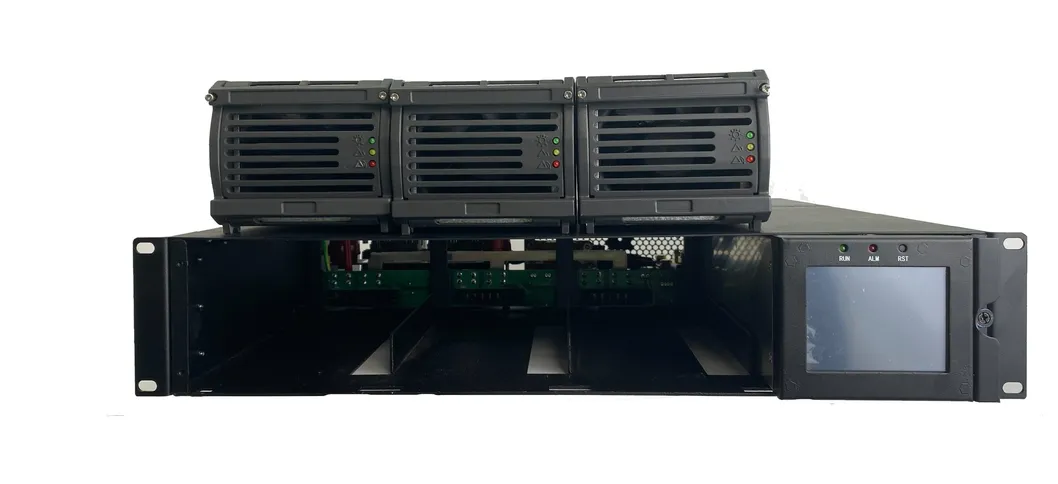

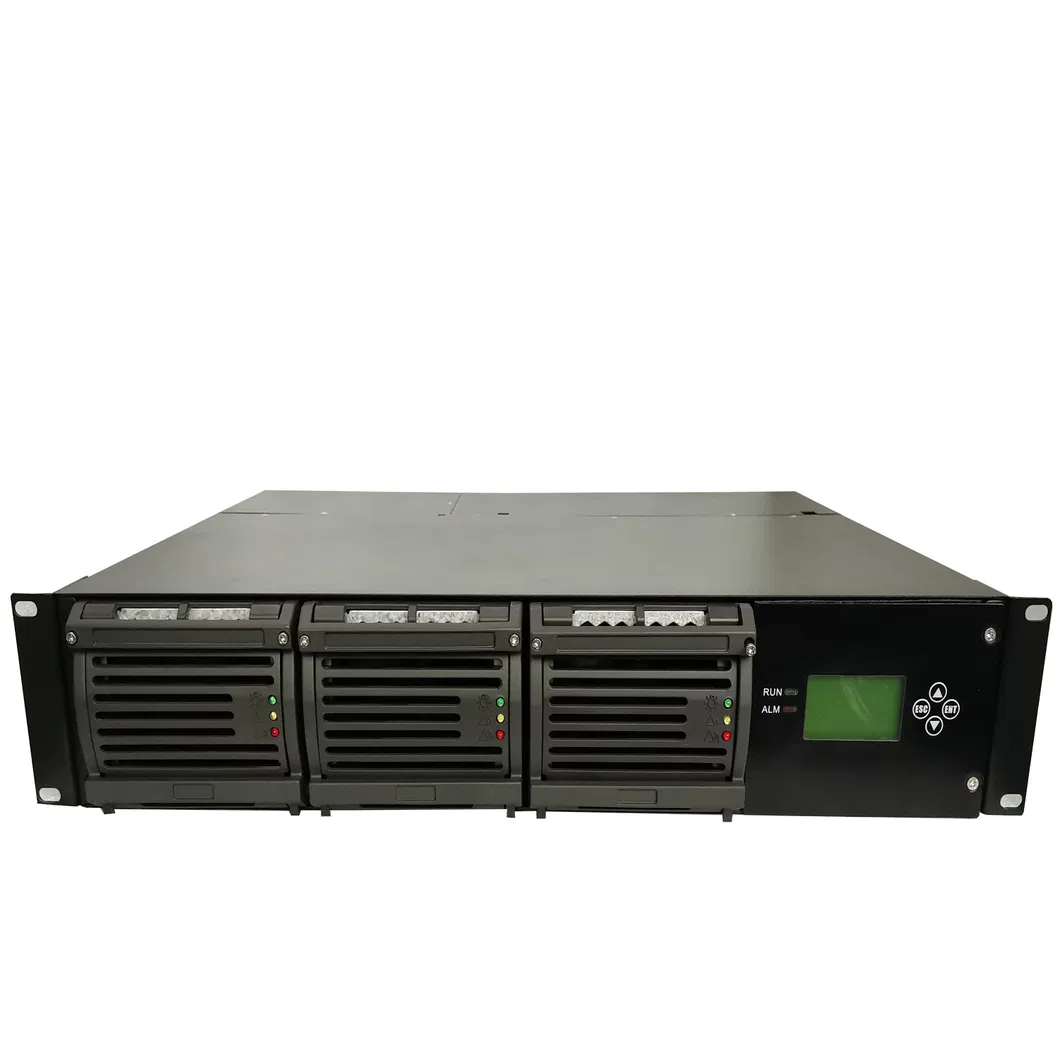

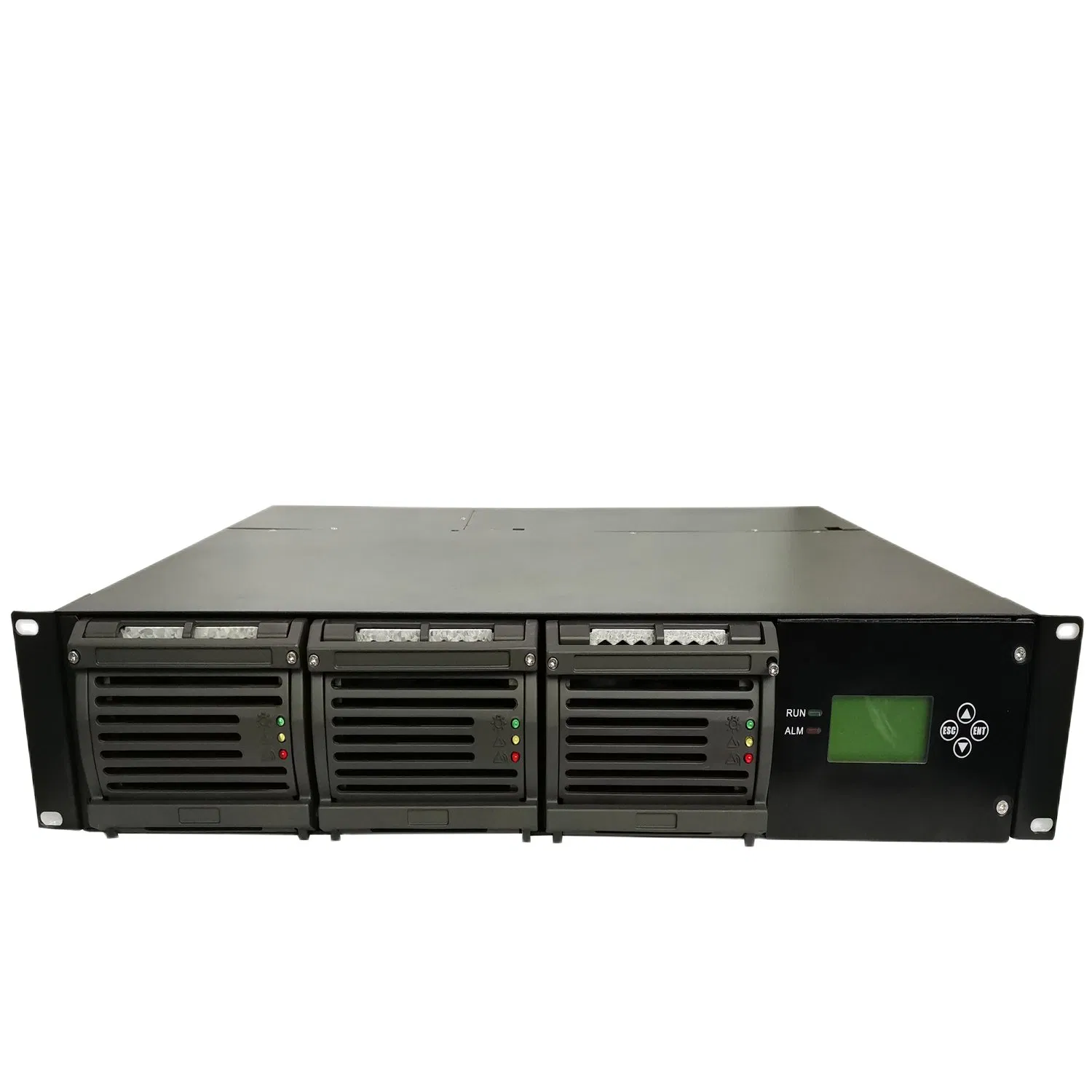

The fan-cooled rectifier module has extremely high density, providing the most power in the least amount of space. A compact shelf accommodates four rectifiers per 19in 2U shelf and can be paralleled up to 5*2U 19in shelf.

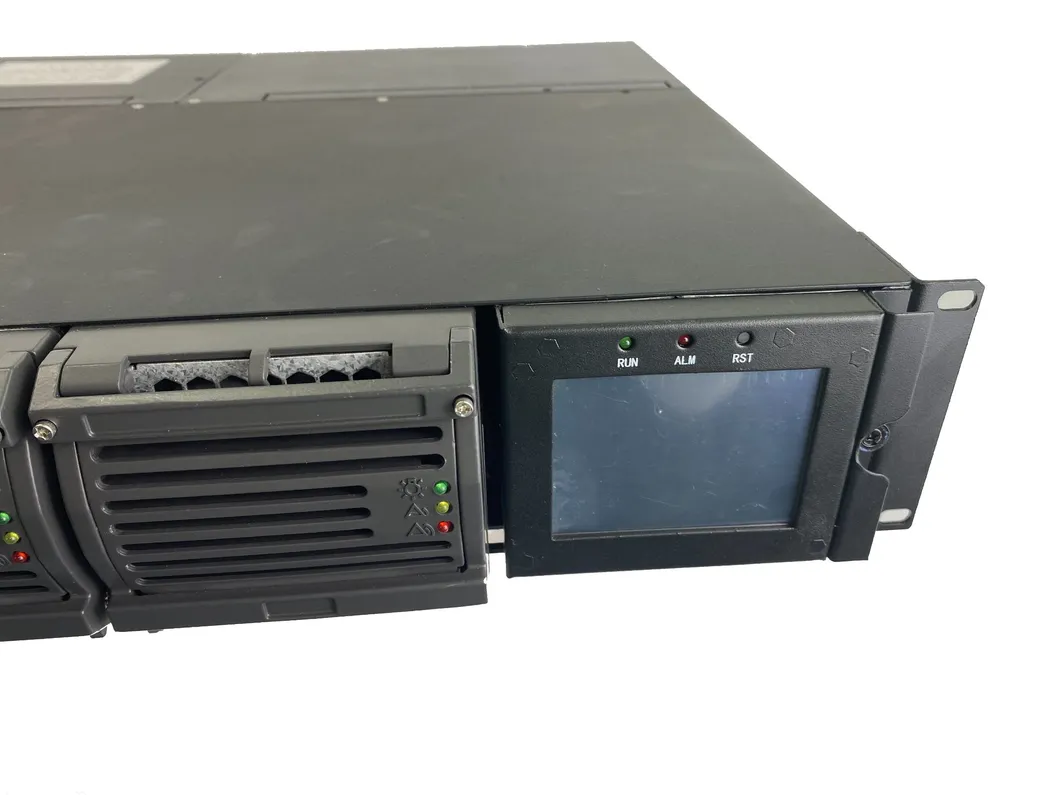

Local and remote setup, adjustment, and control is a simple, single-step process with the rectifier System Controller. By utilizing TCP/IP technology, complete configuration and monitoring of power equipment is possible through standard browser interfaces.
| Category | Parameter | 110V System Specs |
|---|---|---|
| Environment | Operating Temp | -40°C ~ 55°C |
| Altitude | ≤ 2000m | |
| AC Input | Voltage Range | 90VAC ~ 280VAC (Single Phase) / 323-437VAC (3-Phase) |
| Power Factor | ≥ 0.99 | |
| DC Output | Nominal Voltage | 110VDC |
| Rated Capacity | 7.5kW / 17.5kW / 27.5kW | |
| Efficiency | ≥ 93.2% |
The module is capable of operating in "Auto Float cum-Boost charger" mode. It is programmed to operate as a float rectifier or a boost charger depending on the battery condition.
Soft Start FeatureSlow start circuitry ensures the output voltage reaches its nominal value slowly within 10 to 20 seconds, eliminating all starting surges.
Parallel OperationModules are suitable for parallel operation on an active load sharing basis with a sharing accuracy within ± 10%.
