Vernon Charger
1 / 5

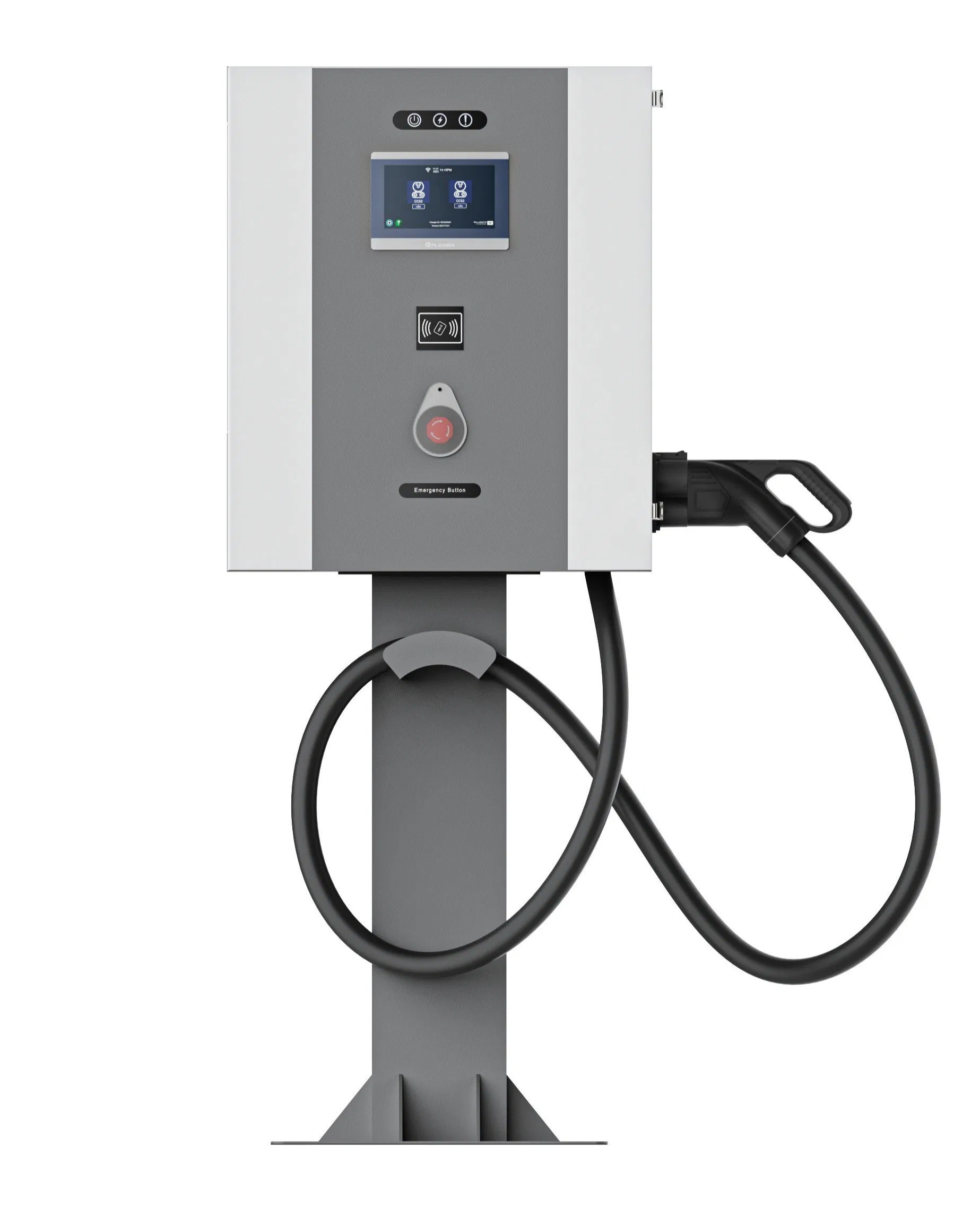

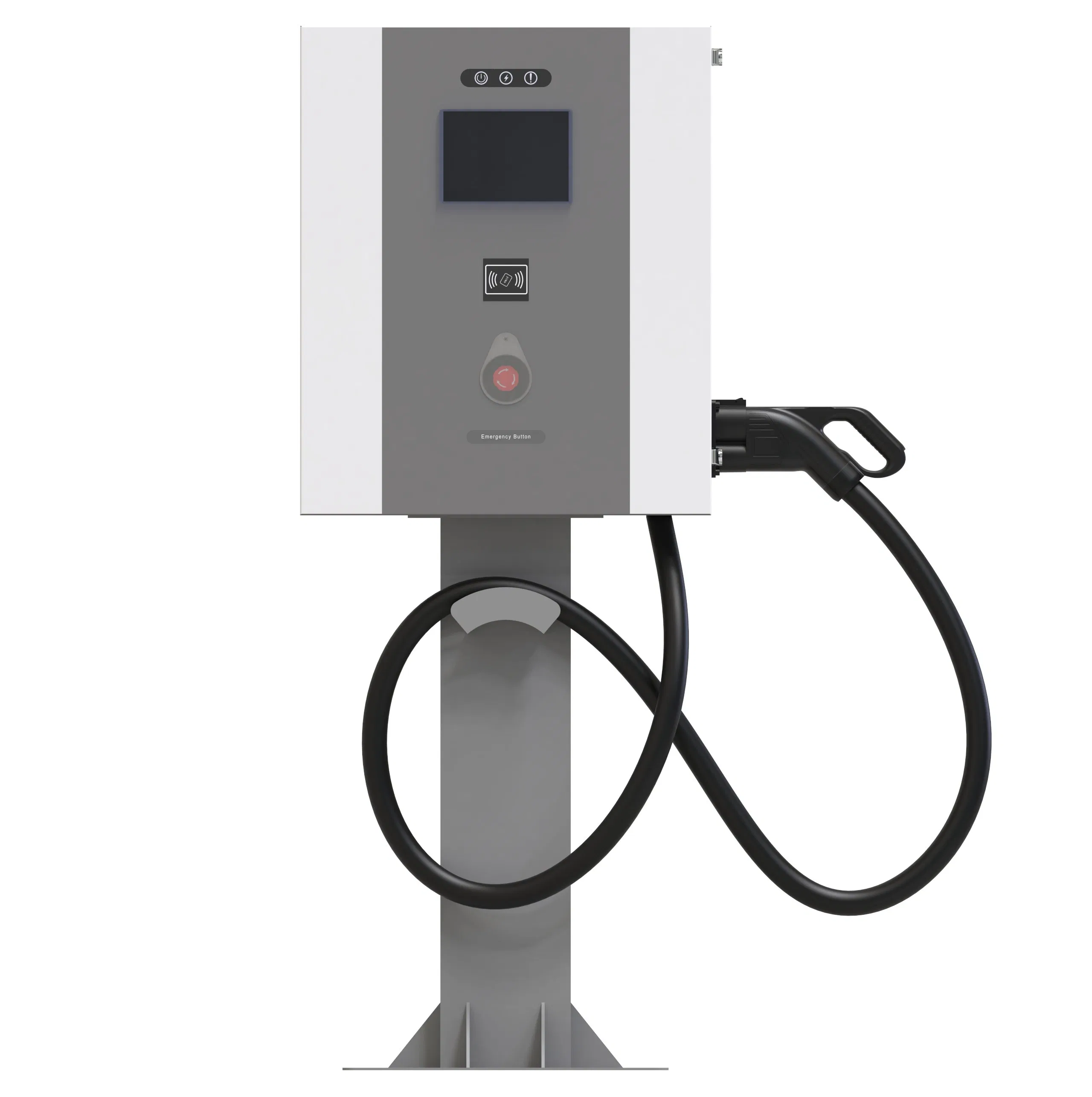

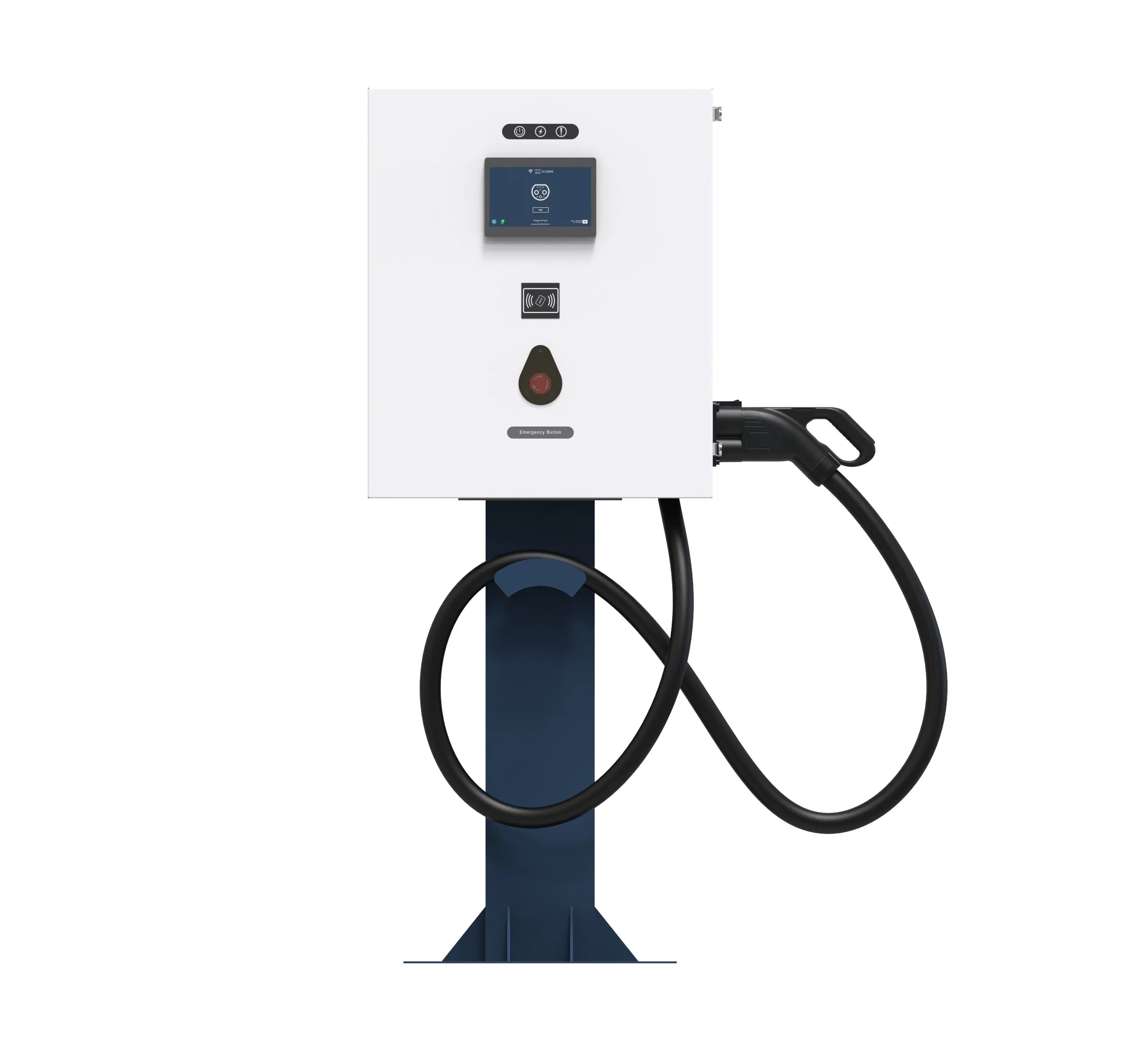

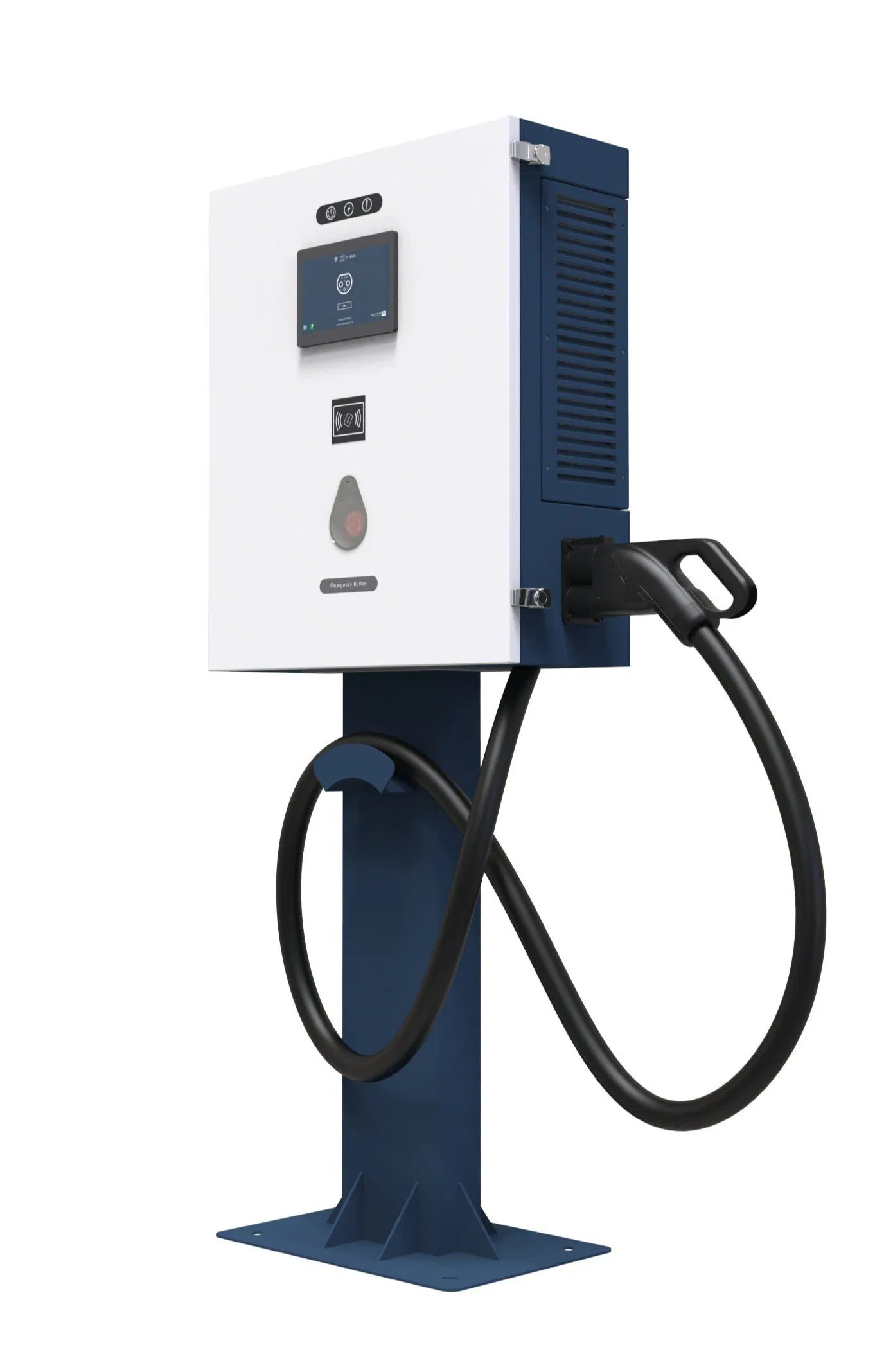

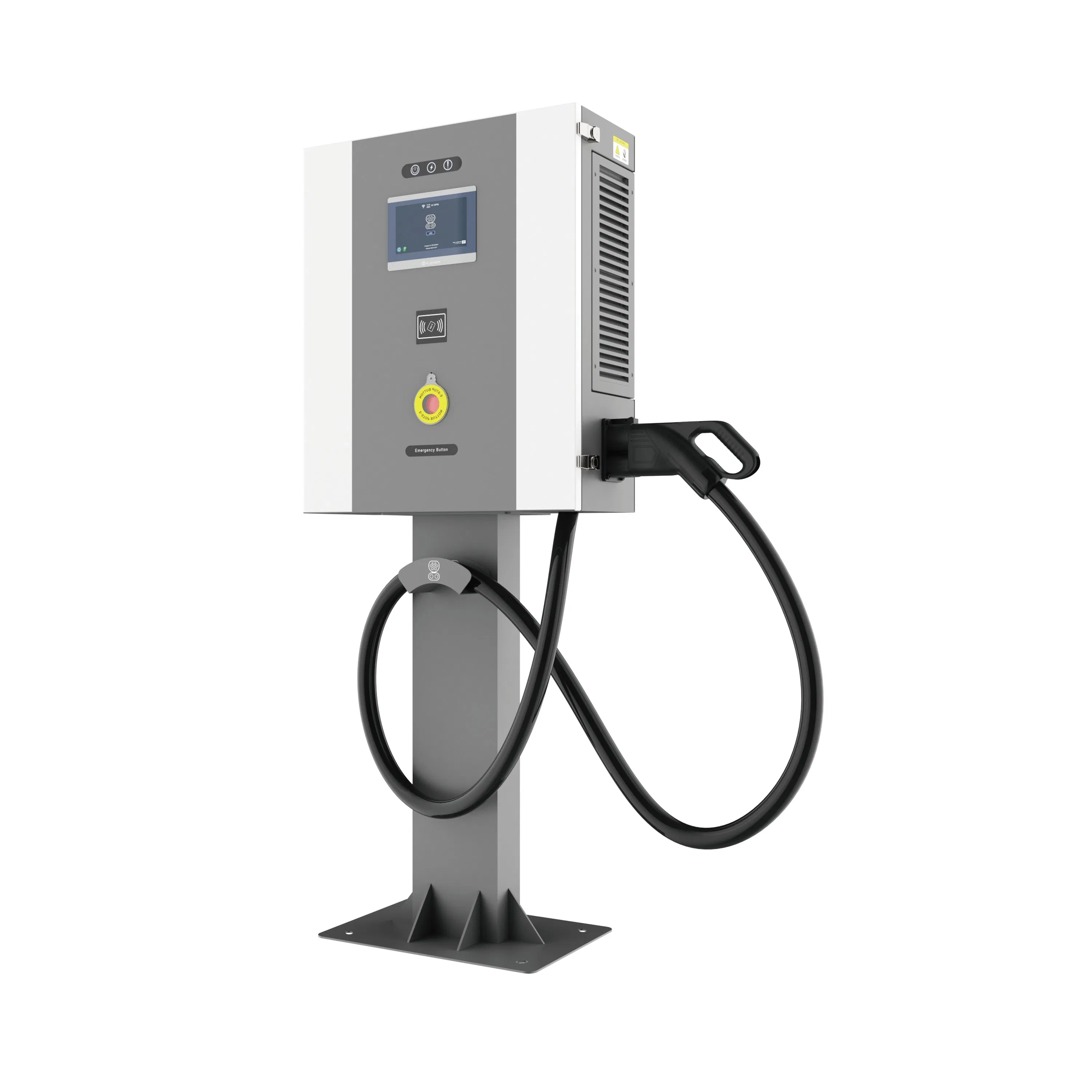

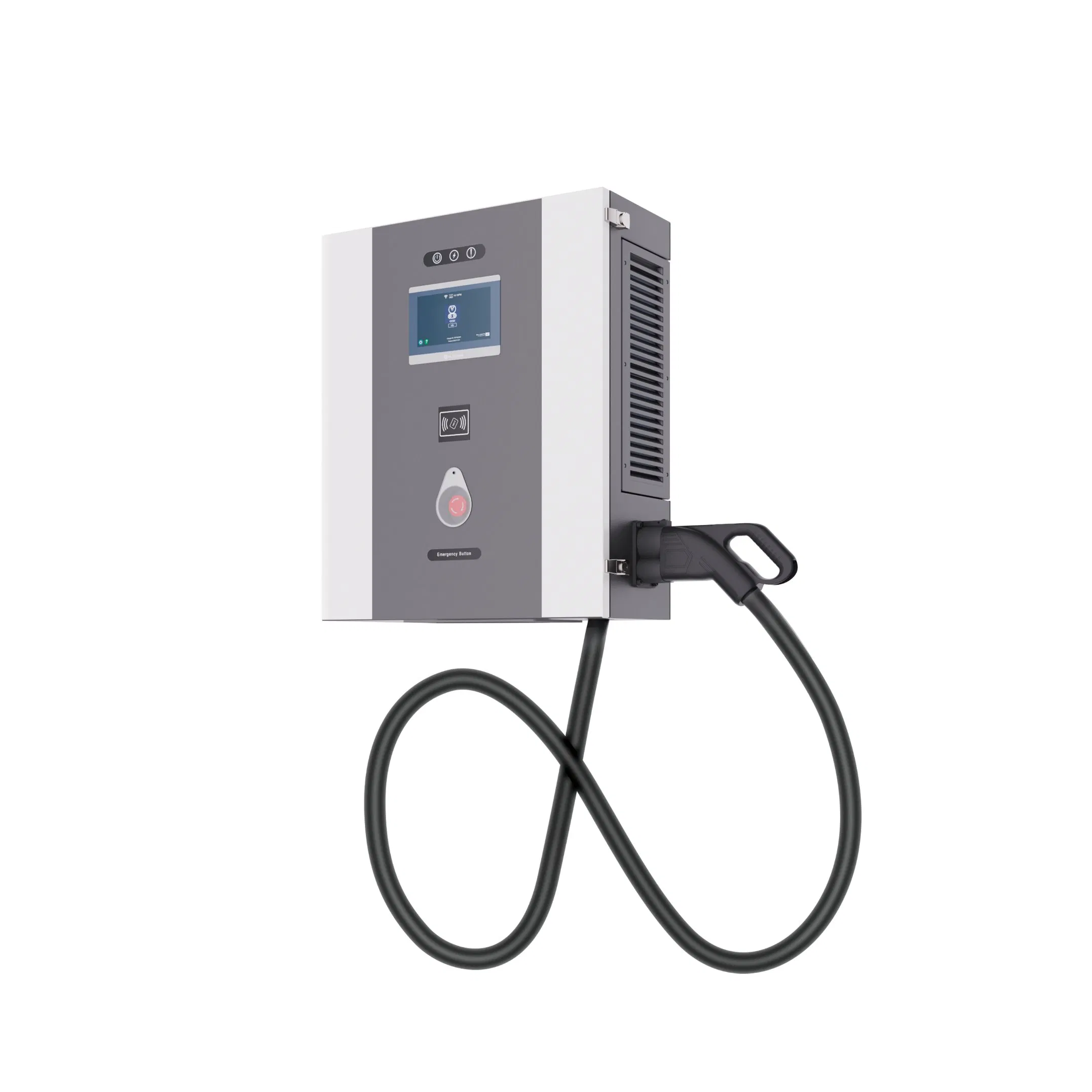

This wall-mounted DC charging station is designed with a "minimalist-first" philosophy, featuring a classic black-and-white color scheme. Through distinct functional zones and bold color contrasts, it achieves a clean, sharp aesthetic with a distinctly modern feel. We deliberately eliminated redundant decorative elements, allowing the product to return to its core charging function. The overall form embodies technical beauty within simplicity, seamlessly integrating into diverse architectural environments while highlighting the device's professionalism and functionality.

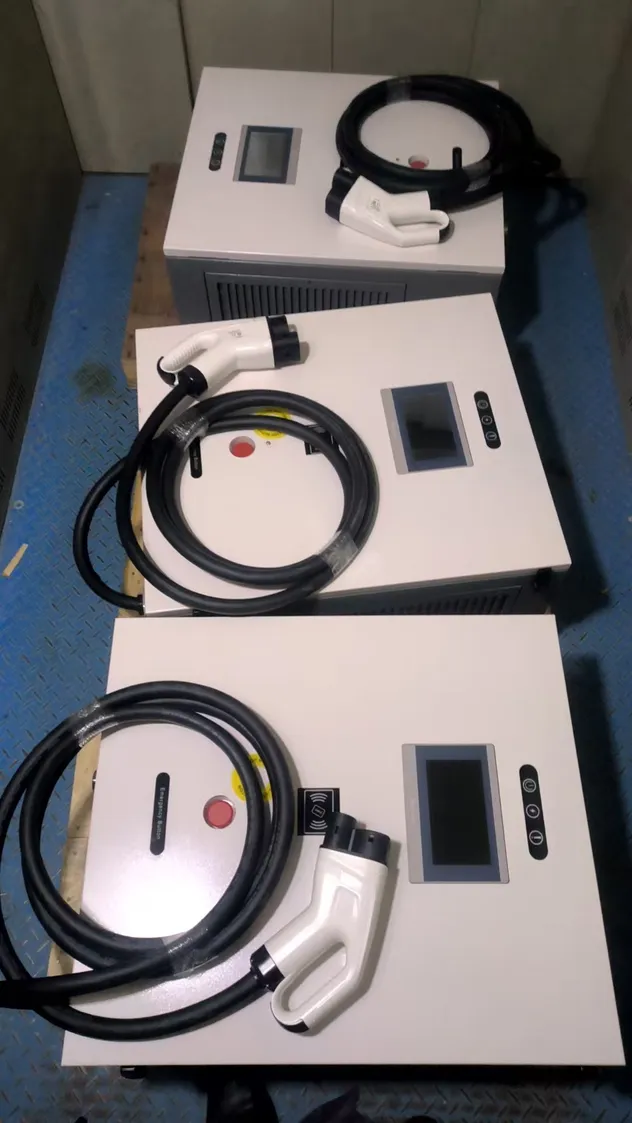

Intuitive Human-Machine Interaction: We've significantly streamlined the operation process. After inserting the charging cable, users simply press the physical button on the side of the station to initiate charging with a single press—no complex settings or multiple screen taps required. Combined with high-brightness LED status indicators, charging progress and any abnormalities are immediately apparent, greatly reducing user learning curves.
Integrated Cable Management: To maintain a tidy installation site, this charging station comes standard with a cable holder. Its sturdy construction and well-designed latch securely tucks away the charging cable, effectively preventing issues like sagging, tangling, or crushing. This extends the cable's lifespan and reduces safety hazards caused by poor management.
Core Performance: We offer three power variants—20kW, 30kW, and 40kW—catering to diverse needs from medium-speed top-ups to high-power fast charging. Users can flexibly select the most suitable model based on their specific usage scenarios and infrastructure.
| Model No. | MS04 |
| Rated Power | 20-40kW |
| Input Voltage | 400VAC / 480VAC (3P+N+PE) |
| Output Voltage | 200 - 1000VDC |
| Output Current | 1-125A |

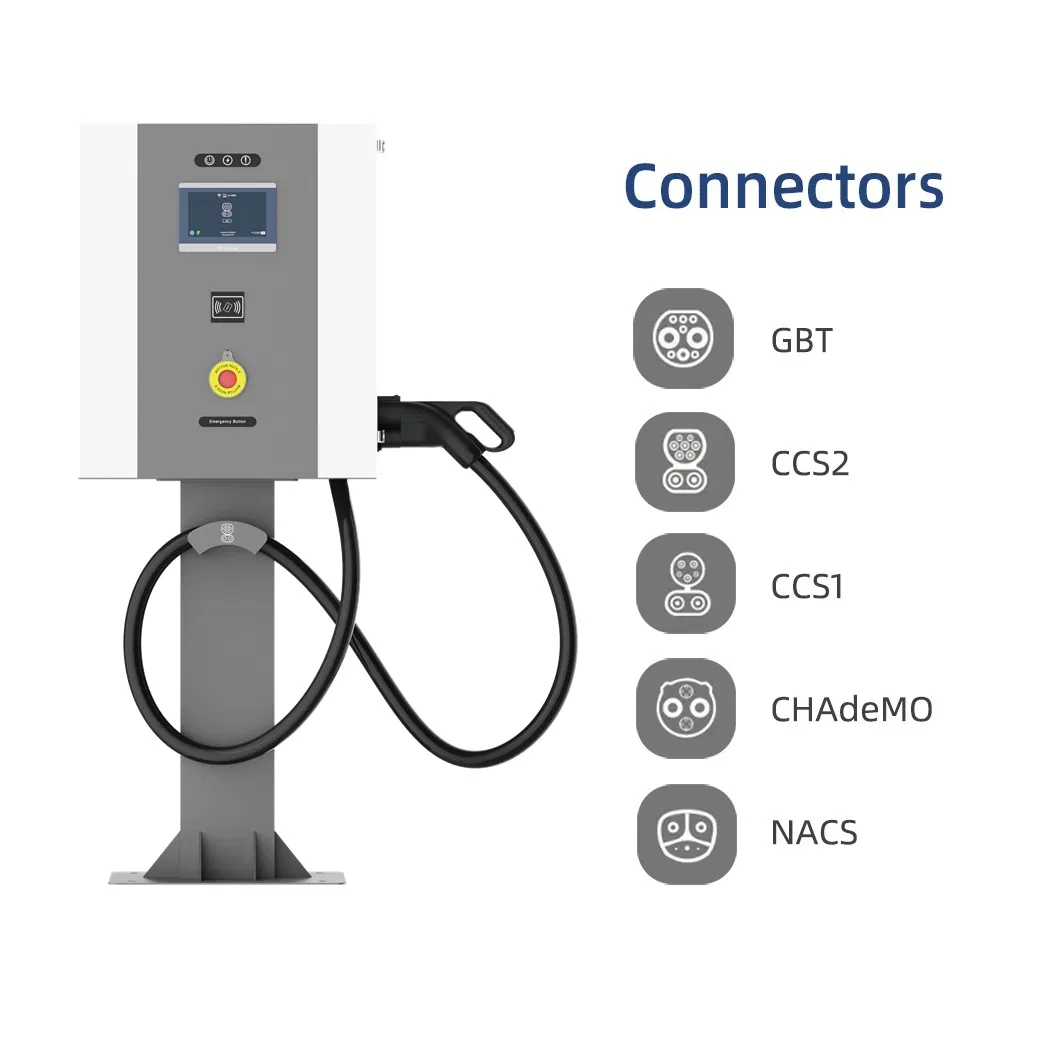

| Connectors | GBT, CCS2, CCS1, CHAdeMO, NACS |
| Ingress Protection | IP54 / IK10 |
| Dimensions | 600mm x 470mm x 100mm (Wall-mounted) |
| Operating Temp | -30°C to 75°C |
| Cooling Mode | Air Cooled |
| Efficiency | Peak efficiency ≥96% |
| Safety Protection | Overvoltage, Lightning, Overcurrent, Leakage, Waterproof, Emergency Stop |
