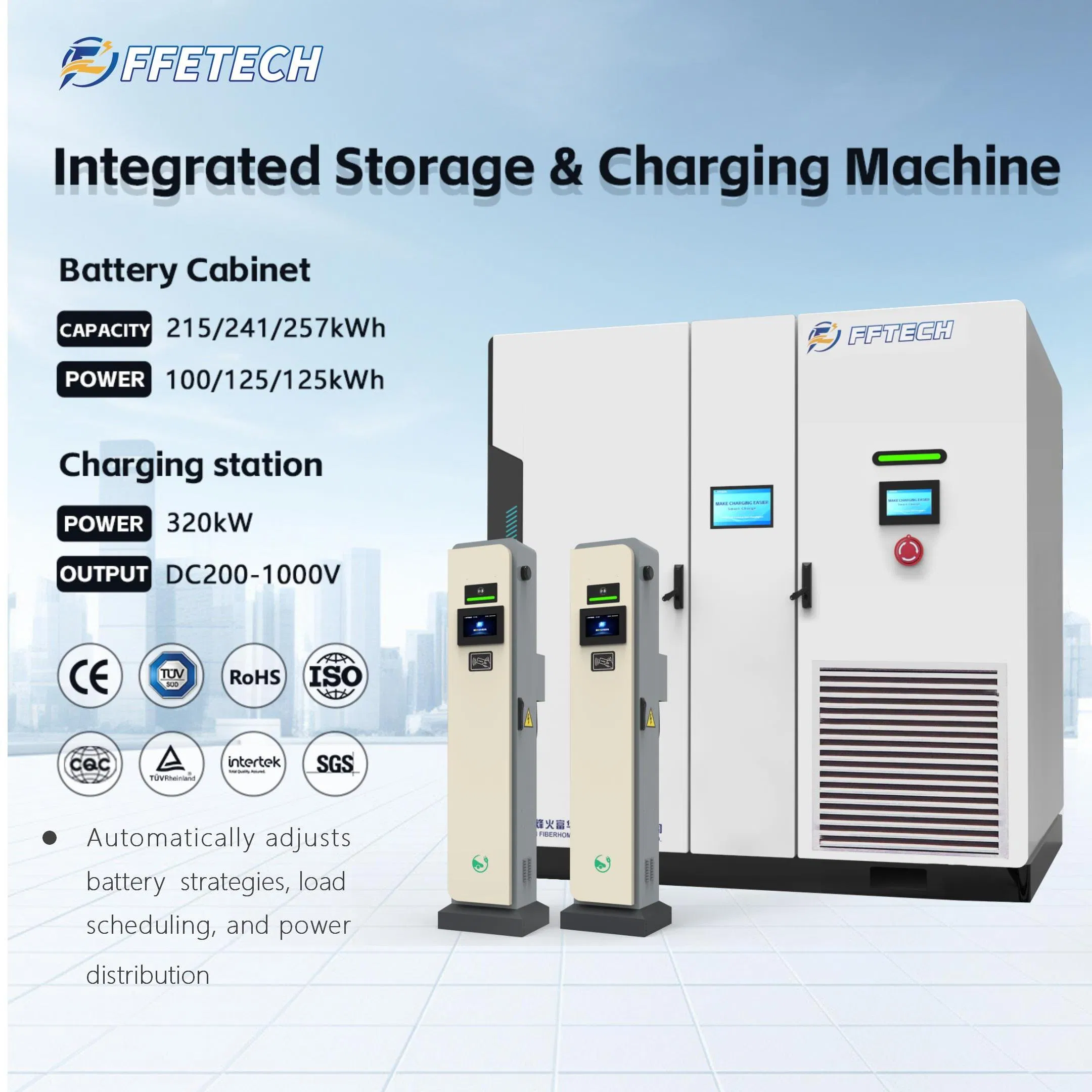

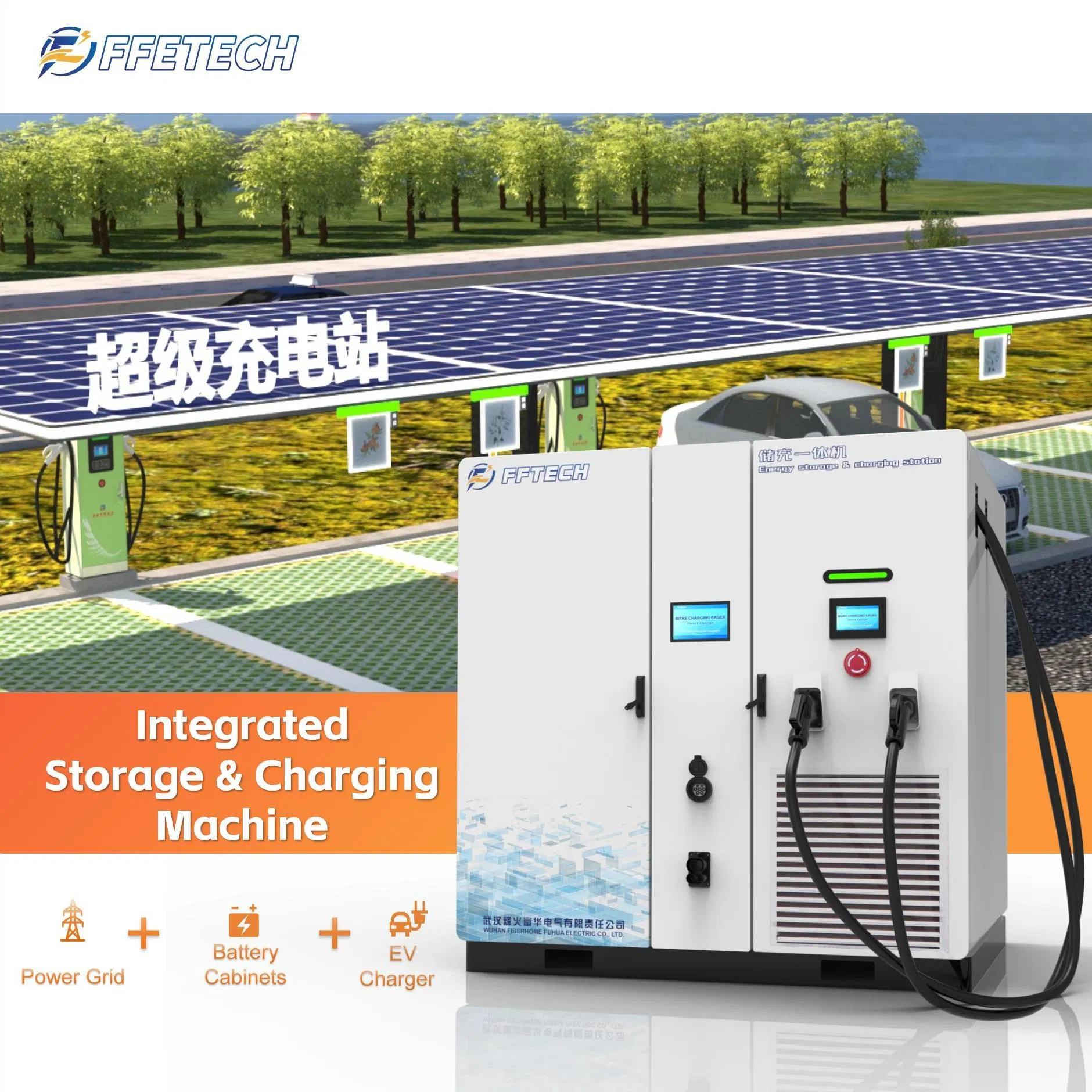

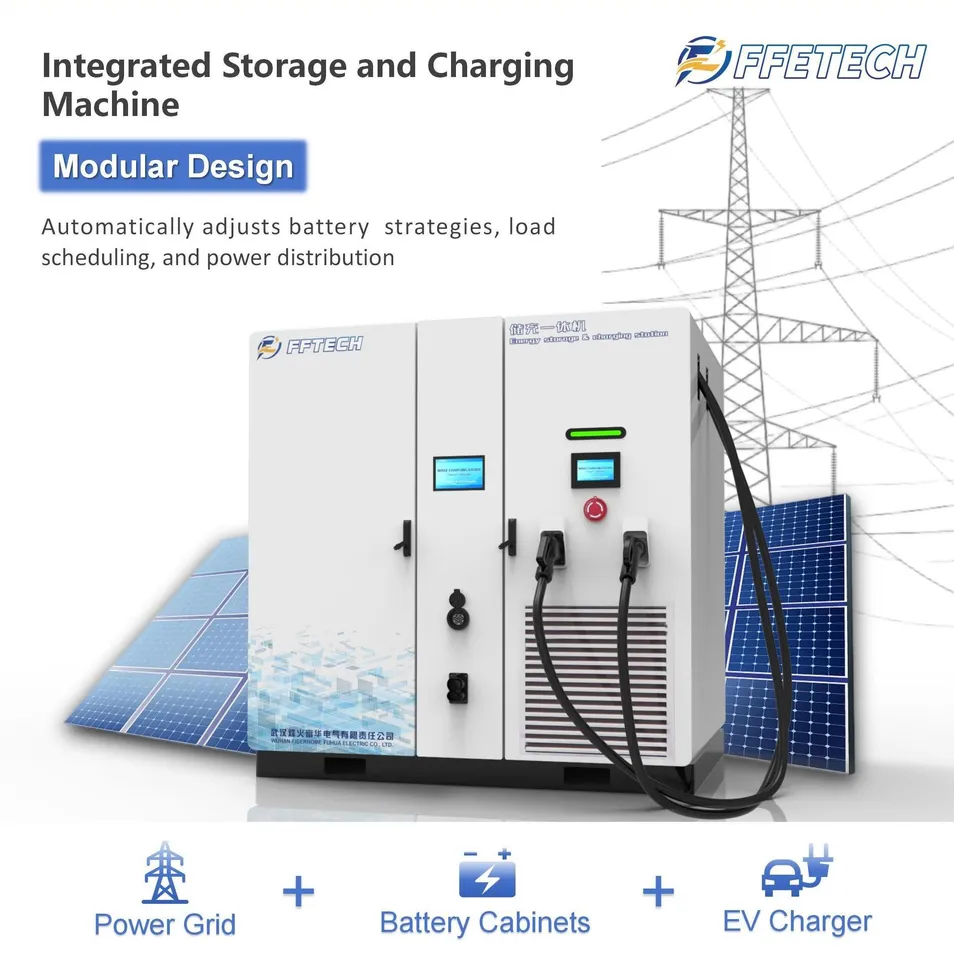

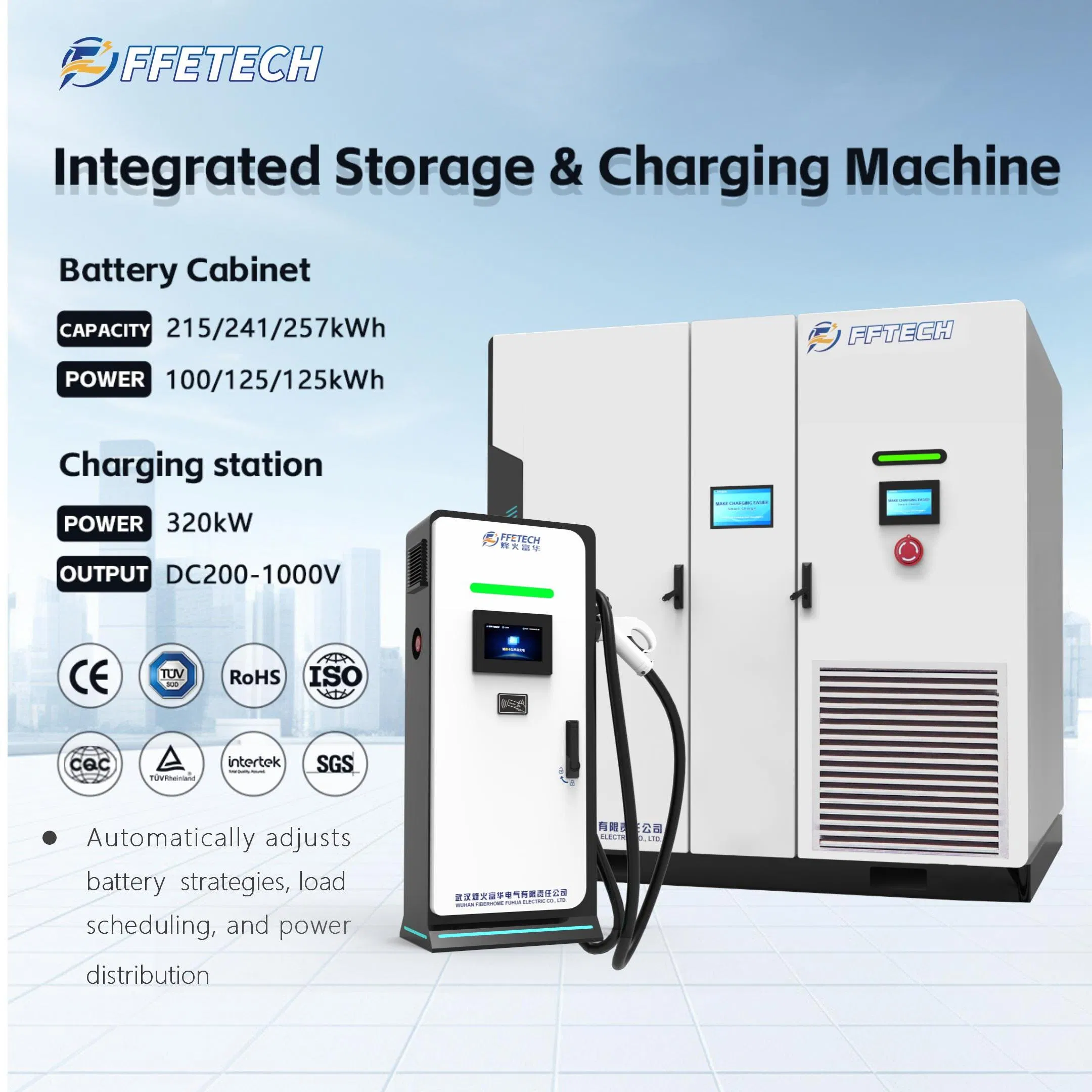

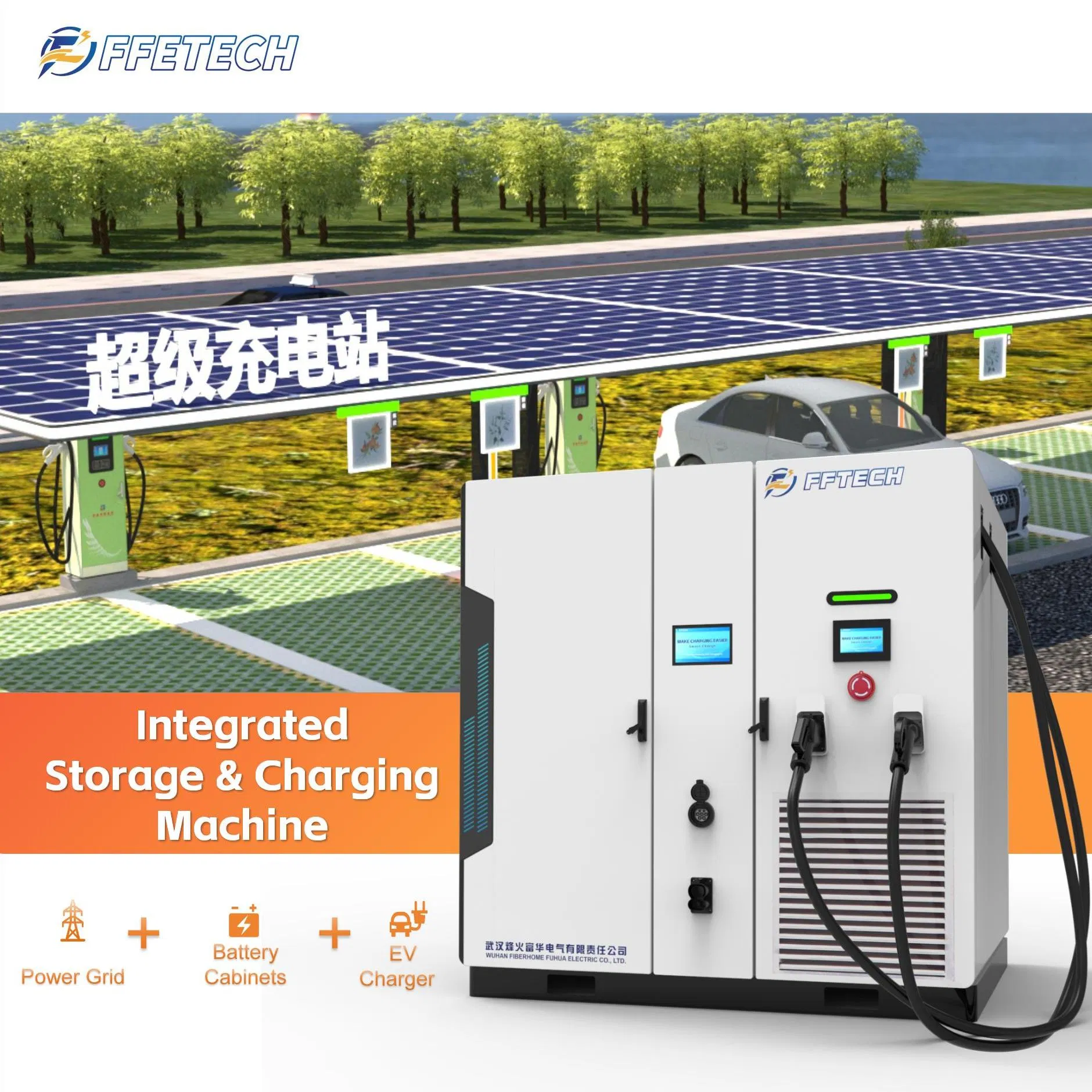

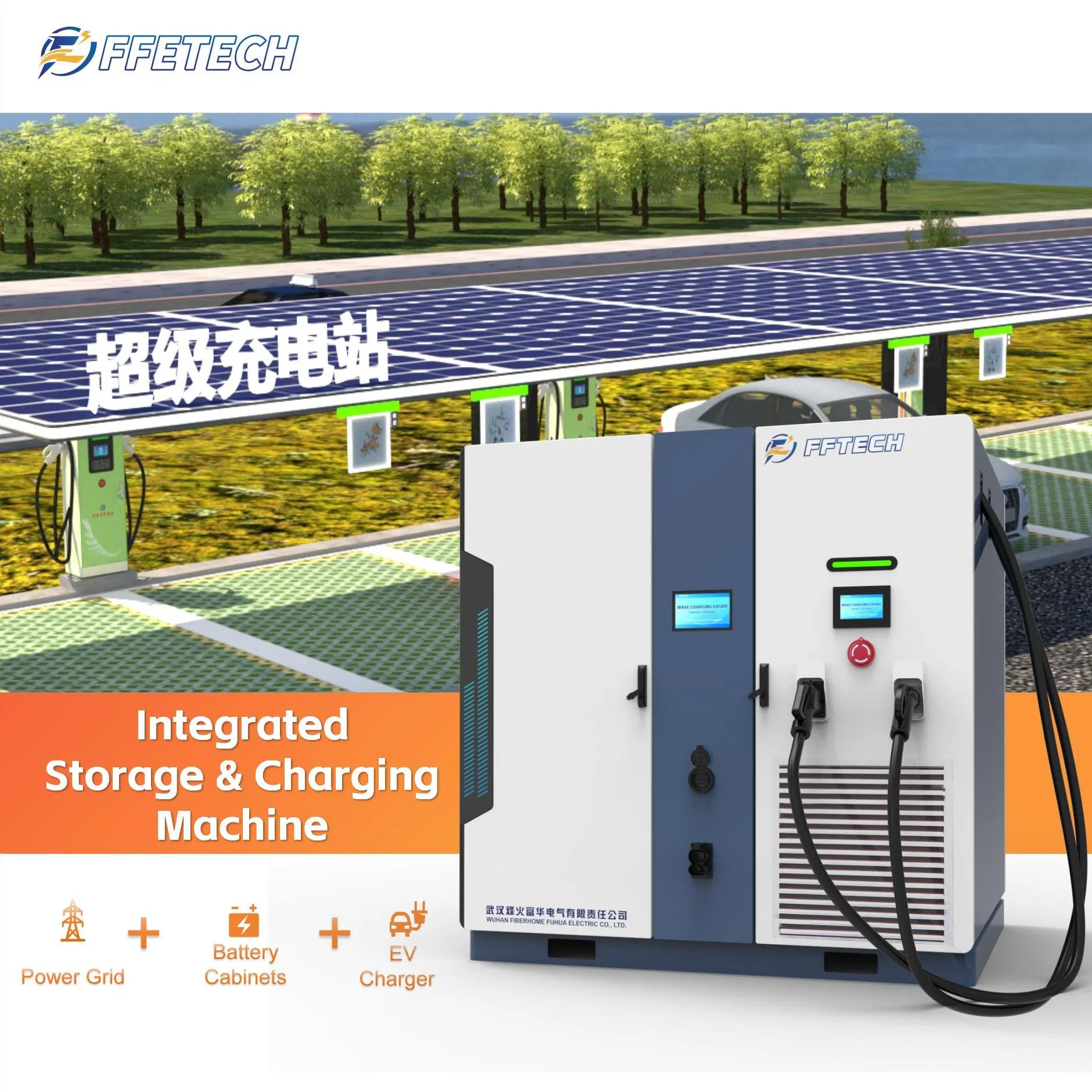

This product uses a zero-capacity-increment, flexible smart charging pile as the energy storage and charging system carrier. With a modular design, it integrates lithium iron phosphate battery cabinets, battery management system (BMS), power conversion system (PCS), DC-DC charging system, local control system (EMS), air conditioning, and fire protection devices into one unit.

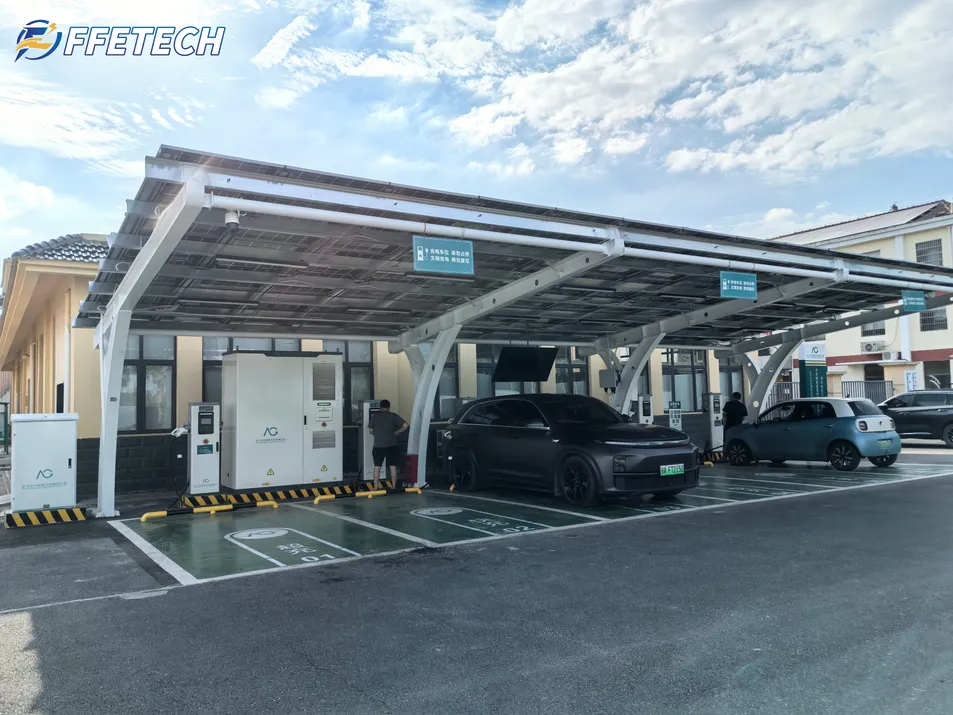

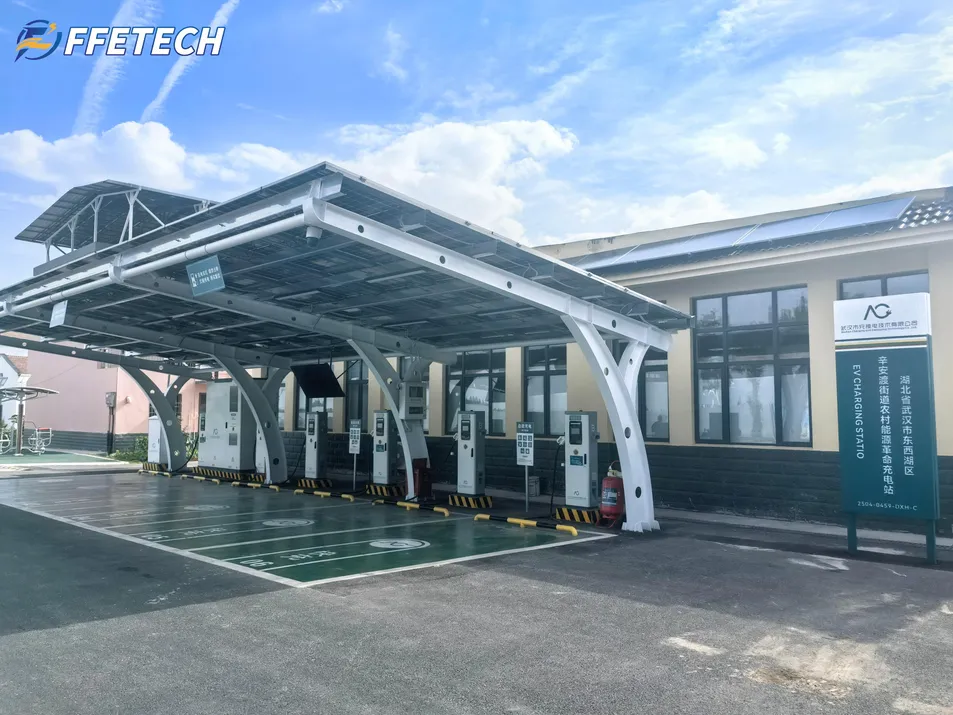

It aims to improve energy efficiency, lower costs, and enhance power supply reliability. Ideal for EV charging stations, commercial complexes, industrial parks, and residential communities, optimizing power resource allocation.
| Model | FH-ES-215 | FH-ES-241 | FH-ES-257 |
| Cell Type | LFP 3.2V/280Ah | LFP 3.2V/280Ah | LFP 3.2V/280Ah |
| Battery Capacity (kWh) | 215 | 241 | 257 |
| Nominal Power (kW) | 100 | 125 | 125 |
| Voltage Range (V) | 648~876 | 648~876 | 691.2~934.4 |
| Battery Life | ≥6000 cycles @25℃±2℃ | ||
| AC Output Voltage | AC380V | ||
| Protection Rating | IP54 | ||
