5.015mwh Advanced Liquid Cooling Commercial Storage Unit

1 / 5

5.015mwh Advanced Liquid Cooling Commercial Storage Unit

Customization:	Available
Container Size:	2438mm-2896mm-6058mm
Warranty:	3 Years

Send Inquiry

Product Description

Basic Info.

Cycle Life

10 Years (2 Charges and Discharges Daily)

Configuration

12*(1p104s*4)

Rated Power

5MWh

Voltage Range

1164.8V - 1497.6V DC

Rated Charging Power

≤ 2.5MW

Rated Discharge Power

≤ 2.5MW

Auxiliary Power Supply

400V AC±5% 50Hz / 220VAC

Origin

China

Product Description

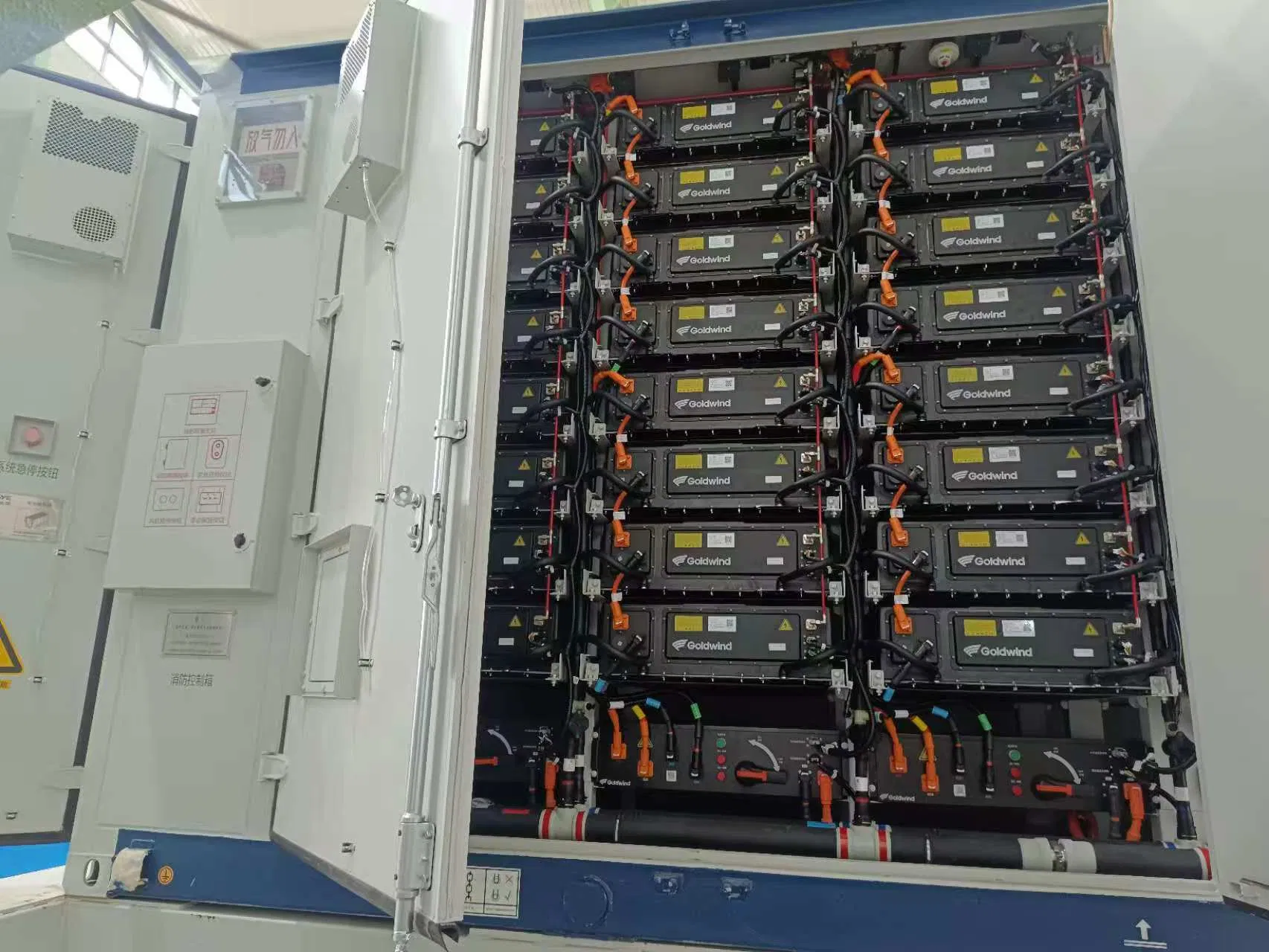

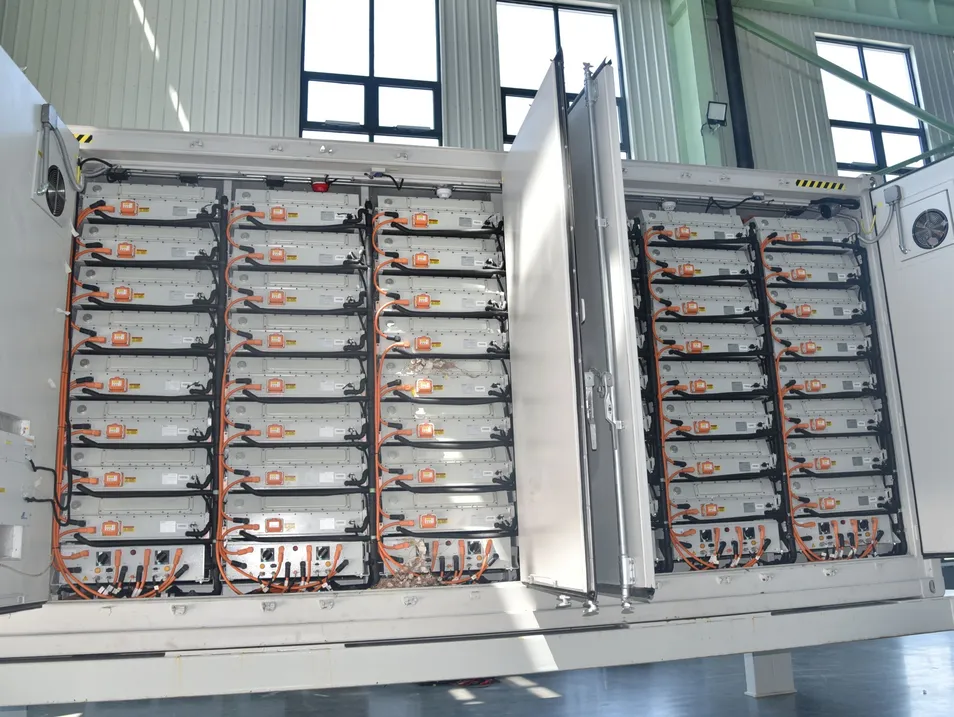

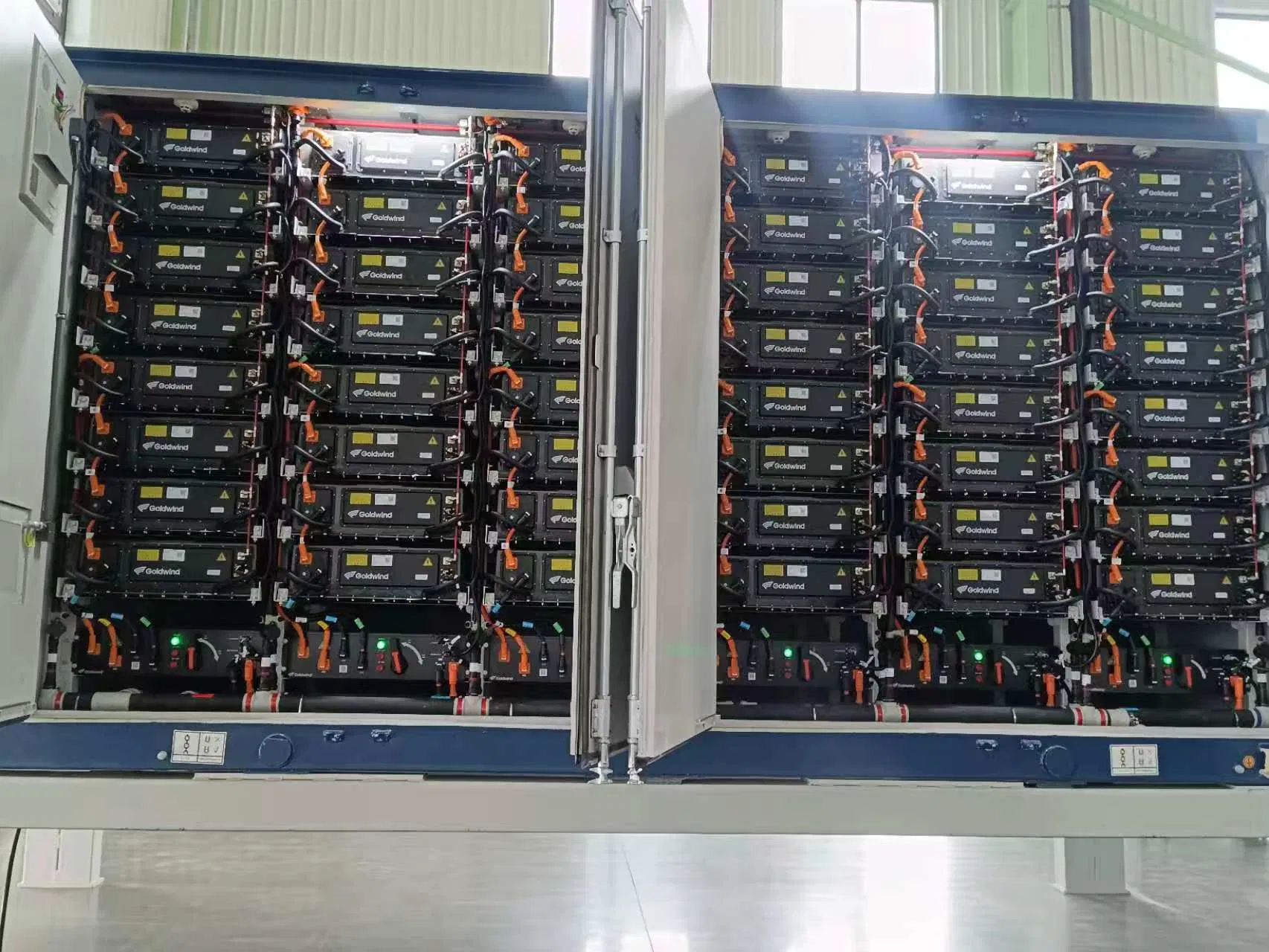

Energy Storage Container

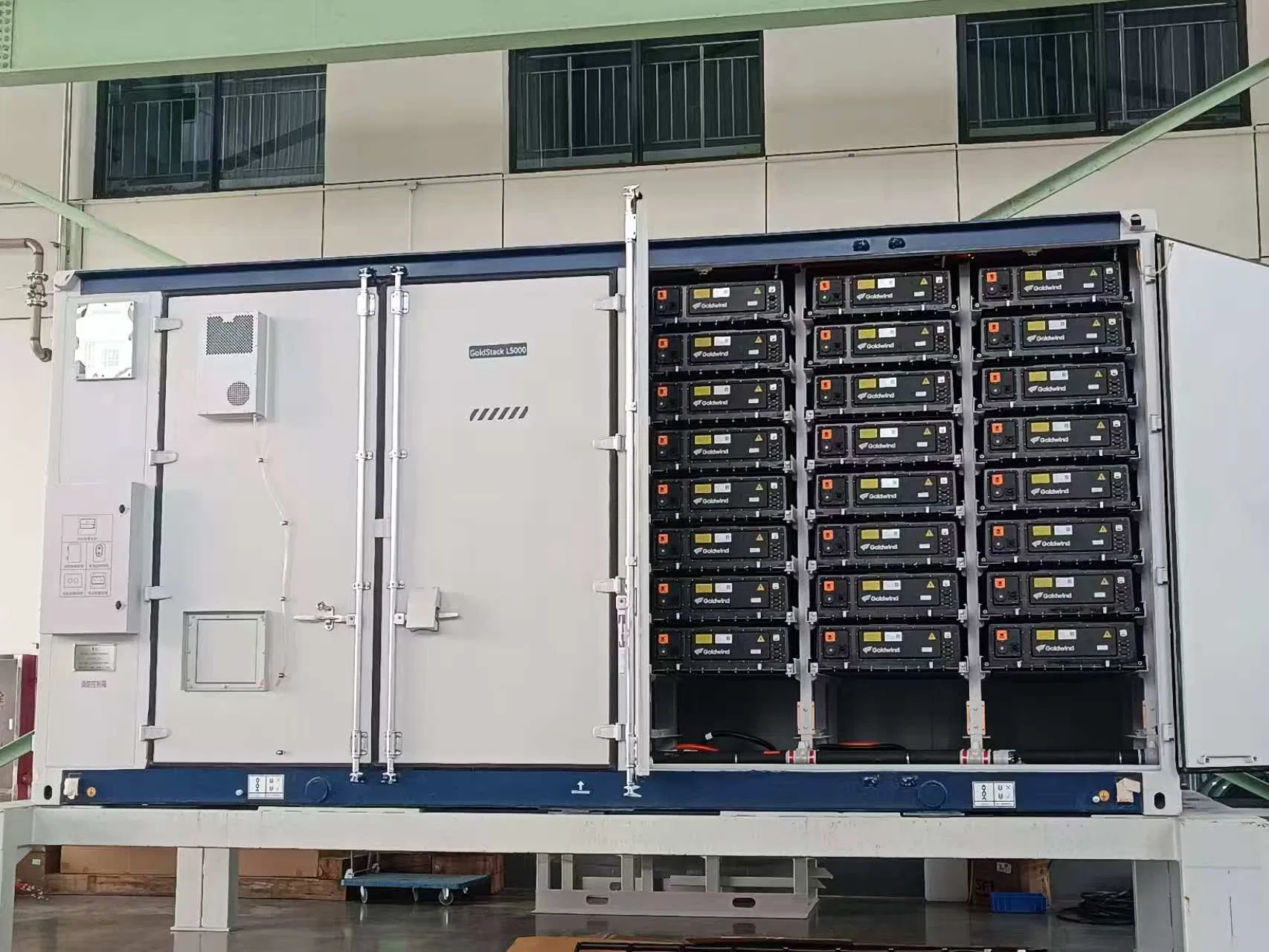

5015KWh Liquid Cooling energy storage system based on domestic high-capacity 314Ah energy storage cells, consisting of a 104S long PACK, battery cluster units, battery management systems, fire protection systems, lighting systems, thermal management systems, electrical systems, and environmental control systems.

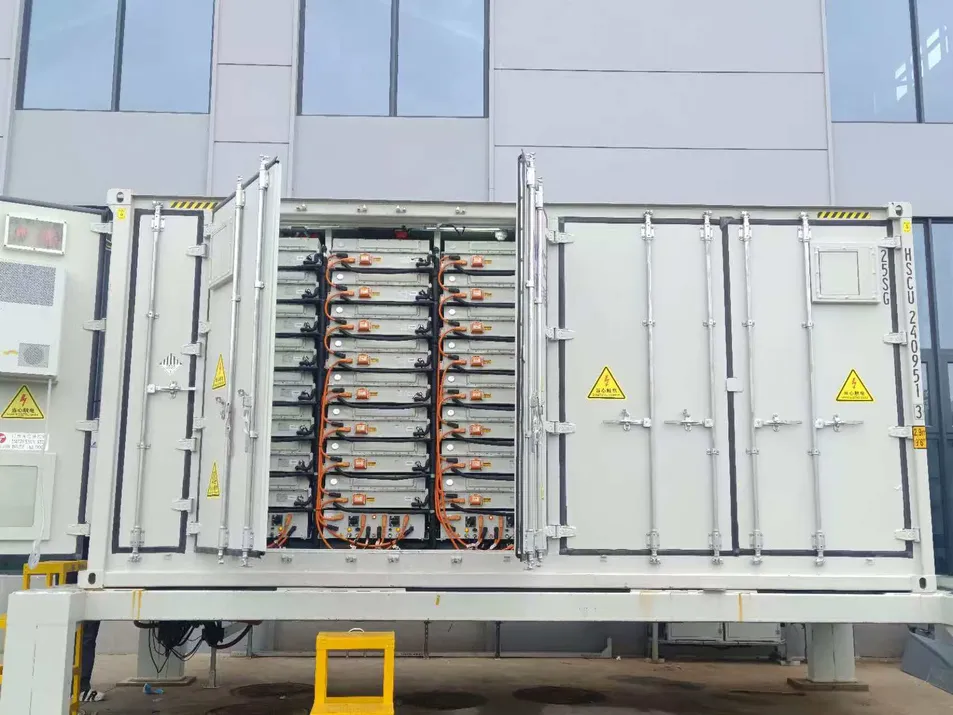

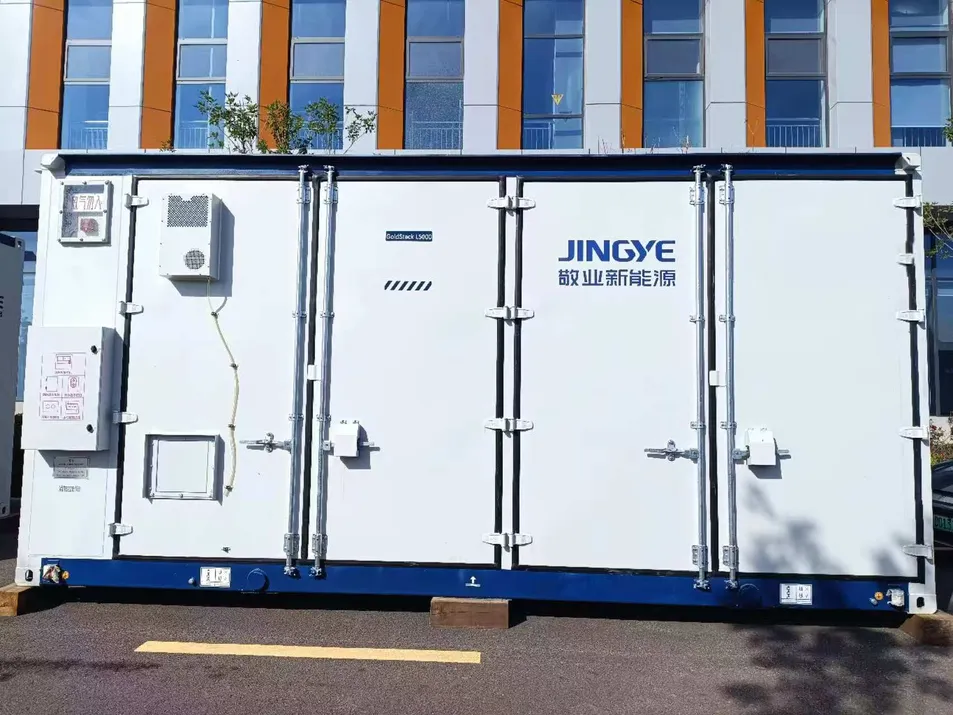

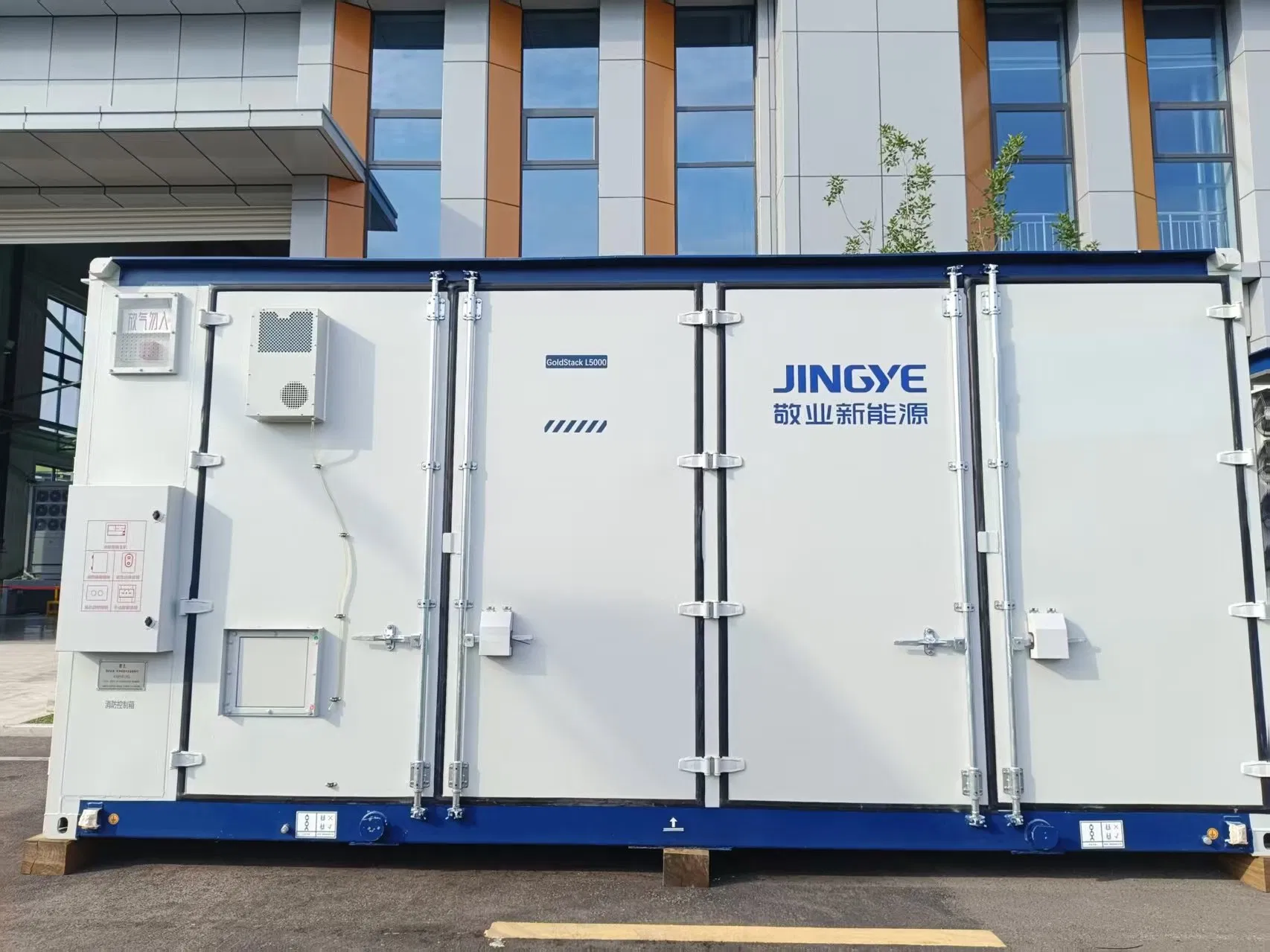

The energy storage system uses simplified integration technology, installing PACK, distribution busbars, liquid cooling units, temperature control systems, and fire protection systems within a standard 20-foot container (2438mm-2896mm-6058mm), arranged in three compartments, ensuring safety control while being suitable for various transportation conditions and site designs.

Product Features

1

Battery Technology: Utilizes mature, high-efficiency, long-life large-capacity lithium iron phosphate batteries.
2

Battery Management: Equipped with advanced intelligent battery management products to ensure product safety.
3

Thermal Management: Achieves high-precision intelligent operation environment control through industrial-grade air conditioning systems, ensuring a temperature difference of 3℃ inside the PACK and 5℃ in the cabinet.
4

Safety Protection: Optional fire protection system using perfluorohexane or aerosol.
5

Automatic Alarm & Fire Extinguishing: Configured with a three-level automatic alarm fire extinguishing system for PACK, cluster, and compartment.
6

Monitoring System: Installed with temperature and humidity, smoke, video monitoring, and access state monitoring equipment inside the container.

Technical Specifications

5MWh Liquid Cooling Battery Container Specification
Item	Specification
Configuration	12(1P104S4)
Rated Power	5MWh
Rated Voltage	1331.2VDC
Voltage Range	1164.8V - 1497.6VDC
Charging Power	≤ 2.5MW
Discharge Power	≤ 2.5MW
Work Temperature	0℃ to 60℃ (Charging) / -30℃ to 60℃ (Discharging)
Dimensions	L6058 x W2438 x H2896mm
Weight	About 43t
IP Rating	IP54
Communication	Ethernet, CAN, ModbusRTU

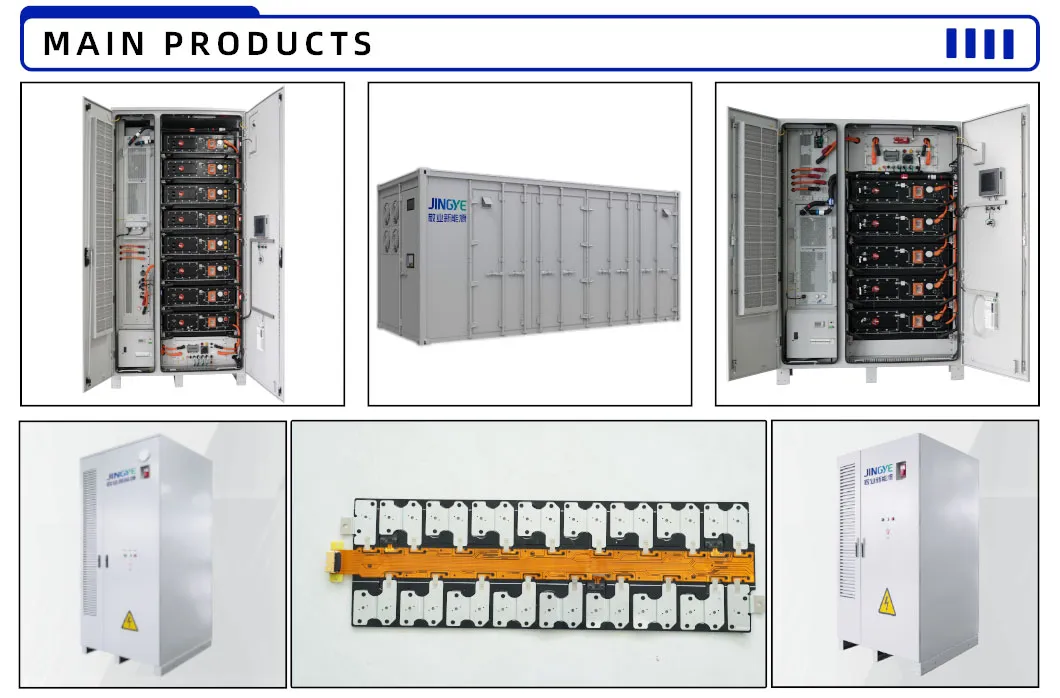

Main Products

Company Profile

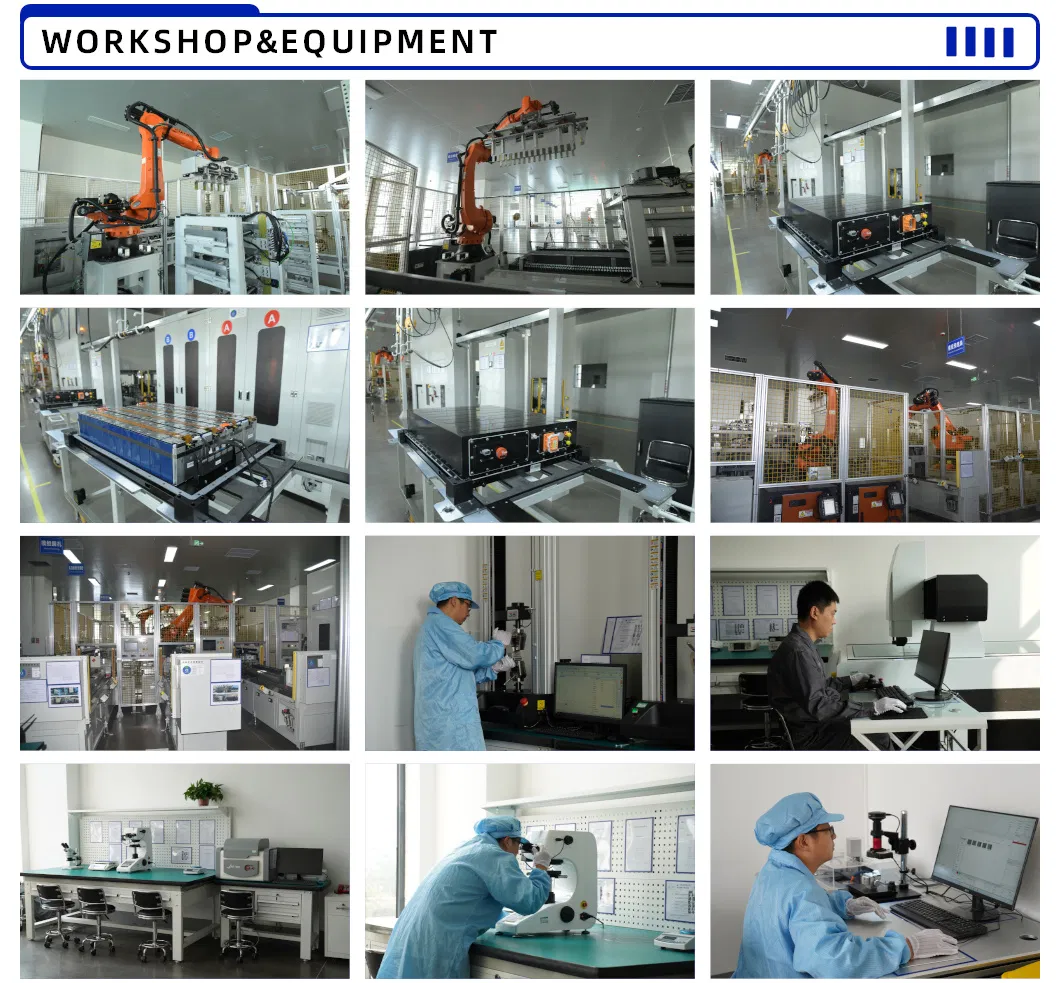

Workshop & Equipment

The company has the most advanced and automated production line, and now has an annual production capacity of 5 GWh of energy storage system and 2.4 million pieces of CCS busbars. The products are widely used in smart grids, wind and solar power distribution and storage, industrial and commercial energy storage, green transportation, and other fields. We have a global layout of new energy market, with branches at domestic and overseas to provide rapid, efficient, and high-quality services to global customers.

Certifications

Exhibition

Frequently Asked Questions

Q1: What are the primary energy storage products available?

A: Our core offerings include the 5MWh Energy Storage Container, Commercial & Industrial Energy Storage Cabinets, CCS Integrated Busbars, and specialized Battery Packs.

Q2: Do you support customization for specific project requirements?

A: Yes, we offer flexible customization services for products across diverse process types to meet the unique needs of different energy storage applications.

Q3: How is the production and delivery timeline managed?

A: Equipped with a comprehensive automated production line and proficient technical personnel, we guarantee stable production and strict adherence to on-time delivery schedules.

Q4: How can we receive a detailed quotation for our project?

A: You can contact our staff directly through the website interface. We will analyze your requirements and promptly provide a comprehensive and detailed quotation.

Q5: Are you a trading company or a direct manufacturer?

A: We are a formal source factory with standardized production processes, allowing us to offer highly competitive pricing without compromising on top-tier product quality.

Q6: What is the cooling technology used in the 5MWh container?

A: It utilizes an advanced Liquid Cooling system with a 50% ethylene glycol aqueous solution, ensuring high-precision temperature control within a 3-5℃ difference range.
