Vernon Charger
1 / 5

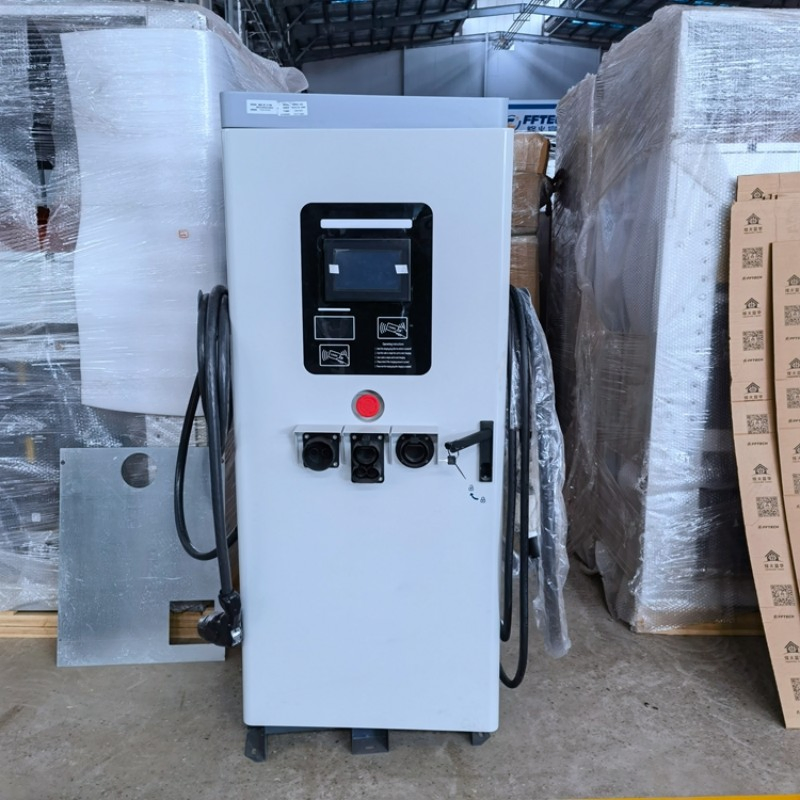

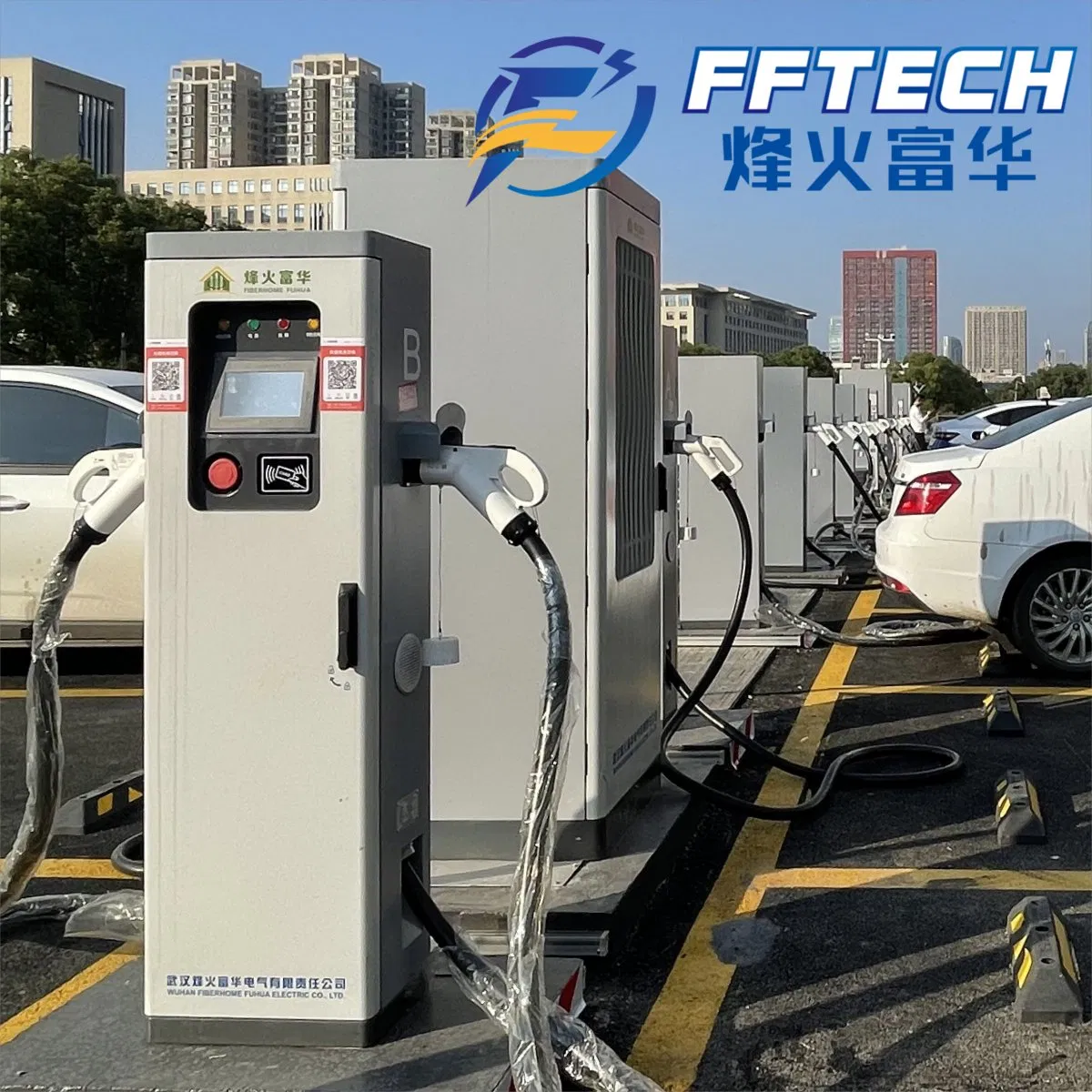

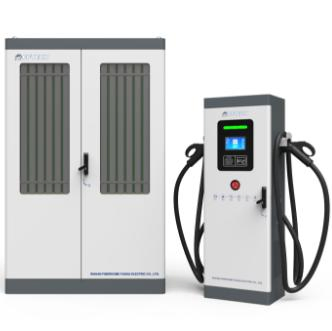

This series of products adopts a highly integrated all-in-one design, integrating the charging module, heat dissipation system, human-machine interaction, and payment function into a single cabinet. It features a compact structure and convenient deployment, suitable for public car parks, commercial centres, and other scenarios.
| Model NO. | FH-EK-240kW-600KW | Location | Public Use |
|---|---|---|---|
| Charging Interfaces | One Pile with Multiple Charges | Start Mode | Credit Card, Mobile Remote, RFID |

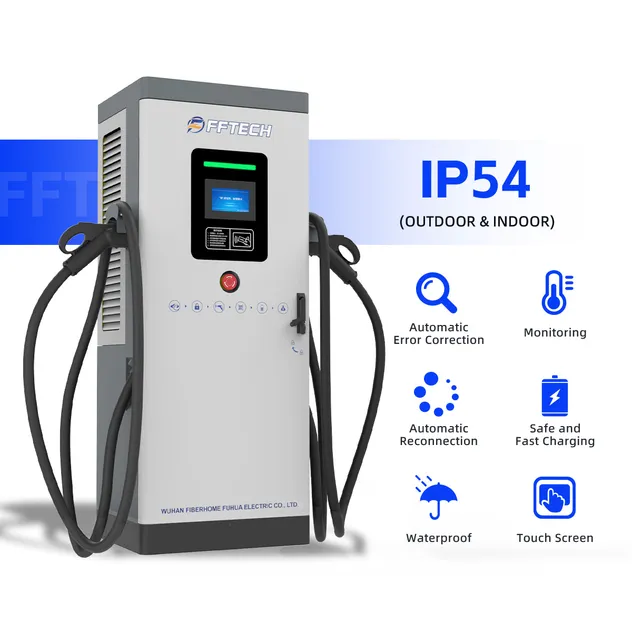

| Charge Method | Quick Charge | IP Level | IP54 |

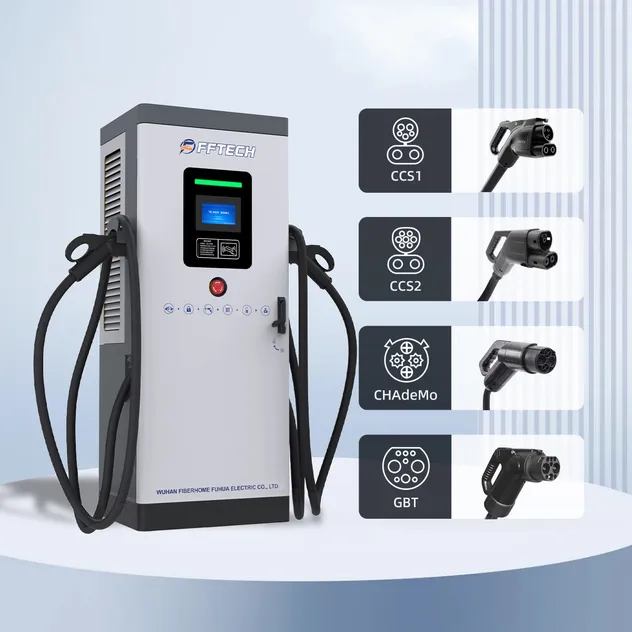

| Communication | Can, RS485, WLAN, GPRS | Connector Option | Accept 2/4/6/8 Connectors |

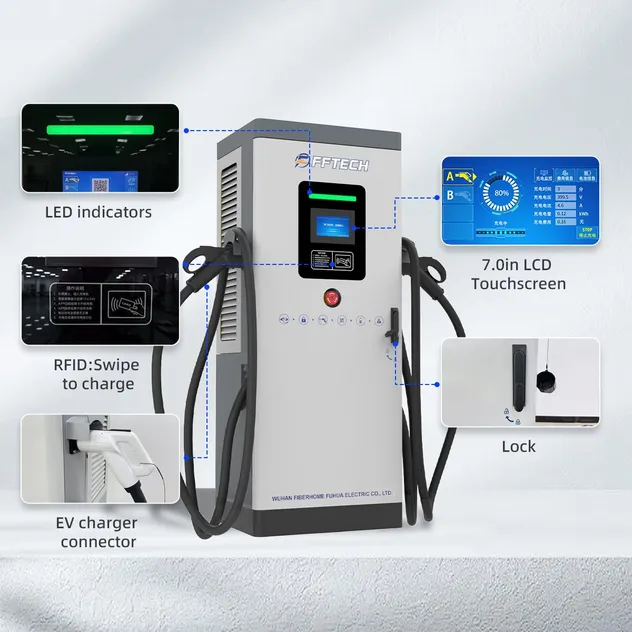

| Display | 7in LCD Display | MTBF | >8760hrs |
| Certification | CE, ISO, TUV, RoHS | Warranty | 12 Months |
| Titles | DC Charging Pile Details | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Category | 40kW | 60kW | 80kW | 120kW | 180kW | 240kW | 320kW | 360kW | 400kW |
| Input Voltage | 380VAC±15% | ||||||||
| Input Current | 65A | 98A | 131A | 196A | 294A | 392A | 523A | 588A | 653A |
| Output Voltage | DC150~1000V | ||||||||
| Efficiency | ≥95% | ||||||||
| Protocols | 4G / Ethernet / OCPP (Optional) | ||||||||
| Standards | IEC 62196, IEC61851, GB/T20234, GB/T18487 | ||||||||
