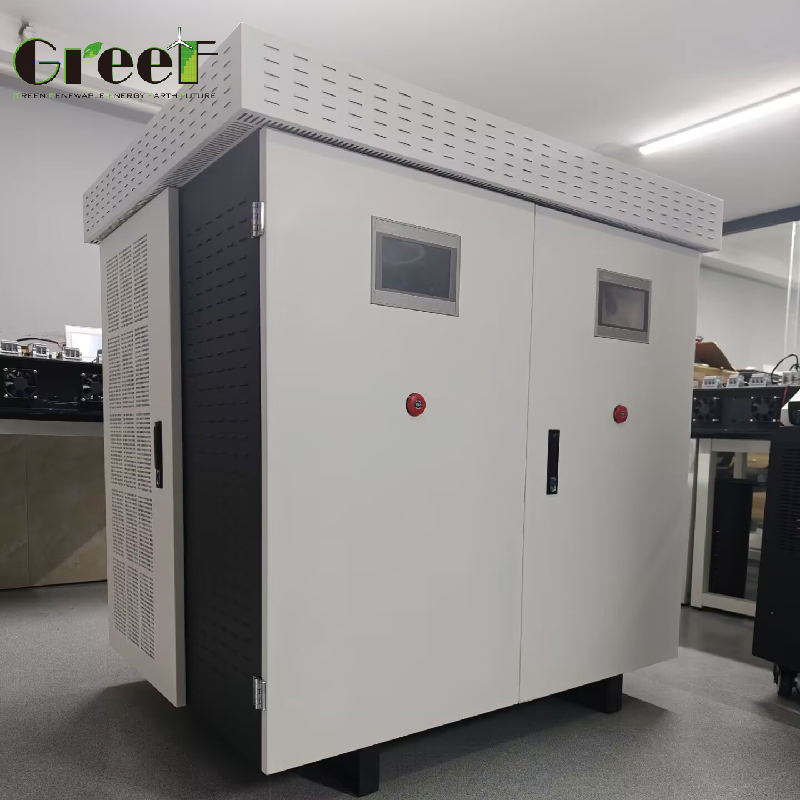

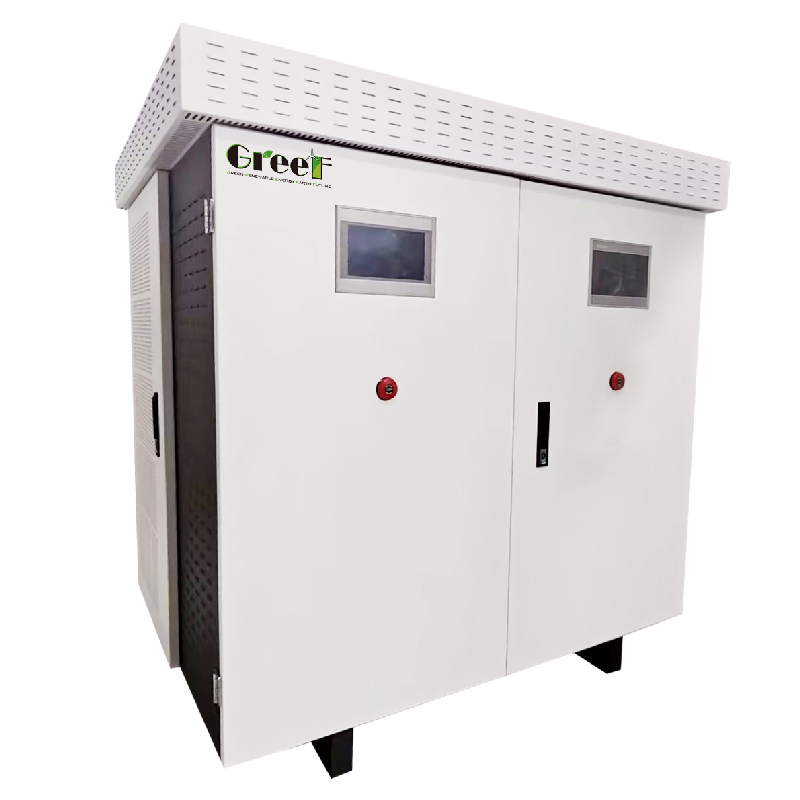

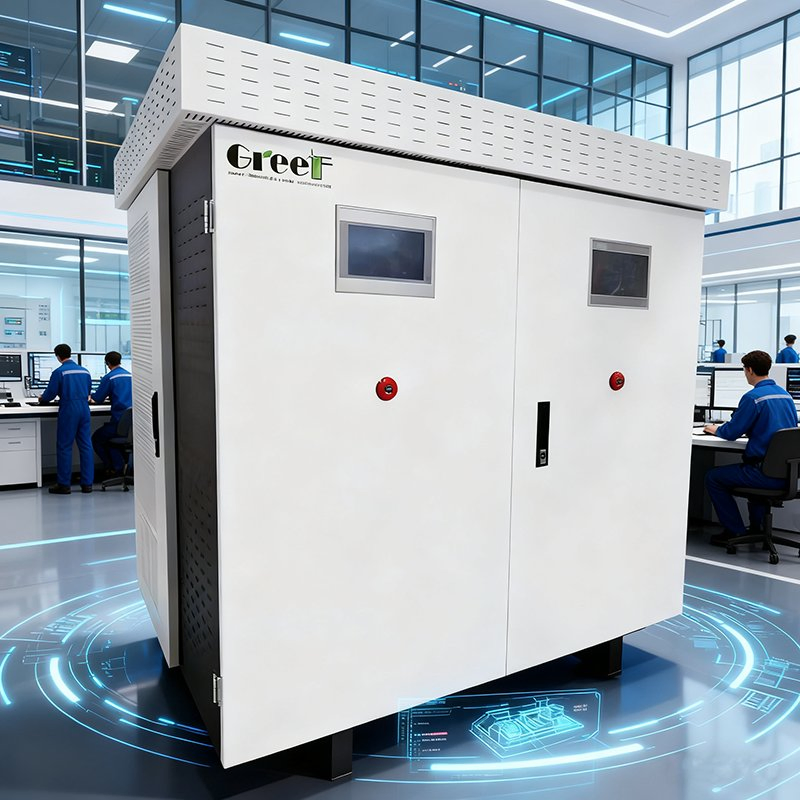

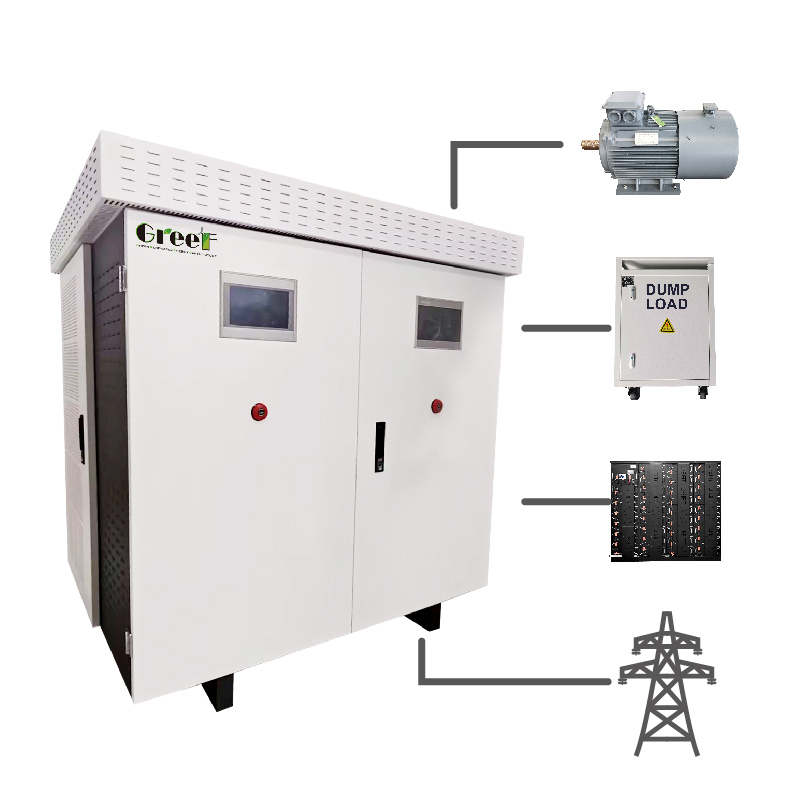

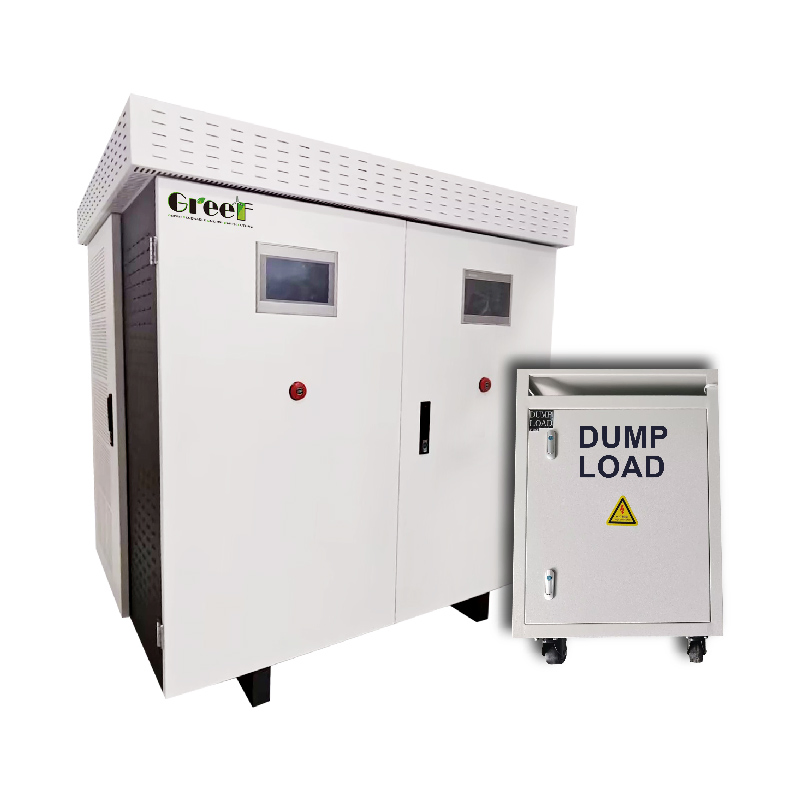

AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control
AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control
AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control
AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control
AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control
1 / 5
AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control
AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control
AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control
AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control
AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control

AC Generator-Battery Hybrid Converter with WiFi Monitoring and Water Gate Control

Customization: Available
After-sales Service: Yes
Warranty: Yes
Send Inquiry

Product Description

📊 Basic Information
Model
Mars
Condition
New
Certification
CE
Rated Voltage
400V
Power Factor
> 0.99
Cooling Method
Intelligent Air Cooling
Ambient Temp
-40℃~+60℃
Capacity
400 Set/Month
Hybrid Converter Overview
📝 Product Description
Multi-functional converter integrates AC-to-DC rectification for PM generators, battery charging, DC-to-AC inversion, and an energy management system (EMS). Utilizing advanced technology, it ensures stable voltage and frequency control for PMSGs, providing a seamless power supply for loads. It can also operate in grid-tied mode for grid charging and energy management.
🚀 Key Product Features
  • ✔ EMS smart energy management system
  • ✔ Multiple modes: Off-grid, Grid-tied, and Grid charging
  • ✔ Double LCD smart touch screen display
  • ✔ Generator power curve tracking technology
  • ✔ AC/DC dual backup for auxiliary power supply
  • ✔ Control technology for unbalanced loads
  • ✔ Standard RS 485 Modbus RTU protocol
  • ✔ Optional Water gate motor control & Remote monitoring (WiFi/LAN)

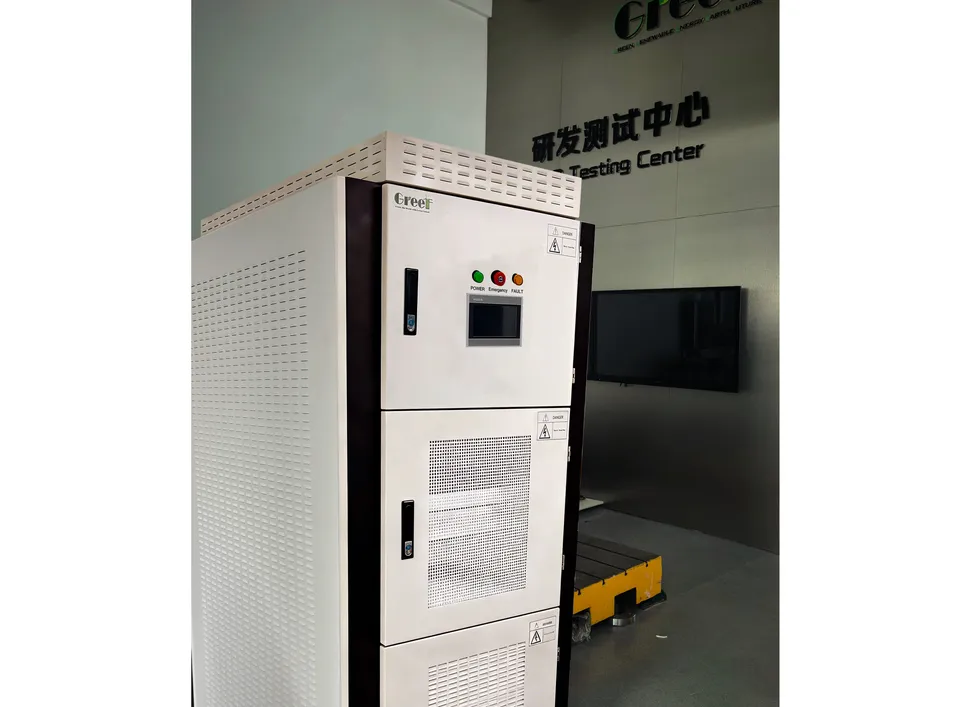

Converter Features
⚙️ Technical Parameters
Model ACPCS-100kt ACPCS-150kt ACPCS-200kt ACPCS-250kt ACPCS-300kt ACPCS-500kt
Rated Power (kW) 100 150 200 250 300 500
Rated Voltage (Vac) ≥240
AC Working Range (Vac) 150 ~ 550
Battery Type Lithium-ion
Max Efficiency (%) 95%
Protection Level IP20
Communication Ethernet, RS485, WIFI
🔍 Product Details

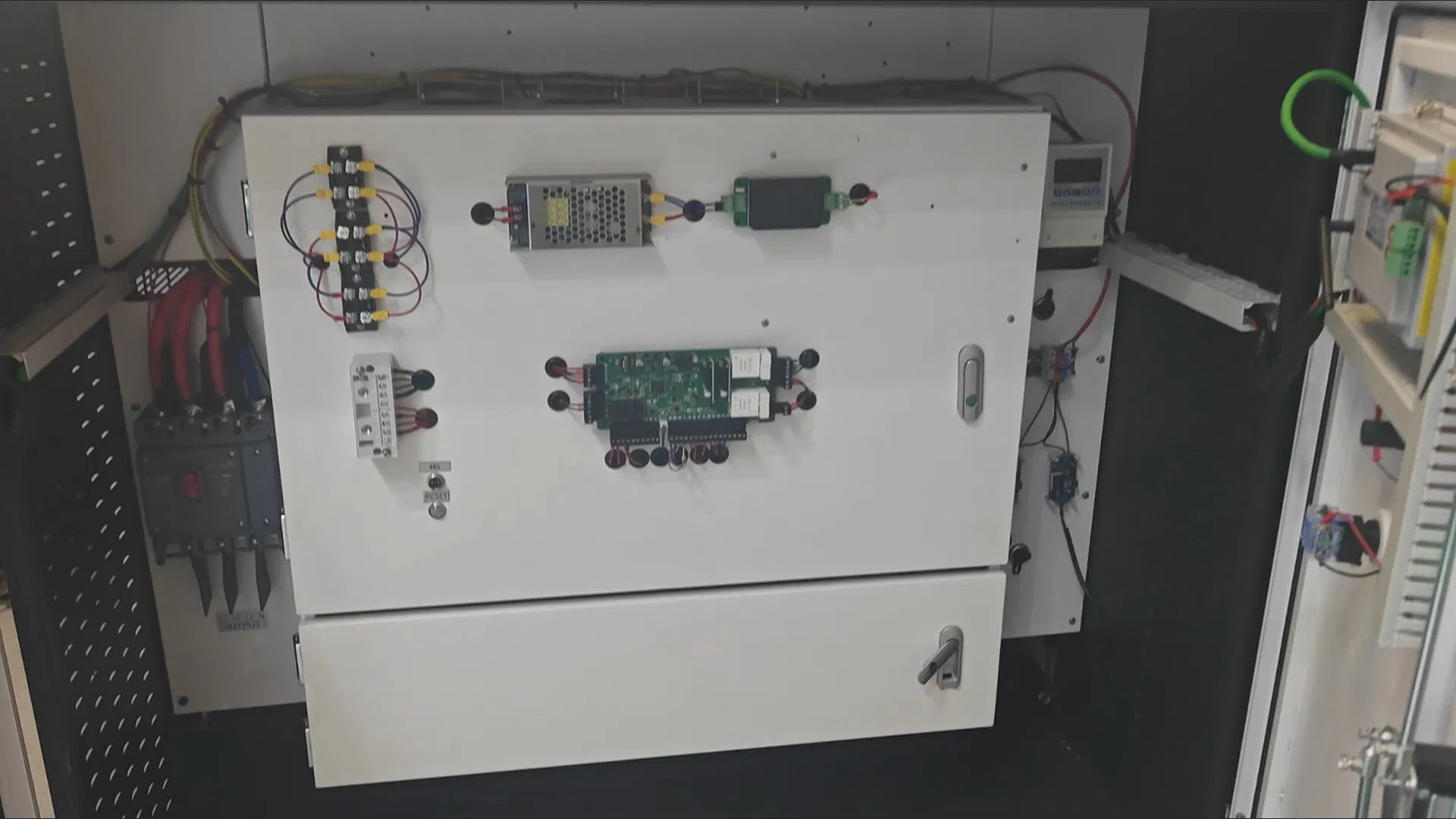

Internal Structure

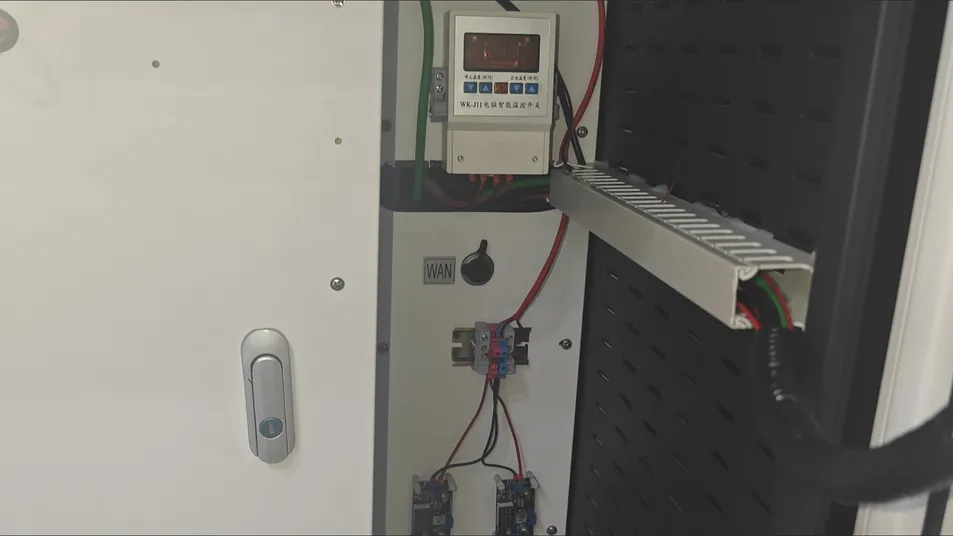

Detail View 1

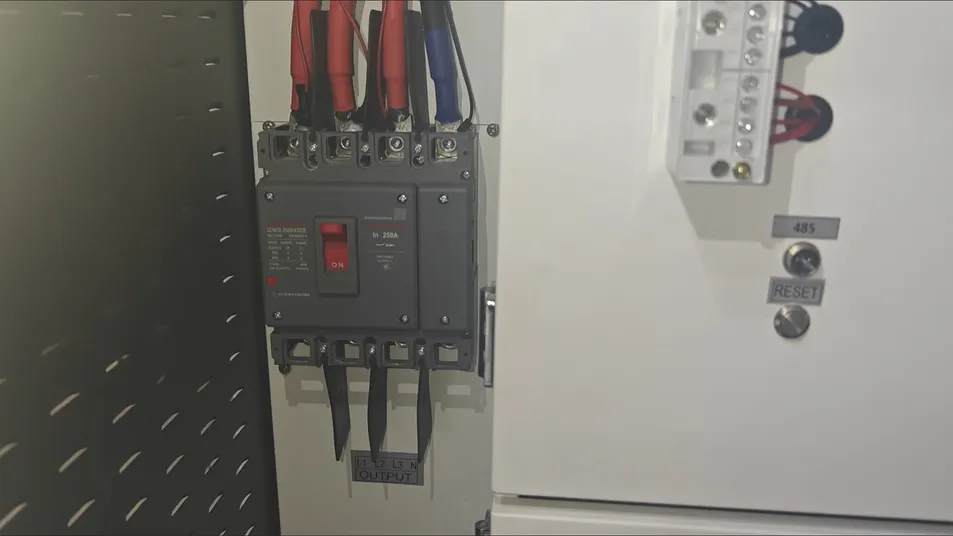

Detail View 2
💡 System Solution

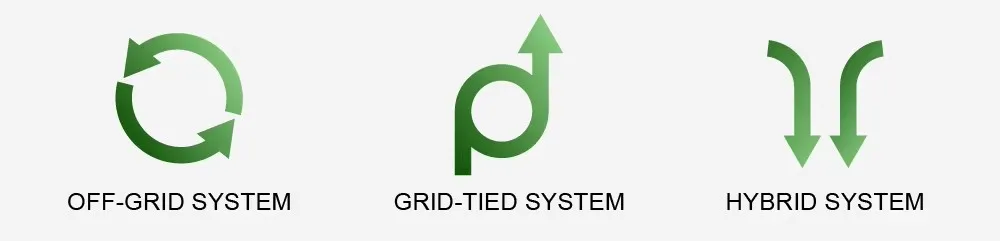

Solution Diagram 1

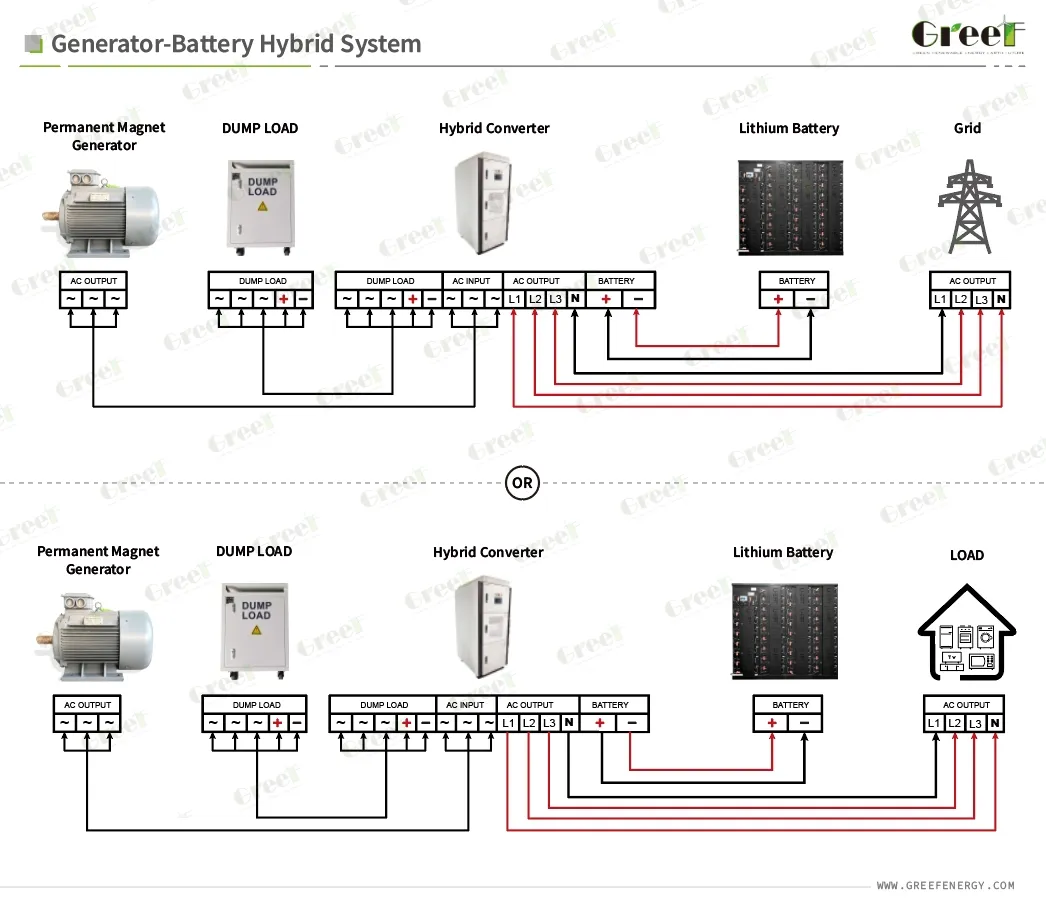

Solution Diagram 2
📦 Packaging & Shipping
Packaging Detail
⭐ Why Choose Us
Quality Control
Service Excellence
❓ Frequently Asked Questions
1. What are the main functions of this hybrid converter?
It integrates AC-to-DC rectification, battery charging, DC-to-AC inversion, and an intelligent energy management system (EMS) for comprehensive energy control.
2. Does the system support remote monitoring?
Yes, the converter supports optional WIFI, LAN, and Ethernet communication for remote monitoring and control via a dedicated app.
3. Can it work in both off-grid and grid-tied environments?
Absolutely. It features multiple configurable operating modes, including off-grid, grid-tied, and grid charging to suit various application scenarios.
4. What type of batteries can be used with this converter?
The system is optimized for Lithium-ion batteries, and the battery voltage range is customizable to meet specific project requirements.
5. How is the system protected against overloads?
The converter includes AC short-circuit protection, overcurrent protection, and surge protection (Level 2), along with optional over-voltage and over-speed protection.
6. What display information is available on the touch screen?
The dual LCD display shows generator speed, input/output voltage and current, power generated (daily/monthly/yearly), and allows for power curve settings.
