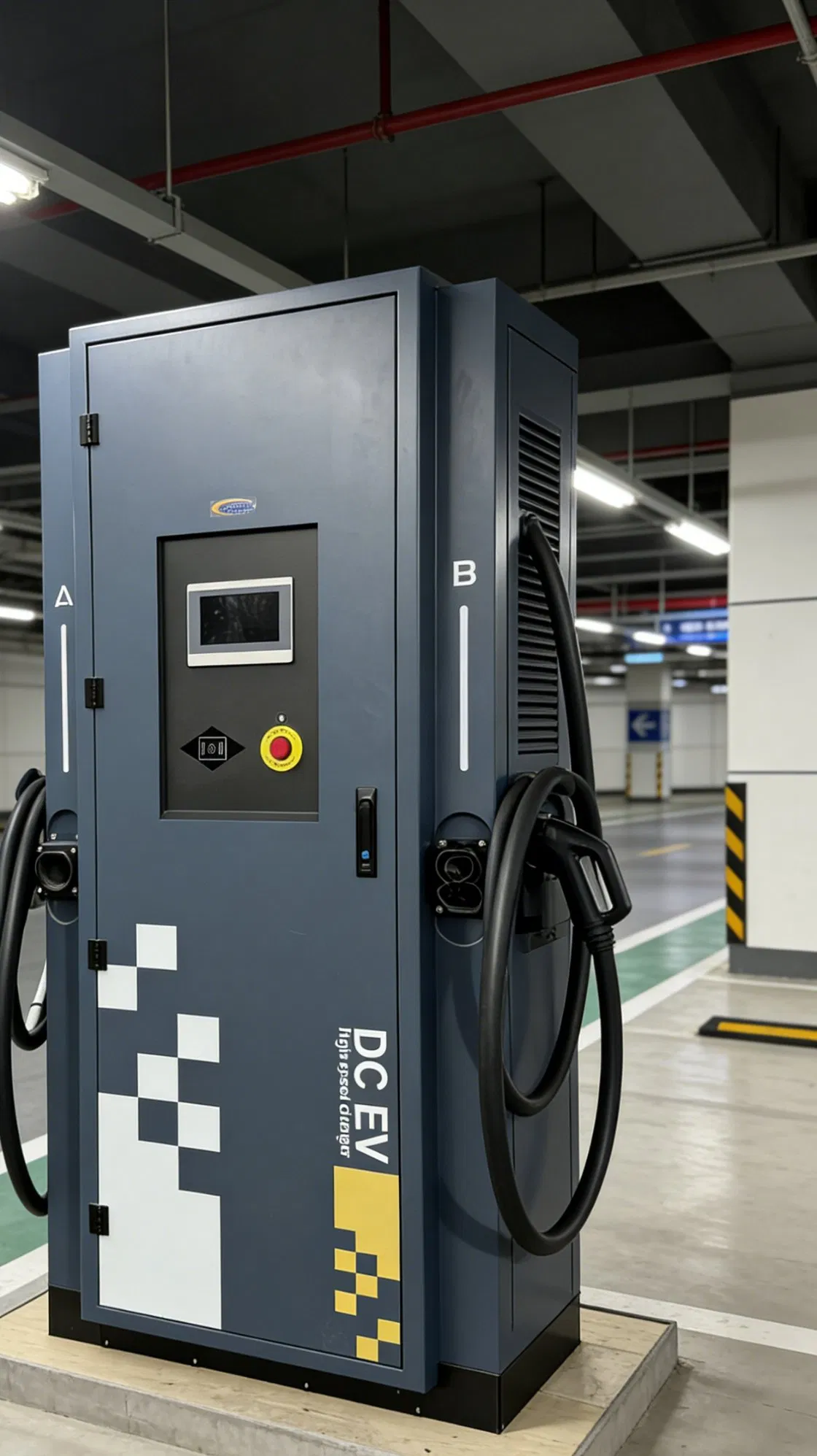

80kw Ocpp-Compatible DC Charging Station Electric Car Charger with Remote Monitoring for Public Charging Network Management

1 / 5

80kw Ocpp-Compatible DC Charging Station Electric Car Charger with Remote Monitoring for Public Charging Network Management

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

ModelMS10

Start ModeCredit Card, Mobile App, RFID

Rated Power≤240kw

Input Voltage400VAC / 480VAC

ProtectionIP54 IK10

Weight360kg - 440kg

Product Description

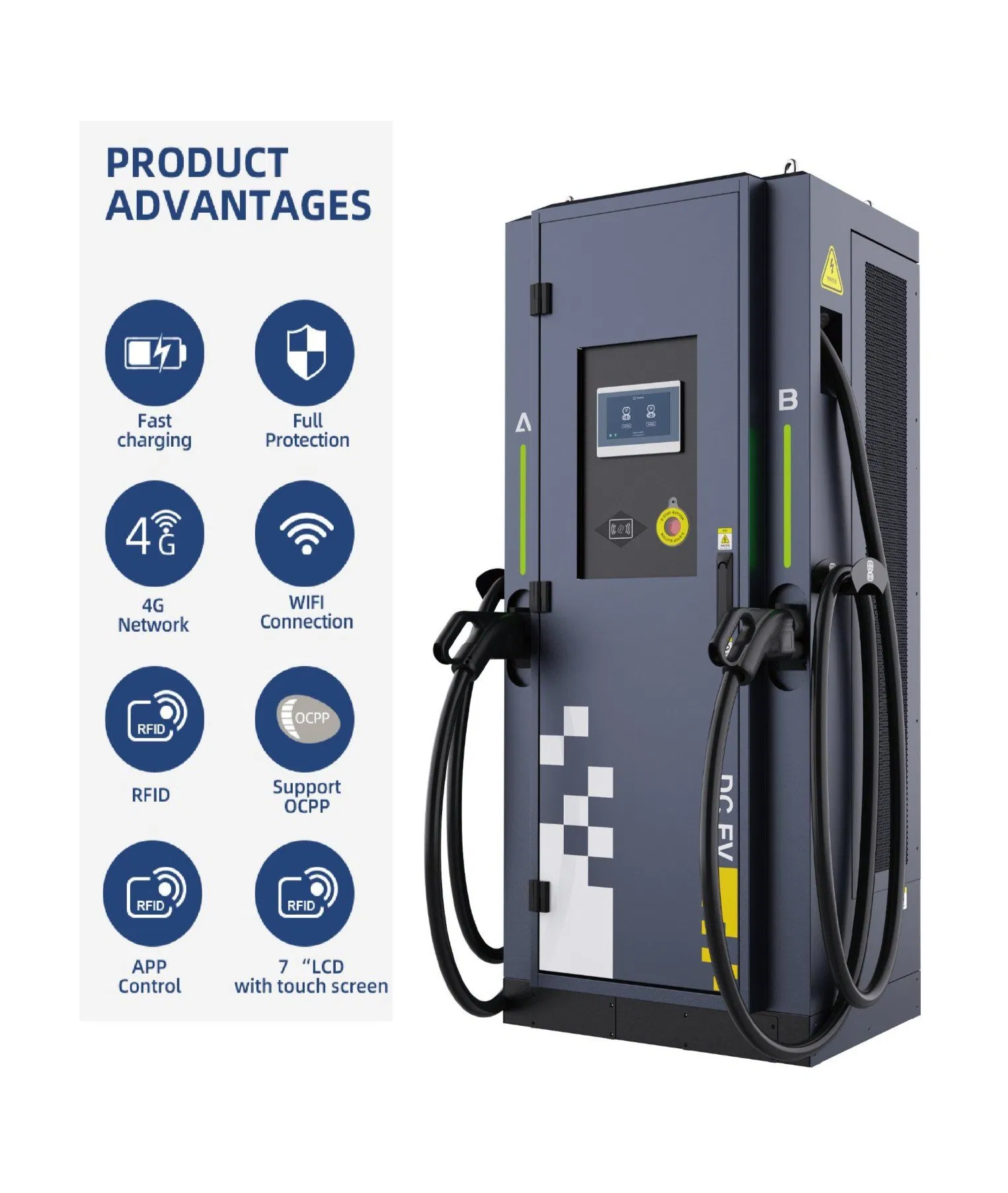

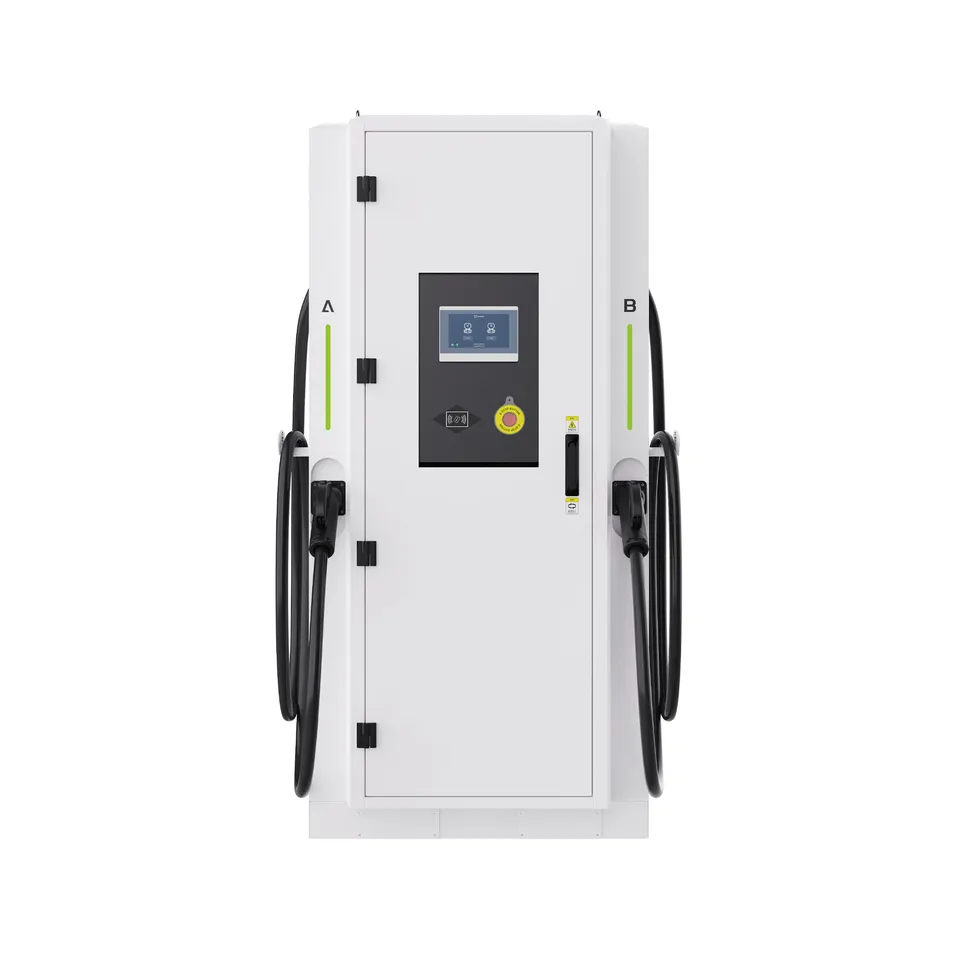

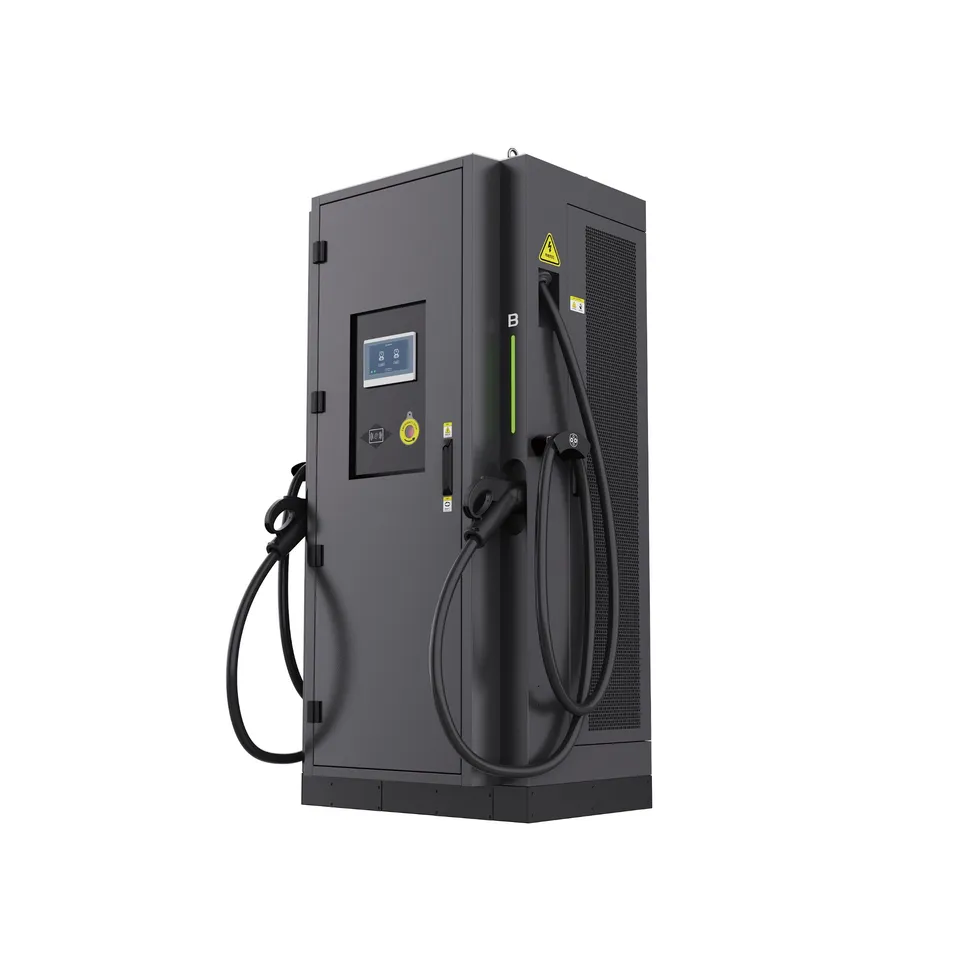

60-240kW Series DC EV Charger

This 60-240kW series DC EV charger focuses on "compact capacity + powerful performance": with an elegant yet rugged cabinet design, it has a smaller cabinet capacity while supporting power expansion up to 240kW — balancing spatial adaptability and high-power demands. Equipped with dual charging guns, it enables simultaneous fast charging for two vehicles, quickly meeting the energy replenishment needs of different models, and is widely suitable for most charging scenarios such as public charging stations, commercial parks, and logistics hubs.

In terms of performance and functionality, it supports parallel charging and adjustable output power, with an output voltage range of 200-1000VDC and a peak efficiency of 96%. Paired with air-cooled heat dissipation, it operates stably in a wide temperature range of -30°C to 75°C. It features a 7-inch touch screen, a built-in RFID reader, and is compatible with the OCPP protocol and multiple platforms.

Technical Specification

Category	Parameter	Details
Structure	Dimensions	900mm x 700mm x 1900mm
	Cable Length	5m - 7m
	Connectors	GBT, CCS2, CCS1, CHAdeMO, NACS
	Cooling	Air Cooled
Electrical	Input Voltage	400VAC / 480VAC (3P+N+PE)
	Output Voltage	200 - 1000VDC
	Peak Efficiency	≥96%
	Power Factor	>0.99
Environment	Operating Temp	-30°C to 75°C
	Altitude	< 2000m
	Protection	IP54 \|\| IK10

Frequently Asked Questions

What is the warranty period for the charger?

The warranty ranges from 12 to 60 months. During this period, we provide technical support and free replacement parts.

What are your terms of packing?

We use standard wooden box packaging or standard carton packaging to ensure the safety of the equipment during transport.

What is the typical delivery time?

Generally, it takes 5 to 25 working days after receiving advance payment, depending on the items and order quantity.

Do you test all goods before delivery?

Yes, we perform 100% testing on all products before they are dispatched to ensure quality and safety.

What is the difference between a Movable Charger and a Wallbox?

The main difference is mobility. Movable chargers are for flexible, temporary use, while Wallbox chargers are fixed installations for consistent charging locations.

What power output range can you produce?

We can produce charging solutions ranging from 20kW up to 1.5MW.
